USER MANUAL IS360.2 i.safe Mobile

OPERATING MANUAL

IS360.2

Document No. 1057MM10REV00

Version: 2021-11-04

(c) 2021 i.safe MOBILE GmbH

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel. [phone]

[e-mail]

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....18

Česky 32

Dansk....46

Español....60

Suomi....74

Français....88

Magyar 102

Italiano 116

Nederlands 130

Norsk 144

Polski 158

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS360.2 (model M360A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Also read the Safety Instructions before using the device. You can find these at www.isafe-mobile.com/en/support/downloads.
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads.
» Follow all instructions given on the device and on the packaging.
»Follow local safety regulations.

INTENDED USE

The IS360.2 is an Internet-capable communication device for industrial use in explosion hazardous areas of Zone 2/22, in accordance with Directives 2014/34/EU, 1999/92/EC and the IECEx system, among others.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at

www.isafe-mobile.com/en/support/service.

For any damage caused by computer viruses that you download while using the Internet functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU DECLARATION OF CONFORMITY

You will find the EU declaration of conformity at

www.isafe-mobile.com/en/support/downloads.

FCC/IC STATEMENT

The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads.

EX MARKINGS

ATEX:

Ea II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

EU Type Examination Certificate:

EPS 21 ATEX 1 126 X

CE-designation: C€

IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

IECEx Certificate: IECEx EPS 21.0043X

> Temperature range:

-10°C ... +50°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

DEVICE OVERVIEW/FUNCTIONS

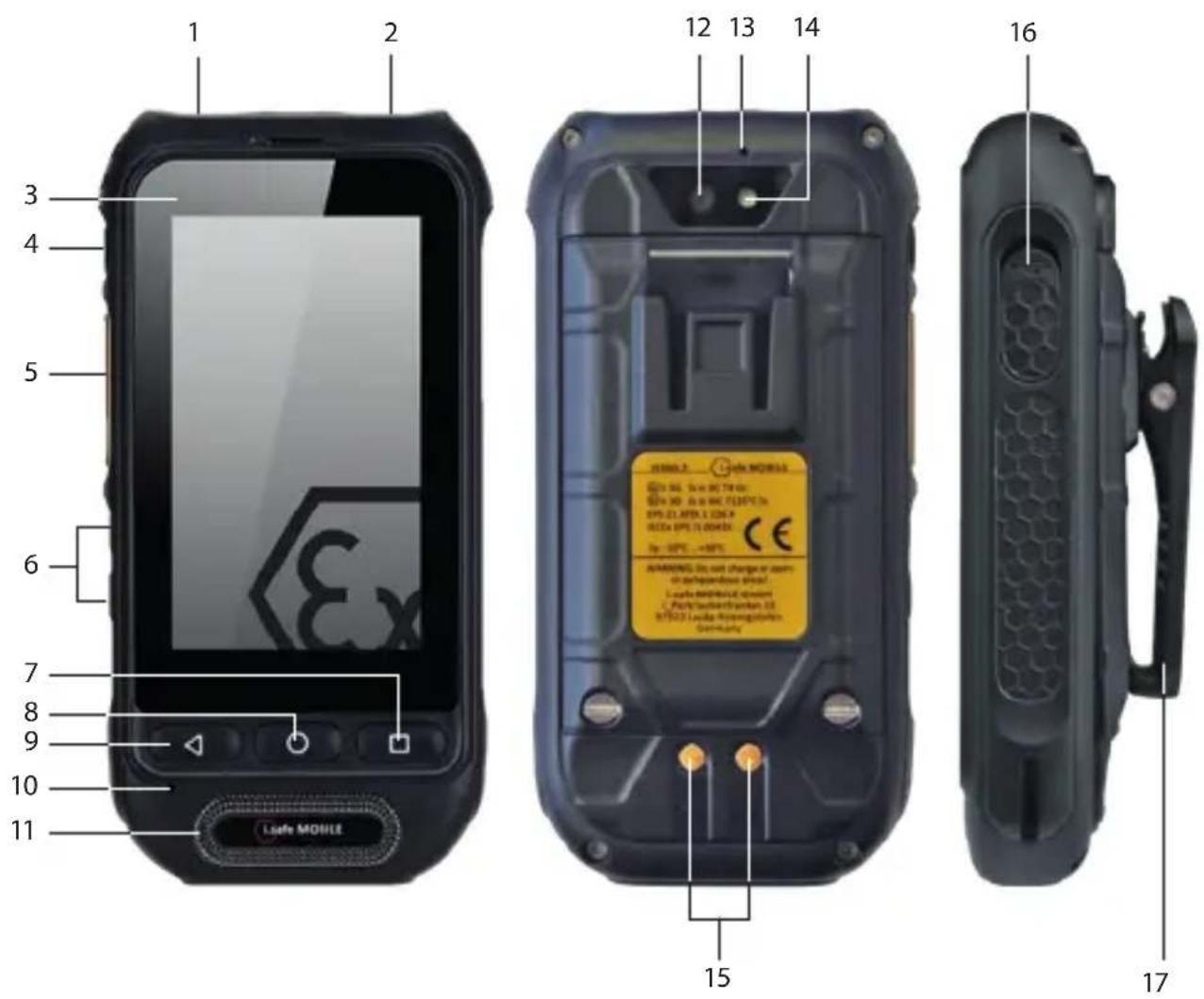

1 2 3 4 5 6 7 8 9 10 11 Light MOBILE [phone] ECG SINTEL® SAIN MOBILE © 18.0. SHAKETRA © 18.0. SHAKETRA SPC CLAPR 1.024 RIOX SPIC 1.0043 No: 100% - 100% WARNING: No text should be used. I. Pachanakkarla Karami 13 WTO22 Laike Hohanggateln Germany

1) EARPHONE JACK
2> FUNCTION KEY: Optional function (can be assigned via apps used).
3) STATUS LED: Display for notifications and charging status.
4) POWER KEY: A long press switches the device on/off. A short press switches the standby mode on/off.
5> FUNCTION KEY: Optional function (can be assigned via apps used).
6) LOUDNESS CONTROL: Volume up/Volume down.
7) CURRENT APPLICATION: Shows all open applications.
8) HOME KEY: Switch to the main screen.
9> BACK KEY: Go to the previous screen.
10> MICROPHONE
11 > LOUDSPEAKER
12>BACK CAMERA
13) MICROPHONE: Noise cancelling microphone/hands-free microphone.
14>LED FLASH
15> CHARGING CONTACTS

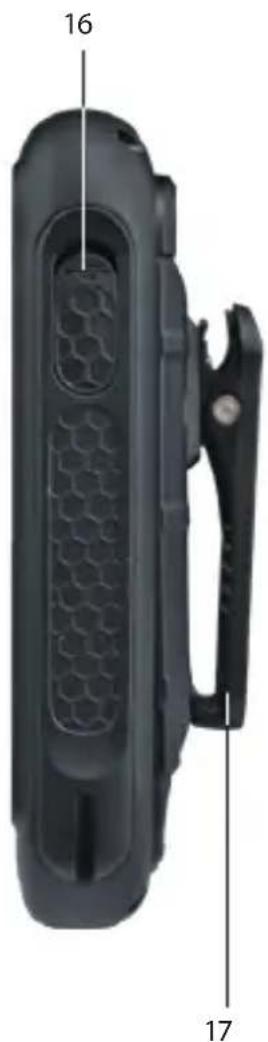

16> USB INTERFACE: Connection for the Type C USB Cable or for connection to other devices. Also see sections "Charging" and "Connecting approved accessories".
17> BELT CLIP

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Only use the device in explosion hazardous areas of zones 2/22 or outside of explosion hazardous areas.
» Before entering a explosion hazardous area with the device,

• make sure that only approved accessories are connected to the device, see section "Connecting approved accessories",
  • make sure that no gap can be seen between the two halves of the device,
  • make sure the device is not damaged,
  • make sure that all the labels on the device are readable,
  • make sure the battery compartment is screwed tight.

» If you use the device in a explosion hazardous area, read and follow the instructions in the "Possible User Errors" section.
» Switch off the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the labels on the device are no longer readable.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Do not use the device in places where its use is prohibited.
» Turn off the device in clinics or other medical facilities.
» Always keep a safety distance of at least 15 cm between the device and a pacemaker or hearing aid. The device can affect the functioning of medical devices such as pacemakers and hearing aids.
» When using the device while driving a motor vehicle, be sure to comply with applicable national laws.
» Make sure you prevent the user errors described in the section entitled "Possible User Errors".
» Only charge the device as described in the "Charging" section.

CAUTION

When using earphones or headsets at the maximum volume setting, you can damage your hearing.

» First set the volume control on the device to 50 % of the maximum volume.

» Gradually adjust the volume.

NOTICE

Incorrect use can damage the device.

» Only use accessories approved by i.safe MOBILE, as described in the section on "Connecting approved accessories".

» Protect the device and the Power Adapter from strong electrical magnetic fields as for example those emitted by induction cookers or microwave ovens, for example.

» Protect the device from high mechanical hazards, strong UV radiation and highly electrically charging processes.

» Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.

» Do not expose the device to high temperatures.

» Do not expose the device to strong UV radiation.

» Do not expose the device to processes with high electrical charges.

» Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

» Do not loosen the screws on the device.

» Do not connect any accessories to the device.

» Do not open any interface cover.

» Do not charge the device.

» Do not open the device.

» Do not damage the device.

SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS360.2

1 x Battery

1 x Quick Start Manual

1 x Safety Instructions

1 x Display Protection Foil

1 x Type C USB Cable
1 x Power Adapter universal (power supply unit and various country-specific adapters)

1 x Screwdriver
1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to all recipients within a cell.

>INSTALLING THE BATTERY

DANGER

Installing the wrong battery in the device, poses a risk of explosion, which could result in death or serious injuries! Only fit the battery supplied or an approved replacement battery in the device outside of explosion hazardous areas. The approved replacement battery can be found on the website www.isafe-mobile.com/en/products.

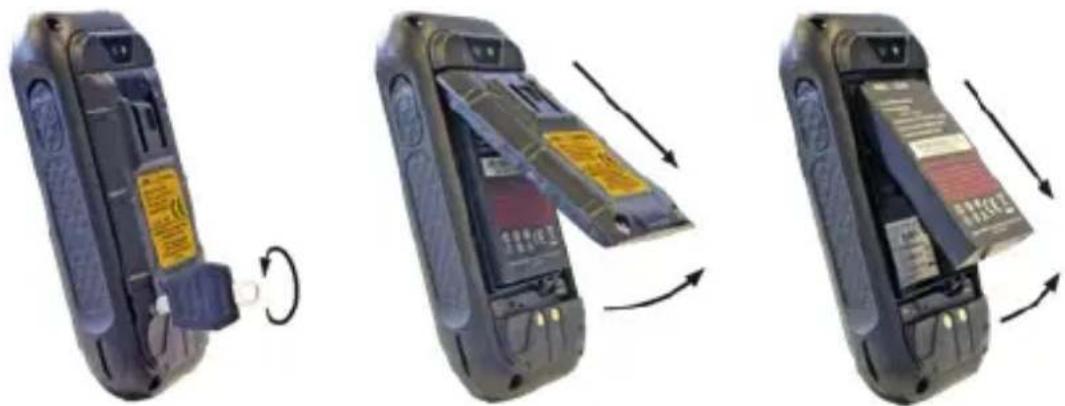

Two views of a mobile phone showing internal components and a circular arrow indicating rotation (no text or symbols present)

» Loosen the screws on the battery compartment using the Screwdriver provided.
» Remove the battery compartment cover.

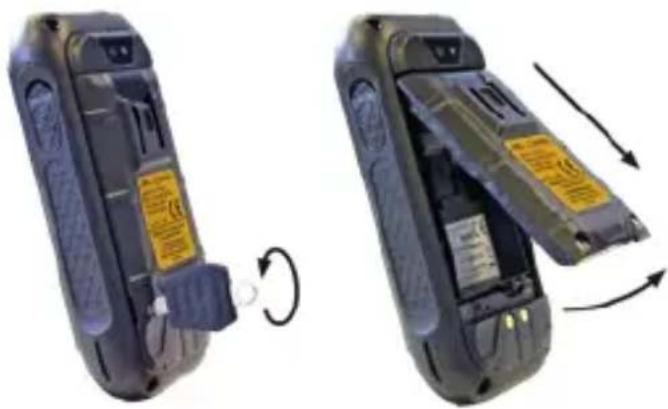

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

» Place the battery in the battery compartment as shown.
» Check that the battery is seated correctly and securely.
»Reinstall the battery compartment cover and hand-tighten the screws using the Screwdriver provided.

INSERT/REMOVE SIM CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the SIM card.

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and the SIM card. Switch off the device before inserting or removing a SIM card. Do not charge the device while inserting or removing a SIM card.

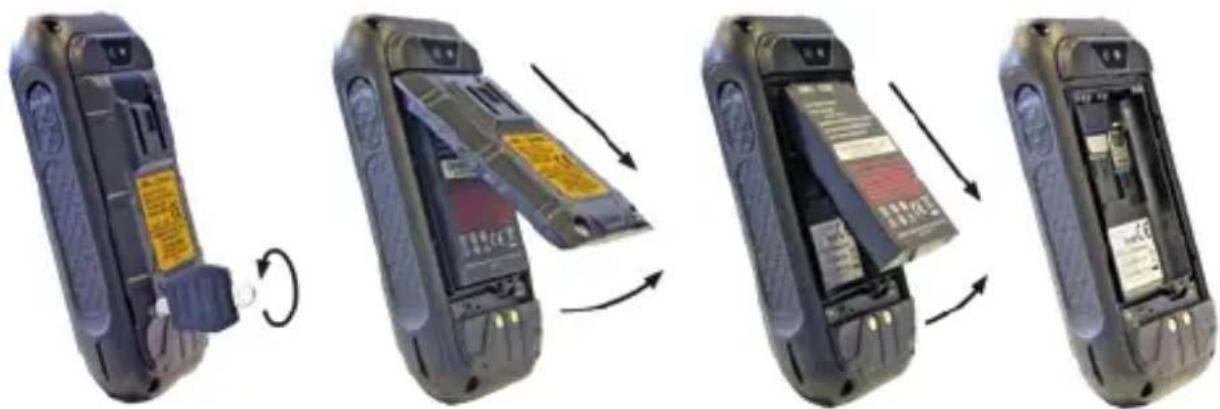

Four-panel diagram showing a mobile phone's internal components and battery compartment, arranged in sequence (no text or symbols)

»Loosen the screws on the battery compartment using the Screwdriver provided.
» Remove the battery compartment cover.
» Remove the battery from the battery compartment.
» Insert the SIM card into the slot. The device has two slots for one SIM card each. The slots are marked „SIM 1“ and „SIM 2“.
» If you have inserted two SIM cards, select a favorite card. Information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item „FAQ”.
»Reinstall the battery. See section "Installing the battery".

INSERT/REMOVE MICROSD CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the microSD card.

NOTICE

Proceeding incorrectly when inserting/removing the microSD card can damage the device and the microSD card. Switch off the device before inserting or removing a microSD card. Do not charge the device while inserting or removing a microSD card.

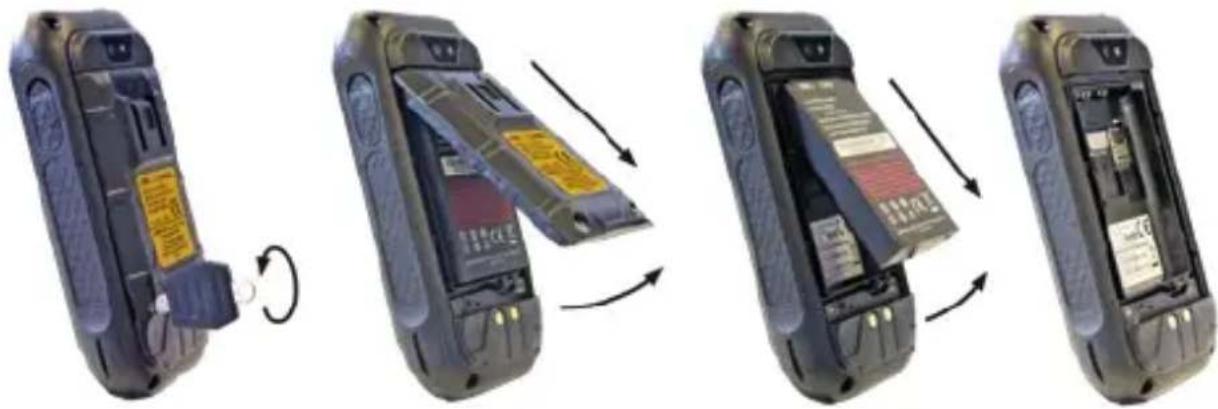

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

»Loosen the screws on the battery compartment using the Screwdriver provided.
» Remove the battery compartment cover.
» Remove the battery from the battery compartment.
» Insert the microSD card into the slot provided. The device has a slot for a microSD card up to 128 GB. The slot is marked "microSD".
»Reinstall the battery. See section "Installing the battery".

>CHARGING

DANGER

An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries! Only charge the device outside of explosion hazardous areas. Do not charge the device in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

» Only charge the device using the Type C USB Cable supplied.
» Only charge the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F).
» Charge the device under dry indoor conditions only.
» Do not charge the device in environments dusty or humid.

Your device package contains a power supply unit, various country-specific adapters, an Type C USB Cable.

» Connect the adapter suitable for your country to the power supply unit.
» Connect the Type C USB Cable to the power supply unit.
» Connect the Type C USB Cable to the USB interface of the device.

> SWITCHING ON/OFF

» Press and hold the on/off key for about 3 seconds.
» Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after switching on.
» Select the menu item if the power off menu appears when switching off.

USING THE DEVICE

» When turning on the device for the first time, follow the instructions on the screen.

Further information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

> CONNECTING APPROVED ACCESSORIES

» Only connect accessories approved by i.safe MOBILE to the device. Accessories approved by i.safe MOBILE can be found at www.isafe-mobile.com/en/products.

Approved accessories can be connected to the USB interface.

USB INTERFACE

DANGER

Improper use can result in death or severe injuries! Only use USB interface outside of explosion hazardous areas. Under no circumstances should you open the cover of the USB interface in explosion hazardous areas.

The USB interface is used for charging and data transfer.

» Connect approved accessories or other devices to the USB interface only by using the Type C USB Cable.

CHANGING THE BATTERY

WARNING

If you replace the battery with the wrong battery in the device, there is a risk of explosion, which could result in death or serious injuries! Only replace the battery with an approved replacement battery outside of explosion hazardous areas. An approved replacement battery can be found on the website www.isafe-mobile.com/en/products.

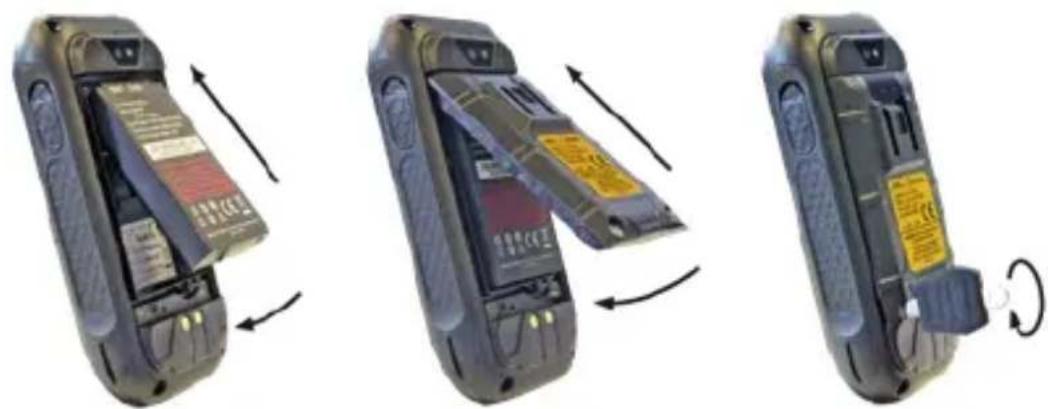

Three-panel image showing a mobile phone's open rear, battery pack, and cable roll (no text or symbols visible)

» Loosen the screws on the battery compartment using the Screwdriver provided.
» Remove the battery compartment cover.
» Remove the battery from the battery compartment.

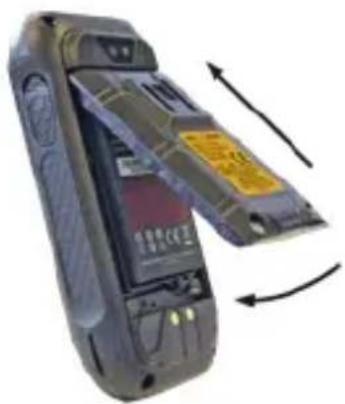

Three-step illustration of a mobile phone's internal components, showing battery, cable, and scroll (no text or symbols)

» Place the approved replacement battery in the battery compartment.
» Check that the battery is seated correctly and securely.
»Reinstall the battery compartment cover and hand-tighten the screws using the Screwdriver provided.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service.

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service.

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact.

CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Turn off the device before cleaning.

» Do not charge the device while cleaning.

» Do not use chemical agents for cleaning.

» Clean the device and the Power Adapter with a soft, moistened antistatic cloth.

» Clean the display screen regularly with a soft, antistatic cloth.

>STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.
» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service.

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.

All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

Two views of a mobile phone showing internal components and a scroll, with no visible text or symbols.

Three-step illustration of a mobile phone's internal components, showing battery, casing, and scroll (no text or symbols)

Four-panel diagram showing a mobile phone's internal components and shipment process, with no visible text or symbols.

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

www.isafe-mobile.com/en/support/downloads.

PROHLÁŠENÍ FCC/IC

Prohlášení FCC/IC najdete na webu www.isafe-mobile.com/en/support/downloads.

ZNAČENÍ SOUVISEJÍCÍ S NEBEZPEČÍM VÝBUCHU

ATEX:

Ea II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIC T135°C Dc

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a sequence (no text or symbols visible)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a sequence (no text or symbols visible)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a sequence (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

www.isafe-mobile.com/en/support/service.

DETAILPARTNER

Du kan finde den specialiserede detailpartner med ansvar for dit land på www.isafe-mobile.com/en/contact.

RENG∅RING

BEMÆRK

www.isafe-mobile.com/en/products.

Two views of a mobile phone showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three-panel illustration of a mobile phone showing internal components and battery release (no text or symbols)

Four-panel image showing a mobile phone's open and closed states, with visible internal components and battery labels (no text or symbols)

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing the device being transferred, with no visible text or symbols.

Three-panel illustration of a mobile phone showing internal components and a scroll wheel (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a sequence (no text or symbols visible)

Four-panel diagram showing a mobile phone's internal components and battery casing, arranged in a row (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone showing internal components and battery release (no text or symbols)

DÉCLARATION DE CONFORMITÉ UE

Certification CE: CC

>IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

Certificat IECEx: IECEx EPS 21.0043X

> Plage de temperature:

-10°C ... +50°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Fabrique par:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Allemagne

SYNOPTIQUE DES APPAREILS / FONCTIONS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

Two views of a mobile phone showing internal components and a scroll wheel (no text or symbols visible)

Three-step illustration of a mobile phone's internal components, showing battery release and disassembly (no text or symbols)

Four-panel diagram showing a mobile phone's internal components and battery assembly, no text or symbols present.

Four-panel diagram showing a mobile phone's internal components and battery casing, arranged in a row (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's internal components, showing battery, switch, and scroll (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's internal components, showing battery release and rotation (no text or symbols)

Four-panel image showing a mobile phone's internal components and shipment process, with no visible text or symbols.

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and rotation (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

www.isafe-mobile.com/en/support/service.

www.isafe-mobile.com/en/support/downloads.

DICHIARAZIONE FCC/IC

www.isafe-mobile.com/en/support/downloads.

USO IN AREE A RISCHIO DI ESPLOSIONE

PERICOLO

USO FUORI DALLE AREE A RISCHIO DI ESPLOSIONE

PERICOLO

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's internal components, showing battery, switch, and scroll (no text or symbols)

Four-panel diagram showing a mobile phone's internal components and battery assembly, no text or symbols present.

Four-panel image showing a mobile phone's internal components and shipment process, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open and closed states, showing internal components and battery casing (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel image showing a mobile phone's internal mechanism: disassembly, folding, and reassembly (no text or symbols visible)

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

»Løsne skruene i batterirommet med den medfølgende skrutrekkeren.

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

VEDLIKEHOLD / REPARASJON

Two views of a mobile phone showing internal components and a circular arrow indicating rotation (no text or symbols present)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a sequence (no text or symbols visible)

Four-panel diagram showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open and closed states, showing internal components and battery casing (no text or symbols)

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

www.isafe-mobile.com/en/support/service.

www.isafe-mobile.com/en/support/downloads.

www.isafe-mobile.com/en/products.

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-panel illustration of a mobile phone showing internal components and a close-up of the interior (no text or symbols visible)

» Posicione a bateria no compartimento de bateria conforme exibido.
» Verifique se a bateria está encaixada corretamente e com firmeza.
» Instale a tampa do compartimento de bateria e aperte firmemente os parafusos utilizando a chave de fenda fornecida.

>INSERIR/REMOVER CARTÃO SIM

PERIGO

Four-panel image showing a mobile phone's internal components and battery casing, arranged in a sequence (no text or symbols visible)

Four-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

» Solte os parafusos no compartimento de bateria com a chave de fenda fornecida.

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

» Solte os parafusos no compartimento de bateria com a chave de fenda fornecida.
» Retire a tampa do compartimento de bateria.
»Remova a bateria do compartimento de bateria.

Three-step illustration of a mobile phone's internal components, showing battery, switch, and scroll (no text or symbols)

www.isafe-mobile.com/en/support/service.

www.isafe-mobile.com/en/support/downlovads.

ЗАЯВЛЕНИЕ FCC/IC

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Four-panel image showing a mobile phone's open and closed states, with one device being rotated (no visible text or symbols)

Three-step illustration of a mobile phone's internal components, showing the left, side, and top views with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

» Lossa skruvarna vid batteriutrymmet med den medlevererade skruvmejseln.
»Ta bort locket till batteriutrymmet.

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

Close-up of a mobile phone casing showing internal components and directional arrows indicating movement (no readable text or symbols)

Close-up of a mobile phone showing its open rear panel with a partially visible card and battery, no text or symbols visible.

Close-up of a handheld electronic device with a yellow label and circular arrow indicating rotation (no visible text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

» Otpustite vijke na pretincu za bateriju isporučenim odvijačem.
» Skinite poklopac pretinca za baterije.

Three-step illustration of a mobile phone's internal components, showing battery release and disassembly (no text or symbols)

» Postavite bateriju u odjeljak za bateriju prema prikazu.
» Provjerite da je baterija pravilno učvršćena.
» Ponovo montirajte poklopac pretinca za bateriju i isporučenim odvijačem čvrsto stegnite vijke

UMETANJE/UKLANJANJE SIM KARTICE

OPASNOST

Neodgovarajući postupak u područjima ugroženima eksplozijom predstavlja opasnost od smrti ili teških ozljeda! Otvarajte uređaj samo izvan područja ugroženih eksplozijom da biste umetnuli ili uklonili SIM karticu.

NAPOMENA

Neodgovarajući postupak pri umetanju/uklanjanju SIM kartice može oštetiti uređaj i SIM karticu. Isključite uređaj prije umetanja ili uklanjanja SIM kartice. Ne punite uređaj za vrijeme umetanja ili uklanjanja SIM kartice.

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

» Otpustite vijke na pretincu za bateriju isporučenim odvijačem.
» Skinite poklopac pretinca za baterije.
» Uklonite bateriju iz odjeljka za bateriju.
» Umetnite SIM karticu u utor. Uređaj ima dva utora za po jednu SIM karticu. Utori su označeni kao „SIM 1“ i „SIM 2“.
» Ako ste umetnuli dvije SIM kartice, odaberite omiljenu karticu. Informacije o radu uređaja možete pronaći na www.isafe-mobile.com/en/support/service po stavkom izbornika „FAQ“.
» Ponovno ugradite bateriju. Pogledajte odlomak „Ugradnja baterije“.

UMETANJE/UKLANJANJE MICROSD KARTICE

OPASNOST

Neodgovarajući postupak u područjima ugroženima eksplozijom predstavlja opasnost od smrti ili teških ozljeda! Otvarajte uređaj samo izvan područja ugroženih eksplozijom da biste umetnuli ili uklonili microSD karticu.

NAPOMENA

Neodgovarajući postupak pri umetanju/uklanjanju microSD kartice može oštetiti uređaj i microSD karticu. Isključite uređaj prije umetanja ili uklanjanja microSD kartice. Ne punite uređaj za vrijeme umetanja ili uklanjanja microSD kartice.

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

» Otpustite vijke na pretincu za bateriju isporučenim odvijačem.
» Skinite poklopac pretinca za baterije.
» Uklonite bateriju iz odjeljka za bateriju.
» Umetnite microSD karticu u postojeći utor. Uređaj ima a utor za microSD karticu do 128 GB. Utor je označen kao „microSD“.
» Ponovno ugradite bateriju. Pogledajte odlomak „Ugradnja baterije“.

PUNJENJE

OPASNOST

Three-step illustration of a mobile phone's open case showing internal components and battery casing (no text or symbols)

» Otpustite vijke na pretincu za bateriju isporučenim odvijačem.
» Skinite poklopac pretinca za baterije.
» Uklonite bateriju iz odjeljka za bateriju.

Three-step illustration of a mobile phone's internal components, showing battery and cable assembly (no text or symbols)

» U pretinac za baterije umetnite odobrenu zamjensku bateriju.
» Provjerite da je baterija pravilno učvršćena.
» Ponovo montirajte poklopac pretinca za bateriju i isporučenim odvijačem čvrsto stegnite vijke

MOGUĆI PROBLEMI S UREĐAJEM

Možete pronaći informacije o mogućim problemima s uređajem i kako ih riješiti na www.isafe-mobile.com/en/support/service pod stavkom izbornika „FAQ“. Ako imate dodatnih pitanja, obratite se servisnoj službi tvrtke i.safe MOBILE na www.isafe-mobile.com/en/support/service.

ODRŽAVANJE/POPRAVAK

Sam uređaj nema dijelova koji se mogu servisirati.

UPOZORENJE

Neodgovarajući popravci predstavljaju opasnost od eksplozije ili požara, što može dovesti do smrti ili teških ozljeda! Ne otvarajte uređaj i ne obavljajte sami popravke.

Two views of a mobile phone showing internal components and a scroll wheel (no text or symbols visible)

Three-step illustration of a mobile phone's internal components, showing battery, cable, and scroll (no text or symbols)

» Batériu vložte do priehradky na batérie tak, ako je to znázornené.

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Four-panel image showing a mobile phone's internal components and battery compartment, arranged in a row (no text or symbols visible)

Three-panel image showing a mobile phone's open and closed states, with one device being rotated (no visible text or symbols)

» Dodaným skrutkovačom uvolnite skrutky na priehradke na batériu.
» Odstráňte kryt priehradky na batériu.
» Vyberte batériu z priehradky na batériu.

Three-step illustration of a mobile phone's open and closed states, showing internal components and battery casing (no text or symbols)

www.isafe-mobile.com/en/support/service.

www.isafe-mobile.com/en/support/downloads.

FCC/IC ИЗJABA

FCC/IC изјава се може наћи на www.isafe-mobile.com/en/support/downloads.

EX O3HAKE

ATEX:

Ea II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIC T135°C Dc

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Four-panel diagram showing a mobile phone's internal structure and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing internal components and rotation (no text or symbols)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and battery release (no text or symbols)

Four-panel diagram showing a mobile phone's internal components and shipment process, with no visible text or symbols.

Four-panel image showing a mobile phone's internal components and battery assembly, illustrating the process from external to internal states (no text or symbols visible)

Three-panel illustration of a mobile phone showing the open rear, internal compartment, and closed rear with visible internal components (no text or symbols)

Three-panel illustration of a mobile phone showing internal components and battery release (no text or symbols)

.www.isafe-mobile.com/cn/support/downloads

.www.isafe-mobile.com/en/support/service

12 13 14 TERRILLI SOM MOBILE © 2016. No. 8C TERRILLI © 2016. No. 8C TERRILLI SPS 21 APER 5 120kA RCCN SPX 15 POWER No: 97°C - +97°C WARNING: Do not charge or miss on antenna/USB port Load-to-peakable output . Parity/Looper/USB port MFB23 Lokey Power/USB port Germany 15

Close-up of a black plastic device with hexagonal mesh pattern and labeled parts (16 and 17), no readable text or symbols beyond labels.

Two views of a mobile phone showing internal components and battery casing (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing internal components and rotation (no text or symbols)

Four-panel diagram showing a mobile phone's open case, internal card slot, battery pack, and cable switch (no text or symbols)

Four-panel diagram showing a mobile phone's open case, internal card slot, battery pack, and cable switch (no text or symbols)

Three-step diagram showing mobile phone device disassembly with labeled components and rotation arrows

Three-step illustration of a mobile phone's open door mechanism, showing battery release and rotation (no text or symbols)

.www.isafe-mobile.com/cn/support/service. i.safe MOBILE repair

الصيانة/الeaصلاح

لا يتضمن الجهازHOUSE أي أجزاء صالحة يمكن أن Yemen_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Yield_Y Golf

تحذير

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
