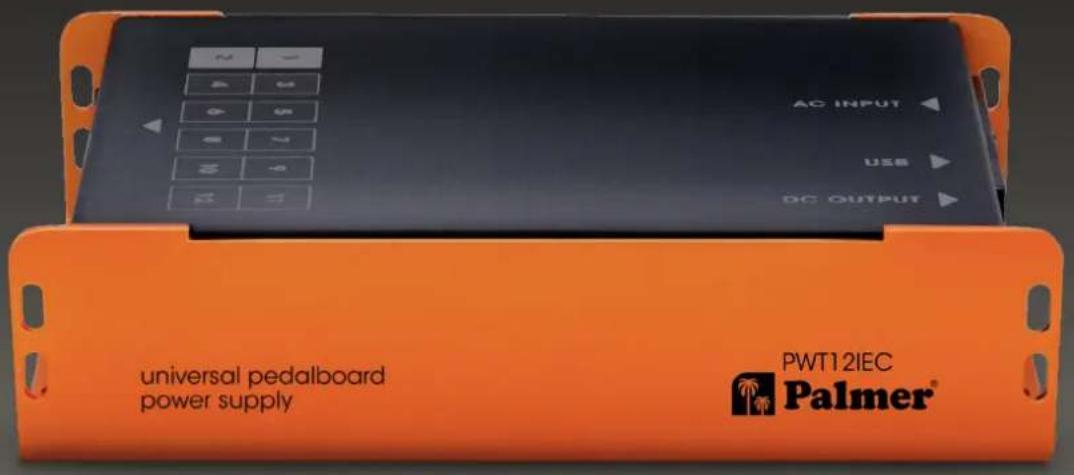

Universal 12-fold power supply unit for the power supply of effect devices

INTENDED USE

This product is a power supply unit for effect units. Any other use and the use of the product outside the specified technical data and operating conditions are considered improper use!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

▶ Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INTRODUCTION

The power supply unit with 12 isolated and one non-isolated DC output also has a USB-A and a USB-C port that can be used to charge smartphones and tablets. The power supply of the unit is not provided by an external power supply unit, but by a standard IEC power cable with IEC connector. All DC outputs are wired with positive pole outside and negative pole inside.

INCLUDED

Remove the product from the packaging and remove all packing material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging includes:

▶ 1 x PWT12IEC power supply unit
▶ 1 x Mains cable with IEC appliance plug
5 x DC cable 30 cm
5 x DC cable 60 cm
5 x DC cable 90 cm
▶ 1 set of self-adhesive rubber feet
▶ Operating instructions

PWT12IEC

Universal 12-fold power supply unit for the power supply of effect devices

9V 2000mA +/-C-⊖ USB-C 18W USB-A AC 110-230V 50-60Hz POWER POWER CONSUMPTION MAX. 77W

5 6 7 8 250mA 100mA 100mA 250mA 250mA 500mA 9 12 15 18 12 15 9 18 V 9V 250mA 100mA 100mA 250mA 250mA 500mA

CONNECTIONS AND OPERATING ELEMENTS

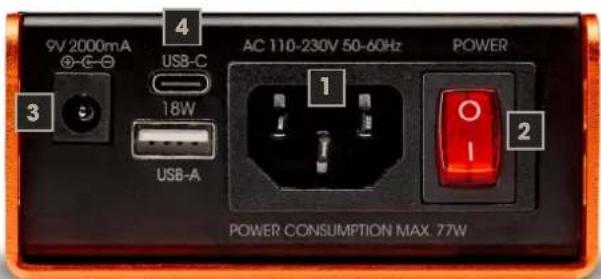

1. AC INPUT

IEC connection for the power supply of the unit. A suitable mains cable is included in the scope of delivery.

2. POWER

Rocker switch for switching the device on and off. The switch has an indicator light. This lights up as soon as the unit is correctly connected to the power supply and switched on.

3. DC OUTPUT

Non-isolated 9 V DC output with up to 2000 mA output current for effects units with high current requirements and external power supplies (e.g. PWT04) that do not require an isolated and filtered power supply.

4. USB

One USB-C and USB-A port each with up to 18 watts total power for charging smartphones, tablets and the like.

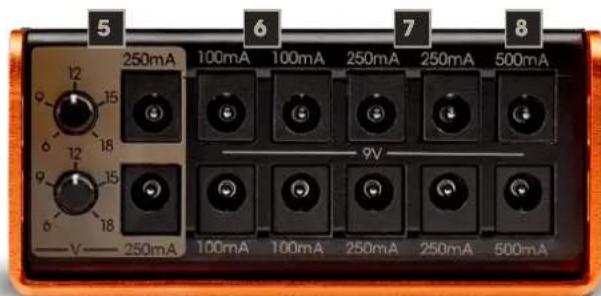

5. OUTPUT 1 AND 2

Two isolated DC voltage outputs with potentiometers for a continuously adjustable output voltage from 6 V to 18 V and up to 250 mA output current. Always set the required voltage BEFORE connecting the corresponding effect device.

6. OUTPUT 3 TO 6

Four isolated DC outputs with 9 V output voltage and up to 100 mA output current each.

7 OUTPUT 7 TO 10

Four isolated DC outputs with 9 V output voltage and up to 250 mA output current each.

8. OUTPUT 11 AND 12

Two isolated DC outputs with 9 V output voltage and up to 500 mA output current each.

CAUTION! Material damage due to reverse polarity!

Make sure that the polarity of the DC voltage input of the corresponding effect unit corresponds with matches the polarity of the DC voltage outputs of the power supply unit (positive pole outside, negative pole inside). An effect unit with a DC input of reversed polarity can cause a malfunction when connected to damage to this power supply unit.

CAUTION! Property damage due to overvoltage!

Make sure that the output voltage of the power supply corresponds to the voltage required by the effect unit Input voltage corresponds. An effect unit can be damaged by overvoltage.

CAUTION! Material damage due to DC voltage at the AC voltage input!

Do not connect any effect device that is intended for an AC voltage as power supply, to this power supply unit. In individual cases, this could damage the effect unit and / or the power supply unit.

MOUNTING

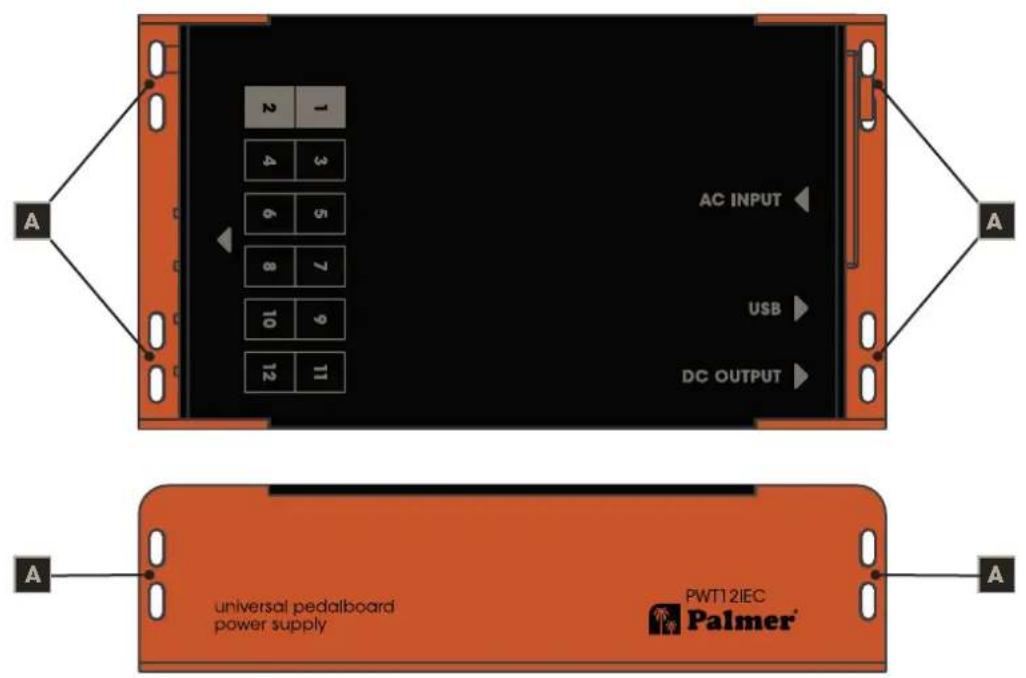

The housing of the power supply unit has mounting holes in the base plate and the side panels (fig. A) so that the power supply unit can be securely fastened to a pedalboard (e.g. with cable ties).

AC INPUT USB DC OUTPUT universal pedalboard power supply PWT1 2IEC Palmer®

TECHNICAL DATA

GENERAL

Product number PWT12IEC
Product type Power Supplies
Input voltage AC 100 - 240 V
Individually isolated DC outputs 12
Output 1-2 6 - 18 V (250 mA max)
Output 3-6 9 V (100 mA max)
Output 7-10 9 V (250 mA max)
Output 11-12 9 V (500 mA max)
Non-isolated DC output 9 V (2000 mA max)
Output connections 2.1 x 5.5 mm
Output voltage: 6 V - 18 V
Max. Output power 30.6 W (output 1 - 12)
Max. Power consumption 77 W
Individually isolated outputs yes
Polarity	Centre-negative
USB-C / USB-A output power	18 W max.
Display indicators	Power
Operating controls	Mains switch, output voltage selector
Depth	93 mm
Width	168 mm
Height	42 mm
Weight	0.54 kg
Accessories	Mains cable, 15x DC cable (30 / 60 / 90 cm), 4x rubber feet
Noise	< 40 μV (output 1 - 12)
Ambient temperature for operation	0° to 40°C
Relative air humidity	<80%, non-condensing

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH

Adam-Hall-Str. 1

61627, Neu-Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail].

Declarations of conformity for products that are subject to the RED Directive

can be downloaded at www.adamhall.com/compliance/.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances

in Electrical and Electronic Equipment Regulation 2012 (SI

2012/3032) Radio Equipment Regulations 2017(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)

Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations

2017 (SI2017/1206) can be downloaded from

www.adamhall.com/compliance/
