Pedalbay 40 PB - Effect pedal Palmer - Free user manual and instructions

Product Type	Pedalboard with integrated power supply
Brand	Palmer
Model	Pedalbay 40 PB
Dimensions (Pedalbay)	450 x 305 x 70-85 mm
Weight (Pedalbay only)	1.23 kg
Total Weight (with power supply)	3.83 kg
Material	Aluminum, powder coated
Power Supply Type	External plug-in power supply
Input Voltage	100 - 250 V AC
Number of Outputs	8
Output Voltages	9 V, 12 V, 18 V (selectable per output?)
Max Output Current	2 A total
Polarity	Center negative
Isolated Outputs	Yes
Included Accessories	5x 16 cm DC cables, 9x 60 cm DC cables, hook-and-loop tape, M6/M8 nuts, power supply, carrying case, 2 elastic bands, allen key
Features	Adjustable cross bars, height-adjustable, waterproof
Safety Notes	Do not expose to water or heat sources; unplug during storms; use only dry cloth for cleaning
Cleaning	Use a dry cloth only
Warranty	See manufacturer's conditions at adamhall.com
Disposal	Do not dispose as household waste; recycle according to local regulations

Frequently Asked Questions - Pedalbay 40 PB Palmer

What is the total weight of the Pedalbay 40 PB?

The total weight of the Pedalbay 40 PB set (pedalboard and integrated power supply) is 3.83 kg. The pedalboard alone weighs 1.23 kg.

Can I use a different power supply with the Pedalbay 40 PB?

The power supply is designed to be integrated with the pedalboard. Using a different power supply may not fit the mounting rails or provide the correct voltage/current. For best results, use the included Palmer WTPB40 power supply.

How many pedals can I power with the Pedalbay 40 PB?

The power supply has 8 isolated outputs with selectable voltages (9V, 12V, 18V) and a total max current of 2A. The number of pedals depends on their power draw; most standard pedals can be powered easily. Ensure total current does not exceed 2A.

Is the pedalboard waterproof?

Yes, the pedalboard features a waterproof design, but the power supply and connections should still be protected from excessive moisture. Avoid direct exposure to liquids.

How should I clean the Pedalbay 40 PB?

Clean the pedalboard and power supply with a dry cloth only. Do not use water, solvents, or harsh chemicals, as they may damage the finish or components.

What is the warranty coverage for this product?

Warranty conditions are provided by the manufacturer, Adam Hall GmbH. Please refer to their official warranty document at adamhall.com for details. Contact them at [e-mail] for service.

Are the power supply outputs isolated?

Yes, all 8 outputs are isolated, which helps reduce noise and ground loops between pedals, ensuring clean power delivery.

What cables are included with the Pedalbay 40 PB?

The set includes 5 DC cables (16 cm) and 9 DC cables (60 cm), all with straight to angled connectors. Additionally, hook-and-loop tape, nuts, and a carrying case are included.

Can I mount the Pedalbay 40 PB on a stand?

The pedalboard has adjustable cross bars and is height-adjustable. It can be placed on a stand, but ensure the stand is stable and sufficiently large (450 mm width). Use the included elastic bands if needed.

How do I properly dispose of this product?

This product falls under WEEE (Waste Electrical and Electronic Equipment) regulations. Do not dispose of it as household waste. Recycle it at a designated collection point according to local laws to avoid environmental harm.

USER MANUAL Pedalbay 40 PB Palmer

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Open the device for changing the battery, do not modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
22. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
23. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
24. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
25. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
26. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION:

There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

CAUTION - HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

You can find our current warranty conditions and limitation of liability at: http://www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf

To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu-Anspach / Email [e-mail] / +49 (0) 6081 / 9419-0

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation) This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

DESCRIPTION

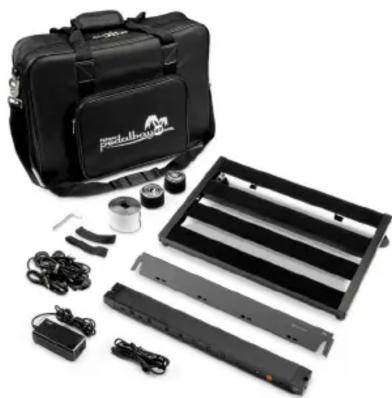

The PPEDALBAY40PB set combines the Palmer Pedalbay 40 and the Palmer WTPB40 power supply with 8 outputs. It can be quickly swapped out and installed with the rear rails of the Pedalbay 40. This integrates the power supply into the Pedalbay, thereby removing the need for separate transportation.

SPECIFICATIONS

Product number PWTPB40 - WT PB 40

Product type Power Supplies
Main connector Plug-in power supply
Input voltage 100 - 250 V
Outputs 8
Output connectors 2.1 x 5.5 mm
Material Aluminum
Surface Anodized, powder coated
Output voltage	12 V, 18 V, 9 V
Max. output current	2 A
Isolated outputs Yes
Polarity	Center negative
Cord length	150 + 150 cm
Indicators	Fault, Power
Controls Output voltage selector
Width	450 mm
Depth	50 mm
Height	24 mm
Weight	0.65 kg
Accessories (included)	5x DC cable straight to angled 16cm long, 9x DC cable straight to angled 60cm long, hook-and-loop tape, M6 Nuts, M8 Nuts, Power supply

PPEDALBAY40 - PEDALBAY® 40

Product type	Pedalboards
Material	Aluminum
Surface	Powder coated
Width of the Cross Bars	50 mm
Width	450 mm
Height	70 - 85 mm
Depth	305 mm
Weight Pedalbay	1.23 kg
Weight	3.83 kg
Accessories (included)	2x black elastic bands, allen key, approx. 2.5 m hook tape, soft carrying case with shoulder strap

Features Adjustable cross bars, height-adjustable, waterproof
