USER MANUAL DMS Palmer

bubble | Category | Value | |---|---| | Category 1 | 0.0 | | Category 2 | 0.0 | | Category 3 | 0.0 | | Category 4 | 0.0 | | Category 5 | 0.0 | | Category 6 | 0.0 | | Category 7 | 0.0 | | Category 8 | 0.0 | | Category 9 | 0.0 | | Category 10 | 0.0 | | Category 11 | 0.0 | | Category 12 | 0.0 | | Category 13 | 0.0 | | Category 14 | 0.0 | | Category 15 | 0.0 | | Category 16 | 0.0 | | Category 17 | 0.0 | | Category 18 | 0.0 | | Category 19 | 0.0 | | Category 20 | 0.0 | | Category 21 | 0.0 | | Category 22 | 0.0 | | Category 23 | 0.0 | | Category 24 | 0.0 | | Category 25 | 0.0 | | Category 26 | 0.0 | | Category 27 | 0.0 | | Category 28 | 0.0 | | Category 29 | 0.0 | | Category 30 | 0.0 | | Category 31 | 0.0 | | Category 32 | 0.0 | | Category 33 | 0.0 | | Category 34 | 0.0 | | Category 35 | 0.0 | | Category 36 | 0.0 | | Category 37 | 0.0 | | Category 38 | 0.0 | | Category 39 | 0.0 | | Category 40 | 0.0 | | Category 41 | 0.0 | | Category 42 | 0.0 | | Category 43 | 0.0 | | Category 44 | 0.0 | | Category 45 | 0.0 | | Category 46 | 0.0 | | Category 47 | 0.0 | | Category 48 | 0.0 | | Category 49 | 0.0 | | Category 50 | 0.0 | | Category 51 | 0.0 | | Category 52 | 0.0 | | Category 53 | 0.0 | | Category 54 | 0.0 | | Category 55 | 0.0 | | Category 56 | 0.0 | | Category 57 | 0.0 | | Category 58 | 0.0 | | Category 59 | 0.0 | | Category 60 | 0.0 | | Category 61 | 0.0 | | Category 62 | 0.0 | | Category 63 | 0.0 | | Category 64 | 0.0 | | Category 65 | 0.0 | | Category 66 | 0.0 | | Category 67 | 0.0 | | Category 68 | 0.0 | | Category 69 | 0.0 | | Category 70 | 0.0 | | Category 71 | 0.0 | | Category 72 | 0.0 | | Category 73 | 0.0 | | Category 74 | 0.0 | | Category 75 | 0.0 | | Category 76 | 0.0 | | Category 77 | 0.0 | | Category 78 | 0.0 | | Category 79 | 0.0 | | Category 80 | 0.0 | | Category 81 | 0.0 | | Category 82 | 0.0 | | Category 83 | 0.0 | | Category 84 | 0.0 | | Category 85 | 0.0 | | Category 86 | 0.0 | | Category 87 | 0.0 | | Category 88 | 0.0 | | Category 89 | 0.0 | | Category 90 | 0.0 | | Category 91 | 0.0 | | Category 92 | 0.0 | | Category 93 | 0.0 | | Category 94 | 0.0 | | Category 95 | 0.0 | | Category 96 | 0.0 | | Category 97 | 0.0 | | Category 98 | 0.0 | | Category 99 | 0.0 | | Total (Total) | -15.5 (estimated from visual scale) |

DEFINE YOUR TONE

Palmer DMS - DEFINE YOUR TONE - 1

INTRODUCTION

Congratulations on your purchase of the PALMER DMS!

The DMS is a simple passive microphone switcher for dynamic mics.

This useful little tool will open a whole new world of options when working with microphones on stage or in the studio.

Palmer DMS - INTRODUCTION - 1

Palmer DMS - INTRODUCTION - 2

DEFINE YOUR TONE

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions before operating the unit.
2) Please heed all safety warnings and keep these instructions for future reference.
3) Follow all instructions.
4) Do not use this apparatus near water or moisture.
5) Clean only with dry cloth.
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
7) Only use attachments/accessories specified by the manufacturer.
8) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, if liquid has been spilled or objects have fallen into the apparatus, if the apparatus has been exposed to rain or moisture, if it does not operate normally, or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. DO NOT MAKE ANY INTERNAL ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE SHOCK HAZARDS AND VOID THE WARRANTY OF THIS EQUIPMENT.

As a result of PALMER's policy of continuous product improvement, technical specifications and appearance are subject to change, and modifications may be made to existing products from time to time without prior notice.

Do not expose this unit to excessive heat. I is designed to operate between 0° and 40°C (32F - 104F) and may not function properly under extreme temperatures.

AE

4

DEFINE YOUR TONE

Palmer DMS - DEFINE YOUR TONE - 1

APPLICATION

With the Palmer DMS (Dynamic Mic Switcher) you can switch a dynamic microphone between two inputs.

The Palmer DMS Switcher is a passive unit and is exclusively for dynamic microphones. The switch on the DMS is momentary.

The range of applications is vast:

  • Switch your vocal mic between the FOH mixer and the monitor mixer - this will allow you to talk exclusively to the band or the monitor mixing engineer.
    • Sound variation. Send the two outputs of the DMS to two channels of the FOH mixer, adjust the channels differently (for example, adjust the EQ to get a telephone effect). This will allow you to switch between two microphone sounds on stage at your own leisure.
  • You can use the DMS to switch the microphone between two different rooms/zones.

Please note that the PEDMS is a passive device and is designed to be used with dynamic microphones. It is not intended to be used with condenser, electret or other devices requiring phantom power.

5 π

Palmer DMS - APPLICATION - 2

DEFINE YOUR TONE

PANEL

OUTPUT 2 OUTPUT 1 INPUT GND LIFT 1 MOMENTARY 2 DMS SWITCHER FOR DYNAMIC MICS Palmer Molecular Instruments

DE

3 4 5 CE X̄

DEFINE YOUR TONE

Palmer DMS - DEFINE YOUR TONE - 1

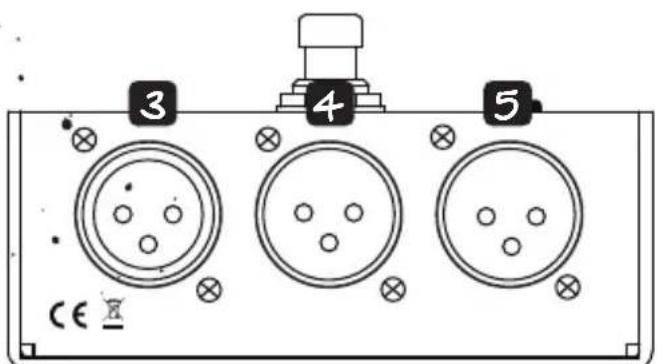

PANEL DESCRIPTION

1 GROUND LIFT SWITCH

With the DMS you can interconnect two mains powered devices (for example 2 mixers). This constellation can induce a ground loop hum. Should this occur, use this switch to lift the ground of the second output.

2 MOMENTARY SWITCH

With this footswitch you can toggle between the two outputs. Note that the switch is momentary. When not pressed, Output 1 is active. Output 2 is activated when you press and hold the switch. On releasing the switch, Output 1 is active again.

3 INPUT

Connect your dynamic microphone or other balanced signal source to this input.

4 OUTPUT1

Active when footswitch is not pressed - Connect this output to the microphone input of a mixer or similar device.

5 OUTPUT 2

Active when the footswitch is pressed and held - Connect this output to the microphone input of a mixer or similar device.

Palmer DMS - OUTPUT 2 - 1

DEFINE YOUR TONE

SPECIFICATIONS

Input: 1x XLR / f balanced

Nominal impendance: 200 Ω

Output: 2x XLR / m balanced

Load impedance: > 200 Ω

Switches: Momentary footswich, ground lift switch

Housing: metal casing

Dimensions [W x D x H]: 100 x 120 x 60 mm

Weight: 310g

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications.

DEFINE YOUR TONE

Palmer DMS - DEFINE YOUR TONE - 1

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.

This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.

REQUESTING WARRANTY-SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

Palmer DMS - REQUESTING WARRANTY-SERVICE - 1

Palmer DMS - REQUESTING WARRANTY-SERVICE - 2

DEFINE YOUR TONE

EC DECLARATION OF CONFORMTY

These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC (EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.

Palmer DMS - EC DECLARATION OF CONFORMTY - 1

CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Palmer DMS - CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE) - 1

WEEE-DECLARATION

Your Palmer product was developed and manufactured with high quality materials and components wich can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.

Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.
