USER MANUAL PWT08MK2 Palmer

be true to your sound

PAPPER Palmer 1 2 3 4 5 6 7 8 18V DC 2000mA 9V DC 300mA Outputs 6-18V DC 500mA Outputs

years

guarantee

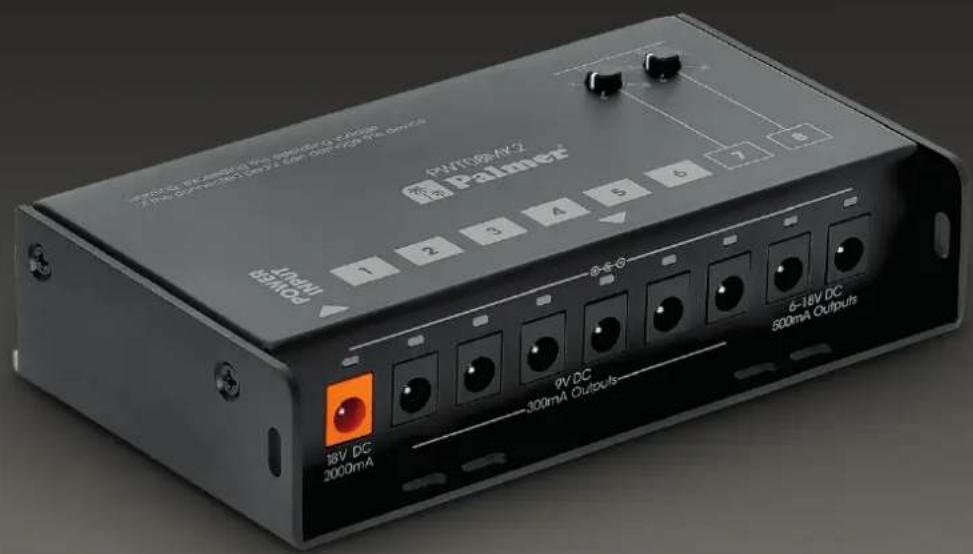

Universal 8-Outlet

Pedalboard Power Supply

PWT08MK2

EN USER MANUAL

Universal 8-way power supply unit for effect devices

INTENDED USE

This product is a power supply for effect devices.

Any other use and use of the product outside the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

▶ Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE SWALLOWED AS WELL AS PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

CAUTION! Risk of damage due to reverse polarity!

Make sure that the polarity of the DC input of the corresponding effect device matches the polarity of the DC outputs of the power supply (barrel positive, centre negative). Connecting an effects unit with a DC input with reversed polarity to this power supply can result in damage to the device.

CAUTION! Risk of damage due to overvoltage!

Make sure that the output voltage of the power supply corresponds to the input voltage required for the effect device. Effect devices can be damaged by overvoltage.

CAUTION! Risk of damage due to DC voltage at the AC voltage input!

Do not connect an effects unit that requires an AC voltage supply to this power supply unit. In some cases, this could damage the effects unit and/or the power supply.

The total current requirement of all connected effect devices must not exceed 2000 mA. If the limit of 2000 mA is exceeded, a protective circuit prevents damage to the power supply unit. In this case, the DC voltage outputs are switched off. When the error has been rectified, the device returns to normal operation after approx. 2 seconds.

PLEASE NOTE

Some effect devices are designed to operate in a voltage range of 9 to 18 volts and offer more dynamics and headroom at a higher voltage. Be sure to read the user manual for your effect device to avoid damage.

This device may only be used in dry rooms.

INTRODUCTION

Power supply unit with 8 isolated DC voltage outputs for supplying power to effect devices. The output voltage of outputs 7 and 8 is continuously adjustable from 6 to 18 volts. All DC voltage outputs are wired with the positive pole on the outside and the negative pole in the centre.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

1x PWT08MK2 power supply
1x PW18VDCUNI 18 volt / 2000 mA DC power supply
8x DC cable 60 cm
▶ 1 set of self-adhesive rubber feet
▶ User manual

PWT08MK2

Universal 8-way power supply unit for effect devices

6500 18V DC 2000mA 9V DC 300mA Outputs 6-18V DC 500mA Outputs

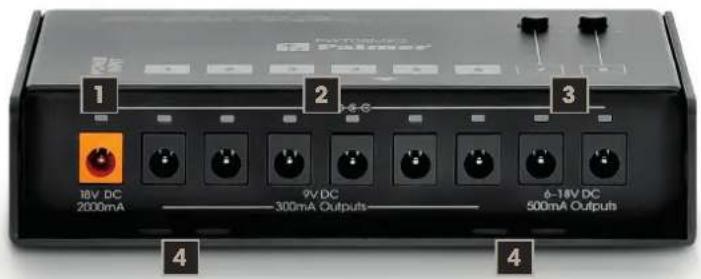

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

1. POWER INPUT

Orange-coloured low-voltage socket for supplying power to the device. Please use the original power adapter only (included in the packaging content). The corresponding indicator LED lights up when the device is supplied with the correct voltage.

2. DC OUTPUTS 1 - 6

Six isolated 9 V DC outputs with up to 300 mA output current each. All outputs have status LEDs. The corresponding LED is deactivated if no DC cable is connected to the output. The LED of the corresponding output lights up green when a DC cable is plugged in and the device is functioning correctly. In case of a fault, the LED lights up red (e.g. short circuit, overcurrent, incorrect polarity). Once the fault has been rectified, the output can be used normally again.

3. DC OUTPUTS 7 AND 8

Two isolated DC voltage outputs with an output current of up to 500 mA each and potentiometers for adjusting the output voltage continuously from 6 V to 18 V. Always set the required voltage BEFORE connecting an effect device. The two outputs each have a status LED. The corresponding LED is deactivated if no DC cable is connected to the output. The LED of the corresponding output lights up green when a DC cable is plugged in and the device is functioning correctly. In case of a fault, the LED lights up red (e.g. short circuit, overcurrent, incorrect polarity). Once the fault has been rectified, the output can be used normally again.

4. MOUNTING HOLES

The housing of the power supply has mounting holes in the base plate for secure attachment to a pedalboard or similar setup (e.g. with cable ties).

TECHNICAL SPECIFICATIONS

GENERAL

Product number PWT08MK2
Product type Power Supply
Input voltage	100 - 240 V AC via external plug-in power supply (DC 18 V / 2,000 mA)
Individually isolated DC outputs 8
Output 1-6 9 V (300 mA max.)
Output 7-8 6 V - 18 V (500 mA max.)
Output connectors 2.1 x 5.5 mm
Output voltage 6 V - 18 V
Max. Output power 2,000 mA (output 1 - 8)
Individually isolated outlets yes
Polarity Centre-negative
LED indicators Power, status LED (green: output OK / red: fault)
Controls	Output voltage regulator
Depth	80 mm
Width	140 mm
Height	32 mm
Weight	0.293 kg
Accessories	PW18VDCUNI plug-in power supply (EU/UK/US), 8x DC cable (60 cm), 4x rubber feet
Noise	< 40 μV (output 1 - 8)
Ambient temperature (for operation)	0° to 40 °C
Relative air humidity	< 80 % (non-condensing)

CORRECT DISPOSAL OF THIS PRODUCT

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws applicable in your country.

3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and recharge able batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Our current warranty conditions and limitation of liability can be found at: cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

CE DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail].

Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

UKCA- Conformity

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable) Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017 (SI 2016/2015)

Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment (Safety) Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail] Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!
