Product type	Active direct box
Brand	Palmer
Model	RIVER mosel
Number of channels	1
Input type	Unbalanced (6.3 mm jack and XLR female)
Output type	Balanced (XLR male)
Galvanic isolation	By transformer
Input attenuation (Pad)	0 dB / 10 dB / 20 dB / 30 dB (separate switches)
Additional gain	12 dB (switchable)
Ground/Lift selector	Yes: Hard or Soft mode, and Lift
Power supply	48 V phantom power or 9 V battery (selectable)
Power consumption	0.5 W
Battery test	Yes, via button and orange LED
Dimensions (H × W × D)	140 × 50 × 128 mm
Weight	0.72 kg
Housing material	Extruded aluminum
Operating temperature	-20 °C to 70 °C
Relative humidity	< 80 %, non-condensing
Frequency response	20 Hz – 20 kHz (±0.2 dB)
Signal-to-noise ratio	113 dB (A-weighted, 22 kHz bandwidth)
THD+N (1 kHz, +4 dBu)	< 0.006 %
Max. input level (20 Hz)	+14 dBu (THD < 1 %)
Max. output level	+14 dBu (THD < 1 %, 20 Hz – 20 kHz)
Included accessories	Rubber feet, labeling sticker
Maintenance and cleaning	Use a dry cloth; do not use abrasive products. Remove the battery if not used for a prolonged period.
Spare parts and repairability	No user-serviceable parts. Contact an authorized technician.
Safety	Do not open or modify. Follow safety instructions. Disconnect power before any intervention.

Frequently Asked Questions - RIVER mosel Palmer

What types of instruments can I connect to the mosel direct box?

You can connect string instruments (acoustic, electric guitars, basses), line outputs of keyboards, or speaker outputs of guitar amplifiers (with Pad activated) via the jack or XLR inputs.

How do I power the mosel direct box?

Power is supplied either by 48 V phantom power (via the XLR output cable) or by a 9 V battery (type 6LR61). Use the rear selector P48V/BATTERY to choose the source.

What are the PAD switches for?

The PAD switches (0/10 dB and 0/20 dB) attenuate the input level to avoid saturating the mixing console or audio interface. When both are pressed, they reduce the signal by 30 dB.

How do I use the ground lift (LIFT/GND)?

The LIFT/GND selector (not pressed = Lift) disconnects the ground connection between input and output to eliminate hum (ground loops). The pressed position restores ground. Test both positions to find which reduces noise.

Can I use a guitar amplifier with the mosel?

Yes, but the amplifier power must not exceed 120 W into 8 ohms. With tube amplifiers, always connect a speaker cabinet or a load to the THRU jack before turning it on, as the mosel does not provide a load resistance.

How do I test the battery status?

Press the BATTERY TEST button (on the rear). If the orange LED lights up, the battery is good. If it does not light up, replace the battery with a new 9 V one.

What is the difference between GND SOFT and GND HARD?

In SOFT position, the ground is connected via an RC circuit; in HARD position, the connection is direct. The choice depends on the installation: SOFT can reduce hum while maintaining a ground reference.

Can I use the mosel outdoors?

The device is designed for temporary indoor use only. It is not suitable for tropical climates or altitudes above 2,000 m. Avoid humidity and extreme temperatures.

What to do in case of humming?

First check the ground lift (point 3). If the noise persists, move the device away from sources of strong magnetic fields (transformers, etc.). Ensure cables are properly shielded.

How to clean the mosel direct box?

Disconnect the device and remove the battery. Clean the housing with a dry cloth. Do not use solvents, abrasives, or liquids. Ensure no moisture enters the interior.

USER MANUAL RIVER mosel Palmer

be true to your sound

DI-Box active mosel Palmer®

years

guarantee

DI-box

active

mosel

EN USER MANUAL 3

INFORMATION ON THIS USER MANUAL 4

INTENDED USE 4

EXPLANATIONS OF TERMS AND SYMBOLS 4

SAFETY INSTRUCTIONS 5

NOTES FOR PORTABLE INDOOR DEVICES 7

PACKAGING CONTENT 8

INTRODUCTION 8

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 9

NOTES 11

CONNECTION EXAMPLES 12

TECHNICAL SPECIFICATIONS 13

SIGNAL FLOW DIAGRAM 14

MANUFACTURER'S DECLARATIONS 15

Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: highly precise switches designed by our award-winning engineers ensure that sound reaches its destination undistorted – the heart of your listeners.

That's exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting, and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound – as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers?

On the map of Germany, you can see that the 544 km long Moselle (German: Mosel) river originates in France and flows through Germany along the Saarland-Luxembourg border and finally through Rhineland-Palatinate.

Thank you for purchasing the mosel! We hope you enjoy this piece of German engineering. Be true to your sound!

Yours, the Palmer Team

mosel

Active DI box

INFORMATION ON THIS USER MANUAL

Carefully read the safety instructions and the entire manual before operating the device.

▶Observe the warnings on the device and in the user manual.

▶Always keep the user manual within reach.

If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology, as well as for the studio, TV, and broadcasting!

The product has been developed for professional use in event technology, as well as in the studio, TV, and broadcasting.
Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV, and broadcasting!
▶ Use of the product outside the specified technical data and operating conditions is considered improper use!
▶ Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

▶The product is not suitable for:

▶ Use by persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions risking life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions risking life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that can lead to damage to property and/or the environment.

This symbol indicates hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards due to high volume levels.

This symbol denotes a device that does not contain any user-serviceable parts.

This symbol indicates additional information on the operation of the product.

This symbol indicates a device that may only be used in dry rooms.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised repair technicians.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable mains cables.
3. To disconnect the device completely from the power supply, unplug the mains cable or the mains adapter from the socket. It is not sufficient to press the on/off switch on the device. In addition, a connected amplifier must also be disconnected from the device!
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in mains cables with original cables only.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

Moving components such as mounting brackets or other movable components may become jammed.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, heat accumulators, furnaces, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources such as burning candles near the device.
3. Use the original packaging or packaging provided by the manufacturer for transport.
4. Avoid shock or impact to the device.
5. Observe the IP protection class as well as the ambient conditions such as temperature and humidity according to the specifications.
6. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information provided on the device always has priority.
7. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level.
8. Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE: For conversion or retrofit kits supplied by the manufacturer, the enclosed installation instructions must be observed.

CAUTION: HIGH-VOLUME AUDIO PRODUCTS!

This device is designed for professional use. The commercial operation of this device is subject to the applicable national regulations and guidelines for accident prevention.

Hearing damage due to high volume and continuous exposure: use of this product may generate high sound pressure levels (SPLs) that may cause hearing damage. Avoid exposure to high volumes.

CAUTION: Connecting signal cables and operating switches (for example, switching phantom power on and off) can cause significant interference noise. Make sure that input channels (mixer, audio interface, effects device, etc.) are muted while making connections and operating switches. Otherwise, noise levels may cause damage.

WARNING: Unplug the mains adapter from the socket AND disconnect any amplifier that might be connected to the device to put the device in a completely voltage-free state.

ATTENTION: Make sure that the device is not covered while in operation and that the air can freely circulate, especially for the rack mounting!

PLEASE NOTE: Strong magnetic fields can cause humming. For this reason, do not position the device near strong magnetic fields (for example, mains transformer).

PLEASE NOTE FOR PORTABLE INDOOR DEVICES:

1. Temporary operation! Event equipment is generally designed for temporary use only.
2. Continuous operation or permanent installation can impair the functioning of the device and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶1x mosel active Dl box
▶Product data sheet
▶Tour label
▶Rubber feet

INTRODUCTION

The one-channel DI box mosel is a professional studio and stage tool that transforms unbalanced audio signals into balanced audio signals without any distortion. The internal transformer offers an excellent dynamic range and outstanding overload stability. The DI box is used as a connecting link to connect string instruments with pickups (for example, electric acoustic guitars, electric guitars, and electric basses), instruments with line outputs (for example, keyboards), and speaker outputs from guitar amplifiers to balanced inputs of a mixer or audio interface. In addition, the DI box allows for interference-free transmission of audio signals over long cable runs.

WARNING: Power amplifiers may not be operated in Bridge mode on the DI box.

WARNING: If an amplifier is operated on the DI box, the ground connection between the input and output must be disconnected (switch no. 6 in the non-pressed LIFT position).

WARNING: A connected amplifier's output must not exceed 120 W at 8 ohms!

ATTENTION: If a tube amplifier is used: there is no load resistor in the DI box circuit! To prevent damage to the amplifier, an appropriate guitar speaker or a suitable load resistor must be connected to the THRU jack socket using a speaker cable before switching on the amplifier!

PAD 0dB 0dB 10dB 20dB GAIN 0dB 12dB 1 2 3 4 5 6

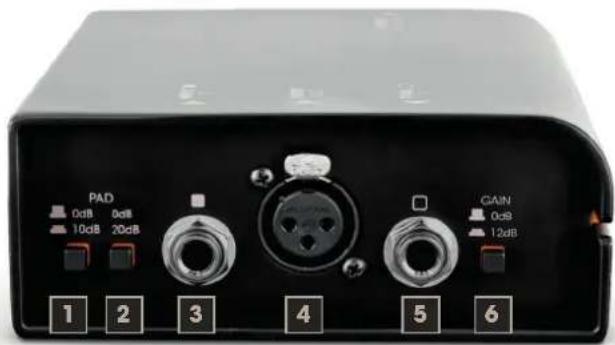

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS - FRONT

1. PAD 0 dB/10 dB (passive attenuation device)

Press the corresponding switch to reduce the level of the output signal by 10 dB. The output level must be lowered if the channel input stage of the connected mixer or audio interface is overdriven.

2. PAD 0 dB/20 dB (passive attenuation device)

Press the corresponding switch to reduce the level of the output signal by 20 dB. The output level must be lowered if the channel input stage of the connected mixer or audio interface is overdriven.

NOTE: If both PAD switches are pressed, the output signal is reduced by 30 dB.

3. INPUT TS

Unbalanced audio input with 6.3 mm jack socket.

4. INPUT XLR

Unbalanced audio input with female three-pin XLR socket.

INPUT TS AND INPUT XLR

The inputs are connected in parallel.

A. Connect an instrument using a shielded instrument cable.

B. Connect the speaker output of a guitar amplifier using a speaker cable (tip: press PAD switch).

5. INPUT XLR

The input signal is output unchanged via the 6.3 mm jack socket.

6. GAIN 0 dB / 12 dB

If desired, the output signal can be amplified by 12 dB. To do this, put the switch in the pressed position 12 dB.

9V BATTERY SOFT LIFT HARD GND POWER TEST OFF P48V ON BATTERY 10 11 12 13

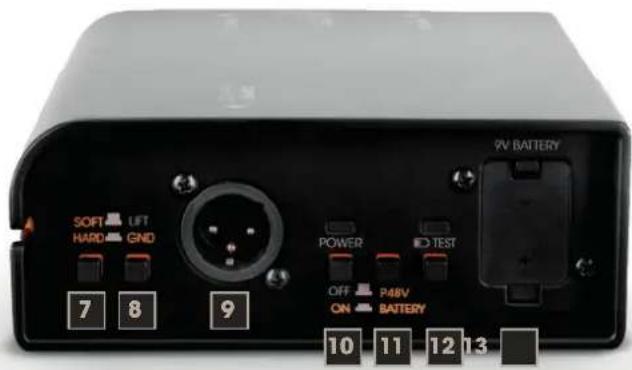

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS - BACK

7. GND SOFT/HARD

SOFT: The ground connection between the input and output is established via an RC element. HARD: There is a direct ground connection between the input and output.

8. LIFT / GND

Switch for disconnecting the ground connection between the input and output (ground lift). The ground connection is disconnected in the unpressed position. The connection is established when the switch is pressed (see item 9 GND SOFT/HARD). The ability to prevent a humming loop using the ground lift switch depends on the grounding of the connected devices. It is therefore possible that either switch position effectively reduces or eliminates humming.

9. OUTPUT

Balanced audio output with a male three-pin XLR socket. Use a balanced, shielded cable (for example, microphone cable) in order connect the DI box to a mixer's or audio interface's balanced output.

10. POWER OFF/ON

On/off switch. As soon as the device is switched on and the required voltage is applied, the corresponding LED indicator lights up. Always make sure that the channel volume for a connected mixer or audio interface is set to minimum before switching the device on or off.

11. P48 V / BATTERY

Switch for selecting the power source (switch not pressed = phantom power/switch pressed = battery). Always make sure that the channel volume for a connected mixer or audio interface is set to minimum before switching the power source.

12. BATTERY TEST

Button for displaying the battery status. If the charging status is sufficient, the corresponding LED indicator lights up orange when the button is pressed. Replace the battery if the LED does not light up when the button is pressed. The battery status can also be displayed when the device is switched off.

13. BATTERY COMPARTMENT

Battery compartment for a 9 V block battery. Only use leak-proof brand products. To replace the battery, open the device's battery compartment by pushing the battery compartment lid's locking lever downwards and folding the lid forward. Remove the depleted battery and insert a new battery in the battery compartment. Make sure that the battery polarity matches the battery compartment polarity (see marking on the battery compartment lid). Put the battery compartment lid back on the housing until it clicks into place. If you do not use the device for a long period, remove the battery to prevent damage to the device from a leaking battery.

Alternative power supply via 48 V phantom power via the OUTPUT XLR socket. Always make sure that the cable is connected to the audio output and that the channel volume for a connected mixer or audio interface is set to minimum before switching on phantom power. Before disconnecting the cable from the device, turn the channel volume to minimum and then deactivate phantom power.

ATTENTION: Connecting signal cables can cause significant interference noise. Make sure that devices connected to the output channel (mixer, audio interface, etc.) and the THRU output are muted while making connections. Otherwise, noise levels may cause damage.

PLEASE NOTE: The line outputs on the front and rear are galvanically isolated from the line inputs.

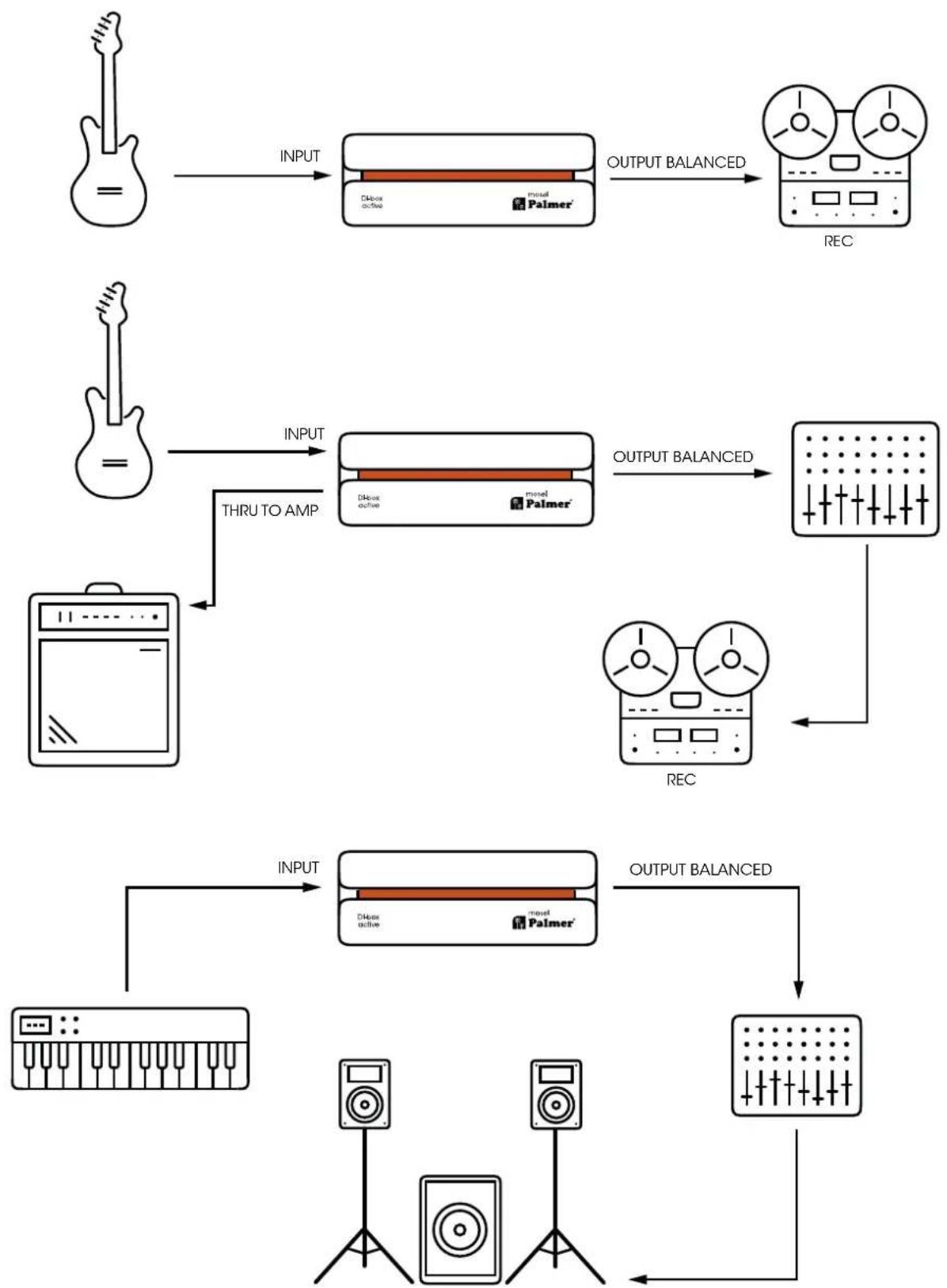

CONNECTION EXAMPLES


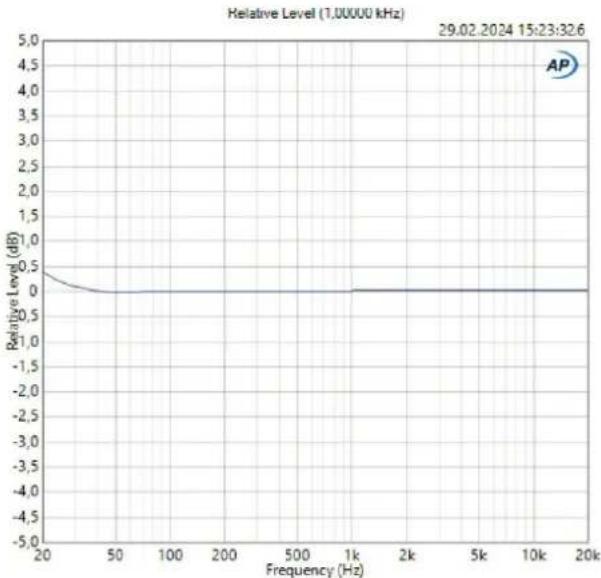

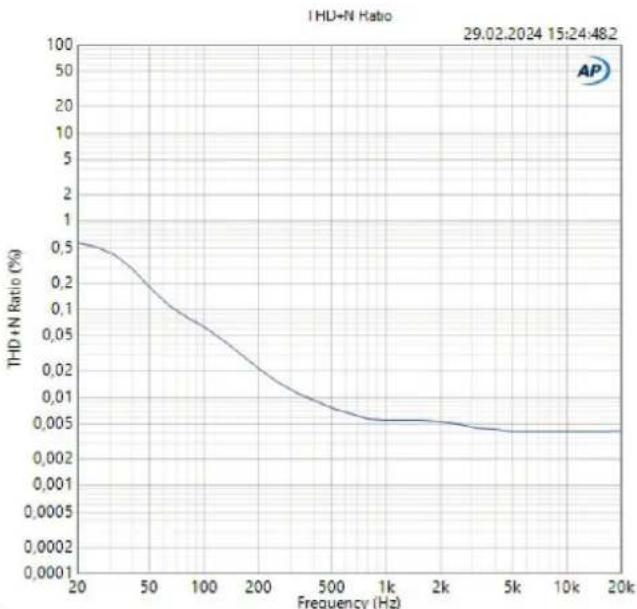

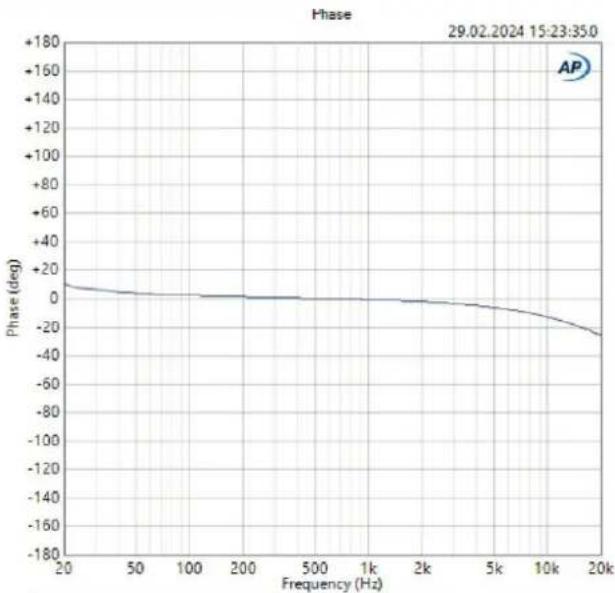

TECHNICAL DATA

GENERAL

Product number PMOSEL
Product type DI box
No. of channels 1
Type Active
Transformer isolated Yes
No. of inputs 1
Input type Unbalanced
Input connectors 6.3 mm jack, XLR
No. of outputs 1
Output type Balanced
Output connectors XLR
THRU outputs per channel 1
Input attenuation (PAD)	0 dB / 10 dB / 20 dB / 30 dB
Ground/lift switch	Yes: hard/soft
Additional functions	Gain: 12 dB, battery tester, power on/off
Operating voltage	P48 V, 9 V battery
Power consumption	0.5 W
Housing	Aluminium continuous casting
Dimensions (H/W/D)	140 × 50 × 128 mm
Weight	0.72 kg
Ambient temperature (for operation)	-20°C ... 70°C
Relative air humidity	< 80% (non-condensing)
Included accessories	Rubber feet, inscription label
AUDIO
Max. input level (< 1% THD, 20 Hz)	+14 dBu
Max. input level (< 1% THD, 1 kHz)	+21 dBu
Max. output level (< 1% THD, 1 kHz)	+14 dBu
Frequency response (±0.2 dB, relative 1 kHz)	20 Hz-20 kHz
Input impedance (1 kHz, setting: 0 dB PAD)	600 kΩ
Output impedance (1 kHz, setting: 0 dB PAD)	83 Ω
THD+N (30 Hz, +4 dBu, unity, unweighted)	< 0.35%
THD+N (1 kHz, +4 dBu, unity, unweighted)	< 0.006%
IMD (SMPTE) (60 Hz/7 kHz, 4:1, +4 dBu)	< 0.0087%
SNR (+4 dBu, 22 kHz BW, unity, unweighted)	113 dB
Transformer ratio	1:1

All measurements were performed with a generator with an output impedance of 600 Ω and 1 kΩ balanced load.

CORRECT DISPOSAL OF THIS PRODUCT

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws applicable in your country.

3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and recharge able batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Our current warranty conditions and limitation of liability can be found at: cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

CE DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail].

Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

UKCA- Conformity

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable) Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017 (SI 2016/2015)

Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment (Safety) Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail] Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

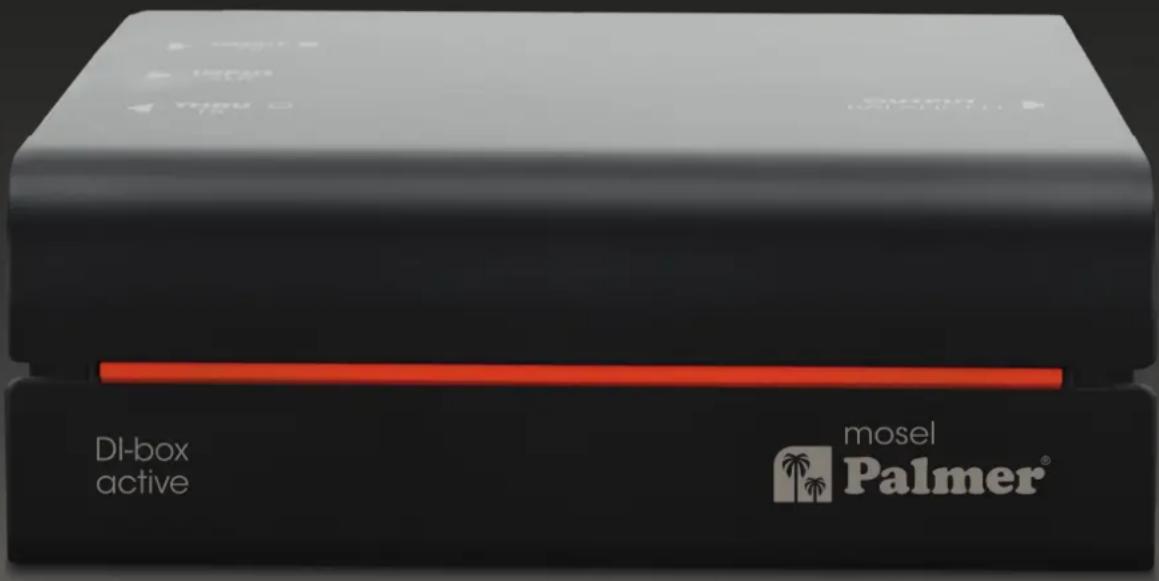

mosel FRANKFURT

INPUT TS & INPUT XLR

TECHNISCHE DATEN

ALLGEMEIN

ENTSORGUNG

VERPACKUNG:

CARACTÉRISTIQUES TECHNIQUES

GÉNÉRALITÉS

MISE AU REBUT

EMBALLAGE :

DÉCLARATION DE CONFORMITÉ CE

INPUT TS e INPUT XLR

CARACTERÍSTICAS TÉCNICAS

GENERAL

ELIMINACIÓN

EMBALAJE:

INPUT TS & INPUT XLR

SPECYFIKACJE TECHNICZNE

OGÓLNA CHARAKTERYSTYKA

Numer produktu PMOSEL

UTYLIZACJA

OPAKOWANIE:

INPUT TS E INPUT XLR

DATI TECNICI

ASPETTI GENERALI

SMALTIMENTO

IMBALLAGGIO
