Brand	Palmer
Model	Elde
Product type	2-channel passive direct box (DI)
Number of channels	2
Input type	Unbalanced, 6.35 mm jack
Output type	Balanced, 3-pin male XLR
THRU outputs	1 per channel on 6.35 mm jack
Attenuator (Pad)	0 dB / 30 dB per channel
Ground Lift	Yes, per channel
Transformer isolation	Yes
Dimensions (HxWxD)	140 x 50 x 128 mm
Weight	0.66 kg
Operating temperature	-20°C to +70°C
Relative humidity	< 80 % non-condensing
Max input level (20 Hz, <1% THD)	+20 dBu
Frequency response (±2 dB)	5 Hz - 80 kHz
Input impedance (0 dB Pad)	38.5 kΩ
Output impedance (0 dB Pad)	25 Ω
THD (30 Hz, +4 dBu)	< 0.03 %
Housing material	One-piece cast aluminum
Included accessories	Rubber feet, identification label
Maintenance	Clean with a dry cloth, avoid moisture
Safety	Do not open, keep out of reach of children, respect maximum power levels

Frequently Asked Questions - Elde Palmer

What is the Palmer Elde direct box?

The Palmer Elde is a 2-channel passive direct box (DI) designed to convert unbalanced audio signals into balanced signals without alteration, ideal for instruments, keyboards, and speaker outputs.

How to connect an instrument to the Elde?

Connect your instrument to the INPUT 1 or 2 (6.35 mm jack) using a shielded cable. For an amplifier speaker output, use a speaker cable and activate the Pad (30 dB) if necessary.

What is the PAD selector for?

The PAD selector attenuates the input signal by 30 dB. Use it if the input level saturates the next stage (console or audio interface).

What is the function of the LIFT/GND selector?

The Ground Lift switch interrupts the ground connection between input and output, eliminating hum caused by ground loops. Try both positions to see which reduces noise.

Can I use a tube guitar amplifier with the Elde?

Yes, but be careful: the Elde does not contain a load resistor. You must connect a speaker or appropriate load to the THRU output before turning on the amplifier to avoid damage.

What is the maximum amplifier power supported?

The maximum power of the connected amplifier must not exceed 120 W at 8 ohms. The amplifier must not operate in bridged mode.

What are the output connectors?

The balanced outputs are on 3-pin male XLR connectors (OUTPUT 1 and 2). Use shielded microphone cables to connect to a console or interface.

How to clean and maintain the Elde?

Clean the housing with a dry, soft cloth. Avoid moisture and solvents. Do not open the device. Store in a dry, dust-free place.

What are the dimensions and weight of the Elde?

The Elde measures 140 x 50 x 128 mm (HxWxD) and weighs 0.66 kg. Its housing is one-piece cast aluminum.

Is the Elde suitable for home use?

No, this product is intended for professional use (studio, stage, TV, radio). It is not suitable for home use or untrained persons.

USER MANUAL Elde Palmer

be true to your sound

INPUT INPUT 2 INPUT 3 SINEMA BALANCED two channel DI-box passive elde Palmer®

5

year

guarantee

2-Kanal DI-Box

passiv

elde

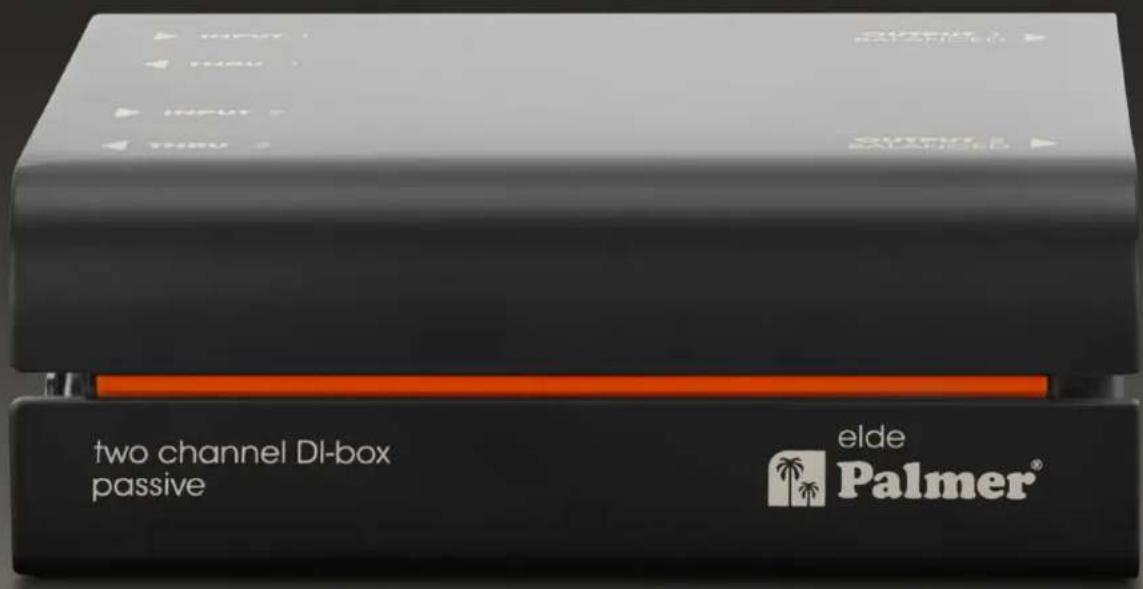

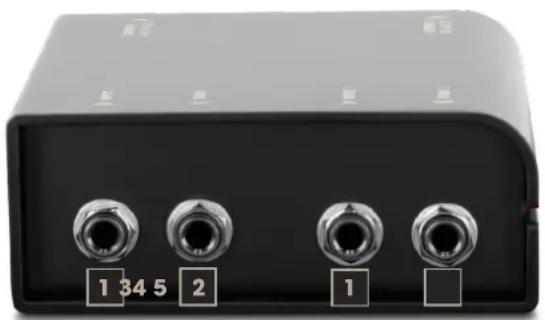

Front view of a black electronic device with four ports labeled 1, 2, 3, and 4 (no visible text or symbols beyond labels)

PAD 0dB LIFT 30dB GND PAD 0dB LIFT 30dB GND 4 5 32

ENTSORGUNG

VERPACKUNG:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: featuring high-precision circuits, designed by our award-winning engineers to ensure your sound reaches its destination – the hearts of your listeners.

That's exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound - as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers?

On the map of Germany you can see where the Elde flows: 208 kilometres through Mecklenburg-Western Pomerania.

Thank you for purchasing the elde! We hope you enjoy this piece of German engineering.

Be true to your sound!

Yours, the Palmer Team

elde

2-Channel DI Box passive

INTENDED USE

This product is a device for event technology, as well as studio, TV and broadcast!

This product has been developed for professional use in the fields of event technology, studio, TV and broadcast. It is not suitable for household use!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!

Use of the product outside the specified technical data and operating conditions is considered inappropriate! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

▶ Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INTRODUCTION

The elde 2-channel DI box is a professional tool for studio and stage, which converts unbalanced audio signals unaltered into balanced audio signals. The elde DI box is used as a link to connect stringed instruments with pick-ups – such as electro-acoustic guitars, electric guitars and electric basses, instruments with line outputs, such as keyboards, and speaker outputs of guitar amplifiers – to balanced inputs of a mixing console or audio interface. Audio signals can also be transmitted hum-free over long cable runs with the help of the DI box.

elde

2-Channel DI Box passive

Front view of a black electronic device with four ports labeled 1, 2, 3, and 4 (no visible text or symbols beyond labels)

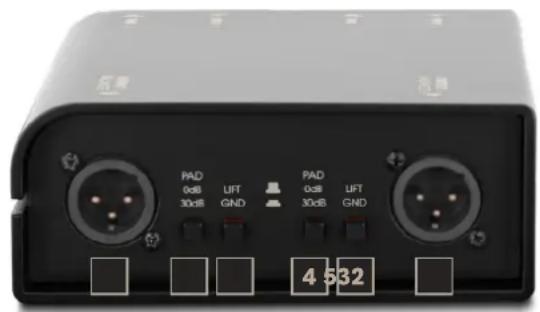

PAD 0dB LIFT 30dB GND PAD 0dB LIFT 30dB GND 4 5 32

CONNECTIONS AND OPERATING ELEMENTS

1. INPUT 1 / INPUT 2

Audio input with 6.3 mm jack socket.

A. Connect an instrument using a shielded instrument cable.
B. Connect the speaker output of a guitar amplifier using a speaker cable. (Tip: Press PAD switch no. 4).

WARNING: Power amplifiers must not be operated in bridge mode on the DI box.

WARNING: If an amplifier is operated using the DI box, the ground connection between the and output must be disconnected (switch no. 6 in the non-pressed LIFT position).

WARNING: The amplifier power of a connected amplifier must not exceed 120 W at 8 Ohms.

ATTENTION: When using a tube amplifier: there is no tube in the circuit of the DI box circuit! To prevent damage to the amplifier, before switching on the amplifier, an appropriate guitar speaker or a suitable load resistor at the THRU jack socket must be connected using a speaker cable.

2. THRU 1 / THRU 2

The input signals are output unchanged via the 6.3 mm jack sockets.

3. OUTPUT 1 / OUTPUT 2

Balanced audio outputs with male 3-pin XLR connectors. Use a balanced, shielded cable (e.g. microphone cable) to connect the DI box to balanced inputs of a mixing console or audio interface.

4. PAD 1 / PAD 2 (Passive Attenuation Device)

Move the corresponding switch to the pressed position to lower the level of the output signal by 30 dB. Lowering the output level is necessary if the channel input stage of the connected mixer or audio interface is overdriven.

5. LIFT / GND 1 - LIFT / GND 2

Switch for disconnecting the ground connection of input and output of the corresponding channel (ground lift). In the non-pressed position, the ground connection is disconnected; the connection is established when the switch is pressed. The ability to prevent a humming loop using the ground lift switch depends on the grounding of the connected device. It is therefore possible that the switch is able to effectively reduce or eliminate humming when it is either up or down, depending on circumstances.

CAUTION: Connecting signal cables can cause considerable noise. Please make sure that the input channel (mixing console, audio interface, etc.), as well as the THRU output, are muted when plugged in. Otherwise, noise levels may cause damage.

NOTE: Strong magnetic fields can cause humming. Therefore, do not position the DI Box near strong magnetic fields (e.g. mains transformer).

WIRING EXAMPLES

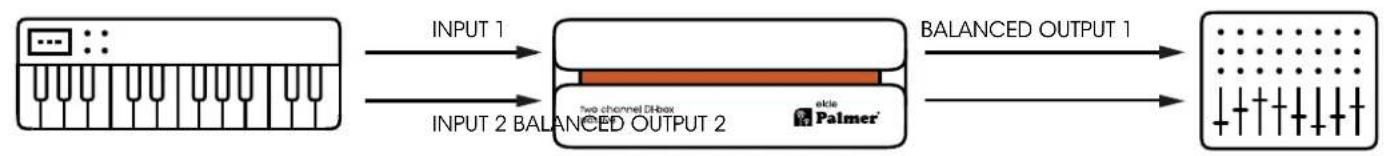

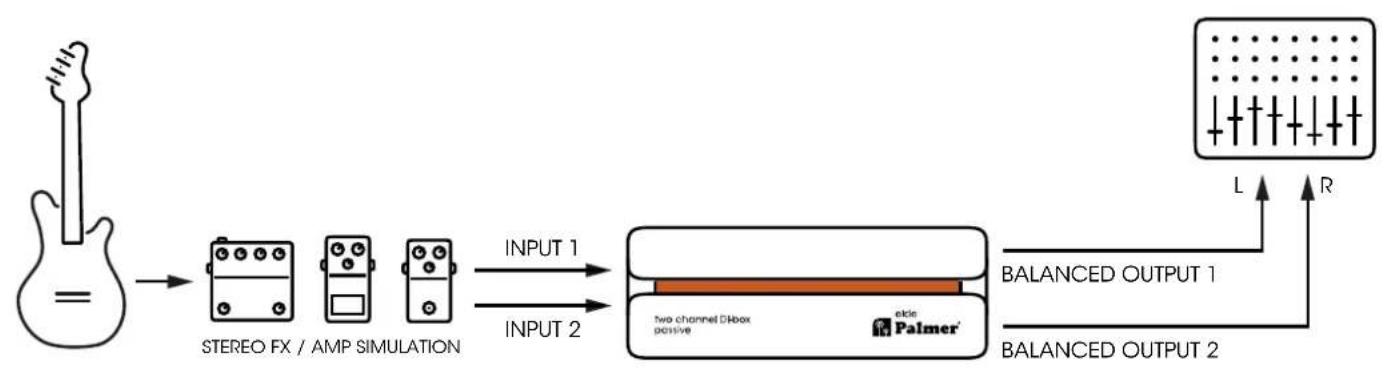

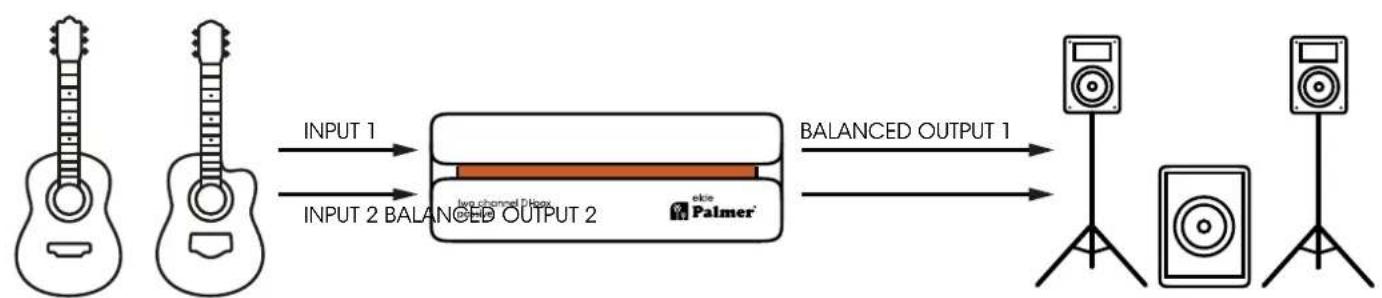


TECHNICAL DATA

GENERAL

Product number PELDE
Product type DI box
No. of channels 2
Type passive
Transformer isolated yes
No. of inputs 2
Input type unbalanced
Input connections 6,3 mm Jack
No. of outputs 2
Output type balanced
Output connections XLR
THRU outputs per channel 1
Input attenuation (pad) 0 dB / 30 dB
Ground/lift switch yes
Housing Aluminium continuous casting
Dimensions (H/W/D)	140 x 50 x 128 mm
Weight	0.66 kg
Ambient temperature for operation	-20°C...70°C
Relative air humidity	<80 %, non-condensing
Included accessories	Rubber feet, inscription label
AUDIO
Max. Input level (< 1% THD, 20 Hz)	+20 dBu
Max. Input level (< 1% THD, 1 kHz)	+32 dBu

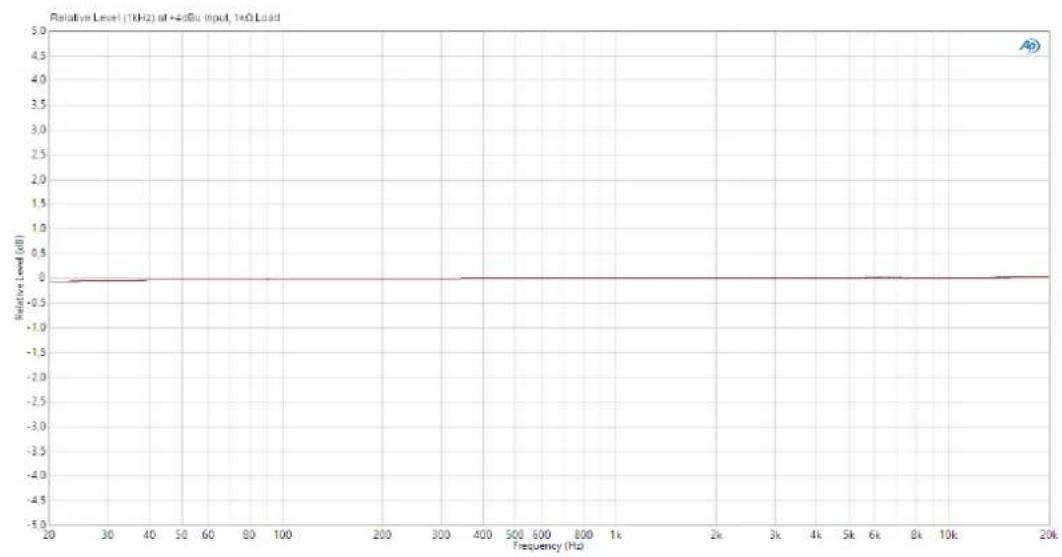

Frequency response (±2dB, relative 1kHz)	5 Hz - 80 kHz
Input impedance (1 kHz, setting: 0 dB PAD)	38.5 kΩ
Output impedance (1 kHz, setting: 0 dB PAD)	25 Ω

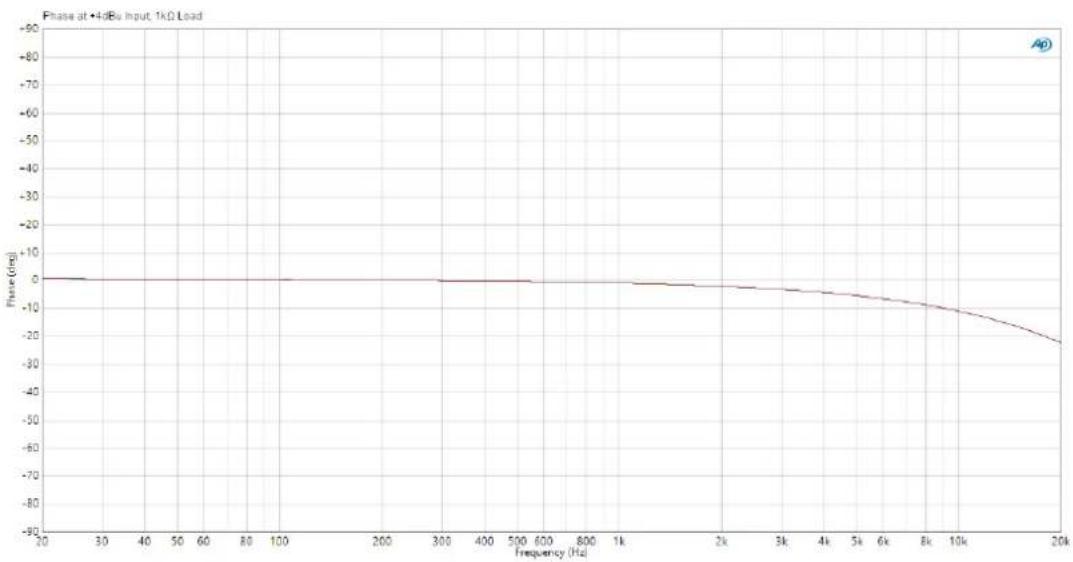

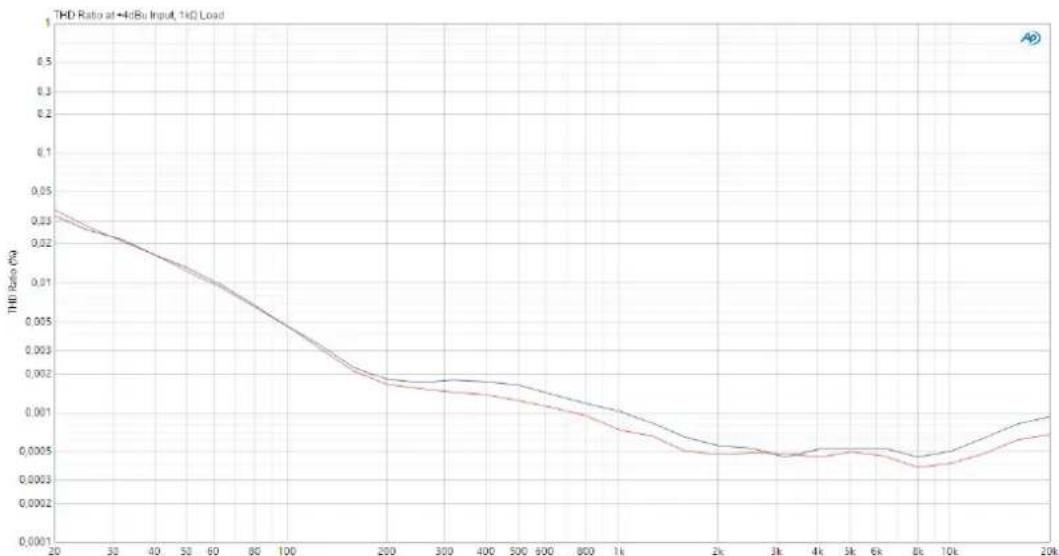

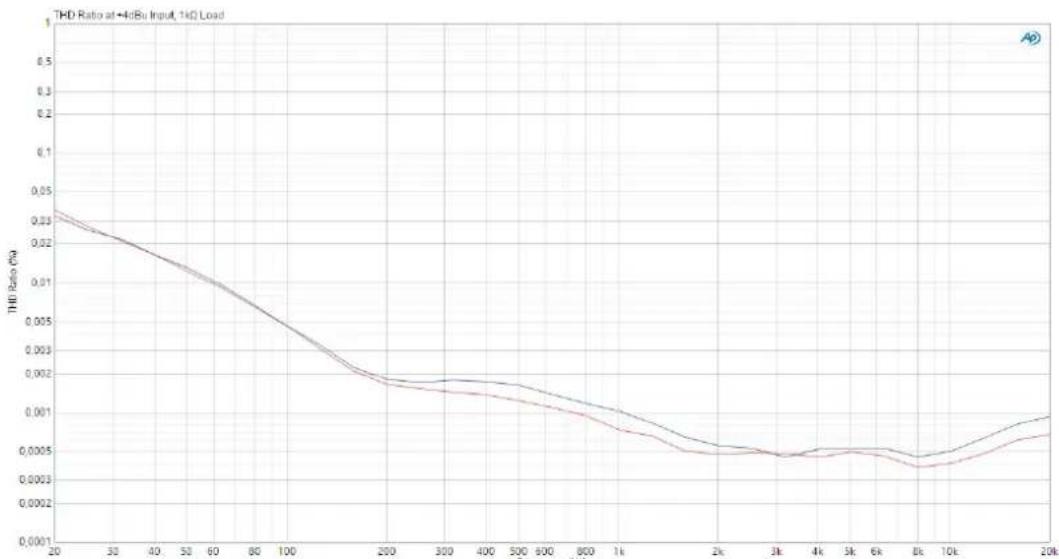

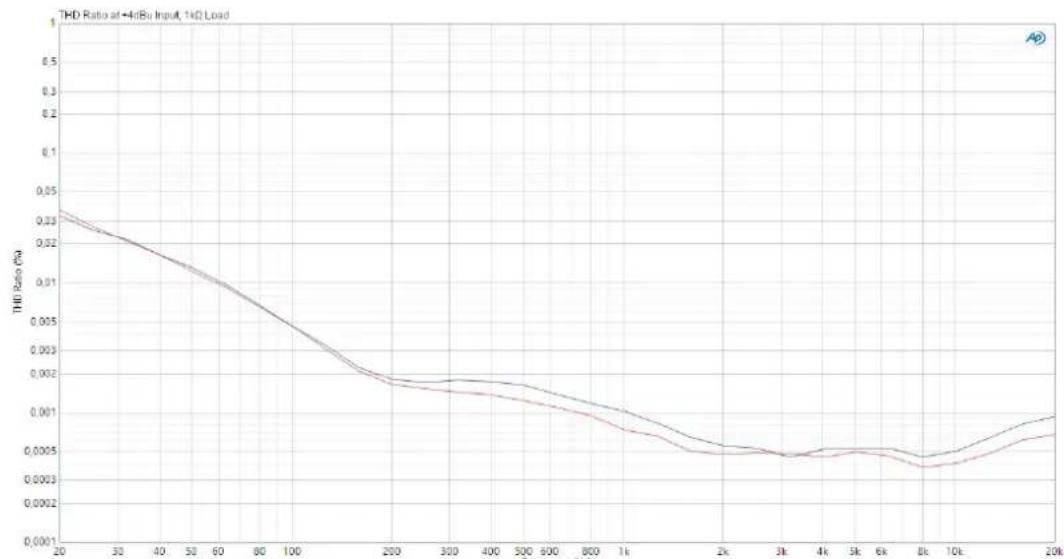

THD (30 Hz, +4 dBu, unity, unweighted)	< 0.03 %
THD (1 kHz, +4 dBu, unity, unweighted)	< 0.002 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)	< 0.002 %
Transformer ratio	10:1

All measurements were performed with a generator with 600 output impedance and 1k balanced load.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH

Adam-Hall-Str. 1

61627, Neu-Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail].

Declarations of conformity for products that are subject to the RED Directive

can be downloaded at www.adamhall.com/compliance/.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances

in Electrical and Electronic Equipment Regulation 2012 (SI

2012/3032) Radio Equipment Regulations 2017(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)

Regulation 2016, EMC Regulation 2016 or RoHS Regulation can

be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from

www.adamhall.com/compliance/
