USER MANUAL VPL-CXZ10 SONY

© 2019 Sony Corporation Printed in China

EAC

5014379050

5014279050

このマニュアルについて

https://rd1.sony.net/help/vpl/cwz10/ja/

安全のために

Line drawing of a mechanical device emitting exhaust smoke, with no text or symbols present.

Simple line drawing of a box on a folded paper with smoke and a prohibition symbol (no text or labels)

禁止

熱感知器や煙感知器のそばに設置しない

Diagram of a device rear panel with labeled ports and buttons, showing ports like USB, network, and control buttons.

① クラス1ラベル

Illustration of a steam rising from a chimney to a server with a prohibition symbol (no text or labels)

Hand holding a small mechanical component with arrows indicating force direction (no text or symbols)

2 リチウム電池をはめ込む。

Diagram of a mechanical or electrical component with directional arrows and a plus sign, no readable text or symbols present.

3 リチウム電池入れを差し込む。

警告

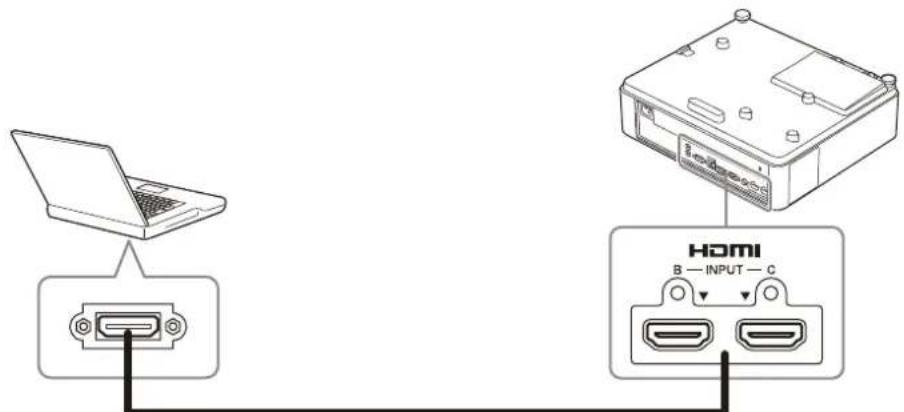

Diagram showing connection between a laptop and an HDMI device via USB port, with labels indicating hardware components.

HDMI ケーブル（別売）

ご注意

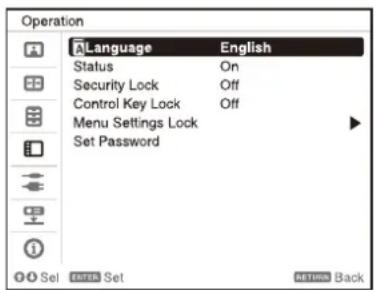

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password OK Select Set Return Back

Two side-by-side grayscale images showing a garden scene with fruits and plants under a cloudy sky (no text or symbols)

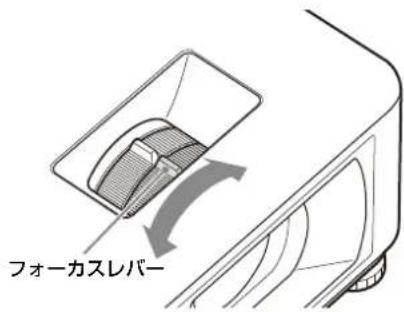

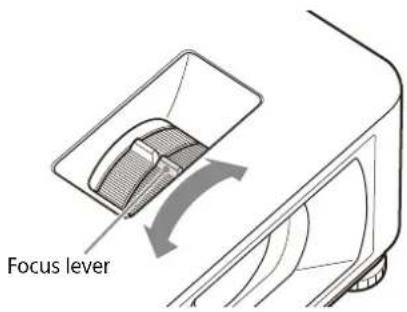

フォーカスレバーを回して調整します。

フォーカスレバー

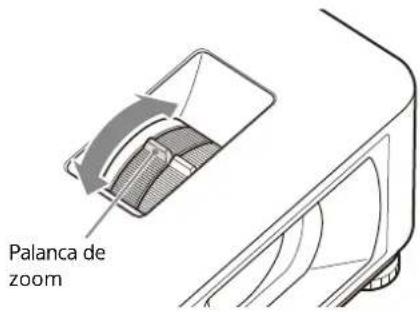

画面のサイズを調整する（ズーム）

Black-and-white photo of a basket of fruits and grapes on a white surface, with no visible text or symbols.

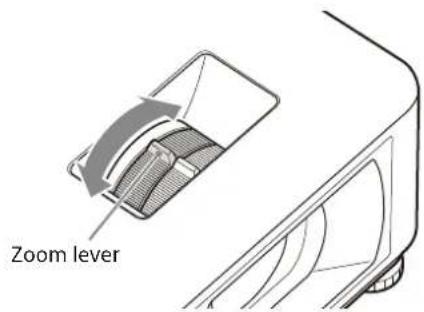

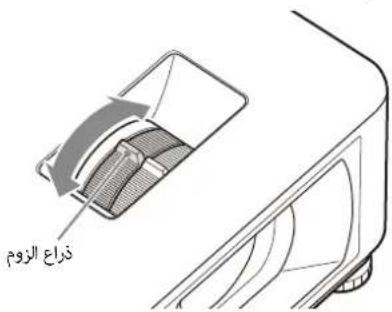

ズームレバーを回して調整します。

スームレバー

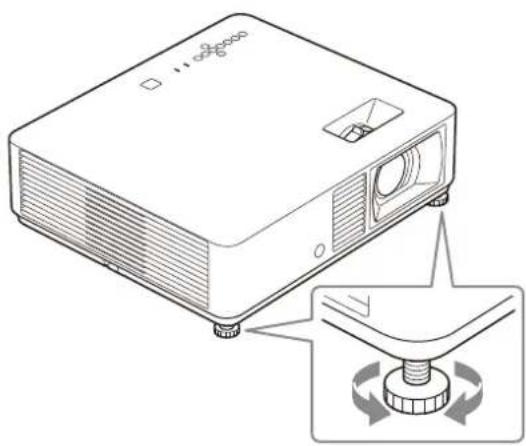

画面の位置を調整する

Line drawing of a projector with a button and rotating base, showing internal components and a close-up view of the button (no text or symbols)

ご注意

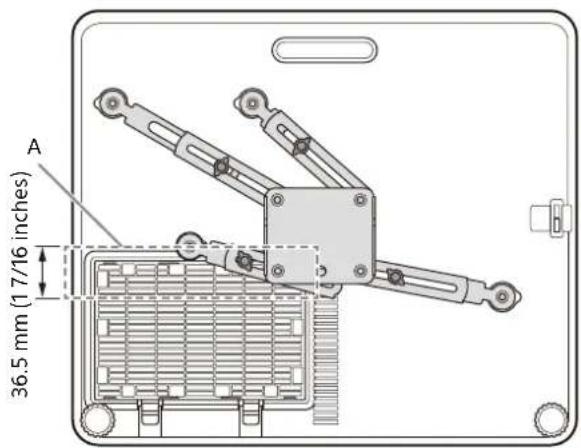

Technical line drawing of a mechanical linkage assembly with mounting holes and a grid base (no text or symbols)

A 36.5 mm

Technical line drawing of a mechanical or electronic device with four circular components and a central grid structure (no text or symbols)

ご注意

This Setup Guide explains the safety precautions for using of this unit, how to install the unit, and the initial setup.

Step 1

Preparing Page 38

Step 2

Connecting......Page 40

Step 3

Projecting...... Page 41

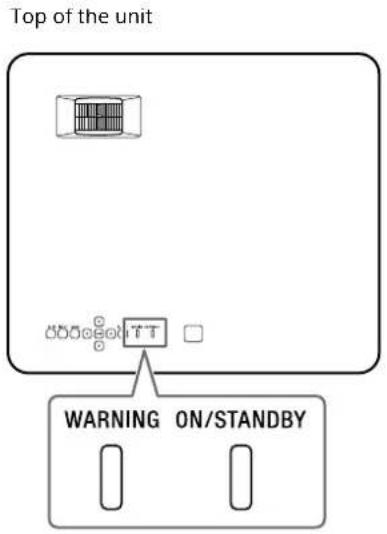

Indicators...... Page 43

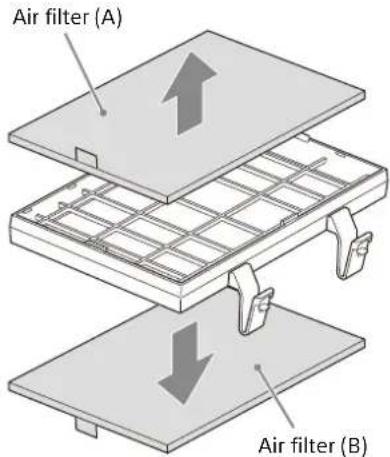

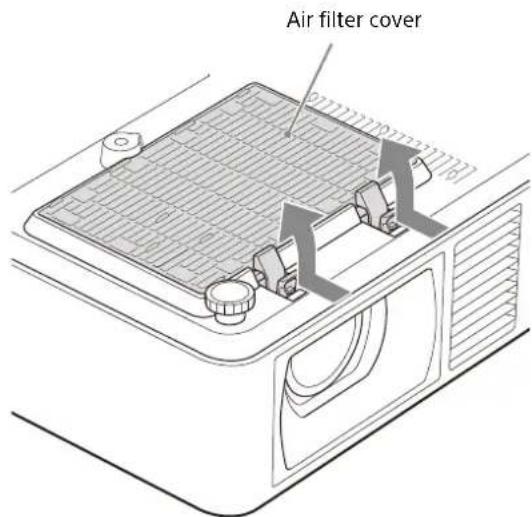

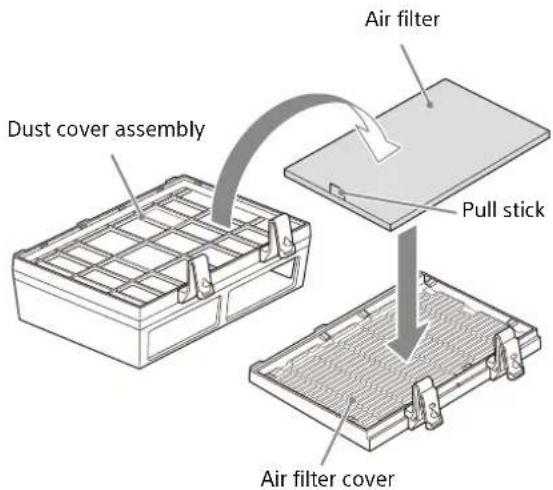

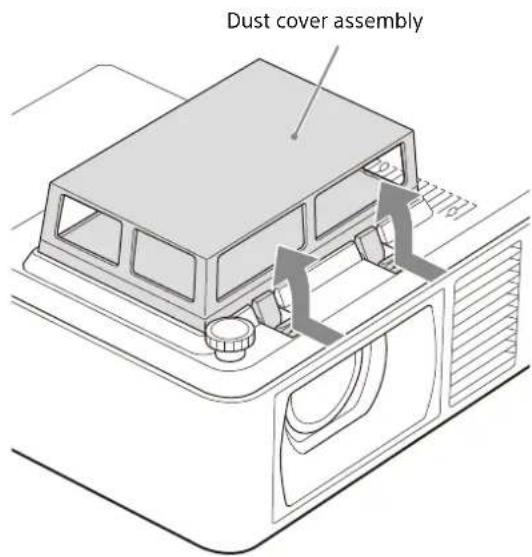

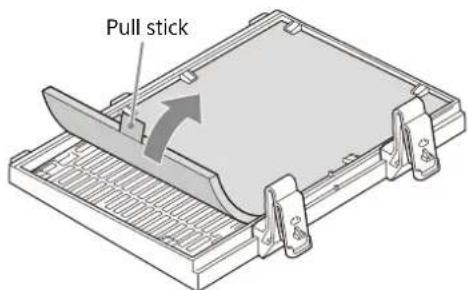

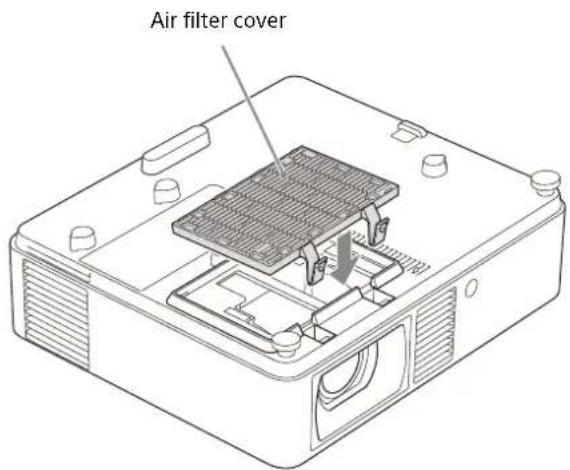

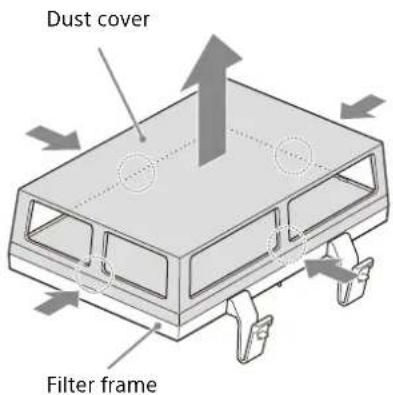

Cleaning the Air Filter...... Page 45

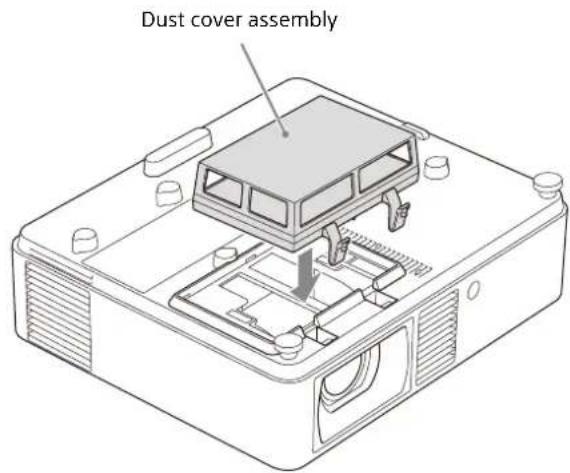

Cleaning the Air Filter (For Installing to the Ceiling) (For the Customers in India only)......Page 46

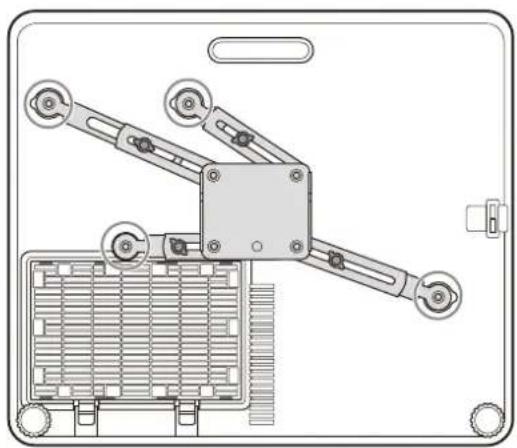

Notes on Installing the Ceiling Bracket ...... Page 47

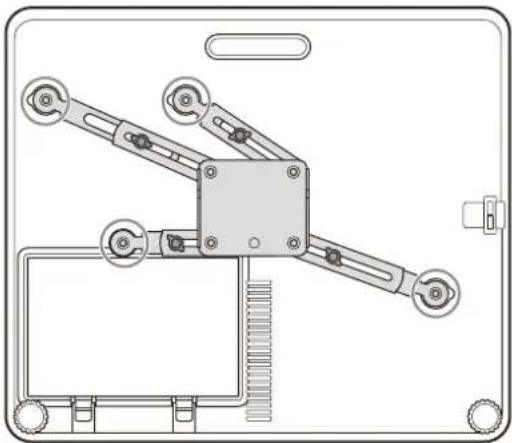

Notes on Installing the Ceiling Bracket (For the Customers in India only) Page 48

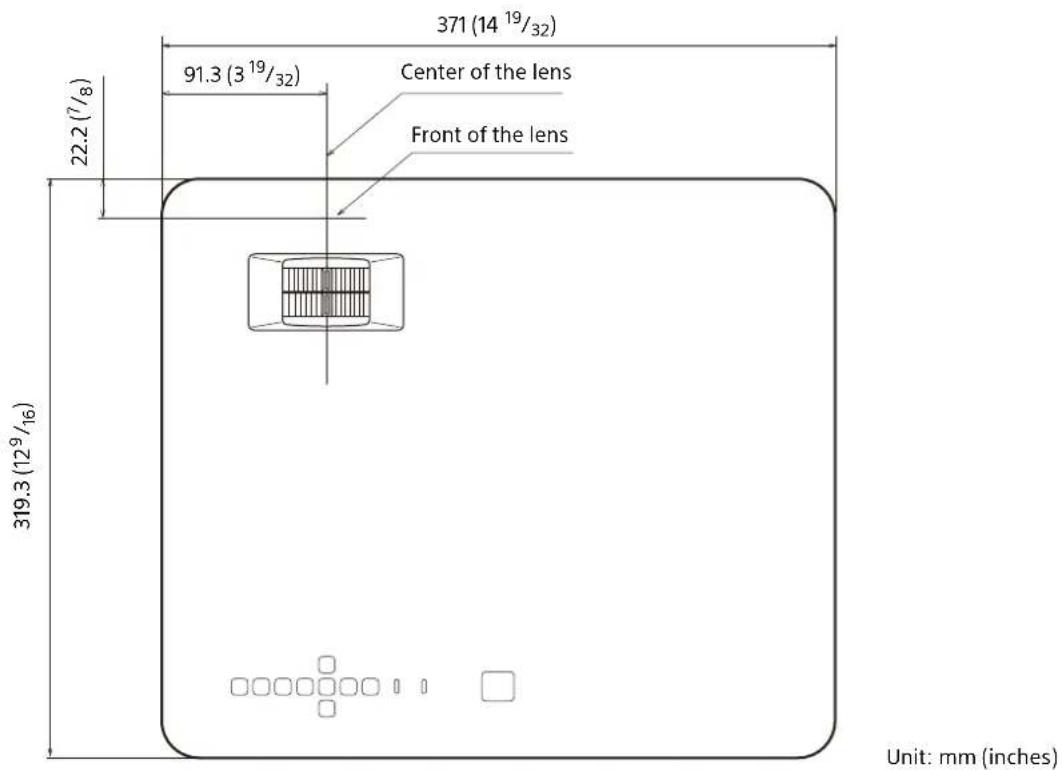

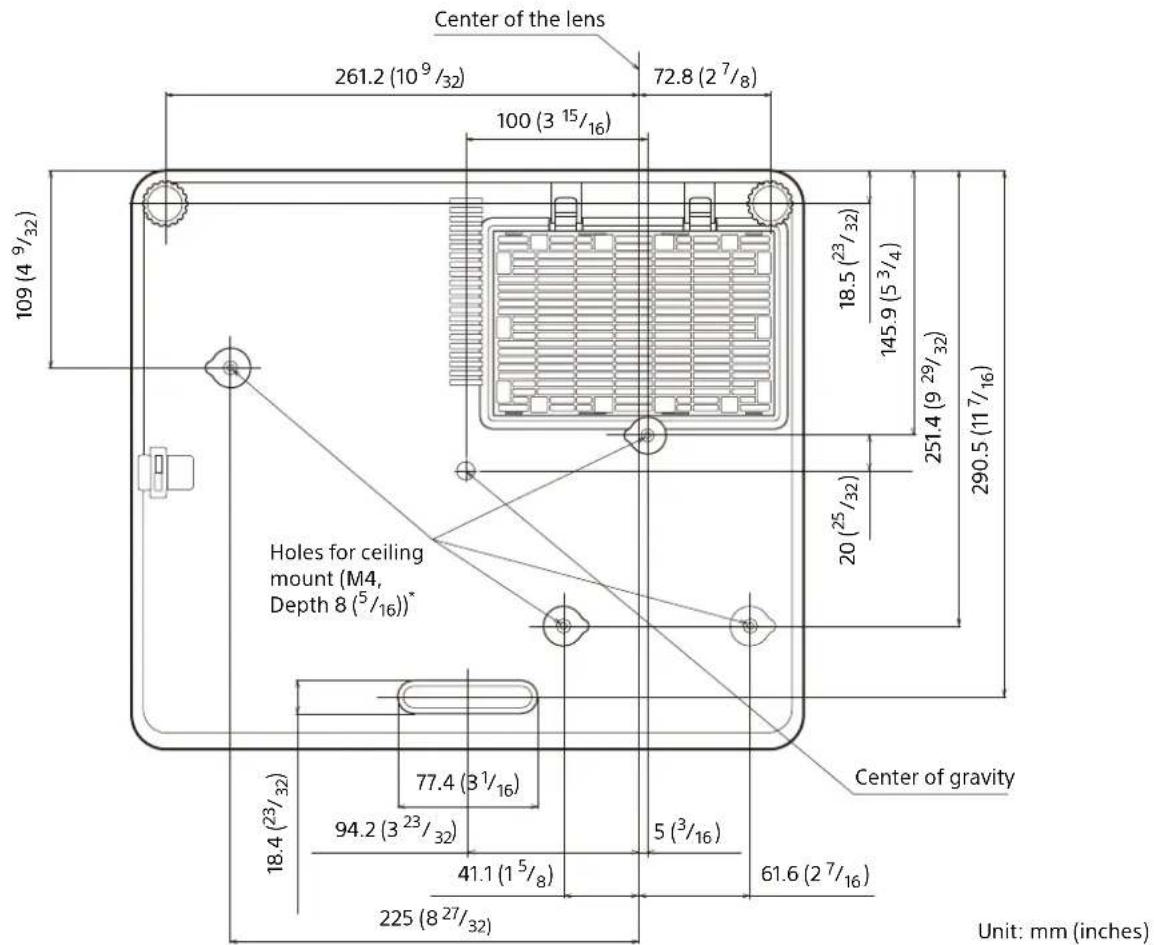

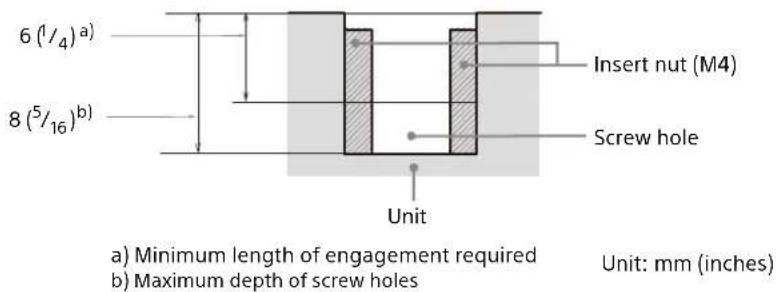

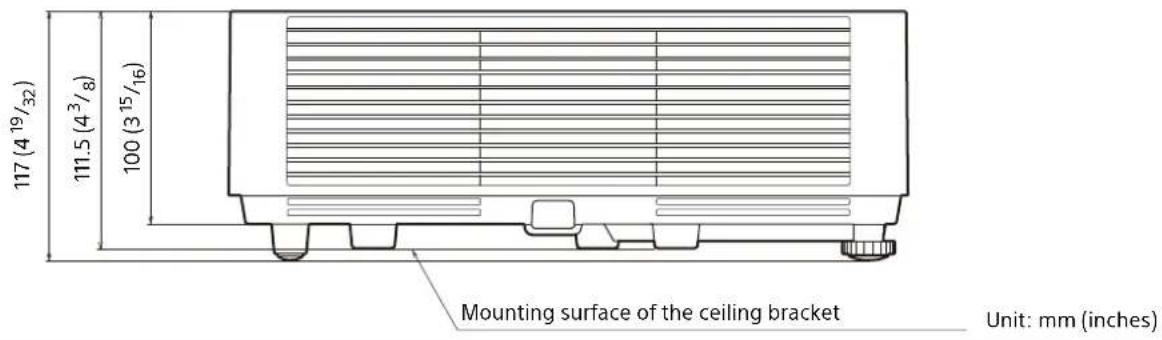

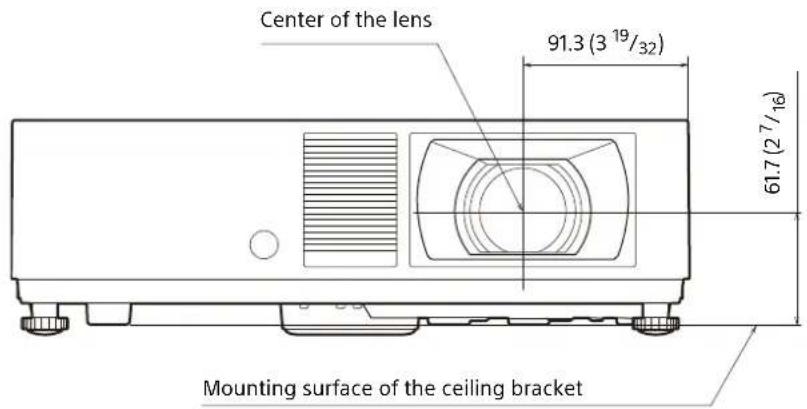

Dimensions......Page 49

Manuals supplied

Setup Guide (this document)

Explains the safety precautions, installation method, and initial setup for this unit.

Help Guide (Web operating instructions)

Explains the features of the unit and how to use in detail. You can view the Help Guide on a smartphone or computer.

https://rd1.sony.net/help/vpl/cwz10/en/

English

Before operating the unit, please read this manual thoroughly and retain it for future reference.

When using the product, do not use it for purposes other than those described in the instruction manual.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

This apparatus must be earthed.

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
• When you dispose of the battery or the product, you must obey the law in the corresponding area or country. Do not dispose of the battery or the product in a fire or a hot oven, or mechanically crush or cut the battery. It may explode or cause a fire. Do not subject the battery to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Do not place the battery in a high temperature place, such as under direct sunlight or near fire. It may ignite, explode, or cause a fire. Do not immerse or wet the battery in water or seawater. This may cause an electric shock.

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

CAUTION

For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to the following port:

• LAN

WARNING

1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country/region if applicable.
2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

IMPORTANT

The nameplate is located in the following location on the unit.

- Bottom

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect the equipment to peripherals must be shielded type to comply with EMC standard(s) and to prevent undesired operation due to radiated emissions. When cables are supplied, always use them for this purpose.

If you have any questions about this product, you may call:

Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/

Supplier's Declaration of Conformity

Trade Name : SONY

Model : VPL-CXZ10/VPL-CWZ10

Responsible party : Sony Electronics Inc.

Address 16535 Via Esprillo, San

Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

CAN ICES-3 (A)/NMB-3(A)

WARNING

Operation of this equipment in a residential environment could cause radio interference.

For the customers in Europe

This apparatus shall not be used in the residential area.

WARNING

Do not ingest battery, Chemical Burn Hazard

• The following accessory supplied with this product contains a coin/button battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Remote Commander
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

This symbol means "Caution: Please refer for further information to the user manual."

IEC 60825-1:2014

CLASS 1 LASER PRODUCT

• This product complies with EN60825-1:2014+A11:2021.
• This product complies with EN50689:2021.
- This product is designed to project images on a wall or screen.

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.

CAUTION

Do not look into the lens while in use.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Caution

The use of optical instruments with this product will increase eye hazard.

CAUTION

Never allow children to stare into the projector beam at any distance from the projector.

CAUTION

Do not turn on the projector with the remote commander while in front of the projection lens.

CAUTION

Avoid the use of optical aids such as binoculars or telescopes inside the beam.

For the State of California, USA only

Perchlorate Material – special handling may apply, See

www.dtsc.ca.gov/hazardouswaste/perchlorate

For the Customers in Brazil only

For the customers in the U.S.A.

SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada

SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/pro/lang/en/ca/article/resources-warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Professional Solutions Europe - Standard Warranty and Exceptions on Standard Warranty. Please visit https://pro.sony/support-services/primesupport/support-professional-solutions-europe-standard-product-warranty for important information and complete terms and conditions.

For the customers in Korea

SONY LIMITED WARRANTY - Please visit http://bpeng.sony.co.kr/handler/BPAS-Start for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

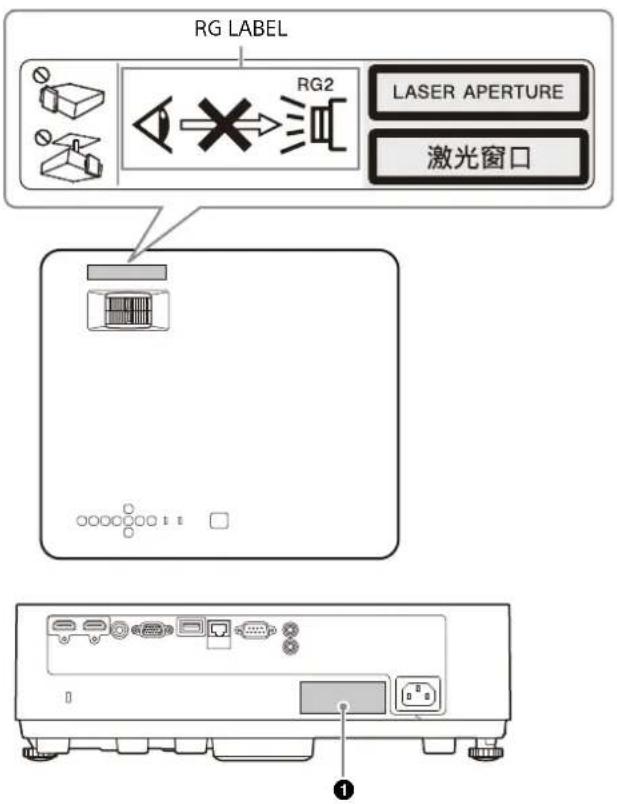

Location information of the labels

Light source specifications

95 W Laser diode array: 1 piece Composing laser diodes quantity: 20 pieces Composing laser diode wavelengths: 449 - 461 nm

Beam divergence angle from lens of this unit

α Laser emission port

Zoom maximum: α Zoom minimum: α
42° 27°

Precautions

On safety

• Check that the operating voltage of your unit is identical with the voltage of your local power supply. If voltage adaptation is required, consult with qualified Sony personnel.
• Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified Sony personnel before operating it further.
• Unplug the unit from the wall outlet if it is not to be used for several days.
• To disconnect the cord, pull it out by the plug. Never pull the cord itself.
• The wall outlet should be near the unit and easily accessible.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Do not look into the lens while in use.
• When turning on the projector, make sure no one is peeking at the projection lens.
• Do not let children use the unit alone.
• Do not place your hand or objects near the ventilation holes — the air coming out is hot.
• Be careful not to catch your fingers by the feet (adjustable) when you adjust the height of the unit. Do not push hard on the top of the unit with the adjuster out.
• Avoid using an extension cord with a low voltage limited since it may cause the short-circuit and physical incidents.
• Do not catch your finger between the unit and surface of the floor when moving the projector installed on the floor.
• Be careful not to catch your finger in the cooling fan.
• Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity, mechanical vibration or shock.
• If a user disassembles, repairs, or alters the unit, it may cause a serious problem to the user's safety.

• If the projector malfunctions or is damaged, consult with a qualified Sony personnel.

• If the ventilation holes are blocked, internal heat builds up, and it may cause a fire or damage the unit. To allow adequate air circulation and prevent internal heat build-up, follow the items below:

• Place the unit, leaving sufficient space from walls or any objects (page 30).

Line drawing of a mechanical device emitting smoke or heat, with no text or symbols present.

- Avoid using something to cover the ventilation holes (exhaust/intake).

- Do not place the unit on surfaces such as an original packing sheet, soft cloth, papers, rugs, or scraps of paper. The ventilation holes may take in such materials.

Simple line drawing of a building on a roof with smoke and a prohibition symbol (no text or labels)

- Do not place any object in front of the lens that may block the light during projection. Heat from the light may damage the object. Use the blank function to cut off the picture.

- Do not use the Security bar for the purpose of preventing theft for transporting or installing the unit. If you lift the unit by the Security bar or hang the unit by this bar, it may cause the unit to fall and be damaged, and may result in personal injury.

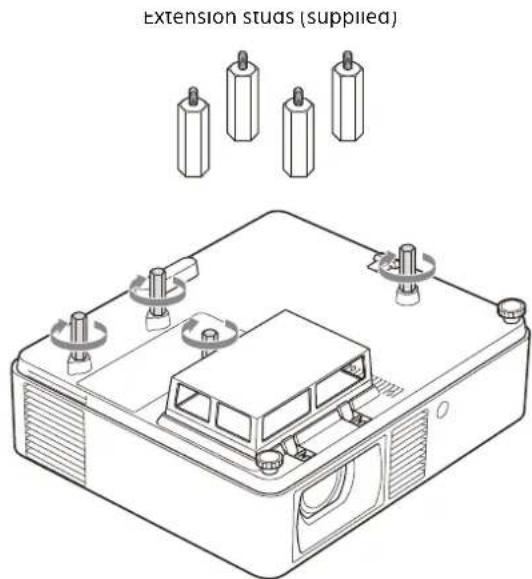

For dealers

• When the projector is mounted on the ceiling, a Sony bracket or recommended equivalent must be used for installation.
• Be sure to secure the cabinet cover firmly when installing to the ceiling firmly.
• Do not use any parts other than the supplied extension studs.

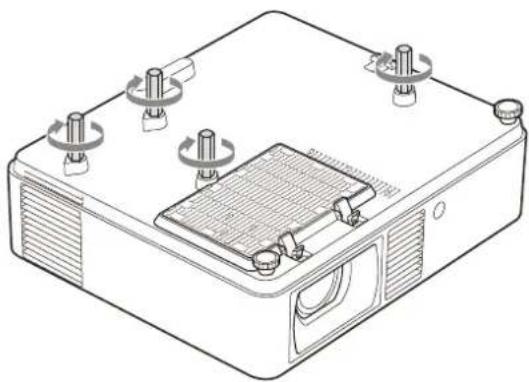

• Tighten the extension studs on the unit with a torque of 1.3 ± 0.1 ~N · m . Then, install the ceiling bracket tightening the screws on the extension studs with a torque of 1.1 ± 0.1 ~N · m .
• Under the following conditions, do not use:
• the extension studs if there are extension studs applied,
• with the extension studs loose,
• damaged extension studs.
• After attaching the extension studs to the unit, do not carry the unit by holding the extension studs.

Safety precautions for installing the unit on a ceiling

• Never mount the projector on the ceiling or move it by yourself. Be sure to consult the store where you purchased the projector or a dedicated installer.
• When installing the unit on a ceiling, be sure to use a safety wire, etc., to prevent the unit from falling. For the installation, be sure to consult the store where you purchased the projector or a dedicated installer.
• To use the projector safely, ask the store where you purchased it or a dedicated installer for periodic inspections.

On Installation

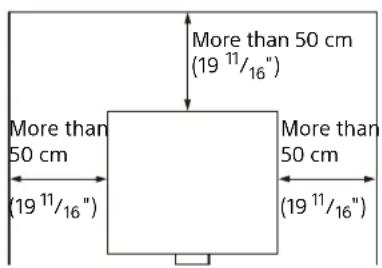

- When installing the unit, leave space between any walls, etc. and the unit as illustrated.

Top view

More than 50 cm (19 11/16") More than 50 cm (19 11/16") More than 50 cm (19 11/16")

- Avoid using if the unit is tilted more than 15 degrees horizontally.

15° 15°

- Avoid using the unit in a location where the temperature or humidity is very high, or temperature is very low.

Illustration of a steam rising from a chimney to a printer with smoke, no text or symbols present

- Avoid installing the unit in a location subject to direct cool or warm air from an air-conditioner. Installing in such a location may cause malfunction of the unit due to moisture condensation or rise in temperature.

- Avoid installing the unit in a location near a heat or smoke sensor. Installing in such a location may cause malfunction of the sensor.

- Avoid installing the unit in a very dusty or extremely smoky environment. Otherwise, the air filter will become obstructed, and this may cause a malfunction of the unit or damage it.

• When using the unit at an altitude of 1,500 m or higher, set "High Altitude Mode" to "On" in the Installation menu. Failing to set this mode when using the unit at high altitudes could have adverse effects, such as reducing the reliability of certain components.
• Avoid installing the product in a space where space disinfectant components containing hypochlorous acid and chlorine dioxide are

dispersed. Also, avoid spraying sanitizers or disinfectants near the product. This may cause discoloration of the product, deterioration of the material, failure due to corrosion, and easy clogging of the air filter.

On cleaning the lens and the cabinet

• Be sure to disconnect the AC power cord from the AC outlet before cleaning.
• If you rub on the unit with a stained cloth, the cabinet may be scratched.
• If the unit is exposed to volatile materials such as insecticide, or the unit is in contact with a rubber or vinyl resin product for a long period of time, the unit may deteriorate or the coating may come off.
• Do not touch the lens with bare hands.
• On cleaning the lens surface:
  Wipe the lens gently-with a soft cloth, such as a glass cleaning cloth. Stubborn stains may be removed with a soft cloth lightly dampened with water. Never use solvent such as alcohol, benzene or thinner, or acid, alkaline or abrasive detergent, or a chemical cleaning cloth.
• On cleaning the cabinet:
  Clean the cabinet gently with a soft cloth. Stubborn stains may be removed with a soft cloth lightly dampened with mild detergent solution and wrung, followed by wiping with a soft dry cloth. Do not use alcohol, benzine, thinner, sanitizers, or disinfectants.

On Illumination

To obtain the best picture, the front of the screen should not be exposed to direct lighting or sunlight.

On Heat Dissipation

The temperature of the projector cabinet may increase during or immediately after use; however, this is not a malfunction.

On Screen

When using a screen with an uneven surface, stripes pattern may rarely appear on the screen depending on the distance between the screen and the unit or the zooming magnifications. This is not a malfunction of the unit.

On Fan

Since the projector is equipped with a fan inside to prevent internal temperature from rising, there may be some noise. This is a normal result of the manufacturing process and does not indicate a malfunction. If, however, in a case of abnormal noise, consult with qualified Sony personnel.

On inspection of light source related parts

Since the unit uses a laser, when performing maintenance or inspection of light source related parts, particular attention and a safe environment are necessary. Be sure to consult with qualified Sony personnel.

On disposing used products

Do not dispose the used products and general garbage together.

Correctly dispose of used products to avoid harming the environment or the health of yourself and others. Follow the disposal regulations of your area.

LCD Projector

The LCD projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD projector. This is a normal result of the manufacturing process and does not indicate a malfunction.

Also, when you use multiple LCD projectors to project onto a screen, even if they are of the same model, the color reproduction among projectors may vary, since color balance may be set differently from one projector to the next.

On condensation

If the room temperature where the projector is installed changes rapidly, or if the projector is moved suddenly from a cold to a warm place, condensation in the projector may occur. As the

condensation may cause malfunction, be careful in adjusting temperature settings of the air conditioner. If condensation occurs, leave the projector turned on for about two hours before use.

Notes on security

• SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM A FAILURE TO IMPLEMENT PROPER SECURITY MEASURES ON TRANSMISSION DEVICES, UNAVOIDABLE DATA LEAKS RESULTING FROM TRANSMISSION SPECIFICATIONS, OR SECURITY PROBLEMS OF ANY KIND.
• Depending on the operating environment, unauthorized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely.
• From a safety standpoint, when using the unit connected with the network, it is strongly recommended to access the Control window via a Web browser and change the access limitation settings from the factory preset values (refer to "Using Network Features" in the Help Guide). Changing the password regularly is also recommended.
• Do not browse any other website in the Web browser while making settings or after making settings. Since the login status remains in the Web browser, close the Web browser when you complete the settings to prevent unauthorized third parties from using the unit or harmful programs from running.

Do not place this product close to medical devices

This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.

Notes

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.
• SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.
• SONY WILL NOT BE LIABLE FOR THE TERMINATION OR DISCONTINUATION OF ANY SERVICES RELATED TO THIS UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY KIND.

License Notice

Refer to "Notice on the Software" in the Help Guide and read the contents of the license.

For the customers in Taiwan only

警告

For the customers in Taiwan only

廢電池請回收

Line drawing of a mechanical device emitting smoke or vapor, with no text or symbols present.

Illustration of a steam machine emitting smoke next to a conical lamp and a printer (no text or symbols)

Checking the Supplied Accessories

Remote Commander (RM-PJ8) (1)

Lithium battery (CR2025) (1)

The battery is already installed. Before using the remote commander, remove the insulation film.

AC power cord (1)

Mini D-sub 15 pin cable (1.8 m) (1) (1-970-584-11/Sony)

Extension studs (4)

Air filter cover (1)*

Dust cover assembly (1)*

Setup Guide (this manual) (1)

* For the customers in India only

Installing batteries

1 Pull out the lithium battery compartment. Pull the battery compartment toward you while releasing the lock.

Hand holding a small electronic component with arrows indicating force or movement (no text or symbols)

2 Insert a lithium battery.

The lithium battery should be placed in the compartment with the plus side facing up.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

3 Close the lithium battery compartment.

Attaching the Air Filter (For the Customers in India only)

The supplied accessories required vary depending on the installation method.

For installing to the floor

1 Remove the air filter from the dust cover assembly, and then attach the air filter to the air filter cover.

Air filter Dust cover assembly Pull stick Air filter cover

Note

Pull the pull stick upwards when removing the air filter from the dust cover assembly.

When attaching the air filter to the air filter cover, make sure the correct side is being attached so that the pull stick is protruding from the air filter.

2 Attach the air filter cover to the unit by pushing the two levers on it.

Air filter cover

Note

When installing to the floor, securely attach the air filter to the air filter cover, taking care not to hit the hook of the air filter cover. If the air filter is attached to the air filter cover incorrectly, malfunction may occur.

For installing to the ceiling

Attach the dust cover assembly to the unit by pushing the two levers on it. (The product is pre-fitted with a dust cover assembly when shipped.)

Dust cover assembly

Note

When installing to the ceiling, securely attach the dust cover assembly to the unit. Incorrect attachment of the dust cover assembly may cause a malfunction.

Step 2

Connecting

Notes

• Turn off all devices before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When unplugging a cable, be sure to grip the plug, not the cable itself.
• For more information, refer also to the instruction manual of the device to be connected.

Connecting to a Computer

Connect the INPUT B or INPUT C terminal to the HDMI output terminal on the computer.

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

HDMI cable (not supplied)

Notes

• Use HDMI-compatible device which has the HDMI Logo.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)
• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) signal or CEC (Consumer Electronics Control) signal.

For information on other connecting methods, refer to "Connecting" in the Help Guide.

Turning the Projector On/Off

1 Plug the AC power cord into a wall outlet.
2 Turn on the projector. Press the I/⏻ key on the unit or the Remote Commander.

Turning Off the Power

1 Press the I/⏻ key on the unit or the Remote Commander. The projector starts shutdown and turns off. For long-term use, turn off the projector when not in use.
2 Unplug the AC power cord from the wall outlet.

Selecting the Menu Language

The factory setting for the language for displaying menus, messages, etc. is English.

To change the on-screen language, proceed as follows:

1 Plug the AC power cord into a wall outlet.
2 Turn on the projector. Press the I/⏻ key on the unit or the Remote Commander.
3 Press the MENU key to display the menu. If the display cannot be properly seen, adjust the focus, size, and position of the projected image (page 42).
4 Select the menu language. ① Press the ↑ or ↓ key to select the Operation (☐ menu then press the ENTER key.

② Press the ↑ or ↓ key to select "Language (☐) then press the ENTER key.

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password OK Select Set OK/OK Back

③ Press the /// key to select a language, then press the ENTER key.

5 Press the MENU key to turn off the menu screen.

Projecting an Image

The size of a projected image depends on the lens or the distance between the projector and screen. Place the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see "Projection Distance" in the Help Guide.

1 Plug the AC power cord into a wall outlet.
2 Connect all necessary devices to the projector (page 40).
3 Turn on the projector. Press the I/⏻ key on the unit or the Remote Commander.
4 Turn on the connected device.
5 Select the input source. Press the INPUT key on the projector or on the Remote Commander to display the input select window. Press the INPUT key repeatedly or the ↑/↓ key to select an image to be projected.
6 Change the computer screen output destination to an external display. How to change the output destination varies, depending on the type of computer.

(Example)

7 Adjust the focus, size and position of the projected image (page 42).

Adjusting the Projected Image

Focusing the image (Focus)

Two grayscale images showing a garden scene with fruits and snow, one rotated to show a change (no text or symbols)

Turn the focus lever.

Focus lever

Adjusting the image size (Zoom)

Black-and-white photo of assorted fruits including pineapple, grapes, and apples on a table (no text or symbols visible)

Turn the zoom lever.

Zoom lever

Adjusting the position of the image

If the projector is installed on an uneven surface, adjust the position of the projected image by changing the tilt of the projector with the front feet (adjustable).

Line drawing of a projector with a button and rotating base, showing internal components and a close-up view of the button (no text or symbols)

Notes

• Be careful not to let the projector down on your fingers.
• Do not push hard on the top of the projector with the front feet (adjustable) extended. It may cause malfunction.

If you need to further adjust projected images, refer to "Adjusting" in the Help Guide.

Indicators

You can check the projector status or abnormality by checking the lighting/flashing status of the ON/STANDBY indicator and WARNING indicator on the top. If the indicators flash in red, address the problem in accordance with "Warning indication and remedies" (page 44).

Top of the unit WARNING ON/STANDBY

Status indication

Indicator status Operating status Description
WARNING ON/STANDBY[3702] (6TCA)(Lights in red)(Off)	Standby The power is supplied to the projector and the projector is in a standby mode according to the setting.
WARNING ON/STANDBY (3YKK)(Flashes in green)(Off)	Warm-up The projector is warming up after it is turned on.
WARNING ON/STANDBY[HYZ] (K61H)(Lights in green)(Off)	Power on The projector is ready for projection.
WARNING ON/STANDBY[K66B] (065D)(Lights in orange)(Off)	Other standby status	The projector is in With No Input (Light Cutoff) or the speaker setting is set to "Always On."

Indicator status Operating status Description
WARNING ON/STANDBY

(Flashes in orange)(Off)

Updating software The projector software is being updated.
Warning indication and remedies

Indicator status Number of flashes Meaning/Remedies
WARNING ON/STANDBY	Twice The top cover is not properly attached. Check the attachment of the top cover. If it has been loosened due to a strong impact to the projector, consult with qualified Sony personnel.
	(Lights in red)(Flashe)
WARNING ON/STANDBY	Three times The light source does not light properly. Unplug the AC power cord and make sure the ON/STANDBY indicator turns off, then plug the AC power cord into the wall outlet and turn on the projector.
	(Lights in red)(Flashe)
WARNING ON/STANDBY	Twice The temperature in the projector is abnormal. Perform the following. Check if the air filter is clogged, then clean or replace it (page 45). Check if the ventilation holes (intake/exhaust) are not blocked by the wall or an object and secure a sufficient gap. Check the ambient temperature and use the projector within the range of operating temperature.
	(Flashes in red) (Flashes in red)
	Both indicators flash

If the indicators flash in a manner other than described above, unplug the AC power cord and make sure the ON/STANDBY indicator turns off, then plug the AC power cord into the wall outlet and turn on the projector.

If the problem still persists, consult with qualified Sony personnel.

If there is any problem or an error message appears on the screen, refer to "Messages List" or "Troubleshooting" in the Help Guide.

Cleaning the Air Filter

When the message that prompts cleaning the air filter appears, clean the air filter.

If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one.

For details on a new air filter, consult with qualified Sony personnel.

Caution

If you continue to use the projector even after the message is displayed, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire.

1 Turn off the projector and disconnect the AC power cord from a wall outlet.

Note

If you remove the air filter cover while the power is turned on, you may accidentally touch the fan inside the unit, which may cause injury.

2 To remove the air filter cover, lift it up while pressing the two levers.

Air filter cover

3 Remove the air filter from the air filter cover.

Pull stick

4 Clean the air filter with a vacuum cleaner.

5 Put the air filter back in the air filter cover, then attach the air filter cover to the unit.

Notes

• Pull the air filter pull stick upwards when removing the air filter from the air filter cover. When attaching the air filter to the air filter cover, make sure the correct side is being attached so that the pull stick is protruding from the air filter.
• Securely attach the air filter to the air filter cover, taking care not to hit the hook of the air filter cover. If the air filter is attached to the air filter cover incorrectly, malfunction may occur.

Cleaning the Air Filter (For Installing to the Ceiling) (For the Customers in India only)

When the message that prompts cleaning the air filter appears, clean the air filter. If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel.

Caution

If you continue to use the projector even after the message is displayed, dust may accumulate, clogging it. As a result, the temperature may rise inside the projector, leading to a possible malfunction or fire.

1 Turn off the projector and disconnect the AC power cord from a wall outlet.

Note

If you remove the dust cover assembly while the power is turned on, you may accidentally touch the fan inside the projector, which may cause injury.

2 Remove the dust cover assembly by pressing the two levers and lifting it up.

Dust cover assembly

3 Push all four sides of the dust cover to loosen the hook, and then remove the dust cover from the filter frame.

Dust cover Filter frame

4 Remove the air filters (A) and (B) from the filter frame.

Air filter (A) Air filter (B)

5 Clean the air filter with a vacuum cleaner.
6 Put the air filters and dust cover back into the dust cover assembly, and then attach the dust cover assembly to the unit.

Notes

• Properly attach air filters (A) and (B) to the filter frame, making sure they do not overlap with the hooks on the filter frame.
• Securely attach the dust cover to the filter frame, then attach the dust cover assembly to the unit. Incorrect attachment of the dust cover assembly may cause a malfunction.
• Do not use the unit on the floor when the dust cover is removed from the dust cover assembly. Malfunction may occur.

Notes on Installing the Ceiling Bracket

When installing the free-type ceiling bracket as shown in the figure to the unit, it is recommended to use 4 screws to fix it in a stable position considering the center of gravity of the unit. (Fixing with 3 screws is essential).

Technical line drawing of a mechanical linkage system with wheels and a grid base (no text or symbols)

Make sure that the ceiling bracket does not overlap on the air filter cover during installation. Even if your ceiling bracket inevitably overlaps with the air filter cover, it can be installed if the overlap is within the range of A in the figure.

A 36.5 mm (17/16 inches)

If the overlap between the ceiling bracket and the air filter cover exceeds the range of A in the figure, use the supplied extension studs.

Extension studs (supplied)

When using the extension studs, attach the supplied 4 or 3 extension studs to the unit according to the fixing position of the ceiling bracket.

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Notes

• Do not use any parts other than the supplied extension studs.
• Tighten the extension studs on the unit with a torque of 1.3 ± 0.1 ~N · m .
  Then, install the ceiling bracket tightening the screws on the extension studs with a torque of 1.1 ± 0.1 N·m.

• Under the following conditions, do not use:
- the extension studs if there are extension studs applied,
- with the extension studs loose,
- damaged extension studs.

- After attaching the extension studs to the unit, do not carry the unit by holding the extension studs.

- To use the projector safely, ask the store where you purchased it or a dedicated installer for periodic inspections.

Notes on Installing the Ceiling Bracket (For the Customers in India only)

When installing the free-type ceiling bracket as shown in the figure to the unit, it is recommended to use 4 screws to fix it in a stable position considering the center of gravity of the unit. (Fixing with 3 screws is essential).

Technical line drawing of a mechanical linkage system with no visible text or symbols

Make sure that the ceiling bracket does not overlap on the air filter cover during installation. If your ceiling bracket interferes with the dust cover assembly and cannot be installed, attach the supplied 4 or 3 extension studs to the unit.

Extension studs (supplied)

Notes

• Do not use any parts other than the supplied extension studs.
• Tighten the extension studs on the unit with a torque of 1.3 ± 0.1 ~N · m .
  Then, install the ceiling bracket tightening the screws on the extension studs with a torque of 1.1 ± 0.1 N·m.

• Under the following conditions, do not use:

• the extension studs if there are extension studs applied,
• with the extension studs loose,
• damaged extension studs.

• After attaching the extension studs to the unit, do not carry the unit by holding the extension studs.

- To use the projector safely, ask the store where you purchased it or a dedicated installer for periodic inspections.

Dimensions

Front

Center of the lens 91.3 (3 19/32) 61.7 (2 7/16) Mounting surface of the ceiling bracket

Unit: mm (inches)

Side

117 (4 19/32) 111.5 (4 3/8) 100 (3 15/16) Mounting surface of the ceiling bracket Unit: mm (inches)

Top

371 (14 19/32) 91.3 (3 19/32) Center of the lens Front of the lens 22.2 (7/8) 319.3 (12 9/16) Unit: mm (inches)

Bottom

Center of the lens 261.2 (10^9/32) 72.8 (2^7/8) 100 (3^15/16) 109 (4^9/32) Holes for ceiling mount (M4, Depth 8 (^5/16)*) 18.5 (^23/32) 145.9 (5^3/4) 251.4 (9^29/32) 20 (^25/32) 290.5 (11^7/16) Center of gravity 18.4 (^23/32) 77.4 (3^1/16) 94.2 (3^23/32) 5 (^3/16) 41.1 (1^5/8) 61.6 (2^7/16) 225 (8^27/32) Unit: mm (inches)

* Specifications of ceiling mount holes

6 (1/4)a) 8 (5/16)b) Insert nut (M4) Screw hole Unit a) Minimum length of engagement required b) Maximum depth of screw holes Unit: mm (inches)

• Be sure to use screws that are longer than the minimum length of engagement and shorter than the maximum depth of screw holes as shown in the figure above.
• Recommended tightening torque: 1.1 ± 0.1 ~N · m
• When using the supplied extension studs, tighten the extension studs on the unit with a torque of 1.3 ± 0.1 ~N · m .
  Then, install the ceiling bracket tightening the screws on the extension studs with a torque of 1.1 ± 0.1 N·m.

Raccordement Page 61

Étape 3

Projection......Page 62

Témoins Page 64

Line drawing of a trash bin with smoke and a prohibition symbol above (no text or labels)

Simple line drawing of a smokestack on a tray with a prohibition symbol above (no text or labels)

Illustration of a steam rising from a chimney to a portable heater and a toaster, with a prohibition symbol above (no text or labels)

Hand holding a small mechanical component with arrows indicating force direction (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and a central plus symbol (no text or labels)

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password OK Select Enter Set Options Back

Two grayscale images showing a fruit arrangement on a surface, one with a rainbow and the other with fruits (no text or symbols)

Black-and-white photo of assorted fruits including grapes, apples, and a basket on a white surface (no text or symbols)

Illustration of a projector with a button and rotating knob, showing internal components (no text or symbols)

Remarques

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Remarques

Line drawing of a mechanical device emitting smoke or steam, with no visible text or symbols.

Simple line drawing of a box on a folded paper with smoke and a prohibition symbol (no text or labels)

Illustration of a portable air conditioner emitting steam, with a projector and a chimney nearby (no text or symbols)

Hand holding a small electronic component with arrows indicating force or movement (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and a central plus symbol (no text or labels)

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password Sel Enter Set Options Back

Two grayscale images showing a fruit arrangement on a surface, one with grapes and one with palm oil, under a cloudy sky (no text or symbols)

Black-and-white photo of a fruit basket with apples and flowers on a table, framed by decorative corner brackets (no text or symbols)

Gire la palanca de zoom.

Palanca de zoom

Illustration of a projector with a button and rotating knob, showing internal components (no text or symbols)

Notas

Technical line drawing of a mechanical device with articulated arms and a grid base (no text or symbols)

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Notas

Line drawing of a cluttered device emitting smoke or vapor (no text or symbols)

Simple line drawing of a building on a roof with smoke and a prohibition symbol (no text or labels)

Illustration of a steam rising from a chimney to a printer with smoke, no text or symbols present

Hand holding a small mechanical component with arrows indicating force direction (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and a central plus symbol (no text or labels)

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password Sel Enter Set Options Back

Two grayscale images showing a fruit arrangement on a surface, one with grapes and one with palm oil, under a cloudy sky (no text or symbols)

Fokushebel

Black-and-white photo of a fruit basket with apples and flowers on a table, framed by decorative corner brackets (no text or symbols)

Illustration of a projector with a button and rotating knob, showing internal components (no text or symbols)

Hinweise

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Hinweise

https://rd1.sony.net/help/vpl/cwz10/it/

Italiano

Line drawing of a portable air conditioner unit emitting steam, with no text or symbols present.

Simple line drawing of a smokestack on a tray with a prohibition symbol above (no text or labels)

Illustration of a steam rising from a chimney to a printer and a computer, with no visible text or symbols.

Hand holding a small electronic component with arrows indicating force or movement (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password Sel Enter Set Options Back

Two side-by-side grayscale images showing a fruit arrangement with grapes and fruits in the background, no text or symbols present.

Black-and-white photo of a fruit basket with apples and dried fruits, framed by decorative corner arrows (no text or symbols)

Line drawing of a projector with a button and rotating base, showing internal components and rotation arrows (no text or symbols)

Note

Technical line drawing of a mechanical linkage system with wheels and a grid base (no text or symbols)

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Note

Line drawing of a portable air conditioner unit emitting steam, with no text or symbols present.

Simple line drawing of a building on a roof with smoke and a prohibition symbol (no text or labels)

Illustration of a steam rising from a chimney to a printer emitting steam, with a prohibition symbol above (no text or labels)

Hand holding a small electronic component with arrows indicating force or movement (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password Sel Enter Set Options Back

Two grayscale images showing a fruit arrangement on a surface, one with grapes and one with fruits, under a cloudy sky (no text or symbols)

Black-and-white photo of a fruit arrangement with apples, grapes, and a basket on a snowy surface (no text or symbols)

Illustration of a projector with a button and rotating base, showing internal components and a close-up view of the button (no text or symbols present)

Примечания

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

Примечания

Technical line drawing of a rectangular electronic device with four circular switches and a central grid component (no text or symbols)

ملاحظات

Technical line drawing of a mechanical device with articulated arms and housing (no text or symbols)

Technical line drawing of a car air vent with internal components and mounting bracket (no text or symbols)

Illustration of a projector with a button and rotating base, showing internal components and a close-up of the button (no text or symbols)

ضبط الصورة المعروضة

Two side-by-side grayscale images showing a fruit arrangement on a surface, with no visible text or symbols.

Black-and-white photo of assorted fruits including grapes, apples, and a basket on a snowy surface (no text or symbols)

أير ذراع الزوم.

نذاع الاروم

Operation Language English Status On Security Lock Off Control Key Lock Off Menu Settings Lock Set Password OK Set OK Back

③ .ENTER

ملاحظات

Diagram showing connection between a laptop and an HDMI device with labeled ports and connections

(غير مرفق) HDMI كبل

ملاحظات

Hand holding a small electronic component with arrows indicating force or movement (no text or symbols)

1

Diagram of a mechanical or electrical component with directional arrows and a central plus sign (no text or symbols)

2

Illustration of a steaming machine emitting smoke next to a conical flask (no text or symbols)

Simple line drawing of a building on a roof with smoke and a prohibition symbol (no text or labels)

Line drawing of a portable air conditioner unit emitting steam, with no visible text or symbols

مواصفات مصر الضوء

Diagram of a computer monitor rear panel with labeled ports and buttons, showing status indicators and function keys.

① ملصق الفئة

https://rd1.sony.net/help/vpl/cwz10/ar/
