USER MANUAL Deebot T30 Omni ECOVACS

For the Instruction Manual in further languages, visit: https://www.ecovacs.com.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.

3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
6. Do not use without dust bin and/or filters in place.
7. Do not operate the Appliance in an area where there are lit candles or fragile objects.
8. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
9. Do not operate the Appliance in a room where an infant or child is sleeping.
10. Do not use Appliance on wet surfaces or surfaces with standing water.

11. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.

12. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.

13. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
14. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
15. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
16. Turn OFF the power switch before cleaning or maintaining the Appliance.
17. The lithium battery type suitable for CH2311 is Max. 8 cells, max. nominal voltage DC 14.4V, rated capacity 4,800mAh. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
18. Please dispose of used batteries according to local laws and regulations.
19. Do not incinerate the Appliance even if it is

severely damaged. The batteries can explode in a fire.

1. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.

2. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.

3. Please make sure your power supply source voltage matches the power voltage marked on the OMNI Station.

4. Use only the original rechargeable battery and OMNI Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.

5. Take care not to damage the power cord. Do not pull on or carry the Appliance or OMNI Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or comers. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

6. Do not use the OMNI Station if it is damaged.

The power supply is not to be repaired and not to be used any longer if it is damaged or defective.

1. Do not use with a damaged power cord or receptacle. Do not use the Appliance or OMNI Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

2. The plug must be removed from the receptacle before cleaning or maintaining the OMNI Station.

3. Remove the Appliance from the OMNI Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

4. When not using the OMNI Station for a long period of time, please unplug it.

5. If the robot will not be used for a long time, power OFF the robot for storage and unplug the OMNI Station.

6. WARNING-Add clean water into the clean tank only.

7. WARNING: For the purposes of recharging

the battery, only use the detachable supply unit CH2311 provided with the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update

Typically, some devices are updated bi-monthly, but not always so specific.

Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

	Caution: hot surface
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	This product conforms to the applicable EC Directives.
	Before charging, read the instructions.
	Polarity of the charging port
	Time-lag miniature fuse-link

The remote surveillance is for the absolute private use of non-public, private owned places for the pure self-protection and single control intended only. Please be aware of the local data protection based legal obligations in case of use. No surveillance of public places, especially with clandestine intent and/or on the part of the employer without justified reasons. Such not justified use is in the risk and responsibility of the user only.

European Union Compliance Statement Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste.

For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, which is free of charge, please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Information on Disposal for Users of used batteries

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point, which is free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national .legislation. there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Radio Equipment Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Europe Authorised Representative:

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product comply with the essential requirements and other relevant provisions of the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863, the Radio Equipment Directive 2014/53/EU. The declaration of conformity can be viewed at the following address: https://www.ecovacs.com/global/compliance.

PACKAGE CONTENTS

Simple line drawing of a circular object with a small central feature and two small circles on top (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and ports (no text or symbols)

OMNI Station

Technical line drawing of a mechanical component with no visible text or symbols

Base

Power Cord

Instruction ManualDirty Water Tank

Note:

* Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
* Silver Ions Anti-Bacterial Module is compatible with the water tank. If you wish to purchase, please visit ECOVACS HOME App or https://www.ecovacs.com/global.
* ECOVACS Automatic Water Refill/Drain Module is compatible with the OMNI Station. If you wish to purchase, please visit ECOVACS HOME App or https://www.ecovacs.com/global.

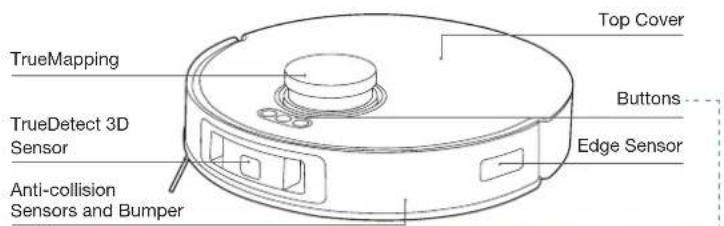

PRODUCT DIAGRAM

Robot

Top Cover TrueMapping Buttons TrueDetect 3D Sensor Edge Sensor Anti-collision Sensors and Bumper

Buttons

Short press: Exit/Return to the Station

Long press: Self-clean

Short press: Start/Pause/Continue

Long press: Power on/Power off

Short press: Start/End Spot Cleaning

Long press: Child Lock

RESET Button

Restore to default settings: Press and hold RESET button for 5 seconds.

After you hear the voice prompt, the startup music will be played and the robot will be restored to default settings.

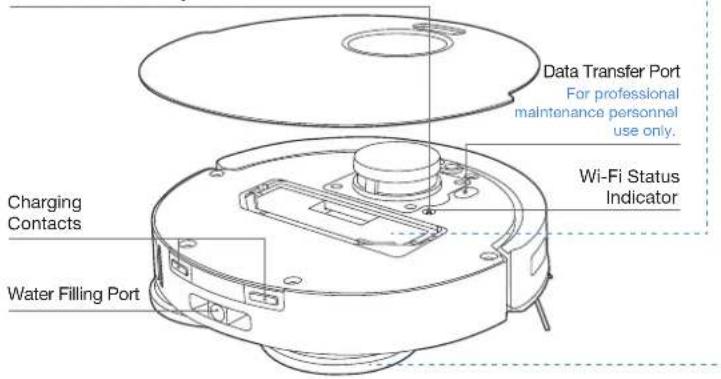

Data Transfer Port For professional maintenance personnel use only. Charging Contacts Water Filling Port Wi-Fi Status Indicator

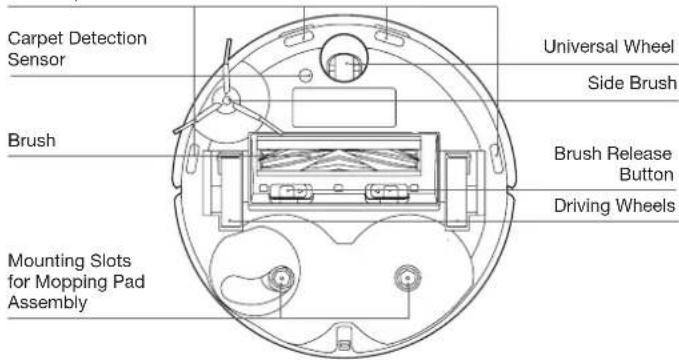

Bottom View

Anti-drop Sensors

Carpet Detection Sensor Brush Mounting Slots for Mopping Pad Assembly Universal Wheel Side Brush Brush Release Button Driving Wheels

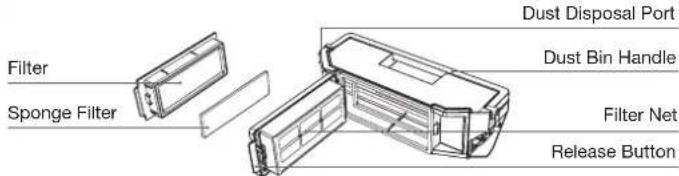

Dust Bin

Filter Sponge Filter Dust Disposal Port Dust Bin Handle Filter Net Release Button

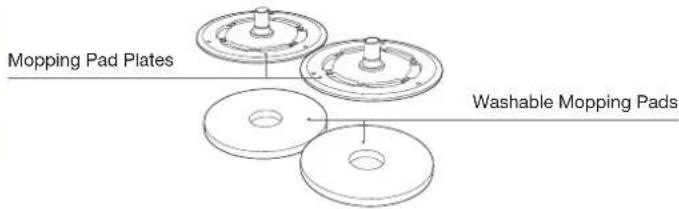

Mopping Pad Assembly

Mopping Pad Plates Washable Mopping Pads

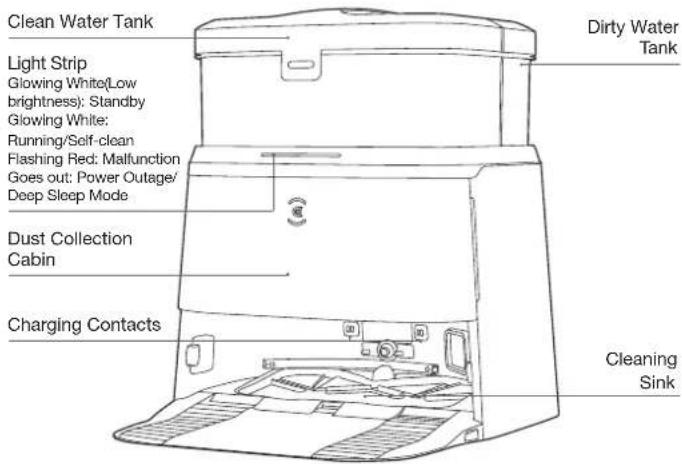

OMNI Station

Note:

* If the Light Strip is flashing red, please check the reason in ECOVACS HOME App.
* If DEEBOT fails to charge, please wipe Charging Contacts with a clean and dry cloth.

Clean Water Tank Light Strip Glowing White(Low brightness): Standby Glowing White: Running/Self-clean Flashing Red: Malfunction Goes out: Power Outage/ Deep Sleep Mode Dust Collection Cabin Charging Contacts Dirty Water Tank Cleaning Sink

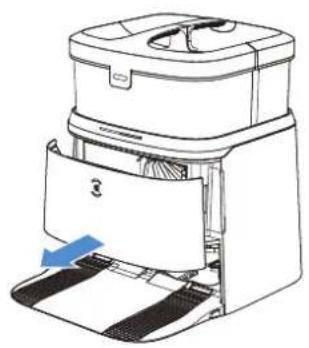

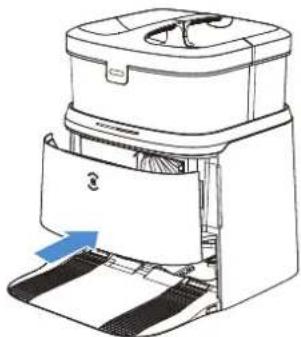

Dust Bag

Dust Bag Handle

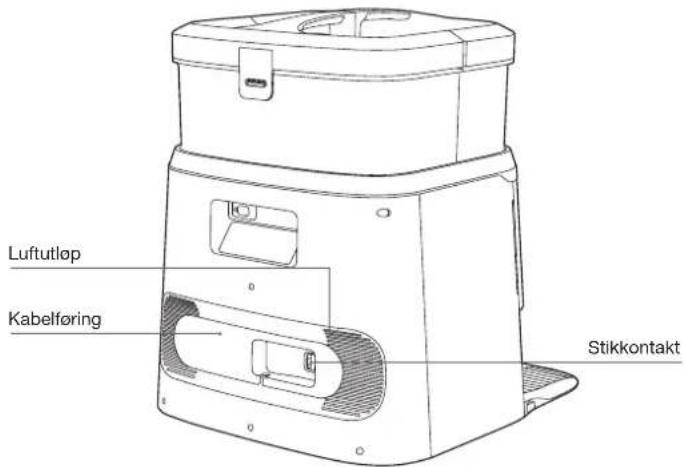

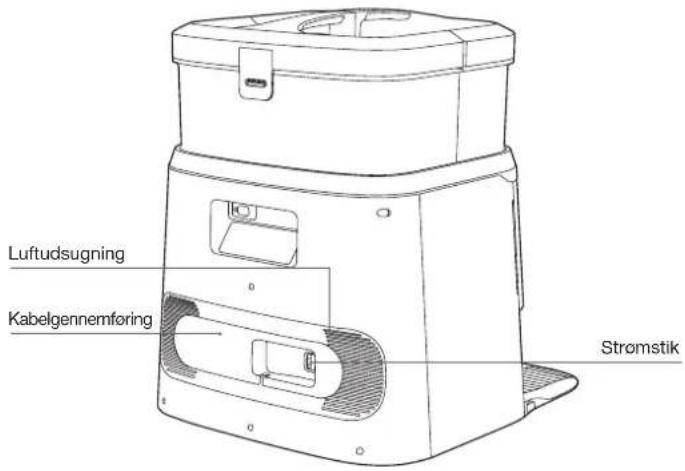

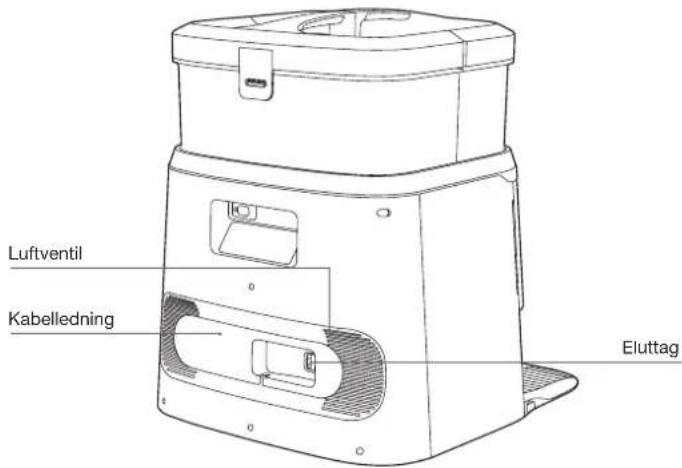

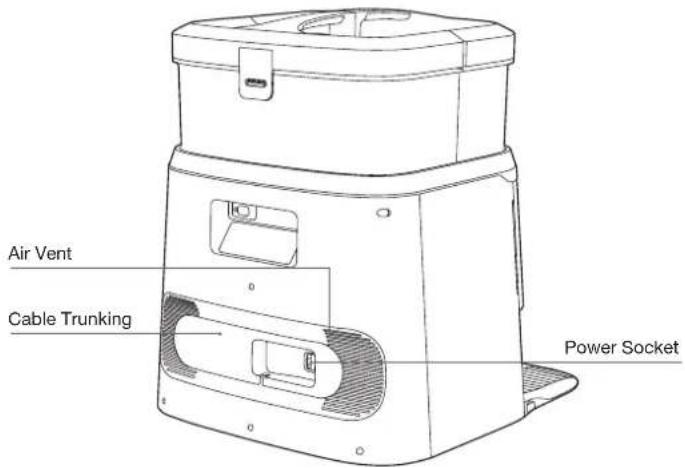

OMNI Station(Back)

Air Vent Cable Trunking Power Socket

SENSORS NOTES BEFORE CLEANING

Name Functional Description
TrueMapping	By utilizing the principle of triangulation, which involves emitting and receiving laser beams reflected by surrounding objects, precise distance measurement information between the DEEBOT and nearby objects can be calculated through algorithms. When the DEEBOT moves within a certain environment, the positions of surrounding objects are determined to create a spatial map of the DEEBOT's surroundings. The measurement range is 8 meters.
TrueDetect 3D Sensor	The TrueDetect 3D structured light sensor scans the object with a line laser and collect images with a monocular camera, and generates the three-dimensional coordinates of the object through image algorithms to identify the size of the object. The detection distance is 0.35m
Anti-drop Sensor	With Infrared Ranging-detecting the distance between the bottom of DEEBOT and ground by Infrared Sensor at the bottom, DEEBOT will not move forward when there are stairs in front or the identified distance exceeds the preset one, realizing the Anti-drop. The trigger distance is 60mm.
Carpet Detection Sensor	The difference in energy of the ultrasonic echo signal on different surfaces is used to identify the floor material and help DEEBOT to adjust the cleaning strategy automatically. Drive frequency 290kHz.
Edge Sensor	By the principle of infrared ranging, the robot detects the distance between itself and objects on its side. When there is a wall or obstacle on the right side, the robot performs edge-cleaning operations to avoid missing any spots and collisions.
Anti-collision Sensor	When the transmitted signal is blocked by an obstacle, the signal receiver will not be able to receive the signal. With this principle, DEEBOT will avoid obstacles when colliding with them.

Simple line drawing of a dining table with a fan, plate, and checkmark (no text or symbols)

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Isometric line drawing of a balcony structure with railing and circular base (no text or symbols)

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Put away objects including cables, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the TrueMapping Distance Sensor.

QUICK START

Before using DEEBOT, please remove all protective materials.

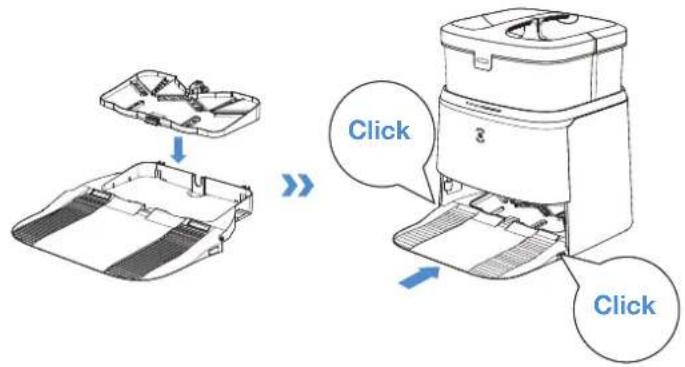

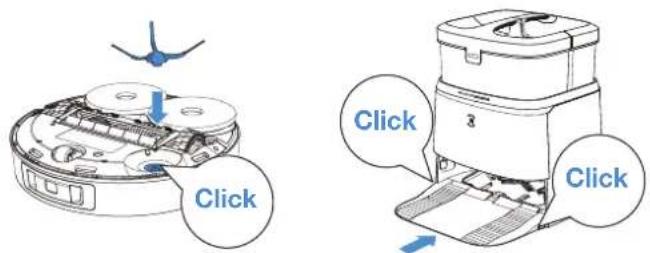

1 Installation

The sound of Click indicates proper installation.

Click Click 3 Click

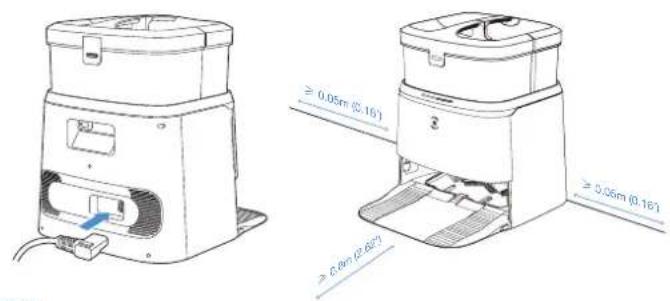

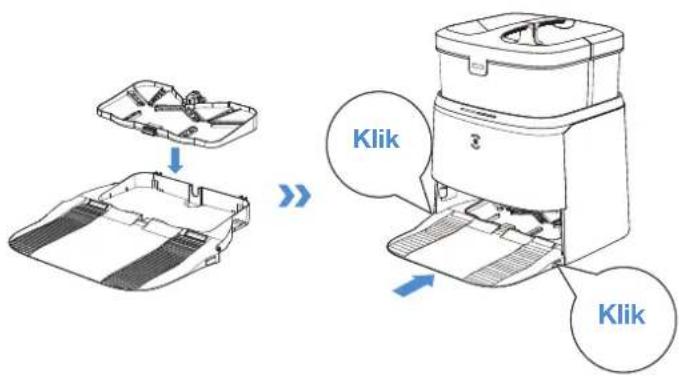

② Assemble and Place the Station

Keep the area around the Station clear of objects especially objects with reflective surfaces.

≥ 0.05m (0.16') ≥ 0.06m (0.16')

Note:

• If there are reflective objects such as mirrors and reflective skirting lines near the Station, the bottom 14cm of that should be covered.
• Do not place the Station under direct sunlight.
• It is recommended to place the Station on the hard floor to experience complete functions of the robot.
• Place Station in a location with a strong Wi-Fi signal.

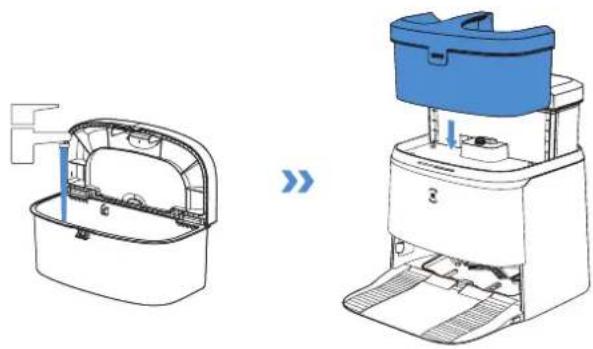

Use Tanks

Diagram showing two views of a printer or scanner device, one open and one closed, with no visible text or symbols.

Note:

* It is recommended to use ECOVACS DEEBOT Cleaning Solution (sold separately). Using other cleaning solution may cause DEEBOT slipping, water tank block and other problems.
* The water drops in the Water Tank are left over from the function test, please rest assured to use.

DOWNLOAD THE ECOVACS HOME APP

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME App.

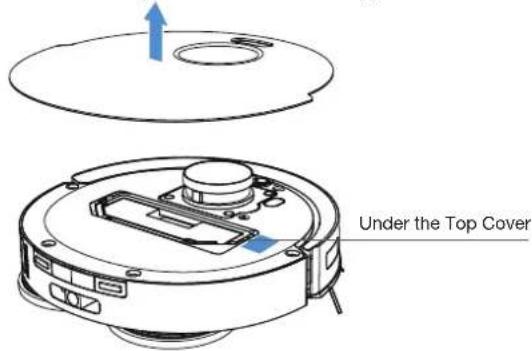

1. Scan the QR Code under the Top Cover to download the App.

Under the Top Cover

1. Search the ECOVACS HOME to download the App.

ECOVACS HOME

CONNECT DEEBOT WITH APP

1. Via Bluetooth:

Turn on the DEEBOT and mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap 📋 to scan the QR Code on DEEBOT or tap Add in the App to find nearby DEEBOT.

2. Via Wi-Fi:

You can also choose to connect DEEBOT with the App through other methods according to the prompts on the App's page.

Note: Please select the appropriate connecting method.

Wi-Fi Network Requirements:

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
• Please enable the WPA2 on your router.

Wi-Fi Indicator Light

	White light slow flash Connecting
	White light fast flash Disconnected to Wi-Fi
	Solid Blue Light Connected to Wi-Fi

Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display and control settings, and personalized cleaning (depending on different products) requires users to download and use ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to operate the product. If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.

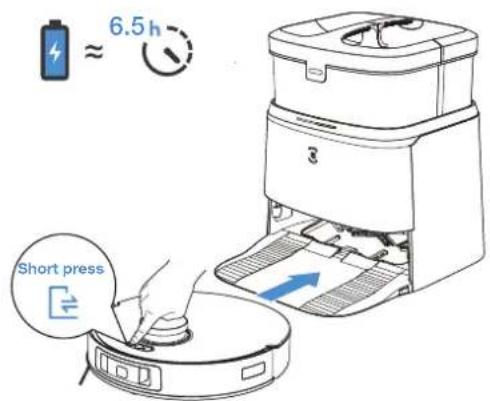

Power ON and Charge DEEBOT

1 Press and hold 🔊 for 3 seconds, wait for the startup music to play, indicating that the DEEBOT has powered on.

Press and hold

2 Short press 📋 to recall DEEBOT to enter the Station to charge.

6.5 h Short press

Note: After DEEBOT enters the Station, wait for about 5 seconds and you will hear the voice prompt "Pairing Successful".

OPERATE DEEBOT

When creating a map for the first time, please follow DEEBOT to help eliminate some minor issues.

For example, DEEBOT may get stuck under the furniture. Please refer to the following solutions:

1. Raise the low sitting furniture if possible;
2. Cover the bottom of the furniture;
3. Set up Virtual Boundary via the App.

1 Start

Short press ⏻ to start. For the first-time cleaning, please ensure that DEEBOT is fully charged.

2 Pause/Wake up

Short press ⏻ to pause. The indicator light will go out after the DEEBOT is paused for a few minutes. Press the ⏻ on DEEBOT to wake it up.

Short press

Note:

1. Do not frequently remove washable mopping pads.
2. Do not scratch the Mopping Pad Plates with a rag or any other object.
3. When the ECOVACS HOME App prompts that the mops need to be replaced, please replace them in time.

Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

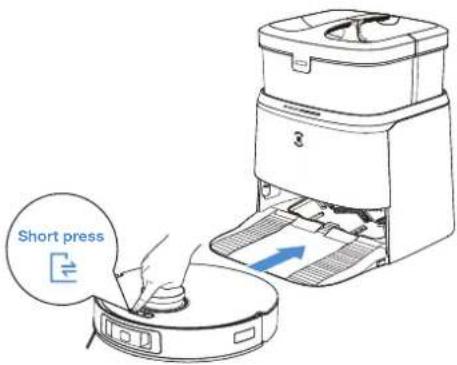

3 Back to Station

Short press ☐ to recall DEEBOT to the OMNI Station.

Short press

Note: When DEEBOT is not working, it is recommended to keep it powered ON and charging.

4 Deep Sleep Mode

DEEBOT will enter deep sleep mode to protect the battery if the DEEBOT stays outside the Station for about 5h. Please long press ⏻for more than 3 seconds to wake up the DEEBOT.

Long press

REGULAR MAINTENANCE

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts at the following frequencies:

Robot Part Maintenance Frequency Replacement Frequency
Washable Mopping Pad / Every 1-2 months
Dust Bag / Replace when voice prompts

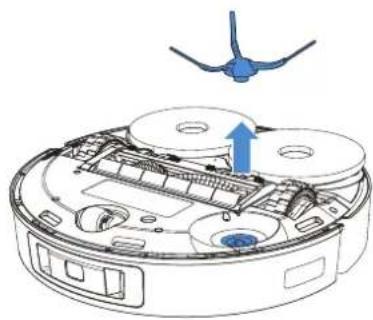

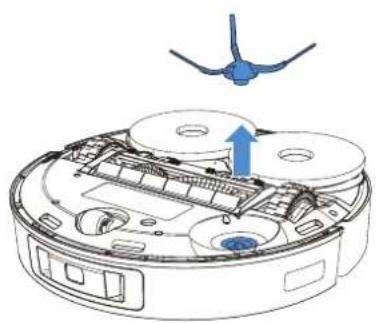

Side Brush Once every 2 weeks Every 3-6 months

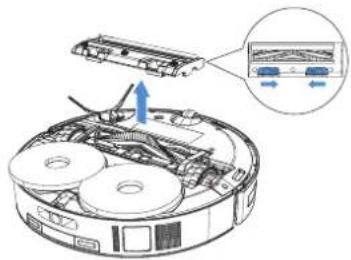

Brush Once per week Every 6-12 months
Filter Once per week Every 3-6 months
TrueDetect 3D Sensor TrueMapping Universal Wheel Anti-Drop Sensors Bumper Charging Contacts	Once per week /

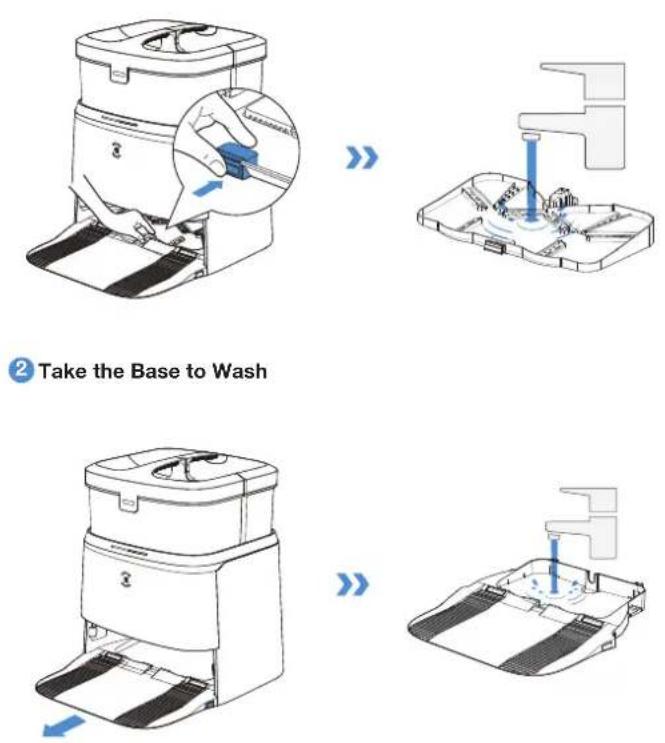

Cleaning Sink Once every 2 weeks	/
Clean Water Tank	Once every 3 months /
Dirty Water Tank	After each mopping /
Dust Collection Cabin	Once per month /

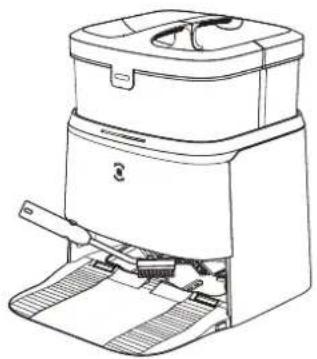

OMNI Station	Once per month /

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the OMNI Station.

Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

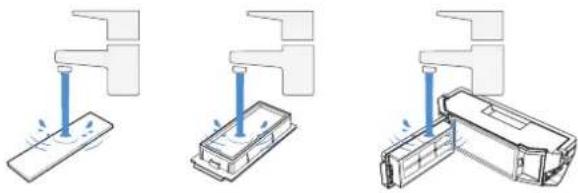

MAINTAIN DUST BIN AND FILTER

1

Diagram showing a container being inverted with arrows indicating flow or movement, no text or symbols present

2

Technical line drawing of a mechanical component with two blue arrows indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

4

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Note:

1. Please rinse the filter with water as shown above.

2. Do not use finger or brush to clean the filter.

5

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Note: Completely dry the filter before use.
Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

MAINTAIN BRUSH AND SIDE BRUSH

Brush
1

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

2

Diagram of a mechanical device with three circular components and a blue cable above it (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread (no text or symbols)

Side Brush
1

Diagram of a device interior with a blue airplane overhead and an arrow indicating rotation (no text or symbols)

2

Line drawing of a hand holding a tool with wires (no text or symbols)

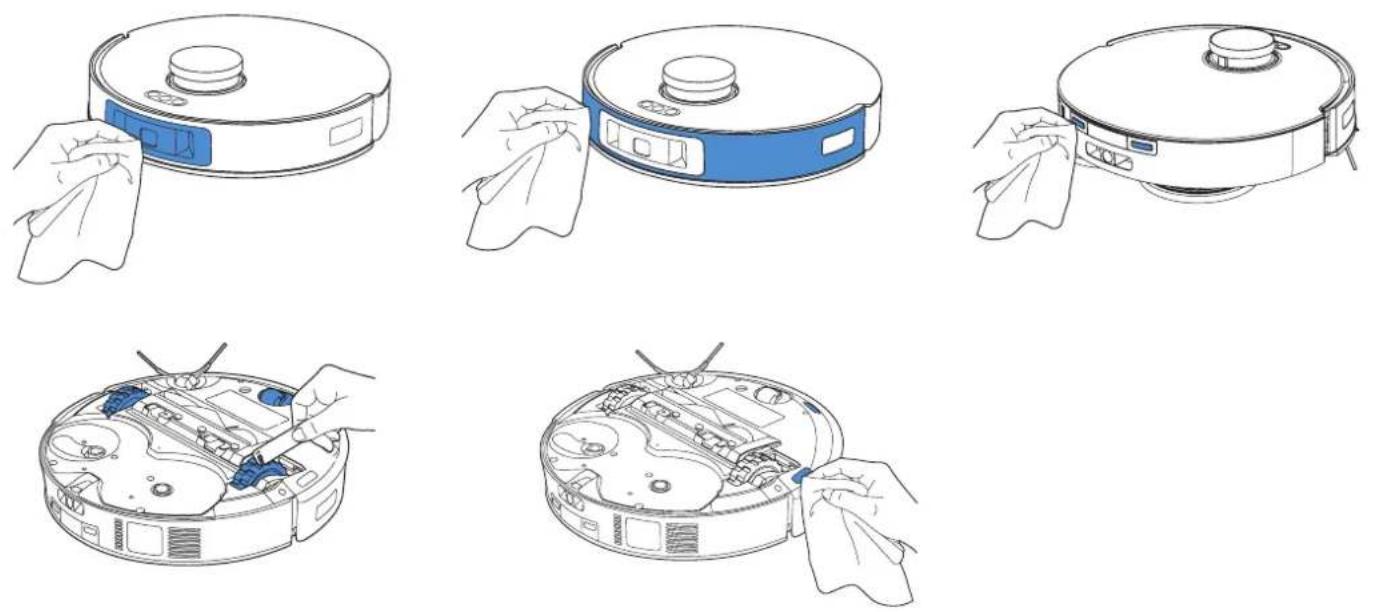

MAINTAIN OTHER COMPONENTS

Note: Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

MAINTAIN OMNI STATION

1 Long press 📋 to add water to Cleaning Sink

Long press

② Clean Cleaning Sink

Line drawing of a printer with paper feed and paper strip (no text or symbols)

3 Long press 📄 to drain the water out of Cleaning Sink

MAINTAIN TANKS

1 Empty Dirty Water Tank

Diagram of a toilet with a blue funnel pouring liquid into a container (no text or symbols)

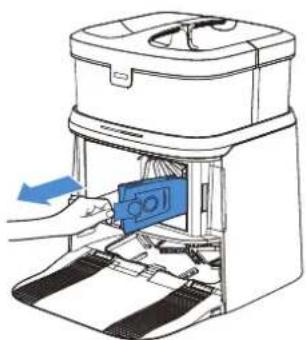

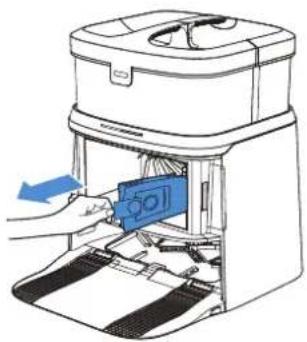

MAINTAIN DUST BAG

1 Discard the Dust Bag

Line drawing of a printer with paper feed and a blue arrow indicating motion (no text or symbols)

Illustration of a printer with a blue plastic cover being inserted into the machine (no text or symbols visible)

Simple line drawing of a container with a lid and a handle, no text or symbols present

• Hold the Handle to lift out the Dust Bag, which can effectively prevent dust leakage.

2 Clean the Dust Collection Cabin with a dry cloth and put a new Dust Bag in

Illustration of a printer with a blue cover being inserted, showing paper and fabric (no text or symbols)

3 Close the Dust Collection Cabin

Line drawing of a printer with paper feed and paper roll, showing internal structure without any text or symbols

MAINTAIN CLEANING SINK

1 Take the Detachable Tray to Wash

2 Install
The sound of Click indicates proper installation.

Click Click

Note: Please install Cleaning Sink properly to prevent malfunction.

STORAGE

Please fully charge and switch OFF the DEEBOT before storage. Please recharge it every 1.5 months to prevent the battery from over-discharge.

Long press

Note:

• DEEBOT can't be charged when the power is turned off.
• If the battery is over-discharged or not used for a long time, the DEEBOT may not be charged. Please contact ECOVACS for help. Do not disassemble by yourself.

TROUBLESHOOTING

No.	Malfunction Possible Causes	Solutions
1	DEEBOT is not able to connect to ECOVACS HOME App.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		DEEBOT is not in the configuration state.	Make sure DEEBOT is connected to the power supply and turned on. Open the cover, and press RESET Button. DEEBOT will enter the configuration state when you hear a voice prompt.
		Incorrect App installed. Please download and install	ECOVACS HOME App.
		Not using a 2.4GHz or 2.4/5 GHz mixed network.	DEEBOT does not support 5G network. Please use a 2.4GHz or 2.4/5 GHz mixed network.
2	The map is lost.	The map might be lost if you move DEEBOT when cleaning.	Move DEEBOT to the front of the Station to retrieve the map. Find the restored map in the Map Management and tap “Use This Map” to retrieve it. If this problem persists after trying the above solutions, please restart mapping.
3	Unable to create home map on App.	DEEBOT does not start cleaning from the Station.	DEEBOT must start cleaning from the Station.
		Move DEEBOT when cleaning might cause the map lost.	During cleaning, do not move DEEBOT as far as possible.
		Auto cleaning is not complete.	Make sure DEEBOT automatically return to the Station after cleaning.
4No.	The Side Brush drops out of place during use.Malfunction Possible Causes Solutions	The Side Brush is not properly installed. Make sure	the Side Brush clicks into place when installing.
5	No singal found. Unable to return to the Station.	The Station is incorrectly placed.	Please place the Station correctly according to the instructions in the [Charging DEEBOT] section.
		The Station is out of power or manually moved.	Check whether the Station is connected to power supply. Do not manually move the Station.
		DEEBOT does not start cleaning from the Station.	It is recommended that DEEBOT start cleaning from the Station.
		The charging route is blocked. For example, the door of the room with the Station is closed.	Keep the charging route clear.
6	DEEBOT returns to the Station before it has finished cleaning.	The room is so large that DEEBOT needs to return to recharge.	Please enable Continuous Cleaning. For more details, please follow the App instruction.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
7	DEEBOT is unable to charge.	DEEBOT's Charging Contacts are not connected to the Station Pins.	Make sure that the robot's Charging Contacts have connected to the Station Pins and the AUTO Mode Button flashes. Check whether DEEBOT's Charging Contacts and the Station are dirty. Please clean these parts according to the instructions in the [Maintenance] section.
		The Station is not connected to the power supply.	Make sure the Station is connected to the power.
		The battery will be overcharged if DEEBOT is not used for a long time.	It is recommended to regularly use DEEBOT. If the battery cannot be charged because it has not been used for a long time, please contact Customer Care for help.
8	Running is very loud during cleaning.	The Side Brush and floating rubber brush are entangled. Dust bin and filter are blocked.	It is recommended to clean the Side Brush, floating rubber brush, dust bin, filter, etc. regularly.
		DEEBOT is in Max Mode. Switch to Standard Mode.
9	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
		DEEBOT might be stuck under furniture with an entrance of similar height.	Please set a physical barrier, or set a Virtual Boundary via the ECOVACS HOME App.
10	During cleaning, DEEBOT appears in the route disorder, running bias, repeated cleaning, small area leakage and so on.(If there is a large area that has not been swept temporarily, DEEBOT will make up the leakage independently.)	Objects such as wires and slippers placed on the ground affect the normal operation of DEEBOT.	Please tidy up the scattered wires, slippers and other objects on the ground before cleaning. And reduce the scattered objects on the ground as far as possible. If there is any area leakage, DEEBOT will correct the leakage by itself, please do not interfere (such as moving DEEBOT or blocking the route).
		It may be that the Driving Wheels slips on the ground when DEEBOT climbs steps, thresholds and door bars, thus affecting the its judgment of the whole house environment.	It is recommended to close the door of this area and clean the area separately. After cleaning, DEEBOT will return to the starting location. Please rest assured to use.
		Work on freshly waxed and polished floors or smooth tiles, resulting in less friction between the Driving Wheels and the floor.	Please wait for wax to dry before cleaning.
		Due to different home environments, some areas cannot be cleaned.	Clean the home environment to ensure that DEEBOT can enter for cleaning.
11	After returning to the Station, DEEBOT does not empty the Dust Bin.	Dust Collection Cabin is not closed. Please close the Dust Collection Cabin.
		Dust Bag is not installed in the Station. Install the Dust Bag, and close the Dust Collection Cabin.
		Manually moving DEEBOT back to the Station might not trigger Auto-Empty function.	It is recommended to let DEEBOT return to the Station on its own. Please do not manually move it.
		In Do Not Disturb mode, DEEBOT will not empty the dust after returning back to the Station.	Cancel Do Not Disturb mode in ECOVACS HOME App or manually start dust empty.
		The OMNI Station prompts the Dust Bag is full.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when prompted by ECOVACS HOME App, you can put it back again.
		If the above possible causes have been ruled out, components of the Station may be abnormal.	Please contact Customer Care for help.
12	Fail to empty the Dust Bin.	The OMNI Station prompts the Dust Bag is full.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when prompted by App, you can put it back again.
		The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
13	The inner side of Dust Collection Cabin is dirty.	Fine particles are absorbed in the inner side of Dust Collection Cabin through the Dust Bag.	Clean the inner side of Dust Collection Cabin.
		The Dust Bag is broken. Check the Dust Bag. Replace it.
14	Ash leakage occurs during working.	The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
15	Mopping Pad Plates cannot rotate.	Mopping Pad Plates are blocked by foreign objects.	Clean the foreign objects.
16	DEEBOT does not respond to the Station instruction.	DEEBOT is too far away from the Station.	If it is beyond the available distance, the ECOVACS HOME App can also be used to operate DEEBOT.
		DEEBOT and the Station are not paired.	Unplug the Station and wait for 10 seconds to plug again. Power off the robot and then turn it back on. Manually push the robot up to the Station, and ensure that the charging pins are correctly connected. Then, DEEBOT will start charging, and voice prompts pairing successful.
17	Fail to enable Child Lock.	Communication interruption between the Station and DEEBOT (For example: long distance or many partition walls)	Move DEEBOT near the Station to ensure smooth communication, and then enable Child Lock.
18	Driving wheels are blocked. Driving	wheels are blocked by foreign objects.	Please rotate and press the driving wheels to check whether there is any foreign object wrapped or stuck. If there is any foreign object, please clean it in time. If this problem persists, please contact Customer Care for help.
19	When the water in the Cleaning Sink is full and cannot be drained out, the voice prompts that the Cleaning Sink is full.	The Dirty Water Tank is not properly installed.	Tap down on the Dirty Water Tank to ensure it is properly installed.
		The sealing plugs in the Dirty Water Tank is not installed properly.	Make sure to check that the sealing plugs are properly installed.
		The Station cannot drain water normally.	Long press After the cleaning tank has been automatically filled with water, long press again. If the problem occurs during the mopping pads cleaning process, end task by App/Voice Command, and then long press to see whether the Station can properly draw the water. If the water is successfully drawn, wipe dry the Water Overflow Sensor of the Cleaning Sink. If the Station fails to draw the water, check between the Dirty Water Tank and the Station for foreign object and clean it.
		The suction port of the Cleaning Sink is blocked by foreign object. The Cleaning Sink is too dirty.	Ensure that there is no foreign object in the suction port of the Cleaning Sink. Clean up the Cleaning Sink.
		The voice prompt still exists after trying the above solutions.	Unplug the Station and plug it again. If this problem persists, please contact Customer Care for help.
20	Mopping Pad Plates can’t be lifted automatically.	Mopping Pad Plates are entangled or stuck by foreign objects.	Please remove foreign objects.
		Mopping Pad Plates fall off.	Reinstall the Mopping Pad Plates and you would hear a “click” when the Mopping Pad Plates are properly installed.

TECHNICAL SPECIFICATIONS

Model DDX11
Rated Input 20V	=== 2A Charging Time about 6.5h
Station Model CH2311
Rated Input 220-240V	~ 50-60Hz Rated Output 20V		=== 2A
Rated Input Current(Charging) 0.5A Power(Emptying)	1000W
Power(Hot Water Washing Mop) 1650W
Networked Standby Power	Less than 2.00W

Output power of the wireless module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.
Explore more accessories at https://www.ecovacs.com/global.

Simple line drawing of a circular object with a central hole and two small protrusions (no text or symbols)

Roboter

Line drawing of a device rear panel with buttons and ports (no text or symbols)

OMNI-Station

Technical line drawing of a mechanical device with no visible text or symbols

Basis

Netzkabel

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Universalrad

Seitenbürste

Entriegelungstaste

für die Bürste

Antriebsräder

Staubbehälter

Filter

Filterschwamm

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

Anschluss für die

Staubentsorgung

Staubbehältergriff

Filternetz

Entriegelungstaste

Wischtucheinheit

Wischtuchplatten

Technical line drawing of three circular components with central shafts, no text or symbols present

Simple line drawing of a dining table with a lamp and checkmark (no text or symbols)

Isometric line drawing of a balcony structure with railing and circular base (no text or symbols)

Line drawing of a portable water heater with ports and a cable outlet (no text or symbols)

≥ 0.05m (0.16') ≥ 0.06m (0.16') ≥ 0.08m (0.02')

Hinweis:

Diagram showing a device with internal components before and after assembly, no text or symbols present

Hinweis:

Diagram showing a device with particles falling into a container (no text or symbols)

2

Technical line drawing of a mechanical component with two views and directional arrows indicating assembly or movement (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Diagram showing airflow from a solar panel to a device under sunlight (no text or symbols)

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating movement or flow.

Seitenbürste

1

Diagram of a device interior with a blue arrow indicating rotation or movement, no text or symbols present

2

Diagram of a circular electronic device with three discs and a blue cable above it, showing internal components (no text or symbols)

2

Line drawing of a hand holding a tool with a curved tool (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

148DE

Line drawing of a printer with paper feed and paper tray (no text or symbols)

Diagram of a toilet with a blue liquid level and water flow, no text or symbols present

Line drawing of a printer with paper feed and paper roll, showing internal structure without any text or symbols

Illustration of a printer with a blue plastic cover being inserted, showing internal components and paper sheets (no text or symbols)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Illustration of a printer with a blue card being inserted into the machine (no text or symbols visible)

Illustration of a printer with a blue arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a circular object with a small circular top and two small circles on the side (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and ports (no text or symbols)

Station OMNI

Technical line drawing of a mechanical component with no visible text or symbols

Base

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Roue universelle

Brosse latérale

Technical line drawing of a mechanical component with labeled parts (Po, Bo) and no readable text or symbols beyond labels

Technical line drawing of three circular components with central shafts, no text or symbols present

Patins de lavage lavables

Station OMNI

Remarque

Simple line drawing of a rectangular object with a circular top and triangular base (no text or symbols)

Simple line drawing of a dining table with a fan and table, no text or symbols present

Isometric line drawing of a balcony with railing and circular base (no text or symbols)

Clic 3 Clic

Line drawing of a portable water heater with ventilation slots and a blue arrow indicating a component (no text or symbols)

≥ 0.05m (0.16') ≥ 0.06m (0.16') ≥ 0.08m (0.02')

Remarque :

Diagram showing two views of a medical device: one open with internal components, the other assembled with blue lid and arrow (no text or symbols)

Remarque :

Diagram showing a device with particles falling into a container (no text or symbols)

2

Diagram showing two rectangular compartments with blue arrows indicating movement or force, no text or symbols present

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Remarque :

Diagram showing solar heating with sunlight illuminating a device and its internal components (no text or symbols)

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

Brosse latérale

1

Diagram of a device interior with a blue arrow indicating direction, showing internal components and a small blue object (no text or symbols present)

2

Diagram of a mechanical device with three circular components and a blue cable above it (no text or symbols)

2

Line drawing of a hand holding a tool with wires (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread (no text or symbols)

ENTRETENIR LES AUTRES COMPOSANTS

Line drawing of a printer with paper feed and paper strip (no text or symbols)

Diagram of a toilet with a blue funnel pouring liquid into a container (no text or symbols)

Line drawing of a printer with a paper roll and blue arrow indicating motion (no text or symbols)

Illustration of a hand inserting a blue card into a machine (no text or symbols visible)

Simple line drawing of a container with a lid and a blue arrow pointing to the lid (no text or symbols)

Illustration of a printer with a blue card being inserted into the base, showing paper roll and printer casing (no text or symbols)

Line drawing of a printer with a blue arrow indicating motion or flow (no text or symbols)

ENTRETENIR LE BAC DE NETTOYAGE

Clic Clic

Simple line drawing of a circular mechanical component with a central hole and two small protrusions (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and indicator lights (no text or symbols)

Stazione OMNI

Technical line drawing of a mechanical component with no visible text or symbols

Base

Simple line drawing of a rectangular object with a circular top and triangular base (no text or symbols)

Simple line drawing of a dining table with a fan, plate, and checkmark (no text or symbols)

Architectural line drawing of a corner balcony with railing and circular base (no text or symbols)

Clic Clic Clic

Diagram showing two views of a medical device: one open with internal components, the other assembled with blue lid and arrows indicating process (no text or symbols)

Nota:

Diagram showing a container being inverted with arrows indicating flow or movement, no text or symbols present

2

Technical line drawing of a mechanical component with two blue arrows indicating assembly or transformation (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Nota:

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram of a CD or DVD disc assembly with an inset showing internal components (no text or labels)

Spazzola laterale

1

Diagram of a device's internal components with an airplane overhead, showing no text or symbols.

2

Diagram of a circular electronic device with three discs and a blue cable above it, showing internal components (no text or symbols)

2

Line drawing of a hand holding a tool with a curved tool (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

106IT

Line drawing of a printer with paper feed and paper tray (no text or symbols)

Diagram of a toilet with a blue funnel and water drop (no text or symbols)

Line drawing of a printer with paper feed and paper roll, showing internal structure without any text or symbols

Illustration of a hand inserting a blue card into a machine (no text or symbols visible)

Simple line drawing of a container with a lid and a funnel, no text or symbols present

Illustration of a hand inserting a blue card into a machine (no text or symbols visible)

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

MANUTENZIONE DEL LAVABO

Clic Clic

Simple line drawing of a circular object with a small circular top and two small protrusions on the side (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and indicators (no text or symbols)

OMNI-station

Technical line drawing of a mechanical component with no visible text or symbols

Bas

Nätsladd

Simple line drawing of a rectangular object with a circular top and triangular base (no text or symbols)

OMNI-station (baksida)

Luftventil Kabelledning Eluttag

SENSORER ANMÄRKNINGAR FÖRE RENGÖRING

Simple line drawing of a dining table with a fan, seat, and tableboard (no text or symbols)

Isometric line drawing of a balcony with railing and circular base (no text or symbols)

≥ 0.05m (0.16') ≥ 0.06m (0.16)

Obs!

Diagram showing two views of a medical device: one with internal components and another with a blue top component, both without any text or symbols.

Obs!

Diagram showing a container being inverted with arrows indicating flow or movement, no text or symbols present

2

Technical line drawing of a mechanical component with two blue arrows indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Obs!

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

Sidborste

1

2

Diagram of a mechanical device with three circular components and a blue cable above it (no text or symbols)

2

3

Line drawing of a hand holding a tool over a piece of bread (no text or symbols)

Diagram of a robotic device with internal components and a blue arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool with wires (no text or symbols)

UNDERHÅLLA ANDRA KOMPONENTER

Line drawing of a printer with paper feed and paper strip (no text or symbols)

Diagram of a toilet with a blue funnel and water droplets (no text or symbols)

UNDERHÅLLA DAMMBEHÅLLAREN

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

Illustration of a printer with a blue plastic cover being inserted, showing paper and fabric inside (no text or symbols)

Simple line drawing of a container with a lid and a bottle, featuring a blue arrow pointing to the lid (no text or symbols)

Illustration of a printer's internal processing device with a blue label (no text or symbols visible)

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

UNDERHÅLLA RENGÖRINGSVASKEN

Illustration of a hand using a cleaning machine to clean or store items (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a printer with paper feed and paper roll, no text or symbols present

3D technical illustration of a mechanical component with no visible text or symbols

2 Installera

Simple line drawing of a circular object with a small circular top and two small circles on the side (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and ports (no text or symbols)

OMNI-stasjon

Technical line drawing of a mechanical component with no visible text or symbols

Base

Strømledning

BrukerveiledningTank med tilsmuss

Merk:

Simple line drawing of a device casing with circular top and triangular base (no text or symbols)

156NO

OMNI-stasjon (bak)

Simple line drawing of a dining table with a fan, plate, and checkmark (no text or symbols)

Isometric line drawing of a balcony structure with railing and circular base (no text or symbols)

Diagram showing two views of a medical device: one with internal components and another with a blue top component (no text or symbols)

Merk:

VEDLIKEHOLDE ST∅VBEHOLDER OG FILTER

1

Diagram showing a device emitting particles into a container (no text or symbols)

2

Technical line drawing of a mechanical component with two blue arrows indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Merk:

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

Sidebørste

1

Diagram of a device interior with a blue airplane overhead and an arrow indicating rotation (no text or symbols)

2

Diagram of a circular electronic device with three discs and a blue cable above it, showing internal components (no text or symbols)

2

Line drawing of a hand holding a tool with a curved tool (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

164NO

VEDLIKEHOLDE ANDRE KOMPONENTER

VEDLIKEHOLDE OMNI-STASJON

Line drawing of a printer with paper feed and paper strip (no text or symbols)

Diagram of a toilet with blue liquid level, showing water flow (no text or symbols)

VEDLIKEHOLDE ST∅VPOSEN

1 Kast støvposen

Line drawing of a printer with paper feed and a blue arrow indicating motion (no text or symbols)

Illustration of a printer with a blue plastic cover being inserted, showing internal components and paper sheets (no text or symbols)

Simple line drawing of a container with a lid and a blue arrow indicating direction (no text or symbols)

Illustration of a printer with a blue card being inserted into a machine (no text or symbols visible)

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

VEDLIKEHOLDE RENGJ∅RINGSENHETEN

Simple line drawing of a circular object with a small circular top and two small circles on the side (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and ports (no text or symbols)

OMNI Station

Technical line drawing of a mechanical component with no visible text or symbols

Base

Elledning

Technical line drawing of three circular components with central shafts, no text or symbols present

OMNI-station (bagside)

Luftudsugning Kabelgennemføring Strømstik

Støvpose

Simple line drawing of a rectangular object with a circular top and triangular base (no text or symbols)

SENSORER BEMÆRKNINGER F∅R RENG∅RING

Simple line drawing of a dining table with a fan and checkmark (no text or symbols)

3D architectural rendering of a balcony with railing and circular base (no text or symbols)

Diagram showing two views of a medical device: one open with internal components, the other assembled with blue lid and arrow (no text or symbols)

Bemærk:

Diagram showing a device emitting particles into a container (no text or symbols)

2

Diagram showing two rectangular electronic components with blue arrows indicating directional flow or movement (no text or symbols)

3

Line drawing of a hand inserting a component into an open device (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Bemærk:

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue buttons.

Sidebørste

1

Diagram of a device interior with a blue arrow indicating direction, showing internal components and a small blue object (no text or symbols present)

2

Diagram of a mechanical device with three circular components and a blue cable above it (no text or symbols)

2

Line drawing of a hand holding a tool with wires (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread (no text or symbols)

VEDLIGEHOLD AF ANDRE KOMPONENTER

Line drawing of a printer with paper feed and paper strip (no text or symbols)

Diagram of a toilet with a blue funnel and water droplets (no text or symbols)

VEDLIGEHOLDELSE AF ST∅VSUGERPOSE

1 Bortskaf støvsugerposen

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

Illustration of a printer with a blue plastic cover being inserted into the machine (no text or symbols visible)

Simple line drawing of a container with a lid and a bottle, featuring a blue arrow pointing to the lid (no text or symbols)

Illustration of a hand inserting a blue card into a machine (no text or symbols visible)

3 Luk støvsugerposekabinettet

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

VEDLIGEHOLDELSE AF RENG∅RINGSBASSIN

1 Tag den aftagelige bakke ud for at vaske den

Illustration of a hand inserting a component into a device, with an inset showing the blue clip (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

2 Installer

Kliklyden angiver korrekt montering.

Klik Klik

2 Tag basen ud for at vaske den

Line drawing of a printer with paper feed and paper roll, no text or symbols present

3D technical illustration of a mechanical component with no visible text or symbols

OPBEVARING

Simple line drawing of a circular mechanical component with a central ring and two small protrusions (no text or symbols)

Robotti

Line drawing of a device rear panel with buttons and indicators (no text or symbols)

OMNI-asema

Technical line drawing of a mechanical component with no visible text or symbols

Alusta

Virtajohto

Simple line drawing of a dining table with a fan, plate, and checkmark (no text or symbols)

Isometric line drawing of a balcony structure with railing and circular base (no text or symbols)

≥ 0.05m (0.16') ≥ 0.05m (0.62)

Huomautus:

Diagram showing two views of a printer or scanner device, one open and one closed, with no visible text or symbols.

Huomautus:

Diagram showing a device with particles falling into a container (no text or symbols)

2

Technical line drawing of a mechanical component with two blue arrows indicating directional movement (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Huomautus:

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

2

Diagram of a circular electronic device with three discs and a blue cable above it, showing internal components without any text or symbols.

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

Sivuharja

1

Diagram of a device interior with a blue arrow indicating direction, showing internal components and a small airplane in the top view (no text or symbols present)

2

Line drawing of a hand holding a tool with a curved tool (no text or symbols)

MUIDEN OSIEN YLLÄPITO

Line drawing of a printer with paper feed and paper strip (no text or symbols)

Illustration of a toilet with a blue liquid level and water flow (no text or symbols)

PÖLYPUSSIN YLLÄPITO

1 Hävitä pölypussi

Line drawing of a printer with paper feed and a blue arrow indicating the paper's direction (no text or symbols)

Illustration of a printer's internal processing unit with a hand inserting a blue card into it (no text or symbols visible)

Simple line drawing of a container with a lid and a handle, no text or symbols present

Illustration of a printer with a blue cover being inserted, showing paper and fabric (no text or symbols)

Line drawing of a printer with a blue arrow indicating motion, showing internal structure without any text or symbols.

PUHDISTUSALTAAN HUOLTO

Illustration of a hand using a cleaning machine to clean or store floor panels (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

2 Pese alusta

Line drawing of a printer with paper feed and paper roll, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a circular mechanical component with a central ring and two small protrusions (no text or symbols)

Robot

Line drawing of a device rear panel with buttons and indicators (no text or symbols)

OMNI Station

Technical line drawing of a mechanical component with no visible text or symbols

Taban

Güç Kablosu

Simple line drawing of a dining table with a fan, plate, and checkmark (no text or symbols)

Isometric line drawing of a balcony structure with railing and circular base (no text or symbols)

≥ 0.05m (0.16') ≥ 0.06m (0.16')

Not

Diagram showing a device with internal components before and after processing, no text or symbols present.

Not:

Kisa basma ≈ 6.5 h

Kisa basma

Kisa basma

Diagram showing a container being inverted with arrows indicating flow or movement, no text or symbols present

2

Technical line drawing of a mechanical component with two blue arrows indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Three technical illustrations showing mechanical assembly steps: mounting, pressing, and cutting (no text or symbols)

Not:

Diagram showing solar heating with sunlight illuminating a device, no text or symbols present

Diagram showing a device with labeled components and an inset view of a rack-mounted device with blue arrows indicating direction.

2

Diagram of a mechanical device with three circular components and a blue cable above it (no text or symbols)

3

Line drawing of a hand holding a tool over a piece of bread or cereal (no text or symbols)

Yan Fırça
1

Diagram of a device interior with a blue airplane overhead and an arrow indicating rotation (no text or symbols)

2

Line drawing of a hand holding a tool with wires (no text or symbols)

Line drawing of a printer with paper feed and paper tray (no text or symbols)

Diagram of a toilet with a blue liquid level and water flow, no text or symbols present

TOZ TORBASININ BAKIMI

Diagram of a printer with paper feed and paper roll, showing internal structure without any text or symbols

Illustration of a hand inserting a blue plastic bag into a machine (no text or symbols visible)

Simple line drawing of a container with a lid and a blue arrow indicating direction (no text or symbols)

Illustration of a hand inserting a blue card into a device with paper strips (no text or symbols visible)

Line drawing of a printer with a blue arrow indicating motion, showing internal structure without any text or symbols.

TEMİZLEME YUVASININ BAKIMI

Ecovacs Home Service Robotics Co., Ltd. No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China.
