USER MANUAL Perfect Fry FR30 Eldom

PL/FRYTOWNICA BEZTUSZCOWA EN/AIR FRYER DE/HEISSLUFTFritTEUSE RU/ΦPNTIOPHNIJA BE3 MACIA ES/FREIDORA DE AIRE SIN ACEITE FR/FRITEUSE SANS HUILE IT/FRIGGITRICE AD ARIA

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

Before first use, please thoroughly read the entire manual. It is recommended to keep this instructions manual for future reference.

1. Set the appliance on a flat, stable and high temperature resistant surface.
2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.
3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.
4. Do not immerse the cord or the appliance in water.
5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.
6. Do not use in open air.
7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.
8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance.
9. Is being used, you should hold the appliance only by the handgrip.
10. Be careful when removing products. Finished products are hot and may burn.
11. Do not leave the appliance unattended when it is being used,
12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old. Pay attention to make sure that the appliance is not played with by children.
13. Do not carry or move the appliance when it is being used.
14. Do not cover the appliance when it is being used.
15. Do not grasp the appliance with wet hands.

16. Only use with the originally supplied accessories.

17. The appliance is intended for household use only.

18. If the power cord has been damages or when the appliance has fallen down or was damaged in another way. The appliance should be repaired by an authorized service shop; visit the site www.eldom.eu for the list of authorized service shops.
19. The appliance may be repaired only by an authorized service outlet.
20. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
21. Eldom sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING: Improper use of the appliance may cause injury

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

This symbol is a warning against the high temperature of the appliance surface.

WARNING

• The appliance operates at high temperatures. Do not touch the hot surfaces of the fryer (basket (6), the inside of the appliance and the vents (9)) as this may cause burns.
• Do not fill up the basket (6) oil, drying fat or any other liquid.
  In the basket (6) do not place more products than stated in Table 1, as it may affect the quality of the meal.
• Do not cover the intake and outflow air openings.
• Ensure sufficient space around the appliance - at least 10cm.

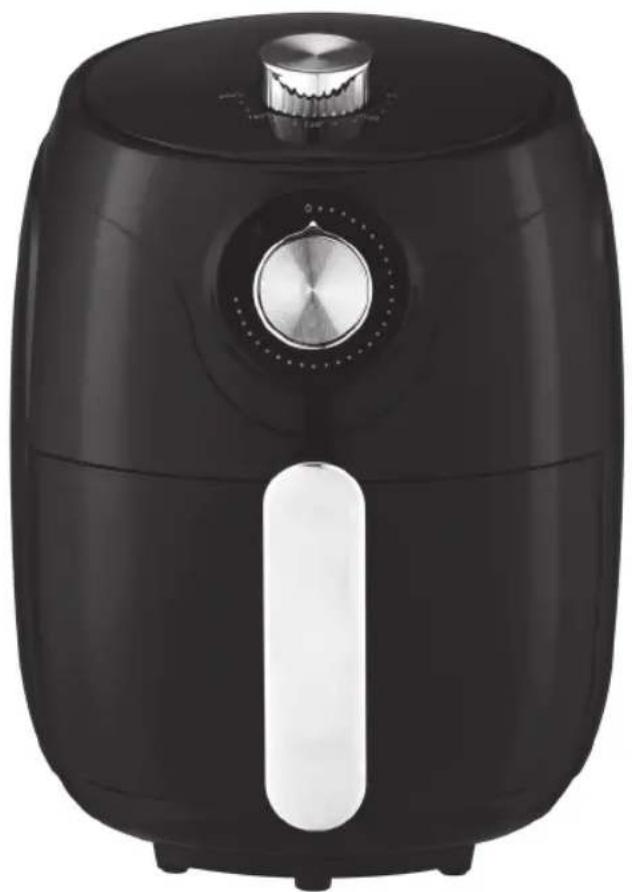

GENERAL DESCRIPTION

1. Temperature control knob
2. Indicator light
3. Timer knob
4. Rack
5. Basket handle
6. Basket
7. Carrying handles
8. Power cord
9. Air vents
10. Body

- TECHNICAL DATA

-power:1000W
supply voltage: 220-240V\~50/60Hz
capacity:21

INTENDEDUSE

Air fryer FR30 allows to prepare meals in a very comfortable way, and, first of all, in a healthy way. Hot air circulating in the appliance makes preparation of various means a quick and easy task, as the ingredients are heated from all sides at the same time. In case of majority of meals, adding oil is not needed.

- SETTING UP THE APPLIANCE

• Make sure that the appliance, the plug and the power cord are in order and that all parts of the packaging have been removed before you start using the appliance.

Important: The appliance may give off a smell while being used for the first time. The smell is associated with the manufacturing procedure. It is a natural process which ceases to occur after a certain period of time. Ensure a suitable ventilation in the room, e.g. by opening a window. The first use of the appliance should be without products.

USE

Before using the appliance for the first time, please:

• Read the operating instructions.
• Place the appliance on a flat, stable and heat-resistant surface.
• Make sure it is unplugged and the knobs (1, 3) are turned to the maximum left - the appliance is switched off.
• Place the basket (6) on a heat-resistant surface.
• Insert the rack (4) into the basket (6).

CAUTION: Do not use the basket (6) without the rack (4) inserted.

Put the prepared products into the basket (6). You can pour 1 teaspoon of oil on the products - optional.
- Do not put more products in the basket than the amount shown in TABLE 1.

Do not fill the basket above the "MAX" level.

Products must not protrude beyond the edge of the basket. The basket (6) should slide freely into the body (10). Please note that some products increase in volume during baking.

• Slide the basket (6) into the body (10).
• Connect the appliance to a power supply conforming to the parameters specified in the manual.
• Set the temperature using the knob (1). You can set the temperature from 80^ to 200^ .
• Set the operating time with the knob (3). You can set the operating time from 1 to 60min . To start the timer, turn the knob (3) to the right.
• To switch off the appliance before the set time has elapsed, turn the knob (3) to the right.

NOTE. The temperature and time must be set for the appliance to start.

• During operation, the indicator lamp (2) lights up and goes out. The thermostat maintains the correct temperature.

• When operation is complete, pull out the basket (6) by holding the handle (5). When pulling out the basket (6), a very hot stream of steam may escape.

• Place the basket (6) on a flat, stable and heat-resistant surface.
• Remove hot products. To avoid damaging the inner surface of the basket (6), use wooden or heat-resistant plastic cutlery.

NOTE: The appliance will not operate without the basket (6) properly inserted.

• Pulling out the basket (6) while the appliance is running will switch off the appliance.
• Do not touch the basket or the inside of the appliance as they are very hot.
• Unplug the appliance from the mains after use.

TIPS

Chips

When frying fresh potatoes, first rinse and dry them thoroughly to remove excess moisture and starch. Halfway through the frying cycle, shake the basket (6) and/or stir the smaller ingredients to and ensure even frying.

Cakes

Ready-made cakes prepared from a ready mix require a shorter baking time than homemade cakes. Pour the batter into a separate tin(s) rather than directly into the basket (6).

Meat

When frying large pieces of meat with excess fat and oil accumulating on the bottom of the basket (6), use heat-resistant nylon or silicone tongs to remove the products. Avoid tipping the basket (6) over, as this will cause fat and residual oil to leak onto the plate or countertop.

TABLE 1.

PRODUCT	QUANTITY (G)	TIME (MIN.)*	TEMP. (°C)	NOTES
Frozen chips	200-300	18-20	200	Shake during the operation.
Chips from fresh potatoes	200-300	18-30	180	Add 1/2 spoon of oil. Shake during the operation.
Cheese toasts	100-200	8-12	180
Chicken nuggets	100-300	10-15	200
Chicken fillet	100-300	15-20	180	May be turned during roasting.
Chicken sticks	100-300	18-22	180	May be turned during roasting.
Steak	100-300	10-15	180	May be turned during roasting.
Pork cutlet	100-300	10-20	180	May be turned during roasting.
Hamburger	100-300	10-15	180	Add 1/2 spoon of oil.
Frozen fish chips	100-250	6-12	200	Add 1/2 spoon of oil.

• The time of preparation stated in the tables are approximate.

- CLEANING AND MAINTENANCE

NOTE No parts of the appliance are dishwasher safe.

• Before cleaning, switch the appliance off - turn the knobs (1, 3) to the left as far as possible, then unplug the appliance from the power supply and wait for it to cool down.

NOTE. The appliance needs approximately 30 minutes to fully cool down.

• Do not use sharp or pointed objects to clean the appliance, as this can damage functional parts or compromise the safety of the appliance.
• Wash the basket (6) and the grate (4) with warm water and liquid. It is best to wash them immediately after use. After rinsing with clean water, dry them immediately.
• After rinsing with clean water, dry them immediately.
• Never immerse the body (10) in water or rinse under running water. The body (10) and the heating chamber with a damp cloth.

TROUBLESHOOTING

In case of any problems with the appliance, check the following table:

PROBLEM	POSSIBLE CAUSE	CAUSE SOLUTION
The appliance is not running.	1. The appliance is not connected to the power supply. 2. The appliance is not turned on.	1. Connect the appliance to the mains. 2. Set the time with the knob (3).
Products are not sufficiently roasted.	1. Too much product has been placed in the basket. 2. The temperature is set too low. 3. The operating time is set too short.	1. Reduce the quantity of products in the basket – see Table 1. 2. Increase temperature. 3. Increase operating time.
Products are not roasted uniformly.	Some products should be turned during roasting.	Turn the products over or shake the basket during frying.
The basket cannot be inserted into the body of the appliance.	Too many products in the basket.	Decrease the amount of products in the basket – see Table 1.
White smoke escapes from the appliance.	1. The roasted products have too much of oil or too much oil was added. 2. There are remains of fat in the drawer or in the basket.	1. This is a normal phenomenon and does not affect the fried products or endanger the appliance. 2. Clean the drawer and basket.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

- TEXHNUECKNE DAHHbIE

-MOUHOCb:1000W
- HanpjaKeHne nTaNHaN:

220-240V\~50/60Hz

-BMECTMOCTb:21

HA3HAUHHE

Фртюрниа FR30 no3BOJЯET rOToBnTb nIuIy oueH yO6HbIM n, rIaBHOe, noJIe3HbIM cNoCo6OM. TOpAчИ BO3dUx, zIpyInpuOuIи B npIbOpe, no3BOJЯET 6bICTPO n IerKO npIroTOBnTb pa3HOo6pa3HbIe 6JIIOda, NOCKoJIbKy INHpeJeNHTb HarpeBaIOTcO dHOBpeMeHNO co BCex CTopoH.ДЯ npIroTOBNeHry 6OJIbWUnHCTBa 6JIIOH He Tpe6yEtca Do6AbJIrMbMaCNo.

- NOДROTOВKA YCTPOИCTBA

• Ipeed Tem KAK npicntyntb K nCIOJIb3OBAHnIO yCTpoINCTBa, Heo6xOJIMo y6eINTBcR, YTO yCTPOINCTBO, eRO KOHTaKTHaB BUNka NITaIOU nn PpOBd nCnpaBHbI, a TaKKe ydaJeHbI BCE 3neMeHTbI yNaKOBKn.
• IpeqI nepBbIM nCNoB3OBAHEm Bce 3JeMeHtbl yCTpoiCTBa, KOHTaKTnpUoiue C NIIuEeBbIMn npOdyKTamN, Heo6xOIMO TuaTeNbHO BbMbItb. (CM. Pa3dJe: OuncTka n npOphiNaKtka).

Pn nepbom nCnoIb3ObaHnn yCTpoiCTBO MOKeT n3daBaTb cneuΦnueckn 3anax, KOTopbi JABLAEcpe3yIbTaTOM npocecca n3roTOBLeHn yCTpoiCTBa. 3To HopMaIbHOe ABLeHne - 3anax mChE3Het Ype3 HeKOTOpoe Bpem.

B nomeueHnn, B KOTOPOM yCTaHOBNeHO yCTPOINCTBO, cneJyET oecneuHTb COOTBeTCTBYIOUyIO BeHTUNAciH, HAnpIMep, OTKpbITb OKHO. IepBbI 3anyck yCTPOINCTBa cneJyET BblONHtB 6e3 npOdyKTOB.

- 3KCPNJIYATAUIN

Ipeep nepbblm nCnoB3ObaHem np6opa, noxanyiCTa:
- PpOHTaTb INCTpyKUIO NO 3KcIyatauIN.
- UctahOBHTe np6Op Ha pOBHyU, yCToHcyU IN JkapOpnpOHyIO NobepxHOCTb.
- Y6eIntecb, yTo npn6op otKIOueH ot ceTn n pyuKn (1, 3) noBepHytbi MaKcImaJIbHo BJIeBO - npn6Op BblkIOUeH.
- YctaHOBNTe KOp3nHy (6) Ha KaopOnpOHyIO NobepxHOCTb.
- BCTaBtpepeWetky (4) B KOp3nHy (6).

BHIMAHHE: He nOpJb3yIte Kop3nHy (6) 6e3 BCTaJIeHHO peWetKn (4).

• IonoJKeIe noIroTOBJIeHHbIe npOdyKTbI B KOp3nHy (6).Ha npOdyKTbIMoXHO HaJIInTb 1 YaHny loXKy MaCna -No JeJaHIO.
• He klaДиTe B KOp3nHy (6) 60JIbIe npOdyKToB, Yem yka3aHO B Ta6J.1.

He 3anolnayTe Kop3nHy Bblwe ypOBHra "MAX".IpoodyKtI He dOnJXhbl BbICtynaTb 3a KpaN Kop3nHbI.

PpOdyKtBHe OJKNHb BbICTyNaTb 3a Kpa KOp3nHb. Kop3nHa (6)doXnCBO6oHcCKoJIb3ntb B Kopnyce (10). O6paTInTe BHNMaHne, yTO HeKOToPbIe npOdyKtB B pOueCE CByIeNk yBeINuHBaIOrCB bObeMe.

-3aBnHbTe KOp3nHy (6) B Kopnyc (10).
-ПодключITE npибор КИСТОУнКУ ПИТАнЯ, COOTBeTCTBуЮшЕМу napaMeTpam, yka3aHHbIM B pykoBOДCTBE.
- YctaHOBInTe TEMnepaTpy c nOmoIbI pyuK (1). MoXHo yCTaHOBnTb TEMpePaTy pO 80°C do 200°C.
- YctaHOBNTe Bpempa6oTb C NOMOsbIO pyuKn (3).Bpempa6oTb MoXHO yCTaHOBnTB B Dnana3OHe OT 1 do 60 MNH. YTO6bl 3anyCTnTB TaImeP, NOBepHnTe pyuKy (3) BnpaBO.
- YTo6bI BblkIOuHTb np6Op Do nCTeueHn yctaHOBHeHOro BpeMeHN, NOBepHrTe pyUky (2) BneBO.

PIMMEUHNE. Iya haana pa6oTb npu6opa Heo6xOIMO yctahOBtB TemnepaTy pN Bpem.

-Bo Bpempa60bI INHnKaTopHaJ lamna (2) 3aropaetc n rachet. Tepmoctat noDnepKnBaet HxHyTeMnepaTpy.
- IIO OKOHuaHn pa60Tb BbItaunTe KOp3nHy (6), depka ee 3a pyky (5).Ipi n3BleueHnn Kop3nHb (6) MoKeT BbIXoJNb OChb Tropy a Ctpy npa.
-Помет范围内Корзун (6)Ha nIoCKyIO,уСToIuNByIO uJapOIpOuHyIO NOBepxHocTb.
- IV3BneKeTte ropnyne npOyKtbl. YTo6bl He nobpeuNb BHyTpEHNOIO nobepxHOCTb KOp3Hbl (6), UcnoJIb3yIe DepeBHHBie nnJXapOpouHbIe PnActIKOBbIe CTOnOBbIe np6Opbl.

ПРИМЕЧАНС: Пибор He 6удт pa6ToTb 6e3 npabUlbHo yCTaHOBJIeHHOJ KOp3MHbI (6).

BbTaacknBaHne Kop3mHbI (6) BO BpeMa pa6OtbI np6oPa npuBeTeK erO oTKIOueHNI.

He npnkaaTecb K Kop3nHe n BHytpenHm qactam np6opa, TaK kaOH ouehb ropnye.

• Pocne nCNoB3OBAHnO TKNIOUHTe npu6Op OT cETN.

COBETbl

yuncbi

Pn Jkapke cbexero Kaptoo jna Chayana TuaTeNbHO npomoe n BbCyuHte erO, UTo6bl ydaJIb nnHIOBnary n KpaxMaI. B cepeINHe ZKka JkapKn BCTprxHnTE Kop3nHy (6) n/nnn nepemewaTe MeKne INHpeJeHNTb, UTo6bl o6ecneuHb paBHomephoe 6XapuBaHne.

Topmbi

TOTOBbIE TOPTbl, npiroTOBnHeHbIe n3 roTOBOm Cmecn, Tpe6yIOT MehJWeRo BpEmHo BbIneKu, Yem DomaunHe Toptbl. HanBaTe TcTo B OTdJIbHyIO fOpMy, a He npMa BO KOp3nHy (6).

Myc0

Pn Japke 6onbux KcKOB Mca, KOrda Ha dHe Kop3HbI (6) cKaIIINBaHTcN 3nnuKxJnpa mMacna, dnydaneHn npOyKTOB nCOnb3yIne XapopOnpUHbIe HeINIOHOBbIe Nn CnIKKOHOBbIe uNtcb. 36eraTe OnpOKnDbBaHnR KOp3HbI (6), TaK KaK 3TO MoXeT pInBeCTN K BblTEKaHNIO Xnpa N OCTaTKOB Macna Ha TapeKky nn CToneuHncy.
