Product Type	Deep Fryer
Brand	Eldom
Model	FR24N
Power Consumption	1800 W
Supply Voltage	230 V ~ 50 Hz
Fat Capacity	2.5 L
Oil Temperature Control	150°C - 190°C
Viewing Window	Yes
Odor Filter	Yes (replaceable)
Signal Lights	Power and Temperature indicators
Control Method	ON/OFF switch + Temperature dial
Lid Release Button	Yes
Handle with Basket Raising Mechanism	Yes
Handle Lock	Yes
Removable Frying Basket	Yes
Removable Lid	Yes
Cleaning	Hand wash basket, container, and lid with hot water and detergent; do not immerse appliance
Filter Replacement	Check regularly, replace if dirty
Cord Storage	Coil around handle at back
Safety Features	Thermostat control; do not operate without oil; lid must be closed during operation
Recommended Oil	Pure vegetable oil; do not mix oils

Frequently Asked Questions - FR24N Eldom

What type of oil should I use in the Eldom FR24N deep fryer?

Use pure vegetable oil. Do not mix different types of oil or fat. For solid vegetable fat, cut into small pieces, melt separately, and pour into the fryer (900 g solid fat equals 1 liter of oil).

How much oil does the FR24N need?

Fill the container with about 2 to 2.5 liters of oil. Do not exceed the markings inside the container. Never fill above the maximum level.

What is the maximum frying temperature?

The thermostat can be set to a maximum of 190°C. The temperature control is calibrated at 150°C, 170°C, and 190°C.

Can I fry frozen foods?

Yes, but do not overload the basket with frozen products to avoid boiling over. Ensure frozen food is as dry as possible and remove frost before frying.

How often should I change the oil?

Change the oil every 8 to 12 frying sessions to maintain flavor and dish lightness. Do not mix fresh oil with old oil.

How do I clean the deep fryer?

Unplug and let cool. Remove the lid (release from hinges). Wash the basket, container, and lid with hot water and mild detergent using a sponge. Do not use abrasive cleaners. Never immerse the appliance body or cord in water. Dry thoroughly before reuse.

How do I replace the filter?

The filter is located in the lid. Check its condition regularly. If dirty, replace it with a new one. Refer to the manual for part numbers or contact an authorized service center.

Why do the power and temperature lights go on and off?

This is normal operation. The temperature indicator light goes out when the set temperature is reached and cycles on and off as the thermostat maintains the desired heat.

What should I do if the oil catches fire?

Close the lid immediately to smother the fire. Do not use water. Unplug the appliance and let it cool. Never move the fryer with hot oil.

Can I repair the fryer myself?

No. Any repairs, including cord replacement, must be done by an authorized Service Centre. Using non-original parts voids the warranty. Check www.eldom.eu for service locations.

USER MANUAL FR24N Eldom

White kitchen grater with control knobs and a side panel (no visible text or symbols)

Eldom sp. z o.o

UŻYTKOWANIE URZĄDZENIA

Close-up of a plastic appliance with ventilation grilles and an open lid, showing orange arrows indicating airflow or heat direction (no text or symbols)

Fot. 2

4. Korpus.

Close-up of a white plastic filter with perforated edges and dark liquid, labeled 'Fot. 3' on the left (no other text or symbols)

5. Filtr.

• Before using the appliance for the first time, please read carefully these Instructions for Use.
• The cord should be connected to a socket with parameters compliant with those given in the Instructions for Use.
• Make sure there are not too many receivers connected to one current circuit.
• The appliance should always be disconnected by pulling the plug, not the power cord.
• The appliance should be placed on a flat, hard and stable surface resistant to high temperatures.
• Unplug the device, if it is not used any more and before cleaning it.
• Do not immerse the cord or the appliance in water.
• Do not use in the open air.
• The appliance is intended for domestic use only.
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• Make sure children do not play with the appliance.
• When using the deep fryer, keep it out of reach of children.
• Do not place the appliance in the vicinity of heat sources.
• Do not leave the appliance unattended.
• Do not touch the appliance with wet hands.
• Do not turn the deep fryer on, if there is no oil inside, as it may cause damage to the appliance.
• To avoid the risk of boiling over, do not overload the frying basket, especially with frozen products.

SAFETY INSTRUCTIONS

• When frying, do not keep your hands over the filter chamber.
• Do not move the deep fryer, if the oil inside is hot.
• Do not pour the oil away, if the deep fryer is hot. Wait until the appliance cools down.
• If the fat catches fire, close the lid and smother the fire. Do not try to extinguish the fire with water in any case.
• Use only with the originally included accessories.
• Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired in an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.
• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be reprocessed or recycled.
• The appliance should be disposed of at an authorised disposal centre which deals with collecting and recycling electrical and electronic appliances.

GUARANTEE

• The appliance is intended for private domestic use only.
• The appliance may not be used for professional purposes.
• The guarantee ceases to be valid in case of inappropriate handling.

INSTRUCTIONS FOR USE

DEEP FRYER FR24N

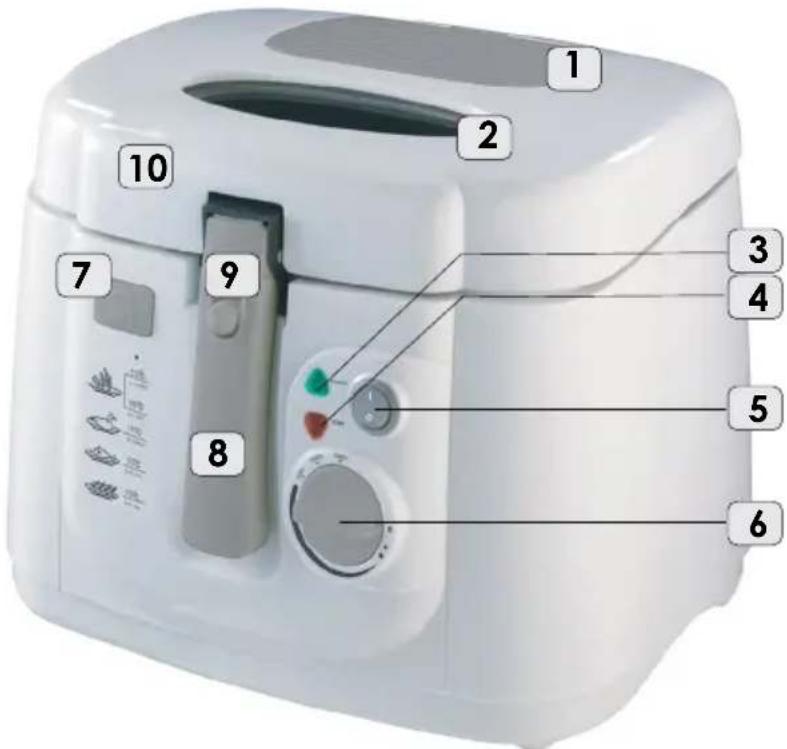

GENERAL DESCRIPTION

1. Filter
2. Viewing window (monitoring of cooking)
3. POWER signal light
4. TEMP signal light
5. ON/OFF switch
6. Temperature control
7. Lid release button
8. Handle (with mechanism of raising the frying basket)
9. Handle lock
10. Lid

TECHNICAL DATA

• power: 1800 W
• supply voltage: 230 V \~ 50 Hz
• capacity: 2.5 l
• oil temperature control: 150°C - 190°C

HOW TO USE THE APPLIANCE

After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre.

Before using the appliance for the first time, wash the frying basket and the fat container.

Filling the fat container

Place the appliance on a flat, hard and stable surface resistant to high temperatures.

- Open the lid by pressing the button (7).

- Raise the frying basket with the use of the handle (8) (the handle will lock) and pull it out, releasing it from the catch.

- Fill the container with fat (about 2-2.5 l).

- Place the frying basket back into the appliance.

It is recommended to use pure vegetable oil. Do not mix different types of oil or fat. The oil level may not exceed the markings inside the container. In case of using solid vegetable fat, cut it up into small pieces, melt in a separate dish and pour into the deep fryer (900 g of solid fat is equivalent to 1 litre of oil). Never place the fat directly on the frying basket as it may cause damage to the appliance.

Placing products in the appliance

• Raise the frying basket with the use of the handle (8).
• Open the lid (10) of the deep fryer by pressing the button (7).
• Place the prepared products in the frying basket.
• Close the lid of the deep fryer by pressing it lightly until it audibly clicks in.
• Release the handle lock (9) and lower the frying basket slowly.

Turning the deep fryer on

Set the thermostat knob (6) and the ON/OFF switch (5) to position "0". Plug the appliance in. Set the switch (5) to position "1". The indicating lamp (3) signals that the deep fryer is in operation. Turn the temperature controller (6) to the desired temperature of frying. The thermostat is calibrated in steps marked 150°C, 170°C and 190°C. After about 10 minutes the fat reaches the right temperature. When frying, the indicating lamp of the thermostat (4) may light up and go out several times. The lamp goes out when the desired temperature is reached.

After frying, raise the frying basket and leave it to drip off.

CLEANING AND MAINTENANCE

1. Fat container

The fat must be changed on a regular basis (every 8 to 12 frying sessions), not only to achieve the best flavour but also to ensure lightness of dishes. The nutrition value of the fried dishes depends largely on the quality of the fat. Do not pour away the used fat into the sink. It is better to cool it down and throw away in the rubbish bin. Before pouring away the fat and cleaning the container, remove the lid by opening and releasing it from the hinges at the back wall of the body of the deep fryer. Wash the container with hot water, washing-up liquid and a sponge. Do not use any scrubbing agents. If the container is burnt, we recommend soaking it in water for about 30 min before washing. Dry the container carefully before using.

The appliance must not be immersed in water.

2. Lid.

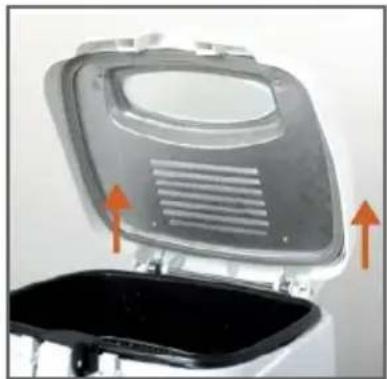

Remove the lid (phot. 2) from the hinges of the appliance body. Clean with a moist cloth with some washing-up liquid. Dry the lid carefully before putting it back into place.

3. Frying basket

Wash the frying basket with hot water, using a cloth and washing-up liquid.

Close-up of a kitchen appliance with a lid and ventilation grille, showing orange arrows indicating movement (no text or symbols visible)

phot. 2

4. Appliance body

The outside surfaces and the conductor should be cleaned with a moist cloth. Do not use any scrubbing agents or sharp tools. Before putting the appliance away, coil the conductor at the back.

Close-up of a white perforated object with black interior, labeled 'phot. 3' on the left (no other text or symbols)

5. Filter

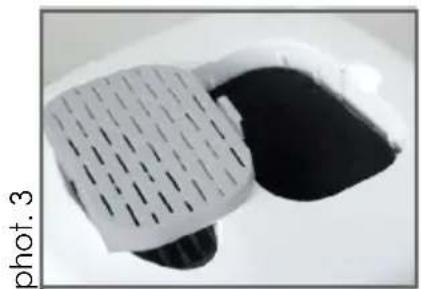

There is a filter in the lid of the appliance (phot. 3). Its condition should be checked regularly. If dirty, the filter should be replaced.

PRACTICAL ADVICE

- Do not place too much food in the frying basket.

- Do not add water to oil as it will lower its quality.

- Do not mix fresh oil with the old one.

- Do not mix different types of fats.

- Make sure the food you use is as dry as possible and remove frost from deep-frozen products.

- When frying, do not lean over the lid of the deep fryer, in particular when the deep fryer is open and full of hot fat.

- In case of any irregularities regarding the operation of the appliance, consult an authorised Service Centre. Any repairs, including replacement of power cord, can be carried out only by an authorised repair shop.

- Do not place the deep fryer in the vicinity of heat sources.

- If the deep fryer is not used very often, the oil can be kept in a separate container in the fridge.

- The power cord can be coiled around the handle at the back of the casing.
