USER MANUAL 302660 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

DASHCAM, FULL HD

Two diagrams showing a satellite dish antenna mounted on a base, with directional arrows indicating rotation (no text or symbols)

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Dashcam
  • 12-24V vehicle adapter
• USB to miniUSB cable
• Holder with suction cup

2. Technical data

Charging voltage DC 5V

Battery capacity 200mAh

Video resolutions 1080FHD, 1080p, 720p, WVGA, VGA, QVGA

Camera resolutions 12M, 10M, 8M, 5M, 3M, 2MHD, 1.3M, VGA

Memory external microSD card (up to 32GB)

Languages 11 different language options

Features • Motion detection

• G sensor
- Auto Off
- Loop recording
- Date display

3. Functions

The Dashcam allows you to make videos or take photos and save them externally. Dashcams are popular in many countries. Under certain circumstances, the recordings can be useful as evidence in insurance claims or other legal proceedings.

Note: In Germany, recordings with Dashcams have not been acknowledged so far as evidence in most court or insurance cases.

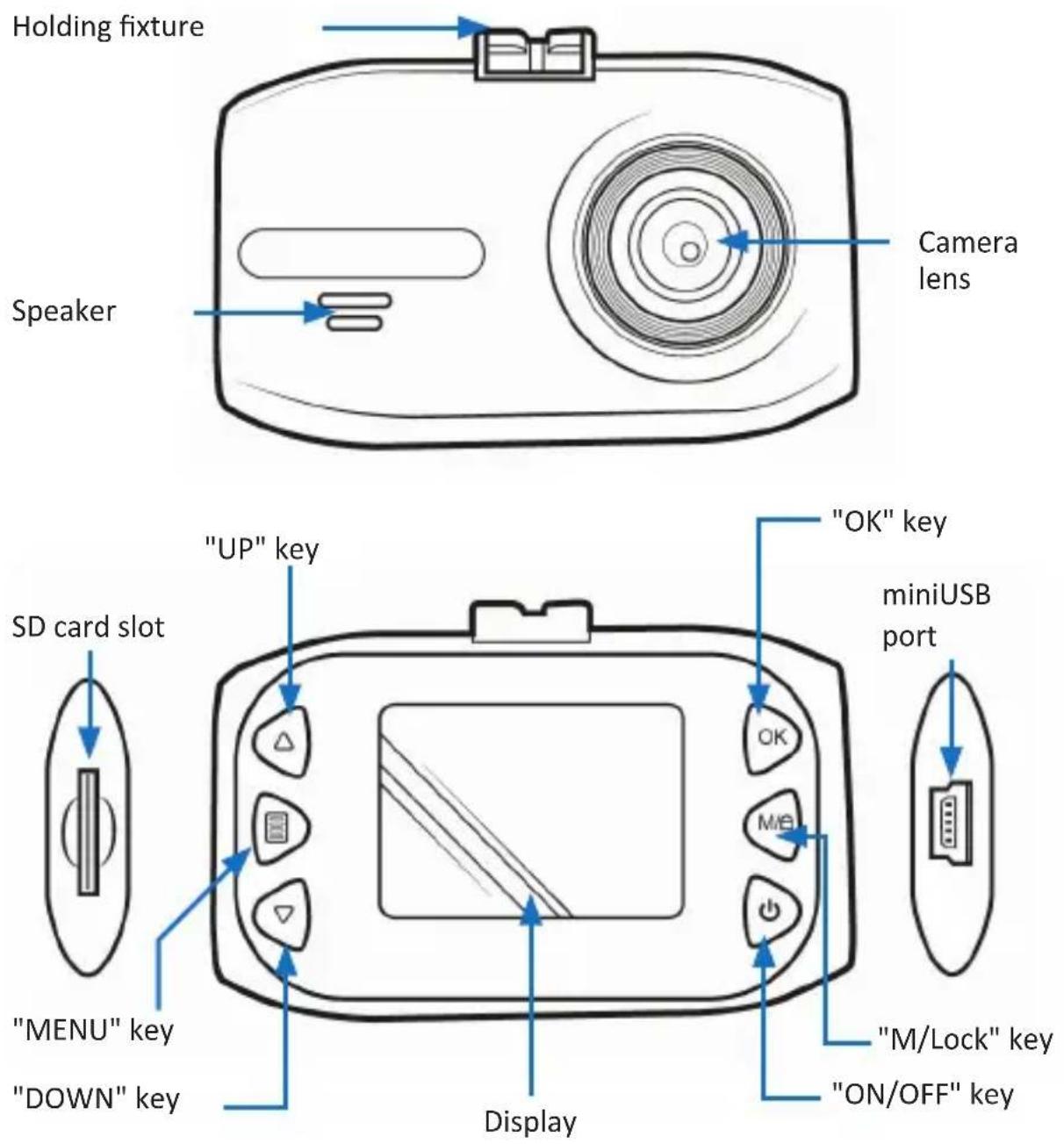

4. Product details

5. Special functions

G sensor

The Dashcam is equipped with a G sensor. If the camera detects accelerations, delays or special movements (e.g. in the case of a collision or an unexpected acceleration), the recording starts and the recorded video material is protected from overwriting.

Alternatively, you can protect the latest recording from being overwritten by pressing the "M/Lock" key. Press the key again to switch off this function.

Motion detection

The motion detection should not be activated while driving. This mode is basically meant for video surveillance while the car is parked in a street for instance. In this case, ensure that power is supplied to the Dashcam by an external power source, e.g. a power bank. The Dashcam registers each and every motion in front of the camera and records it automatically.

Loop recording

In this mode, the Dashcam records a video. Whenever the memory space is completely exhausted, the device begins to overwrite the memory card. This feature extends the recording time in a limited memory space.

6 Key functions

ON/OFF key Press and hold to switch on or switch off the device

"MENU" key Press to open the settings menu

"UP" key Up (navigation in the Menu) + zoom

"OK" key Confirm (OK)

"DOWN" key Down (navigation in the Menu) + zoom

"M/Lock" key • Press to change the mode (video, photo, gallery)• Press during active recording to protect the current recording from being overwritten

"RESET" key Press to reset the device

7. Initial use

Inserting the memory card

First insert a memory card with up to 32GB capacity in the SD-card slot of the camera.

Switching on/off

Press and hold the "ON/OFF" key to switch on or switch off the device. As soon as the vehicle adapter is connected to the camera in your car and the charging socket of the vehicle supplies the power, the camera is switched on. The moment the charging socket stops supplying power, the camera is switched off.

Change mode

Video mode is the default mode of the camera. When the device is switched on, press the "M/Lock" key to change between Video, Photo and Gallery mode.

Video mode

If the Dashcam is connected to the power supply, the video recording starts directly after the device is switched on. Press the "OK" key to start or stop the video recording.

4 3 2 5 6 7 8 00:00:08 1080FHD 1 11 10 2017/01/01 00:02:025 9

1 Resolution and recording time

2 "Lock"/G sensor symbol (Appears when the current recording is write-protected)

3 Microphone symbol (Appears when the sound is also being recorded)

4 Recording symbol

5 Mode (camera, gallery, video)

6 Loop recording time

7 Motion sensor (is switched on if the symbol appears on the display)

8 Exposure

9 Time and date

10 Battery capacity

11 SD card inserted

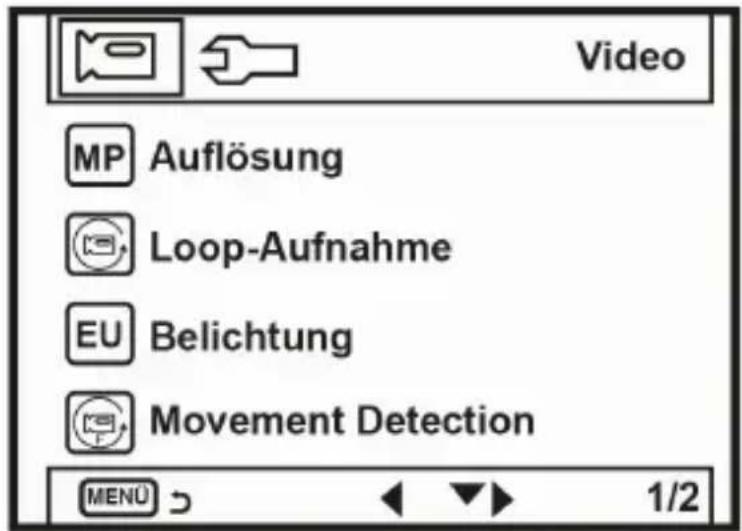

Video settings menu

Press the "MENU" key to open the Video settings menu Pause the running video by pressing the "OK" key, before you open the menu. The following window is then displayed.

You can change all video settings in this menu and navigate through the menu using the "UP" and "DOWN" keys. With the "OK" key you can open the respective menu and change the settings.

Setting Brief description
Resolution Setting the resolution
Loop recording Adjust or switch off Loop recording function
Exposure Adjustment of exposure
Motion detection Switch Motion detection function on or off
Audio recording Audio recording settings (switch on or off)
Date display Display or hide date
GSensor Sensitivity setting of the G-sensor
Audible signal Switching the keypad sounds On or Off

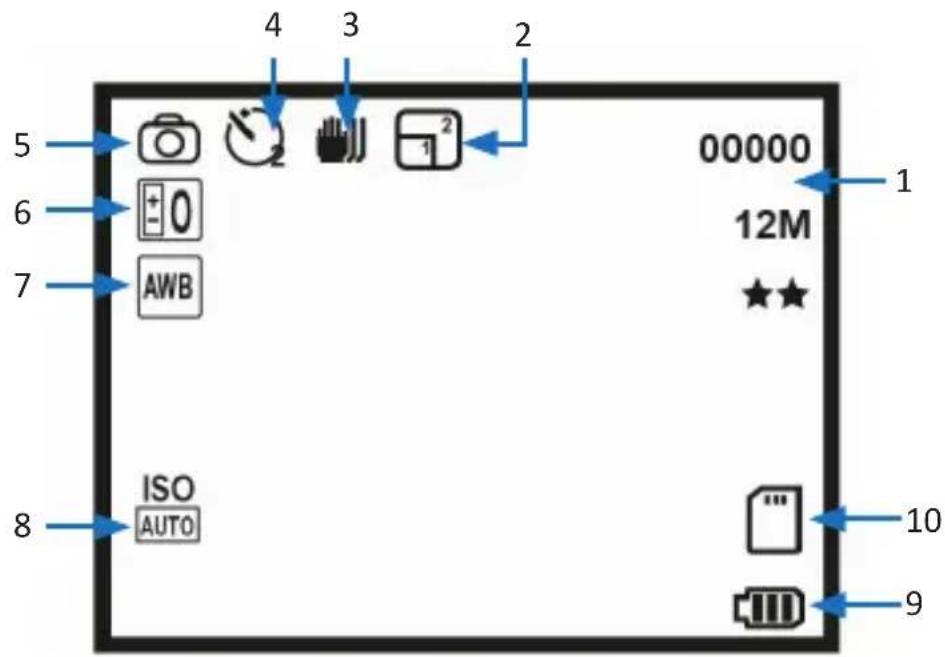

Photo mode

If the Dashcam is connected to the power supply, the video recording starts directly after the device is switched on. To reach the Photo mode, press the MODE key until the photo symbol is shown on the display.

5 6 7 8 ISO AUTO 4 3 2 00000 12M ★★ 10 9

1 Resolution and number of possible photos

2 Continue

3 Image stabilisation

4 Timer duration

5 Mode (camera, photo, video)

6 Exposure

7 White balance

8 ISO setting

9 Battery capacity

10 SD card inserted

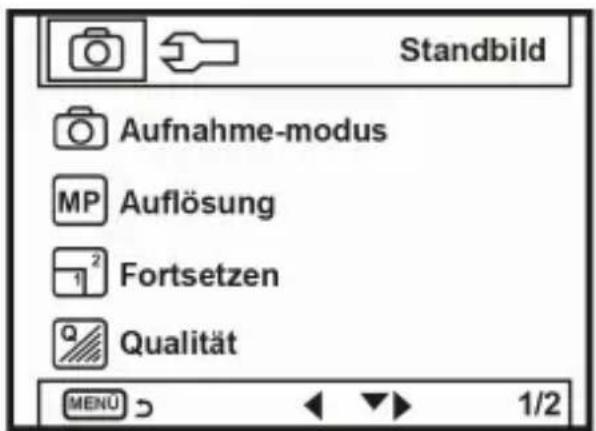

Photo settings menu

Press the "MENU" key in the Photo mode to open the Photo menu. The following window is then displayed.

In this menu you can change all photo settings. You can navigate in the menu using the "UP" and "DOWN" keys and open the respective menu with "OK", and change the settings.

Setting Brief description
Record mode Timer settings
Resolution Adjustment of resolution
Quality Adjustment of quality
Sharpness Adjustment of sharpness
White balance Adjustment of white balance
Colour Colour settings
ISO ISO setting
Exposure Adjustment of exposure
Stabilisation Image stabilisation
Quick scrolling (preview image)	Setting the time (the duration for which the images are displayed after they are taken)

System settings

Press the "MENU" key in the Video or Camera mode twice to reach the System settings. You can navigate in the respective menu using the "UP" and "DOWN" keys. Press "OK" to confirm your setting. The following table shows you the setting options in this menu.

Setting Brief description
Date Date and time settings (on/off/setting)
Auto off Set automatic switch off
Language Language settings
Frequency Frequency settings (50Hz / 60Hz)
Screensaver Screensaver settings
Image rotation Image rotation (180°) on/off
Format Memory formatting
Default setting Resetting to factory settings
Version Open firmware version

Date and time setting

Select "Date" in the System settings and confirm with the "OK" key. Select "On" or "Off" to switch on or off the date. To adjust date and time, navigate up to "adjust date" and confirm with the "OK" key. Using the "UP" and "DOWN" keys you can increase or decrease the values. Confirm the settings in the Date and time settings with the "MODE" key.

8. Assembly

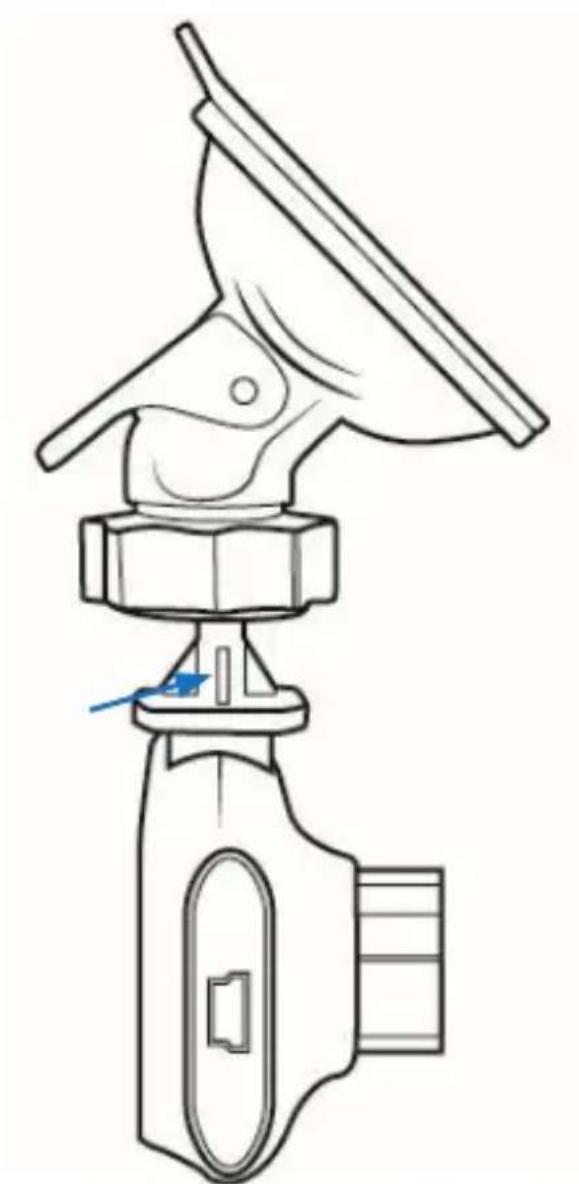

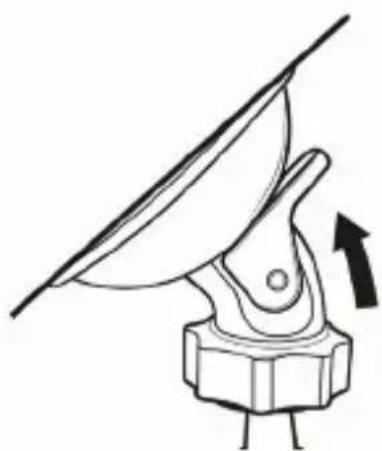

To fix the holder with the suction cup on the camera, insert the holder into the camera fixture until it locks into place. To remove the holder, press the locking downwards and pull out the holder.

Example image

Mounting fixture

Technical line drawing of a mechanical valve assembly (no text or symbols)

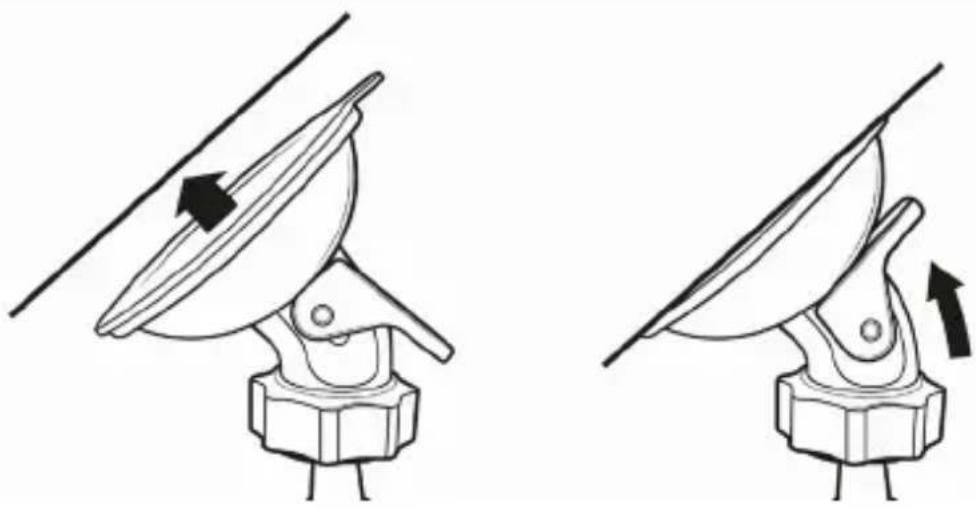

8.1 Place of installation

Ensure that the Dashcam is placed in such a way that it does not block your view while driving. It is recommended to attach the Dashcam behind the interior mirror. Guide the cable around the outside up to the vehicle charging socket. Connect the cable of the Dashcam to the charging adapter and insert the adapter into the vehicle charging socket.

Example image

Two diagrams showing a satellite dish antenna mounted on a base, with directional arrows indicating rotation (no text or symbols present)

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 302660/20200309SZ181 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
