USER MANUAL DO9252I DOMO

Black and white photo of a modern microwave oven with digital display and a bowl of food (no visible text or symbols)

DO92521

Handleiding Roomijsmachine
Mode d'emploi Sorbetière
Gebrauchsanleitung Eismaschine
Instruction booklet Ice cream maker
Manual de instrucciones Máquina para hacer helados
Istruzioni per l'uso Macchina per gelato
Návod k použití Zmrzlinovač s kompresorem
Návod na použitie Zmrzlinovač s kompresorom

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

1 2 - ⏻ 3 - ▶ 8 8:8 8 - - 4 + - 5 6 7 8 9 10

Two technical illustrations of a microwave oven with a lid and cooling mechanism, shown from different angles (no text or symbols present)

VOORBEREIDEN VAN DE INGREDIËNTEN

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

1 2 - ⏻ 3 - ▶ 8 8:8 8 - - 4 + - 5 6 7 8 9 10

AVANT LA PREMIÈRE UTILISATION

Line drawing of a microwave oven with a lid and a side panel, showing no text or symbols

PRÉPARATION DES INGRÉDIENTS

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a microwave oven with numbered parts labeled 1 through 7, showing internal components and control buttons.

1 2 - ⏻ 3 - ▶ 8 8:8 8 - - 4 + - 5 6 7 8 9 10

Illustration of a microwave oven with a lid and a side panel, showing top and bottom views (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  · This appliance is intended to be used in household and similar applications such as:
  · staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · All repairs should be carried out by the manufacturer or its aftersales service.
  · Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  · Do not use or store this appliance outdoors.
  · Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• Never leave the appliance unattended while it is functioning.
  · Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
· Do not use aggressive or abrasive cleaning agents or sharp objects to clean the appliance.

⚠️PRODUCT-SPECIFIC WARNINGS

· Do not use the appliance if there is any water in it or the parts are still wet after cleaning.
- Do not use the appliance without ingredients.
- Do not tilt the device or lean it at an angle of 45^ or more.
- Keep the device 8 cm away from other objects to ensure proper ventilation and heat emission.
- To avoid damaging the compressor, do not repeatedly switch the device on and off too often (e.g. ensure there is an interval of at least 5 minutes in between).
· To prevent damage to the bowl or its rim, do not knock these when taking out the ice.
• Make sure that the bowl and mixing paddle are correctly fitted before switching on the appliance.
- The temperature of the ingredients should be between 10^ and 20^ to avoid uneven mixing due to early ice formation.
- Do not remove the lid or mixing paddle when the appliance is in operation.
- If you want to use the cooling feature after making ice cream, first switch off the mixing feature. This will ensure the gear wheel of the mixing motor is not damaged.
- Only recycle the appliance at an authorised disposal centre.
- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

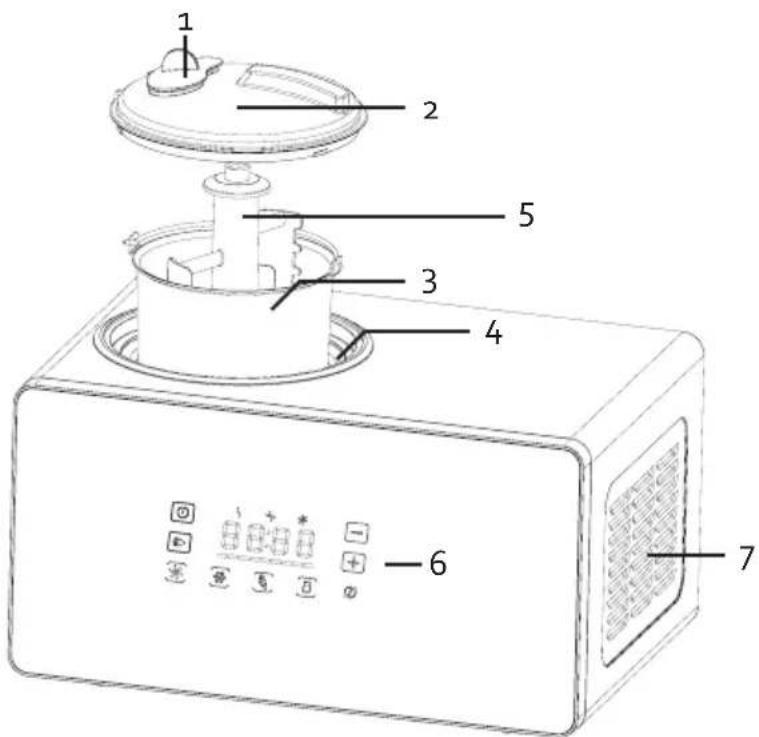

PARTS

1. Fill opening with cover
2. Transparent lid
3. Removable bowl
4. Fixed bowl
5. Mixer
6. Control panel
7. Ventilation grid

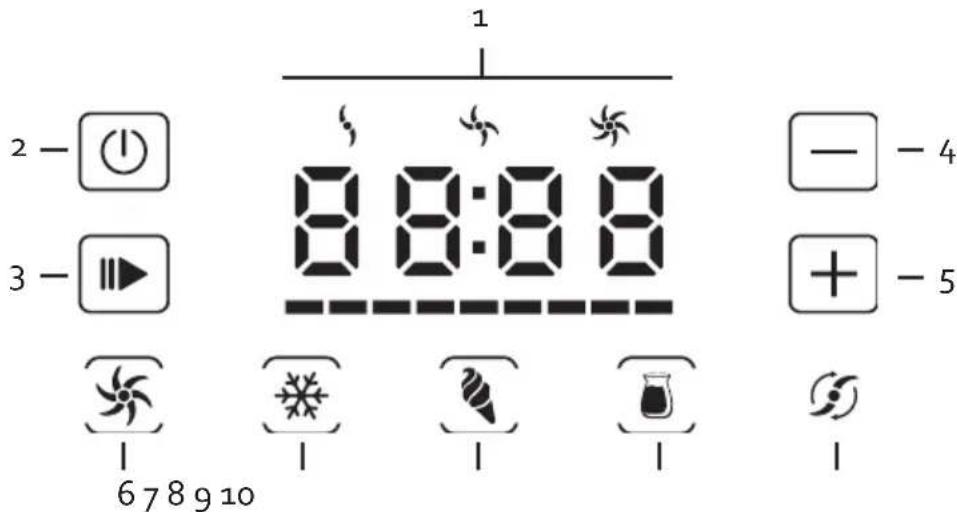

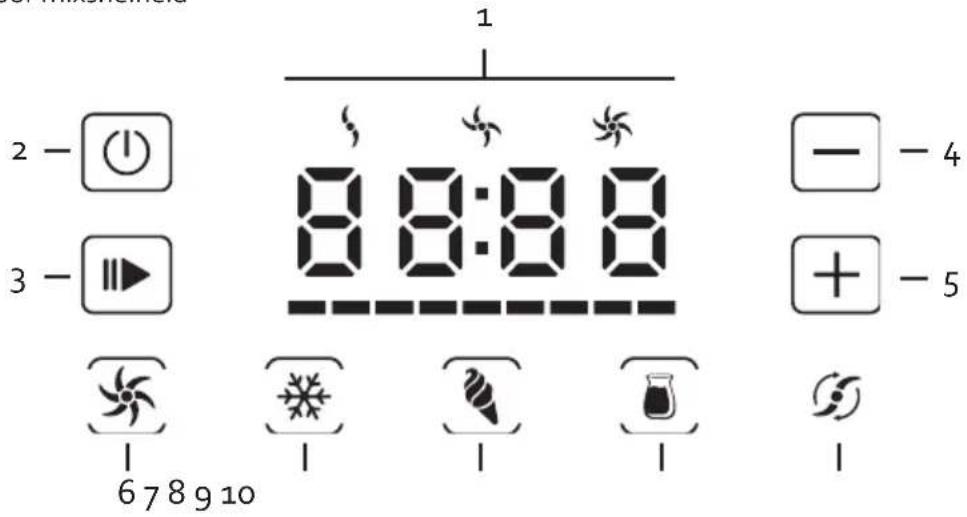

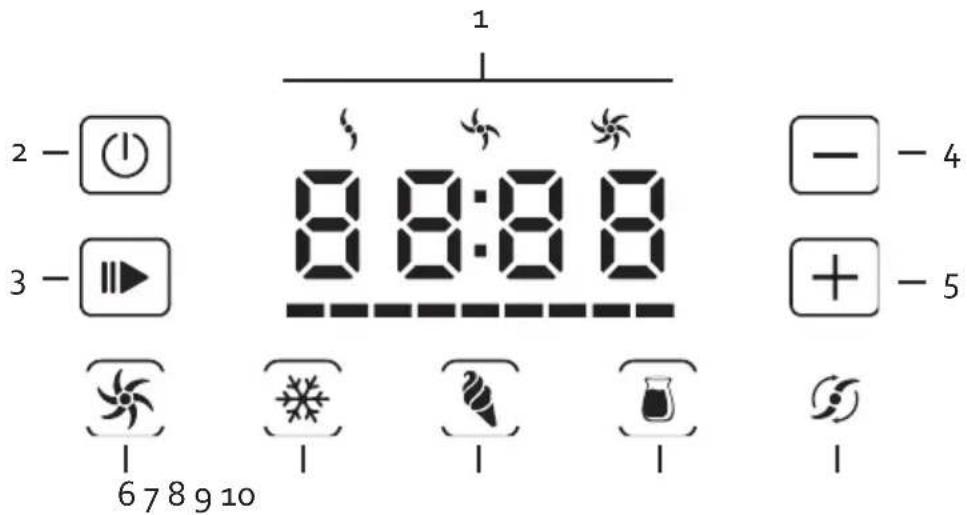

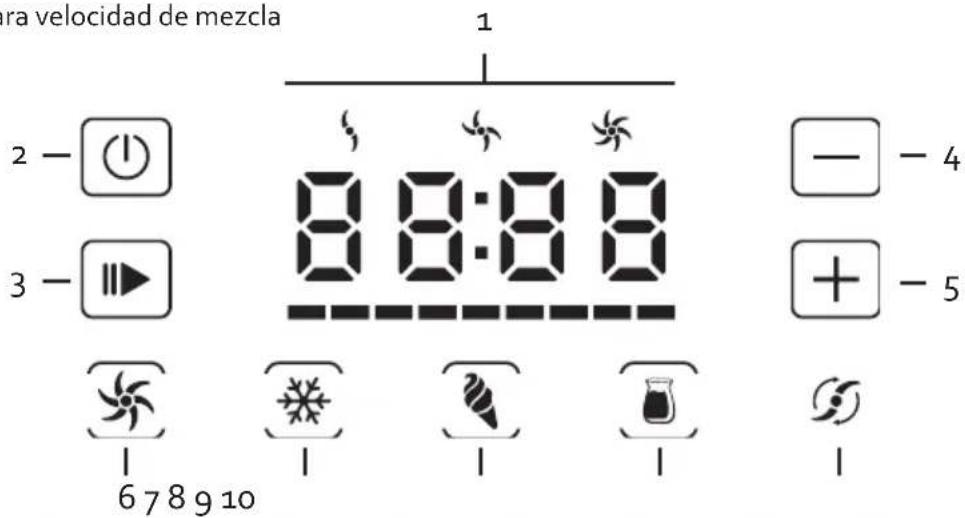

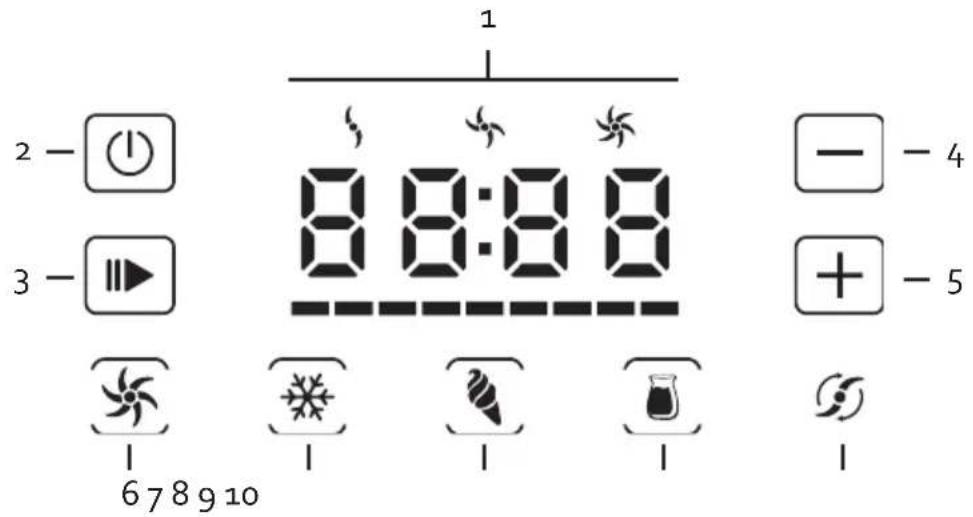

CONTROL PANEL

1. Display
2. On-off button
3. Start-pause button
4. Decrease button
5. Increase button
6. Mix button
7. Cool button
8. Ice cream button
9. Yoghurt button
10. Mixing speed button

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

1 2 - ⏻ 3 - ▶ 8:8:8 - - 4 + - 5 6 7 8 9 10

BEFORE THE FIRST USE

· Leave the appliance stable for 4 hours before using it for the first time.
· Thoroughly clean all parts of the ice cream maker that will come into contact with the ice cream: the fixed bowl, the removable bowl, the mixer, the lid. Dry the parts thoroughly before using them.

USE

ASSEMBLING

1. Make sure that the appliance is unplugged.

2. Place the ice cream maker on a flat, stable surface.

3. Place the removable bowl into the fixed bowl in the machine. Make sure that the handle holders fit into the provided recess of the black ring.

4. Place the mixer into the removable bowl by sliding the mixer over the axis in the bowl, so that it falls into position. The image shows which parts of the mixer and the axis should be lined up.

⚠ For the yoghurt programme, do not use the mixing paddle, which is only used for making ice cream and mixing.

1. Fit the transparent lid onto the bowl and turn clockwise.

Simple line drawing of a microwave oven with a dome-shaped lid and a downward arrow indicating motion (no text or symbols)

Line drawing of a rectangular electronic device with a circular top and side ports (no text or symbols)

PREPARING THE INGREDIENTS

1. Prepare the ingredients according to the recipe you want to make.
2. Pour the mixture into the removable bowl.

- The total volume of ingredients must never exceed half of the bowl. The ice cream will expand when it is mixed.

- It is not needed to place the bowl into the freezer beforehand. Thanks to the built-in compressor the ice cream maker freezes while mixing.

USAGE

1. Insert the plug into a power socket. You will hear a signal and the on-off button and oo:oo will appear on the display.
2. ☐ Press the on-off button. The device is now switched on and the display appears.
3. Select the desired programme:

Use the ice cream feature to prepare (firm) ice cream, sorbet, soft ice cream, frozen yoghurt, and so on. The default time is set to 60 minutes. You can adjust this to between 5 and 70 minutes.

• The mixing feature helps blend the ingredients better (without cooling). The default time is set to 30 minutes. You can adjust this to between 5 and 70 minutes.
• The cooling feature simply keeps the contents of the bowl cold (without mixing). The default time is set to 10 minutes. You can adjust this to between 5 and 70 minutes.

• The yoghurt feature is a programme for making yoghurt from milk and an existing yoghurt culture. The default time is set to 8 hours. You can adjust this to between 4 and 24 hours.

• Set the desired time. With the ice cream programme, you can set the time or hardness (see below).

• With the ice cream programme and mixing, you can set the speed (see below).
• Press the start-pause button to start the ice-cream maker.
• When the set time is up, the appliance automatically stops, and you will hear a signal.
• Take the removable bowl out of the appliance, scoop the ice cream out of the bowl and place it in a different bowl or container.

Setting the time

After selecting a programme, you can set the desired time by using the increase or decrease buttons.

Setting the hardness

This feature can only be selected for the ice cream programme. To set the hardness, press the ice cream button (again). The bars representing hardness appear on the display (instead of for the time).

Now press the increase or decrease button. There are three hardness settings:

• Soft:
  · Medium:
  · Hard:

During operation, the appliance will measure the hardness and show it on the display. Once the desired hardness is reached, the appliance stops making ice cream and switches over to the automatic cooling feature. The maximum time is 70 minutes. If the desired hardness has been reached and you want to stop the process completely before the time runs out, press the start-pause button for a few seconds and the appliance will switch off.

Setting the mixing speed

In the ice cream and mix programmes, you can control the mix speed to achieve a different taste experience each time. The more rotations per minute, the airier the mix, the fewer the ice crystals, and the more intense the flavour. Press the mixing speed button ♂ and the speed will change each time you press the button. There are three speed settings:

The default setting is medium speed.

Notes

Do not use metal objects in the bowl to avoid scratching.
⚠️ Never knock the removable bowl or the edge of the bowl onto for instance a table to remove the ice cream. This will damage the bowl.
The ice cream machine has overheating protection. Allow the machine to cool down between two preparations.

• To stop or restart the mixing paddle during the process, briefly press the start-pause button. The compressor continues cooling for 3 minutes. Thereafter, the unit will switch off completely.
• To stop the process completely before the time runs out, press the start-pause button for a few seconds and the appliance will switch off.
• If you want to adjust the time when the machine is in operation, first press the start-pause button. You can then adjust the time with the decrease and increase buttons. Thereafter, press the start-pause button again to resume operation.
• When the ice cream becomes too hard, the motor could get blocked. The self-protection function makes sure that the motor is automatically stopped in that case.

MAKING YOGHURT

When you add milk bacteria to milk, the bacteria start to multiply. This creates a thick creamy mixture, i.e. yoghurt. You can use different types of milk: pasteurised, sterilised, long-life UHT, but also plant-based 'milk' products, such as soya or nut milk. All of these can be used to make your yoghurt.

Add an existing yoghurt culture to the milk, which you can find in, for example, natural yoghurt from the supermarket, or homemade yoghurt, or you can also buy the yoghurt bacteria in powder form from the health food shops, chemists, or online. A good ratio is 1 litre of milk with 125 ml of plain yoghurt for 8 hours.

EXTENDED COOLING FEATURE

If the appliance is not switched off and the ice is not removed immediately after the end of the turning process, the machine automatically switches to the cooling feature. The display shows 'cool'. The appliance will then cool for another 2 hours to maintain the consistency of the ice cream. During this cooling feature, the appliance will measure the hardness and occasionally mix and cool when necessary. Thereafter, it switches back to the base state.

CLEANING AND MAINTENANCE

⚠️ Never immerse the appliance, power cord, or plug in water or any other liquid.

• Pull the plug out of the power socket before cleaning the appliance.
  · Clean the stainless steel housing with a damp cloth and some mild detergent.
• Wash the separate parts in warm water with washing-up liquid, i.e. the transparent lid, mixing paddle, and removable bowl. Dry thoroughly.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

Simple line drawing of a microwave oven with a dome-shaped top and a downward arrow indicating airflow (no text or symbols)

Illustration of a rectangular electronic device with a circular top and side ports (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a microwave oven with numbered parts labeled 1 through 7, showing internal components and control buttons.

1 2 - ⏻ 3 - ▶ 8:8:8 - 4 + 5 6 7 8 9 10

PRIMA DELL'USO

Two technical line drawings of a microwave oven with a lid and a side panel, showing internal components (no text or symbols)

SCELTA DEGLI INGREDIENTI

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a black rectangular base symbol below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

1 2 - ⏻ 3 - ▶ 8:8:8 - - 4 + - 5 678910

PŘED PRVNÍM POUŽITÍM

Two technical line drawings of a microwave oven with a lid and ventilation slots, shown from different angles (no text or symbols)

PŘÍPRAVA INGREDIENCÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a microwave oven with numbered parts labeled 1 through 7

1 2 - ⏻ 3 - ▶ 8 8:8 8 - 4 + - 5 6 7 8 9 10

PRED PRVÝM POUŽITÍM

Simple line drawing of a microwave oven with a dome-shaped lid and a downward arrow indicating motion (no text or symbols)

Line drawing of a rectangular electronic device with a circular top and side panel (no text or symbols)

PRÍPRAVA INGREDIENCIÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
