Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use water of unknown quality or water that contains unsafe microbes.
• Do not clean the ice maker with flammable liquids. The vapours can cause fire or explosion.
• Do not tilt the appliance more than 45^ . If the appliance is laid flat, return the appliance to a completely upright position and wait 2 hours before turning it back on.

- If the ice maker is brought in from a cold environment during the winter, do not use for a few hours. Allow it to warm to room temperature before use.

- Do not use the appliance in temperatures below 5^ C .

- Never put flammable, explosive and/or corrosive items in the ice maker.

- Never use the ice maker if flammable gas is leaking.

- Unplug the ice maker from the power socket before moving it to avoid causing damage to the cooling system.

- The ice maker makes use of flammable gas and refrigerant and must therefore be disposed of according to local regulations.

- Do not damage the cooling circuit.

- Keep the ventilation openings clear and make sure they are not blocked or obstructed.

- Do not use mechanical appliances or other aids to speed up the defrosting process.

- Do not place portable power strips or portable power supplies at the back of the appliance.

• Do not place other electrical appliances inside this one, unless recommended by the manufacturer.
• Other appliances must not be connected to the same power socket. Make sure the plug is fully inserted into the power socket.
• Arrange the power cable to prevent children from pulling on it or people tripping over it.
• Do not attempt to disassemble, repair, modify, or replace any part of the item.
• When putting the appliance in its position, make sure the power cable does not become pinched or damaged.
• Place the appliance at least 15 cm away from other objects to ensure a proper ventilation around the appliance.
• Do not switch the appliance on and off too frequently. Always wait for at least 5 minutes to prevent damage to the compressor.

Caution: risk of fire / flammable materials

This appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

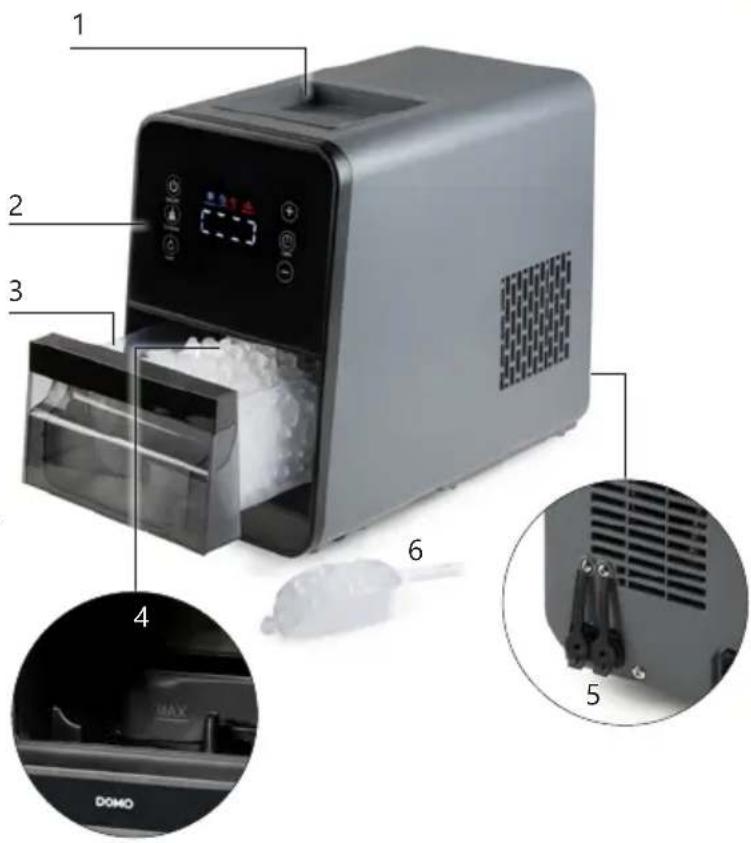

PARTS

1. Water tank
2. Control panel
3. Ice basket
4. Cleaning tank
5. Drain hole with plug
6. Ice scoop

CONTROL PANEL

1. Indicator light "in operation"
2. Indicator light for "Cleaning"
3. Indicator light "ice basket full"
4. Indicator light "water reservoir empty"
5. On/off button
6. 'Clean' button
7. 'Light' button
8. '+' button: increase time
9. 'Timer' button: delayed start
10. '-' button: decrease time

1 2 3 4 5 6 DOMO

7 8 9 10 ON/OFF ICE MAKING CLEANING ICE FULL ADD WATER 14 12 CLEANING TIMER 15 13 LIGHT -

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Place the ice cube maker on a flat and stable surface and make sure that the ventilation openings are not blocked.
• Before using the ice cube maker for the first time: wait 2 hours after putting the appliance in place and leave the lid open for at least 2 hours. This way the refrigerant can settle.
• Clean the appliance before using it for the first time. See: "cleaning and maintenance".

USE

1. Place the ice cube maker on a flat and stable surface and make sure that the ventilation openings are not blocked. Make sure the drainage hole on the bottom of the unit is closed.
2. Open the lid and fill the water tank. It is recommended to use spring water or mineral water. Do not use hot water, the recommended water temperature is between 8 and 25°C.
   Caution: Make sure that the water level is lower than the maximum indication.
3. Close the lid. Plug the power cord into a socket.
4. Press the on/off button on the appliance to turn it on. The "in operation" indicator lamp will illuminate steadily. The appliance will start making ice and after 6-8 minutes, the first ice nuggets will fall into the ice basket.
5. To stop the appliance, press the on/off button. If you press the on/off button for 5 seconds, the device will go into standby mode. Unplug the power cord after use.
6. Clean the appliance after each use. Empty the water reservoir before storing the appliance. Open the drainage hole above a collecting container or a sink.

If the 'water reservoir empty' indicator lamp lights up, there is not enough water left in the water reservoir. Fill the water reservoir with water, the appliance will restart automatically.

If the 'ice basket full' indicator light flashes, the machine will stop working. Empty the ice basket. If there is no more ice near the sensor, the appliance will restart automatically.

You can switch the interior lighting on and off with the 'light' button to follow the process. If the light is on for more than 10 minutes, it will automatically switch off.

DELAYED START

If you don't want to start the ice cube maker immediately, you can programme a delayed start.

1. Press the 'timer' button to programme the delayed start. The display shows '00:00' and the blue light in the button illuminates.

2. Increase the time with the '+' button or decrease it again with the '-' button. Pressing the buttons will increase or decrease the time by 30 minutes at a time. You can also hold down the button to advance the setting faster. When the desired time is visible on the display, stop pressing the button. The time will flash five times and is then automatically confirmed. The blue light in the timer button goes out again.

3. The display will count down the set time. After this time, the appliance automatically starts making ice.

If you want to deactivate the timer, press the 'timer' button for 2 seconds.

CLEANING AND MAINTENANCE

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

• Switch off the appliance and unplug before cleaning. Also remove all ice cubes.

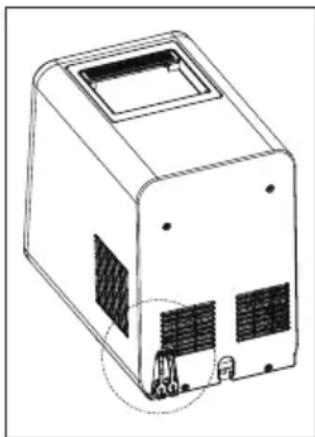

• Drain all water from the water tank. Open the drainage hole above a collecting container or a sink.
• Regularly clean the ice basket, the water tank and the ice scoop. Use a soft cloth with warm water and maybe cleaning vinegar to clean the inside of the appliance. Rinse thoroughly before using the appliance again.

Line drawing of a rectangular electronic device with ventilation grilles and a top cover (no text or symbols)

- Clean the outside with a damp cloth and mild detergent if necessary.

- Replace the water in the water tank at least once a day to guarantee clean ice cubes. When not using the appliance, always drain the water from the water tank. Always use clean water when using the ice cube maker.

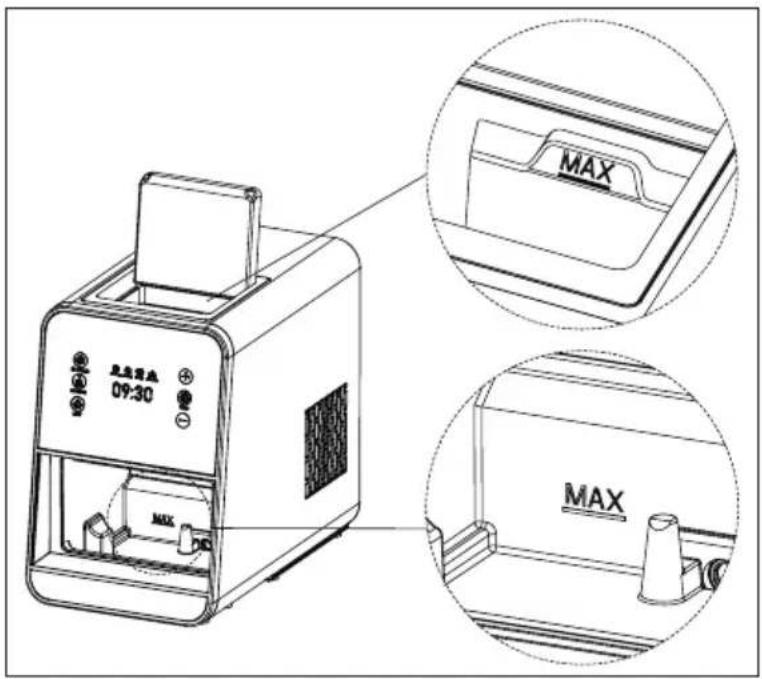

RINSING THE PIPES

It is recommended that the appliance pipes be rinsed once a week or if the appliance has been idle for a long time. The cleaning function will rinse the pipes of the appliance with water from the water tank.

- Make sure the appliance is not in operation before starting the cleaning function. If necessary, stop if from making ice by pressing the on-off button.

• Make sure the drainage hole is closed. Remove the ice basket from the appliance. Both tanks should be filled to the MAX mark with clean water. Do not use cleaning agents or detergents. If you fill the water tank above the MAX mark, excess water will drain into the cleaning tank behind the ice basket.

- Press the 'Cleaning' button. The cleaning cycle starts. The pipes will be rinsed for a period of 7 minutes.

- When the cleaning cycle is finished, the appliance will stop automatically.

- Pull the plug out of the power socket. Drain all water from the water tank. Open the drainage hole

09:30 MAX MAX

above a collecting container or a sink. Close the drainage opening again and place the ice basket back in the appliance.

- If you want to interrupt the cleaning function earlier, press the 'clean' button for 3 seconds.

DESCALING

Descale the appliance regularly (after 100 hours of use) to avoid calcification and to maintain a well operating appliance. Use a descaling product for example coffee makers, or use a solution, citric acid diluted with warm water.

1. Fill the water tank with the product/solution (do not exceed the maximum level) and let this soak for 2 hours.

2. After this, start the cleaning function; see the 'rinsing the pipes' section.

Do not make ice cubes with the appliance if there is still descaling solution in the pipes.

1. After rinsing, empty the water tank through the drainage opening.

2. Afterwards, fill the water tank with clean water and repeat the procedure.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
All indicator lights will flash. • The unit goes into	alarm; this is a security function to protect the evaporator. Switch off the appliance and unplug it. Let it rest for 4 hours. Afterwards, you can use the device normally again.• The motor is broken. Contact the after-sales service.
“Ice basket full” indicator lamp is on. • The ice basket is full. Empty it.• The sensors are broken. Contact the after-sales department.
Indicator lamp “water reservoir empty” lights up.	• Is the water reservoir empty? Fill the water reservoir with water.• There’s air in the pump. Restart the device by pressing the ‘clean’ button.
There are no indicator lights on. • There is no power applied to the appliance.Check that the plug is connected to a working socket.
The appliance goes through the cycle, but no ice comes out.	• The ambient temperature or the water temperature is too high. Do not use the appliance at a temperature higher than 32°C and fill the tank with cold water.• The compressor or the ventilation motor is broken. Contact the after-sales service.• There is insufficient coolant in the appliance. Contact the after-sales service.
The ice basket is full, but the indicator light is not lit.	• The operation of the sensors is blocked by sunlight. Move the appliance.• The sensors are broken. Contact the after-sales department.
The appliance and the air around the appliance become warm.	• This is normal. The temperature of the compressor can be up to 90°C.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

7 8 9 10 ON/OFF ICE MAKING CLEANING ICE FULL ADD WATER 14 12 CLEANING TIMER 15 13 LIGHT -

Line drawing of a device casing with heat sinks and a top panel (no text or symbols)

LIMPIAR LAS TUBERÍAS

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a device casing with heat sinks and a top panel (no text or symbols)

PULIZIA DELLE CONDUTTURE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

7 8 9 10 ICE MAKING CLEANING ICE FULL ADD WATER ON/OFF 11 12 CLEANING 13 LIGHT 14 15 TIMER 16

PŘED PRVNÍM POUŽITÍM

Line drawing of a rectangular electronic device with ventilation slots and a control panel (no text or symbols)

OPLÁCHNĚTE CHLADÍCÍ TYČKY

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

7 8 9 10 ICE MAKING CLEANING ICE FULL ADD WATER ON/OFF 11 12 CLEANING 13 LIGHT 14 15 TIMER 16

PRED PRVÝM POUŽITÍM

Line drawing of a rectangular electronic device with ventilation slots and a control panel (no text or symbols)

OPLÁCHNITE CHLADIACI TYČKY.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
