USER MANUAL Medicus Vital BOSO

Contents of package 44

Symbols on the blood pressure monitor 45

Symbols on the power supply unit 48

Quick guide 49

Introduction 50

Purpose 51

Blood pressure values 52

Systolic and diastolic blood pressure value 52

WHO blood pressure cut-off values 52

Starting up. 54

Inserting batteries 54

Battery status 55

General instructions for self-measurement 56

Preparing to measure your blood pressure 58

Table of contents

Note on cuff sizes 58

Attaching the cuff 59

Measuring your blood pressure 62

Interrupting a measurement 63

Measurement display 64

Completing the blood pressure record card / Retrieving the average value and WHO classification 66

Displaying individual stored values 68

Mains operation 69

Error messages 70

Cleaning and Disinfection 72

Warranty Conditions 73

Customer service / Disposal 74

Technical data 75

Calibration checks - Testing instructions (for trained specialist staff only) 78

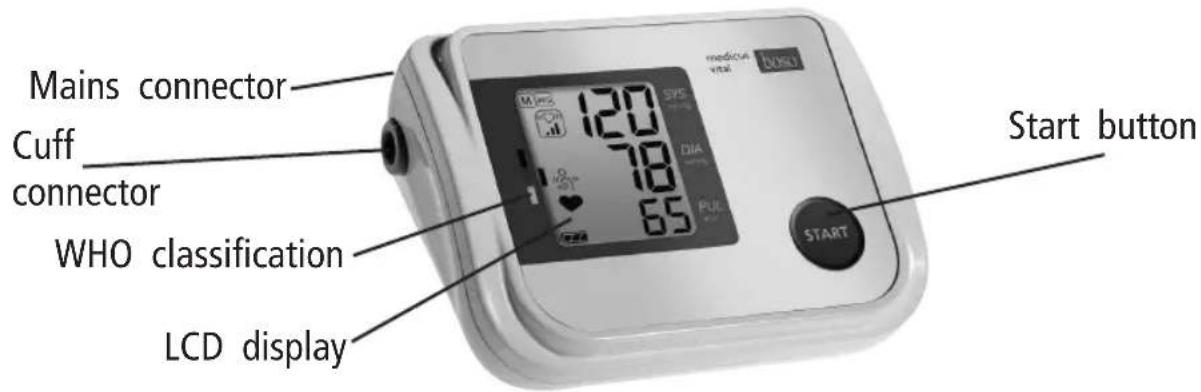

Product features

Contents of package

1 boso-medicus vital blood pressure monitor

4 LR 6 (AA) batteries

1 CA 04 universal cuff

1 User instructions

1 Bag

WHO classification sticker

1 Blood pressure record card

Symbols on the blood pressure monitor

Symbol Function/meaning

START	START/STOP button
	Direct current
SN	Serial number
	Year of manufacture
	Type BF: The device, cuff and tubing have been designed to protect the patient against electric shock.
♥	Reading in progress. Flashes as soon as a heartbeat was detected.

Symbols on the blood pressure monitor

Symbol Function/meaning

	Cardiac rhythm disorder or movement during reading.
	Movement during measurement.
	Rate of recurrence of cardiac arrhythmias.
	Stored value
AVG.	Display average value
	Battery fully charged.
	Battery partly discharged.
	Replace battery as soon as possible.
	Flashing! No further reading possible. Replace battery.
	Protect against liquids

Symbols on the blood pressure monitor

Symbol Function/meaning

SYS	Systolic blood pressure in mmHg
DIA	Diastolic blood pressure in mmHg
PUL	Pulse per minute
€0124	Device complies with the European Medical Devices Directive.
	Device must not be discarded with household waste.
	Manufacturer
	Read instructions for use
-€-	Polarity of power supply port

Symbols on the power supply unit

Symbol Function/meaning

	Only for use in enclosed spaces.
	Protection class II device
	Thermal fuse
	Fuse
CE	Device complies with the European Medical Devices Directive
○-○-○	Polarity of the mains adapter plug

Quick guide

Insert batteries, ensure correct positioning (P. 54)
Connect cuff to monitor (P. 58)
Attach cuff (P. 59)
Start (and stop) a measurement by pressing the start button (P. 62)

Measured systolic, diastolic and pulse values are displayed after the measurement is completed (P. 64)

value of all stored measurements together with the WHO classification. The individual measurement values are then displayed in sequence.

This quick guide does not replace the detailed information on the use and safety of the blood pressure monitor featured in the user instructions.

Please be sure therefore to read the user instructions!

Retrieving values from memory (P. 66): Press the START-button for about 3 seconds with the monitor switched off. The first value displayed is the average

Introduction

Dear Customer, We are delighted that you have decided to purchase a boso blood pressure monitor. The boso brand is synonymous with optimal quality and precision and is also number 1 among professionals: 96% of all German general practitioners, physicians and internists work in practice with blood pressure instruments from boso (API survey conducted by GfK 01/2016). The experience gained from decades of use by professionals has also been incorporated into all the patient monitors for home measurement. This instrument has also passed our strict quality control procedures and is your reliable partner for monitoring your blood pressure values.

Please read these user instructions before using the instrument for the first

time, as correct blood pressure readings can only be obtained if the instrument is operated correctly.

In these user instructions, _u^ = ^ means an action by the user.

To get help concerning usage or maintenance please contact your dealer or the manufacturer (contact details can be found on the back cover of this manual).

An unexpected operating condition or an incidence which has worsened the health condition or could have worsened the health condition should be reported to the manufacturer immediately.

If the instrument is to be sold, ensure that these user instructions are enclosed.

Introduction

Purpose

The boso-medicus vital blood pressure monitor is suitable for patients with an upper arm circumference of between 22 and 48~cm

The use of accessories not referred to in these instructions for use can undermine safety.

Wireless communication devices, such as home networking devices, mobile phones, cordless phones and their base stations, walkie-talkies can affect this blood pressure monitor. Therefore, a minimum distance of 11 feet should be kept from such devices.

Non-invasive recording of systolic and diastolic blood pressure and pulse rate in adults. Not suitable for use on newborn babies and infants. The device is suitable for self-measurement at home. The patient is regarded as the operator.

The instrument can be used with any a circumference as shown on the corresponding cuff.

Blood pressure values

To determine the blood pressure, two ues need to be measured:

vDiastolic (lower) blood pressure: Thisispresentwhentheheartmuscleexpands and fills with blood again.

Systolic (upper) blood pressure:

This is produced when the heart muscle blood pressure measurement values are contracts and blood is forced into the expressed in mmHg (mm of mercury). blood vessels.

The World Health Organization (WHO) has defined the following cut-off values for assessing blood pressure:
	systolic diastolic
High blood pressure (hypertension) over Borderline normal blood pressure 130 to Normal blood pressure 120 to 129 mmHg 80 to 84 mmHg Optimum blood pressure up to 119 mmHg	140 mmHg over 90 mmHg 139 mmHg 85 to 89 mmHg Hg 80 to 84 mmHg Hg up to 79 mmHg

Blood pressure values

Whether medical treatment is necessary than at the doctor's. The German depends not only on the blood pressure, Hypertension League has therefore defi-but also on the patient's risk profile. nd lower cut-off values for home measu

Please contact your GP if one of the val-rections:

ues (systole, diastole) consistently exceeds

the cut-off point for high blood pressure.

Home measurement: 135/85 mmHg

Self-measurement of blood pressure often Measurement in the

produces somewhat lower values at home doctor's surgery: 140/90 mmHg

Starting up

The device must be installed and put into! Never mix old and new batteries or operation in accordance with the instruc- different makes. tions in this manual.

Use only high quality leak-proof batteries of the correct specifications (see "Technical data" P. 75).

If the batteries are not inserted correctly, the monitor will not work and this may cause the batteries to heat up and leak, damaging the monitor.

Inserting the batteries

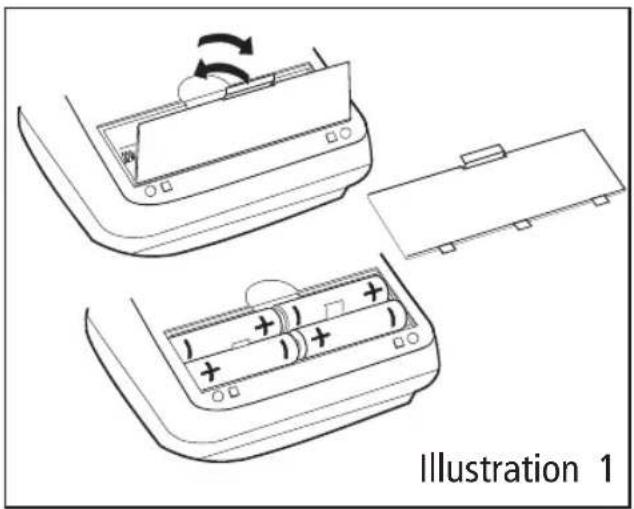

The battery compartment is located on the underside of the monitor.Insert batteries in the battery compartment as shown in illustration 1.

• Remove the batteries if the monitor is not to be used for any length of time.

Batteries that are short-circuited can become hot and cause burning.

Starting up

The monitor has a battery status display Care for the environment (see P. 46)

Battery fully charged.

Battery partially charged.

Replace battery soon.

Flashing! No further measurements possible. Replace battery.

Do not dispose of used batteries and charger units in domestic waste. You can take these to collection sites for used batteries or special waste. Contact your local authority for information.

General instructions for self-measurement

1. Fluctuations in blood pressure are quite normal. Even when measurements are repeated, there can be marked differences. Single or irregular measurements do not provide reliable information about the actual blood pressure. A reliable evaluation is only possible if reg-5. Uar measurements are taken under comparable conditions and themeasurement values entered in the blood pres-6. sure record card.

2. Self-testing does not mean self-treatment. Do not on any account change the dose of medicine prescribed by your doctor of your own accord.

3. Irregular heartbeats can affect the accuracy of the monitor or result in incorrect measurements (see page 71).

Incorrect measurements can also occur in patients with a weak pulse (possibly in patients wearing a pacemaker, for example). The blood pressure monitor itself has no effect on the pacemaker.

The device has not been validated for use on pregnant women.

Always take the measurement in a calm and relaxed state.

You are recommended to check your blood pressure twice a day—in the morning on getting up and in the evening once you have relaxed after work.

Always measure your blood pressure from the arm with the higher blood pressure values (where not required otherwise see page 60).

General instructions for self-measurement

To do this, measure the blood pressure first in both arms and thereafter always from the arm with the higher blood pressure.

Preparing to measure your blood pressure

Note on cuff sizes:

The monitor may only be used with the following cuff types. These should be chosen according to the upper arm circumference printed on them.

Type	Arm Order number circumference
CA01	22 - 32 cm 143-4-764
CA02	32 - 48 cm 143-4-757
CA04	22 - 42 cm 143-4-765*

• included in the standard.

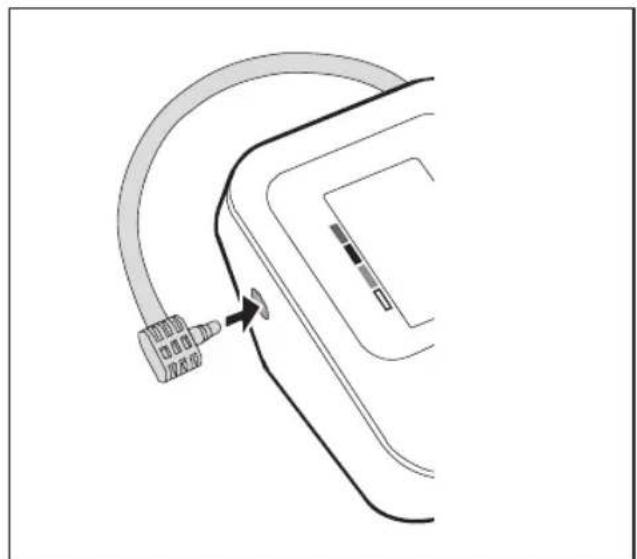

Attach the cuff to the monitor by pressing the plug (click) into the socket on the left side of the unit. (See illustration 2).

Illustration 2

Preparing to measure your blood pressure

Observe the following instructions Attaching the cuff

when measuring your blood pressure.

The measurement should be taken from the bare upper arm.

Avoid smoking or drinking coff for one hour before measuring your blood pressure.

In the case of tightly fitting outer clothing, ensure that the blood supply to

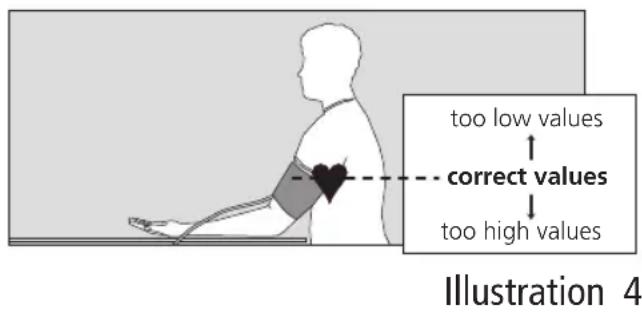

Sit comfortably for the blood presthe arm is not cut off when the sleeve is sure measurement. Support your rolled up (if necessary remove the article back and arms. Do not cross yourclothing before taking the measurement).

legs. Place your feet flat on the floor.

Relax for 5 minutes before taking a measurement.

Do not move during the measurement.

Open out the cuff into the shape of a ring and slide it over the upper arm until the bottom edge of the cuff is about 2-3 cm above the elbow. The cuff must be positioned so that the marking is over the artery (see illustration 3).

Preparing to measure your blood pressure

Illustration 3

Do not attach the cuff over wounds this can cause further injuries.
Ensure that the cuff is not attached to an arm where arteries or veins are undergoing or have undergone medical treatment (e.g. shunt).
For women who have had a breast amputated, do not attach the cuff to the arm on the amputated side of the body.

During the measurement, medical apparatus that are being used on the same arm at the same time, may malfunction.
The cuff must not be too tight. There should be enough space to fit roughly two fingers between arm and cuff.

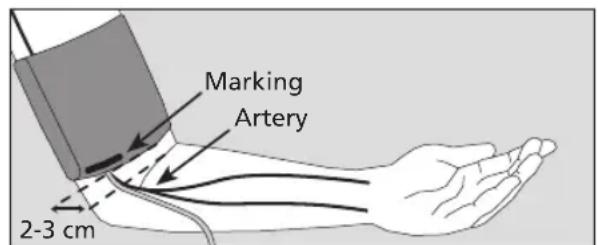

The metal ring should never lie over the artery (see illustration 3) as this may produce a false reading.

• Grasp the end of the cuff that feeds through the metal ring and wrap it around the outside of your arm. Attach the Velcro fastener by applying gentle pressure.

Preparing to measure your blood pressure

Place your arm with the cuff attached on the table, holding it relaxed and slightly bent so that the cuff is level with your heart.

Do not talk during the measurement.

Check that the air tube is not kinked during the measurement. This could cause congestion of the blood flow and subsequent injury.

The blood pressure measurement should not prevent the flow of blood for an unnecessary length of time (>2 minutes). If the monitor fails to function correctly, remove the cuff from the arm.
Excessive frequent measurements can cause injury by restricting blood flow.
The device may not be used by unsupervised children.
Do not use the device near infants. This can lead to accidents or damage.
Do not start the device without putting on the cuff.
There are small parts that may cause a choking hazard if swallowed by mistake by infants.

Preparing to measure your blood pressure

If the ambient temperature changes significantly, leave the device about an hour to adapt to the new ambient temperature before using it.

Now hold the arm absolutely still and do not talk.

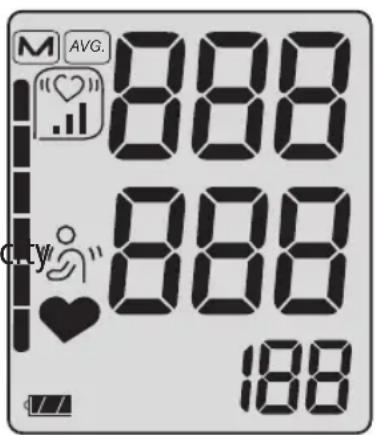

All the items on the LCD display appear briefly to indicate that the monitor is now

The performance of the device can be affected by excessive temperature, humidity or altitude.

Measuring your blood pressure

Your monitor has a memory with a capacity of 60 measurements.

Start the measurement with the start button

Illustration 5

START

Measuring your blood pressure

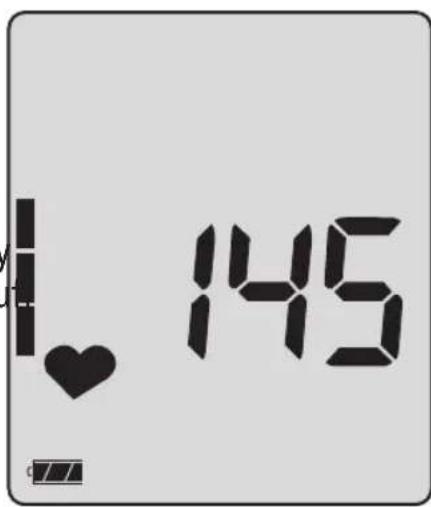

The pump starts to inflate the cuff.

During the measurement phase the descending cuff pressure and the flashing

The monitor has an intelligent automatic symbol are displayed (see illustrate-inflation system for gentle inflation to theion 6).

correct cuff pressure.

The increasing cuff pressure is displayed. Please keep your arm still if the symbol

appears while a measurement is being

When the required pressure is reached,

the pump switches off and the air is released slowly from the cuff.

Interrupting a measurement:

A measurement can be interrupted at any stage by pressing the start button; the cdeflates automatically.

Illustration 6

Measurement display

After the end of the measurement, the built valve opens automatically and the cuff deflates rapidly.

inThe measurement is stored automatically. If the memory store is full (60 measurements), the oldest measurement is deleted and the current one stored.

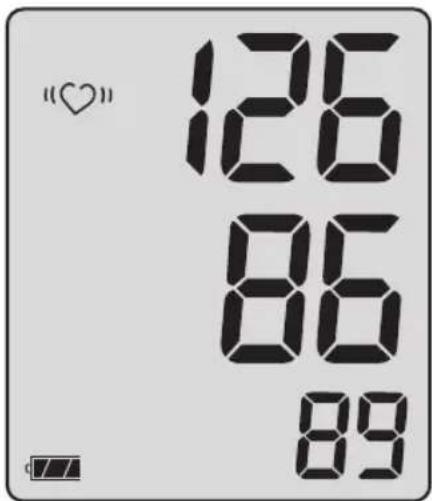

The measured blood pressure values (systole, diastole, pulse) are displayed illustration 7).

Systole mmHg

Diastole mmHg

Pulse/min.

If the symbol appears after the measurement, it is recommended that the measurement is repeated, holding the arm completely still. If the symbol appears again even with the arm held still, this may be an indication of an irregular heartbeat. Please discuss this with your doctor at your next visit.

Illustration 7

Measurement display

The symbol indicates that the arm moved during measurement. You are advised to take another measurement.

Allow at least two minutes between measurements.

If no further measurement is required, remove the cuff from the arm.

Blood pressure is a dynamic parameter and can be affected by the patient's position, e.g. sitting, standing, lying, moving, before or during the measurement, physical condition (stress, disease, etc.).

If the measurement result is obviously wrong, repeat the measurement.

The unit switches itself off automatically after about 1 min. To repeat a measurement, press the start button again briefly.

Completing the blood pressure record card Retrieving the average value and WHO classification

Enter each individual value in your record card.
- Retrieve your average value after 30 blood pressure measurements by pressing the START-button for about 3 seconds with the monitor switched off. The average values of all stored measurements (systolic, diastolic and pulse) are displayed.
Enter the average value in the field specifically reserved for this in your record card.

If measurements were recorded with irregular heart beat, there is an additional symbol showing the prevalence of cardiac arrhythmias:

appears when up to 25% of the measurements have irregular heart beat.

appears when between 25% and 50% of the measurements have irregular heart beat.

appears when more than 50% of the measurements have irregular heart beat.

If there is no measurement in the memory, "O" is displayed for systole, diastole and pulse.

Completing the blood pressure record card Retrieving the average value and WHO classification

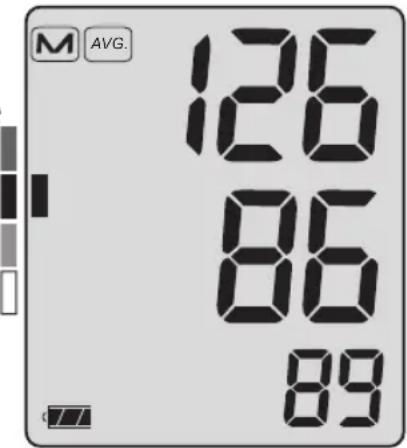

A dark rectangle appears on the left of the screen(seeillustration8),indicatingthelevel of the average blood pressure value. Use the accompanying evaluation scale (see illustration 9) to identify the range within which your blood pressure falls under the WHO classification (see page 52). The WHO display appears only with the average value display.

For your information, attach the sticker (WHO classification) supplied, to the back of your unit.

Illustration 8

Average value Systole mmHg

Average value Diastole mmHg

Pulses/min.

WHO classification

high blood pressure (hypertension)
■ borderline normal blood pressure
normal blood pressure
optimum blood pressure

Illustration 9

Displaying individual stored values

After indication of the average values automatically After the last value has been all measured values are displayed in chronological shown the device switches off order (starting with the most recent value). Before automatically. the values are shown, the number of the measurement is displayed (see illustration 10).

The corresponding measurement value appears after 3 seconds (see illustration 11).

Illustration 10

Illustration 11

Systole mmHg

Diastole mmHg

Pulses/min.

Erase the memory

Press and hold the START button for about 5 seconds with the monitor switched off. The display shows "Lr.no" Release the START button. Then press the START button again. The display shows "CLrYES". Wait until the unit automatically shuts off.

Mains operation

The mains connection socket is located at! Do not touch the batteries, the power the rear of the monitor. supply unit socket and the patient at the

Where required, use only the boso powersame time.

supply unit (order number 410-7-150).

This power supply unit produces a rectifier! Remove the power supply unit plug output of the correct polarity. Other com-from the blood pressure monitor when it is merely available power supply units cannot in use.

cause damage to the electronic compo

nents, which will invalidate the warranty.

There is also a risk of fire with these other

power supply units.

Error messages

If any problems occur during the measurement, the display will show an error message instead of a blood pressure reading.

Meaning of error messages:

Cause of Err message: Troubleshooting
Err	Excessive variation in cuff pressure during measurement	Hold arm still.
	No valid pulse readings Check position of cuff (see page 59) and repeat measurement.
	Systole – diastole difference Check position of cuff (see page 59) too small: and repeat measurement.
	Systole – diastole≤10 mmHg
Err CuF	Incorrectly inflated Cuff possibly	too loose, attach cuff more firmly (see page 59)

Cause of Err message: Troubleshooting:

The pulse value could Check position of cuff not be determined and repeat measurement. correctly.

Internal Error Remove the batteries and briefly press START ton. Put the batteries back into the monitor. If the error persists, return the instrument for repairs to the manufacturer.

“○” Display: Troubleshooting:

Repeat measurement recommended, holding the arm absolutely still. If the symbol appears again, even with the arm held still, this may be an indication of an irregular heartbeat. Please discuss this with your doctor at your next visit.

Cleaning and Disinfection

Cleaning Monitor:

Use a soft, dry cloth to clean your monit

Cleaning Cuff:

Small stains on the cuff can be removed carefully with a proprietary washing-up liquid.

Disinfection Cuff:

64 or disinfectant wipes (at least 5 minutes exposure time) of the device and the cuff, we recommend the disinfectant antifect liquid (Schülke & Mayr). To disinfect the cuff, we recommend spray disinfection. In particular, if the device is used on multiple users is to pay attention to regular cleaning and disinfections of the cuff.

Warranty Conditions

We give 3 years warranty from the date nfb claims for damages against us are subpurchase.The purchase date has to be prostaniated by the warranty.

ven by the invoice.Within the warranty pe

riod defects are eliminated free of chargeIn the case of justified warranty claims the After repairs the warranty period is not device has to be sent along with the origi

tended on the whole unit, but only to thal invoice to:

replaced components.

BOSCH + SOHN GMBH U. CO. KG,

Excluded from the warranty are parts subBahnhofstr. 64, ject to normal wear and tear (e.g. cuff), 72417 Junginge transport damages and any damage cau-GERMANY.

sed by improper handling (e.g.non-compli/www.boso.de

ance with the instructions for use). Dama

ges due to disassembly by unauthorized

persons are also excluded from warranty.

Customer service

Disposal

Customer service:

Warranty and repair work must be undertaken by trained and authorised personnel

Do not modify this equipment without auAt the end of its lifespan, the monitor must horization of the manufacturer. be taken to a collection site for obsolete

Send the monitor, carefully packaged and electronic items.

with sufficient postage, to your authorised dealer or directly to:

Do not dispose of monitors and batteries in the domestic waste.

At the end of its lifespan, the monitor must be taken to a collection site for obsolete

electronic items.

d

Please note that batteries and rechargeable batteries must be disposed of separately (local authority collection site).

Expected operational lifetime of the equipment: 5 years (using the unit 6 times a day). Expected operational lifetime of the cuff: 2 years (using the unit 6 times a day).

Technical data

Measurement principle: oscillometric

Measurement range: Systolic: 60 to 279 mmHg Diastolic: 40 to 200 mmHg Pulse: 40 to 180 per minute

Cuff pressure: 0 to 299mmHg

Memory store: 60 measurements

Display: LCD

Operating conditions: environmental temperature +10^ to +40^ Relative humidity 15 to 85% Air pressure 800 hPa to 1060 hPa

Transport/ environmental temperature -20^ to +60^ Storage conditions: Relative humidity 10 to 95% Air pressure 700 hPa to 1060 hPa

Technical data

Power supply: DC 6 V (4 x 1.5 V Mignon IEC LR 6 alkaline manganese batteries)
Alternative special option: DC 6 V power supply unit, Order No. 410-7-150

Typical battery life: 700 measurement cycles (depending on inflation pressure and frequency of use).

Battery check: symbol display in LCD window

Weight: 282 g without batteries

Dimensions (WxHxD): 140 mm x 60 mm x 106 mm

Classification: Medical device with internal energy source (in battery operation) / class II (in power supply unit operation), continuous operation mode

Applied part: Type BF ( )

Technical data

Protection against solid IP20

objects: IP classification is the degree of protection provided by enclosures in accordance with IEC 60529. This device is protected against solid foreign objects of 12mm diameter and greater such as fingers.This device is not protected against water.

Clinical test: Accuracy complies with the requirements

of ISO 81060 Part 2

Maximum deviation of cuff ± 3mmHg or 2% of the reading

pressure measurement: (whichever is the higher)

Maximum deviation of ± 5%

pulse rate display:

Applicable standard: IEC 80601-2-30 : "Particular requirements for basic safety and essential performance of automated non-invasive sphygmomanometers"

Calibration checks - Testing instructions

(for trained specialist staff only)

Calibration checks - every 2 years at the latest - must be performed by the followa) ing institutions or persons:

Manufacturer
Trade measurements authorities
- Persons who fulfil the requirements of the legislation governing the operation of medical devices.

A) Function testing

Function testing of the monitor can only be carried out on a person or with a suitable simulator.

Note:

When the pressure in measurement mode increases above 299mmHg , the quick release valve is triggered and the pressure circuit opens. When the pressure in test mode increases above 320 mmHg, the measured value display flashes.

b) For the calibration checks a special test plug must be used. The test plug is available for a fee from the manufacturer.

A pump ball must also be introduced into the pressure circuit.

B) Testing of pressure circuit integrity and deviation of pressure display

Calibration checks - Testing instructions

(for trained specialist staff only)

Testing

5.) Switch off monitor by pressing the START button again.

1.) Remove batteries.
2.) Hold start button pressed down and insert batteries.
3.) Release start button. The monitor is now ready for testing; the current pressure is displayed in the SYS and DIA fields.
4.) Perform test for deviation of pressure display and pressure circuit integrity (observe setting time for cuff - at least 30 seconds) in the usual manner.

The device must not undergo service or maintenance while it is in use.

Table des matieres
