Original instructions

Notice originale

Exterior view of a black and white JET power brush (no text or symbols visible on the device body)

1 2 3 4 5 6 7

2 8 9 10

3 2 1

4 9/10

5 4 3

Line drawing of a person sweeping debris with a broom (no text or symbols)

① Keep the operating instructions in a safe place for future use.
① Pass the operating instruction to all persons who work with the machine.

You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!

This machine must not be operated / used by children, persons with restricted physical, sensory or mental abilities or a lack of experience and/or know-how or by persons who are not familiar with the instructions.

Local regulations may stipulate an age restriction for the user.

The machine must not be operated by children or young people under 16 years of age.

Extent of delivery

After unpacking, check the contents of the box

▶ that it is complete
▶ check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

• 1 device unit
• 1 blow pipe extension
• 1 original instructions
  • 1 terms of guarantee

The following parts are not included in the scope of delivery. These accessories are available from your dealer or manufacturer.

• Charger ALG 40-1800 (article-no. 365500)
- Accu AP 40-2000 (article-no. 365501) or AP 40-4000 (article-no. 365503)

Contents

Extent of delivery 10
EC Declaration of Conformity 10
Symbols original instructions / machine 11
Operating Times 11
Proper use 11
Residual risks 12
Vibrations	12
Safe working 12
Description of the device / Spare parts 13
Assembly	13
Start-up	13
- Inserting the battery	13
- Switching ON/OFF	14
- Turbo-Mode	14
Working with the garden blower	14
- Before starting to work	14
- During work	14
- Notes on the use of leaf blowers	15
Storage	15
Possible faults	15
Technical data 16
Guarantee	16

EC Declaration of Conformity

No. (S-No.): 25552

according to EC directive: 2006/42/EC

We,

ATIKA GmbH

Josef-Drexler-Str. 8, 89331 Burgau - Germany

herewith declare under our sole responsibility that the product Laubläser LBC 40-60 (garden blower)

Serial number: 000001 - 020000

conforms with the above mentioned EC directives as well as the provisions of the guidelines below:

2014/30/EU, 2000/14/EC and 2011/65/EU.

Following standards have been applied:

EN 50636-2-100:2014; EN 60335-1:2012+A11:2014;

EN 62233:2008

Conformity assessment procedure: 2000/14/EC-Appendix V

Measured level of the acoustic output L_WA 98.4 dB (A).

Guaranteed level of the acoustic output L_WA 100 dB (A).

Duly authorised person for the compilation of technical documents:

ATIKA GmbH – Technical department

Josef-Drexler-Str. 8 – 89331 Burgau – Germany

Burgau, 26.06.2018

i.A.. f i.A.. G. Koppenstein Engineering design management

Symbols machine

Memorise the meaning to be able to operate the device more safely and to protect yourself and other from possible injuries.

Carefully read operator's manual before handling the machine. Observe instructions and safety rules when operating.

Danger – objects may be thrown out at high speed when motor is running.

Keep people, pets and domestic animals out of the danger area.

Beware of the rotating tool.

Keep hands and feet out of openings while machine is running.

Pulling out the battery

⇒ before starting any work (cleaning, maintenance, repair, etc.) on the device.

⇒ when interrupting work, during transport and storage.

Protect against moisture.

Wear ear and eye protection.

Normal mode

Turbo mode.

"Blowing speed"

Air volume

This product complies with European regulations specifically applicable to it.

Machine of the protection class II (double insulated)

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Symbols original instructions

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Operating Times

Please consider the individual country specifications.

Information on how to avoid noise:

Some noise exposure from this machine is unavoidable. Schedule noisy work to times during which it is allowed. Respect all rest times and restrict the work duration to the minimum. You as the operator and bystanders should wear a suited hearing protection.

Proper use

• The garden blower is only suitable for light, dry materials, such as leaves and garden waste such as grass, small twigs and pieces of paper.
  ■ The vacuuming of
  ▶ heavy materials, such as metal, stones, branches, fir cones or broken glass
  ▶ combustible materials such as cigarette butts, barbecue coal
  ▶ flammable, toxic or explosive materials is explicitly forbidden.
• Never use the machine in areas with harmful dust and liquids because of the risk of physical injury.
  ■ Any other use than for blowing is not allowed.
• The garden blower is only designed for private use in accordance with its proper purpose.
• Regarded as machine for private gardens and allotments are those units which are not employed in public grounds, parks, sports grounds, and in agriculture and forestry.
• Every other form of use is considered improper use. The manufacturer accepts no liability for any damages resulting from improper use, and any risk is in this case borne solely by the user.
• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
• Unauthorised modifications at the garden blower will exempt the manufacturer from any liability for damages of any kind arising from this.

GB

• Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.
• The mabine may not be used in a potentially explosive environment or be exposed to the rain.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the “Safety information” and the “Intended usage” as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Failure to observe the safety precautions can lead to injury to the operator or damage to property.
  ■ Stones and soil maybe thrown off.
• Risk from electricity, by using non-standard electrical connections.
  ■ Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Vibrations

Hand arm vibration a_vhw = <2,5 m/s^2

Measuring uncertainty K = 1.5 m/s^2

The indicated vibration emission level has been measured according to a standardised test method and can be used to compare power tools.

It can also be used for an initial estimate of the vibration exposure.

⚠ The actual vibration emission level during the use of the machine may differ from that indicated in the operating instructions or indicated by the manufacturer.

This may be caused by the following factors to be minded before and during the use:

– Proper use of the machine
– Proper condition of the machine for use
- Handles and optional anti-vibration handles properly mounted on the machine body

When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.

The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimise the risk caused by vibrations. Maintain this machine according to the instructions in the manual. If you intend to use this machine frequently, contact your local authorised dealer and purchase anti-vibration accessories if required. Avoid the use of this machine at temperatures under 10^ C. Create a work schedule in order to minimise vibration exposure.

Safe working

When improperly handled a garden blower may be dangerous. If electrical tools are used, the fundamental safety precautions must be met to preclude the risks of fire, electric shock and injuries to persons.

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

i Pass the safety instructions on to all persons who work with the machine.

i Keep these safety instructions in a safe place.

Children and youngsters less than 16 years of age and people who have not read the original instructions must not operate the machine.

- Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.

- Donot use the machine for unsuitable purposes (see "Normal intended use" and "Working with the vacuum blower").

- Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

■ Wear suitable work clothes:
- Long pants and safety goggles – protection from parts flung about
- Closely fitting clothing (no jewellery and lose clothing, such as scarfs) to prevent getting caught in the brush or the blower
- gloves
- nonskid footwear. Do not work with the device barfooted or only with thongs on your feet.
— trousers to protect the legs
- keep long hair away from the intake opening. Otherwise, it could be drawn into the intake opening. Wear a hairnet if required. Tie your hair together or wear a hair net, if necessary.

• Do pt work with the device bar footed or only with thongs on your feet.
  ■ Wear protective clothing

- safety goggles

- ear protection (Sound intensity level at workplace can exceed 85 dB (A))

- it is recommended to wear a face guard to prevent irritation due to dust.

• Ensure that you have stand in a secure standing position and maintain your balance at all times. Do not bend forwards.
• When working on slopes always make sure to have a safe standing position.
• Keep your workplace in an orderly condition! Untidiness can result in accidents.
  ■ Be careful when stepping back! Risk of stumbling!
• If you come across to foreign objects, please power off the device and remove those foreign objects (metal, stones, branches ...). However before you restart the device, check it for possible damages and have it repaired if necessary.
• Keep bystanders and animals away from your wking area.

Do not allow other persons, especially children, to touch the tool or cable.

• Switch off the machine if persons, in particular children or pets, are close to you or if you change your working area.
  ■ Within his area of work the operator is responsible for third parties.
• Keep children away from machine.
• The user is responsible for accidents with other people or their property.
  ■ Never leave the device unattended.
• Do not overload the machine! You work better and safer in the given performance range.
  ■ Never operate the unit

– with damaged protective devices or covers

— without protective devices, e.g. safety guard

• Donot modify anything on the machine that could impair its safety.
• Do not spray machine with water (this is hazardous due to live components).

• Switch the machine off and remove the battery when

• carrying out repair works
  – carrying out servicing and repair works

• removal of faults
• eliminating blockages
• transporting
  – leaving unattended (even during short interruptions)
  — unusual noises and vibrations

- Do not touch dangerous moving parts before the battery has been removed and such moving parts have come to a dead stop.

■ Thoroughly maintain your garden blower

• Make sure that the ventilation apertures are free.
• Keep the handle dry and free of oil and grease. Follow the maintenance instructions.

■ Check the machine for possible damage

• Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function
• Check whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure e perfect operation of the saw.
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; in-

sofar as nothing else is stated in the instructions for use.

• Damaged or illegible safety warning labels should be replaced immediately.
• Store the unused machine in a dry locked place away from the reach of children.

Refer to the enclosed brochure "General safety instructions for battery-powered tools" for additional safety notices.

Behaviour in an emergency situation

• Initiate all required first aid measures suited for the injury and seek qualified medical advice as quickly as possible.
• Protect the injured person against further injuries and immobilise the injured person.

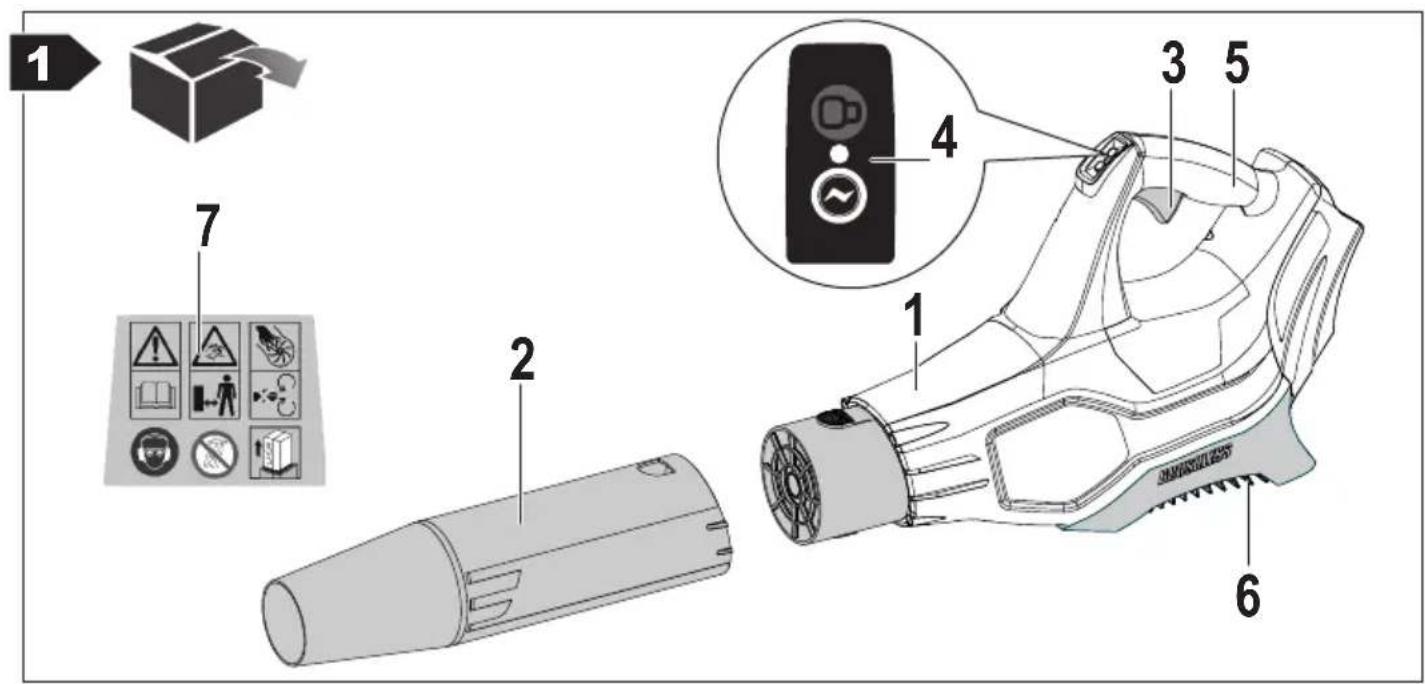

1 Description of the device / Spare parts

Pos	Designation Order.-No.
1	Device unit
2	Bow pipe extension 381313
3	On-/ off switch
4	Main switch
5	Handle
6	Safety guard
7	Safety label 381311
8	Charger 1,8 A 2	365500
9	Accu 2,0,Ah 2	365501
10	Accu 4,0 Ah 2	365503

Assembly

Start the leaf blower only after it has been completely assembled.

Mounting the blow pipe extension

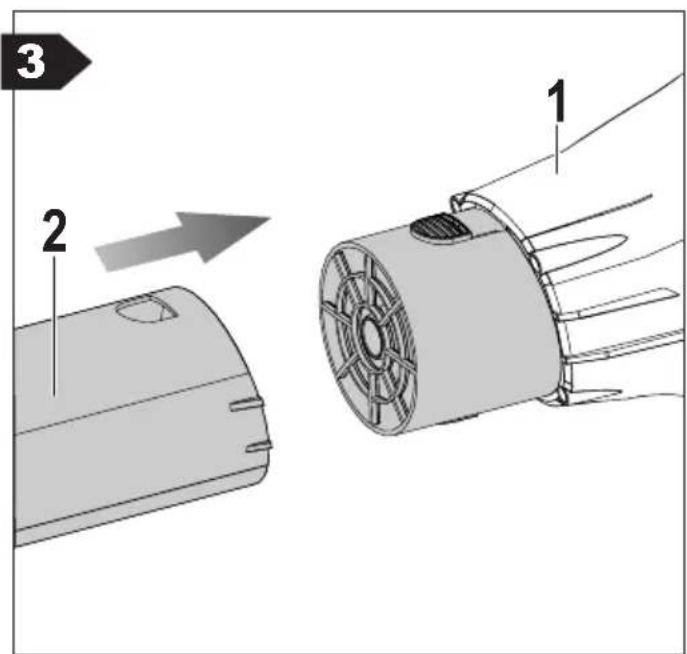

3 Push the blow pipe extension (2) on the unit (1) until it engages audibly.

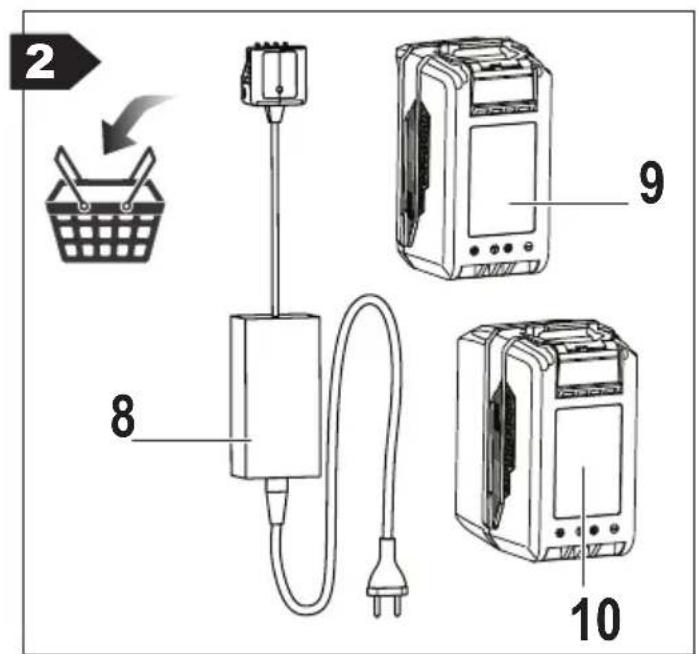

Battery

The lithium ion batteries AP 40-4000 (Article No. 365503) or AP 40-2000 (Article No. 365501) as well

as the charger ALG 40-1800 (Article No. 365500) are not included in the scope of delivery and must be purchased separately.

Use only an original battery and the original charger.

Refer to the respective "Operating instructions" for further information on the batteries and the charger.

Inserting the battery

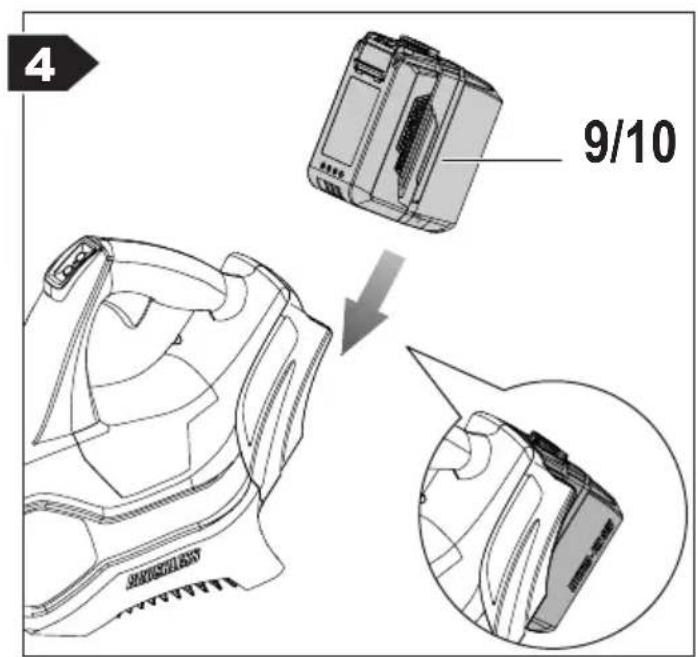

Insert the battery (9/10) in the device. Make sure to slide the battery fully in until it engages with a click.

Switching on/off

Make sure before each startup that the switch lock and the On/Off switch are working properly

Do not use any device where the switch cannot be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Switching on

The device has a safety circuit that prevents unintended switching on.

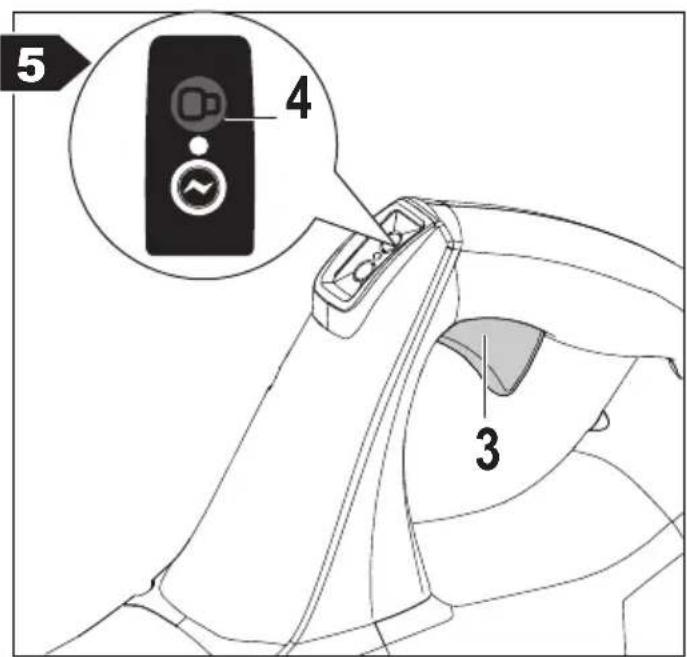

Press the green button of the main switch (4)

The LED lights up green. Push and hold the On/Off switch (3).

The stronger the On/Off switch is pressed the more powerful the leaf blower blows.

To protect the battery the device automatically switches off at a low battery charge. Be sure not to continue operating the On/Off switch; this may damage the battery.

i Charge the lithium-ion battery (→"Battery" operating instructions).

Switching off

Release the on-/off switch.

Turbo-Modus

The device may be operated in normal mode or in turbo mode. The device always starts in turbo mode.

5 Setting the mode

Press the green button: The device runs in normal mode. The middle indicator lights up. → The battery charge will last longer.

Press the yellow button: The device runs in turbo mode. → The battery charge will not last as long.

Working instructions

Before starting any work read and understand ▶ the safety notes,

▶ following additional instructions on how to work with this machine.

Carry out the following checks before startup and regularly during work: Observe the relevant sections in the operating instructions:

Before start of work

• Check the device before each use: for possible damages
• Wear your safety gear (goggles/vizor, gloves, long trousers, non-slip shoes, hairnet in case of long hair) for protection from possible injuries.
• Make sure to have a safe and tidied up work area. Remove from the working area objects which might be thrown off (e.g. stones).
  Take into consideration environmental influences:
• Do not use the device in moist or wet ambience.
• Do not expose the device to rain.
• Do not work in bad weather conditions (e.g. rain, risk of lightning).
• Do only work with sufficient visibility conditions. Provide for good illumination.

- Make sure that: - no other persons or animals stay within the working area, - you can always step back without any barriers, - you have always a secure standing position. - handle is dry and clean.

- The following is recommended before starting the blowing: - use a rake and broom to loosen dirt - slightly wet dusty areas

While working:

■ Spectators must observe safety clearance of min. 5 m.
- Use the complete blow nozzle extension to ensure that the air flow can take full effect close to the ground.
■ Blow in the direction of the wind
- Never point the suction/blow tube to yourself or other person or animals. Never blow objects in the direction of people of animals Switch-off the device if you cross gravel-and ballast chipping walks.
- Move the suction/blowing pipe in generous swaying movements uniformly a few centimetres over the ground, moving from one side to the other.

Line drawing of a person using a manual power tool to clean leafy material (no text or symbols)

• Only operate the machine in walking speed, do not run with it.
• Beware of swirling and flying objects. Be particularly aware of recoiling effects from brickwork or house walls (e.g. stones).
  ■ Switch off the machine before crossing gravel or grit paths.
• Immediately switch off the unit and allow it to come to a stop if foreign objects enter the unit or if the unit starts to make unusual noises or vibrates. Remove the battery and carry out the following checks:
  – inspect for damage,
  – have damaged parts replaced or repaired,
  – check the equipment and tighten loose parts.

Instructions for using as blower

Take up leaves in good time! – It is advisable to take up fallen leaves when the weather is dry and as soon as they have fallen. Wet leaves are a problem, together with leaves that have already begun to rot or are on big piles.

√ light, dry materials, e.g. dry leaves and garden waste such as grass, small twigs and pieces of paper

X heavy materials such as metal, stones, branches, fir cones or broken glass

Do not use the machine to blow any burning, explosive or smoking items such as cigarettes, matches or hot ash.

Do not blow any liquids, in particular flammable liquids such as fuel. Do not use the machine in the vicinity of such substances.

Care and maintenance

Before each maintenance and cleaning work :

• switch off device
• wait for standstill of the device
• remove the battery

Do not carry out repair operations on the machine other than those described in section "Maintenance" but contact the manufacturer or authorized customer service centres.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original spare. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

i Please proceed as follows to preserve the functioning ability of your garden blower.

■ Remove dust and dirt with a cloth or a brush.
- Do not clean the machine with running water or high-pressure cleaners.
- Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage the synthetic parts.

Storage

• Store devices that are not in use in a dry locked place protected against frost and outside the reach of children and unauthorized persons
  ■ Before a longer storage observe the following in order to prolongate the service life of the machine and to guarantee a smooth running operation:

Remove the battery

→ thoroughly clean the machine

→ Check the machine for perfect condition to ensure a safe use of it after a longer period of storage

Refer to the respective "Operating instructions" for further information on the batteries and the charger.

Guarantee

Please observe the enclosed terms of guarantee.

Possible faults

Before each fault elimination:

• Switch off device.
• Wait for standstill of the device.
• Remove the battery.

Problem Possible cause	Remedy
Machine does not start after switching on	Li-Ion battery run downLithium-ion battery not inserted correctlyLi-Ion battery too cold/ too warmLi-Ion battery, Motor or switch defect	Charge the Li- ion batteryCheck whether the lithium battery has engaged audibly.Allow the lithium battery to warm up/cool downHave the battery, motor or switch checked / repaired by a licensed electrician or customer service or replaced by original spare parts.
Machine works with interruptions	Internal faultON-Off-switch defect	Contact the costumer service
Machine does not work with full performance	Machine is clogged or blockedThe Li-Ion battery charge is lowThe Li-Ion battery is defect	Eliminate the blocking, call the service if requiredCharge the Li-Ion battery (manual battery “Charging the battery”)Contact the costumer service
Blower output per battery charge too short	Rechargeable battery is lowBattery service life exhausted	Charge the Li- ion battery (manual battery “Charging the battery”)Charging the rechargeable battery

Technical data

Vacuum blower

Type / Model LBC 40-60
Year of construction see last page
Suitable for battery type	Li-Ion 36 V
Suitable for battery capacity 2000 mAh or 4000 mAh
Blowing air flow (max. air velocity) 216 m/s
Volume of air 13 m	^3 /min
Measured Sound power level L_WA (as per 2000/14/EC)	98.4 dB (A)
Guaranteed sound power level L_WA (as per 2000/14/EC)	100 dB (A)
Measuring uncertainty KWA	3.0 dB (A)
Sound pressure level L_PA (as per 2000/14/EC)	89.2 dB (A)
Measuring uncertainty K_PA	3.0 dB (A)
Hand – Arm – Vibration	a _hd = 2.35m/s^2
Measuring uncertainty K	1.5 m/s^2
Wight (without battery)	approx. 2.4 kg

Refer to the respective "Operating instructions" for "Technical specifications" of the batteries and the charger.

Technical modifications reserved!

Line drawing of a person sweeping debris with a long-handled tool (no text or symbols)

Line drawing of a person using a long-handled tool to clean or dispose of trash (no text or symbols present)

Line drawing of a person using a handheld tool to clean or dispose of trash (no text or symbols present)

Line drawing of a person using a broom to clean leafy vegetables (no text or symbols)

89331 Burgau – Germany

Burgau, 26.06.2018

i.A.

i.A.

Line drawing of a person using a long-handled tool to clean or dispose flowers (no text or symbols)

Line drawing of a person sweeping leaves with a long-handled tool (no text or symbols)

Conformity assessment procedure

2000/14/UE - Appendix V

Line drawing of a person sweeping debris with a long-handled tool (no text or symbols)

Vibrationer (Hand-arm-vibration))

Hand-arm-vibration ahv < 2,5 11,5 m/s²

Line drawing of a person using a long-handled tool to clean or dispose leaves (no text or symbols)

Line drawing of a person using a long-handled tool to clean leafy vegetables (no text or symbols)
