Thank you for purchasing this tannoy loudspeaker. This high-performance 5^ dual concentric on-wall loudspeaker is ideal for installation applications such as providing background and foreground music in bars, restaurants and shops. It has simple plug and play deployment, with no external processing required.

Features

High-performance durable loudspeaker for on-wall installation applications
5' Dual Concentric driver featuring Tannoy point-source constant directivity
Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage, unachievable with discrete, two-way designs
- Integrated wall-fixing for no-hassle installation and mounting
60 Watts continuous, 240 Watts peak power
All-weather cabinet and grille construction for indoor and outdoor applications
Glass fibre cone and rubber surround provide excellent sound and high excursion linearity
Rigid die cast chassis provides mechanical integrity for low colouration
Minimalistic, compact design for discreet installation
All white or all black finish fits unobtrusively in any environment
UV resistant mesh grille with dust protection

Unpacking

Every Tannay product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to them for inspection.

Safety Notices

Before installing the loudspeaker, please consult the relevant construction codes in your region.

When using a power driver to install the product it is essential to use the correct torque level settings to avoid over tightening and

damage to the wall material.

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

Quick Start Guide

15

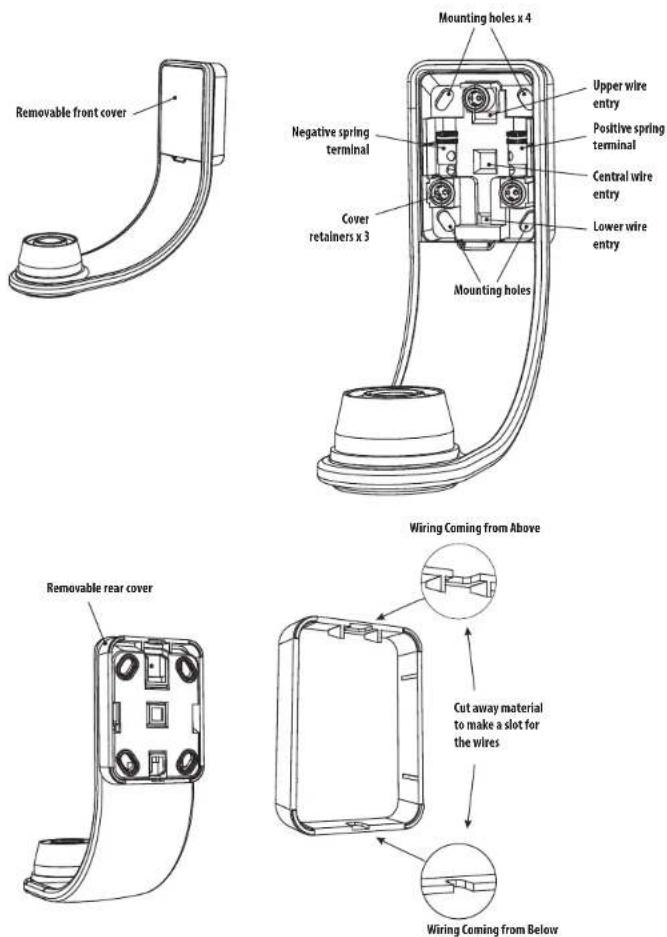

Product Feature Identification

Product Feature Identification Wiring and Setting Up

Quick Start Guide

17

Terminal Connections

1. WARNING: To avoid potential damage to your loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. Before switching the amplifier ON, double check that all connections are secure and that the polarity is correct.
3. The speaker wires are attached to the spring terminals of the mounting bracket, and not to the loudspeaker.
4. The mounting bracket can be preinstalled and wired up, and the loudspeaker added at a later stage.

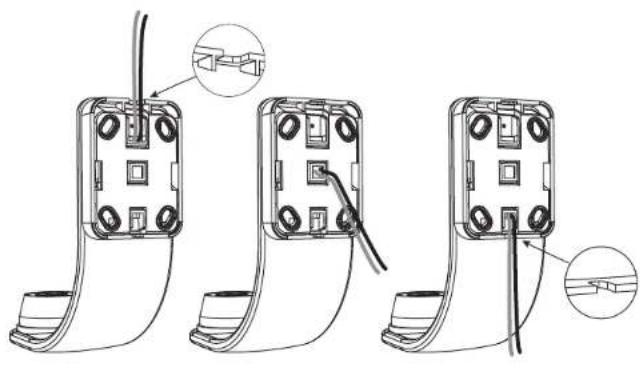

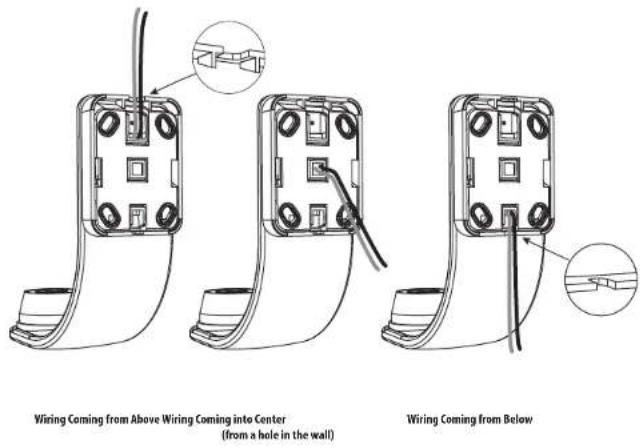

5. The speaker wires can be fitted to the bracket from above, from behind (center), or from below:

1. If the speaker wires are coming from above, remove the rear cover of the bracket and carefully cut the area at the top. It is already thinner in this area. Replace the rear cover on the bracket.
2. Feed the speaker wires from the rear and in through the top hole.
3. If the speaker wires are coming from below, remove the rear cover of the bracket and cut the area at the bottom. It is already thinner in this area. Replace the rear cover on the bracket.
4. Feed the speaker wires from the rear and in through the bottom hole.
5. If the speaker wires are coming from the center, there is no need to remove the rear cover of the bracket.
6. Feed the speaker wires from the rear and in through the center hole.
7. The two spring terminals of the mounting bracket are colored RED positive (+) and BLACK negative (-) . These connect respectively to the positive (+) and negative (-) output terminals of your audio power amplifier.
8. Strip off approximately 8mm (\%) of the outer protective layer of one conductor and twist its inner cores together to prevent shorting from stray wires. Insert the core into the spring terminal while ensuring that correct polarity is maintained. Repeat this for both speaker wires. Gently pull on the wires to verify they are making a secure connection.

18QCAIIBW

Quick Start Guide

19

Wiring and Setting Up

Installation

1. WARNING: To avoid potential damage to your loud speaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. The procedure below describes the installation of the loudspeaker into a typical stud wall with drywall/plasterboard.

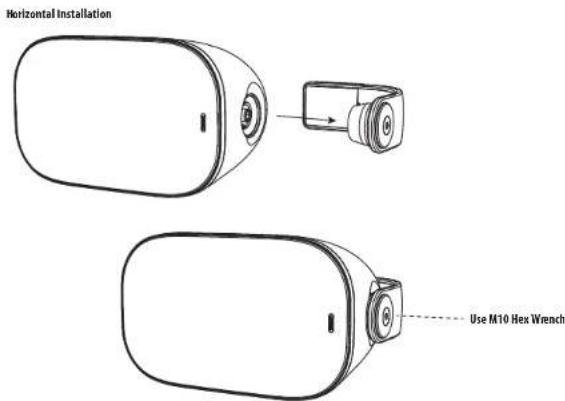

3. The loudspeaker can be installed vertically or horizontally.
4. Locate a suitable mounting position for the loudspeaker, using a stud-finder.
   WARNING: Make sure that there are no power lines, other cables, or plumbing such as water, sewer, gas lines in the chosen location.
5. Run the speaker wire from your amplifier to this location, leaving enough slack to allow for the connection.
6. The mounting bracket can be preinstalled and wired, and the speaker assembly added at a later stage.

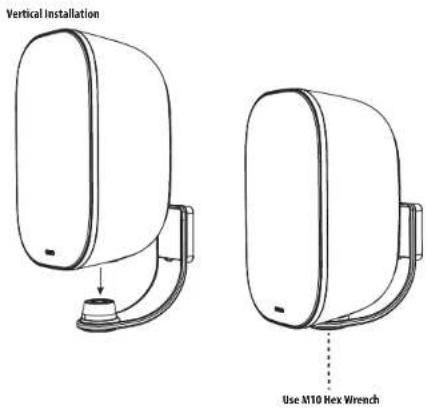

7. Remove the loudspeaker from the bracket by using an M10 hexagonal wrench to undo the lower pivot.

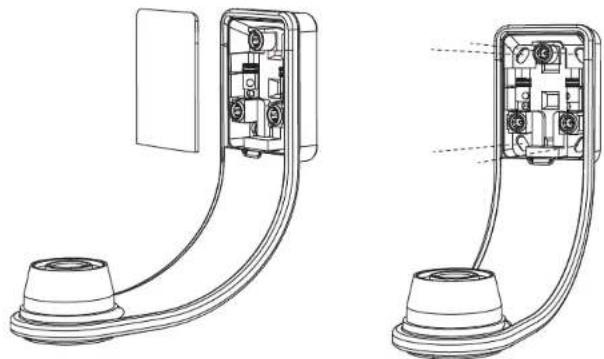

8. Remove the front cover from the bracket, to expose the wiring terminals and mounting holes.

1. If the mounting bracket is to be mounted to a stud, then the screws must be long enough to enter into the wood and make a secure and safe mounting position. Consult the relevant construction codes in your region.
2. If the loudspeaker mounting bracket is to be mounted to drywall or a solid masonry wall, then suitable screws and wall plugs must be used to make a secure and safe mounting position. Consult the relevant construction codes in your region.
3. Follow the information on the previous pages to connect the speaker wires from your power amplifier to the speaker terminals. Make sure to check that the polarity is correct and that the positive and negative wires are securely and correctly connected.

4. Secure the mounting bracket in place using four screws. Check that the bracket is truly level, vertically or horizontally. Reft the front cover to the mounting bracket.

5. If it will be some time before the loudspeaker is installed, cover the mounting bracket pivot to prevent any dust, moisture, or paint from entering. Note that the pivot contains the electrical connections to the loudspeaker, so if this is not kept clean, it may cause a bad connection.

6. When ready, carefully align the loudspeaker with the mounting bracket, and tighten it up with an M10 hexagonal wrench. Adjust the angle of the loudspeaker before finally tightening it in position.
7. Thoroughly test the loudspeaker operation with your sound system. Note that the passive radiator at the rear of the loudspeaker must be free to move, and must not touch any objects or calling for example.

Introduccion

Grill Covering Dual Concentric Driver

M10 Hex Socket

22 OC AI BL/VI

Quick Start Guide

23

Grill Covering Dual Concentric Driver

M10 Hex Socket

Wiring Coming from Above Wiring Coming into Center (from a hole in the wall)
Wiring Coming from Below

Grill Covering Dual Concentric Driver

M10 Hex Socket

Wiring Coming from Above Wiring Coming into Center (from a hole in the wall)
Wiring Coming from Below

Grill Covering Dual Concentric Driver

M10 Hex Socket

Grill Covering Dual Concentric Driver

M10 Hex Socket

52 OCAI BLW1

Quick Start Guide

53

Wiring Coming from Above Wiring Coming Into Center (from a hole in the wall)
Wiring Coming from Below

Grill Covering Dual Concentric Driver

Grill Covering Dual Concentric Driver

M10 Hex Socket

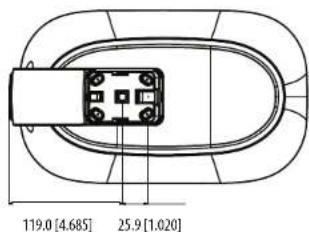

EN QCI A1-BL/WH Dimensions

All Dimensions are mm [inches]

Quick Start Guide

69

EN

Specifications

Performance
Frequency response (±3 dB) 55 Hz - 20 kHz
Frequency response (-10 dB) 40 Hz - 20 kHz
Sensitivity (1 W g 1m) 85 dB 85 dB
Nominal dispersion 90° conical 6 dB point
Power handling (IEC)
Average 60 W
Programme 120 W
Peak 240 W
Recommended amplifier power 180 W g 8Ω
Nominal Impedance	8Ω
Rated maximum SPL (1 m)
Average	102 dB
Peak	108 dB
Crossover point	2.3 kHz

Transducers
Low frequency diameter	125 mm (5")
High frequency diameter	25.4 mm (1")

Physical
Enclosure	PC (type of plastic) and UV stable (ASTM G155-13)
Baffle	PC (type of plastic) and UV stable (ASTM G155-13)
Grille	Aluminium alloy, Powder coating
Safety features	Ingress protection water test (IP5X); Dust test (IPX4)
Connectors Terminal past
Dimensions (HxWxD)	313 x 182 x 228 mm (12.3 x 7.2 x 9.0")
Net weight	3.7kg (8.2lbs)
Included accessories	Wall mount bracket
Packed quantity	1

Other important information

Important Information As

fortantes
