USER MANUAL AMS 5ICT TANNOY

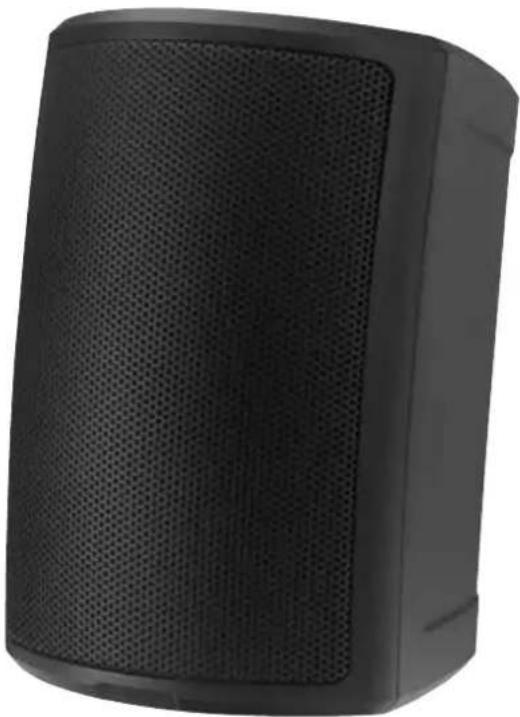

Surface mount loudspeakers

Black rectangular speaker with perforated grille and side panel (no visible text or symbols)

Table of Contents

1. Introduction 4
2. Safety Notices 4
3. Unpacking 5
4. Accessories 5
5. Installation 6
   5.1. Installation using included yoke bracket 6
   5.2. Installation using optional VariBall bracket ....7
6. Setting transformer taps .12
7. Product Dimensions 13
8. Technical Specifications 17
9. Warranty 24

1. Introduction

Thank you for purchasing this new AMS Series product. Designed for both speech and music program material, the Tannoy AMS range provides exceptional sonic quality and long-term reliability in all surface mount applications. The AMS range offers five models: three featuring a new generation of Dual Concentric™ drivers and two with an improved version of Tannoy's ICT™ technology. All new drivers have 16 ohm nominal impedance for optimized use with Lab.gruppen amplifiers. Other features include IP 64 rating for outdoor use, high-temperature molded cabinets and custom color options. All AMS loudspeakers include a built-in line transformer.

Because all AMS models are true point-source loudspeakers, they may be mounted horizontally or vertically without affecting performance. All models include a standard mounting yoke; a multi-angle accessory bracket is available as an option.

2. Safety Notices

Installation Safety Notice

1. The user is responsible for fixing the hardware to the surface to ensure safe operation. The fixings must support the weight of the product. Please consult the manual's specification page for the appropriate weights. Please consult the relevant construction codes in your region for further information on suitable hardware fixing methods.
2. Some regional construction codes require the use of a secondary method of securing loudspeakers to surfaces to provide security of a back-up support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the wall. Please consult the relevant construction codes in your region.
3. Tannoy will not be held accountable for any damage caused by incorrect installation.

Electrical Safety Notice

To comply with the standard UL1480, metal-clad flexible conduit (BX) is required for connection to the terminal block for proper earth grounding.

SAFETY NOTE: In order to comply with the relevant fire safety regulations (i.e. BS 5839:1998), it is required that in the event of fire, that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is complete. Suitable measures include:

• Use of terminal blocks (for connection to primary) with a melting point of not less than 650^ C, for example constructed from ceramic materials;
• Use of terminal blocks of a lower melting point but protected with thermal insulation;
• Use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

3. Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

4. Accessories

Optional multi-angle accessory bracket

Technical line drawing of a mechanical device with TANNOY branding (no text or symbols beyond branding)

Technical line drawing of a mechanical device with mounting flanges and a TANOY component (no text or symbols beyond branding)

AMS 5 Multi-Angle Bracket AMS 6 & 8 Multi-Angle Bracket

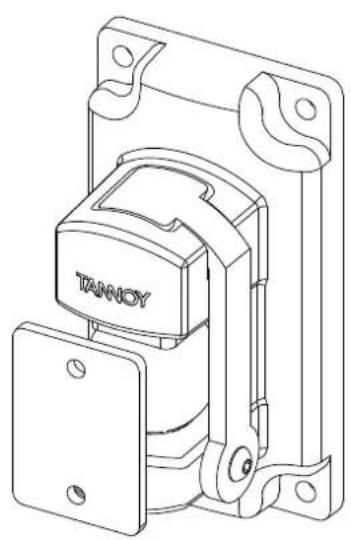

The optional multi-angle accessory bracket utilizes a ball-in-socket design to enable free orientation of the loudspeaker at any angle on either the horizontal or vertical axis. If desired, the loudspeaker orientation can be easily changed within minutes. For installation instructions, see section 5.2.

5. Installation

5.1. Installation using included yoke bracket

1. Fix the yoke bracket to an appropriate structural surface using a suitable fixing method.

2. Remove the yoke trims from the product to access the bracket fixing points.

3D rendering of a black cylindrical object with four small circular features, shown from different angles (no text or symbols)

1. Set the transformer tap as detailed in Section 6 following.

2. For indoor installation (proceed to step 5 for outdoor installation): Connect the euro-style plug to the wires, observing correct polarity. Use pins 1(+) and 2 (-) for connection of the loudspeaker. Use pins 3 (-) and 4 (+) for connection of additional loudspeakers in a distributed line. NOTE: Tighten pins 3 and 4 even if not used to prevent vibration of the screws.

3. For outdoor installation: Feed the loudspeaker wire(s) through the opening in the neck of the cable entry cover included with the product.

Connect the euro-style plug to the wires, observing correct polarity. Use pins 1(+) and 2 (-) for connection of the loudspeaker. Use pins 3 (-) and 4 (+) for connection of additional loudspeakers in a distributed line. NOTE: Tighten pins 3 and 4 even if not used to prevent vibration of the screws.

3D rendering of a black mechanical component with attached cable and housing (no text or symbols visible)

1. Place the loudspeaker inside the yoke bracket. Position buffers between bracket and loudspeaker as shown. Attach with supplied fixings using a 5mm Allen key. Use the longer hex screws supplied when mounting the yoke bracket.

3D rendering of a black mechanical device with mounting bracket and housing (no text or symbols)

1. Connect the euro plug to the loudspeaker. For outdoor installation, attach the cable entry cover using a 3 mm Allen key and the included screws. Orient the cover plate so that the neck opening is facing downward to minimise entry of moisture or particulates.

2. Connect a secondary support line to the safety tab at the rear of the cabinet.

5.2. Installation using optional VariBall bracket

Please see AMS VariBall Accessory Backet - Mounting and Installation Guide for reference.

1. Fix the wall bracket to the wall surface using suitable fixing method for supporting the loudspeaker with ample safety margins.

2. Fix the ball bracket to the rear of the loudspeaker using the supplied screws and a 3 mm Allen key. Two screws are used for AMS 5 models; four screws are used for AMS 6 and AMS 8 models.

3. Set the transformer tap as detailed in Section 6 following.

4. For indoor installation (proceed to step 5 for outdoor installation): Connect the euro-style plug to the wires, observing correct polarity. Use pins 1(+) and 2 (-) for connection of the loudspeaker. Use pins 3 (-) and 4 (+) for connection of additional loudspeakers in a distributed line. Note: Tighten pins 3 and 4 even if not used to prevent vibration of the screws.

5. For outdoor installation: Feed the loudspeaker wire(s) through the opening in the neck of the cable entry cover included with the product.

Connect the euro-style plug to the wires, observing correct polarity. Use pins 1(+) and 2 (-) for connection of the loudspeaker. Use pins 3 (-) and 4 (+) for connection of additional loudspeakers in a distributed line. NOTE: Tighten pins 3 and 4 even if not used to prevent vibration of the screws.

3D rendering of a mechanical component with attached shaft and housing (no text or symbols visible)

1. Raise the lever to open the wall bracket. Insert the ball bracket into the wall bracket, position as required, and then lower the lever to lock the ball bracket into place. Raise the lever if any readjustment is necessary. Once in final position, tighten the grub screw at the bottom of the wall bracket to secure in place.

2. Connect the euro plug to the loudspeaker. For outdoor installation, attach the cable entry cover using a 3 mm Allen key and included screws. Orient the cover plate so that the neck opening is facing downward to minimise entry of moisture or particulates.

3. Connect a secondary support line to the safety tab at the rear of the cabinet.

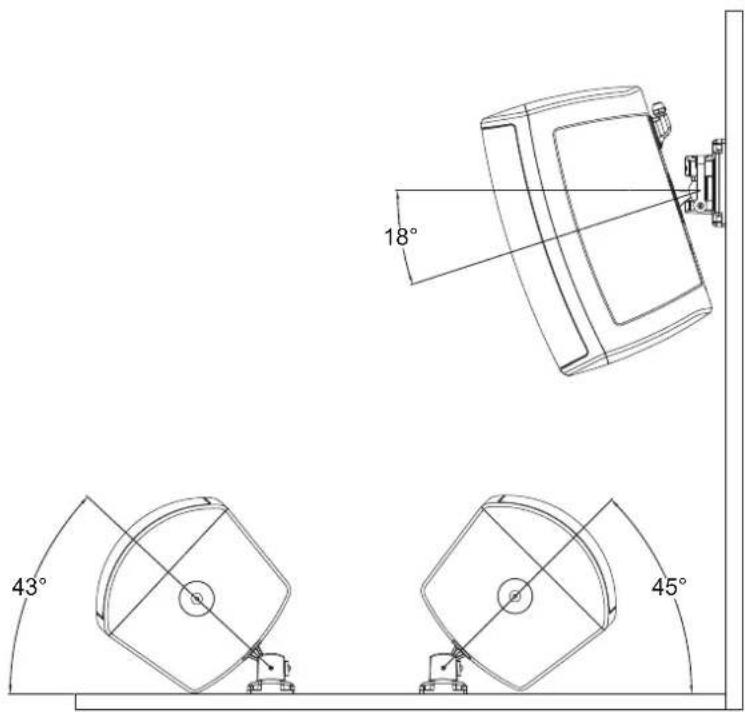

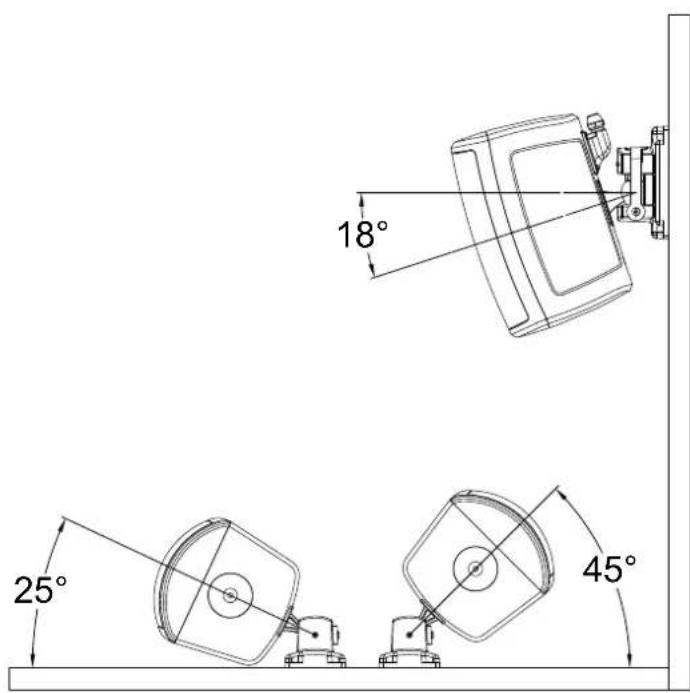

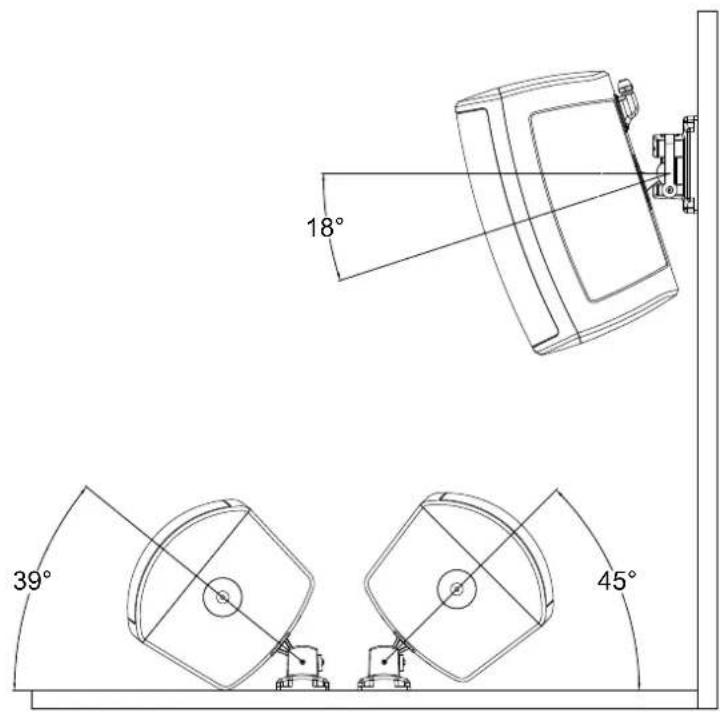

AMS 5 - Variball Angle Options (Vertical)

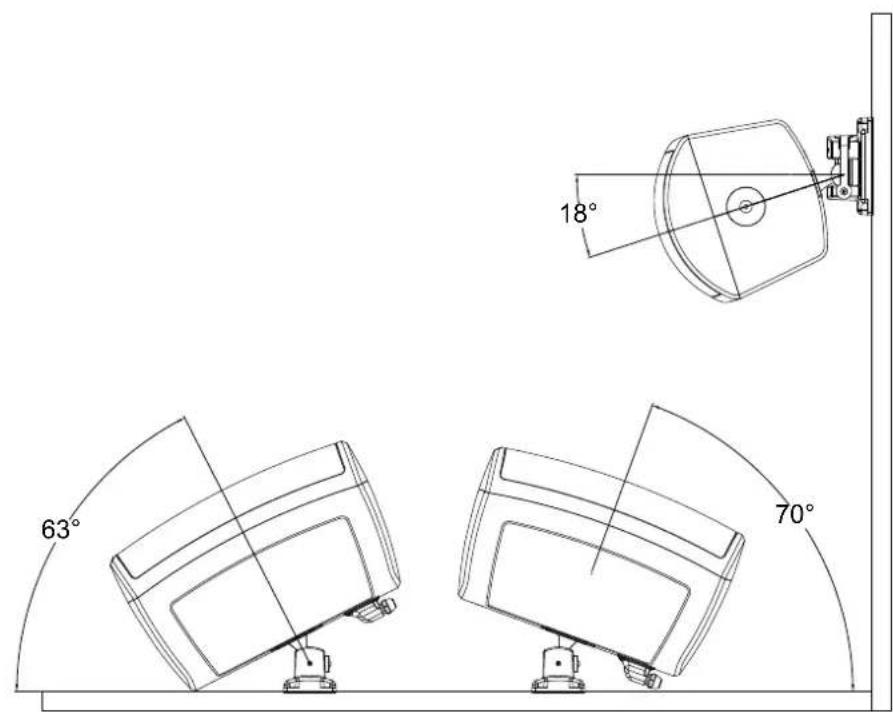

AMS 5 - Variball Angle Options (Horizontal)

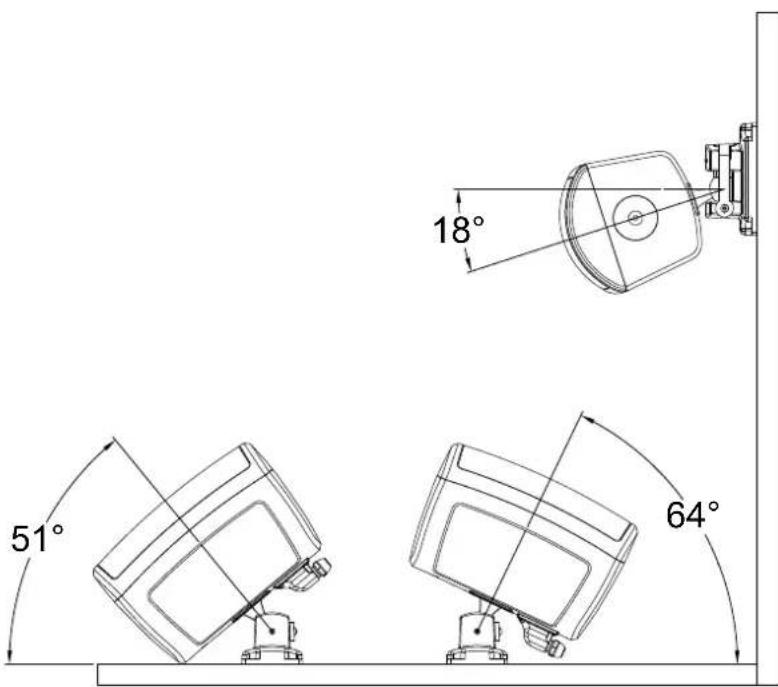

AMS 6 - Variball Angle Options (Vertical)

AMS 6 - Variball Angle Options (Horizontal)

AMS 8 - Variball Angle Options (Vertical)

AMS 8 - Variball Angle Options (Horizontal)

6. Setting transformer taps

1. The rotary transformer tapping switch is located directly above the wiring connector.

CAUTION: The loudspeaker is supplied with the tap switch set in low impedance mode. Never connect the loudspeaker to a 70 / 100V amplifier output while switched to low impedance mode.

1. Set the rotary switch to the appropriate position for low impedance operation or for use in 70/100 V distributed systems.

Models with 5-inch drivers are fitted with 30W transformers. In distributed line applications, the transformer can be tapped at 30W , 15W and 7.5W , with an additional 3.75W tap for 70V line systems.

Models with 6-inch and 8-inch drivers are fitted with 60W transformers. In distributed line applications, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tap for 70 V line systems.

7. Product Dimensions

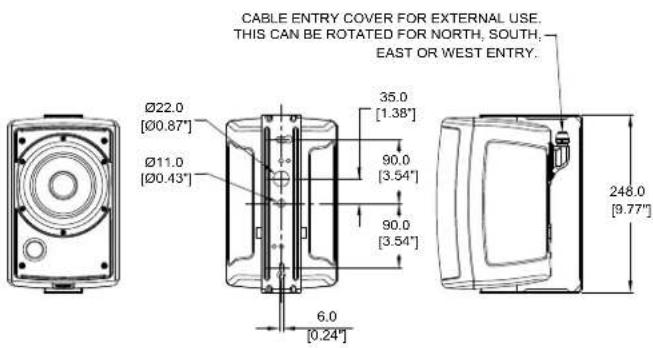

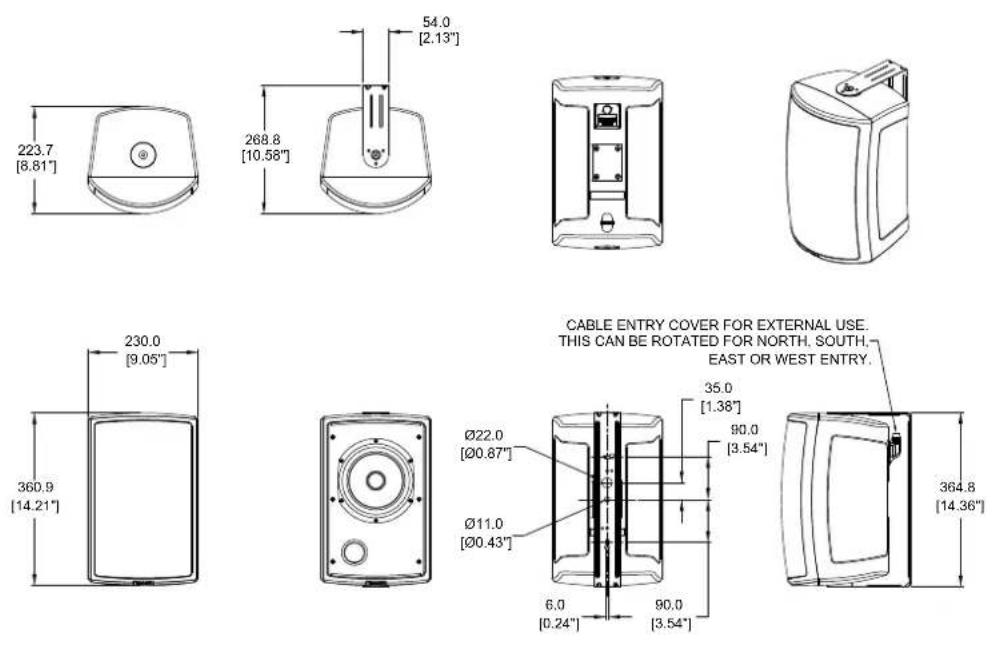

AMS 5DC

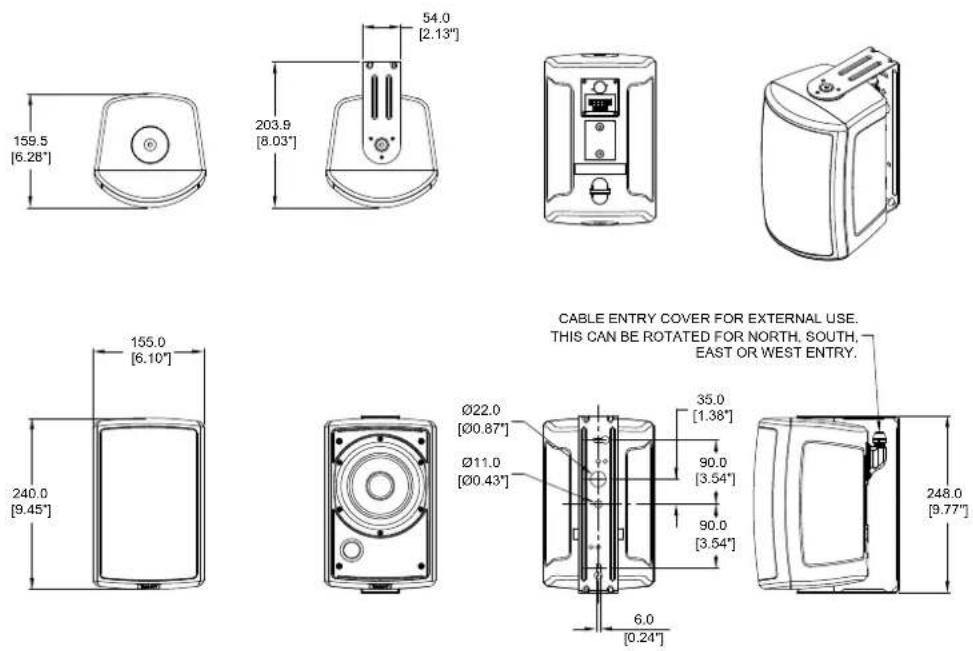

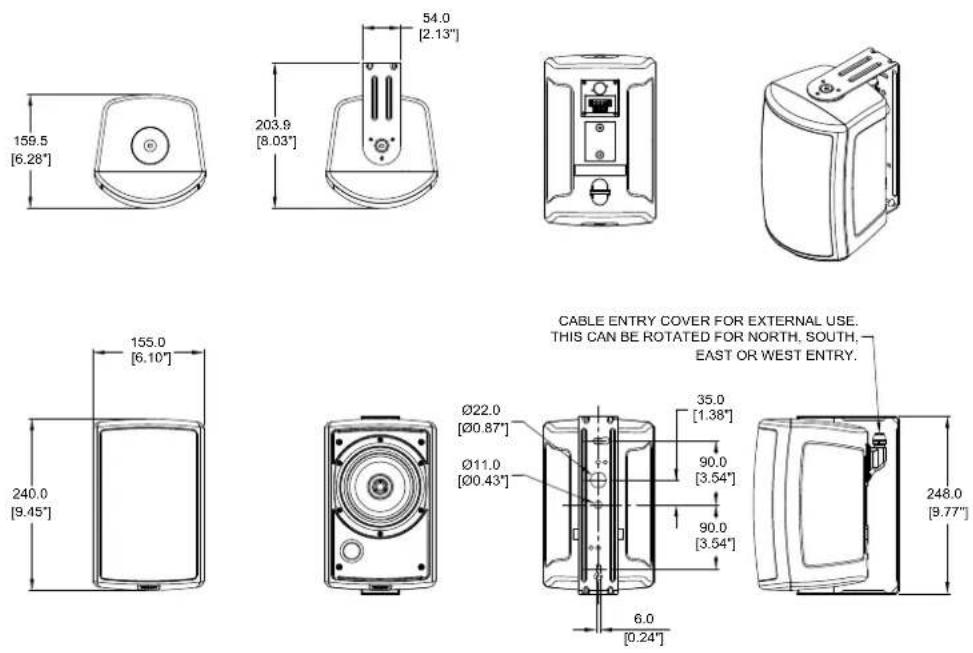

AMS 5ICT

AMS 5ICT LS

AMS 6DC

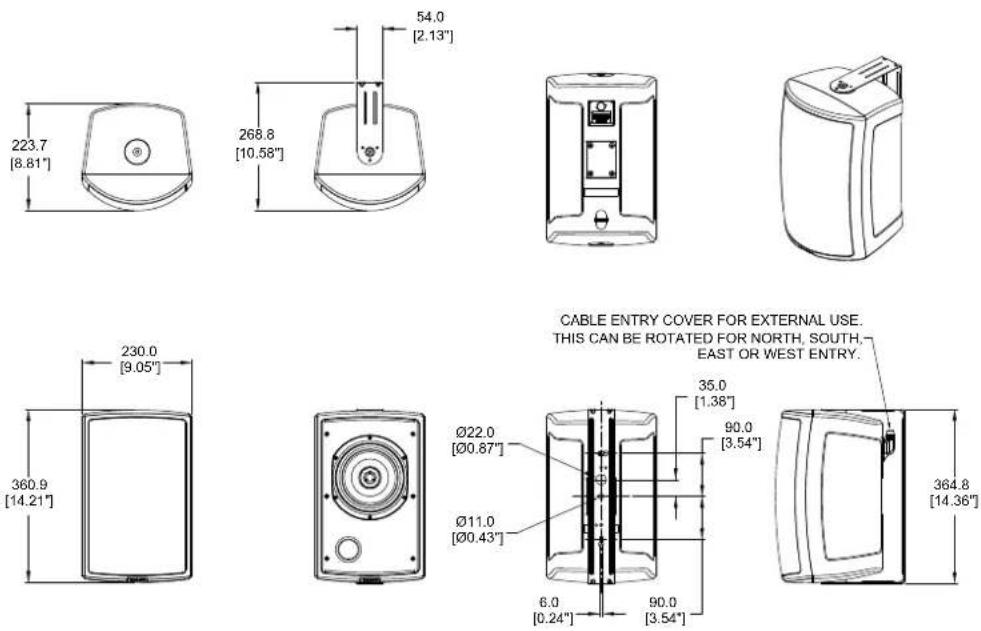

AMS 6ICT

AMS 6ICT LS

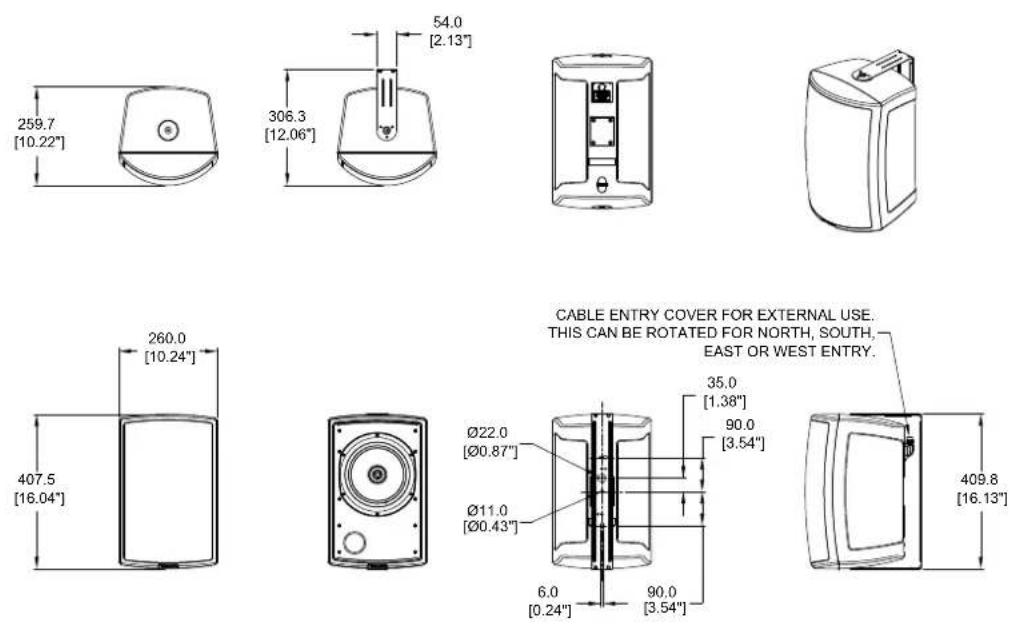

AMS 8DC

8. Technical Specifications

AMS 5DC Model

Performance

System	AMS 5DC
Frequency response (-3 dB) ^(1)	90 Hz - 30 kHz
Frequency range (-10 dB) ^(2)	80 Hz - 40 kHz
System sensitivity (1 W @ 1m) ^(2)	87 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling ^(3)
Average 60 W
Programme 120 W
Peak 240 W
Recommended Amplifier Power	120 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 105 dB
Peak 111 dB
Transformer Taps (via front rotary switch)
70 V 30 W / 15 W / 7.5 W / 3.75 W / OFF & Low impedance operation
100 V 30 W / 15 W / 7.5 W / OFF & Low impedance operation

Transducers

Dual ConcentricTM point source driver	1x 130 mm (5.0") Dual ConcentricTM driver, using Omnimagnet technology
Low Frequency	35 mm (1.38") voice coil, treated multi fibre paper pulp cone
High Frequency	20 mm (0.79") PEI dome

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	248.0 x 155.0 x 203.9 mm(9.77 x 6.10 x 8.03")
Net Weight (ea)	3.25 kg (7.16 lbs)
Shipped weight	3.66 kg (8.07 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7945 Black

8001 7946 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC baffle in an Anechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 426B test

A full range of measurements, performance data, CLF and Ease™ Data for AMS 5DC can be downloaded from www.tannoyoro.com.

Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the polishing specifications, which Tannoy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 5ICT Model

Performance

System	AMS 5ICT
Frequency response (-3 dB)(1)	90 Hz - 22 kHz
Frequency range (-10 dB)(1)	80 Hz - 30 kHz
System sensitivity (1 W @ 1m)(2)	88 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle	90 degrees conical

Power Handling ^(3)

Average 50 W
Programme 100 W
Peak 200 W
Recommended Amplifier Power	100 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 105 dB
Peak 111 dB
Transformer Taps (via front rotary switch)
70 V 30 W / 15 W / 7.5 W / 3.75 W / OFF & Low impedance operation
100 V 30 W / 15W / 7.5W / OFF & Low impedance operation

Transducers

Low Frequency	1x 130 mm (5.00 ^th ) treated multi fibre paper pulp cone
High Frequency	ICT ^TM

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	248.0 x 155.0 x 203.9 mm(9.77 x 6.10 x 8.03")
Net Weight (ea)	3.25 kg (7.16 lbs)
Shipped weight	3.66 kg (8.07 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7955 Black

8001 7956 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 428B test

A full range of measurements, performance data, CLF and Ease™ Data for AMS 5ICT can be downloaded from www.tancypro.com.

Tarncy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tarncy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 5ICT LS Model

Performance

System	AMS 5ICT LS
Frequency response (-3 dB) ^(1)	90 Hz - 22 kHz
Frequency range (-10 dB) ^(1)	80 Hz - 30 kHz
System sensitivity (1 W @ 1m) ^(2)	88 dB (1W = 4V for 16 ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling ^(3)
Average 50 W
Programme 100 W
Peak 200 W
Recommended Amplifier Power	100 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 105 dB
Peak 111 dB
Transformer Taps (via front rotary switch)
70 V 30 W / 15 W / 7.5 W / 3.75 W / OFF & Low impedance operation
100 V 30 W / 15 W / 7.5 W / OFF & Low impedance operation

Transducers

Low Frequency	1 x 130 mm (5.00") treated multi fibre paper pulp cone
High Frequency	ICT

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	248.0 x 155.0 x 203.9 mm(9.77 x 6.10 x 8.03")
Net Weight (ea)	3.25 kg (7.16 lbs)
Shipped weight	3.66 kg (8.07 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7965 Black

8001 7966 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 428B test

A full range of measurements, performance data,

CLF and Ease™ Data for AMS 5ICT LS can be

downloaded from www.larroypro.com.

Tarncy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tarncy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 6DC Model

Performance

System	AMS 6DC
Frequency response (-3 dB) ^(1)	75 Hz - 30 kHz
Frequency range (-10 dB) ^(1)	55 Hz - 40 kHz
System sensitivity (1 W @ 1m) ^(2)	89 dB (1 W = 4 V for 16 ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling ^(3)
Average 80 W
Programme 160 W
Peak 320 W
Recommended Amplifier Power	160 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 108 dB
Peak 114 dB
Transformer Taps (via front rotary switch)
70 V 60 W / 30 W / 15 W / 7.5 W / OFF & Low impedance operation
100 V 60 W / 30 W / 15 W / OFF & Low impedance operation

Transducers

Dual ConcentricTM point source driver	1x 165 mm (6.50") Dual ConcentricTM driver, using Omnimagnet technology
Low Frequency	44 mm (1.75") voice coil, treated multi fibre paper pulp cone
High Frequency	25 mm (1.00") PEI dome

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	364.8 x 230.0 x 268.8 mm,(14.36 x 9.05 x 10.58")
Net Weight (ea)	6.08 kg (13.40 lbs)
Shipped weight	6.76 kg (14.90 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7970 Black

8001 7971 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 428B test

A full range of measurements, performance data, CLF and Ease™ Data for AMS 6DC can be downloaded from www.tancypro.com.

Tarncy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tarncy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 6ICT Model

Performance

System	AMS 6ICT
Frequency response (-3 dB) ^(1)	75 Hz - 22 kHz
Frequency range (-10 dB) ^(1)	55 Hz - 30 kHz
System sensitivity (1 W @ 1m) ^(2)	90 dB (1 W = 4 V for 18 ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling ^(3)
Average 60 W
Programme 120 W
Peak 240 W
Recommended Amplifier Power	120 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 108 dB
Peak 114 dB
Transformer Taps (via front rotary switch)
70 V 60 W / 30 W / 15 W / 7.5 W / OFF & Low impedance operation
100 V 60 W / 30 W / 15 W / OFF & Low impedance operation

Transducers

Low Frequency	1 x 165 mm (6.50") treated multi fibre paper pulp cone
High Frequency	ICT

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	364.8 x 230.0 x 268.8 mm(14.36 x 9.05 x 10.58")
Net Weight (ea)	5.14 kg (11.33 lbs)
Shipped weight	5.82 kg (12.83 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7980 Black

8001 7981 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA-128B test

A full range of measurements, performance data, CLF and Ease™ Data for AMS 6ICT can be downloaded from www.tancyoro.com.

Tammy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tammy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 6ICT LS Model

Performance

System	AMS 6ICT LS
Frequency response (-3 dB)(1)	75 Hz - 30 kHz
Frequency range (-10 dB)(1)	55 Hz - 30 kHz
System sensitivity (1 W @ 1m)(2)	90 dB (1W = 4V for 16 ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling(3)
Average 60 W
Programme 120 W
Peak 240 W
Recommended Amplifier Power	120 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 108 dB
Peak 114 dB
Transformer Taps (via front rotary switch)
70 V 60 W / 30 W / 15 W / 7.5 W / OFF & Low impedance operation
100 V 60 W / 30 W / 15 W / OFF & Low impedance operation

Transducers

Low Frequency	1 x 165 mm (6.50") treated multi fibre paper pulp cone
High Frequency	ICT

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	364.8 x 230.0 x 268.8 mm(14.36 x 9.05 x 10.58")
Net Weight (ea)	5.14 kg (11.33 lbs)
Shipped weight	5.82 kg (12.83 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 8340 Black

8001 8341 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 428B test

A full range of measurements, performance data,

CLF and Ease™ Data for AMS 8ICT LS can be

downloaded from www.larroypro.com.

Tarncy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tarncy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

AMS 8DC Model

Performance

System	AMS 8DC
Frequency response (-3 dB) ^(1)	65 Hz - 30 kHz
Frequency range (-10 dB) ^(1)	53 Hz - 40 kHz
System sensitivity (1 W @ 1m) ^(2)	92 dB (1 W = 4 V for 16 ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling ^(3)
Average 90 W
Programme 180 W
Peak 360 W
Recommended Amplifier Power	180 W @ 16 ohms
Nominal Impedance (Lo, Z)	16 ohms
Rated maximum SPL
Average 111 dB
Peak 117 dB
Transformer Taps (via front rotary switch)
70 V 60 W / 30 W / 15 W / 7.5 W / OFF & Low impedance operation
100 V 60 W / 30 W / 15 W / OFF & Low impedance operation

Transducers

Dual ConcentricTM point source driver	1x 200 mm (8.00") Dual ConcentricTM driver, using Omnimagnet technology
Low Frequency	44 mm (1.75") voice coil, treated multi fibre paper pulp cone
High Frequency	25 mm (1.00") PEI dome

Physical

Enclosure	ABS
Grille	Steel, plated and painted
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	409.8 x 260.0 x 306.3 mm(16.13 x 10.24 x 12.06")
Net Weight (ea)	7.82 kg (17.24 lbs)
Shipped weight	8.69 kg (19.16 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2

Ordering Information

Part Number Colour

8001 7990 Black

8001 7791 White

LISTED

UL-1480

Notes:

1. Average over stated bandwidth. Measured in an IEC battle in an Arechoic Chamber

2. Unweighted pink noise input, measured at 1 metre on axis

3. Long term power handling capacity as defined in EIA - 428B test

A full range of measurements, performance data, CLF and Ease™ Data for AMS 8DC can be downloaded from www.tanncypro.com.

Tarncy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the publishing specifications, which Tarncy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

Copyright (c) 2015 Tannoy Limited. All rights reserved.

9. Warranty

No maintenance of the AMS Series loudspeaker is necessary.

All Tannoy products have been produced and tested with care to assure reliable service.

All passive components are guaranteed for a period of five years from the date of purchase from an authorised Tannoy dealer, subject to the absence or evidence of misuse, overload, or accidental damage.

All active and electronic components are guaranteed for a period of one year from the date of purchase from an authorised Tannoy dealer subject to the absence of, or evidence of, misuse, overload or accidental damage.

If at any time during this warranty period the equipment proves to be defective for any reason other than accident, misuse, neglect, unauthorised modification or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for labour, parts or return carriage. If you suspect a problem with a Tannoy product then, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor. If you cannot locate your distributor please contact Customer Services, Tannoy Ltd at the address given below.

Customer Services

Tannoy Ltd.

Rosehall Industrial Estate

Coatbridge

Strathclyde

ML5 4TF

Scotland

Tel: [phone] (National)

[phone] (International)

Fax: [phone] (National)

[phone] (International)

Support: http://support.tannoy.com

DO NOT SHIP ANY PRODUCT TO TANNOY WITHOUT PREVIOUS AUTHORISATION

Our policy commits us to incorporating improvements to our products through continuous research and development. Please confirm current specifications for critical applications with your supplier.

Notes

Notes

Notes

Completely black image with no visible content, text, or symbols.

tannoypro.com
