USER MANUAL IronHero 3100 Cordless CECOTEC

Plancha sin cable / Cordless steam iron

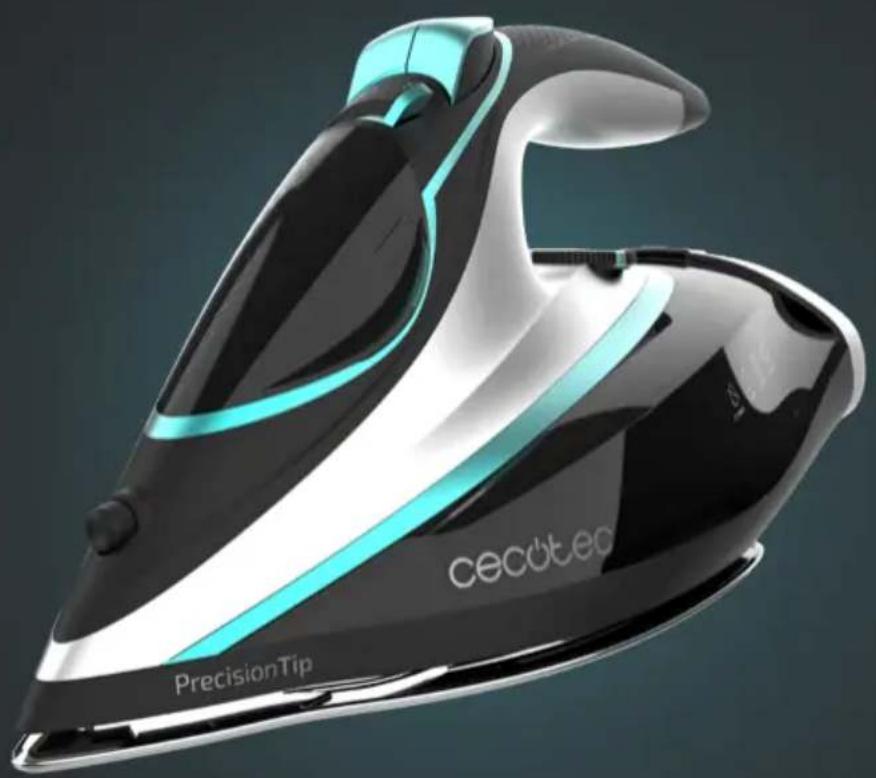

Modern electric iron iron with sleek black and white design, labeled 'cecuteo PrecisionTip' and 'SST', against a dark background (no additional text or symbols)

Safety instructions 6

1. Parts and components 29

2. Before use 29

3. Operation 30

4. Cleaning and maintenance 32

5. Technical specifications 33

6. Disposal of old electrical and electronic appliances 33

7. Technical support and warranty 34

8. Copyright 34

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Check the power cord for visible damage. If the power cord is damaged, it must be replaced by the Technical Support Service of Cecotec or similar qualified personnel to avoid risks.

- The appliance must not be left unattended while connected to the power supply.

- The plug must be removed from the socket before filling up the water tank.

- The iron must only be used with the supplied base.

- The appliance must be used and placed on a flat, stable, and heat-resistant surface.

- When placing the iron on the base, make sure the surface on which the base is placed is stable.

- Do not use the appliance if it has been dropped, shows visible damage, or is leaking.

- Keep the appliance and its power cord out of reach of children under 8 years old when plugged in or cooling down.

- This symbol means "Caution: hot surface". The

temperature of accessible surfaces may be high while the product is in use and could cause burns. Do not touch hot surfaces while in use or immediately after.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• Do not allow the cord to touch hot surfaces. Allow the appliance to cool down completely before storing it.
• To avoid the risk of electric shock, do not use the appliance if the cord is damaged, nor if it's been dropped or damaged in any way.
• To avoid burns or other injuries, do not direct steam at people or animals.
• All our ironing range products have undergone quality control tests prior to their commercialisation. These tests consist of filling the water tank in order to check tightness and to ensure the correct operation of the appliance. Once the test has been carried out, the tank is emptied and dried, but some water may still remain inside.

INSTRUCTIONS DE SÉCURITÉ

1. Steam adjustment lever
2. Steam-shot button
3. Spray button
4. Light indicator
5. Base and cord
6. Temperature adjustment knob
7. Water tank
8. Soleplate
9. Spray outlet
10. Water-tank cover
11. Auto-clean button
12. Base lock button

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• IronHero 3100 Cordless iron
• Measuring cup
• Instruction manual

ENGLISH

3. OPERATION

Filling up the water tank

• Make sure that the iron is switched off and that the power cord is unplugged from the mains.
• Move the steam adjustment lever to the "0" position before filling up the tank.
• Open the water tank cover and fill the tank up to the "MAX" line.
• The water level can be observed through the see-through part of the tank with the iron placed upright.
• Drain the remaining water after using the iron.

Note:

• Whenever you fill or empty the water tank, you must do so with the iron unplugged from the mains.
• Do not use additives or add other liquids such as perfume, vinegar, starch, condensed water from dryers or air conditioning systems, or chemicals, as this may damage the iron.
• Thisiron.is designed to work with tap water. However, to ensure optimal performance for longer, you can mix tap water with distilled water in a 1:1 ratio. If water in your area is very hard, the mixture of tap water and distilled water should be in a 1:2 ratio.

Dry ironing

• Place the iron upright.
• Plug the cord into a power outlet.
• Turn the temperature adjustment knob to the "MIN" position.
• A red indicator light will turn on.
• Wait until the indicator light turns green: this means that the set temperature has been reached.
• You can now proceed to dry ironing.

Using the spray

• Before using the spray function, check for ironing instructions on the fabric label to avoid stains.
• The spray function is especially useful for removing stubborn creases and when more humidification is needed. The spray can be used with steam or dry ironing. Simply press the spray button when you want to spray water on the fabric.

Steam ironing

• Fill up the iron as explained in the section "Filling up the water tank".
• Place the iron upright and turn the temperature adjustment knob to the steam position.
• Plug the cord into a power outlet.
• Turn the temperature adjustment knob to the steam position. Steam ironing is only possible

at the highest temperature settings indicated by the "MAX" mark, otherwise water will drip from the soleplate.

• A red indicator light will turn on.
• Wait until the indicator light turns green: this means that the set temperature has been reached.
• Move the steam adjustment lever to the setting most suitable for the fabric to be ironed.
• You can now proceed to steam ironing.

Using the steam shot

• The steam shot function provides additional steam to remove stubborn creases. It can be used with both dry and steam ironing.
• Press the steam-shot button to release a steam shot. It may be necessary to press the button several times to activate the surge system. Wait a few seconds for steam to penetrate the fabric before pressing the button again for more steam.

●	Synthetics, nylon, acrylics, polyester, rayon.
●●ilk, wool.
●●●otton, linen.

Note:
For optimal steam quality, do not apply more than three consecutive steam shots after the indicator light turns green.

After each use

1. Turn off and unplug the iron.
2. Empty the tank immediately after use. Do not store the iron with water in it.
3. Wait until the iron has cooled down before storing it, and always place it on the base to protect the soleplate from scratches, corrosion, or stains.
4. After allowing the iron to cool down completely, store it upright in a safe place.

Anti-drip function

This system controls the water flow emitted to the soleplate at all times. Above a certain temperature, the anti-drip function cuts off the water flow and prevents the soleplate from dripping water onto the garments.

Automatic shut-off function

• The iron will automatically switch off if it remains stationary in horizontal position for 30 seconds, or in vertical position for 8 minutes.
• To indicate that the iron has been switched off, the appliance will beep 6 times and the automatic switch-off indicator light will start flashing.
• The iron can take up to 45-60 minutes to completely cool down.

ENGLISH

To reheat the iron:

1. Lift the iron or move it slightly.
2. The indicator light will stop flashing.
3. The automatic switch-off indicator will light up and the iron will be ready for use.

WARNING:

Never use steam-iron cleaners on the iron, as they may damage it.

4. CLEANING AND MAINTENANCE

Exterior iron surface

• After unplugging and allowing the iron to cool down, simply wipe it with a damp cloth and, if necessary, use a mild detergent.
• Never use aggressive detergents.

Soleplate

• Starch and other types of residue can be easily removed from the soleplate with a damp cloth.
• To avoid scratching the finish, never use a metal scouring pad to clean the soleplate or place the iron on a rough surface. If synthetic fabrics are ironed at too high a temperature, not only can the fabric be damaged, but it's possible for the iron soleplate to be covered with the synthetic fabric's melted residue. The best way to remove synthetic residues from the soleplate is to heat up the iron and iron an old cotton cloth.

Anti-scale function

• The anti-scale function is a permanent system inside the water tank used to remove impurities from the water and reduce problems caused by limescale build-up.

• To extend the efficiency of the system, occasionally follow these steps:

• After using the iron, unplug it and allow it to cool down.

• Fill the water tank up to 3/4.
• Leave the solution in the water tank for 15 minutes, shake the iron from time to time, and then empty it.
• Fill the water tank a second time with water, shake occasionally, and empty it again after 15 minutes.
• Fill the tank with water for rinsing and empty it.

Auto-clean function

IMPORTANT:

Your iron will give the best ironing results and last longer by auto-cleaning once a month or

more depending on usage.

1. Fill the water tank halfway with water.
2. Place the iron on the base.
3. Turn the temperature adjustment knob to the "MAX" position.
4. Plug the cord into a power outlet.
5. Allow the iron to heat up until the indicator light turns off.
6. Unplug the iron from the socket.
7. Hold the iron horizontally over the sink.
8. Hold down the auto-clean button: hot water and steam will come out of the holes in the soleplate.
9. Move the iron forwards and backwards; keep letting steam and water out until the water tank is empty.
10. Turn the steam knob to the "0" position.
11. Plug the iron.
12. Turn the temperature adjustment knob to the "MAX" position and let the iron heat up again: the rest of the water inside the tank will vaporise and come out of the iron through the soleplate.
13. During this dry steaming process, it is advisable to use a piece of old cloth.

5. TECHNICAL SPECIFICATIONS

Product reference: 01860

Product: IronHero 3100 Cordless

Power: 3100 W

Voltage and frequency: 220-240 V, 50-60 Hz

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
