Cycloboost FR15 Animal - Vacuum Cleaner EZICLEAN - Free user manual and instructions

Product type	Cordless stick vacuum cleaner
Brand	EZIclean
Model	Cycloboost FR15 Animal
Dimensions (L x W x H)	112 x 24 x 10 cm
Weight	1.7 kg
Dustbin capacity	0.8 L
Motor type	MagnetiK™
Voltage	37 V
Power	450 W
Runtime	80 minutes
Charging time	4 hours
Filtration	HEPA 13
Suction power	30 kPa
Noise level	78 dB
Power supply	Rechargeable 37 V battery
Key features	Continuous mode (trigger lock), dustbin fill indicator, LCD screen, brush jam indicator, mode change button
Maintenance	Water-washable filter (dry 24h), washable brush, washable dustbin
Safety	Automatic shutdown in case of fault, do not vacuum liquids or hot objects, household use only
Spare parts available	Additional battery, replacement filter, brush
Manufacturing	Made in France in Ribeauvillé (except battery and accessories)

Frequently Asked Questions - Cycloboost FR15 Animal EZICLEAN

How to assemble the vacuum cleaner?

To assemble the vacuum cleaner, insert the flexible tube into the brush head, then attach the handle to the dustbin. Refer to the diagram in the manual for correct assembly.

How to recharge the battery?

Turn off the appliance. You can recharge the battery in two ways: either remove it and plug it directly into the mains adapter, or place the vacuum cleaner on the wall-mounted charging base or on the stand. Charging time is 4 hours.

How to empty the dustbin?

Press the dustbin button to open and empty it. You can also fully disassemble the dustbin by pulling on the ring to empty and clean it more easily.

How to clean the filter?

Stop the appliance, remove the dustbin, then take out the filter. Clean it with clean water or a mild detergent, gently rubbing. Let it dry for at least 24 hours before reinstalling. Do not machine wash the filter or use a hair dryer.

How to clean the rotating brush?

Stop the appliance, remove the brush from the brush head. Use a sharp object to remove entangled hair and fur. You can rinse it under clean water, then let it dry for 24 hours before reinstalling.

Why is the vacuum cleaner not working?

First check that the battery is charged and correctly inserted. Make sure the dustbin is not full and the filter is not clogged. If the problem persists, consult the manual or contact an authorized repairer.

What is the battery runtime?

The runtime of the Cycloboost FR15 Animal is 80 minutes under normal use. This may vary depending on the selected mode and surface type.

Can I use the vacuum on carpets?

Yes, the vacuum is designed for all floor types, including carpets. The rotating brush is suitable for effective cleaning on carpets and rugs.

How do I know when the dustbin is full?

The screen displays a dustbin fill indicator (reference 8 on the diagram). When the dustbin is full, the indicator alerts you, and it is time to empty it.

Where can I buy spare parts?

Spare parts such as the battery, filter, and brush are available from EZIclean or authorized dealers. Only use accessories recommended by the manufacturer.

USER MANUAL Cycloboost FR15 Animal EZICLEAN

• Only use accessories, consumables or spare parts recommended or supplied by EZIclean.
• Do not use your machine outdoors, on a wet surface or for wet pick-up.
• Do not vacuum hard or sharp objects, matches, hot ashes, cigarette butts or other similar objects.
• Do not spray or vacuum flammable liquids, liquid cleaning products, aerosols or their vapours.
• Do not step on the power cord when using your appliance and do not pull the plug out of the socket.
• If your appliance appears to be defective, stop using it immediately.
• To ensure the safe and efficient use of this appliance, we recommend that only an authorised service technician carries out maintenance or repairs.
• Do not step on the power cord or wrap it around your arms or legs when using the appliance.
• This appliance should only be used for domestic cleaning in accordance with this user guide.
• Do not use the appliance on people

or animals.

• This appliance may be used by children of at least 8 years of age and by persons with reduced physical, sensory or mental capabilities, or without experience or knowledge. They must be instructed in the safe use of the appliance and understand the risks involved.
• Children should not play with the appliance.
• Cleaning and maintenance should not be carried out by children without supervision.
• If the power cord is damaged, stop using the appliance immediately.
• Only allow maintenance or repairs to be carried out by an authorised repairer.
• Keep hands, feet, clothing and hair away from the rotating brushes.
• This appliance is supplied with a double-insulated charger for 230V sockets

• Make sure that the voltage of the power supply is the same as the one indicated on the charger.

• The appliance must not be connected to the mains when removing the batteries.

• It is normal for the charger to become hot to the touch when charging.
• Do not unplug by pulling on the power cord.
• Never modify the charger.
• A damaged cord can cause fire or electric shock.
• The power cord cannot be replaced, the entire charger must be replaced if it is damaged.
• Unplug the charger if you are going to be away for a long time.
• Do not pick up the charger with wet hands.
• Do not expose the battery to high temperatures. Do not store it near a heat source: fires, radiators, sunlight, etc.
• In case of battery leakage, do not touch the liquids, risk of burns or irritation.
• Used batteries should be taken to a recycling point and not disposed of with household waste.

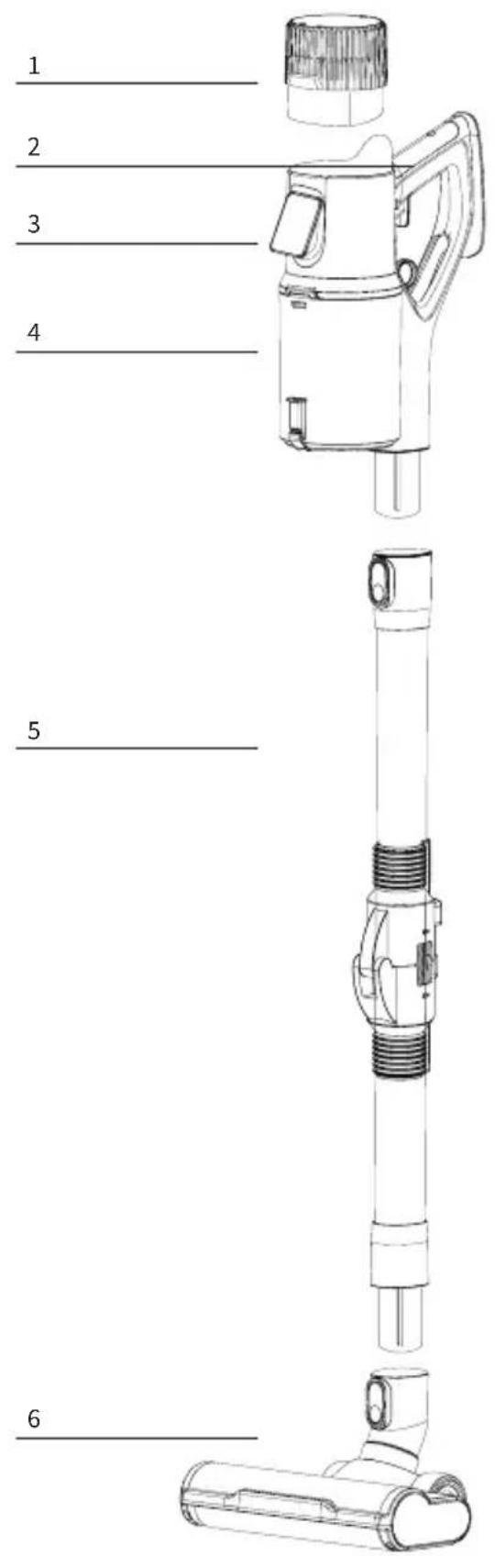

1-Battery
2- Handle
3 - Screen
4 - Dust collector
5 - Flexible tube
6 - Brush block

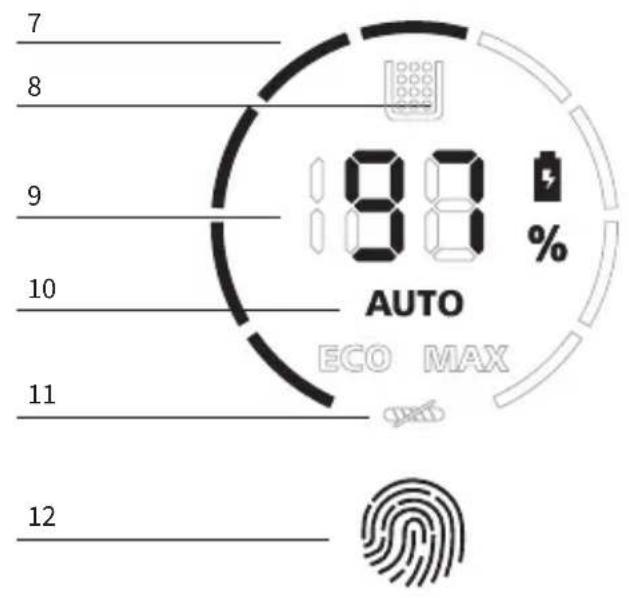

7 - Speed
8 - Collector filling indicator
9 - Battery percentage
10 - Mode used
11 - Brush lock indicator
12 - Touch button to switch modes

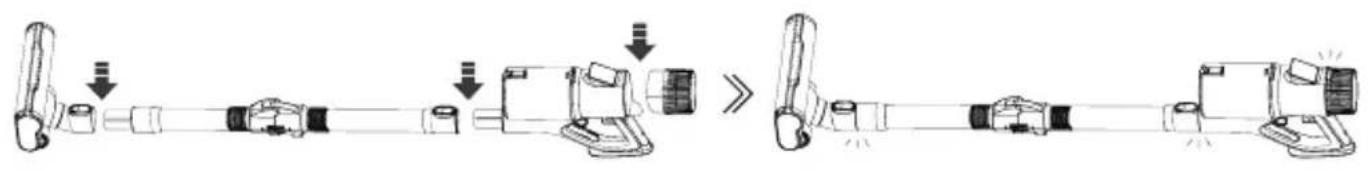

ASSEMBLING YOUR DEVICE

CHARGING YOUR DEVICE

Note: It is important to switch off your device before charging. Please do not attempt to turn it back on while it is charging. Once the battery is full, the adapter will automatically stop charging your appliance. You can therefore leave your hoover on its charging base even when fully charged.

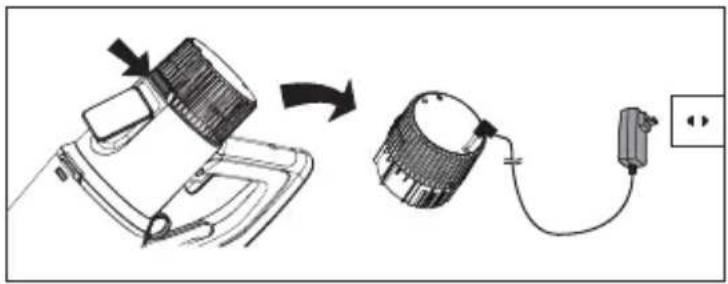

A/Remove the battery from your device and plug the AC adapter directly into the battery. You can then buy a second battery and charge one while using the other.

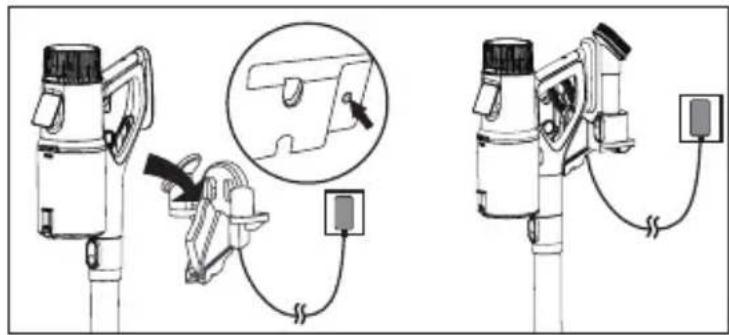

B/ Plug your mains adapter into your wall or stand charger. Simply place your hoover on it and it will charge automatically.

USING YOUR DEVICE

Press and hold the trigger to start vacuuming.

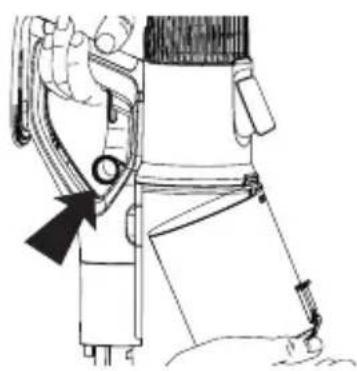

Press this button to keep the trigger depressed without having to press it.

Switch off the appliance before cleaning.

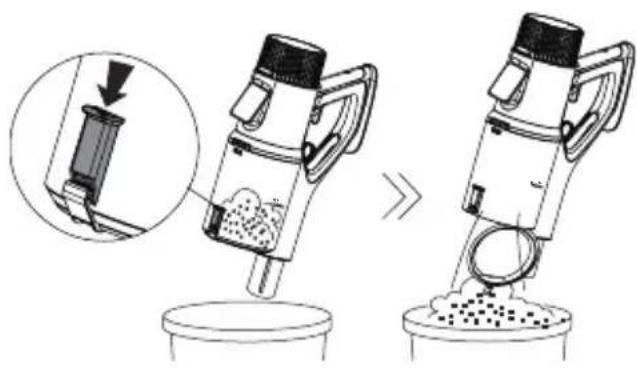

Press the button on the manifold to open and empty it.

It is also possible to remove the the collector by pulling the ring to completely empty and clean it.

The dust collector can be run under clean water to clean it. Just be sure to let it dry for 24 hours and make sure it is completely that it is completely dry before reinstalling it.

CLEANING THE FILTER

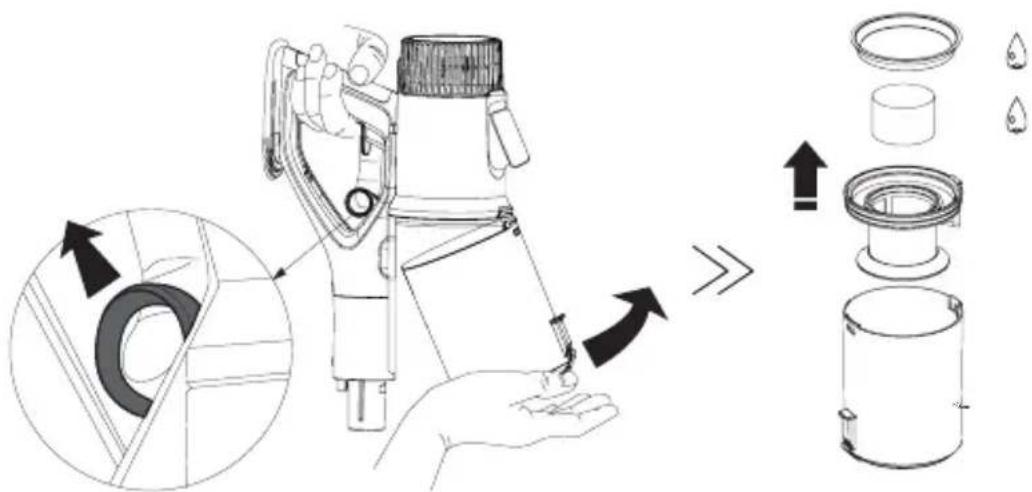

Switch off the unit before cleaning. Remove the dust collector by pulling the ring.

Clean the filter with clean water or a little neutral detergent by rubbing it lightly. Wait at least 24 hours until the filter is completely dry before reinstalling it in the collector.

Please note: the filters of this appliance cannot be machine washed. They cannot be dried with a hair dryer. We strongly advise against scrubbing the filters with a brush to avoid damaging them.

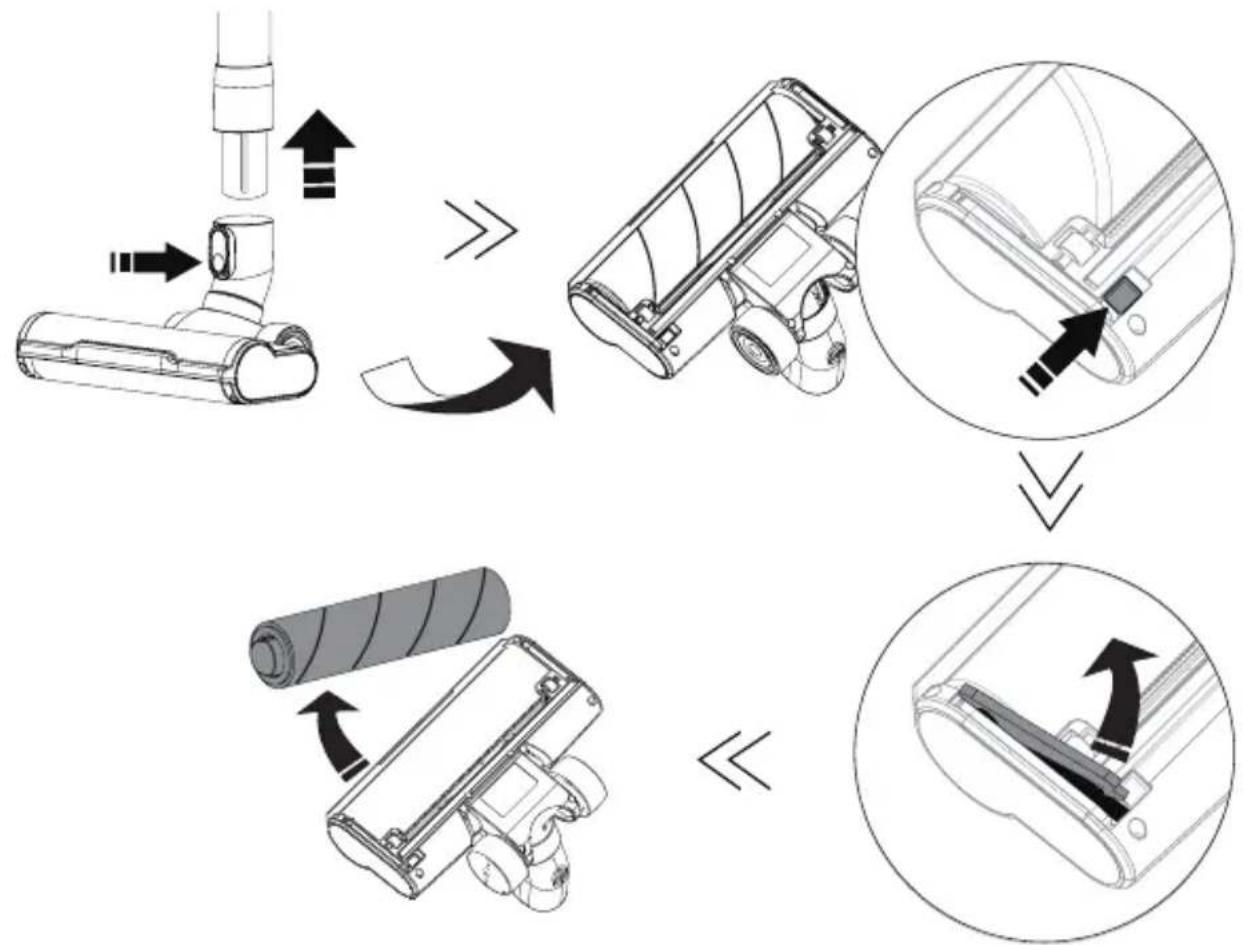

Switch off the appliance before cleaning. To remove the brush, refer to the diagram below:

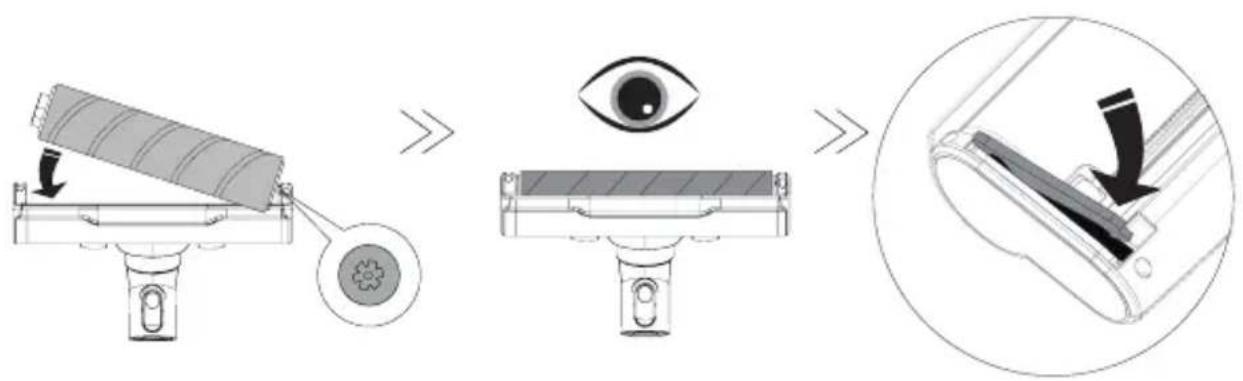

Once the brush has been removed from its block, use a sharp object to remove the bristles and coiled hair. The brush can be rinsed under clean water to clean it. Just be sure to let it dry for 24 hours for 24 hours and ensure that it is completely dry before reinstalling it as follows:

	FR15 ANIMAL	FR8 FLEX FR8 HOME FR8 W/ASH
Product weightt	1,7 kg 1,7 kg	1,7 kg 1,7 kg
Charging time	4 h 4 h 4 h 4 h
Motor type MagnetiK™ MagnetiK™ MagnetiK™ MagnetiK™
Voltage 37V	29,6V 29,6V 29,6V
Product dimensions	112x24x10 112x24x10 112x24x10 112x24x10
Manifold capacity	0,8L 0,8L 0,8L 0,8L
Power 450W	250W 250W 250W
Autonomy 80	min 45 min 45 min 45 min
Noise level 78dB	78dB	78dB	78dB	78dB
Filtration	HEPA 13	HEPA 13	HEPA 13	HEPA 13
Suction power	30Kpa	19Kpa	19Kpa	19Kpa
