USER MANUAL DC602 DEWALT

English (original instructions)

DEWALT k l u f m DEWALT 18V JURP n

Figure 2

Figure 3

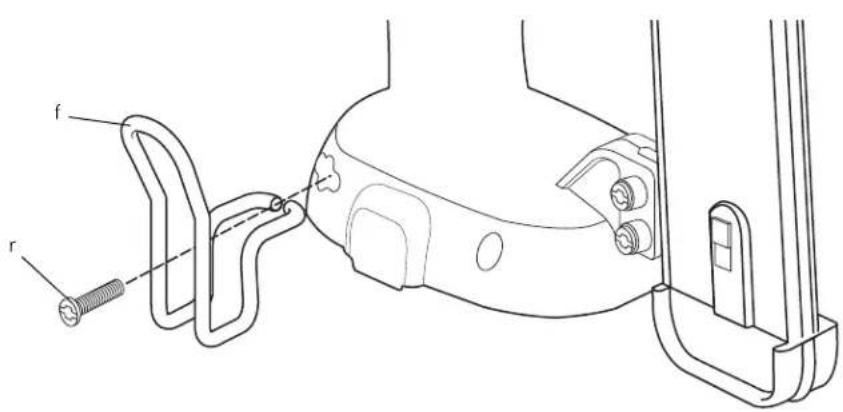

Technical diagram of a mechanical assembly with labeled parts f and r, showing a bolted joint and housing component.

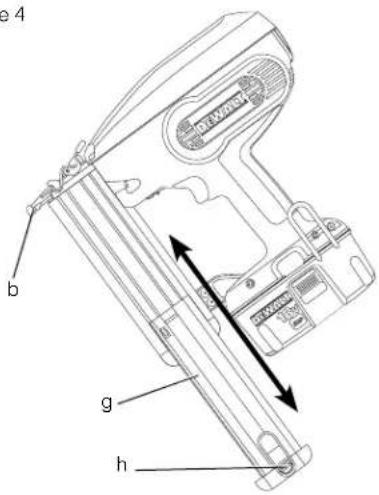

Figure 4

e 4 b g h

Figure 5

k b

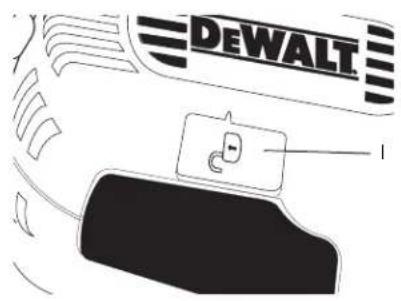

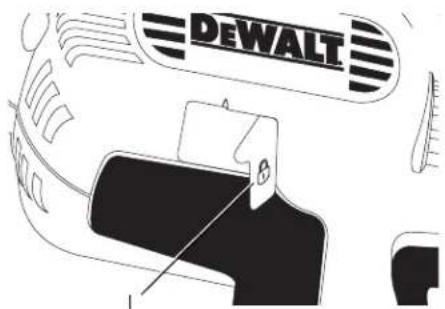

Figure 6

DEWALT

DEWALT A B 1

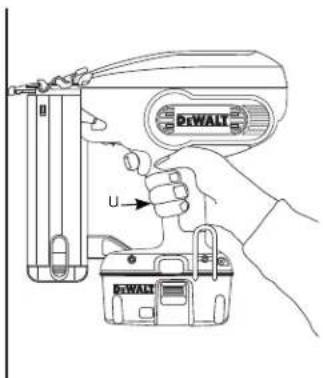

Figure 7 Figure 8

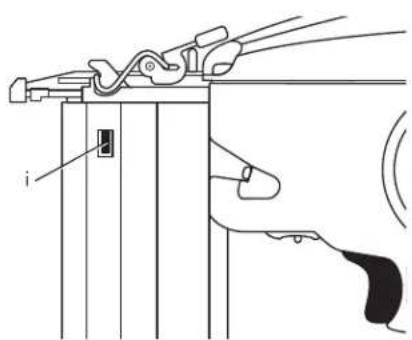

i

DiWALT U

DANSK

S∅MPISTOL DC602, DC608

Tillykke!

RSEL: For at reducere

ADVARSEL: For at reducere

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DC602	DC608
Voltage	V	DC	12	18
Type 11
Actuating mode	contact	contact actuating	actuating
Magazine angle		0^	0^
Fasteners type length	mm	16, 19, 25, 29, 30	18 ga.	18 ga.
			32, 38, 40, 44, 50
shank diameter angle		mm	1.2	1.2
		0^	0^
Weight (without battery pack) kg		2.2	2.3
L_PA (sound pressure)		dB(A)	85	85
K_PA (sound pressure uncertainty)		dB(A)	3	3
L_PA (sound power)		dB(A)	90	90
K_PA (sound power uncertainty)		dB(A)	3	3

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value a _h
a_h=	m/s2	< 2.5	< 2.5
Uncertainty K =	m/s2	1.5	1.5

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may

differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Battery pack		DE9501	DE9503	DE9180
Battery type		NiMH	NiMH	Li-Ion
Voltage	V_DC	12	18	18
Capacity	Ah	2.6	2.6	2.0
Weight	kg	0.7	1.0	0.68

Charger		DE9130	DE9135
Mains voltage	V_AC	230	230
Battery type		NiCd/NiMH	NiCd/NiMH/Li-Ion
Approx. charging time (2.0 Ah)	min(2.0 Ah)	30	40

		battery packs)	battery packs
Weight	kg	0.52	0.52

Fuses

Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

ENGLISH

CAUTION: Indicates a potentially

hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

EC-DeclarationofConformity

MACHINERY DIRECTIVE

DC602, DC608

DEWALT declares that these products described under "technical data" are in compliance with: 2006/95/EC, EN 60745-1, EN 792-13.

These products also comply with Directive 2004/108/EC. For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

H. Jopsmann

Horst Grossmann

Vice President Engineering and Product

Development

D-65510, Idstein, Germany

31.12.2009

WARNING: To reduce the risk of injury, read the instruction manual.

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Safety Instructions for Cordless Nailers

• Always wear safety glasses.

• Always wear ear protection.

- Only use fasteners of the type specified in the manual.

ENGLISH

• Do not use any stands for mounting the tool to a support.
• Do not disassemble or block any parts of the fastener driving tool such as the contact trip.
• Prior to each operation check that the safety and triggering mechanism is functioning properly and that all nuts and bolts are tight.
• Do not use the tool as a hammer.

WARNING: Do not use the tool on a ladder.

• Never point any operational fastener driving tool at yourself or at any other person.
• While working, hold the tool in such a way that no injuries can be caused to the head or to the body in the event of a possible recoil due to a disruption in the energy supply or hard areas within the work piece.
• Never actuate the fastener driving tool into free space.
• In the work area, carry the tool at the workplace using only one handle, and never with the trigger actuated.
• Consider the conditions in the work area Fasteners can penetrate thin work pieces or slip off corners and edges of the work piece, and thus put people at risk.
• Do not drive fasteners close to the edge of the work piece.
• Do not drive fasteners on top of other fasteners.

Residual Risks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
– Risk of personal injury due flying particles.
- Risk of burns due to accessories becoming hot during operation.
– Risk of personal injury due to prolonged use.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Wear ear protection.

Wear eye protection.

Do not use the tool on a ladder.

Tool voltage: 12V DC602

Tool voltage: 18V DC608

Length of nails.

Nail thickness.

Loading capacity.

Magazine angle.

Depth settings.

DATE CODE POSITION

The Date Code, which also includes the year of manufacture, is printed into the housing surface that forms the mounting joint between tool and battery.

Example:

2010 XX XX

Year of Manufacture

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for the DE9130/DE9135 battery chargers.

- Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

DANGER: Electrocution hazard. 230 volts are present at charging terminals. Do not probe with conductive objects. Electric shock or electrocution may result.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.

CAUTION: Burn hazard. To reduce

the risk of injury, charge only DEWALT rechargeable batteries. Other types of batteries may burst causing personal injury and damage.

CAUTION: Under certain conditions, with the charger plugged in to the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.
• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
• NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

SAVE THESE INSTRUCTIONS

Chargers

The DE9130 charger accepts DEWALT NiCd and NiMH battery packs ranging from 7.2 to 18 V.

The DE9135 charger accepts DEWALT NiCd, NiMH and Li-Ion battery packs ranging from 7.2 to 18 V.

These chargers require no adjustment and are designed to be as easy as possible to operate.

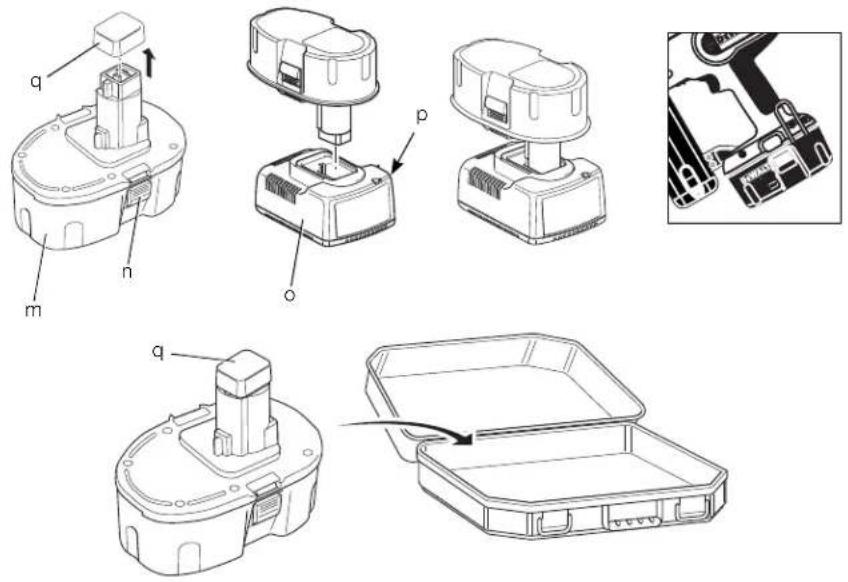

Charging Procedure (fi g. 2)

R: Electrocution hazard. 230 volts present at charging terminals. Do not probe with conductive objects. Danger of electric shock or electrocution.

1. Plug the charger (o) into an appropriate outlet before inserting battery pack.
2. Insert the battery pack into the charger. The red (charging) light will blink continuously indicating that the charging process has started.
3. The completion of charge will be indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger.

NOTE: To ensure maximum performance and life of NiCd, NiMH and Li-Ion batteries, charge the battery for a minimum of 10 hours before first use.

ENGLISH

Charging Process

Refer the table below for the state of charge of the battery pack.

State of charge

charging	-	-	-	-
fully charged
hot/cold pack delay	-	-	-
replace battery pack	●●●●●●●●●
problem	●●	●●	●●	●●

Automatic Refresh

The automatic refresh mode will equalise or balance the individual cells in the battery pack at its peak capacity. Battery packs should be refreshed weekly or whenever the pack no longer delivers the same amount of work.

To refresh your battery pack, place the battery in the charger as usual. Leave the battery pack for at least 10 hours in the charger.

Hot/Cold Pack Delay

When the charger detects a battery that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery life.

LI-ION BATTERY PACKS ONLY

Li-Ion batteries are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the Li-Ion battery on the charger until it is fully charged.

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include catalog number and voltage.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

- Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

• Charge the battery packs only in DEWALT chargers.
  • DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ C ( 105^ F) (such as outside sheds or metal buildings in summer).

DANGER: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre for recycling.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

SPECIFIC SAFETY INSTRUCTIONS FOR NICKEL CADMIUM (NiCd) OR NICKEL METAL HYDRIDE (NiMH)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire.
• A small leakage of liquid from the battery pack cells may occur under extreme usage or temperature conditions. This does not indicate a failure.

However, if the outer seal is broken:

a. and the battery liquid gets on your skin, immediately wash with soap and water for several minutes.
b. and the battery liquid gets into your eyes, flush them with clean water for a minimum of 10 minutes and seek immediate medical attention. (Medical note: The liquid is 25–35% solution of potassium hydroxide.)

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)

- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

Battery Cap (fi g. 2)

A protective battery cap is supplied to cover the contacts of a detached battery pack. Without the protective cap in place, loose metal objects could short circuit the contacts, causing a fire hazard and damaging the battery pack.

1. Take off the protective battery cap before placing the battery pack in the charger or tool.
2. Place the protective cap over the contacts immediately after removing the battery pack from the charger or tool.

WARNING: Make sure the protective battery cap is in place before storing or carrying a detached battery pack.

Battery Pack

BATTERY TYPE

The DC602 will operate on 12 volt battery packs and the DC608 will operate on 18 volt battery packs.

NOTICE: DO NOT USE THE DE9181

18V COMPACT LITHIUM BATTERY

IN THE DC608, as this may cause damage to the tool and battery and could result in intermittent tool performance.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.

NOTE: Li-Ion battery packs should be fully charged when stored.

1. Long storage will not harm the battery pack or charger. Under proper conditions, they can be stored for up to 5 years.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

Read instruction manual fore use.

Battery charging.

Battery charged.

Battery defective.

Hot/cold pack delay.

Do not probe with conductive objects.

Do not charge damaged battery packs.

Use only with DEWALT battery packs, others may burst, causing personal injury and damage.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4°C and 40°C.

Discard the battery pack with due care for the environment.

Do not incinerate the battery pack NiMH, NiCd+ and Li-Ion.

NiMH Charges NiMH and NiCd NiCd battery packs.

Li-Ion Charges Li-Ion battery packs.

See technical data for charging time.

ENGLISH

Package Contents

The package contains:

1 Nailer
1 Charger
2 Battery packs
1 Safety glasses
1 Kitbox (K-models only)
1 Instruction manual
1 Exploded drawing

NOTE: Battery packs and chargers are not included with N-models.

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1, 2)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

a. Trigger switch
b. Contact trip
c. Jam clearing latch
d. Cover
e. Headlights/low battery indicator
f Reversible belt hook
g Magazine cover
h. Nail pusher release button
i Low nail indicator
j. Mode selector switch
k. Depth adjustment wheel
1. Contact trip lock-off
m. Battery pack
n. Battery release buttons
o. Charger
p. Charging indicator (red)
q. Protective battery cap

INTENDED USE

The DC602, DC608 cordless nailers have been designed for driving fasteners into wooden work pieces.

DO NOT use under humid conditions or in presence of flammable liquids or gases.

These cordless nailers are professional power tools.

DO NOT let children come into contact with the tool. Supervision is required for those under 16 years of age.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.

VG: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 1 mm ^2 ; the maximum length is 30 m.

When using a cable reel, always unwind the cable completely.

ASSEMBLY AND ADJUSTMENTS

WARNING: Prior to assembly and adjustment, always remove the battery pack. Always switch off the tool before inserting or removing the battery pack.

WARNING: Use only DEWALT battery packs and chargers.

Inserting and Removing the Battery Pack from the Tool (fi g. 2)

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

NOTE: Make sure your battery pack (m) is fully charged.

TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE

1. Align the notch inside the tool's handle with the battery pack (m).
2. Slide the battery pack firmly into the handle until you hear the lock snap into place.

TO REMOVE THE BATTERY PACK FROM THE TOOL

1. Press the release buttons (n) and firmly pull the battery pack out of the tool handle.
2. Insert battery pack into the charger as described in the charger section of this manual.

Low Battery Indicator (fi g. 1)

The low battery indicator is an integrated feature in the headlights (e). It will blink 4 times to indicate that the battery pack needs to be recharged and the tool will automatically shut down.

Switch off the tool and take out the battery pack (m) to charge it as soon as the indicator blinks.

The tool remains non-operational as long as a low battery pack is attached to it.

Mounting the Belt Hook (fi g. 3)

The belt hook may be attached to either side of the tool or removed if not desired.

1. Insert the belt hook (f) into the mounting slot on the side of the tool.
2. Pass the screw (r) through the mounting hole. Tighten the screw.

Loading the Tool (fi g. 4)

WARNING: Always turn tool off and disconnect battery pack before loading and unloading fasteners.

1. Press the pusher release button (h) and pull the magazine (g) rearward.

2. Select an appropriate collated nail stick. (See Technical data.)

3. Insert collated nail stick into the loading slot on side of the magazine. Be sure the fasteners ride on their tips in the nail channel.

4. Push the magazine forward until it locks in place.

Low Nail Indicator (fi g. 7)

When approximately six nails remain in the magazine, the low nail indicator (i) will appear in the magazine window.

The presence of the yellow indicator signifies that the magazine needs to be reloaded with nails.

Adjusting the Driving Depth (fi g. 5)

Using the depth adjustment wheel, the nail driving depth can be adjusted to the type of fastener used.

1. To drive the nail shallower, rotate the depth adjustment wheel (k). There are twelve depth settings with 6 intermediate positions - 1 being the shallowest and 6 being the deepest.
2. To sink a nail deeper, rotate the depth adjustment wheel to a higher setting.

Selecting the Mode (fi g. 1)

To select sequential action mode, slide the mode selector switch (j) to the single nail icon ( )

To select bump action mode, slide the mode selector switch (j) to the three nail icon ( )

Contact Trip Lock-off (fi g. 6)

This tool is equipped with a contact trip lock-off (I) which prevents the tool from firing a nail.

To engage the contact trip lock-off (I), push the switch downward.

To release the contact trip lock-off (I), pull the switch upward.

WARNING: Make sure the contact trip lock-off (I) is engaged and the battery pack is removed before making any adjustments or when tool is not in immediate use.

Headlights (fi g. 1)

This tool has headlights (e) located on each side. The headlights will light upon inserting the battery pack and upon activating the trigger or releasing the contact trip. The headlights also function as a low battery indicator and a jammed nail indicator. For further details, refer to Low Battery Indicator or Clearing a Jammed Nail.

ENGLISH

WARNING: The headlights are intended for lighting the immediate work surface. Do not use the headlights as the only light source.

OPERATION

Instructions for Use

VG: Always observe the safety instructions and applicable regulations.

IG: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories.

Proper Hand Position (fi g. 8)

NG: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

VG: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle (u) as shown.

Preparing the Tool (fi g. 1, 4)

1. Remove the battery pack (m).
2. Remove all nails from the magazine (g).
3. Release the contact trip lock-off (I).
4. Check if the contact trip can move freely.
5. Engage contact trip lock-off.
6. Reload the nails to the magazine.
7. Insert battery pack.

WARNING: Do not use the tool if the contact trip or nail pusher cannot move freely.

NOTICE: NEVER

spray or in any other way apply lubricants or cleaning solvents inside the tool. This can seriously affect the life and performance of the tool.

Actuating the Tool (fi g. 1)

The tool can be operated using one of two modes: sequential action mode or bump action mode.

SEQUENTIAL ACTION MODE

The sequential action mode is used for intermittent nailing when very careful and accurate placement is desired.

1. Using the mode selector switch (j), select the sequential action mode.
2. Release the contact trip lock-off (I).
3. Push the contact trip against the work surface.
4. Pull the trigger switch (a) to actuate the tool. Each trigger pull with the contact trip pushed against the work surface will drive one nail.

BUMP ACTION

The bump action mode is used for rapid nailing on flat, stationary surfaces.

1. Release the contact trip lock-off (l).
2. Using the mode selector switch (j) to select the bump action mode.

3. To drive a single nail, operate the tool as described for sequential action:
   a. Push the contact trip (b) against the work surface.
   b. Pull the trigger switch (a) to actuate the tool. Each trigger pull with the contact trip pushed against the work surface will drive one nail.

4. To drive several nails, depress and hold the trigger switch (a), and then push the contact trip (b) repeatedly against the work surface.

WARNING: Do not keep the trigger depressed when the tool is not in use. Keep the contact trip (I) lock-off in the locked position to prevent accidental actuation when the tool is not in use.

Clearing a Jammed Nail (fi g. 1)

If a nail becomes jammed in the nosepiece, the headlights (e) will blink continuously.

1. Remove the battery pack (m).
2. Engage the contact trip lock-off (I).
3. Open magazine cover (g).
4. Remove all nails from the magazine.
5. Release the jam clearing latch (c) on top of the nosepiece.
6. Retract the cover (d) so the jammed nail is exposed.
7. Remove the nail, using pliers if necessary.

8. If the driver blade is in the down position, insert a screwdriver into the nosepiece and push the blade back in position.

9. Lower the cover back in place.

10. Lock the jam clearing latch.

If nails become jammed in the nosepiece frequently, have the tool serviced by an authorised DEWALT service centre.

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

The charger is not serviceable. There are no serviceable parts inside the charger.

Lubrication

Your power tool requires no additional lubrication.

NOTICE: Do not

lubricate the tool as it will damage the internal parts.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Troubleshooting

If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your repair agent.

Tool does not work

Headlights do not switch on

• Replace the battery pack.
• Release the contact trip lock-off.
• Remove the battery pack, wait for at least 3 seconds, then re-insert it.

Headlights are on but motor does not run

• Release the trigger or contact trip and depress.
• Release the contact trip lock-off.

Headlights are on and motor runs

- Please contact your repair agent.

Tool does not drive fasteners

• Load fasteners into the magazine.
• Make sure to use fasteners of the type specified.
• Clean the nosepiece.
• Clean the magazine.

Tool does not drive fasteners fully

• Remove nails.
• Remove the battery pack, wait for at least 5 seconds, then re-insert it.

ENGLISH

• Fire one time to reset tool.
• Adjust the driving depth.
• Choose the appropriate material or fastener length.

Fasteners jam in tool

• Make sure to use fasteners of the type specified.
• Choose the appropriate material or fastener length.
• Replace the battery pack.
• Clean the nosepiece.
• Clean the magazine.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Rechargeable Battery Pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• Li-Ion, NiCd and NiMH cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
- The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced;
- The product is returned complete with all original components.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at:

www.2helpU.com.

CLAVADORAS

DC602, DC608

¡Enhorabuena!

Suspension de charge.

Batterie Rechargeable

Vice President Engineering and Product Development

WAARSCHUWING! Lees alle

BEWAAR ALLE WAARSCHUWINGEN EN INSTRUCTIES ALS TOEKOMSTIG REFERENTIEMATERIAAL

Lage Accu-indicator (afb. 1)

1) SIKKERHET PÅ ARBEIDSOMRÅDET

Forsinkelse for Varm/Kald Pakke

Når laderen registrerer at batteriet er for varmt eller for kaldt, starter den automatisk en forsinkelse ved varm/kald pakke, og utsetter ladingen til batteriet har nädd en passende temperatur. Laderen kobler deretter automatisk til lademodus. Denne funksjonen sikrer maksimal levetid for batteriet.

KUN LI-ION BATTERIPAKKER

Li-Ion-batterier er konstruert med et Electronic Protection System (elektronisk beskyttelsessystem) som beskytter batteriet mot overbelastning, overoppheting eller dyputlading.

Vice President Engineering and Product Development

DEWALT, Richard-Klinger-Strasse 11, D-65510, Idstein, Germany

31.12.2009
