PRODUKTSPECIFIKATIONER

Model DXV15A
Strømforsyning 220-240V / 50/60Hz / 600W
Tæthedstryk	14kPa
	28.3L/SLuftstrøm
Tankvolumen	15L
Slange	32mm x 1,2m
Strømledning	H05RN-F, 2C x 0,75 mm ^2 / 2.4m

Pakkens indhold

Pakken indeholder:

1 Luftslange på 32 mm x 1,2 m (DXVA25-1043)

PRODUCT SPECIFICATIONS

Model DXV15A
Power 220-240V	/ 50/60Hz / 600W
Seal pressure	14kPa
	28.3L/SAir flow
Tank capacity	15L
Hose	32mm x 1.2m
Power cord	H05RN-F,2C×0.75mm2/ 2.4m

PACKAGE CONTENTS

The package contains:

1 32mm x 1.2m Hose (DXVA25-1043)

1 Extension Wand (DXVA25-1042)

1 Pre-filter(DXVA25-1040)

1 Cartridge filter (DXVA25-1041)

1 Instruction Manual

- Check for damage to the tool, parts or accessories which may have occurred during transport.

- Take the time to thoroughly read and understand this manual prior to operation.

DEFINITIONS: SAFETY GUIDELINES

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

▲DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

⚠CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

⚠ WARNING: When using electric appliances, always follow basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following:

BEFORE USING THE APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS.

⚠ WARNING: To reduce the risk of electric shock. Do not expose to rain. Store indoors.

• Do not leave the appliance when it is connected to a power source. Unplug it from outlet when not in use and before servicing.
• Do not allow the appliance to be used as a toy. Pay close attention when the appliance is used by or near children.
• Use the appliance ONLY as described in the manual.

Use only DEWALT recommended attachments.

• Do not use the appliance with a damaged cord or plug. If the appliance is not working correctly, or if it has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.
• Do not pull or carry the appliance by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep cord away from heated surfaces.
• Do not unplug the appliance by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce air flow.
• Keep hair, loose clothing, fingers, and all body parts away from the openings and moving parts.
• Turn off all controls before unplugging the appliance.
  • Take extra care when cleaning on stairs.
• Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids are present.
• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console, installed humidifier or use hose (standard on some models).
• To avoid spontaneous combustion, empty the dust tank after each use.

⚠CAUTION: The Appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS ADDITIONAL SAFETY RULES

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to vacuum combustible explosive materials, such as coal, grain, or other finely divided combustible materials.
• Do not use to vacuum hazardous, toxic or carcinogenic materials, such as asbestos or pesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel, heating oil, paint thinner, etc.), acids or solvents.
• Do not use vacuum without filters in place.
• Some wood contains preservatives which can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials. Request and follow any safety information available from the material supplier.

English

• Do not use vacuum as a step ladder.
• Do not place heavy objects on vacuum.
• An extension cord must have adequate wire size for safety.
• If an extension cord is to be used outdoors it must be marked.

WARNING:

To reduce the exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

ON MOTOR HOUSING :

WARNING:

- TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL. DO NOT LEAVE THE VACUUM UNATTENDED WHEN IT IS SWITCHED ON. DO NOT PICK UP FLAMMABLE, COMBUSTIBLE OR HOT MATERIALS. DO NOT USE AROUND EXPLOSIVE DUST, LIQUIDS OR VAPORS. ELECTRICAL DEVICES PRODUCE ARCS OR SPARKS WHICH CAN CAUSE FIRE OR EXPLOSION. DO NOT USE AT FILLING STATIONS OR ANYWHERE GASOLINE IS STORED OR DISPENSED. DO NOT VACUUM TOXIC OR CARCINOGENIC MATERIALS OR OTHER HEALTH ENDANGERING MATERIALS SUCH AS ASBESTOS OR PESTICIDES. ALWAYS USE PROPER EYE AND RESPIRATORY PROTECTION. TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT EXPOSE TO RAIN. STORE INDOORS. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS. NOT TO BE USED AS A STEP STOOL.

SAVE THESE INSTRUCTIONS

OPERATING INSTRUCTIONS

UNPACKING & SETUP SUMMARY

1. Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank.
2. Before replacing power head, refer to this manual to ensure you have the pre-filter and cartridge filter installed for the cleaning operation.
3. Replace the power head and place the metal hooks on the lid upwards and press all the lid latches firmly down against the tank. (Fig. F)
4. Insert the end of the hose into the inlet of the tank.
5. Attach the extension wand to the end of the hose. Apply slight pressure until fitting is tight.
6. Plug the cord into the wall outlet. The vacuum is ready for use.
7. Turn the unit "ON" by pushing the switch from position "O" to position "I". The "O" is the "OFF" position "OFF" position and the "I" is the "ON" position.

WARNING:

To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, aluminum, and grain or gun powder. Do not vacuum explosive dust, flammable or combustible liquids or hot ashes. Do not use this vac as a sprayer for any flammable or combustible liquid. To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

WARNING:

SERVICING OF DOUBLE-

INSULATED ASH VAC

In a double-insulated ASH Vac, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated ASH Vac requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated ASH Vac must be identical to the parts they replace. This double-insulated ASH Vac is marked with the words "DOUBLE-INSULATED" and the symbol □ (square within a square) may also be marked on the appliance. To reduce the risk of injury from electrical shock, unplug power cord before servicing the electrical parts of the ASH Vac.

WARNING:

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

WARNING:

Remove the plug from the socket before performing maintenance. Before using the machine make sure that the frequency and voltage shown on the rating plate correspond with the mains voltage. Specifications and details are subject to change without prior notice. The accessories shown in the pictures may vary from model to model.

IMPORTANT SAFEGUARDS

The symbol on the product or packaging indicates that the product must not be treated as domestic refuse. Instead, it should be handed in to a collection point for the recycling of electrical and electronic components. By ensuring the product is treated in the right way, this will help to prevent the negative impact on environment and health that may result from the product being thrown away as general waste. For further information about recycling, you should contact the local authorities, refuse collection service or the sales outlet where you bought the goods.

English

PROTECTING THE ENVIRONMENT

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

DESCRIPTION (Fig. A)

⚠ WARNING : Never modify the power appliance or any part of it. Damage or personal injury could result.

1 Hose holder
2 Power cord
3 On/Off switch
4 Vacuum head
5 Lid latches
6 Dust tank
7 Hose
8 Pre-filter

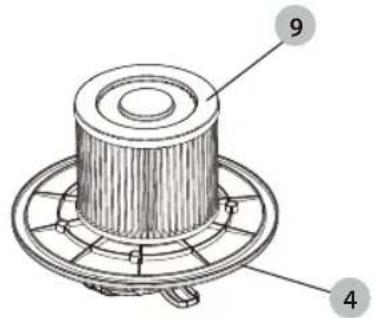

9 Cartridge filter
10 Vacuum port

ASSEMBLY AND ADJUSTMENTS (Fig. A-C)

⚠ WARNING: To reduce the risk of injury, turn appliance off and disconnect appliance from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. An accidental start-up can cause injury.

WARNING: The filter 9 must always be in place while. When vacuuming fine dust, you may also need to use an pre-filter to make emptying the dust tank easier.

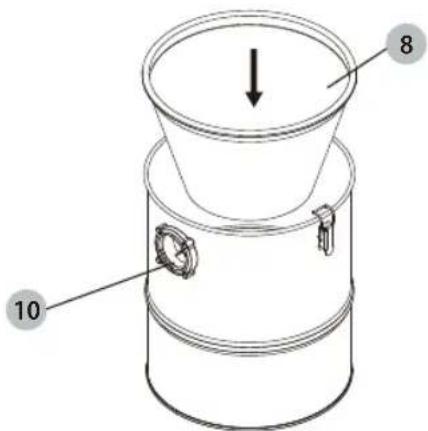

1. Install the pre-filter 8, as shown

in Fig. B.

NOTE: Be careful not to tear the bag. Place bag securely onto vacuum port 10 to provide a tight seal for maximum dust collection performance.

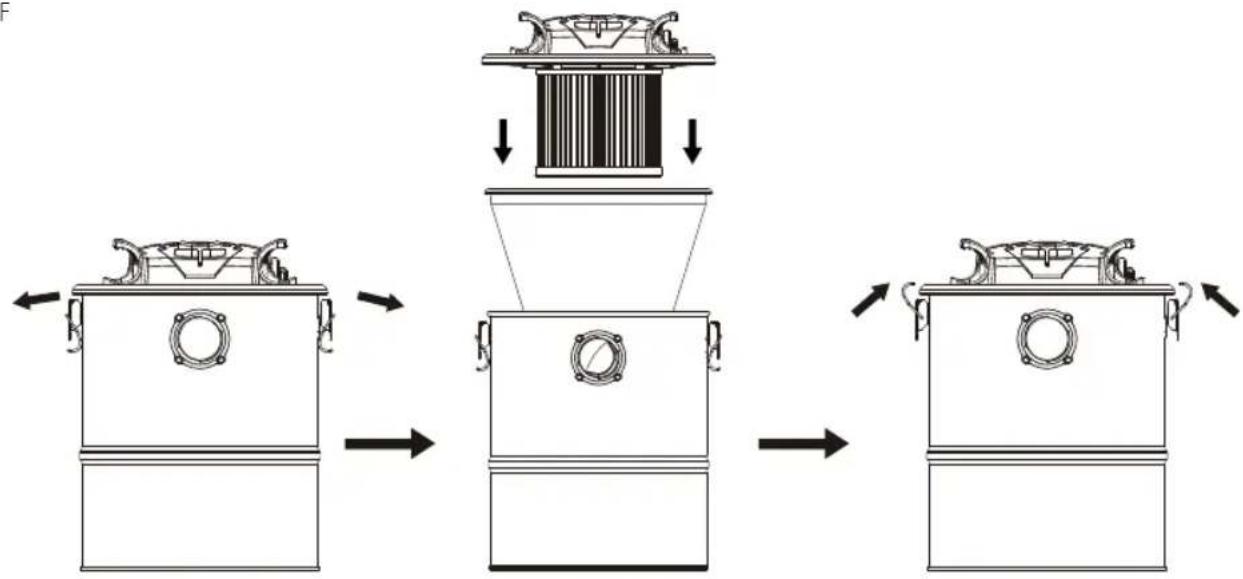

1. Place the vacuum head 4 onto the dust tank and secure it by closing the lid latches 5.

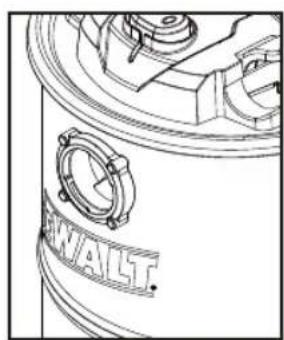

2. Insert the end of hose 7 into clip-in hose vacuum port 10 and tighten the end of hose to the tank.

OPERATION

INSTRUCTIONS FOR USE (Fig. A, D, E)

⚠ WARNING: Always observe the safety instructions and applicable regulations.

1. Plug the power cord into an appropriate outlet.

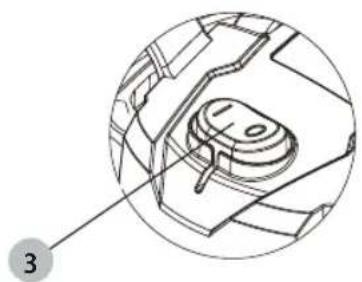

2. Turn the On/Off switch 3 to the ON position (1).
3. The DEWALT construction dust extractor is fitted with the DEWALT connection system. It allows a

fast, secure connection between the hose 7 and power tool. The connector 11 connects directly to DEWALT compatible tools or through the use of an adapter (available from local DEWALT supplier). If you need Install the adapters, refer to

Fig. E.

NOTE: If using an adapter ensure it is firmly attached to the tool outlet before following the steps below.

REMOVE/CHANGE USED PRE-FILTER(Fig. A) ⚠ WARNING: Appropriate personal protective

equipment like dust mask and gloves should be used while handling used dust bags.

1. Turn off vacuum and unplug cord from outlet.
2. Unlatch lid latches 5 and remove vacuum head 4.
3. Pull the pre-filter 8 carefully from vacuum port 10.
4. Seal the pre-filter 8 opening tightly when removing it from the machine.
5. Dispose the pre-filter 8 in appropriate container according to statutory provisions.

DRY PICK-UP APPLICATIONS (Fig. A)

1. The filter 9 must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter 9 is completely covering the filter cage. Make sure there are no gaps between the filter 9 and the lid. It is very important to assemble the filter to the cage without any possible leaks or tears. Any leaks will allow the picked up debris to be blown out of the blowing port and back into the surrounding environment.
2. When using the vac to pick up very fine dust, it will be necessary to empty the dust tank 6 and clean or replace the filter 9 at more frequent intervals to maintain peak vac performance.

SHUT DOWN/TRANSPORTATION (Fig. A)

1. Turn On/Off switch 3 to the OFF position.
2. Unplug the unit.
3. Store the hose 7 wrapping it around the hose holder 1 as shown.
4. When transporting in vehicles, secure the machine.

MAINTENANCE

The DEWALT appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

⚠ WARNING: To reduce the risk of injury, turn appliance off and disconnect appliance from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. An accidental start-up

can cause injury.

English

⚠ WARNING: For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include, decontamination before dismantling, provision for local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

• The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting of, for example, inspection of the filter for damage, air tightness of the machine and proper function of the control mechanism.
• When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned, are to be disposed of; such items shall be disposed of in impervious bags in accordance with any current regulation for the disposal of such waste.
• For dust extractors it is necessary to provide for an adequate air change rate L in the room if the exhaust air is returned to the room.

NOTE: Refer to national regulations is necessary.

FILTER (Fig. A, G, H)

FILTER CARE

The filters included with this vacuum are long life filters. To be effective in minimizing dust recirculation, the filters MUST be installed correctly and in good condition.

⚠ WARNING: Appropriate personal protective equipment like dust mask and gloves should be used while handling the filters.

TO REMOVE FILTERS

1. Turn On/Off switch 3 to the OFF position (O) and unplug cord from outlet.
2. Pull lid latches 5 in an outward motion and remove vacuum head 4 from canister. Place vacuum head on a level surface upside down.

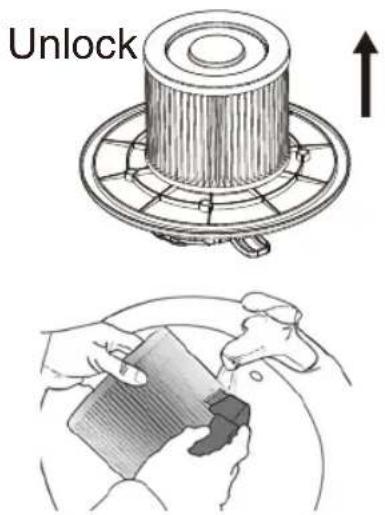

3. To remove the filter 9, pull the filter from the power head.

NOTE: Take care to not damage filter material.

1. If the bottom side of the vacuum head 4 needs to be cleaned, use a cloth dampened with water and mild soap and allow it to dry. Dispose the cloth in an appropriate container.

2. Inspect filters for wear, tears or other damage.

NOTE: If there is any doubt on the condition of the filters they MUST be replaced. DO NOT continue use if filters are damaged.

⚠ WARNING: Never use compressed air or a brush to clean filters, otherwise damage to the filter membrane will occur which will allow dust to pass through the filter. If needed, gently tap against a hard surface or rinse with room temperature water and let air dry. Cleaning of the filters is typically unnecessary, even if the filter is covered with dust. The automatic filter cleaning system will maintain maximum performance and continue to function. If visual damage to the filter membrane exists, replace

filters. Filters typically last between six and twelve months depending on use and care.

INSTALLING THE CARTRIDGE FILTER

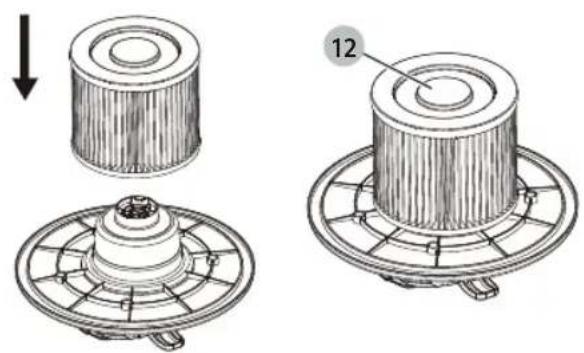

1. With the power head in an upside down position, slide the cartridge filter down over the lid cage, push the filter seals 12 against the power head 4.
2. To remove the filter, pull the filter from the power head 4.
3. To clean the cartridge filter, shake or brush off excess dirt or rinse (from the inside of the filter) with water, dry completely (approximately 24 hours) and re-install.

TO EMPTY DUST TANK (Fig. I)

⚠ WARNING: To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank.

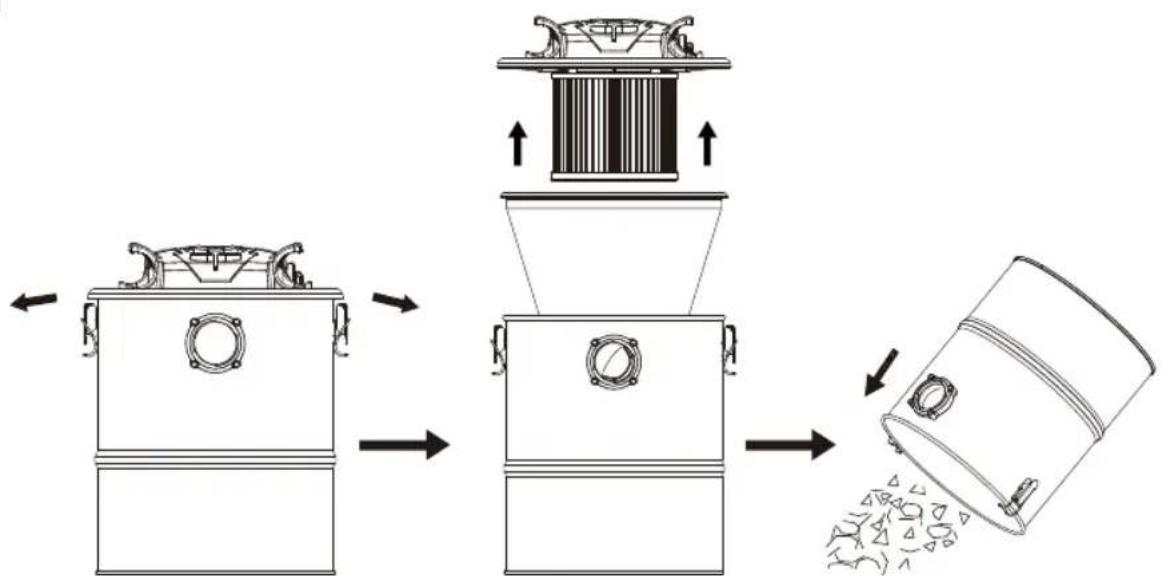

1. Remove the power head assembly of the ash vac bypulling outward on the lid clips located on each side of the vac. Lift off the power head assembly.
2. Dump the tank contents into the proper waste disposal container.

STORAGE (Fig. A)

1. Empty dust tank, refer to TO EMPTY DUST TANK instructions.
2. Clean the vacuum inside and outside. refer to CLEANING.
3. Clean or replace filters, refer to FILTER.
4. Store the hose and the power cord, as shown in the Fig. A. Place the appliance in a dry room and secure it from unauthorized use.

OPTIONAL ACCESSORIES

⚠ WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use such accessories with the appliance could be hazardous.

To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

CLEANING

To keep the ash vacuum looking its best, clean the outside with a cloth dampened with warm water and mild soap.

To clean the tank:

1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe with dry cloth.

English

TROUBLESHOOTING

WARNING:

TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS.

Minor problems often can be fixed without calling customer service.

PROBLEM SOLUTION
Motor does not run	Check power cord, plugs and outlet.
	Ensure the on/off switch is in the ON position (1)
Suction capacity decreases	Remove blockages in the extension wand, hose or filter.
	Replace the pre-filter.
	Check for proper installation of the filter.
	Clean or replace the filter.
	Empty dust tank, refer to TO EMPTY THE TANK under OPERATING INSTRUCTIONS.
Vacuum stops running	Thermal overload has been tripped:1. Turn the vacuum off and disconnect vacuum cleaner from power source.2. Empty the dust tank, if needed.3. Allow the unit to cool.4. Plug the power cord into an appropriate outlet and turn on/off switch to the ON position (1) to test.
Dust comes out while vacuuming	Check for proper installation of the filters.
	Ensure filters are not damaged; replace if necessary.
	Ensure filter seals are in place and are secure.
	Check the fit of the vacuum head.

WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

WARNING:

This product is NOT to be used for filtering of pathogens, for example COVID-19. Follow all local, state and federal guidance on general cleaning practices.

TOOL GUARANTEE 3 YEAR LIMITED GUARANTEE

SPÉCIFICATIONS DU PRODUIT

PRODUKT SPESIFIKASJONER

Modell DXV15A
Strøm 220-240V / 50/60Hz / 600W
Forseglingstrykk	14kPa
	28.3L/SLuftstrom
Beholder kapasitet	15L
Slange	32mm x 1,2m
Strømledning	H05RN-F, 2C × 0,75 mm2 / 2,4m

Pakken inneholder

Pakken inneholder:

UTPAKKING & OPPSETT SUMMERING

APPLIKASJONER FOR T∅RR OPPSAMLING (Fig. A)

PROVOCADOS PELAS PEÇAS MÓVEIS E/OU

CHOQUE ELÉTRICO,, DESLIGUE O APARELHO E RETIRE A FICHA TERRA DA TOMADA ELÉTRICA ANTES DE EXECUTAR AS VERIFICAÇÕES DE RESOLUÇÃO DE PROBLEMAS.

TUOTTEEN TEKNISET TIEDOT

MONTÁŽ A NASTAVENÍ (Obr. A–C)

Pokyny k obsluze (Obr. A, D, E)

APLIKACE DRY PICK-UP (Obr. A)

DeWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

Subject to the DeWALT European PPT Guarantee terms and conditions available from your local DeWALT office, seller or at www.2helpU.com, if your DeWALT product becomes defective due to faulty materials or workmanship within 36 months from the date of purchase, DeWALT may replace all defective parts free of charge, or at our discretion, replace the unit free of charge.

DEWALT reserves the right to refuse any claim under this guarantee which in the opinion of the authorised repair agent is not in accordance with the stated DEWALT European Guarantee terms and conditions.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent online, in the DEWALT catalogue or contact your DEWALT office at the address indicated in the instruction manual.

A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com

DEWALT EUROPEAN POWER TOOL (PT) 3 YEAR GUARANTEE

The DeWALT European PT Guarantee for your product is 3 years from the date of purchase subject to the following terms and conditions.

1. General terms and Conditions

1.1 The DEWALT European PT 3 Year Guarantee is available to the original DEWALT product user who has purchased the DEWALT products from an authorised DEWALT European reseller for use in the course of their trade or profession. The DEWALT European PT Guarantee is not available to persons purchasing DEWALT product for the purpose of resale or Hire.
1.2 This guarantee is not transferrable. It is only available to the original DEWALT product user who has purchased the product as identified above.
1.3 In addition to the terms and conditions outlined in this document, the terms and conditions stated in the DEWALT European PT Guarantee also apply.
1.4 A product repair or replacement under this guarantee does not extend or renew the guarantee period. The 3 year guarantee period starts from the original purchase date and ends 36 months later.
1.5 This product is excluded from the DeWALT 30-1-1 policy withdrawn 01-01-2016.
2. Products excluded from the DeWALT European PT 3 Year Guarantee. In addition to the product exclusions stated in the DeWALT European PT Guarantee, section 3, the following DeWALT branded products are also excluded: Fastening Tools e.g. Nailers, Powder Impact tools. Batteries and Chargers. Rebuilt or Reconditioned products identified with additional markings – “Factory rework” and/or “Q”. Compressors and generators.
3. Making a Guarantee Claim
3.1 To make a guarantee claim contact your seller or check the location of your nearest DEWALT authorised DEWALT repair agent at www.2helpU.com.
3.2 The DEWALT Tool must be returned to the seller or an authorised DEWALT repair agent with all parts complete, with the original proof of purchase.
3.3 DEWALT reserves the right to refuse any claim under this guarantee which in the opinion of the authorised repair agent is not due to material or manufacturing defect or in accordance with the stated DEWALT European PT Guarantee terms and conditions.
4. Changes to Terms and Conditions
4.1 DEWALT reserves the right to review and amend its guarantee policies, periods and product eligibility without notice as DEWALT considers appropriate.
4.2 Current DEWALT European PT Guarantee Terms and Conditions are available from www.2helpU.com, your local DEWALT seller or DEWALT office.

EC-Declaration of Conformity Machinery Directive

CE

ALTON declares that these products described under

Technical Data are in compliance with:

2006/42/EC, EN60335-1 / EN60335-2-69

These products also comply with Directive, 2011/65/EU and

(EU) 2015/863

Copyright © 2023 DEWALT.

DEWALT®, the DEWALT® Logo and GUARANTEED TOUGH®

are trademarks of Stanley Black & Decker Inc, or an affiliate thereof and are used under license.

Manufactured under license by Alton Ltd. Group

For more information, please contact ALTON

at the following address:

Alton Europe BV

Logistiekweg 18

4906 AB Oosterhout

The Netherlands

E: [e-mail]

For Customer Service please visit our Online Customer Service Centre at www.2helpU.com
