USER MANUAL H13 Pro DREAME

Wet and Dry Vacuum User Manual

C∈EAC

Website: https://global.dreametech.com
Dreme Trading (Tianjin) Co., Ltd.
Made in China

YYYYMM

The illustrations in this manual are for reference only. Please refer to the actual product.

DREAME

THANK YOU

FOR PURCHASING THIS DREAM WET AND DRY VACUUM.

Registration Quick Start

Welcome to register a Dreame account by scanning the QR code. You are available for the User Manual and Special Offers.

The high-quality product is engineered for optimal performance. If you have any questions on the product, please contact us: [e-mail].

Contents

EN User Manual 001
DE Benutzerhandbuch 020
FR Manuel d'utilisation 040
Manuale utente 059
ES Manual de usuario 078
RU RykoBoDCTBO noJIb3ObaTeIa 097
NL Gebruikershandleiding 116
KK PaiDanaHyBHyCKayIbIbI 135
TH 154
v Huong Dan Su Dung 173

EN Important Safety Instructions

Please read this manual carefully before use and retain it for future reference. When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

Usage Restrictions

• This appliance should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.
• Plastic film can be dangerous. To avoid the danger of suffocation, keep it away from children.
  Children shall not play with the appliance.
• Use indoors only, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or the edges of area rugs. Stalling the brush may result in premature belt failure.
• Use only as described in this user guide. Use only manufacturer's recommended attachments.
• Do not expose the appliance to fire or excessive temperature. Exposure to fire or excessive temperature may cause an explosion.
• Do not use in extremely hot or cold environments (below 5^ / 41^ or above 40^ / 104^ ). Please charge the appliance in temperature above 5^ / 41^ and below 40^ / 104^ .
• Do not immerse the appliance in liquid.
• Do not use to pick up flammable or combustible liquids, such as gasoline. Do not use in areas where flammable or combustible liquids may be present.
• Do not put any object into openings. Do not use the appliance when any opening is blocked. Keep free of dust, lint, hair, and anything that may inhibit air flow.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.). Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use the appliance in an enclosed space filled with vapor given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapour. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use the appliance without filters in place.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts of the appliance and its accessories.
• Keep ground cables away from the appliance when using it. A hazard may occur if the appliance runs over a supply cord.
  Use extra care when cleaning on stairs.

Important Safety Instructions

Maintenance and Storage

• Prevent unintentional starting. Ensure the switch is in the OFF-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or turning on the appliance may result in an accident.
• Ensure that the appliance is placed on a horizontal surface. Do not use the appliance at the same position if the appliance is equipped with a brush roller and the handle is not completely upright. Do not store the appliance in a place where it may freeze.
• Switch off and unplug the appliance when not in use, before cleaning, maintaining or servicing it, and before connecting or disconnecting it with a moving brush.
• Do not use an appliance that is damaged or modified. A damaged or modified appliance may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.

• Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care.

• Do not use the appliance with a damaged attachment (eg: charging base, supply cord etc.). If the appliance or attachment has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, never attempt to operate it. Please have it repaired at an authorized service center.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Battery and Charging

• For the purpose of recharging the appliance, only use the charging base provided with this appliance. Use only with HCBC charging base.
• Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the battery as doing so increases the risk of fire.
• Charging base is equipped with drying function and only suitable for drying this appliance's brush.
• Keep the charging base cable away from heated surfaces. Do not handle the charging base plug or appliance with wet hands. To unplug, grasp the charging base plug, rather than the cable.
• Do not pull or carry charging base by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners.
• This appliance contains batteries that can only be replaced by qualified technicians or after-sales service.
• The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the appliance, please first remove the battery pack, then discard, or recycle it in accordance with local laws and regulations of the country or region it is used in.

• The appliance must be disconnected from the power supply when removing the battery. Keep batteries out of the reach of children. Never put batteries in mouth. If swallowed, contact your physician or local poison control.

• Under abusive conditions, never contact the battery from which the liquid may be ejected. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.

• Do not use any non-rechargeable battery pack. Failing to do so may cause the lithium-ion battery to catch fire.

EN Important Safety Instructions

Symbols

T3.15A

Class II equipment

Time-lag miniature fuse-link where T 3.15A is the symbol for the time/current characteristic

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Product Overview

Packing List

Handle

Main BodyCharging Base

Replacement Filter

Solid Waste Filter Basket

Spare Brush Roller

We, Dreame Trading (Tianjin) Co., Ltd., hereby declares that this equipment is in compliance with the applicable Directives, European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

Cleaning Brush

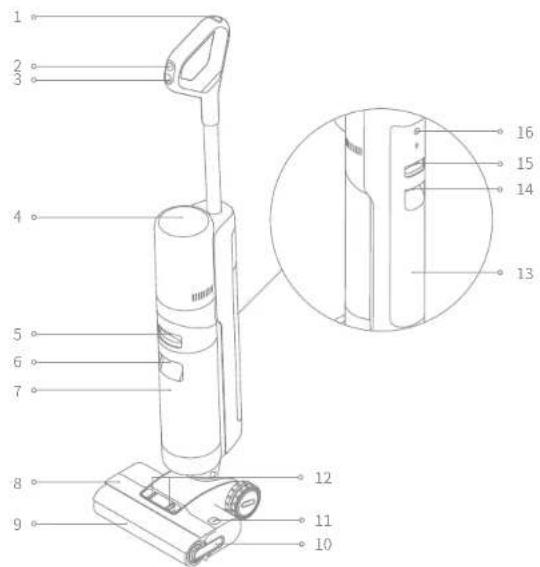

Product Overview

Wet and Dry Vacuum

Self-Cleaning Button

Mode Switch

Power Switch
4. Display Screen
5. Used Water Tank Release Button
6. Used Water Tank Handle
7. Used Water Tank

1. Brush Roller Cover
2. Brush Roller
3. Brush Roller Handle
4. Brush Roller Release Button
5. Brush Roller Cover Release Buttons
6. Clean Water Tank

7. Clean Water Tank Handle

8. Clean Water Tank Release Button

9. Voice Prompt Button

10. Press briefly to activate the voice prompt or adjust the volume.

11. Press and hold for 3 seconds to set the language. Press to switch between languages. Press and hold to confirm the selection.

Product Overview

Charging Base

L. Charging Contacts
2. Air-Drying Outlet
3. Air-Drying Inlet
4. Power Cord

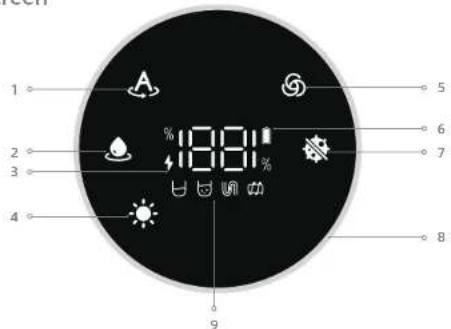

Display Screen

1. Auto Mode

Drying Mode

2.Suction Mode

5.Turbo Mode

1. Charging Indicator

Low Battery Indicator

1. Dust Concentration Indicator

The color of the curve changes with the amount of dust in real time.

Breathing Orange

Solid Orange

1. Error Messages

Insufficient years in the
Clean Water Tank
Used Water Tank Full
10. Blanked tube
Blocked tube Brush roller stuck

Note: if the appliance is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to find your solution.

EN Installation

Assembly and Disassembly of Handle

Insert the end of the handle vertically into the port on the top of the appliance as indicated until you hear a click.

Note: To disassemble, press the contacts in the hole on the back of the appliance with the appropriate tool and pull the handle upwards at the same time.

Installing the Solid Waste Filter Basket

Remove the used water tank and pull up the tank cover to install the solid waste filter basket.

Note: If the solid waste filter basket is not installed, other functions can operate normally except that the solid waste cannot be separated.

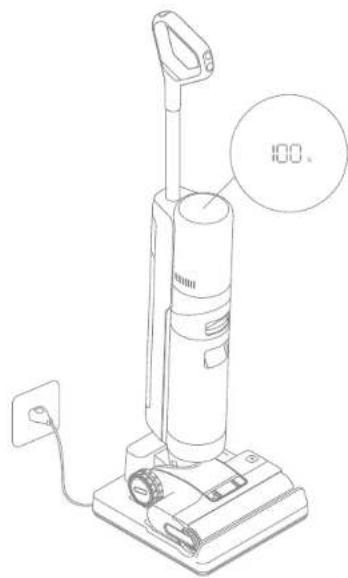

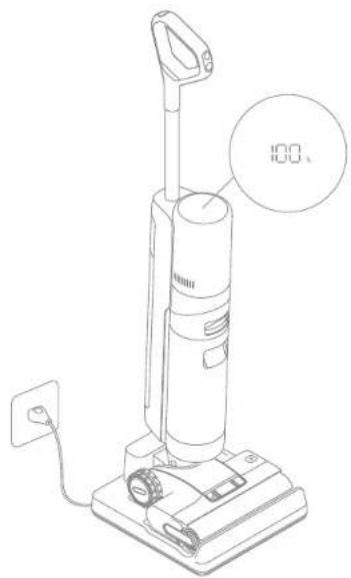

Charging

1. Place the charging base against a wall on level ground and connect it to a power source. Fully charge the appliance before first use.
2. Place the appliance on the charging base. When charging, the number on the display screen represents the current battery level as a percentage. When the number reaches 100, the battery is fully charged.

Note:

• If there is no operation within 10 minutes of being fully charged, the vacuum will enter sleep mode. Please restart the appliance if you need to use it.
• To extend the battery life time, the battery keeps cooling down for about one hour automatically after you have used the appliance for a long time.

EN

How to Use

Filling the Clean Water Tank

Press the Clean Water Tank release button and pull the tank outwards to remove it. Remove the cover of the Clean Water Tank and fill the tank with clean water. Install the Clean Water Tank and ensure it clicks into place.

Note:

For better cleaning performance, it is recommended to add 10ml detergent with the bottle cap into the full Clean Water Tank, then shake gently and evenly for use.
- Do not add any liquids other than the officially-approved cleaner. The cleaner can be available on the official online store.

Starting Cleaning

Gently step on the brush cover and recline the appliance backwards. Press the power switch (b) start operating.

Note:

Do not vacuum any foamy liquids.
- If the appliance is in the upright position while working, the current task will be suspended. - The appliance is suitable for cleaning floors, marble, tiles and other hard surfaces.
- Please press the brush against the floor when using. Do not recline the appliance backwards more than 140^ to prevent the appliance from leaking water.
- When the appliance is in operation, do not lift it off the ground, tilt it or lay it flat. Doing so may cause the used water to flow into the motor.

How to Use

Switching Modes

The appliance is powered on in auto mode by default; you can switch to the ultra mode—the suction mode—the turbo mode as needed.

Self-Cleaning with Hot Water

1. Place the appliance back onto the base while you finish cleaning. Ensure that the water in the Clean Water Tank is sufficient for self-cleaning.
2. Briefly press the self-cleaning button on the top of the handle to start self-cleaning with hot water. Switch between self-cleaning modes according to the voice prompts.
3. Please empty the Used Water Tank after self-cleaning is completed and drying mode has been engaged. Press the button to exit the drying mode.

Note:

• The self-cleaning function can be enabled only when the appliance is being charged and the battery level is more than 15% .
• Do not touch the brush roller, hot water and the heating module on the charging base during the self-cleaning process.

Empty the Used Water Tank

Press the used water tank release button to take out the tank. Pull up the tank cover and pour out the used water. Reinstall the tank cover and the tank before use.

How to Use Care & Maintenance

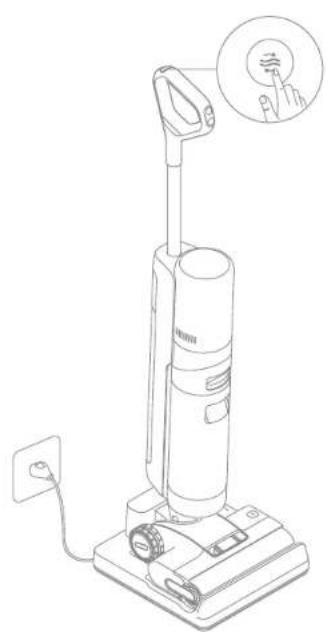

Drying Mode

1. Press and hold self-cleaning button for 3 seconds to activate drying mode.
2. The appliance will be charged once drying is completed.

Note:

• After self-cleaning is complete, promptly clean the Used Water Tank. Clean the charging base if there are any stains left on the base.
• If cleaning the brush roller manually, please air-dry it thoroughly or dry it by using drying mode several times to ensure a good drying effect.

Tips:

• Turn off the appliance before maintenance. Do not touch the power switch.
• Replace parts if needed. The parts must be replaced by those available from the manufacturer or its service agent.
• If the vacuum is not used for an extended period, fully charge it, unplug the power plug, and store the vacuum in a cool, low-humidity environment away from direct sunlight. To avoid over-discharge of the battery, charge the vacuum at least once every 3 months.

Cleaning the Used Water Tank and the Filter

1. Press the Used Water Tank release button, and pull the Used Water Tank outwards to remove it.

2. Take out the filter from the Used Water Tank cover. Pull up the Lank cover and pour out the waste water.

1. Rinse the Used Water Tank and the tank cover with water, and clean the inner wall of the tank with the provided cleaning brush.

2. Re-install the filter and the Used Water Tank cover. Then re-install the Used Water Tank until you hear a click.

Note:

If the filter is dirty, rinse it with clean water and dry it completely before use.
- Replacing the filter every 3 to 6 months is recommended.

Care & Maintenance

Cleaning the Solid Waste Filter Basket

Remove the Used Water Tank and then pull up the tank cover. Separate the solid waste filter basket from the tank cover and clean it.

Note: If you do not need to use the solid waste filter basket, you can remove it.

Cleaning the Brush Assembly

1. First, press the brush roller cover release buttons inwards on both sides to remove the brush roller cover. Press the brush roller release button, and the brush roller handle will pop out. Pull it to take out the brush roller.

2. Clear any hair and debris caught on the brush roller with the provided cleaning brush. Rinse the brush roller with clean water and dry it completely.

Care & Maintenance

1. Wipe the suction inlet with a dry cloth or wet tissue. Do not rinse the brush assembly with water.

2. Re-install the brush roller and the brush roller cover until you hear a click.

Note:

Clean as needed. Alternating use of the two provided brush rollers is recommended.
- Replacing the brush roller every 3 to 6 months is recommended.

Cleaning the Tube and the Dirt Sensor

Remove the Used Water Tank, gently wipe the tube and the dirt sensor with a wet cloth before use.

Note: Do not rinse the tube or the dirt sensor.

Troubleshooting

If an error occurs, the appliance will stop working. Please refer to the following table for troubleshooting. If the problem persists, please contact customer service.

Error Possible Cause	Solution
The appliance does not work	The appliance is out of battery or its battery level is low	Fully charge its battery before use
	The appliance is in the upright position	Recline the appliance backwards
	Blockage activated overheat protection mode	Clear the blockage and wait until the temperature returns normal
	The Used Water Tank is full Empty the	Used Water Tank
	The parts are not properly installed	Ensure all parts are properly in place
The appliance charges slowly	The temperature of the battery is too low or too high	Wait until the battery's temperature returns normal
The suction power of the appliance is weak	The filter is clogged Cleaning the filter
	The suction inlet or tube is blocked by a foreign object	Clean the tube and the suction inlet
The motor is making a strange noise	There is too much used water in the Used Water Tank	Empty the Used Water Tank
	The suction inlet is blocked	Clear any blockage in the suction inlet
The dust concentration indicator is solid red	The dirt sensor needs cleaning	The dirt sensor is in the tube. Follow tube cleaning instructions
	The cleaning solution concentration is too high	Dilute the cleaning solution with water at the recommended ratio
	A third-parly cleaning solution caused a large amount of foam	Use only the officially-approved cleaning solution
The display screen does not light up while charging	The charging base cable is not plugged into the electrical outlet	Make sure the charging base cable is plugged in
	The appliance is not placed onto the charging base properly	Make sure the appliance is placed onto the charging base properly

Troubleshooting

No water is coming out of the appliance	The Clean Water Tank is not properly installed in place, or the water in the Clean Water Tank is insufficient	Re-install or fill the Clean Water Tank
	It takes 30 second to dampen the brush roller	Turn on the appliance and check again in 30 seconds
The vent leaks water	A collision or a sharp pull causes water to enter the motor; lift the appliance off the ground, tilt it or lay it flat	Move the appliance gently back and forth and press the brush against the floor when using
	The filter is not completely dry after being cleaned	Dry the filter completely before use
Self-cleaning fails	The brush roller may be jammed by large debris	Remove the brush roller cover to check and clean the brush roller
	The appliance is not placed onto the charging base properly	Make sure the appliance is being charged before self-cleaning
	Self-cleaning cannot be enabled if the battery level is lower than 15%	The self-cleaning function can only be enabled when the appliance is being charged and the battery level is more than 15%
	The Used Water Tank is not installed in place, or the Used Water Tank is full	Re-install or empty the Used Water Tank
	The Clean Water Tank is not installed in place, or the water in the Clean Water Tank is insufficient	Re-install or fill the Clean Water Tank
Poor drying performance or strange noise while drying	The air outlet and air inlet of the charging base may be blocked	Check and clear the blockage of air outlet and air inlet

For additional services, please contact us via aftersales@dreametech. Website: https://global.dreametech.com

EN: Error Prompts and Solutions

If the appliance is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to find your solution.

Error Icon Possible Cause Solution
	Insufficient water in the Clean Water Tank	Fill the Clean Water Tank
	The Used Water Tank is full	Empty the Used Water Tank
	Brush roller stuck	Clean the brush roller with the provided cleaning brush
	Blocked tube	Check whether the filter is clogged Alternatively, clean the tube and the dirt sensor
	The brush roller and tube are dirty	Place the appliance back onto the base for self-cleaning

Error Code	Possible Cause Solution
E1-E7	Error	Restart the appliance for troubleshooting. If the problem persists, please contact customer service
H1-H6
H7 Battery overheating	Wait until the battery's temperature returns normal.

Specifications

Wet and Dry Vacuum
Model HHR27C		Charging Time	Approx. 4 hours (including drying)
		Drying time	Approx. 30 minutes
Rated Voltage 21.6 V ---		Charging Voltage 27 V ---
Rated Power 300 W		Used Water Tank Capacity	700 mL
		Clean Water Tank Capacity	900 mL
Charging Base
Model	HCBC	Rated Input Power*	234 W
Rated Input 220-240 V ~50-60 Hz		Rated Output	27 V--- 1.6 A

*The rated input power of the charging base is measured when the drying function and the charging function are turned on at the same time.

EN Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility.

the battery must be removed from the appliance before it is scrapped;
the appliance must be disconnected from the supply mains when removing the battery;
the battery is to be disposed of safely.

Removal Guide

1. Remove the display screen by rotating it with a tool.
2. Remove the screws on the battery cover in turn and then pry open the cover with proper tools.
3. Unplug the terminals between the battery and PCB board to remove the battery.

CAUTION:

• Before removing the battery, disconnect the power and run out the battery as much as possible.
• Unneeded batteries should be discarded at an appropriate recycling facility.
• Do not expose to high temperature environment to avoid risks of explosion.
• Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.

Important Safety Instructions

Time-lag miniature fuse-link where T 3,15A is the symbol for the time/current characteristic

Informazioni RAEE

Acquaininsufficiency

m = 311

tacque de agua limpa

Nivel de bateria 20%

Vergslig: Nivel ds bateria.>20%

OrpaHueHnno nncnoB3OBaHnIO

He npynckyaetra nncnlo3oabHne 3toTnIeNnIeBtIeMnMnIaD8net, a taioke NuaJAMn C orpAHHHbHMn DmHcNEKMMn CENCOPHLHMn NmYMCCTBEHNHMn CncoOBDHOCTAR Mn C orpaHueHHbOMbTOM mN 3HaHNRMn Be3 pnpcMoTPa PoDITTeR Nn ONeKByA dN oBeCENHnE B60aONCHKcNpyATAuN M BO 3H2eKahne PCKOB. He no3BoJIyTe DeTAM OcyUcETBnTB NcCTKy N texHHueCKoe ObcNyKbAHVe YcTPOCTBA Ee3 pnpcMO.
Пл actKOBуЗацHTиМATEPnAHLMOKETbIbTOAnCEH.He xpaHITe erO pAOmCTeBmU BOI36KAnHyDyyuEHHa.
Vchonb3yIe npBop Tnbo B nomeueHm Ha TaKHX HeKOBpObx NOBepxHOCTX, KAK PBX, PnNTka, lamHHAT n Dp. TblIEcOC He JdONJEH pOe3KAbT NO HENIOHTbIM NOBepxHOCTM Ib60 bDnK kpaes BOpOB. 3aKnHnBaHne UeTK MoKET npBecT K NOBpeKDeHIO peMH paHbe cpoKA.
Icnnobnayye npnb60bn ToBko ncoaranaHnTcpykuniam B yKOBOKoTeBne o Kcnnpyataaui. Icnnobnayye toBko Akceccyaep, peKomeDobAnhhi npnsOBDiJeTM.
ZaepaeTcA TnOBeBparbPnIOB OoBdEChInIOnrOfHIOb BvCOKoTNempeAtpybl.PnONKTAKTe COrHM NmPi BvCOKoTNempeAtpy MoKet npOsnOHTBvBpB.
- 3aŋpeətaTc mnoIb3oBbT pnpBop npn 3KCTPmAbHn TEMNepaType (Hnke 5^ / 41^ nnn BbIe 40^ / 104^ ).BbInonHnTe 3apAky npnBopa npn TemnepaType BbIe 40^ / 104^ .
3anpeaaetcnoptykaTb npnbop BnnkocTb.
3JnpeaTcH NcTb08aTb np6oB Dn y60pKn IeKIO BcTINAMeHNIOXNCRA INTOPOHX XIKNDCTE, HApmPmeBep EHHNA. 3JnpeaaTcNcNbIbOaTB B MeCTax, rTe MOryT bHTB BHIeUYkA3AHHHHe KJNDKCTO.
3aPepuETcP a3MaEaTb PnpeMeTb bOETBpIYX.3aPepuAeTCR MOnb3oBaTb np60B 1 cyueae 3acopEnHr OETBCTry. NIOepKMBaTe IPOxoDmocBt B03dyXu ue3 OTBpCTHn ydaJIaJIe TpbJIb, BOUPNHI, BOONCSI bApYIMZEMePTb
He mcnlonbayte nIyIeocnD y60pIK ToKcxuHbX BeueCTB (HaNPmepOTBeHNBaTeB, AMMnAaN, PAnTHOBnBDoHtEnBn np.) 3aIpeauTaCToCobipatc c NMOUBo IyIeocCa TcKIO, RBOzdn, BOJTH, MOHTbN Dp.
3a npaeetaeTc nnonb08b npio6B mectax nnapenma Kpackn A npynx cycbtacnn. 3anpeetaetc cobnpatb topeuie nbo dbmuaeepc npedMeTb, Hapnpemc cirapetb, cnmmn no nenen.
-3anpeaaetcncnolb0aBt np6op 6e yctaHOBneHHbx fnhbtpoB.
- DjeX9e NTBOCSI, CboOoNDy OeJxdu, naJIbui eApYrte YaCTH Tena Ha pCCTOHNN OT 0TBEpTrnB aDxWuXUxHcTeIaIepNbOpaI erOaKecCyApoB.
BovemnnoobamovnbopbOeepntBe cHpybniHnaua Hae3da HNHXMOKEToBHNOHHTybnOAnOChbT.
- ByabTe PpenbHO OCTOPOXHb BO BpEMO uNCTKN DECHNHB.

BaxKhIe Mepbl npedocTopoXHocTn

06cnyxmbaHne xpaHeHne

He donyckaIte HnpeHnmepeHHbIX 3anyckob. Ipeep TEM, KaK npdmmbT bI60 nepeHocNT bpnp6pBv6dntc, cyo BblKnOHTb HxOJMTcB n03mIM BblkN. NepeHoc npbopa c 3akimom BblknOHTeLa NIO BO BKNIOHemCOTOrHM MoKet npBecTe K HeCACTBHm CUYaAM.
YIEHNTBEC,HTO pN6Op pA3MeueH HApOPI30HbON NOBepHXOCTN.3aPpeaETcNIOIb30BaTpN6Op BAnAIOHNO HOIN,ecnPOINKOBAAeKA INIpyKaHXODATCR He BEPTKANBO.H2AaPeAETCAxPAHITN pN6Op B MeCt e PCHKO 3AMOP03K.
BuknouaIte npbop nOcoedHnHreeroTpo3TK, KOrda OH He HcNpbl3yeTCpepe OuCKToK, pemOTmONnHOnOc2yKnBaHnEM, a TAKKE nepeD noLCOeHNHeHnEM nn OTOcoEHNHeHnEM BpaauIoJeCR 8eTKe.
3JanpeaetcaNcNIOJIbO8bTOBPoeKJHEnHINMOdMnIuPoBaHNNI INp6Op. IVocnpHHeBnIeNoMoDnIuPoBaHBoBBAeKKyMmIITOpB MOYET BHTCceB
HNEPDC3AAYEMO, YTO MOKET BHaB3BaTbO3ROpAHne, B3pBb NIOo PNCK NNOyUHNr TBAOM. 3AnpeaetcaMoDnHmNIOuPiobatbMbNoCHUINr hpiop6oCnoSMoA, OTNIHUMMOT
3AnpeaetacnVcnoIb08aTbpnO6pCnOBpeKHeHbMaIeTaJAMn (HaPnpMeP,3apRnHO 6a3o, Ka6enem n.d.) EcnI TaBnOBpeKHeDa, NeboXoDmIO BuNpOnHbTe e 3aMeHy y npO3BaOHTeep, cepBnCHORo aHETA INy dpyrOrO kBaNInHpOBoHPOReHoro nepcoHObA HnB6ekhaNe ONaChOteh.
BbnoHnIe ToxobcnyBANHe TOnbKc NOMOsbK KBaHINuPBOAHoro TexnepcHOHa n icNoBbte ToNko IeHTNHyIbe TeaJIa DnA aMeHb. 3o NoBONIT rapaHTPOBaT beOanachoct bNdEINIA.

AkkymyIaTOp I3apIka

ДИУпдзардупгшпсicнльшte толькбау ВКOMПЕКТСЯрpeWAETcY nIbOBAOBt bOLIOB kaarapdhyo Sa6y HCBC.
CneyuHnIe HnCTpyKuMn IA 3aPKeJx Ie H3aKeJyAe PnBbO cPbe c TemPeRatpyoB B1yue Kka3HaONHn A KaKyMnYrTOpe, TAK KAK TNO NobIIuaET pNCK B03orpaHIn.
534aIJ3A4KIMOCHaJIeHbYHKUINPcOUsKINIOXoDITTOBkoIINPOCUsKIMETKNIp6oBa.
- Depkmtde3a7n da3apKnBdA1nOT HarpTebXnbOnePbxHOCTe.3aPcUaETcTporAtbpa3emBa3bI nra3apKnHnpOpBnAAkHbIMpyKaMn.4ToBbBytaunTbpa3emBa3bI da3apKnB03bMNTec 3a Hero, a He dePaTMe 3a KaBefn.
3AnePuaTcTaunHnHeCTnBa3yDn3aepKnCnMoouBkoBeN,TAkOeMCnONb3oBaT bero B KaueCTbe pyuKn, npKmMaTbe eOpBbIO nnObMaTbIbTaBbOKpyr Octpbix KpaEB n yfnoB.
JaHHOe N3dJIeNE OCHaIeHO AKKyMylrTOpOM, 3AMEHY KOTOPORo DOxNkHb BlIOJNHTb TOnBKO BAnIINuPoiPOBaHHbTe XTHUHeCKeKne CcEuaAInCTb IIN ppeCTaBtENn NOcEnepNoDaXHOrO OFcNynKBaHn.

B I NHTH-NHOHOM AKKYMUTOPHOM BNOKe OeepKATOn OAnbHeI ANO KPOYKAIOUe Cpebl 2NEMtBu. PedeY YTHnAuaaNepo6Ba Chauhana Ia3BeKneke AKKYMUTOPHOM BNOK, 3aTeM Bly Mokote EOr YTHmIoPobAty INNepeApOtaTb C COOTBCTBn C MecTHbIM 3AKOHUM NpaaBnAMn BCTPAe Hnnr pENPOHeuPIMEHENe.

PnI IN3BcEHHHk AKKMylTOpA HeO6xOJIMo OTeKIOHbT PnIbOpOTeNtKpONITAHnA XpHAnIE AKKMylTOpB b HEDOCYTHNOH dAeTaeMeCTa 3AnpeuaeTc KAAbT AKKMylTOpB b PO.T BcNhye pOnlattBaHnA CBrXHTecb c TepaeeBTOM Ia6b MeCThMb OTdENLo KHTPDPT OaNHbXb EueCTb.
B yCIOHbX, npOToBpeaUxhYcTaHOHbENbHM, 3ApneuaTecRpnKacTaTcR K AkkyMynlntopy, V3 KOtporo BbTEkaeT XnKIOckTe. Ecn OKIHTAKe T He YdaIooL bEkoBeTak, pnomoe MeTO KOKTAKO BODOI. B Cnyae NoonadAHAnk KAKyTAIO TPOH JIKKOCTN Br Ia3a, HemeDneHNO

BaxKhIe MepblnpedocTopoXHocTn

obatpTe3a MednHckon NOMOJIbK.AKKMyTTOphAR JIKKOCTbMOKETBb3BaTa bpaIpaKeHHeN NIOOK
He nCnOJIbIyIte Henepe3aepAaeBme BapApen. HeBbIIOJIHHeIe ATOIO TpeGOBAHNI MOKET PNPCTC X BCNOJIaMeHEHO NtAIu-NIOHORo AKIKYMNTOpA.

3HaKn

06opdyobabHne knaCa II

3aEepkaNo BpeMeMa MNHnAtoRa NnBkra BCTBaKa rte T,15A 06o3haueT BpeM/TOK

HInOpmaB6 oytnmuaa n nepepaOtoe OTOXoB 3KeTpueckoro n 1EKePPOHHOrO 06OpyDAnH

BcN3eHINCnBOMPaaEBHObC0bOPaTOABoTHORO3NEKTPUeCKTO
N3eKTPONHOOBOPOyABHN（DnpeKTHBAWEE2012/19/EU）cnpyer
YTNMIMPOBaTbOTdEHO TO HECOPHTPyMeBx BbTOBbX bTOXbO.CzIbHO OXPaH
3DOPOBbN 3AaHTuO KpKyaQauJe CpeDu Tako ObpOyDaHne HeoXoDMa
CdaATb HApePobOxyB CteLNaHbNHe NByNTkPiPmeA3NEKTPUeCKO
N3eKTPONHOOBOPOyABHN, ONpeDeHHeNbIe npaHTenCTBOMHIN
MeCHbHMn OPAHMABnA.
PpTaBbNA YTHmAAu IN PEPepBOKa NMOYIT
NPDPoTAtaHTa BO3MOXhHer AetAHBHe NocPeCTBn IAOKpyKaoue Cpebl
N3DOPOBbY eNoBokA.DnI pNOyHnH HIOpOpMaUN O MeCTOHaXoJdeHN
NpOpaKe PpMeMa YcTOBbB BY NpHXtA PPMeMa O6pTaTECb B KOMTanH
3AHAAMUOyOCYTAHOBKOOBOPOyBAHn,NIN B MCEThBe OpaHr Bnactn

Mepbl npedoctoopoxhoctn npxpanenm TpaHcnpTnpOBke:

PpOyKrTOJoxKeTHpCnHOrTPOBAtCBaYnAOkOBe. He NOBepraTe pOyoKrDaJIeHHIO INN YAqDAM BO BpEMToTaOHCPOTNOBOKR,
Poxanyta, nabeiye CnblbX CTOLNOBHEN BO BEMPH TAPCHONTOIMBOK. He TaHcHcyTPOFIOE PNOPTNATPOTA HUO 50C2HNAHNE-10C
B TEEHNE KOPATKORA NEPNOA, HAPINPME OJHORO MECAU, PNIPOB POKEMOHYEYTCXPAHNTI, npn TempepaType 0T-20C Do 50C NOTHOCHTELHO BNAKHOCTN 60% 5% B TEEHNE DNT ENBHO BPEMENX XPAHNTI PNIPOB PNIPETMEPA Type OKPYAKJOe CpeBbO T O 0C 40°C.
YTNN3HpyTNE pnpBOHnADHeKauMOBpAOM.KoJaeroCpOKnKbIbNDoDIOETK KOUy,YT WnH3UPyTE npBOPB CootBcTBmC MeCTbHM 3aKaOHAM INpaBnAmCTpaHBINnPER OH,B KOTOPOM HNCNOLUYOT.

Pnabna nycnoaepnna3auu:63 orpHmehn.
Mnnpotep npoaeTOT npOyK, HNFOPMAUHO 6MnnpTepe cm. Ha ynakOBke.
CBeDnE O6 MnpOtepe N KOHTAKTHAR INHFOPMauo OTdena NOcENPODAKHORO
OcnyBaHnYkazAhaHbHa YNAKOBKe.
Data nroTOBHeHH:cm.Ha ynakOBke.
CpOK CNYBblnpOyUaun 3 roda.

Mbl, Komahna Drame Trading (Tianjin) Co., Ltd., Hactonzim 3a81b8m, TQo dAnho hou 3nnde cootberctbyteTreboBAMHBCXeDeytBuHMMNdxPekcE EC n beponeKnx CTandaprot BO CECM NAmehENHMn HdoONHeHHMn, PnHbI TeKT deKnapaunn o COOTBCTBNHn HOpMaTHBnM TreBoBAMHm EC doTyneH no apecy: https://global.dreametech.com PnropoBHOe anKeipnoHoe pykoBoc180 cm. no apecy https://global.dreametech.com/pages/user-manuals-and-faqx

0630p n3dennr

KoMnJIeKtauNIA

Pyka

Kopmyc6a3a dIa 3ap4d

CMeHHbHnBtp

6.NiHikAnOp HIN3KOrO 3aepdaBatape

NoctGTHOROPTOP
opHaeRbM:YsOBReHH.3A0P6KJN
GURVHTOEN 20%
TocsohoHOPOTJIeHbHMYUoCHBpEeHBNBIOOPOP>20%
7.PeximYbtpa

1. HINKAKOT KHOHHTPAUNI BNAI INETKHPNHNHMSCHCNBEN 3AAYOBHEKCKONIRIBUEC NANB PAPNNP BPNNE
   9.Coo6eHnna 0bOwnokax
   B BIBGEHIOCTAOHO HOCTOIOHO
   Bak cortapobotanohnn Boudn nepehnen
   Tpybka 3acop/3a2 P08ko13u13e4

Prrnneae Hcnnn paoaetet HeeepkTHe,Ha ncepeo 06paa3rCoo6eHene o6 oOwHKc. CM Tabniue yctpaehene HncmpanpaeeBte for noNcKc peohien.

RU YCTaHOBKa

YcTaHOBKa pyuKN

BCTaBte KOHEU pYKOTKBAE BTEKHALBO H O BTEPCTHE B EBPXHEA UCTPOCTBA, KAK NOK3AHO HA PNCYHKE, IN BDBINBE tpyKOTKDO UENCHKA.

PMMNAAHHe:OBTCHBtPyKHy, HAKMITE HA KOHTAK 9 OTBPECTIN 3AHDH CHACTY PIIIEOCMA OHOPMEHNO NOTHTHE PVY B8EPX.

YcTaHOBKa KapKaca pInbTpA dIy TBepDOrO Mycopa

BbHbTe BaIy IINIOBaaHHo BoIy NIOHNMTe KpbIaKy Baka, YTObI yCTAHOBITb KaPac FmNbTpa Dn TBePDOrO Mycopa.

IprodmeHneE: EcnKapn KefnBpA Tna TseDPO Myocpa HcyTaNBOHe, DpyryeDHyHNKU yTOyCNBBA MOYt paObTaB NCNpAOHO, HO TcePbn MyoC pOteNTb BytED HcEBIOOMXHO.

3apdka

CTAHOBNTB 3aJyI 3apAHH HA TOpIN3OHTA,bHbN IOBepxHOCTn NepnEHNkYNpH0 CTEHe HNOKIIIOHTe ee KIOCTOHNYK NITAHN.IpePe TEM KaK HauTb INCNoJI3OBaTb npINbOP, NOHcTbIOZAPrInTe erO.
2.YCtHOBnE pnpbHa b3ae 3apAekn. Pnpbpepeeet B peKm npa3apAekn, KOa nOpaTBA rONOCAB KOMaHd HAaTaB No3apAky). B npocce cno3apAekn CpPba Ha dncnne e noakBaBae Tekyun ypoBeh 3apAkyakkmyTApOB a npoepHTax. KOrda LpFpa doCTINHT 100, AkymyTApO 5dyet noHIOCTBO 3apXKeH.

PnmeHNE:

ECN TAECHNE 10 MNHT Ncno NnHIOI a3aepdNnAeEO HnOEPbEyTcH. OHpeEETB Cnssnn EPKENH. YOBoS nncboBaBnPn6oB, neopcayEYrEo.
CzIbUyBvIeHnIcPcKoCkByKbAkyMHTOp AYOMTmHcyckN OXIAkDaETCR TteHHeHacnPo nOeIaIbHOrFOVIOcNlOs3BaHnI pRbOpa.

RUI NopradknCnoJb30BaHna

3aONHnTe 6ak c nCToBdo

HAKMMTE HA KONKY OTOOENHEHNA B4A C HCTO BODI, YTOB6I NABNEB6 BAK. OKPONIE KpblkU HANONHIE BAK MCTO BOIO, NOBTOPO YCTAHOBITE 6AK C HCTO BOIO HA MECTO TAK, YTOBI PdADJICA ZENHOK.

PpmeaHne:

• nI NOBbHHeHnKaeCTBaOcHTKePcOMeHyTeTcDobabTb 10MlVCHTJero CpeCTBa B KOJIaueB H NpOJIeHHeHb B6A C VICTO BDOIO, a 3ATEM AKKpyaTHo ETO BCTPXHyTb DABHOPEHbMbDBeKHEHmIA.
  3AnpeLaETCAODBAIBHJIKDCTNHNKCTRUECPECDTBA,HOoDpBeHbE KPNIMHeHHIO, HuaTREUe CEPADTBDQDTNYHOBNOVAHBOHNOH-MAFA3HE.

Haatay6opky

CnerKa Hactynite Ha KpbIbIKy IeTkn NOTKINbte YcTPOINCTBO HA3a..HaxMITE nepeKIOHateBnNTAHNAH 1TO6bl HauHb paboty.

PnmeuHne:
-3anpeuaeierc nnoB3oBaIy60pknneHnueeKnaKocT.
- EcnB0BpMa6o7bI npH6ppeepetB aBepnKahhoe nolokxneH,TeKyuaa 3aada 6bydert pnoctahOBPAHcH.
Pn6bopNdoxOHTI D0AHTKOBHbIXNPOB,MPaMOPa,KaFepbHOIINTKIpyTHX TBeDpNIOEPCHOCT

Popraok nCnoJb3ObaHna

PnHcnoNbOaBNyUcTOWBCTA pNkMHTAE cETK N. HApKHOJIte Pnp60nHaAD HaYr 006n 140' IJRAPODTRpAeHNHPOTEKN BODI.
Bo Bpmea 0bTbY cTPOBCTBa He NoHmMae TEO HAD NOHM,He HAKNOHAE INe HE NkAIOE PTOHOHIO HO. 3O NOKMTPNCBTN KNoNDAOHIOHCNOBOAHHO BOI AINATATEB.

Ipeeknuee nepekmOB

No ymoIaHnIO npBOP BkIOueH BAOTOMaTneCkOM pexIMe, npN Heo6XoIMOCTNOxHO IpeKIOUHTBC RAyIbTa-pexIM,pexIM BCacBaHNu NtuTypo-pexIM.

HCTpyKnno n3BneueHHIO

1.OTKpyTTe DnCnne C NMOOuBHO INCTpyMeHTa
2. 0nOepeNdIaBNEKKeITBEHNbTIuN3KpUkIKN AKKyMylTOpA u3AteM OTKpOHTe KpUkIKY C nPOMOuHcNHOCTPmYrJ.
3. OToeepHInTe npOBoTa TepMHnHaNoB MeKdy aKKyMnyTOpOM n neaTHO nnatoN n3BJIeKeTIe AKKyMnyTOp.

MEPbI PEPDOCTOPOXHOCTN:

• Iepeb 132BHeHEnA kAKyMynTApO tOkLNQHTe pN6Op oT hCtOuHnKa nITAHnI MAKCNMAHBO iPACxOxyJte 3ap8d AKKyMynTApO.
  YENHbBIE AKKyMnIaTObpb Heo6xOdmo yTINIINsIOpBaT bPnCnIOcOeHNOM dA 3TOF MECTe.
  3AnepiaaTcOCTABMbIeNMe pRbCOKoTNempeTPOBaI6ekHnBeBpBBOB. B cnyuae npobekhEnAkyMKyTOpA hKIOKCTb MoKET bITcEb.PnI

CONPKNOCOBHEN C KINIOCTbIO NPOMOTMECTO KOHTAKTBAODIOI O6pATNTec3a MedunHcKO NOMOJIbIO.
