USER MANUAL 302553 CSL

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a CSL product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of delivery

• Gamepad
• User manual

2. Technical data

Connection USB
Keys • 12 keys	• 2 analogue sticks• Control pad• HOME key
Operating temperature -20°C to +65°C
Features • X-input	• Direct input
Compatibility PS3, Microsoft Windows 7 / 8 / 8.1 / 10 / 11

3 Product details

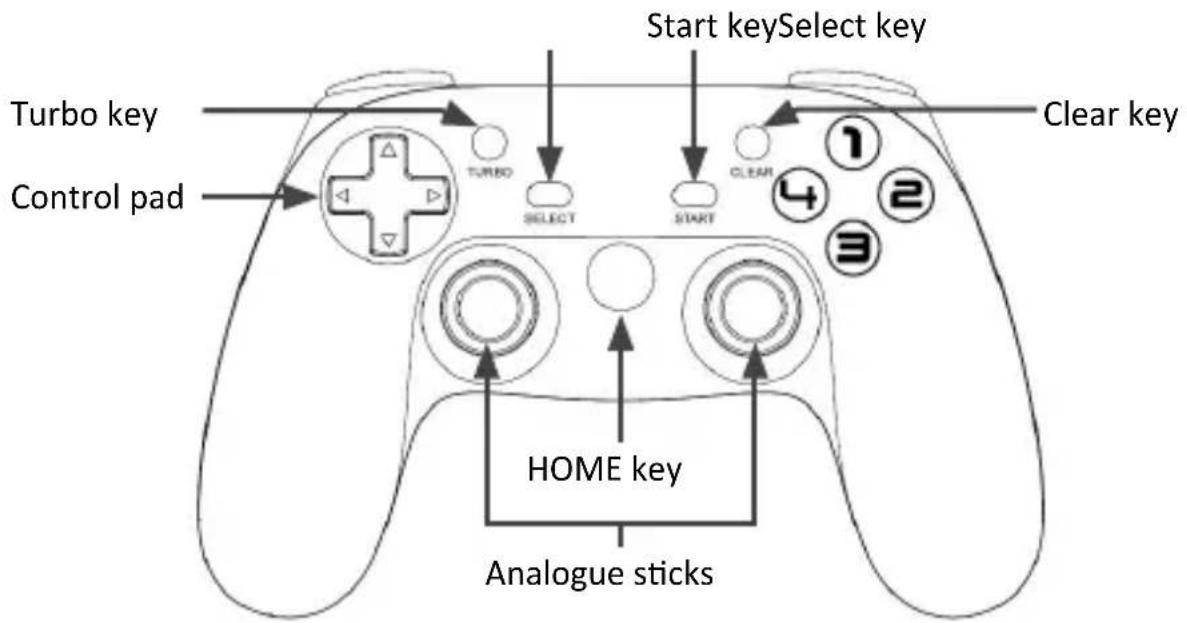

Turbo key Control pad Start keySelect key Clear key TURBO SELECT START 1 2 3 HOME key Analogue sticks

4. Commissioning

Take the device out of the package and remove all the packaging material. Then connect the Gamepad to any USB port of your computer or your gaming console. As soon as LED1 (left) glows, the Gamepad has been connected successfully. Thanks to Plug&Play, no separate driver installation is required.

Change mode

To change between the direct and X-input modes, you must shift the switch at the back of the Gamepad. "D" stands for direct input and "X" for X-input.

Direct input mode: LED 1 glows

X-input mode: LED 2 glows

In direct input mode, you can select between digital and analogue mode. To do this, press the "HOME" key in direct input mode.

Digital mode: LED 1 glows

Analogue mode: LED 1 and 2 glow simultaneously

The following table provides an overview of the LEDs and their functions.

5. Dual vibration function

LED Function
LED 1 glows Direct-input
LED 1 and 2 glow Direct-input (analogue mode)
LED 2 glows X-input

The Gamepad has two strong vibration motors. The controls are represented more realistically with the vibration effect.

Note: Please note that the vibration works only if the game or the program supports this function and the corresponding feature has been activated in the game options.

You can test the dual vibration function on your computer. Access the Game-pad settings in “System controls” under “Devices and Printers” (Windows Vista /7/8/10).

6. Configuration

It is necessary to configure the Gamepad for some PC games. For this purpose, first check the configuration in the Game controller settings of Windows, then in the game settings (or in an external configuration file) or use an additional emulation software for the required configuration.

7. TURBO function

The Turbo function allows one or more keys to be pressed continuously.

Function

The Turbo function is used to relieve your fingers. The keys configured with the Turbo function need not be pressed repeatedly in succession, but can remain pressed, to achieve the same effect. This function is especially suited for games, where a key has to be pressed several times in succession.

Setting

Press and hold one or more keys that you want to configure with the Turbo function (with the exception of the analogue sticks, the control pad and the "Start" and "Select" keys) and then press the Turbo key to activate the Turbo function for these keys.

Reset Turbo function

Press and hold one or more keys from which the Turbo function is to be removed and then press the “CLEAR” key. The keys that are not selected during this action remain configured with the Turbo function.

Please note!

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

UK C€ CA

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302553 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

MO-FR 9:30am - 18pm CET
