USER MANUAL 303597 CSL

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Wireless Gamepad
• Connection and charging cable
• User manual
  • 2x exchange pad (control pad)

2. Technical data

Connection Wireless (Bluetooth v2.1+ EDR), microUSB
Transmission power (EIRP) 5	6 dBm
Frequency range 2402 MHz-2480 MHz
Buttons Control pad, 2 analogue sticks, Share button,Options button, Home button, 4 control buttons(1,2,3,4), L1, L2, R1, R2, touch field
Battery 500 mAh, 3.7V
Compatibility Windows, gaming console

3. Product details

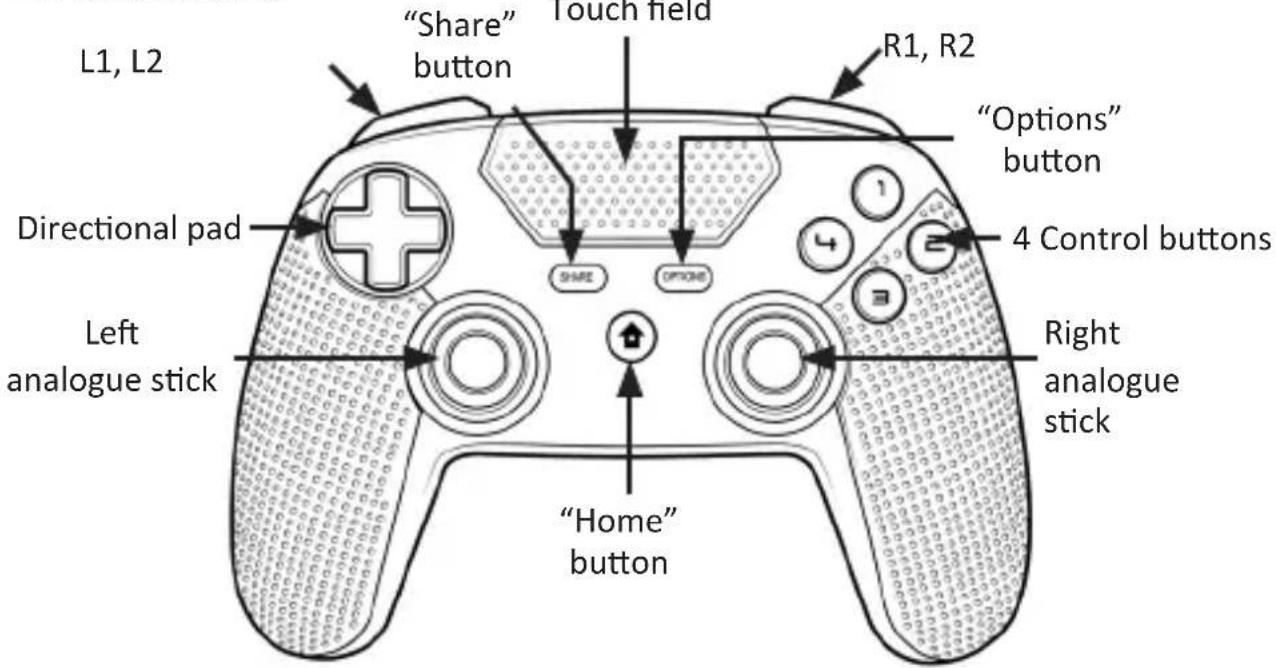

L1, L2 "Share" button Touch field R1, R2 "Options" button Directional pad 4 Control buttons Left analogue stick SHARE OPTIONS Right analogue stick "Home" button

4. Pairing

4.1 Pairing with the gaming console

When you use the device for the first time with your gaming console, you need to pair the controller first.

1. Connect the supplied connection and charging cable to the controller and to any available USB port of your gaming console. Press the "Home" button.
2. The pairing is now complete. From now on, you can use the device without cable with your gaming console.

4.2 Pairing with the computer

Proceed as follows to use the device with a Windows computer:

1. Connect the controller with the connection and charging cable to a free USB port in the system. Or alternatively press and hold the "HOME" and "Share" buttons simultaneously until the light bar starts flashing quickly. Pair the Gamepad via Bluetooth with your PC. The controller is detected as a Plug & Play controller and can be used with the standard buttons.
2. For some games, the key assignments have to be adapted to your requirements during the game, or use a mapping software alternatively. Suitable gaming consoles for the X-Input Mapper are available on the Internet as freeware.

5. Special button functions

“Home” button	Press: Turn on the device (when the gaming console is in off mode or in sleep mode)Display of “Home” screen (when the device is turned on)Press twice Switch between applicationsLong press: Opens the menu with the possible setting optionsWith the "Share" button pressed: Bluetooth Pairing mode
“Share” button Displays the “Share” feature menu.
“Options” button Opens the Options menu. Available functions are displayed with this.

6. Touch field functions

The touch field functions depend on the corresponding system and the currently running software or the used game.

7. Charging

Charge the device completely before using it for the first time!

The controller's battery is charged when you connect it to a free USB port in your system using the USB cable. Please note that while doing this, the system should be turned on or in sleep mode.

As long as the charging process continues, the LED of the controller is switched on. When the charging process is complete, the status LED on the controller turns off.

8. Changing the control pad

You can choose between 3 different control pads. Simply remove the currently installed control pad and then insert the desired control pad.

9. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. Please do not short-circuit the product.

The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please also follow the national regulations and restrictions.

Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303597 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EU Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganzeinfach.de/search/model/303597
