303458 - Controller CSL - Free user manual and instructions

Product type	Wireless controller
Brand	CSL
Model	303458
Connectivity	Bluetooth v2.1+EDR, microUSB port
Frequency range	2402 MHz to 2480 MHz
Transmission power	-2.08 dBm
Buttons	D-pad, 2 analog sticks, Share button, Options, Home, 4 buttons (1,2,3,4), L1, L2, R1, R2, touchpad
Battery	Lithium-ion, 600 mAh, 3.7 V
Compatibility	Windows, PlayStation 4
Power supply	Rechargeable via microUSB cable (included)
Dimensions (estimated)	162 x 98 x 52 mm
Weight (estimated)	210 g
Package contents	Controller, connection and charging cable, instruction manual
Special features	Touchpad, Home, Share, Options buttons
Care and cleaning	Clean with a dry cloth, avoid moisture and liquids
Safety	Do not open, do not short circuit, avoid shocks and high temperatures
Warranty	Compliant with current regulations (standard 2 years)
Certifications	Directive 2014/53/EU, WEEE: 2012/19/EU

Frequently Asked Questions - 303458 CSL

How to pair the controller with a PlayStation 4?

Insert the microUSB cable into the controller and a USB port on the console, then press the Home button. Pairing is automatic.

How to use the controller with a Windows computer?

Connect the controller via the USB cable to an available port. It is recognized as a Plug & Play controller. For some games, use an input mapping software from PS4 to X.

How to charge the controller?

Plug the supplied microUSB cable into the controller and a powered USB port (console or PC). The LED stays on during charging and turns off when complete.

What is the battery life?

The 600 mAh battery provides approximately 8 to 12 hours of use depending on usage. Charging time is about 2 hours.

Does the controller work with other consoles?

No, it is compatible only with Windows and PlayStation 4. It is not compatible with Xbox, Nintendo Switch, or others.

How to use the touchpad?

The functions of the touchpad depend on the game or software used. It can act as a button or a touch area depending on the context.

What to do if the controller does not turn on?

Check the battery charge by connecting the USB cable. If the LED does not turn on, try a different cable or USB port. If the problem persists, contact customer service.

How to reset the controller?

There is no explicit reset button. You can disconnect and reconnect the battery? (not recommended). Otherwise, turn off and on the console or computer.

How to clean the controller?

Use a soft, dry cloth. Never use chemicals or water. Avoid moisture.

Where to find the declaration of conformity?

The full declaration of conformity is available on the website: http://downloads.ganzeinfach.de/search/model/303458.

USER MANUAL 303458 CSL

MON-FRI 9:30am - 18pm CET

https://downloads.ganzeinfach.de/

Table of contents

1. Deutsch....3
2. English....8
3. Français....13
4. Italiano....18
5. Español....23

Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Wireless Controller
• Connection and charging cable
• User manual

2. Technical data

Connection Wireless (Bluetooth v2.1+EDR), microUSB
Transmission power (EIRP) -2.08 dBm
Frequency range 2402 MHz-2480 MHz
Buttons Control pad, 2 x analogue sticks, Share button,Options button, Home button, 4x Control Buttons (1,2,3,4), L1, L2, R1, R2, touch field
Battery 600 mAh, 3.7V
Compatibility Windows, PS4TM

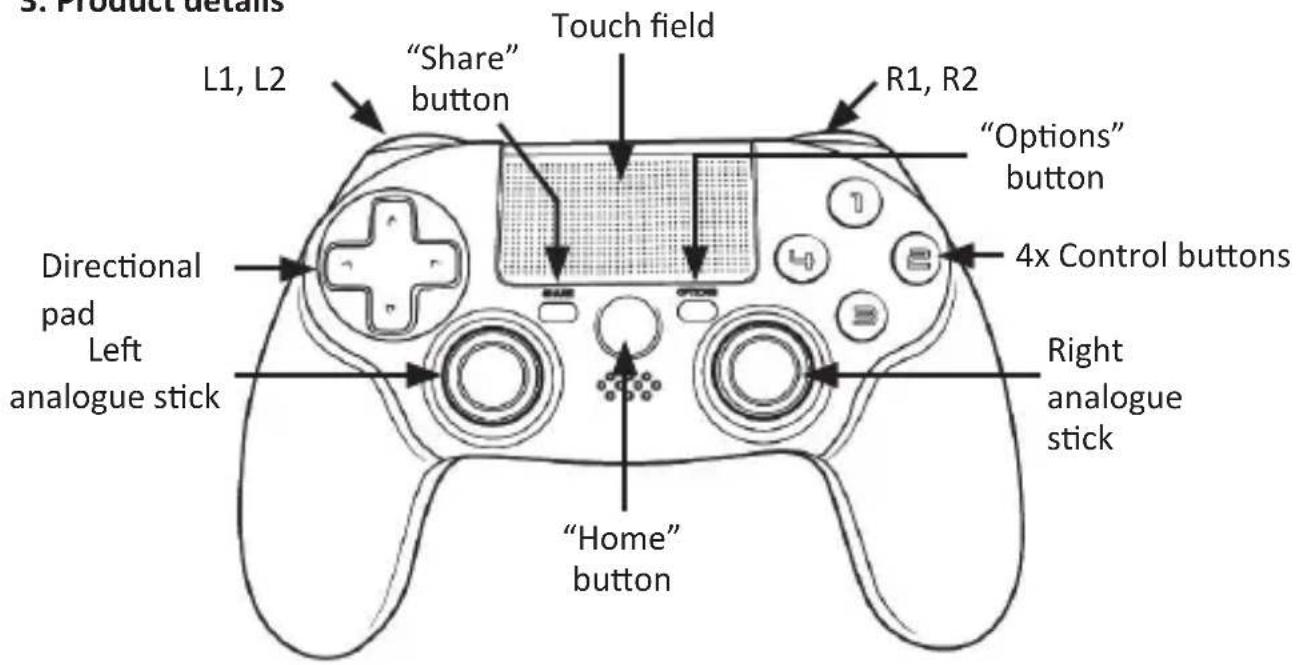

3. Product details

4. Pairing

Pairing with the gaming console

When you use the device for the first time with your gaming console, you must pair the controller first.

1. Connect the supplied connection and charging cable to the controller and to a free USB port in your gaming console and press the "Home" button.
2. The pairing is now complete. From now on, you can use the device without cable with your gaming console.

Coupling with the computer

Proceed as follows to use the device with a Windows computer:

1. Connect the controller with the connection and charging cable to a free USB port in the system. The controller is recognised as a Plug & Play controller and can be used with the standard buttons.
2. For some games, the button assignment needs to be further adjusted in the game to suit your needs, or you use a mapping software. Suitable X-Input Mappers for PS4 are available on the Internet as Freeware.

5. Special button functions

“Home” button	Press: Turn on device (when the gaming console is in off mode or in sleep mode)Display of “Home” screen (when the device is turned on)Press twice Switch between applicationsLong press: Opens the menu with the possible setting options
“Share” button Displays the	“Share” feature menu.
“Options” button Opens the	Options menu. Available functions are displayed with this.

6. Touch field functions

Touch field functions are dependent on the corresponding system and the currently running software or the currently used game.

7. Charging

Charge the device completely before using it for the first time!

The controller's battery is charged when you connect it to a free USB port in your system using the USB cable. Please note that while doing this, the system must be turned on or in sleep mode.

As long as the charging process continues, the LED of the controller is switched on. When the charging process is complete, the status LED on the controller turns off.

8. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device is free of electrical current only when disconnected. Please do not short-circuit the product.

The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please also follow the national regulations and restrictions.

Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used

only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

10. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303458 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganzeinfach.de/search/model/303458
