USER MANUAL 303674 CSL

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a CSL product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Wireless Gamepad
• USB dongle
• microUSB charging cable
• User manual

2. Technical data

Connection USB Type A, via	2.4 GHz receiver
Buttons • 10 buttons	• 2 analogue sticks• Directional pad• HOME button
Battery capacity 400mAh, 3.7V
Transmitting power < 0 dBm
Frequency range 2405 MHz	- 2476 MHz
Features Dual vibration function
Compatibility Microsoft Windows 7 / 8 / 8.1 / 10

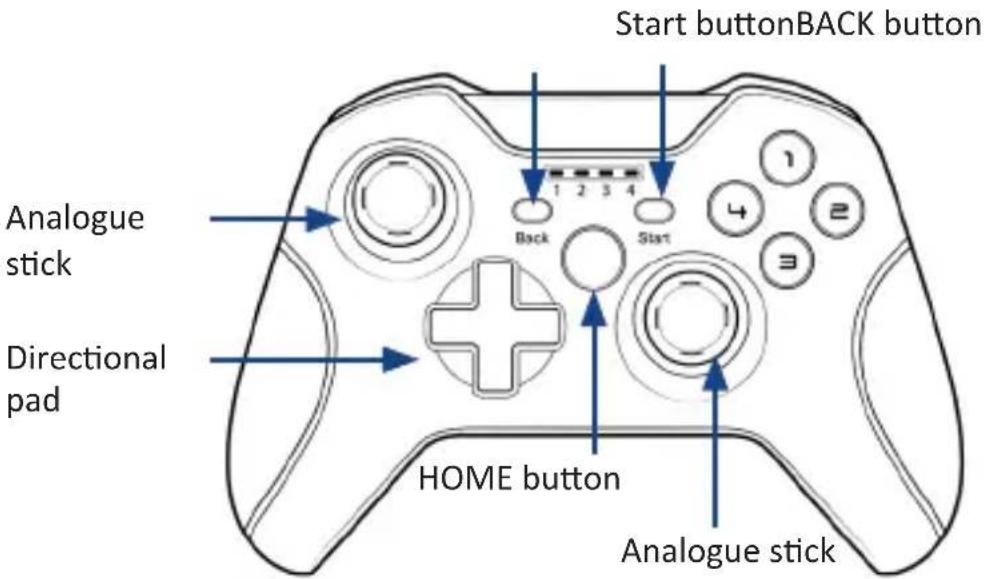

3. Product details

Start buttonBACK button Back Start Analogue stick Directional pad HOME button Analogue stick

4. Initial use

Take the device out of the package and remove all the packaging material.

1. Connect the receiver to any available USB port on your computer or gaming console.
2. Wait for about five seconds and then press the "HOME" button to register the Gamepad on the console. The LEDs of the Gamepad will flash during the pairing process.
3. Once the pairing is complete, one of the LEDs stops flashing.
4. Pair the signal between the Gamepad and receiver once again. You can reconnect the receiver and press the Home button again.

Thanks to Plug&Play, no separate driver installation is required.

Change mode

To change the input mode, press the Home button for about 3 seconds. You can then change between X-input and direct input. Pressing the home button briefly in "Direct Input" mode toggles between the digital mode (LED 1 is turned on) and the analogue mode (LED 1 + 2 turned on).

X-input mode is used for most modern PC games.

In the X-input mode, you will see the gamepad as "XBOX360 controller".

5. Dual vibration function

The Gamepad has two strong vibration motors. The controls are represented more realistically with the vibration effect.

Note: Please note that the vibration works only if the game or the program supports this function and the corresponding feature has been activated in the game options.

You can test the dual vibration function on your computer. Access the Gamepad settings in “System controls” under “Devices and Printers” (Windows /7/8/10).

6. Configuration

It is necessary to configure the Gamepad for some PC games. First check the configuration in the Game controller settings of Windows, then in the game settings (or in an external configuration file) or use an additional emulation software for the required configuration.

7. Safety instructions and disclaimer

Never try to open the device to undertake any repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Please use it only in dry places. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be recycled or disposed of separately, since toxic and hazardous components can cause lasting damage to the environment if they are disposed of in improper manner. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the man-

ufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303674/20200326TW001 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, http://downloads.ganzeinfach.de/search/model/303674
