Product type	USB sound card
Brand	CSL
Model	300657
PC interface	USB 2.0 High Speed
Audio chipset	Cmedia CM6206
Audio outputs	5 3.5 mm jacks (Line Out, Front L/R, Side L/R, Rear L/R, C/Sub) + 1 Toslink optical output (SPDIF-OUT)
Audio inputs	3 3.5 mm jacks (Line In, Mic 1, Mic 2) + 1 Toslink optical input (SPDIF-IN)
OS compatibility	Microsoft Windows 7/8/8.1/10/11
Operating temperature	0 °C to 40 °C
Power supply	Via USB port (5 V)
USB cable length	Approx. 1 m
Weight	Approx. 50 g
Housing material	Plastic

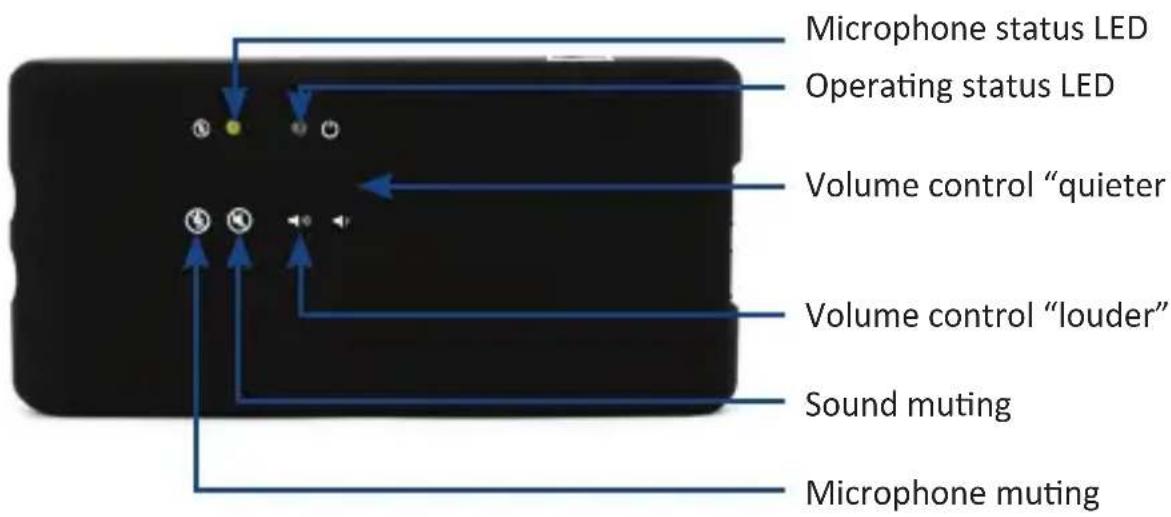

Additional functions	Volume control, mute, microphone enable/disable
LED indicators	Operating status LED, microphone status LED
Care and cleaning	Clean with a dry, soft cloth. Protect from moisture.
Safety instructions	Do not open the housing, do not expose to water, avoid extreme temperatures.
Package contents	Sound card, USB cable, Toslink cable, driver CD, instruction manual
Repairability	No user-serviceable parts. Refer to a professional.
Warranty	In accordance with legal provisions (2 years in France)

Frequently Asked Questions - 300657 CSL

How to install the driver for the CSL 300657 sound card?

Insert the supplied driver CD into the drive. Open the CM6206-1.03(CR) folder and run Setup.exe. Confirm the security prompts, then restart the computer. The driver is installed.

The sound card is not recognized by Windows, what should I do?

Check that the driver is correctly installed. Try a different USB port. Make sure the operating system is Windows 7 or later. Restart the computer.

Can I use this sound card with a Mac?

No, the sound card is Windows compatible only (7/8/8.1/10/11). It is not supported on macOS.

How to connect 5.1 speakers?

Connect the front speakers to the FRONT L/R jacks, the side speakers to the SIDE L/R jacks, the rear speakers to the REAR L/R jacks, and the subwoofer as well as the center speaker to the C/SUB jacks.

Why is there no sound?

Check that the mute is not activated. Make sure the speakers are connected correctly. Check the volume in the 'USB Multi-Channel Audio Device' software.

The microphone is not working, how to configure it?

Connect the microphone to one of the Mic 1 or Mic 2 jacks. Make sure that the microphone mute is not activated. In Windows sound settings, select the sound card as the default recording device.

Can I use the optical output (Toslink)?

Yes, the Toslink (SPDIF-OUT) output allows connecting an amplifier or digital audio headset. Use the supplied Toslink cable.

How to mute the microphone?

Press the Microphone Mute button on the sound card. The corresponding LED lights up to indicate that the microphone is muted.

The LED is not lighting up, is this normal?

The operating status LED lights up when the sound card is powered via USB. If it does not light up, check the USB connection and try another port. If the problem persists, the product may be defective.

Where can I find the drivers if I lost the CD?

The drivers are available for download on the CSL-Computer.com website or on the manufacturer's support pages. Search for model 300657 and chipset Cmedia CM6206.

USER MANUAL 300657 CSL

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• USB sound card
• USB connection cable
• Toslink connection cable
• Driver CD
• User manual

2. Technical Specifications

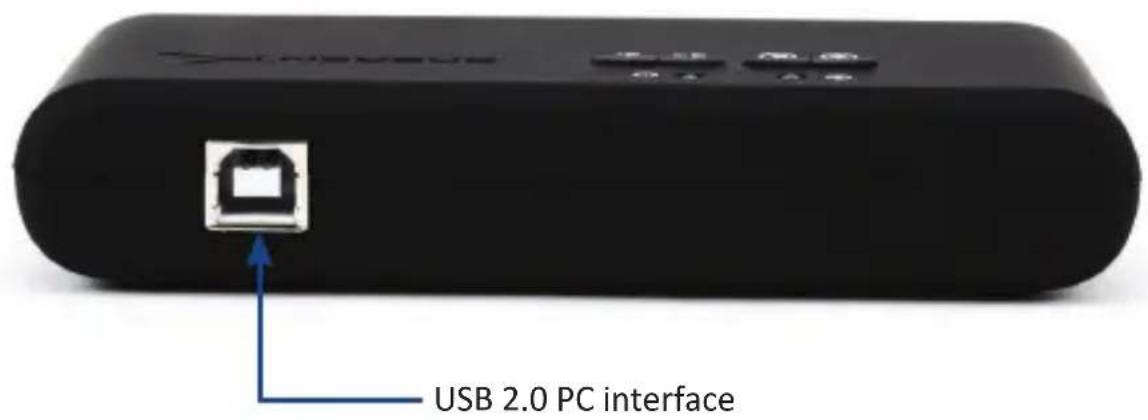

PC interface USB 2.0 High Speed

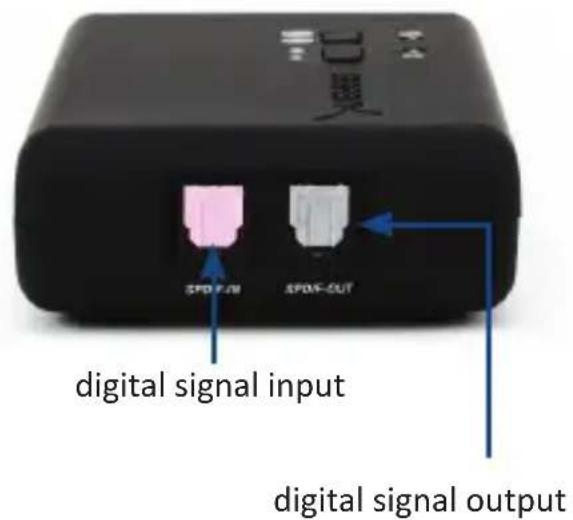

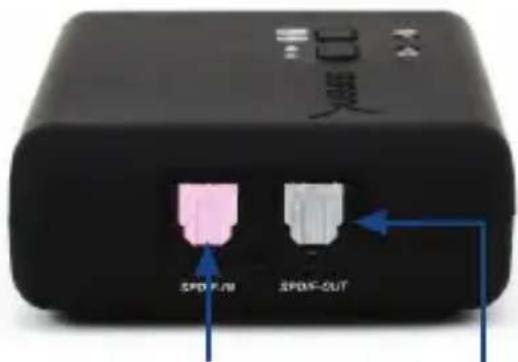

Audio outputs	5x Klinke (Line Out, Front L/R, Side L/R, Rear L/R, C/Sub)1x Toslink (SPDIF-OUT)
Audio inputs • 3x Jack (Line In, Mic 1, Mic 2)• 1x Toslink (SPDIF-IN)
Chipset Cmedia CM6206
Operating system compatibility Microsoft Windows 7/8/8.1/10/11
Ambient temperature 0-40°C

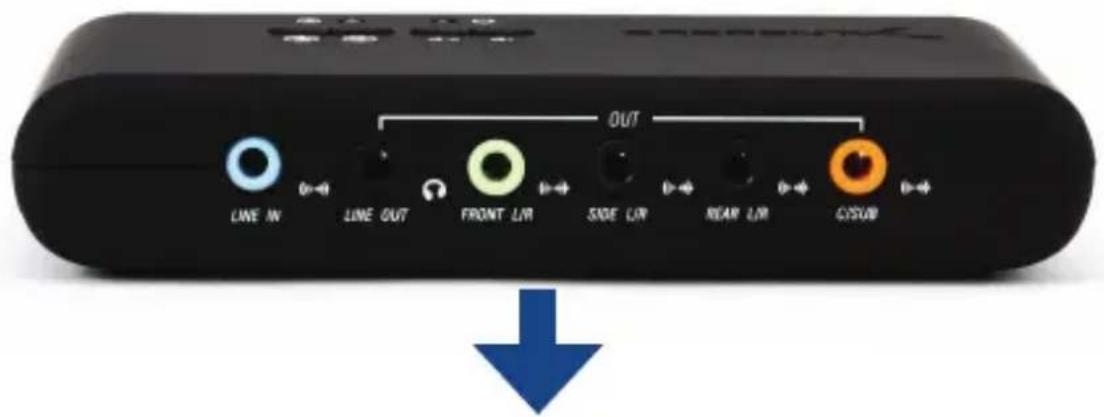

1. Product details


LINE IN Stereo signal input (analogue)

LINE OUT Stereo signal output (e.g. for headphones)

FRONT L/R Signal output for front speaker

SIDE L/R Signal output for side speaker

REAR L/R Signal output for rear speaker

C/SUB Signa output for central speaker and subwoofer

4. Start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Take the sound card from its packaging and connect it to a USB 2.0 interface (or higher) using the enclosed USB connection cable. The sound card offers you numerous connection options for analogue and digital audio devices. The assignment of the individual connections is listed above. Before each use, check it for possible damage and correct assembly.

5. Installing driver

The driver has to be installed from the driver CD supplied to enable you to use the full functional scope of the sound card.

Put the driver CD in your drive and close it again. The CD will open automatically. The contents of the CD will be displayed if you click on "Open folder to display files".

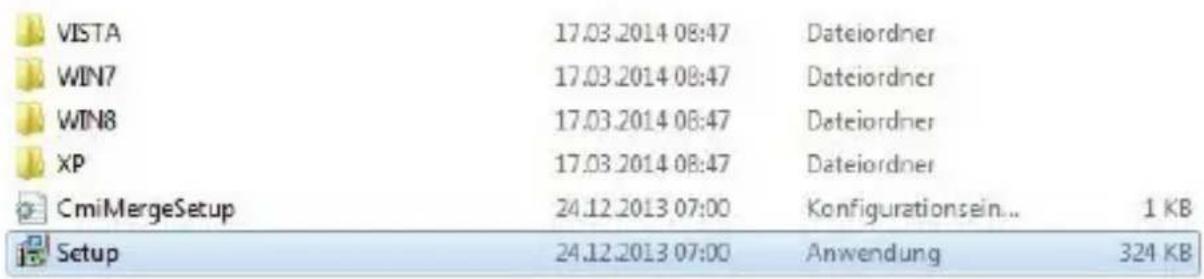

The driver is in a sub-folder on the CD. Go to the folder marked "CM6206-1.03(CR)" and call up "Setup.exe".

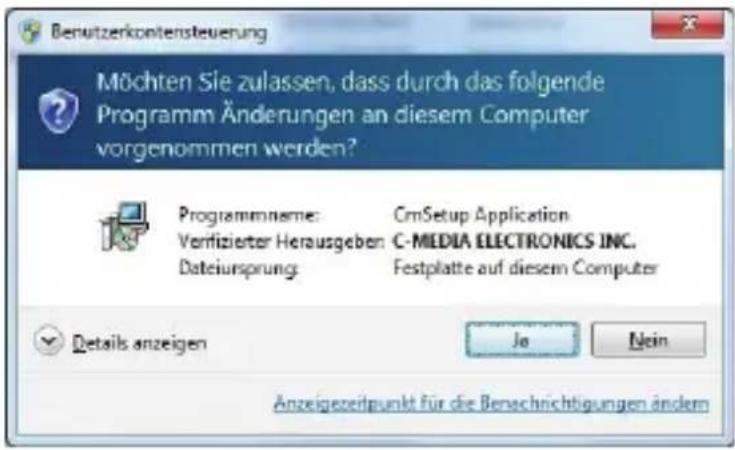

A security question will appear to which you must answer "Yes".

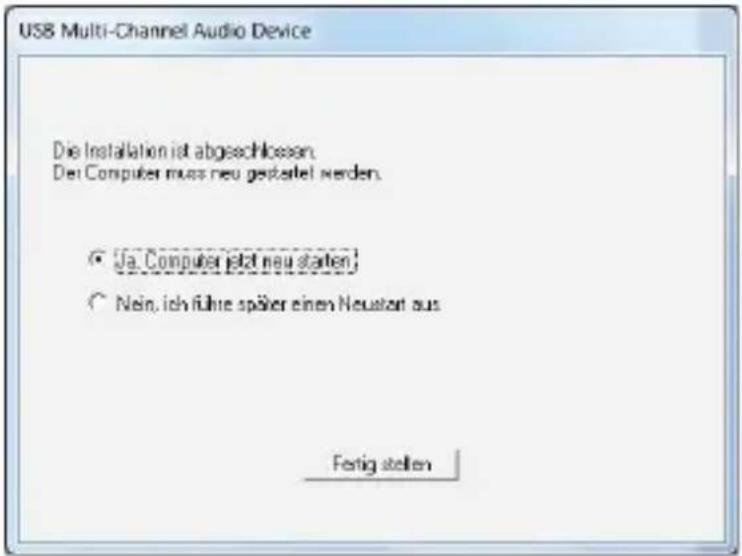

Installation will now start automatically. Click on "Finish" to complete the installation.

The card is ready to use after a re-start.

You can now set up your personal configuration using the "USB Multi-Channel Audio Device" software which you will find near the task bar next to the system clock.

6. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 300657/20200716SZ019 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Close-up of a black electronic device with two pink circular buttons labeled (1) and (2), connected by blue arrows pointing to them (no readable text or symbols beyond labels)

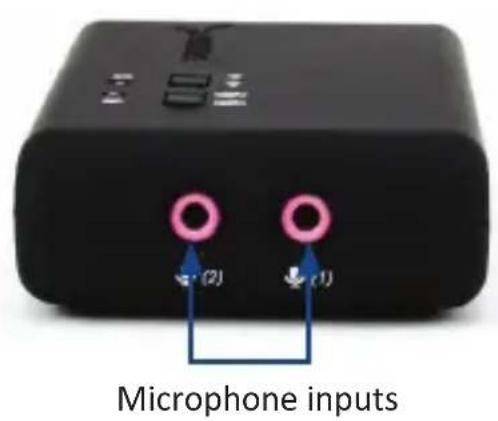

Entrées micro- phone

Close-up of a black electronic device with two pink circular ports labeled (1) and (2), connected by blue arrows pointing to them (no readable text or symbols beyond labels)
