USER MANUAL 300227 CSL

Black audio recording device with ports and buttons, no visible text or symbols

USB Soundcard 7.1 Virtual Surround Sound

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• External USB sound card 7.1 Virtual surround sound
- User manual

2. Technical specifications

Sound Virtual 7.1 Surround Sound
Connection USB
Audio connectors • 1 x 3.5mm audio output jack• 1 x 3.5mm microphone input jack
Features Remote control buttons

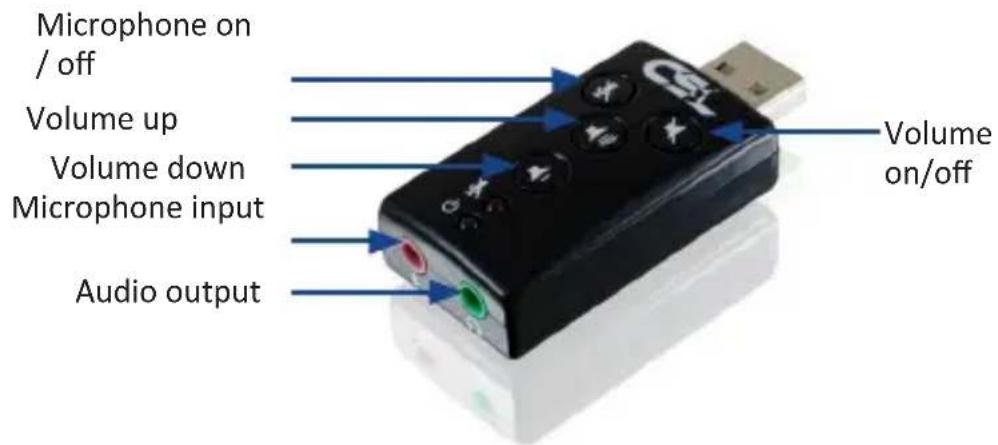

3. Product details

Microphone on / off Volume up Volume down Microphone input Audio output Volume on/off

4. Functions

Based on the audio signals emitted, the system detects the direction from which the sound is coming. It converts the sound such that a realistic 7.1 surround-sound effect can be generated.

5. Getting started

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Remove the USB sound card from the package and connect it to a free USB port on your computer. This can also be done even during ongoing use thanks to "Plug and Play".

The device driver is installed automatically. To use the surround sound function, follow the instructions given in "Step 6".

6. Enabling 7.1 surround sound function

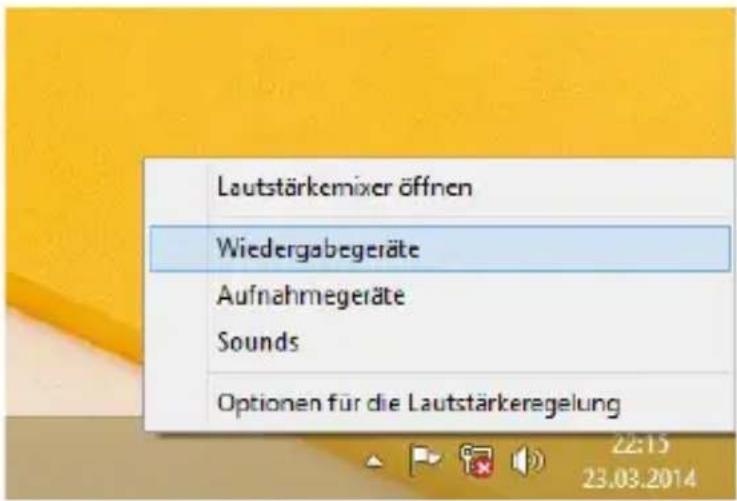

Open the sound settings menu by right clicking on the speaker icon in your taskbar and select "Playback devices".

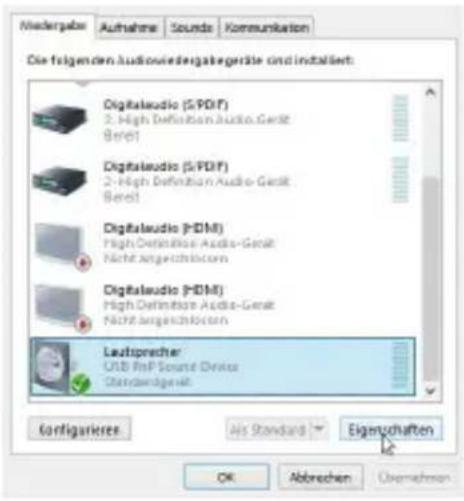

Select the "USB PnP sound device" and click on "Properties".

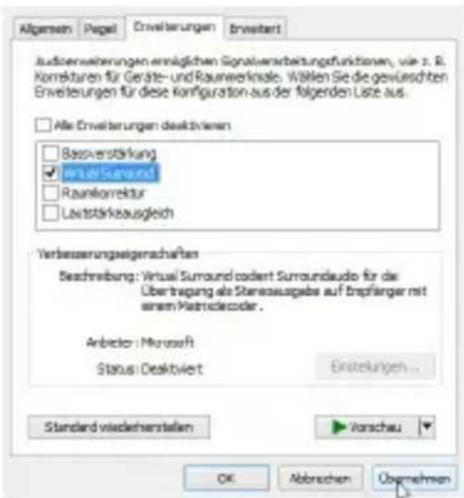

Enable the option "Virtual Surround" under "Advanced options" and confirm with "Apply" to use all the functions of the sound card.

7. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the network card. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

8. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 300227/20200407SZ019 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
