Thank you for choosing a CSL product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Gamepad
  • USB Type C charging cable

• User manual
  • 2x exchange pad (control pad)

• Technical data

Connection Bluetooth version 2.1
Power supply Internal 3.7V 500mAh battery (can be charged via USB)
Frequency range 2402 MHz-2480 MHz
Transmitting power	2.3 dBm
Buttons • 12 buttons• 2 analogue sticks• Home button• Directional pad
Features • Dual vibration function• Turbo mode• Automatic energy saving mode
Compatibility Switch

1. Product details

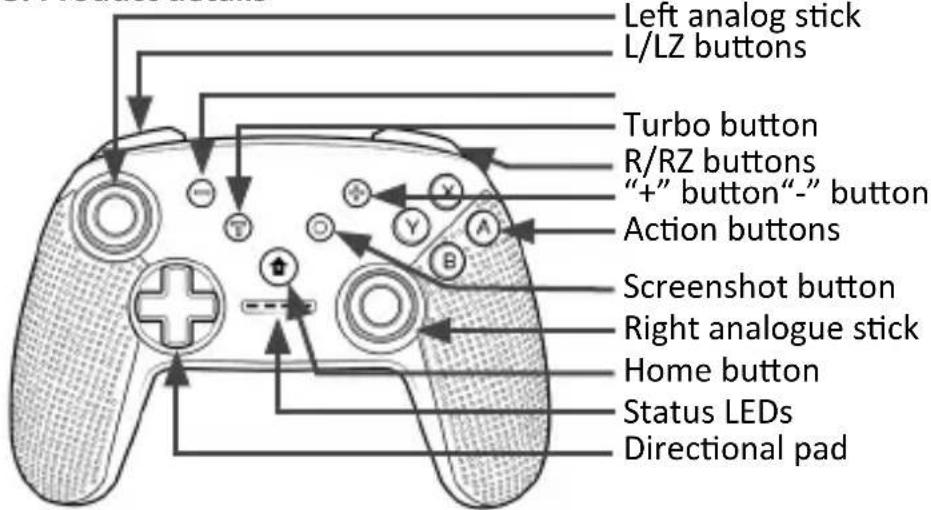

Left analog stick L/LZ buttons Turbo button R/RZ buttons “+” button“-” button Action buttons Screenshot button Right analogue stick Home button Status LEDs Directional pad

8 English

4. Button description

Home button:

The mode is used for quick connection and for turning the Bluetooth gamepad on and off. Keep the "Home" button pressed for about 5 seconds to turn the gamepad on or off.

Turbo button:

In order to program a button with the "Turbo" mode, press and hold the desired button and then press the turbo button to program it with a repeating pulse. Then release both the buttons. You can program any number of buttons for the "turbo" mode. Repeat the process to remove the turbo effect from the selected button. When the turbo mode is enabled, a single long signal is not generated but rather several short signals are generated consecutively.

Screenshot button:

The "Screenshot" button takes a screenshot when it is pressed.

5. Charging process

Please charge the Gamepad fully before using it for the first time. Connect the provided charging cable to the Gamepad. For example, a USB charging adapter can be used for charging. Once the gamepad is charged, this is shown on the LED display by a flashing LED. If the LED flashes, then the battery level is low.

Note: When the battery is fully charged, the LED indicator stops flashing.

6. Dual vibration function

The Gamepad has two strong vibration motors. The controls are represented more realistically with the vibration effect.

Note: Please note that the vibration works only if the game or the program supports this function and the corresponding feature has been enabled in the game options.

7. Connecting the Gamepad

Please open the controller menu (JoyCon symbol) on the switch and then select "Change grip/sequence".

Please keep the Home button on the controller pressed for 5 seconds until all four LEDs start flashing very quickly.

Note: Before the LEDs start flashing quickly, they glow slowly at first. At this point, you have to continue pressing the button until the LEDs shift from slow to fast flashing.

The coupling with the switch will now take place. The switch display shows the controller.

Note: The supplied USB type C cable can be used only to charge the gamepad.

8. Resetting the device

To reset the controller completely, press the "RESET" button on the back of the device using a thin, pointed and long object. Insert this object through the small opening in the back of the device. Once you insert the long object and press the "RESET" switch, the device turns off and is reset.

9. Safety instructions and disclaimer

Never try to open the device to undertake any repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Please use it only in dry places. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which are not carried out by the original supplier, will void any warranty and guarantee claims.

The device should be used only by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be recycled or disposed of separately, since toxic and hazardous components can cause lasting damage to the environment if they are disposed of in an improper manner.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303596 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16,30179 Hannover, https://model.ganzeinfach.de/303596
