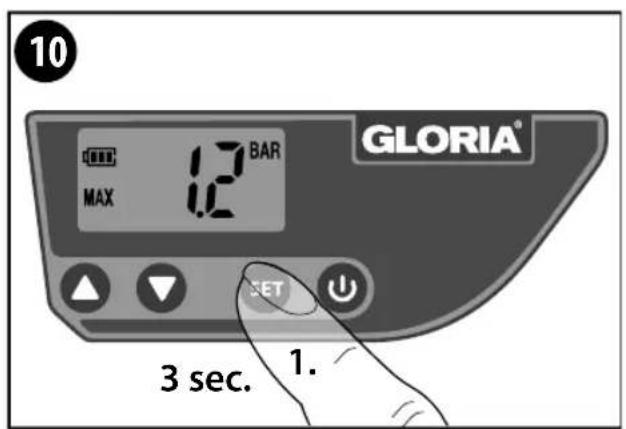

10 GLORIA® 1.2 BAR MAX 3 sec. SET 1.

11 GLORIA® 3.5 BAR MAX SET 2.

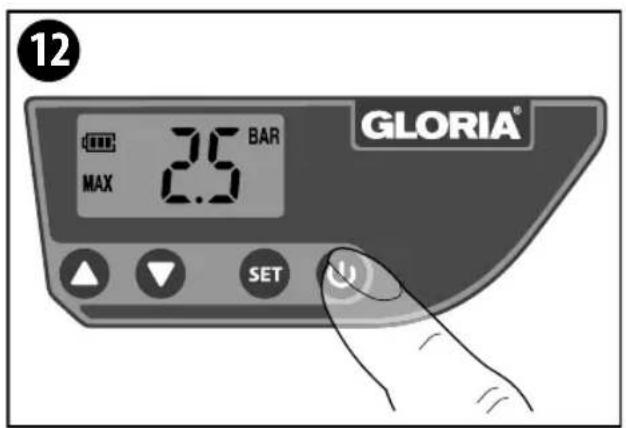

12 GLORIA® 3.5 BAR MAX 2.5 SET

Mechanical assembly diagram showing a gear and valve mechanism with directional arrows (no text or symbols)

Illustration of a person spraying spray onto a tree, wearing safety gear (no text or symbols)

Line drawing of a mechanical device with a hand adjusting a component (no text or symbols)

Illustration of a hand adjusting a car seatbelt with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a camera module with arrows indicating motion (no text or symbols)

19 1. 2. 3.

Line drawing of a mechanical device with a container and cable, no text or symbols present

Illustration of a hand turning a button into a mechanical component (no text or symbols)

Line drawing of a cluttered room setup including a broom, a hose, and a wheel (no text or symbols)

Technical line drawing of a mechanical device with intersecting blades, set against a grid background (no text or symbols)

INHALTSVERZEICHNIS

1 General information about this user manual 20
1.1 Symbols on the device and in the user manual....20
1.2 Warning notices 21
1.3 Intended use....21
1.4 Reasonably foreseeable misuse....21
1.5 Residual hazards 22
1.6 Limitation of liability 22
2 For your safety 22
2.1 Basic safety instructions....22
2.2 Safety instructions for handling charger and battery 23
2.3 General Power Tool Safety Warnings 24
3 Before using the device 26
3.1 Delivery status 26
3.2 Elements of the device 26

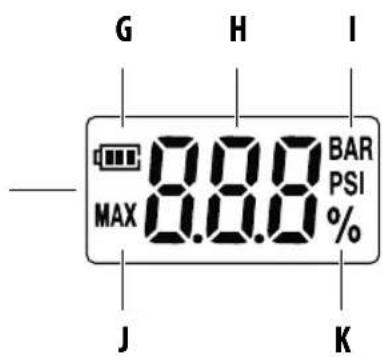

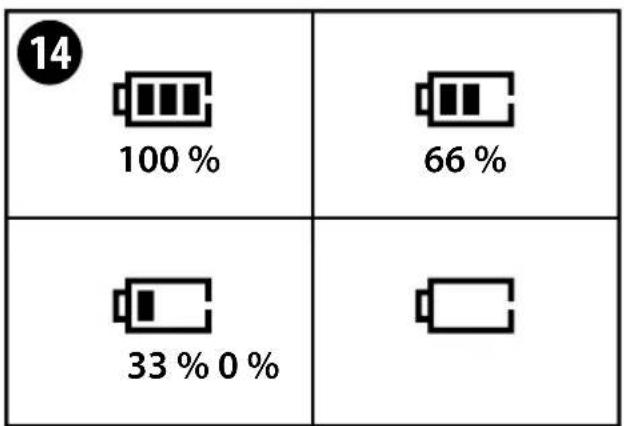

3.3 Display [B] 26
4 Technical data....27
5 Assembly 27
6 Prior to initial commissioning 27
6.1 Charging procedure....28
7 Commissioning....28
7.1 Insert battery and start the device 28
7.2 Function....29
8 Decommissioning and storage 29
8.1 Decommissioning....29

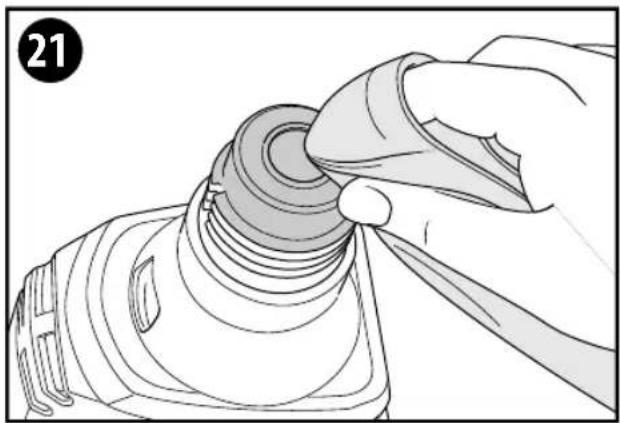

8.2 Emtying & Cleaning 30
8.3 Storage....30

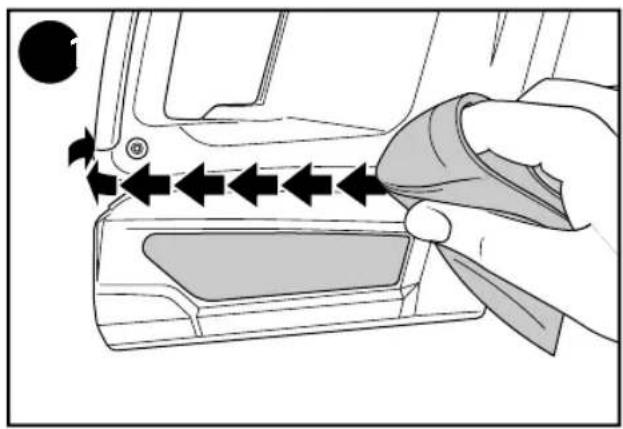

8.4 Maintenance....30
9 Problems with the device ....31
10 Disposal and legislation....31
10.1 Environmental protection and disposal of the device 31
10.2 Battery disposal....32
10.3 Battery transport 32
10.4 Disposing of the packaging 32
11 Accessories / Spare parts....32
12 Warranty & Guarantee .... 32

1 General information about this user manual

This user manual is an integral part of the GLORIA device and must be continually available on or near the device.

This user manual contains important instructions and information required for ensuring the safe use of the device!

This user manual must be read in full by any person assigned with operating / using / maintaining the unit.

This user manual must be kept safe and passed on to any new owner!

All warning notices are there to protect your personal safety!

1.1 Symbols on the device and in the user manual

Protect against rain and moisture!

Wear safety goggles!

Wear protective gloves!

Charger for indoor use only!

Read the user manual!

Do NOT dispose of old electrical and electronic equipment as normal domestic waste.

Environmentally appropriate disposal!

Recyclable packaging materials!

Recyclable / GRS recycling centre for batteries

Battery disposal information

• Never exceed battery heat of +45 °C
• Do not expose battery to direct sunlight
• Do not expose battery to fire
• Do not dispose of batteries in regular household waste

1.2 Warning notices

DANGER

This level of warning notice indicates a life-threatening situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death.

WARNING

This level of warning notice indicates a potentially hazardous situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death.

CAUTION

This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid serious injury.

ATTENTION

This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in material damage. Follow the instructions accompanying this warning notice in order to avoid material damage.

i NOTE!

A note indicates additional information or illustrations that help you operate and facilitate the understanding of the device.

1.3 Intended use

This GLORIA device is ONLY in connection with the GLORIA (3-/5-/8-liter) pressure spray devices, with a max. operating pressure of 3 bar, suitable.

Compliance with the accompanying instructions is a prerequisite for the proper use of the device. The user manual also contains the operating, maintenance and servicing conditions.

With a max. operating pressure of 3 bar, the device can be used in industry and trade as well as in the private sector.

CAUTION

DANGER CAUSED BY IMPROPER USE!

This device can be dangerous if not used for its intended purpose. You should therefore observe the following safety instructions:

■ Use the device for its intended purpose only.
- Note all instructions and information in the user manual.

1.4 Reasonably foreseeable misuse

The device must not be used to spray explosive, extremely flammable, easily flammable or flammable liquids. Also observe the information on the

corresponding liquids in the operating instructions for the spray devices used. The manufacturer does not accept liability for any damage or injury resulting from unauthorised modifications to the device or its improper use.

1.5 Residual hazards

This device complies with the accepted rules of technology and the relevant safety requirements! However, use of the device may present:

■ Danger to life and limb of the operator or other persons.
■ Damage to the device.
■ Damage to the other items of property.

1.6 Limitation of liability

We expressly point out that according to product liability law we do not accept liability for damage caused by our device, insofar as this has been caused by non-compliance with the operating instructions, improper use, improper repair or replacement of parts with non-genuine parts, or if repairs have not been carried out by the customer service team or an authorised expert. This also applies to accessories.

2 For your safety

This chapter contains important warning and safety instructions which must be observed when handling and using the device.

2.1 Basic safety instructions

Observe the following basic safety instructions to ensure the safe hand ling and use of the device:

■ Before installing the BATTERY COMPRESSOR or working with the BATTERY COMPRESSOR, read the operating instructions supplied with the device used and observe the safety instructions given there.
- Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure

to follow all instructions listed below may result in electric shock, fire and/or serious injury.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  ■ Repairs to devices for the home and garden must only to be carried out by the service centres. Spare parts should be ordered from your dealer. If the parts are not in stock, the dealer will procure them as soon as possible.
  ■ This device complies with the accepted rules of technology and the relevant safety requirements!
• This device may be used by child ren from 16 years and above and by persons with diminished physical, sensorial or mental capacities or lack of experience and know ledge if supervised or if they have been instructed with respect to safe use of the device and understand the risks that result from using it. Children must not operate the device. Children must be supervised to prevent them from playing with the appliance.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Do not leave the device unatten ded while it is in operation.

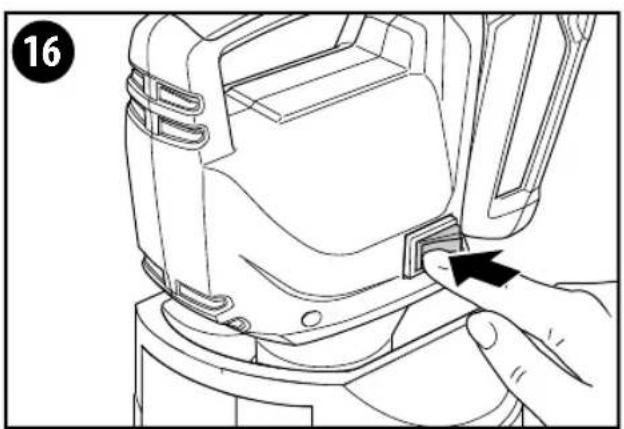

• Decommissioning is only guaranteed when the On-/Off-rocker switch (A) is set to "0".
  ■ Protect the device against long exposure to the sun and frost.
• In order to prevent damage and hazards resulting from improper use, you must observe the user manual and store it in a safe place!
• If the device is passed on to other persons, they must also be given the user manual!
• Only use GLORIA original spares and accessories for the device. Never use worn, modified or defective replacement parts / accessories!

2.2 Safety instructions for handling charger and battery

DANGER OF ELECTRIC SHOCK!

Contact with energised cables/wires or components may result in serious injury or death! You should therefore observe the following safety instructions:

• Mains voltage must be in compliance with voltage specification (V\~) on type plate of charger!
  ■ Children and persons with reduced physical, mental or sensory capabilities or who are lacking the requisite knowledge and experience are not allowed to use the charger or its battery.
• If the power cord of the charger is damaged, you must replace the charger completely!

■ Only connect the charging station to alternating current.

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- The battery voltage must match the battery charging voltage of the battery charger. Use only BOSCH 18V chargers from the "POWER 4 ALL" series. GLORIA and Bosch offer a wide range of suitable batteries with different charges (Ah) (see Chapter 11 "Accessories / spare parts").

- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

DANGER

DANGER OF ELECTRIC SHOCK, AS WELL AS RISK OF FIRE AND EXPLOSION! To avoid life-threatening situations:

■ ensure that charger, charging plug and mains plug are in proper working condition before use.
■ the contacts must never be touched.
- do not cover the ventilation slots of the charger. Otherwise, the charger can overheat and will not function properly.
- protect charger as well as battery against heat and humidity exposure.
■ do not immerse charger or battery in fluid.
■ use charger only to charge original Li-Ion batteries.
- keep charger as well as battery sealed.
■ never operate charger on a flammable surface.
■ never perform charging near easily inflammable substances.
- protect battery against heat, permanent sunlight and fire exposure. Store battery only at a temperature range between 0 °C to max. +45 °C. Never place battery on a radiator.
■ should the charger be operated using a residual-current-operated protective device (RCD) with a trigger current of max. 30 mA. Ask your electrician!

CAUTION

RISK OF INJURY! Insert battery only when the device is switched off. Connecting battery to an activated device can result in accidents.

CAUTION

RISK OF INJURY FROM CAUSTIC LIQUIDS OR VAPOURS! Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

2.3 General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplug-

ging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

OVERLOAD PROTECTION!

• Your BATTERY COMPRESSOR has protection against overloading. The device switches off automatically if you stress it excessively. In this case, switch off the device using the On-/Off-rocker switch (A). Release the tank pressure by operating the vent valve on the tank and then restart the BATTERY COMPRESSOR.

TEMPERATURE PROTECTION

- Your BATTERY COMPRESSOR has protection against excessively high temperatures of the rechargeable battery. The battery cells can overheat if you use the unit constantly over a longer period of time or if it is exposed to high ambient temperatures. Discharge is no longer possible above 70 °C. In such a case, the device switches itself off automatically. After the battery has cooled down, the BATTERY COMPRESSOR can be restarted.

LOW VOLTAGE CUTOFF DEVICE!

- Your BATTERY COMPRESSOR has a low voltage cutoff device for the rechargeable battery. This functions switches the unit off immediately if the voltage falls below a specified value (see display at the top right). In such a case you should recharge the battery or else put a fully charged battery into the unit.

Personal safety

• Use the device as intended! Work only within the specified performance range.
  ■ Before each use, make sure that the device is in perfect condition; operation is prohibited if:
• the device shows visible signs of damage.

• the device may have been dropped before.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
  ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power

tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
  ■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

CAUTION

RISK OF INJURY FROM UNINTENTIONAL SWITCH ON!

Accidental activation can cause injuries. To prevent this, remove battery when:

– leaving device unsupervised.
- maintaining, checking or cleaning device.
– device shows signs of malfunction.

3 Before using the device

This chapter contains information about the delivery status.

3.1 Delivery status

The device is shipped as standard as follows:

■ The BATTERY COMPRESSOR is fully assembled
■ 2x protective covering for "POWER FOR ALL" batteries 2.5 Ah / 4.0 Ah [not illustrated]
■ 1 x user manual and product inform a tion Any tools are individually packed.

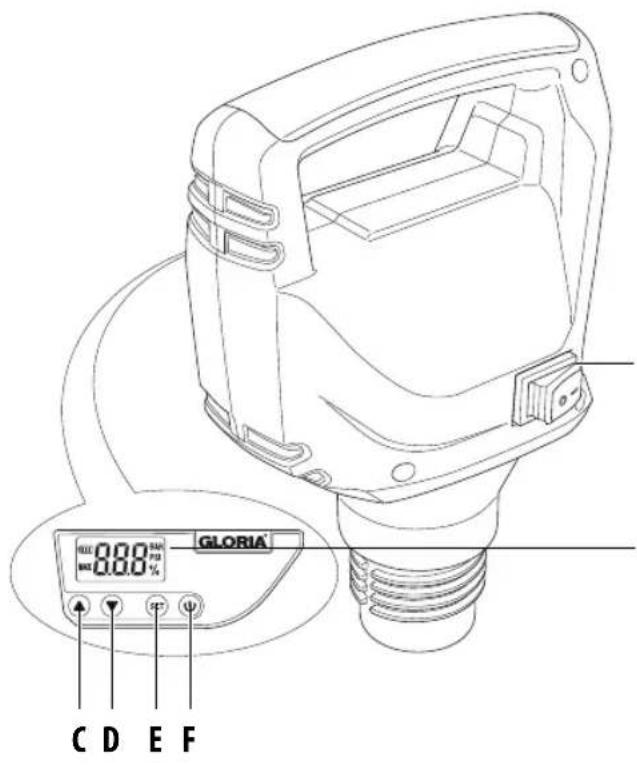

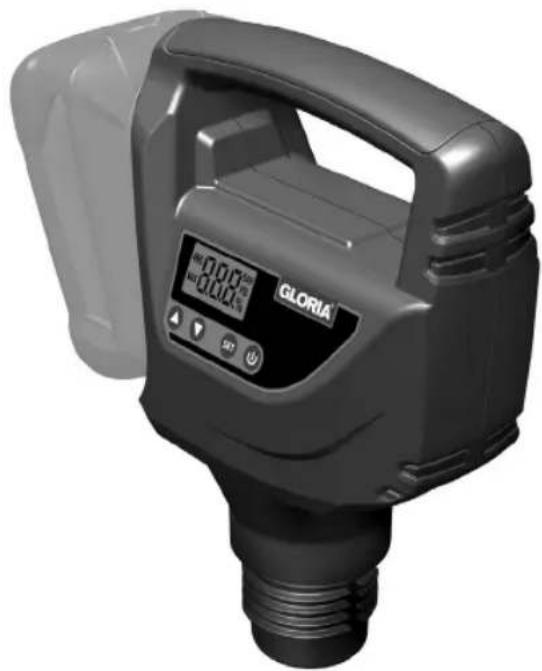

3.2 Elements of the device

A On-/Off-rocker switch
B Display
C Soft-key button "Pressure +"
D Soft-key button "Pressure -"
E Soft-key button "SET"
F Soft-key button "On-/Off-engine"

■ Batterie: "POWER FOR ALL" batteries (18.0 V 2.5 Ah, Type: PBA 18 V W-A) / (18.0 V 4.0 Ah, Type: PBA 18 V W-A) [not illustrated and NOT included in item 000920.0000]
■ Charger (AL 1810 CV) [not illustrated and NOT included in item 000920.0000]
■ 2 x protective covering for "POWER FOR ALL" batteries 2.5 Ah/4.0 Ah [not illustrated]

3.3 Display [B]

G Charging status indicator (battery symbol

H Pressure indicator

I Pressure unit BAR / PSI

J MAX pressure

K Charging status indicator in percent

GLORIA 8.88 C D E F

A

G H I MAX 8.0% BAR PSI J K

4 Technical data

BATTERY COMPRESSOR li-on

Item number: 000920.0000

(battery and charger not included)

Battery (NOT included in item 000920.0000)

Type: Lithium-ion (Bosch PBA 18.0 V 2.5 Ah)

Nominal voltage: 18.0 V

Rating: 2.5 Ah

Charging station (AL 1810 CV) (NOT included in item 000920.0000)

Input: 220-240 V\~ / 50/60 Hz

Output: 14.4-18.0 V / DC / 1.0 A

Battery charging time (100%): 154 Min.

Per. charging temp. range: 0 - +45 °C

Protection class: II

(These following rights apply to the AL 1810 CV charger)

BATTERY-COMPRESSOR

Pressure units: bar / psi

Selectable pressure range: 1.5 bar - 2.5 bar [21.75 psi - 36.25 psi]

Fillings when fully charged with Akku 2.5 Ah: 16 x á 5 Liter (prima 5), total 80 Liter

Fillings when fully charged with Akku 4.0 Ah: 26 x á 5 Liter (prima 5), total 130 Liter

Rotational speed motor: 3900 U/min

Device weight without battery: 0.76 kg

Device weight with battery: 1.20 kg

5 Assembly

1 Your device is delivered fully assembled.
2 Initially vent the standing container fully by pulling on the piston-type pressure gauge with the built-in safety valve and completely releasing the air.
3 Fill the pressur sprayer with spraying agents.
1 / 4 Remove the BATTERY-COMPRESSOR from the packaging and screw it hand-tight into the container filled with the spraying agents.

6 Prior to initial commissioning

BEFORE USE OBSERVE CHAPTER 2 "FOR YOUR SAFETY". You should therefore observe the following safety instructions:

- The mains voltage must be in compliance with the voltage specification (V\~) on the type plate of the charger.

Operate charger only in dry rooms.

■ Before initial use, fully charge battery. Please ensure that the charging procedure is performed at room temperature. This is the only way to ensure a long battery life.
- A significantly decreased runtime in spite of charging indicates that the battery is dead and must be replaced. Use only original BOSCH Li-Ion batteries, which you can purchase from manufacturer's customer service.
- Charger and battery can heat up during charging. This is normal and not a sign of a technical defect.
■ The Lithium-Ion battery can be charged at any time, regardless of charge state. Premature interruption of charging does not cause damage to the battery. A protective circuit on the battery prevents depth discharge of battery.

■ The battery is equipped with temperature monitoring that only permits charging over a temperature range between 0 °C and 45 °C. This ensures a long battery life.
- Do not press the On-/Off-rocker switch again if the device has switched itself off automatically. The battery can be damaged. Note the details concerning disposal of the battery.

6.1 Charging procedure

Figures 5a - 5b

These figures refer to the 18.0 V / 2.5 Ah battery and the AL 1810 CV charger.

5a The charging process starts as soon as the plug has been plugged into the power outlet and the battery has been placed in the charger.

Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.

Indicator statuses:

The charging process is indicated by the flashing of the battery charge indicator.

A solid light on the battery charge indicator signals that the battery is fully charged or that the temperature of the battery is not within the permitted charging temperature range, and can therefore not be charged. The battery is charged as soon as the allowable charging temperature range is reached. When the battery is not inserted, a solid light on the battery charge indicator signals that the mains plug is inserted in the plug socket and that the charger is ready for operation.

5b Following a successful charging procedure, first disconnect the charger plug from the power outlet, then remove the battery from the charger.

7 Commissioning

ATTENTION! DEVICE PROTECTION!

7.1 Insert the battery and start the device

Figures 6 14

ATTENTION

The battery that is supplied is not water-proof! Use the protective covering to prevent damage to the battery.

6 Pull the protective covering over the battery. When doing this, ensure that the protective covering is not damaged and fits correctly.
7 When inserting the battery, ensure that the contacts at the device and the battery itself are dry. Insert the charged battery into the device as shown into place. When doing this, ensure that the protective covering is not damaged and seals off the battery all round.
8 Now turn on the device with the On-/Off-rocker switch (A) on. In the display (B) the charge status indicator (K) now shows the charge status of the battery in percent for approx. 5 seconds.

The device is now ready for operation (the motor does not start yet, NO pressure is built up) and the desired settings can be made.

9 The device is factory-set to the unit "bar". To change the mode to "psi", press button SET (E) until the unit changes.

Use the buttons △▽ (C/D) to switch between "bar" and "psi". To return to the pressure setting, press button 📣E repeatedly.

10 To then set the pressure, press the button SET (E) once.

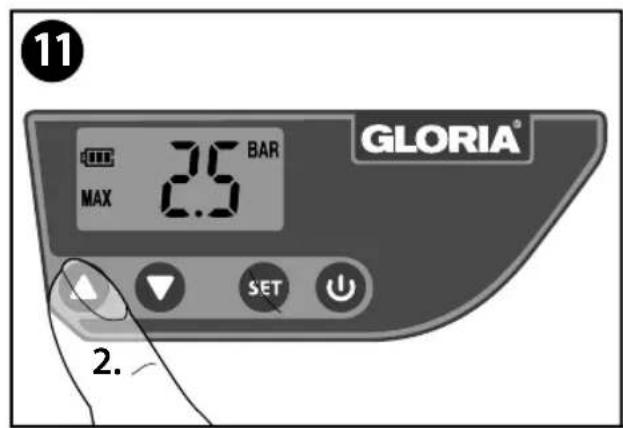

11 Use the buttons ▲▽ (C/D) to set the desired maximum operating pressure, which is then shown on the display.
12 Switch on the BATTERY COMPRESSOR with the button ⬤ (F).

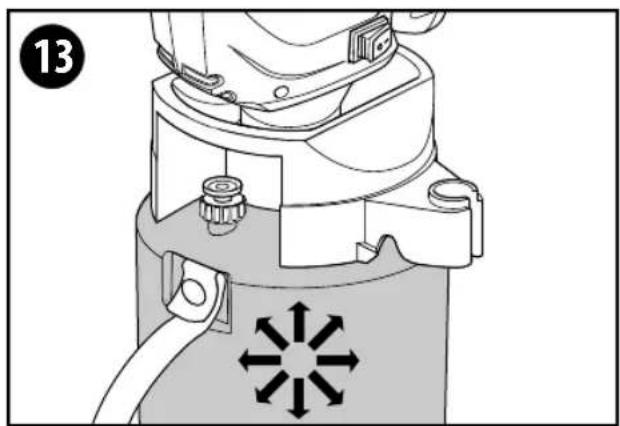

13 The pump now starts to work and builds up the pressure in the device.

i NOTE!

When the previously set maximum operating pressure is reached, the integrated pressure switch switches off the pump. The spraying process can now be started. If the tank pressure has dropped between 0.3-0.5 bar or 4.35-7.25 psi, the pump switches on again automatically and increases the pressure until the set maximum operating pressure is reached again. You can continue to work with the sprayer.

The running time of the pump depends heavily on how much spray is left in the container. As the tank content decreases, it extends the running time of the pump in order to reach the maximum set operating pressure again. If the BATTERY COMPRESSOR does not switch off after 15 minutes of continuous operation, there is a leak in the sprayer or in the BATTERY COMPRESSOR. In this case, switch off the BATTERY COMPRESSOR and check the sprayer or BATTERY COMPRESSOR for leaks.

If the device is not used for more than 15 minutes after being switched on, it switches off automatically. To start work again, switch the On-/Off-rocker switch (A) off/on once. Now start the BATTERY COMPRESSOR again with the (F) button.

7.1.1 Battery status indicator

Figure 14

14 After switching on the device with the On-/Off-rocker switch (A), the charge status of the battery is shown in % in the display for 5 seconds. The charge status can then be read from the battery symbol (G) in the top left of the display.

Battery power (battery symbol):

0% ≤ 30%

≤ 60%

100%

i NOTE!

In rare cases, after the battery has been removed and then reinserted, the battery status indicator (G) can display a higher battery power than before battery removal. The reason is that the last battery power during operation is saved in the device.

Once the battery has been removed and reinserted into the device, the battery

power is remeasured and a higher power can therefore be displayed on the indicator.

7.1.2 Battery operating time

The service life of the battery mainly depends on the load applied to the device. Work in max. pressure range as well as with a low filling quantity in the container leads to a shorter battery operating time. Handle battery and device as described in the instructions.

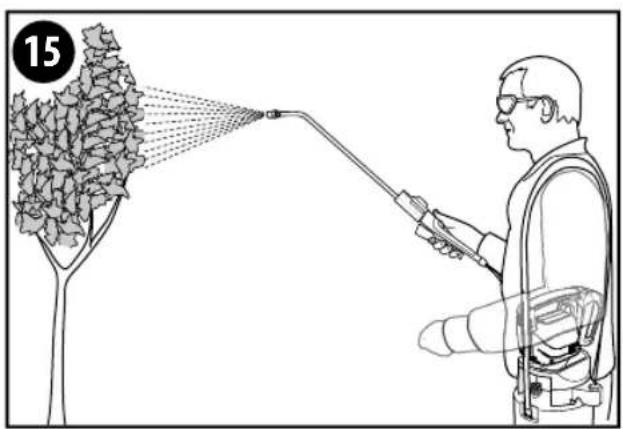

7.2 Function

Figure 15

i NOTE!

When spraying, please observe the instructions in the user manual for the spray device and the information provided by the agent manufacturer. Operate your corresponding GLORIA pressure sprayer (3-/5-/8-liter) with a max. operating pressure of 2,5 bar, for working with the BATTERY-COMPRESSOR.

8 Decommissioning & Storage

8.1 Decommissioning

Figures 16 18

16 Take the device out of operation by switching the On-/Off-rocker switch (A) to "0" and thereby switch the device off completely.

ATTENTION

Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instruction:

- To prevent battery discharge, remove battery from device when not in use for a prolonged time. For this purpose, remove battery from adapter. Proceed as follows:

17 1. Dry the surfaces on the battery holder all around with a dry and clean cloth.

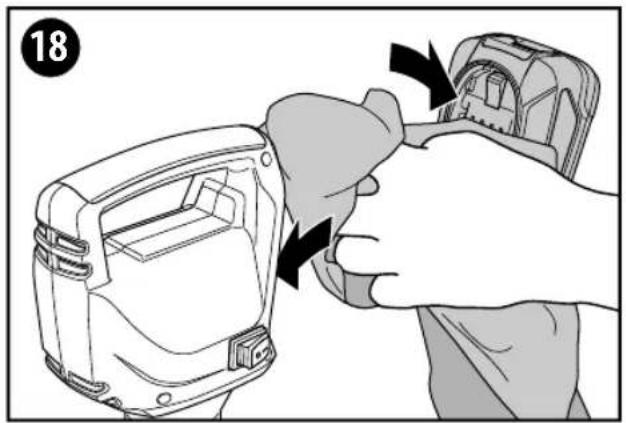

18 2. Now remove the battery and dry the contact surfaces of the battery and the device again.

8.2 Emptying & Cleaning

Figures 19 - 21

WARNING

Danger to health due to escaping spraying agents! Pay attention to the safety instructions in this manual. Observe applicable laws and the specifications of the agent manufacturers when disposing of residual quantities.

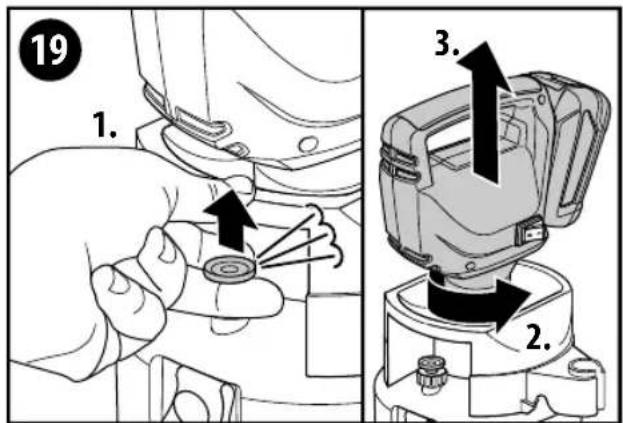

19 Initially vent the standing container fully by pulling on the piston-type pressure gauge with the built-in safety valve and completely releasing the air. Now unscrew the BATTERY-COMPRESSOR carefully, at first only a few turns of the thread in a counter-clockwise direction so that any residual compressed air in the container can escape. Only now unscrew and remove the BATTERY-COMPRESSOR completely.

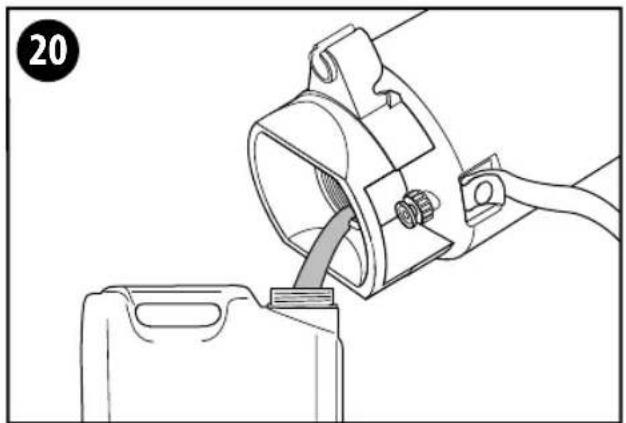

20 Do NOT pour the residual quantity into the sink, but pour it through the filling hole into a suitable canister.
21 Clean the outside of the BATTERY-COMPRESSOR with a damp cloth or soft brush. Do not use abrasives or harsh cleaning agents.

ATTENTION

Improper use of the BATTERY-COM-PRESSOR poses a risk of damage to property! You should therefore observe the following safety instruction:

18 Remove the battery each time before cleaning the device.

- Do not immerse the BATTERY-COMPRESSOR in water or spray or clean it with water. The device must be protected against moisture.

8.3 Storage

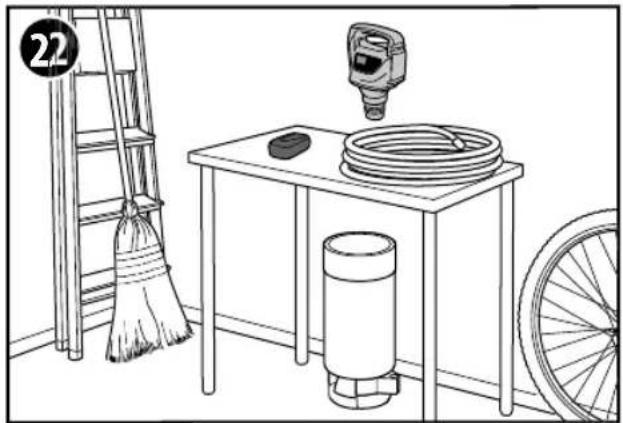

Figures 22 23

WARNING

You must therefore store the device and the spraying agents out of the reach of children.

■ Empty and clean the device as in Chapter 8.2.
■ Store the device hung up, dry and protected from frost.

8.3.1 Correct battery and charger storage

It is essential that you also follow the "Safety instructions for handling charger and battery" in chapter "Important safety instructions".

ATTENTION

Improper use of the device poses a risk of damage to property. The battery should not be stored uncharged. Though self discharge is minimal, an empty battery can be destroyed if stored for an extended period. Thus, observe the following instructions if not in use for an extended period (e.g. during winter):

■ store battery at a charge status of approx. 40 - 60 %.
■ store battery, separated from the device, in a dry, elevated, closed, frost-protected space at a temperature between 0 °C and +45 °C. When storage temperature is +15 °C, self-discharge and chemical ageing is at its lowest. Avoid direct sunlight.
■ if the battery is not used for more than 6 months, use the status indicator to check the charging status in the charger. Recharge the battery to approx. 40-60% capacity if required.

8.4 Maintenance

• Observe the national regulations concerning occupational safety which apply to the place of operation as well as the applicable national regulations for operations.
  ■ Regularly coat the seals with GLORIA silicone grease.
  ■ Reparaturen nur durch GLORIA Service-stationen durchführen lassen.
  ■ Repairs must only be carried out by a GLORIA service point. (https://shop.gloriagarten.de).
  ■ Further accessories can be found at www.gloriagarten.de

9 Problems with the device

Fault Cause Remedy
Device does not start	Battery not inserted properlyBattery capacity too lowFaulty batteryBattery overheating	Insert the battery into the holder until it clicks into placeCharge the batteryReplace the batteryAllow the battery to cool down
The device switches off after prolonged operation in the upper load range	The overload protection has switched off the device	Switch off the device at the On-/Off rocker switch and then restart it
The device switches off after long periods of operation in the upper load range or when the outside temperature is high	Batteries overheated, temperature protection has switched off the device	Let the battery cool down, the device can then be restarted
Device switches off during operation	Battery empty, low-voltage release has switched off the device	Charge the battery or insert the charged battery
Battery compressor does not switch off after 15 minutes of continuous operation	Leak on the sprayer or the battery compressor	Switch off the battery compressor, vent the spray device and check both for leaks

10 Disposal & Legislation

10.1 Environmental protection & disposal of the device

• This symbol on the product, user manual or packaging indicates that this product must not be disposed of in regular household waste at the end of its service life.
• Do not dispose of electrical appliances through household waste! In accordance with European Directive 2012/19 / EU on old electrical and electronic appliances and its implementation in national law, electrical tools that are no longer suitable for use must be separately collected and sent for environmentally responsible recycling. Recycling

alternative for the return request: Alternatively, the owner of an electric or electronic appliance is obligated to cooperate in proper recycling in the event of a property task instead of returning. Old equipment can also be handed over to a collection facility carrying out disposal as defined on the national recycling and waste management laws.

This does not apply to the accessories and auxiliaries included in old equipment, which do not contain electrical components.

■ The Lithium-Ion battery must be disposed of separately from the rest of the device.

i NOTE!

■ Please check with your local government to find the appropriate disposal point.

10.2 Battery disposal

As a consumer, you or the disposal company such as municipal collection points, required by law to dispose of used batteries and charger as hazardous waste.

CAUTION

RISK OF INJURY FROM DEFECTIVE, LEAKING BATTERY!

The applied battery contains substances that can result in injuries when getting in contact with skin or when inhaled. Should your device have a drained battery, you must use rubber gloves to remove it from the device and properly dispose of it in a closed container.

■ According to the European Directive 2013/56/EU, faulty batteries must be collected separately and reused or recycled in an environmentally friendly manner.

Disposal possibilities are as follows:

• by dealer
  – at a GRS recycling centre
  – in special waste containers provided by the communities

Obtain additional disposal information from your community or city.

10.3 Battery transport

■ The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further restrictions.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Please be sure to observe the information under www.gloriagarten.de/returns

10.4 Disposal of packaging

■ The packaging materials have been selected according to environment ally-suitable and disposal-related aspects and are therefore recyclable. Returning the packaging to the material circulation saves raw materials and reduces the level of waste.
- Please dispose of unwanted pack aging materials according to applicable local regulations.

11 Accessories / Spare parts

• 729101.0000 Lithium-Ion battery 2.5 Ah (BOSCH PBA 18.0 V 2.5 Ah)
• 729102.0000 Lithium-Ion battery 4.0 Ah (BOSCH PBA 18.0 V 4.0 Ah) ^1)
• 729103.0000 Fast Charger (BOSCH AL 1830CV)

More batteries from BOSCH

– BOSCH AKKU POWER FOR ALL 18V 1.5Ah, Typ: PBA 18V 1.5Ah W-A
- BOSCH AKKU POWER FOR ALL 18V 2.0Ah, Typ: PBA 18V 2.0Ah W-A
- BOSCH AKKU POWER FOR ALL 18V 3.0Ah, Typ: PBA 18V 3.0Ah W-B
- BOSCH AKKU POWER FOR ALL 18V 5.0Ah, Typ: PBA 18V 5.0Ah ^1) W-C
- BOSCH AKKU POWER FOR ALL 18V 6.0Ah, Typ: PBA 18V 6.0Ah ^1) W-C

Further accessories can be found at www.gloriagarten.de

^1) When using the 4.0 Ah, 5.0 Ah and 6.0 Ah batteries, only pressure sprayers with a foot ring should be used (e.g. FM 30, Art. No. 65.0000; FM 50, Art. No. 660.0000; Primex 5, Art. No. 83.0000; Hobby exclusive, Art. No. 262.0000 or Prima 8, Art No. 99.0000).

12 Warranty & Guarantee

GLORIA gives a 24 month guarantee as per of the terms and conditions of the warranty (www.gloriagarten.de). This does not affect your legal rights to claims under warranty with regard to the seller.

Technical changes reserved!

SOMMAIRE

G H I MAX 8.8% BAR PSI J K

ACCUCOMPRESSOR li-on

Set - Artikelnummer(s): 000920.0000

Type: lithium-ionen (Bosch PBA 18V 2.5 Ah)

Nominale spanning: 18,0 V

Nominale capaciteit: 2,5 Ah

OPGELET! APPARAATBESCHERMING!

G H I MAX 8.8.8 BAR PSI % J K

4 Dati tecnici

COMPRESSORE A BATTERIA li-on

G H I MAX 8.8.8 BAR PSI % J K

DK

4 Tekniske data

AKKU-KOMPRESSOR li-on

Sæt – Artikelnummer(-numre): 0000920.0000

Type: Lithium-Ionen (Bosch PBA 18V 2.5 Ah)
