USER MANUAL 21114 Gastronoma

EN Ice crusher....20

NL Ijscrusher.... 38

OFTE STILLEDE SP∅ RGSMÅL

To get the best out of your new ice crusher, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

• This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
• Keep the appliance under constant supervision while in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.
• Incorrect use of this appliance may cause personal injury and damage the appliance.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).
• For domestic use only. Not for outdoor or commercial use.
• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Do not use with any cords other than that supplied.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• The appliance must not be used together with a timer switch or a separate remote control system.

• Turn off the appliance and remove the plug from the socket before cleaning, or when the appliance is not in use.

• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.
• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.
• Always place the appliance on a dry, level and firm surface well away from any edges.
• Never put utensils or your hands into the ice chute while the appliance is switched on.

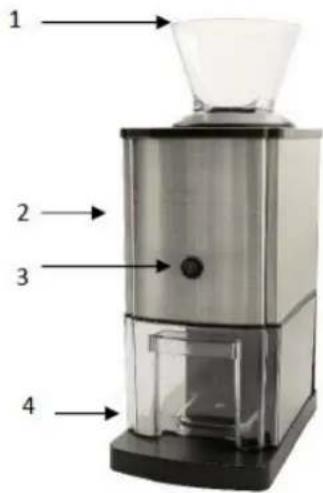

2. PARTS

1. Ice Chute
2. Housing
3. Switch
4. Ice Container (3 liter capacity)

1 2 3 4

3. USE

1. Place the Ice Container (clear bowl) packed with the unit under the bottom opening of the ice crusher. Plug the unit in and set the ON/OFF power switch to the ON position. NOTE: Ice crusher will not operate unless Ice Container is secured into position.
2. To begin crushing ice, drop cubes into feeder chute opening on top of the unit. Blades of crusher unit are self feeding. DO NOT ATTEMPT TO PUSH CUBES INTO BLADES WITH HAND OR INSTRUMENT.
3. If a large cube should become lodged in the crushing unit so that blades cannot reach it, set power switch to the OFF position and unplug unit from outlet.

Then pour warm water down through feeder chute until lodged cube is melted or falls free. Plug unit back into outlet, set the power switch to the ON position, and resume feeding cubes through the feeder chute.

4. HOW TO CARE FOR YOUR ICE CRUSHER

1. UNPLUG POWER CORD FORM OUTLET.
2. Pour hot water through top feeder chute to rinse out after each use.
3. Wipe outside of ice crusher with a clean damp cloth.
4. NEVER IMMERSE UNIT IN WATER.

5. RECIPES

** Please note that the drink recipes are all based on a 10- to 11-ounce glass capacity.

SUGAR SYRUP

This liquid sweetener can be found in several of the following recipes. It will keep covered in the refrigerator for 2 weeks.

• Makes 3 1/2 cups
  • 2 cups granulated sugar
• 2 cups water

Place sugar and water in a saucepan over medium high heat. Bring to a boil and allow to boil for a minute until all sugar is dissolved. Transfer to a heatproof container, allow to cool, cover and keep in refrigerator.

MOJITO

This popular Cuban drink is delicious served over crushed ice.

Makes six 6-ounce servings

• 1/2 cup fresh mint leaves
• 1 cup +2 tablespoons sugar syrup
- 3/4 cup lime juice
- 2 cups white rum
- 8 cups ice cubes

Divide the mint leaves evenly among 6 glasses and add a tablespoon of sugar syrup to each glass. With a wooden spoon, stir the mint and sugar syrup in order to break the mint leaves, releasing their flavor. In a separate container or pitcher, stir together the remaining sugar syrup, lime juice and rum.

Place ice container under the bottom opening of the Ice Crusher. Turn machine on. Drop the ice into feed chute opening on the top of the ice crusher.

Divide crushed ice evenly among the 6 glasses. Pour rum mixture over the ice in each glass. Serve immediately.

THE GRAND MARGARITA

Simple ingredients lead to the perfect margarita.

Makes 6 servings

• 2 cups premium tequila
• 3/4 cup Grand Marnier
• 3/4 cup fresh lime juice
• 3/4 cup sugar syrup
- 8 cups ice cubes

Stir together tequila, Grand Marnier, lime juice, and sugar syrup in a large container or pitcher.

Place ice container under the bottom opening of the Ice Crusher. Turn machine on. Drop the ice into feed chute opening on the top of the ice crusher. Divide crushed ice evenly among 6 glasses. Pour margaritas over the ice in each glass. Serve immediately.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Commaxx product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE

We offer a 24-month guarantee on this product. The guarantee starts on the date of purchase and is for defects due to manufacturing or material used.

Your statutory warranty rights in accordance with § 439 et seq. BGB-E remain unaffected by this.

Guarantee does not apply to damage caused by improper handling or use, and neither to defects that have only a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, insofar as we are not responsible for the latter, as well as damage caused by repairs not carried out by us, are also excluded from the guarantee rights.

This device has been designed for domestic use and has appropriate performance levels. Any use in commercial situations is covered by the guarantee only if the device is not subjected to a heavier load than in a domestic situation. The device is not intended for additional commercial use.

In the event of justified complaints, we will repair the defective device at our discretion or replace it with a defect-free device.

All possible manufacturing defects must be reported within 14 days of delivery. Any subsequent claims are excluded.

To enforce a guarantee claim, please contact us before returning the device (you need to provide us with proof of purchase at all times).

TECHNICAL DATA

Device: Ice crusher

Model: 21114

Power supply data: 220-240V\~50/60Hz

Power consumption: 60-80 W

CE DIRECTIVES

Commaxx BV Wiebachstraat 37, 6466 NG Kerkade, Netherlands, hereby declares that this product complies with the essential EU directives.

Declaration of conformity can be consulted at [e-mail]

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.commaxx.nl

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED IN CHINA FOR

Commaxx B.V.

Wiebachstraat 37,

NL-6466 NG Kerkrade

Netherlands

www.commaxx.nl

We cannot be held responsible for any printing errors.
