18310012 - Sharpener Gastronoma - Free user manual and instructions

Product type	Electric sharpener
Brand	Gastronoma
Model	18310012
Intended use	Household
Power supply voltage	230 V, 50 Hz
Compatible knife types	Alloy steel, carbon steel, stainless steel (straight edges)
Maximum continuous use time	2 minutes
Recommended cooling time	At least 3 minutes
Sharpening method	Pull knife toward you, blade parallel to the table
Sharpening system	Motorized sharpening wheel
Controls	On/off button
Included accessories	Dust cover, power cord
Maintenance	Wipe with a damp cloth, do not immerse
Important safety instructions	Do not insert the knife tip first, do not sharpen serrated blades
Housing material	Plastic
Manufacturer	Commaxx B.V., Wiebachstraat 37, NL-6466 NG Kerkrade, Netherlands
Country of manufacture	China
Warranty	Void if unauthorized repair or failure to follow instructions

Frequently Asked Questions - 18310012 Gastronoma

What types of knives can I sharpen with this device?

This sharpener is designed for straight-edged knives made of alloy steel, carbon steel, or stainless steel. Do not use serrated knives (saw), scissors, or electric knives.

How do I correctly use the Gastronoma 18310012 sharpener?

Place the device on a flat surface, plug it in and turn it on. Insert the middle of the blade into the slot, then pull the knife toward you keeping the blade parallel to the table. Never push the knife forward and do not insert the tip first.

Can I sharpen serrated or scalloped knives?

No, this device is intended for straight-edge blades. Serrated or scalloped blades could damage the device and the knife.

How long can I use the device continuously?

Do not operate the device for more than 2 minutes consecutively. Let it cool down for at least 3 minutes before reuse.

What if the device does not turn on?

Check that the plug is correctly inserted into a 230 V outlet. If the problem persists, contact customer service. Do not attempt to repair the device yourself.

How do I clean the sharpener?

Unplug the device and let it cool down. Clean it with a damp cloth, possibly with a little mild detergent. Never immerse it in water and do not use abrasive products or steel wool.

Do I need to lubricate the sharpening wheels?

No, do not apply any lubricant to the device. The wheels operate dry. Moisture or lubrication can destroy them.

The device produces sparks, is this normal?

Yes, with high-carbon steel knives, sparks may appear. This is normal and safe. Wipe the blade after each sharpening to remove metal shavings.

How do I know if my knife is properly sharpened?

Test the sharpness by carefully cutting a piece of paper or a fruit. Be very careful: the blade becomes extremely sharp after sharpening.

Where can I find spare parts or get the device repaired?

Contact the store where you purchased the device or the manufacturer Commaxx via the website www.commaxx.nl. Unauthorized repairs void the warranty.

USER MANUAL 18310012 Gastronoma

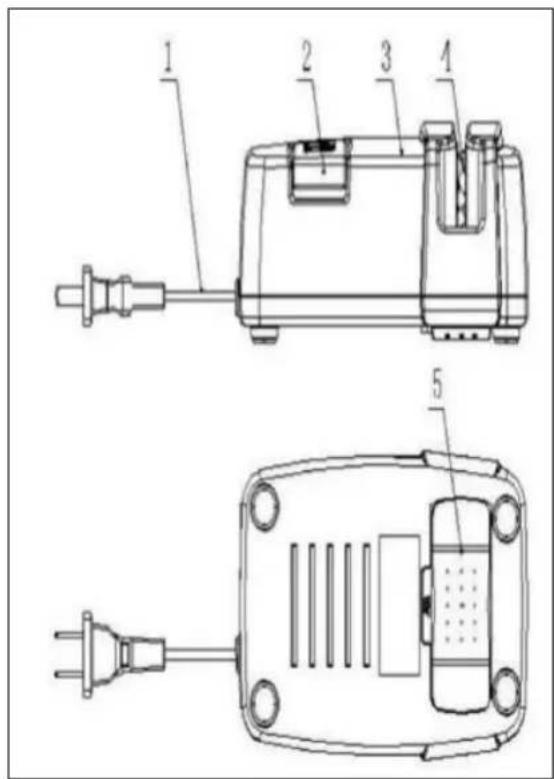

OVERSIGT

DK

RENG∅RING

ANVÄNDNING

SE

RENGÖRING

LAITTEEN OSAT

FI

PUHDISTUS

To get the best out of your new knife sharpener, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance

UK

in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Keep the appliance under constant supervision while in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

UK

• Incorrect use of this appliance may cause personal injury and damage the appliance.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).
• For domestic use only. Not for outdoor or commercial use.
• Remove all packaging and transport materials

from the inside and outside of the appliance.

• Check that the appliance has no visible damage and that no parts are missing.
• Do not use with any cords other than that supplied.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• The appliance must not be used together with a timer switch or a separate remote control system.

UK

• Turn off the appliance and remove the plug from the socket before cleaning, or when the appliance is not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
  • The cord must not be twisted or

wound around the appliance.

• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.
• Connect to

UK

230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.

• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.

SPECIAL SAFETY INSTRUCTIONS

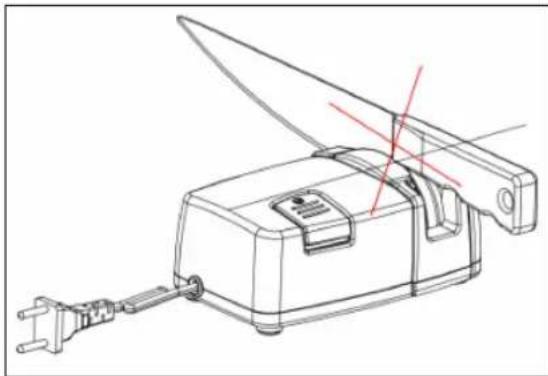

- Do not insert the tip of the knife directly

into the opening in the appliance! It may damage both the appliance and the knife.

• Do not try to sharpen knives with wavy edges. Only sharpen knives with straight edges.
• The appliance must not run for more than 2 minutes at a time. It should then be left to cool for at least 3 minutes before you use it again.
• The appliance must not be left running if you are not using it to sharpen.

UK

• Do not moisten or lubricate the grinding stones in the appliance, as this will destroy it.
• First practise on an old knife until you are familiar with how to use the appliance.
• Never try to sharpen a knife that cannot easily fit into the opening.

• Never put the knife point first into the appliance or push it forward. You must always draw the knife back through the appliance towards yourself.

• Keep the knife edge parallel with the table, unless sharpening the point.

• Do not press down hard on the knife as you pull it through the appliance because this can cause the whetstones to lock.
• Be very careful when handling knives. Never run your finger along the blade to see if it is sharp.
• You may have to sharpen a particular knife several times in

UK

the appliance to achieve the required sharpness.

- You must always wipe the blade with a wet cloth to remove any metal shavings when you have finished sharpening the knife.

- High carbon steel knives may generate sparks when drawn through the appliance. This is normal and not dangerous.

- The whetstones can vibrate as they rotate. This is normal.

- The appliance is designed to sharpen alloy steel, carbon steel or stainless steel knives. It can be used to sharpen kitchen and sport knives.

- The appliance must not be used to sharpen scissors, bread knives, electric knives with bevelled indentations or knives with double-sided bevelled indentations.

UK

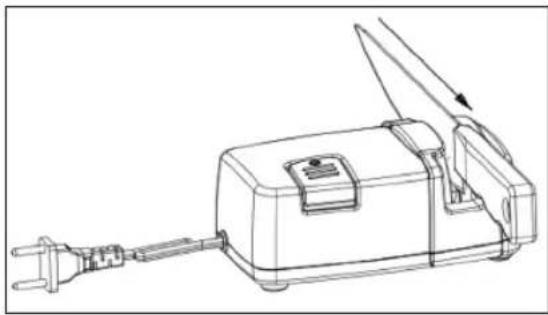

USE

• Place the appliance on a flat surface. Plug the appliance in.
• Press the on/off button to turn on the appliance. Let it reach idle speed.
• Put the middle of the knife's edge into the sharpening wheel.
• Press the knife down with an appropriate amount of force, and while pressing down, pull the knife towards you as shown. The blade must be parallel with the tabletop.

• Repeat, until the knife is sharp.

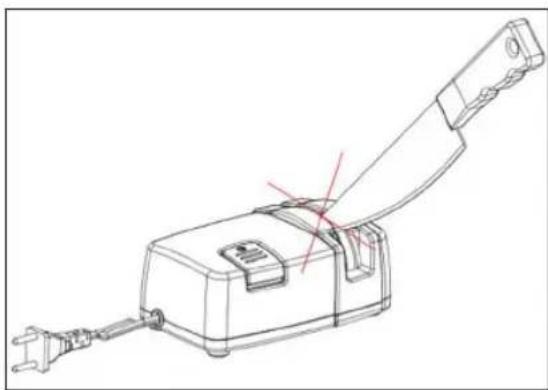

Important!

• The blade may be very sharp after sharpening! Make sure you do not cut yourself on it!
- Never put the knife point first into the appliance and push it forward. You must always draw the knife back through the appliance towards yourself.

UK

- Never insert the back edge of the knife's blade into the appliance.

CLEANING

- Remove plug from the mains socket, and allow the appliance to cool down before cleaning it.

- Never submerge the appliance in water and make sure no water enters the appliance.

- Clean the appliance by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

- Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they may damage the outside surfaces of the appliance.

• IMPORTANT! Allow to dry fully after cleaning before using again. Do not use the appliance if damp.

- Do not apply any kind of lubricant to the appliance.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.commaxx.nl

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

UK

MANUFACTURED IN CHINA FOR

Commaxx B.V.

Wiebachstraat 37,

NL-6466 NG Kerkrade

Netherlands

www.commaxx.nl
