18100003 - Coffee maker Gastronoma - Free user manual and instructions

Product Type	Coffee Maker
Brand	Gastronoma
Model	18100003
Dimensions (W x D x H)	25 cm x 20 cm x 30 cm
Weight	2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1000 W
Water Tank Capacity	1.25 L
Max Cup Capacity	10 cups
Brewing Method	Drip filter
Filter Type	Permanent reusable filter (included) or paper filter size 4
Keep Warm Function	Yes, automatic keep warm for 30 minutes
Anti-Drip System	Yes, allows removing carafe mid-brew without spills
Water Level Indicator	Yes, transparent water tank with markings
On/Off Switch	Yes, with indicator light
Cord Length	1.0 m
Material	Plastic housing, glass carafe
Cleaning	Descaling recommended every 3 months; removable parts dishwasher safe
Safety Features	Auto shut-off when carafe removed or after 1 hour
Spare Parts Availability	Carafe, filter basket, and water tank available from Gastronoma support

Frequently Asked Questions - 18100003 Gastronoma

How do I descale my Gastronoma coffee maker?

Mix equal parts white vinegar and water, fill the tank, and run a brew cycle without coffee. Repeat with fresh water twice to rinse. Descale every 3 months.

Can I use paper filters with this coffee maker?

Yes, the coffee maker accepts size 4 paper filters in addition to the included permanent filter.

Why does my coffee maker stop brewing before the carafe is full?

This may be due to mineral buildup. Try descaling. Also ensure the carafe is properly placed and the anti-drip valve is not stuck.

Can I brew more than 10 cups at once?

The maximum capacity is 1.25 liters, which is about 10 cups. Do not exceed the marked water level.

How do I clean the permanent filter?

Rinse the filter under running water and use a soft brush if needed. It is dishwasher safe (top rack).

What should I do if the coffee tastes burnt?

Burnt taste can be due to over-extraction or leaving coffee on the hot plate too long. Try using a coarser grind and remove the carafe after brewing.

Does the coffee maker have an automatic shut-off?

Yes, it has auto shut-off that activates after 1 hour of inactivity or when the carafe is removed.

Can I use ground coffee directly without a filter?

No, always use the permanent filter or a paper filter to prevent grounds in your cup.

How do I replace the carafe?

Replacement carafes are available from Gastronoma support. Ensure you order the correct model (18100003).

Is the coffee maker compatible with a timer?

This model does not have a built-in timer. It must be started manually by pressing the on/off switch.

USER MANUAL 18100003 Gastronoma

Technical diagram of a kitchen appliance with numbered parts for identification

APPARATETS DELE

Technical diagram of a kitchen appliance with numbered parts for identification

HOVEDDELER

1. Trakt
2. Tut
3. Vannbeholder
4. Filterholder
5. Glasskanne
6. Kabinett
7. Av/på-bryter

BRUK

Technical diagram of a kitchen appliance with numbered parts for identification

APPARATENS DELAR

Technical diagram of a kitchen appliance with numbered parts for identification

PÄÄOSAT

To get the best out of your new coffee maker, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can refer to them at a later date.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Never leave unattended when in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

- Incorrect use of this appliance may cause personal injury or damage the appliance.

- Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).

- For domestic use only. Not for outdoor or commercial use.

- Remove all packaging and transport materials from the inside and outside of the appliance.

UK

• Check that the appliance has no visible damage and that no parts are missing.
• Do not use with any cords other than that supplied.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• The appliance must not be used together with a timer switch or a separate remote control system.
• Turn off the appliance and remove the plug from the socket when cleaning or when not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.

• Ensure that the cord is fully extended.

• The cord must not be twisted or wound around the appliance.

• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.
• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.

UK

SPECIAL SAFETY INSTRUCTIONS

• Unauthorised repairs or modifications will invalidate the warranty.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

• Caution! Some parts of this appliance can become very hot and cause burns if touched. Particular attention should be paid where children and vulnerable people are present.

• Always place the appliance on a dry, level, firm and heat-resistant surface well away from any edges. Do not let the cord hang out over the edge of the work surface.

• The appliance must not be placed or stored near other sources of heat.
• The glass and metal parts get very hot during use. Do not touch them due to the danger of burns.
• Freshly brewed coffee and the steam it generates are very hot. Take care to avoid scalding yourself or others.
• Never switch the appliance on unless there is water in the reservoir or coffee in the carafe.

UK

• Never put hot or boiling water in the reservoir. Use cold water only. Ensure the appliance is switched off when filling with water.
• The water level in the reservoir must not exceed the top mark on the water level gauge/carafe.
• Never put the carafe on a cooking ring or in an oven/microwave oven. Do not place it on the hotplate when it is empty or almost empty and the appliance is switched on.
• Do not use the carafe if it has a loose or defective handle, or if it is broken in any other way.
• Please note that the appliance will remain hot for a while after you switch it off. Always allow it to cool completely before you put it away or clean it.

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Unroll the cord fully before use.
• To rinse out the inside, fill the reservoir with water, switch on and allow the water to run through the appliance before using it to make coffee.

UK

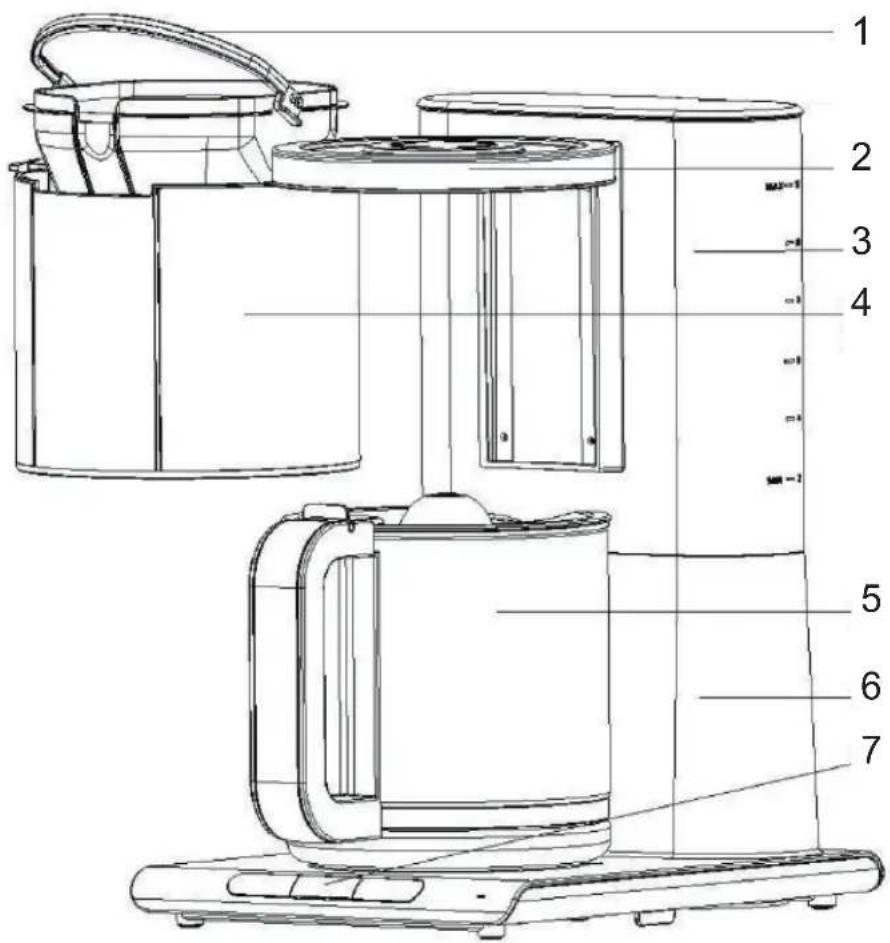

Technical diagram of a kitchen appliance with numbered parts for identification

MAIN COMPONENTS

1. Funnel
2. Spout
3. Water reservoir
4. Filter holder
5. Carafe
6. Casing
7. On/off button

USE

1. Open the lid of the water reservoir (3) and carefully pour in the required quantity of water. Do not fill over the top mark on the level gauge.
2. Swing the filter holder (4) out and place a coffee filter in the funnel (1).

UK

1. Fill the filter with the required quantity of ground coffee and then swing the filter holder back into place.
2. Ensure that the carafe lid (5) has been correctly fitted and then place the carafe on the plate beneath the filter holder.
3. Switch on the appliance by pressing the on/off button (7). The indicator light turns blue and the appliance starts brewing coffee.
4. Once the brewing process is complete, the indicator light turns yellow and the coffee is kept hot. The hotplate under the carafe automatically switches off after approx. 40 minutes.
5. To switch off the appliance, press the ON/OFF button. The appliance is fitted with an overheating cut-out which automatically switches it off if you forget.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Unless clearly specified in the cleaning instructions below, please note that none of the parts of this appliance are dishwasher safe.
• Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.
• Never submerge the appliance in water and make sure no water enters the appliance.
• Clean the appliance by wiping it with a damp cloth. A little washing-up liquid can be added if the appliance is heavily soiled.

UK

• Never use a scouring pad or any form of strong solvents or abrasive cleaning agents to clean the appliance, as those may damage the outside surfaces of the appliance.
• The funnel and carafe can be washed using normal washing-up liquid.
• IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.

DESCALING

The calcium content of ordinary tap water means limescale may gradually be deposited inside the appliance. This limescale may be loosened using acetic acid (NOT ordinary vinegar) or descaler, available in supermarkets, etc.

1. Mix 100 ml acetic acid with 300 ml cold water, or follow the instructions on the descaler packaging.
2. Pour the solution into the reservoir, place the carafe beneath the filter funnel, and switch on the appliance

using the on/off button.

1. Allow half of the solution to run through, and then switch off using the on/off button.
2. Leave it switched off for around 10 minutes, and then switch it on again, and allow the rest of the solution to run right through.
3. To remove the final residues of limescale and acetic acid, pour a pot of cold water into the water reservoir, switch on and allow the water to run through.
4. Run fresh water through the appliance three times (as described in point 5). The appliance is now ready for use again.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

UK

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

UK

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi A/S

Lægårdsvej 9C

DK-8520 Lystrup

Denmark

www.adexi.dk

We cannot be held responsible for any printing errors

DE

EINFÜHRUNG

Technical diagram of a kitchen appliance with numbered parts for identification

HAUPTKOMPONENTEN
