18290002 - Freezer Gastronoma - Free user manual and instructions

Product Type	Freezer
Brand	Gastronoma
Model	18290002
Type	Upright Freezer
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	38 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	120 W
Energy Class	E (EU 2019 energy label)
Annual Energy Consumption	230 kWh
Volume	200 L
Temperature Range	-24°C to -18°C
Number of Drawers	4 drawers
Control Type	Mechanical thermostat
Defrost Method	Manual defrost
Fast Freeze Function	Yes, via switch
Noise Level	42 dB(A)
Door Reversible	Yes
Child Lock	No
Temperature Alarm	Yes, audible
Climate Class	SN, N, ST
Refrigerant Type	R600a
Spare Parts Availability	Available for 10 years
User Manual Language	English, German, French, etc.

Frequently Asked Questions - 18290002 Gastronoma

How do I set the temperature on my Gastronoma freezer?

Use the thermostat knob inside the freezer. Turn it to a higher number for colder temperature (e.g., 4 or 5). Typically, -18°C (0°F) is recommended for food storage.

What should I do if the freezer is not freezing properly?

Check that the thermostat is set correctly, ensure the door is fully closed, and verify that the condenser coils are clean. Also, avoid overloading the freezer.

How often should I defrost the freezer?

Defrost when frost buildup reaches about 5 mm (1/4 inch). This usually happens every 6-12 months depending on usage.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side. You will need a screwdriver and possibly a helper.

What does the temperature alarm mean?

The alarm sounds if the internal temperature rises above safe levels, e.g., due to a power failure or open door. Press the alarm reset button to silence it.

How do I clean the freezer?

Unplug the freezer, remove all food, and let it defrost. Wipe interior with a mild detergent solution and dry thoroughly. Do not use abrasive cleaners.

What should I do if the freezer makes loud noises?

Check that the freezer is level on the floor. Noise can also come from the compressor or fans; if persistent, contact customer support.

How much food can I store in this freezer?

The freezer has a net volume of 200 liters, suitable for about 200-250 kg of frozen food. Do not exceed the maximum load indicated on the rating plate.

Is the freezer energy-efficient?

This model has an energy class of E on the EU label. To save energy, keep the freezer full, avoid frequent door openings, and ensure proper ventilation around the appliance.

Where can I find spare parts or repair service?

Spare parts are available for 10 years after purchase. Contact Gastronoma customer service or visit www.gastronoma.com for authorized service centers.

USER MANUAL 18290002 Gastronoma

Technical diagram of an air fryer with numbered parts for identification and assembly reference.

DK

8 88 88 9 888 °C °F 8 10 - 11 + 12 -

Betjeningspanel

1. Knapper for tilberedningsprogrammer
2. Display til temperatur/tid
   10.Knapperne TID OP og TID NED
3. Knappen TAEND/SLUK
   12.Knapperne TEMPERATUR OP og TEMPERATUR NED

F∅R IBRUGTAGNING

Technical diagram of an air fryer with numbered parts for identification and assembly reference.

NO

8 88 88 9 888 °C °F 8 10 - 11 + 12 -

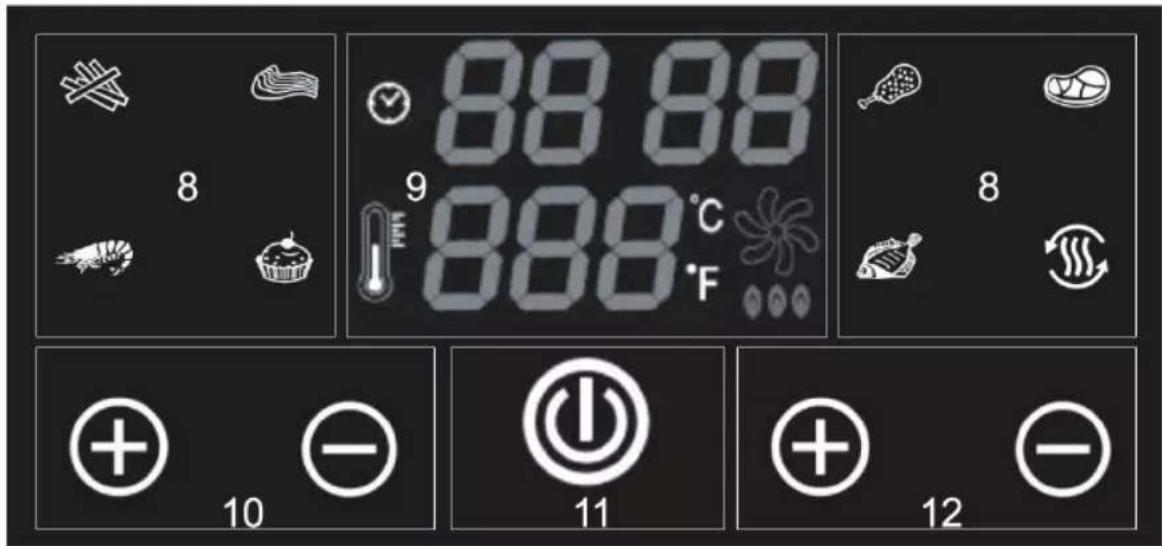

Kontrollpanel

1. Knapper for tilberedningsprogrammer
2. Display for temperatur/tid
3. TID OPP- og TID NED-knapper
4. PÅ/AV-knapp
5. TEMPERATUR OPP- og TEMPERATUR NED-knapper

F∅R BRUK

Technical diagram of an air fryer with numbered parts for identification and assembly reference.

SE

8 88 88 9 888 °C °F 8 10 - 11 + 12 -

Kontrollpanel

Technical diagram of an air fryer with numbered parts for identification and assembly reference.

FI

8 88 88 9 888 °C °F 8 10 - 11 + 12 -

Ohjauspaneeli

To get the best out of your new low fat air fryer, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can refer to them at a later date.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Never leave unattended when in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

- Incorrect use of this appliance may cause personal injury or damage the appliance.

- Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).

- For domestic use only. Not for outdoor or commercial use.

- Remove all packaging and transport materials from the inside and outside of the appliance.

- Check that the appliance has no visible damage and that no parts are missing.

- Do not use with any cords other than that supplied.

- Check that it is not possible to pull or trip over the cord or any extension cord.

UK

• The appliance must not be used together with a timer switch or a separate remote control system.
• Turn off the appliance and remove the plug from the socket when cleaning or when not in use.
• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.

• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.

• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.

• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.
• Caution! Some parts of this appliance can become very hot and cause burns if touched. Particular attention should be paid where children and vulnerable people are present.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

UK

SPECIAL SAFETY INSTRUCTIONS

• The appliance or cord must not be placed in water or any other liquid. If you drop the appliance in water by accident, or it gets wet in any other way, you must immediately remove the plug from the socket and get an authorised repairer to examine the appliance before you use it again.
• It is extremely important that you follow these instructions, as water in the appliance could give rise to fatal electric shocks.
• Do not use the appliance when your hands are wet, when the floor is wet or when the appliance itself is wet. Never touch the plug with wet or damp hands.

• Do not let the cord hang over the edge of a table/counter. Keep it away from hot objects and naked flames and make sure that it never comes into contact with the hot parts of the appliance during use.

• The appliance gets hot very quickly and takes a long time to cool down again. Only touch the appliance by the handle. Never place the appliance next to hot objects (e.g. cookers or ovens) or in the vicinity of flammable materials (e.g. curtains).

• Make sure there is sufficient ventilation around the appliance. There should be at least 35 cm of space on all sides of the appliance.
• Make sure not to cover the appliance's air intake or blower, as this may cause the appliance to overheat!
• Be aware that the appliance may emit very hot steam or grease splashes when in use and particularly when opened.

UK

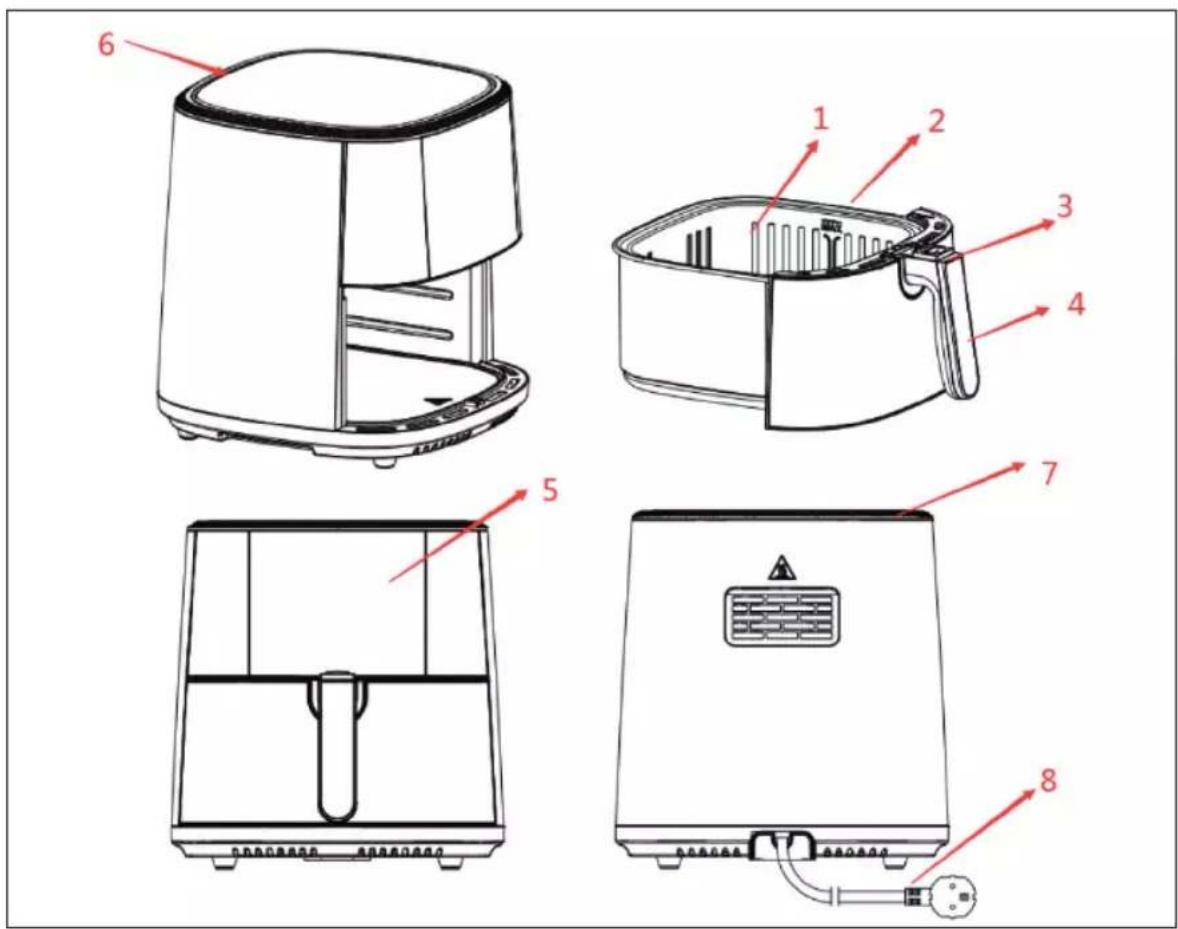

KEY

• Always use oven gloves or pot holders when you handle the hot parts of the appliance.
- Do not pour oil or other fat into the pan! The appliance does not deep-fry food but cooks it using hot air.
- The food must not be placed directly into the pan but must always be placed in the basket.

1. Pan
2. Basket
3. Release button for basket
4. Handle on basket
5. Display
6. Air intake
7. Air blower
8. Power cord and plug

Technical diagram of an air fryer with numbered parts for identification and assembly reference.

UK

8 88 88 9 888 °C °F 8 10 - 11 + 12 -

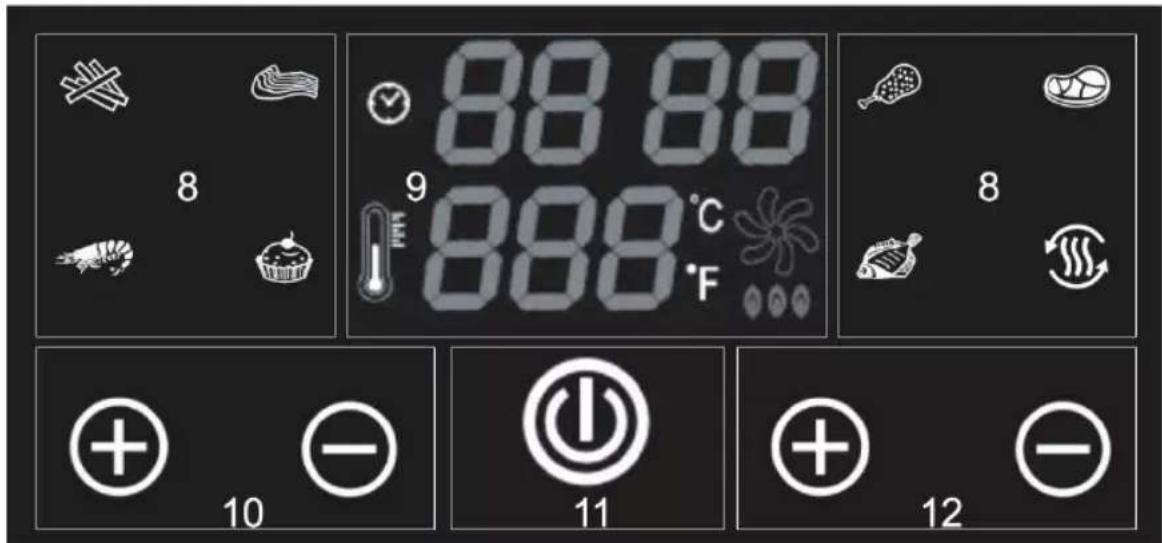

Control panel

1. Buttons for cooking programmes
2. Display for temperature/time
3. TIME UP and TIME DOWN buttons
4. ON/OFF button
5. TEMPERATURE UP and TEMPERATURE DOWN buttons

BEFORE USE

• Once the appliance has been unpacked, you must ensure that any packaging inside the appliance itself is also removed.
• Wipe the inside and outside of the appliance with a damp cloth before using it for the first time (see Cleaning).
• Wash the pan (1) and the basket (2) in warm soapy water and dry thoroughly.
• Place the basket in the bottom of the pan.

UK

USE

• Place the appliance on a flat, stable and heat-resistant surface.
• Hold the handle (4) and pull the pan and basket out of the appliance.
• Place the required food in the basket. Do not fill the basket more than 3/4 full, as this will impair the cooking quality. Replace the pan in the appliance.

NB! The food is cooked by the circulation of hot air. Do not pour oil into the bottom of the pan in order to fry the food.

You can toss the food in a little oil and allow the oil to drip off before putting the food in the pan if you like. The excess oil will drip through the basket and down into the bottom of the pan.

• Plug it in.
• The light in the ON/OFF button (11) comes on and a beep is heard.
• Press the ON/OFF button. The display (9) shows 180 °C and 15 minutes.
• Select the required programme using the buttons (8) and press the ON/OFF button to start cooking. The symbols for fan and heat are shown on the display.
• You can adjust the temperature from 80 to 200^ during cooking by pressing the buttons (12).
• You can adjust the cooking time from 1 to 60 minutes during cooking by pressing the buttons (10).

UK

- Half-way through the cooking time, you can pull out the pan from the appliance and shake the food to ensure it cooks evenly. Be careful not to press the release button accidentally, as this will release the basket from the pan!

Warning! Always hold by the handle. Beware of escaping steam or spitting oil, fat or other liquids.

- Once the cooking time has elapsed, remove the pan and place it on a table mat or other heat-resistant surface. Check that the food is fully cooked. If necessary, cook it for a few extra minutes.

- Switch off the appliance by holding down the ON/OFF button.

- Press the release button and lift the basket out of the pan. To remove small ingredients such as French fries, pour the food onto the serving plate. Remove larger or fragile items such as chicken wings or breaded fish fillets with a tong.

- Do not turn the basket upside down with the pan still attached to it, as any excess oil that has been collected in the bottom of the pan will pour onto the food.

- Before cleaning and storing the appliance, make sure it has cooled completely.

UK

COOKING PROGRAMMES

Programme °C Min.
	French fries	200 15
	Spareribs 1	80 25
	Prawns 160	20
	Cake 160 30
	Poultry 200	25
	Steak 180 20
	Fish 160 20
	Heating 70	12

Snacks that can be prepared in an oven can also be prepared in the appliance.

CLEANING

• Unplug the appliance.
• Allow the appliance to cool to around 30-40 degrees before cleaning it.
• Wash the pan and basket in warm water with a little detergent added. These 2 parts can also be cleaned in a dishwasher.
• Wipe the inside (including the heating element) and outside of the appliance with a damp cloth or sponge.
• You must not use steel wool, scouring powder or any other form of strong solvent or abrasive cleaning agent.
• Do not use metal utensils to clean the pan, as this may damage the non-stick coating.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

UK

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

UK

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED IN CHINA FOR

Adexi A/S

Lægårdsvej 9C

DK-8520 Lystrup

www.adexi.dk

We cannot be held responsible for any printing errors

DE

EINFÜHRUNG

Technical diagram of an air fryer with numbered parts and labeled interior components

BESCHREIBUNG
