USER MANUAL Ultra Cleaner LANAFORM

White ultrasonic cleaning device with digital display and accessories, set against a blue wave background (no text or symbols on main body)

Ultrasonic cleaner

"ULTRA CLEANER" USER MANUAL

EN

Thank you for purchasing the ULTRA CLEANER by Lanaform®. This appliance uses high-frequency vibrations to stimulate the transducer and so generate an ultrasonic wave of 42,000 Hz. Millions of tiny bubbles are produced by this ultrasonic wave. These bubbles constantly implode under the force of the wave as they come into contact with the surface of the object to be cleaned. Any soiling is therefore split into countless granules, which are then separated from the surface of the object and absorbed by the water. Consequently, if you use clean water, you will clearly see the soiling in the water after you press the "ON" button.

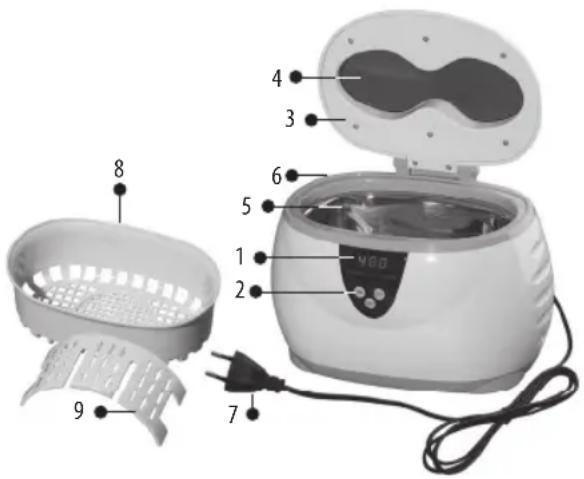

STRUCTURE OF THE PRODUCT

1.Time display (in seconds)

2.ON-OFF-SET

3.Lid

1. Viewing window

5.Stainless-steel tank

6.Housing

1. Power plug and cable

2. Plastic basket

3. Plastic watch holder

Labeled diagram of a dental appliance with numbered parts for identification

IMPORTANT SAFETY INSTRUCTIONS

Please read all the instructions carefully before using the appliance.

WARNING: To avoid risks of burning, electrocution, fire or injury:

• Use this unit correctly, following the information given in the instructions for use. Do not use any accessory not recommended by the manufacturer.
• Unplug the unit before filling it with water.
• Fill the water tank, ensuring that the level does not rise above the "MAX" marking. Do not fill the tank with any abrasive or corrosive products.
• The unit must never be left unattended when it is plugged in, particularly in the presence of children.
• Keep the unit away from hot surfaces.
• Position the unit in a secure location, in order to ensure that it cannot fall into water or any other liquid.
• Unplug the appliance immediately if it falls into water or any other liquid.
• Do not immerse the unit in water or any other liquid.
• Do not touch the power socket with wet hands, in order to avoid any risk of electrocution.
• Do not use this unit without water in the tank, since this might damage it.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or by persons without experience or knowledge, unless they are supervised or have been properly instructed in the use of the appliance by a person responsible for their safety. Children should be supervised in order to ensure that they do not play with the appliance.
• Unplug the unit when you have finished using it.
• If the power cable is damaged, it must be replaced with a special or similar cable, available from the supplier or the

EN

supplier's after-sales service.

• Do not dismantle the appliance, as this will invalidate the guarantee.
• Never use this unit if the power cable or the plug is damaged. If the unit is not working properly, has fallen into water or has been damaged, please return it to your retailer for inspection and repair.

CAUTION:

• The ultrasonic cleaner might cause any inlaid or worn elements to become detached. Do not use the tank for cleaning any easily spoilt element such as made-up articles, leather products, wooden items, etc.
• Do not use the tank for cleaning any non-waterproof object that might be damaged during use.
• Do not use the tank for cleaning mobile telephones, non-waterproof watches or handicraft items made from seashells, oyster shells or similar materials.

FEATURES

• Digitally programmable: 5 different operating cycles to choose from
- Stainless-steel tank
- Tank capacity: 600 ml
• Ultrasonic frequency: 42,000 Hz
• 2 accessories: jewellery basket and watch holder

FUNCTIONS

The ultrasonic cleaner can clean the following objects:

Miscellaneous products: Dentures, electric shaver heads, razor blades, combs, toothbrushes, etc.

Jewellery: Necklaces, rings, earrings, bracelets, etc.

Glasses and watches: Spectacles, sunglasses, watch chains, waterproof watches, etc.

Stationery items: Ballpoint pen nibs, printer heads, stamps and seals, etc.

Metal objects: Watch parts, old coins, badges, valves, nozzles, etc.

Table objects: Metal plates and dishes.

OPERATING INSTRUCTIONS

1. Open the lid and fill the stainless-steel tank with water, but make sure the level does not rise above the "MAX" marking.
   Caution: Operating the cleaner without water might damage the unit.
2. Place the object to be cleaned in the water, ensuring that it is properly immersed.
   Caution: Do not mix different types of metal, since this might affect the quality of the cleaning.
3. Close the lid and plug the appliance in.
4. Press the "SET" button to select the operating cycle: when the unit is switched on, it automatically displays the value "180sec.". This is the most commonly used cleaning cycle. Each time you press the "SET" button, the 5 optional cleaning cycles (180s; 280s; 380s; 480s; 90s) are displayed successively on the screen. You can choose the most appropriate cycle according to the dimensions and condition of the object to be cleaned.

5. Press the "ON" button to begin the cleaning cycle, and the red warning light will come on. The remaining time will be displayed on the screen. It is normal to hear a slight noise during cleaning.

6. Cleaning objects:

a. General cleaning: Use clean water for general cleaning. The object should be immersed in the water, but make sure the level does not rise above the "MAX" marking.
b. Enhanced cleaning: Add between 5 and 10ml of mild detergent to the water if the object is stained or has not been cleaned for a long time. The addition of mild detergent accelerates the decomposition of any soiling and improves the cleaning results. At the end of the cleaning cycle, rinse the tank to remove all traces of detergent.
c. Partial cleaning: Partial cleaning for large objects.
d. Thorough cleaning: If the object needs to be cleaned thoroughly or sterilised, first use the "Enhanced cleaning" function, then change the water and add approx. 5 to 10ml of sterilising fluid to the tank. Restart the unit and set the operating cycle to 90s. At the end of this cycle, the object can be cleaned thoroughly.

Repeated cycles may improve the efficiency of the cleaning. We recommend cleaning intervals of 3 minutes.

1. When the unit displays "000", it stops automatically and the red warning light goes out. If you want to interrupt the cleaning cycle, just press the "OFF" button. If you press the "ON" button again, the unit will resume the program and complete the cleaning. Alternatively, you can press the "SET" button to restart the cycle.
2. At the end of the cleaning cycle, unplug the unit, open the lid and remove the object. To finish, empty the water from the stainless-steel tank and dry it.
3. Using the optional accessories:

e. Plastic basket

Place the small objects to be cleaned in the plastic basket and immerse it in the tank. This makes it possible to reduce friction between the objects to be cleaned and the surfaces of the tank.

Caution: the plastic basket should be used only when cleaning small objects, because it absorbs ultrasonic energy and therefore reduces the cleaning efficiency. When using the plastic basket, please refer to the instructions for "Enhanced cleaning" in this manual.

f. Watch holder

The ultrasonic frequency is highly penetrating. Do not place watches (unless waterproof to a depth of at least 30 metres) directly in the tank, because the water might penetrate into the mechanism and damage it.

Fit the watch to the watch holder and immerse the bracelet in the water. Like the plastic basket, the watch holder also absorbs ultrasonic energy. When using the watch holder, please refer to the instructions for "Enhanced cleaning".

MAINTENANCE

Unplug and empty the unit after use.

Do not leave water in the tank for long periods.

Dry the tank and the unit with a dry towel.

To reduce the risk of electrocution, do not wash the unit.

Store the unit in a cool, dry place out of the reach of children.

TECHNICAL CHARACTERISTICS

Voltage 220-240 V

Frequency 50Hz

Power consumption 50W

EN

LIMITED TWO-YEAR GUARANTEE

LANAFORM® guarantees this product against material and manufacturing defects for a period of two years from the date of purchase, subject to the exclusions detailed below.

The guarantee on this LANAFORM ^® product does not cover damage caused by incorrect or improper use, accident, the fitting of any unauthorised accessory, modifications made to the product, or any other condition of any nature whatsoever beyond the control of LANAFORM ^® .

LANAFORM ^® shall not be held liable for any type of indirect, consequential or special damage.

All implicit guarantees concerning the fitness of the product for its intended purpose are limited to a period of two years from the date of original purchase.

On receipt of your ULTRASONIC CLEANER, LANAFORM® will repair or replace it as appropriate and return it to you free of charge. Any work required under the guarantee will be carried out exclusively through the LANAFORM® Service Centre. Any servicing carried out on this product by any person other than the LANAFORM® Service Centre will render this guarantee null and void.

NV LANAFORM SA

Zoning de Cornement
