USER MANUAL WD5200 M KARCHER

Safety instructions EN .6

Description of the Appliance EN . . .6

Operation EN .7

Maintenance and care . EN . .8

Troubleshooting EN .9

Technical specifications . EN . .9

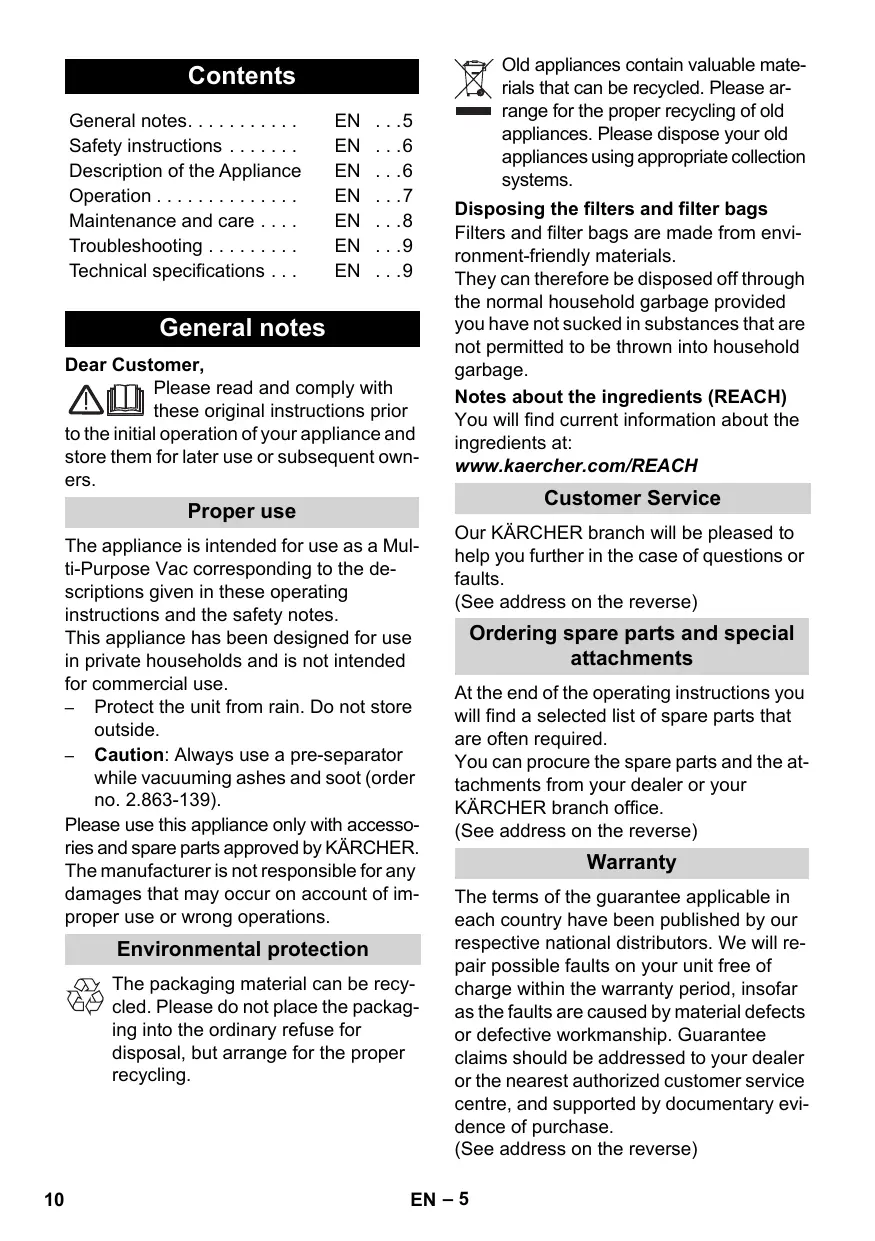

General notes

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

The appliance is intended for use as a Multi-Purpose Vac corresponding to the descriptions given in these operating instructions and the safety notes.

This appliance has been designed for use in private households and is not intended for commercial use.

• Protect the unit from rain. Do not store outside.
• Caution: Always use a pre-separator while vacuuming ashes and soot (order no. 2.863-139).

Please use this appliance only with accessories and spare parts approved by KÄRCHER. The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Disposing the filters and filter bags

Filters and filter bags are made from environment-friendly materials.

They can therefore be disposed off through the normal household garbage provided you have not sucked in substances that are not permitted to be thrown into household garbage.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Customer Service

Our KÄRCHER branch will be pleased to help you further in the case of questions or faults.

(See address on the reverse)

Ordering spare parts and special attachments

At the end of the operating instructions you will find a selected list of spare parts that are often required.

You can procure the spare parts and the attachments from your dealer or your KARCHER branch office.

(See address on the reverse)

Warranty

The terms of the guarantee applicable in each country have been published by our respective national distributors. We will repair possible faults on your unit free of charge within the warranty period, insofar as the faults are caused by material defects or defective workmanship. Guarantee claims should be addressed to your dealer or the nearest authorized customer service centre, and supported by documentary evidence of purchase.

(See address on the reverse)

Safety instructions

• This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lack of experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or if they received precise instructions on the use of this appliance.
• Children must only use this appliance if they are older than 8 and if they are supervised by a person responsible for their safety or if they are instructed on the use of the appliance by such person.
• Keep packaging film away from children - risk of suffocation!
• Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
• Risk of fire. Do not vacuum up any burning or glowing objects.
  The appliance may not be used in areas where a risk of explosion is present.

Electrical connection

The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

Risk of electric shock

Never touch the mains plug and the socket with wet hands.

Do not pull the plug from the socket by pulling on the connecting cable.

Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.

To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).

Caution

Certain materials may produce explosive vapours or mixtures when agitated by the suction air!

Never vacuum up the following materials:

• Explosive or combustible gases, liquids and dust particles (reactive dust particles)
• Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
  Undiluted, strong acids and alkalies
  Organic solvents (such as petrol, paint thinners, acetone, heating oil).

In addition, these substances may cause the appliance materials to corrode.

Description of the Appliance

Illustrations on fold-out page!

When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.

Suction hose connection

To connect the suction hose during vacuuming.

Note: In order to disconnect it, push down with your thumb and pull the suction hose out.

2 Blowing connection

Connect the suction hose to the blower connection, this will activate the blower function.

3 Carrying handle

To carry the appliance or to remove the appliance head after unlocking.

4 Accessory compartment, appliance head
This accessory compartment allows the storage of suction nozzles on the appliance.
5 Key for mains cable retraction
6 Accessory compartment, hook

This accessory compartment allows the storage of the suction hose and the suction nozzles.

7 Rotary switch (ON/OFF)

Position 1: Suction or blowing Position 0: Appliance is switched off
8 Parking position
9 Accessory storage container

This accessory compartment allows the storage of the suction pipes or other accessories.

10 Turning lock

The turning lock is also used to lock the appliance head and the container. To unlock, turn the turning lock all the way into the direction of the arrow until you clear the lock.

11 Steering roller

12 Filter bag

Note: Do not use a filter bag for wet vacu-uming!

Recommendation: To vacuum fine dust, use the filter bag.

13 Cartridge filter

The cartridge filter must always be installed - with wet and dry vacuuming.

Note: Let the wet cartridge filter dry prior to using it for dry vacuuming.
14 Suction hose with handle
15 Suction tubes 2 × 0.5 ~m
16 Floor nozzle (with switching lever)

For vacuuming dust from hard surfaces and carpets:

Lever on symbol for carpets Lever on symbol for hard surfaces

17 Crevice nozzle

For edges, joints, heaters and hard to reach locations.

18Upholstery nozzle

For cleaning upholstered furniture, mattresses, laced curtains, etc.

Operation

Always work with an inserted cartridge filter - during wet as well as dry vacuum cleaning!

Before Startup

Illustration A1 Mount loose parts delivered with appliance prior to start-up.
Illustration A2 Recommendation: To vacuum fine dust, use the filter bag.

Start up

Illustration B1 Connect accessories.
Illustration B2 Plug in the main plug.
Illustration B3 Turn on the machine.

Dry vacuum cleaning

Work only with a dry cartridge filter! Recommendation: To vacuum fine dust, use the filter bag.

(see description / illustration 23)

The filling level of the filter bag depends on the dirt that is sucked in.

The filter bag needs to be replaced more frequently while sucking in fine dust, sand, etc.

Clogged filter bags can burst - therefore make sure to replace the filter bag in a timely manner!

Caution: Always use a pre-separator while vacuuming ashes and soot (order no. 2.863-139).

Wet vacuum cleaning

Attach the accessories to vacuum moisture or wetness to the suction pipes or directly to the handle.

Caution:

Do not use a filter bag!

Immediately switch the appliance off if foam forms or liquids escape!

Note: If the container is full a float closes the suction opening and the appliance works at a higher speed. Switch off the appliance immediately and empty the container.

Blowing function

Cleaning hard to reach locations or, where vacuuming is not possible, like leaves from a gravel bed.

Illustration C1

Connect the suction hose to the blower connection, this will activate the blower function.

Interrupting operation

Turn off the appliance.

Illustration D1

Hook the floor nozzle into the parking position.

Finish operation

Turn off the appliance and disconnect the mains plug.

Empty the container

Illustration E1

Remove the appliance head and empty the reservoir.

Storing the appliance

Illustration E2

Stow away the mains cable, the mains cable retraction and accessory in the appliance.

Store the appliance in a dry room.

Maintenance and care

Danger

Turn off the appliance and remove the mains plug prior to any care and maintenance work.

Repair works may only be performed by the authorised customer service.

Caution

Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.

Clean the appliance and accessory parts made of plastic with a commercial plastic cleaner.
If required, rinse the container and accessories with water properly and dry them before reuse.
Illustration F1

Only clean the cartridge filter under running water; do not wipe or brush. Let it dry completely prior to installation.

Troubleshooting

Mains cable retraction does not function

The mains cable is probably dirty, clean the mains cable.

Decreasing cleaning power

If the cleaning power of the appliance deteriorates please check the following:

Accessories, suction hose or suction tubes are clogged, please remove the obstruction using a stick.
Filter bag is full, install new filter bag. (see description / illustration A2)
Cartridge filter is dirty: Knock the dirt off the cartridge filter, clean it under running water if necessary. (see description / illustration
Replace damaged cartridge filter.

Technical specifications

Voltage 1~50/60 Hz	220 - 240	V
Output Pnom	1400	W
Output Pmax	1600	W
Mains fuse (slow-blow)	10	A
Container capacity	25	I
Water intake with handle	15	I
Water intake with floor nozzle	13	I
Power cord	H 05VV-F2x1
Sound pressure level (EN 60704-2-1)	69	dB(A)
Weight (without accessories)	7,7	kg

Subject to technical modifications!
