Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

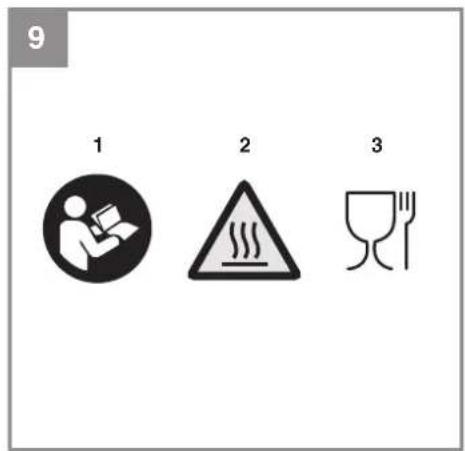

Explanation of the symbols used (see Fig. 9)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Beware of hot parts.
3. This machine is suitable for contact with food.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

• Store the machine in a dry indoor location.
• Never use the machine if it is damaged.
- Have the machine serviced only by an authorized after-sales service outlet.
- Use the machine to carry out only work for which it has been designed.
- Use only genuine accessories and spare parts.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment or carry out user-level maintenance work.

Do not short circuit the equipment.

Information on the charger: If the power cable for

this equipment is damaged, it must be replaced by the manufacturer or OEM after-sales service or by similarly trained personnel to prevent hazards. The equipment may only be used together with the appropriate rechargeable batteries and the charger from the Power X-Change series.

2. Layout and items supplied

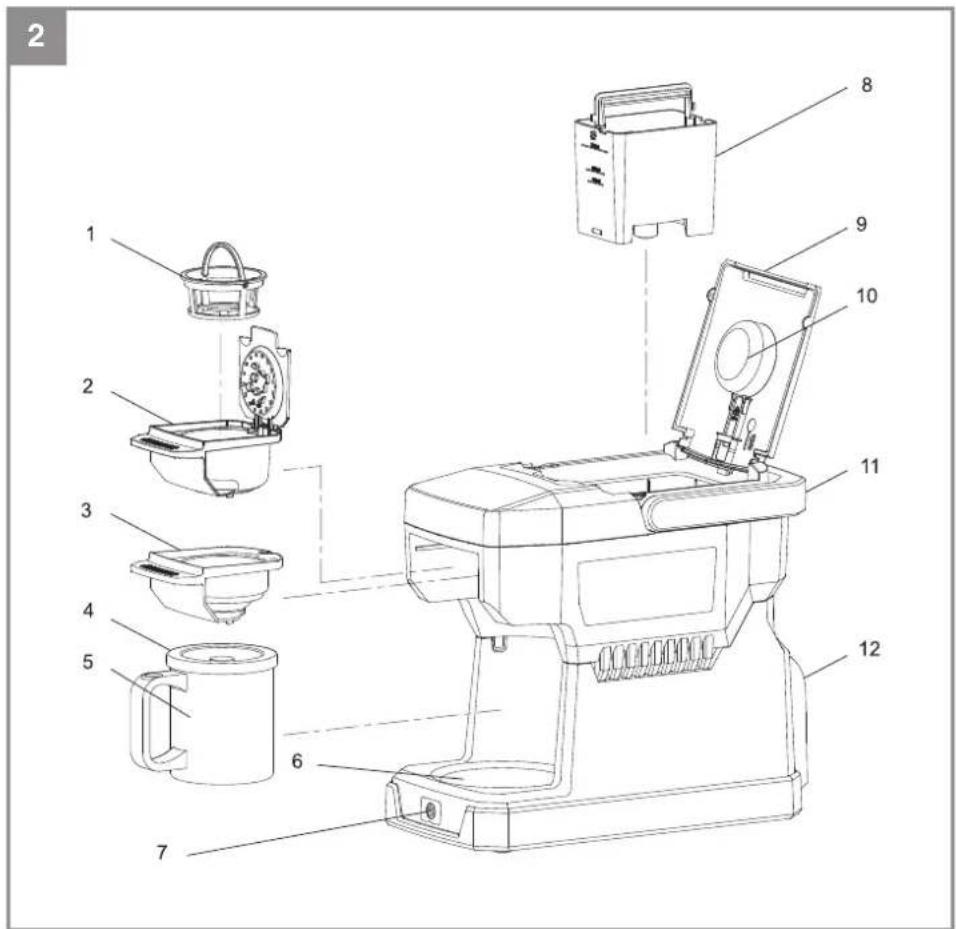

2.1 Layout (Fig. 1-2)

1. Filter
2. Filter holder
3. Coff ee pad holder
4. Coff ee cup cover
5. Coff ee cup
6. Cup stand
7. On/Off button with indicator
8. Water tank
9. Water tank lid
10. Measuring spoon
11. Carry-handle
12. Battery guide rail

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Coffeemachine
• Original operating instructions
- Safety instructions

GB

3. Intended use

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Rated voltage 18 V DC
Power rating 220 W
Water tank capacity ....240 ml
Coff ee cup capacity ....280 ml
Usable coffee pad....φ 60 mm
Brewing time 6\~8 min
Weight (without battery) 1.25 kg

Important!

The equipment is supplied without rechargeable batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power X-Change series!

The lithium-ion batteries of the Power X-Change series are allowed to be charged only with Power-X chargers.

Suitable rechargeable batteries and chargers from the Power X-Change range are for example:

• Rechargeable battery: Power X-Change 1.5
• Rechargeable battery: Power X-Change 5.2
• Charger: Power X-Charger 3A
• Charger: Power X-Charger

5. Before putting into operation

Warning!

Always remove the battery pack before making adjustments to the machine.

5.1 Assembling the machine

When you use the machine for the first time or after a lengthy storage period, carry out the fol-

lowing steps:

1. Remove all the packaging material.

2. Clean all the removable parts, see the section "Cleaning".

3. To remove possible residues from the machine, pour 240ml of fresh water into the water tank.

Rinse the machine's pipes by starting the brewing operation (see "Brewing operation") without any coffee/filter/coffee pad in the filter holder and coffee pad holder. Repeat this process at least twice.

WARNING:

Never touch the hot surface and never remove the water tank lid when the machine is working. Scalding might occur when the water tank lid has been removed. Follow all the safety instructions.

5.2 Charging the Li battery pack (Fig. 5-6)

1. Remove the battery pack (a) from the handle, pressing the pushlock button (b) downwards as you do so.
2. Check that your mains voltage is the same as that marked on the rating plate. Insert the power plug of the charger (c) into the socket outlet. The green LED will then begin to blink.

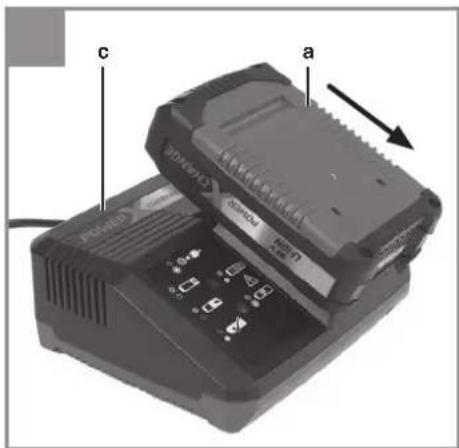

3. Push the battery (a) onto the charger (c).
4. In the section entitled „Charger indicator“ you will find a table with explanations of the LED display on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts

If the battery pack still fails to charge, send

• the charging unit

• and the battery pack

to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

GB

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

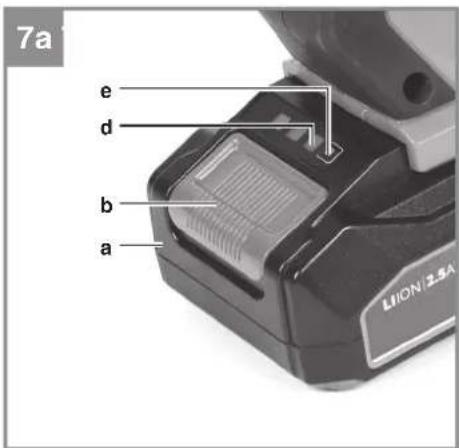

5.3 Battery capacity indicator (Fig. 6/Item d) Press the button for the battery capacity indicator (e). The battery capacity indicator (d) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit: The battery is fully charged.

2 or 1 LED(s) are lit: The battery has an adequate remaining charge.

1 LED fl ashes: The battery is empty, recharge the battery.

All LEDs blink: The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

6. Operation (Fig. 3-8)

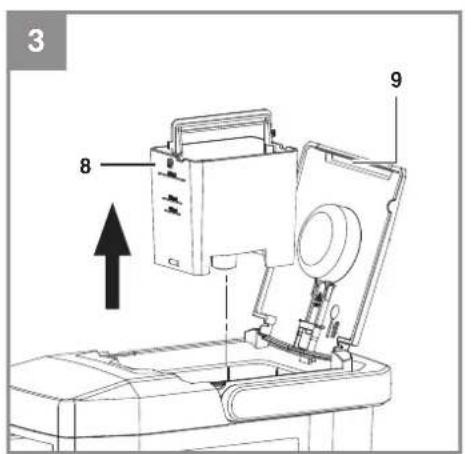

1. Open the water tank lid and remove the water tank.
2. The required water depends on the type and quantity of coff ee used. Pour the required amount of fresh cold water into the water tank and reinsert it. The water tank has a maximum capacity of 240ml. Do not pour too much water into the water tank; surplus water will escape through the overflow.

Type of coffee Recommended quantity of

Ground coff ee (approx. 6g) 160 ml Coff ee pad (60 mm) 120 ml

1. Close the water tank lid.

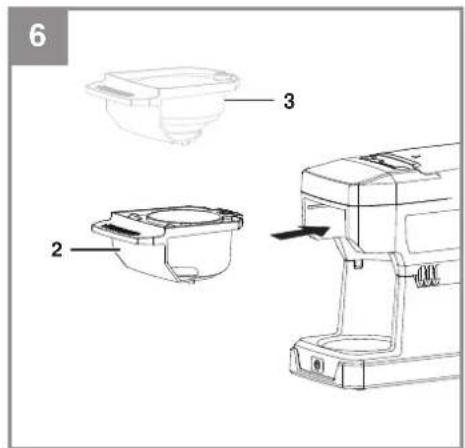

2. Remove the filter holder or the coffee pad holder.

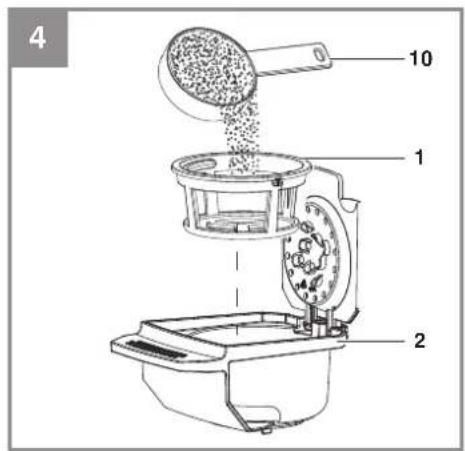

   5.1 Fill one spoonful of ground coff ee (approx. 6g) into the filter. Insert the filter in the filter holder and close the filter holder cover.

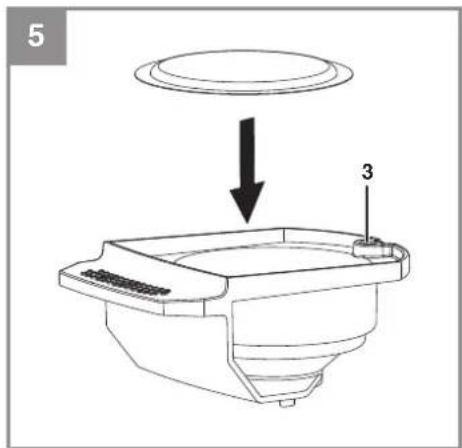

5.2 Place a coffee pad in the coffee pad holder. Make sure that the fl at surface is pointing upwards.
Do not use a torn coff ee pad and do not place more than one pad in the coff ee pad holder.
6. Attach the filter holder/coffee pad holder to the machine.

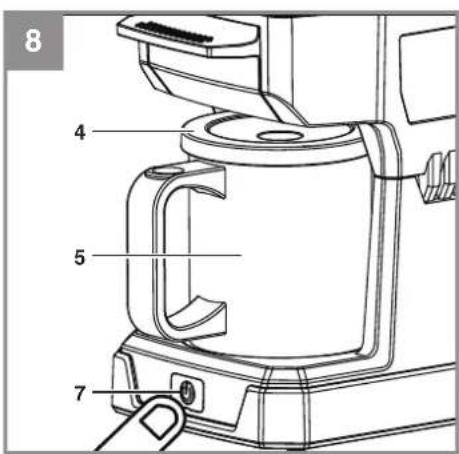

7. Place the coff ee cup with mounted cover onto the cup stand.
8. Push the battery pack along the guide rail until it latches in place. It is recommended to power the machine with one full battery.
9. Press the On/Off button. The indicator lights up and shows: The brewing operation is beginning.
10. The machine will switch off automatically when the brewing operation has ended. If you would like to stop the brewing operation manually, press the On/Off button.
11. Take the coffee cup from the cup stand in order to enjoy your coffee.
12. If you don't want to use the coffee machine again, press the release button and take out the battery.
13. For cleaning after use, see the section "CLEANING".

7. Cleaning, maintenance and ordering spare parts

Danger!

Always pull out the battery before starting any cleaning work.

7.1 Cleaning the machine

WARNING: To avoid serious injuries, always remove the battery and let all parts cool down before carrying out any cleaning and maintenance work.

• Remove the battery and let the machine cool down.
• Remove the filter or coffee pad from the filter holder/coffee pad holder water:
• Wash the filter, filter holder, coffee pad holder, water tank, coffee cup, cover and measuring spoon thoroughly with hot water and then rinse the various objects with clear hot water.
• Wipe the objects with a cloth and allow everything to dry completely.
  • Re-fit all parts to the coffee machine.
• Wipe the outside of the coffee machine with a soft cloth that has been slightly dampened with water.

GB

Note:

Do not use any agents of a chemical, alkaline, abrasive or otherwise aggressive nature.

Cleaning agents or disinfectants might damage the surfaces.

To protect against fire, electric shock and injury, do not dip the machine in water or other liquids.

Make sure that no water remains in the water tank for longer than 24 hours.

7.2 Cleaning the tank (3)

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage / transport

Store the machine and its accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

• Use the carry-handle when you carry the machine. When you fold in the handle, take care not to catch your fingers.
• To prevent fire and burns, allow the machine to cool down before you carry it or put it into storage.
• The supplied spoon can be stored in the water tank lid at the rear. For storage purposes, push the end of the spoon into the holder.
• Store the machine in a dry place out of children's reach.

GB

10. Charger indicator

Indicator status		Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off	On	The battery is charged and ready for use. (READY TO GO)The unit then changes over to gentle charging mode until the battery is fully charged.To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more time. The reasons can be:- The rechargeable battery has not been used for a very long time.- The battery temperature is outside the ideal range.Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ ).Action:Remove the battery pack and keep it at room temperature (approx. 20^ ) for one day .

GB

11. Troubleshooting

Suspected malfunctions are often due to reasons which the user can rectify himself/herself. You should check the machine therefore on the basis of this section. You can solve the problem quickly in most cases.

PROBLEM POSSIBLE CAUSE SOLUTION
Brewing operation fails to start - The battery is not correctly connected- The battery is empty		- Connect correctly- Charge the battery
The machine does not perform on its highest level	- Battery performance is too low- The battery is coming to the end of its working life- The water tank is empty- The heating element is defective	- Charge the battery- Replace the battery- Fill the water tank- Arrange for repair by an authorized service center
Water runs out of the water tank - The water tank has been overfiled		- Observe the recommended quantity of water
Water runs out of the fi lter holder	- Too much coff ee powder is being used- Too many coff ee pads have been inserted- The coff ee pads have been wrongly positioned- The coff ee powder has been grounded too fi nely- The coff ee powder has been compacted too fi rmly	- Reduce the quantity of coff ee powder- Put in the correct amount- Place the coffee pad in the filter holder as described in the section “Brewing”- Use a coarser degree of grinding instead- Fill in more loosely

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is disposed of.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ

F

Danger!

9. Opbevaring / transport

6. Obsluha(obr. 3–8)

Store the machine and its accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

• Use the carry-handle when you carry the machine. When you fold in the handle, take care not to catch your fingers.
• To prevent fire and burns, allow the machine to cool down before you carry it or put it into storage.
• The supplied spoon can be stored in the water tank lid at the rear. For storage purposes, push the end of the spoon into the holder.
• Store the machine in a dry place out of children's reach.

CZ

Suspected malfunctions are often due to reasons which the user can rectify himself/herself. You should check the machine therefore on the basis of this section. You can solve the problem quickly in most cases.

PROBLEM POSSIBLE CAUSE SOLUTION
Brewing operation fails to start - The battery is not correctly connected- The battery is empty		- Connect correctly- Charge the battery
The machine does not perform on its highest level	- Battery performance is too low- The battery is coming to the end of its working life- The water tank is empty- The heating element is defective	- Charge the battery- Replace the battery- Fill the water tank- Arrange for repair by an authorized service center
Water runs out of the water tank - The water tank has been overfiled		- Observe the recommended quantity of water
Water runs out of the fi lter holder	- Too much coff ee powder is being used- Too many coff ee pads have been inserted- The coff ee pads have been wrongly positioned- The coff ee powder has been grounded too fi nely- The coff ee powder has been compacted too fi rmly	- Reduce the quantity of coff ee powder- Put in the correct amount- Place the coffee pad in the filter holder as described in the section “Brewing”- Use a coarser degree of grinding instead- Fill in more loosely

CZ

Jen pro země EU

6. Bediening (afb. 3-8)

Mleta kava (pribl. 6 g) 160 ml

Kavna blazinica (60 mm) 120 ml

1. Zaprite pokrov posode za vodo.
2. Odstranite držalo fi ltra ali držalo kavne blazinice.
   5.1 Napolnite filter z eno žličko mlete kave (pri-

merno je pribl. 6 g). Filter namestite v držalo filtra in zaprite pokrov držala filtra.

Subject to change without notice

Archive-File/Record: NAPR026406

Documents registrar: Markus Jehl

Wiesenweg 22, D-94405 Landau/Isar

* GN Cordless ofits machine - PC Catiferia sans III - J Macchine de cafta à batella - OKW Akku-kaffeinesaktie - S Battersdriken feetchygggare - CZ Akumulatorowy kvetener - SK Akumulatorowy kvetener - NL Akcu-kaffeotetapazat - FC Catifera Inlatamica - FIN Akku-kaffietin - SLO Akumulatorixi arapat za kuve - H Akku-kaffietofogp - RO Aparat de cafta cu asculumater. - GR Kestréteru jupartoros - P Maquina de cote som fio - HR/SBI Baleripi arapat za kuve - RG Akumulatorixi arapat za kuve - PL Akumulatorowy excresse du kayve - TR Akuli kohne makeind - RUS Ankumpulatornia kosevahimina - EC Aluga kothimasin - LV Akumulatoria kafitas automais - LT Akumulatorinis kavos eraslatis - BG Ankumpulatoria kaefe-mahima - UKF Ankumpulatoria kaesverla - MK Anterprisik kaefimet

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Cordless Coff ee Maker TE-CF 18 Li (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation
X Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
X Food Plastic Materials Regulation
☐ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
X Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
☐ Pressure Equipment (Safety) Regulation

Annex V

Annex VI

Noise:measuredLWA = dB (A); guaranteed LWA = dB (A)
P = kW; L/∅ = cm
UK Approved Body:

□ Supply of Machinery (Safety) Regulation

Annex IV

UK Approved Body:

UKTE Certifi cate No.:

ral, 2023.03.16

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR026406

Article Number: 46.099.90 I.-No.: 21013

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Markus Jehl

EH 07/2023 (01)
