USER MANUAL DO10180 DOMO

White SOVO air conditioner with a blue smoke cover emitting vapor (no text or symbols visible)

NL Handleiding Mobiele airconditioner

EN Instruction booklet Mobile air conditioner

DOMO DO10180
Description Symbol Value Unit
Rated capacity for cooling	P rated for cooling	[2,6] kW
Rated capacity for heating	P rated for heating	[x,x] kW
Rated power input for cooling P EER [0,9] kW
Rated power input for heating P COP [x,x] kW
Rated energy efficiency ratio EERd [3,1] —
Rated coefficient of performance	COPd	[x,x]	—
Power consumption in thermostat - off mode with display	P TO [N.A.]	W
Power consumption in standby mode without display	P SB	[0,5] W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: Q DD	DD: [x,x]	DD: kWh/a
	SD: Q SD	SD: [0,9][x,x]	SD: kWh/h
Sound power level	L WA	[63]	dB(A)
Global warming potential	GWP	[3]	kgCO2 eq.
Contact details for obtaining more information	Linea 2000 BV Dompel 9 - 2200 Herentals - Belgium

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Simple curved line drawing without any text, numbers, or symbols

White cylindrical object with ribbed texture, no visible text or symbols

Two transparent rectangular objects labeled 'a' and 'b', with a separate ring on the right (no text or symbols beyond labels)

Product photo showing a rolled-up cable, a gray plastic sheet, and small hardware components (no text or symbols visible)

Product photo of white plastic components including a flange, cap, and screws (no text or symbols visible)

Simple 3D-rendered white object resembling a skates or balance beam, with no visible text or symbols.

White remote control device with LCD display and two plastic clip components (no visible text or symbols)

Close-up of a white plastic ring or clip (no text or symbols visible)

INSTALLATIE

INSTALLATIE

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

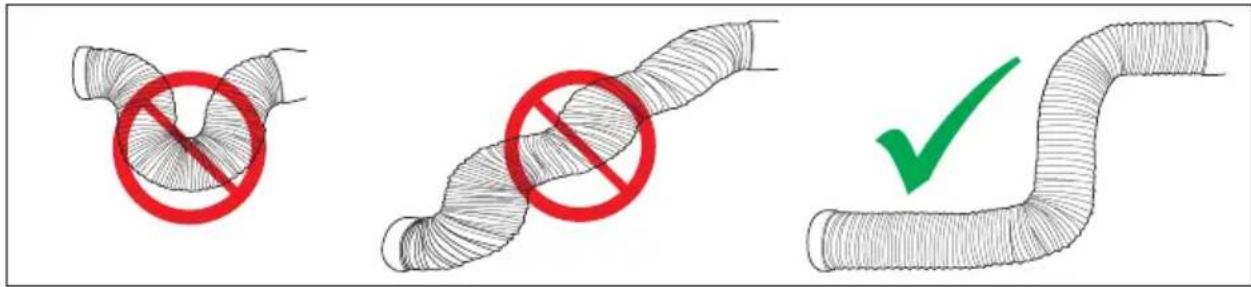

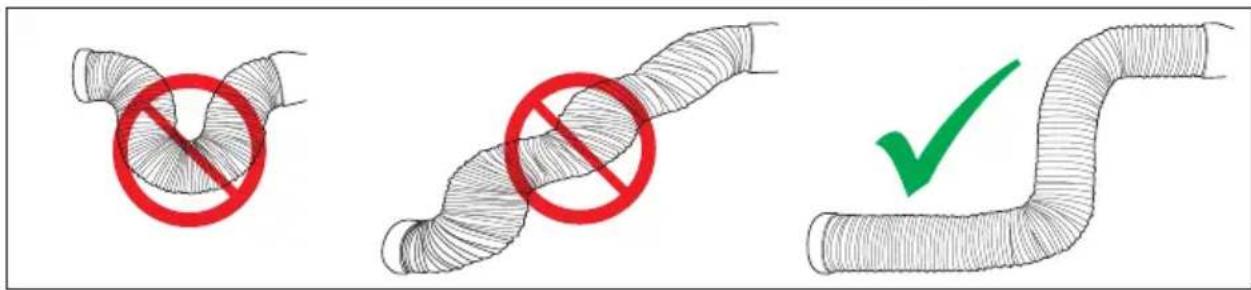

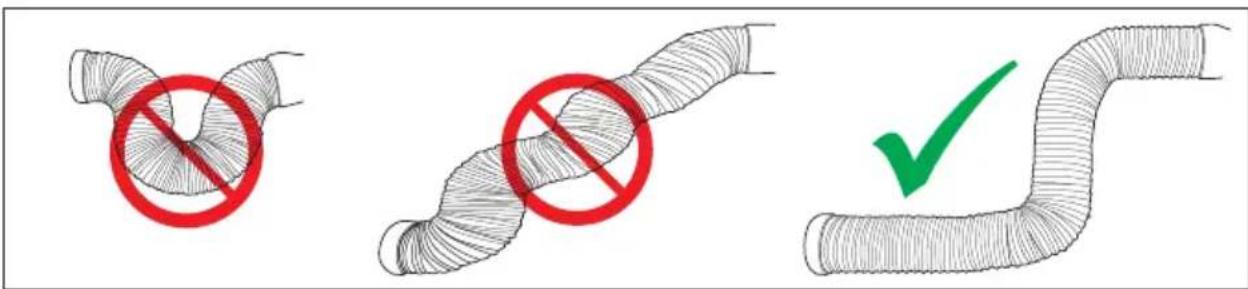

Diagram illustrating three types of pipe knotting: no knot, no knot with red prohibition sign, and checkmark.

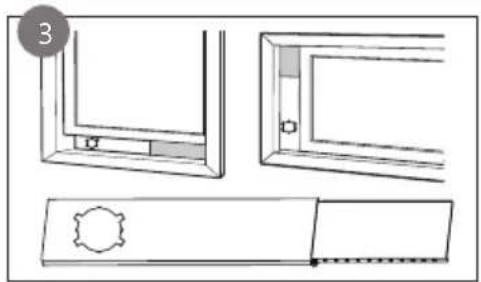

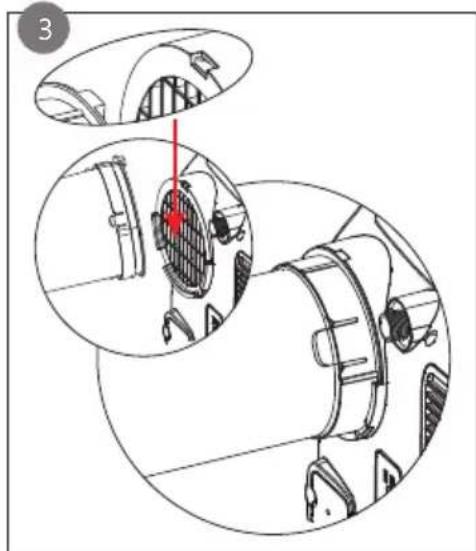

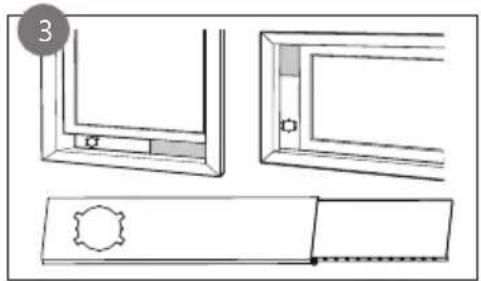

INSTALLATIE VAN DE RAAMUITLAAT

White cylindrical electronic component with side flanges and a central slot (no visible text or symbols)

Technical line drawing of a mechanical component with an inset showing a highlighted internal structure (no text or symbols)

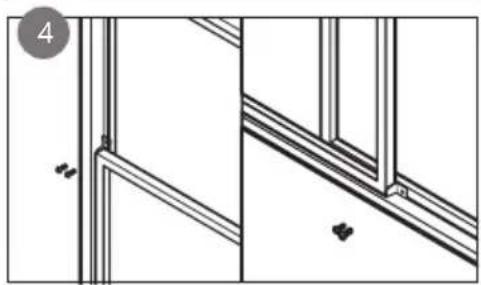

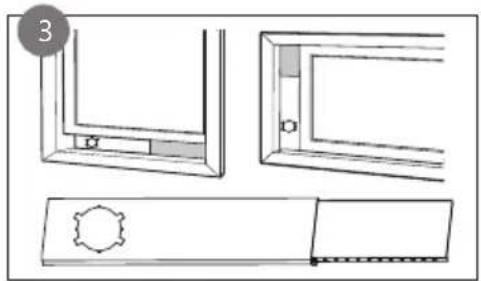

Technical line drawing showing three views of a window frame and a handle (no text or symbols)

Architectural line drawing showing window frame structure with mounting holes and structural beams (no text or symbols)

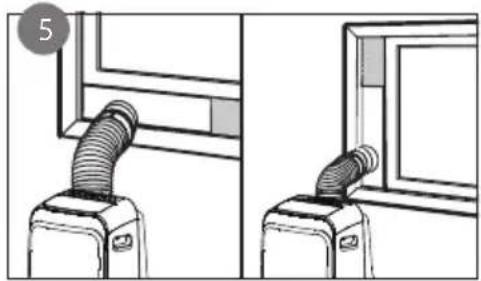

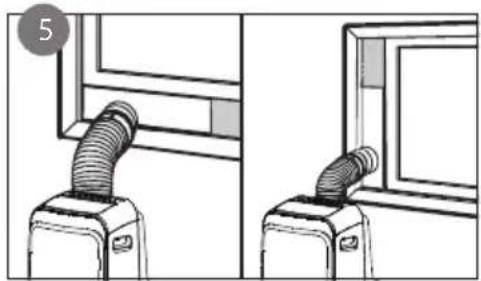

Diagram showing two different indoor air purifiers connected to a window, with no text or symbols present.

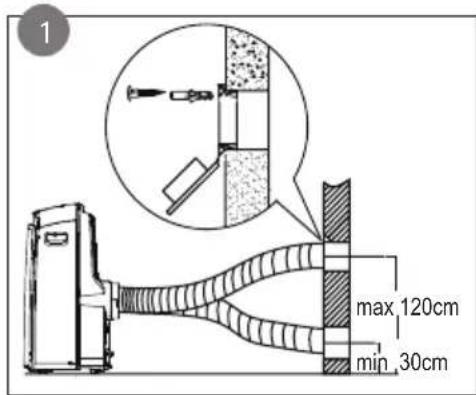

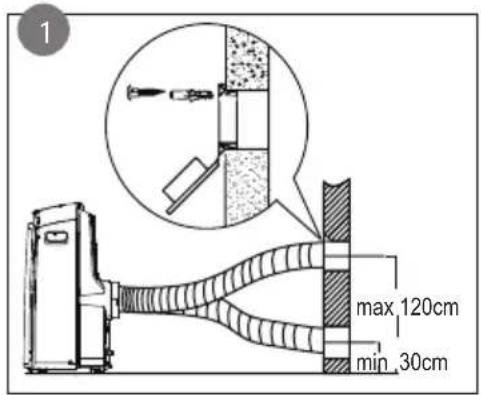

1 max 120cm min 30cm

White plastic cylindrical pipe fitting with threaded end and flange (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal structure (no text or symbols)

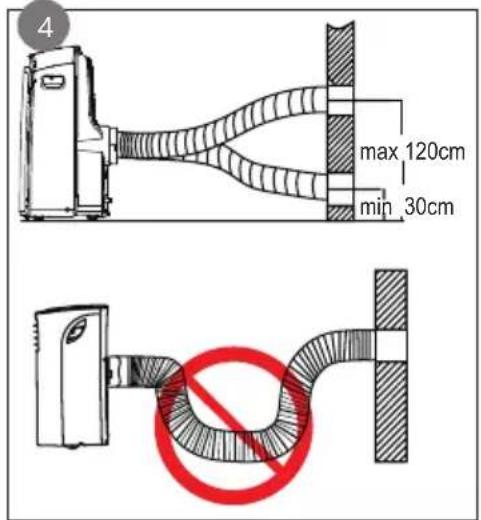

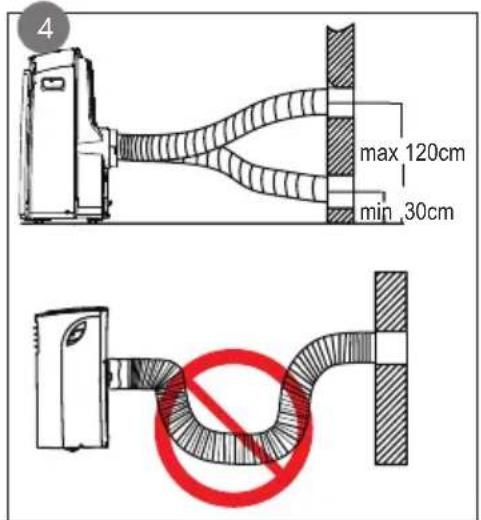

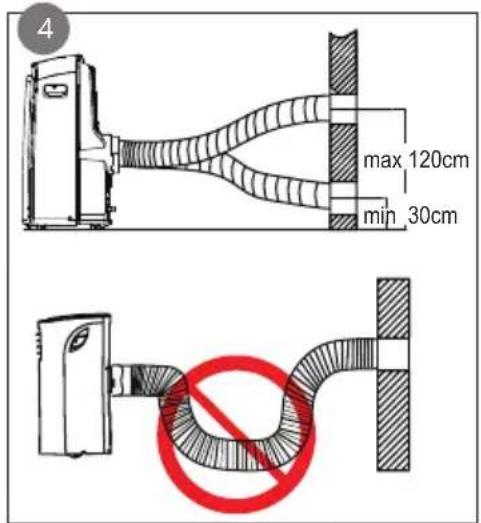

4 max 120cm min 30cm no smoking

White cylindrical object with a looped tip, resembling a mechanical knob or cap (no text or symbols visible)

GEBRUIK

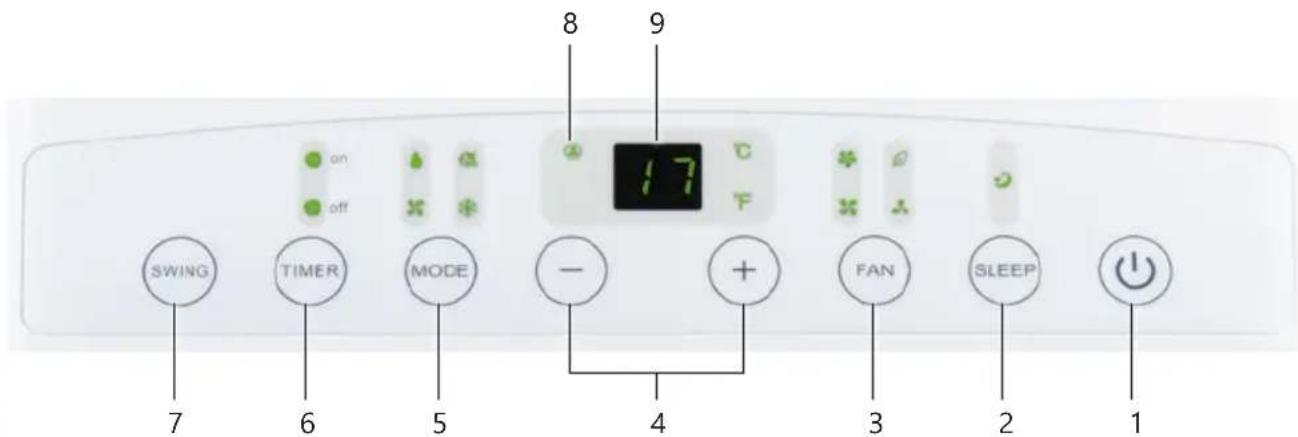

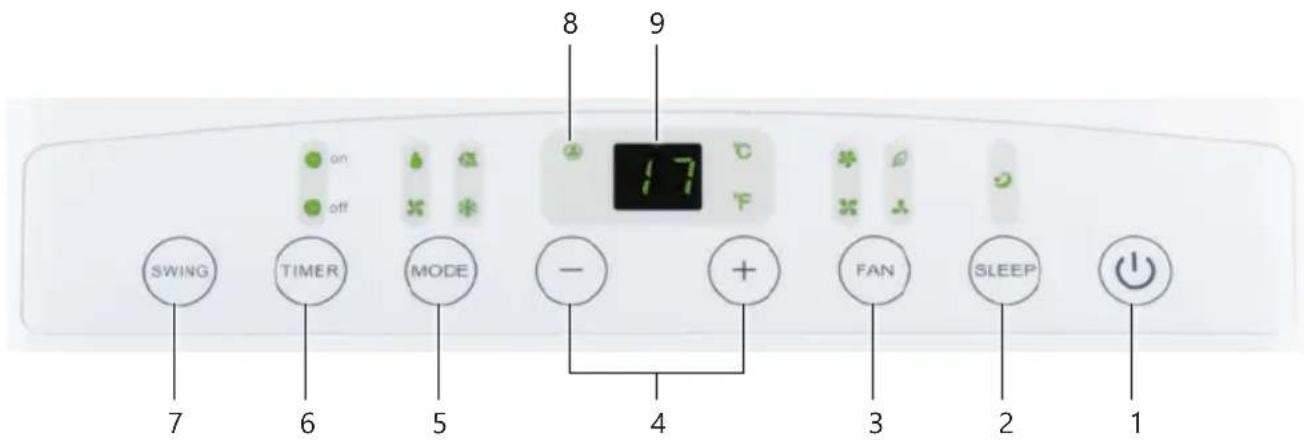

CONTROLEPANEEL

SWING 7 TIMER 6 MODE 5 4 + - FAN 3 SLEEP 2 1 8 9 on off 17 F

1. ON-OFF-toets

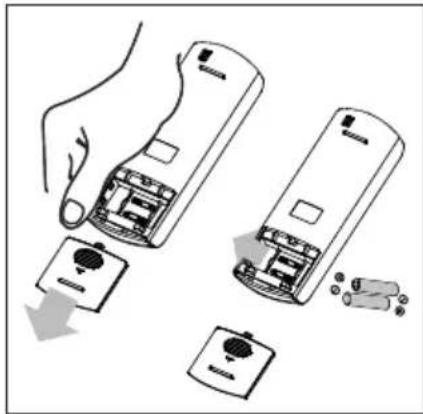

Illustration of two open remote control devices with a hand adjusting their internal components (no text or symbols visible)

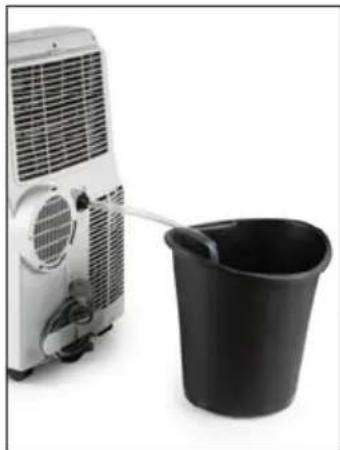

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

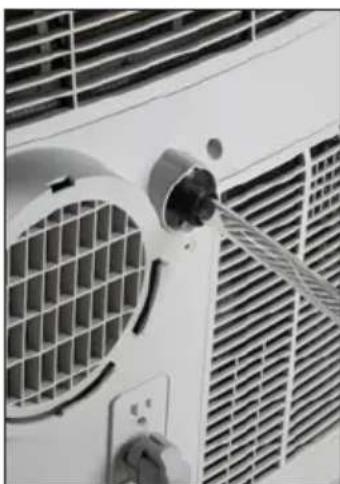

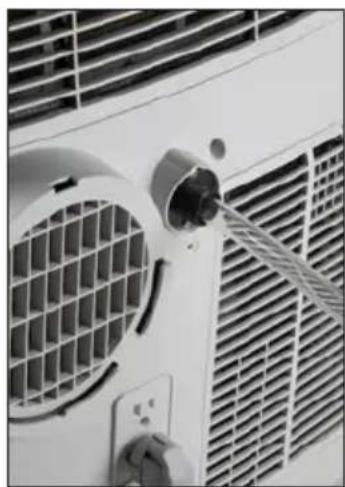

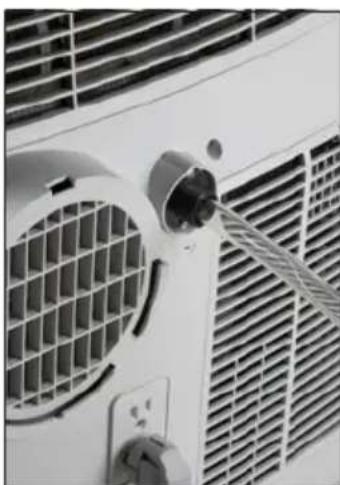

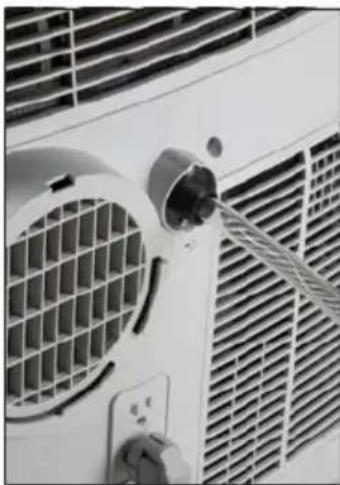

Close-up of an air conditioner unit with a hose and ventilation grille (no visible text or symbols)

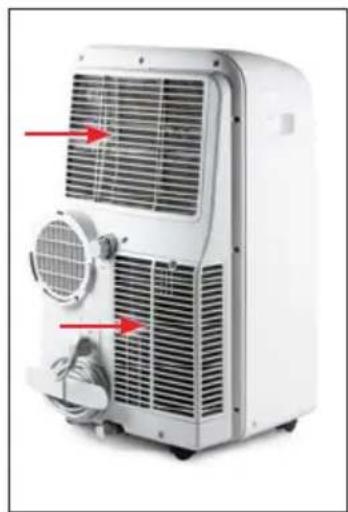

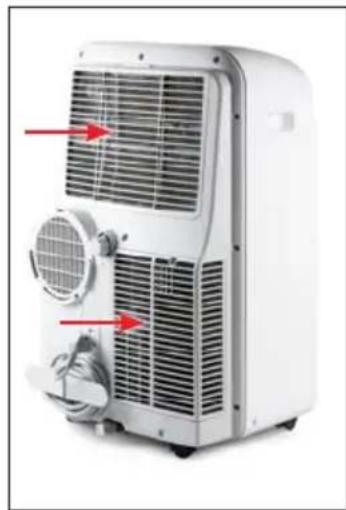

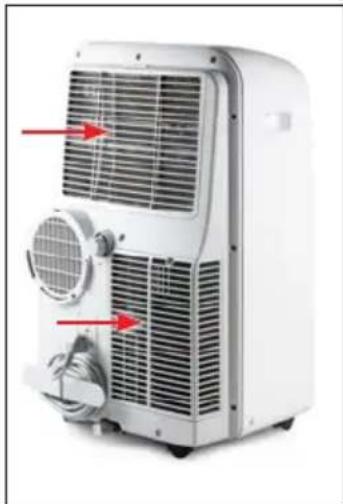

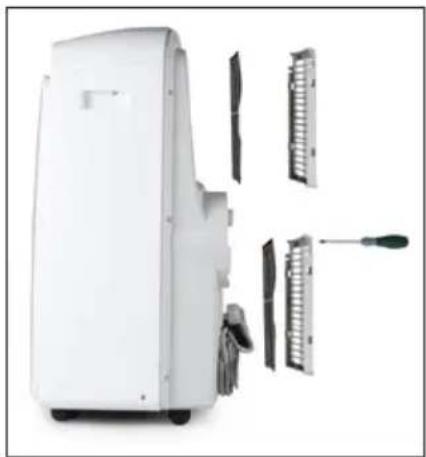

Exterior view of a white industrial air purifier with multiple blades and a screwdriver (no text or symbols visible)

Exterior view of a white industrial air conditioner unit with cooling fans and ventilation grilles (no text or symbols visible)

Hand holding a pen writing on a grid of six empty squares (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Pure curved white line on white background (no text or symbols)

12

White cylindrical object with ribbed texture, no visible text or symbols

13

a

Pure diagram of a rectangular object with labeled sections 'a' and 'b', no text or symbols present.

b

C

Gray plastic sheet with two small accessories labeled d and e, no visible text or symbols on the main subject.

14 15 1716b

a

Close-up of white plastic components including a flange and multiple screws, with no visible text or symbols.

White remote control device with digital display and two plastic components (no visible text or symbols)

INSTALLATION

INSTALLATION

Diagram showing three types of pipe fittings with no symbols, indicating prohibition, prohibition, and checkmark respectively.

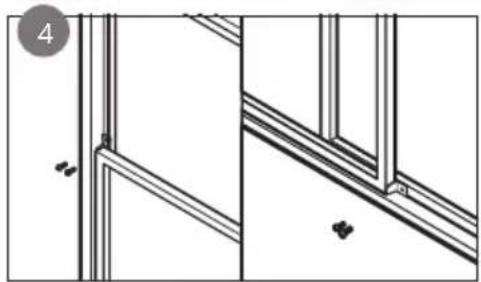

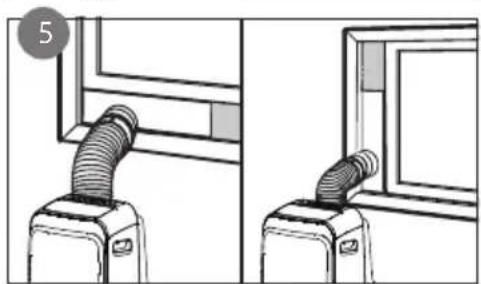

INSTALLATION DE L'ÉVACUATION DE FENÊTRE

White cylindrical mechanical component with threaded ends and a central slot (no visible text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Line drawings of three window frame designs with a separate rectangular panel (no text or symbols)

Technical line drawing of two window frame structures with mounting holes and structural details (no text or symbols)

Diagram showing two different setups of a vacuum tube device, one with a coiled tube and the other with a coiled tube, both placed inside a window (no text or symbols present)

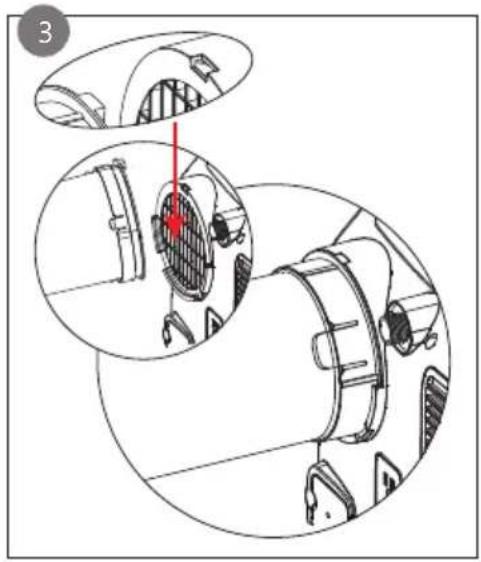

INSTALLATION DE L'ÉVACUATION MURALE

White plastic cylindrical pipe fitting with threaded end and flange (no text or symbols visible)

Technical diagram of a vehicle air intake system with zoomed-in detail (no text or labels)

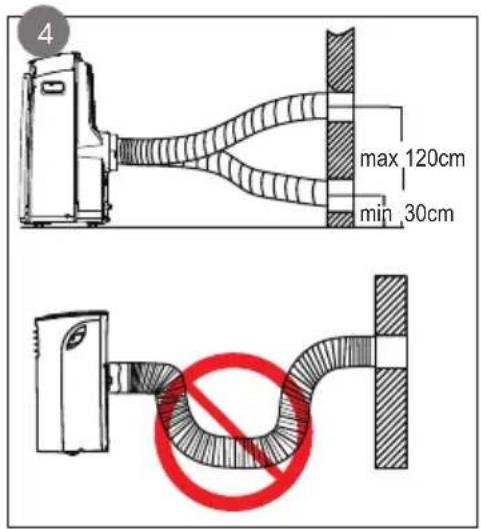

4 max 120cm min 30cm

White cylindrical object with a protruding handle, shown against a plain background (no text or symbols)

UTILISATION

PANNEAU DE COMMANDE

SWING TIMER MODE - + FAN SLEEP 1 2 3 4 5 6 7 8 9

1. Touche MARCHE-ARRÊT

7. SWING Touche SWING

Illustration of two remote control devices with a hand placing a device into one (no text or symbols present)

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

Close-up of a white air conditioner unit with cooling fan and ventilation grille (no visible text or symbols)

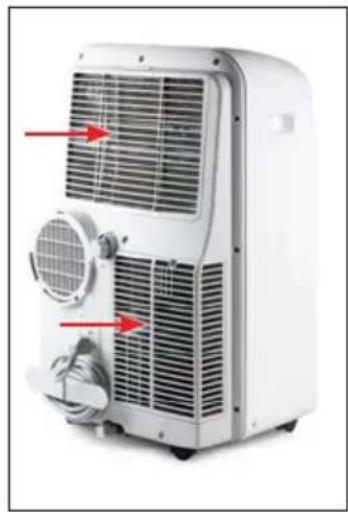

NETTOYAGE

Exterior view of a white electronic device with multiple internal components and a screwdriver (no text or symbols visible)

Front view of a white industrial air conditioner unit with cooling fans and ventilation grilles (no visible text or labels)

Hand holding a small object over a grid of six empty rectangular cells (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple curved line drawing without any text, numbers, or symbols

White cylindrical object with ribbed texture, labeled '12' in top-left corner (no other text or symbols)

Diagram of a transparent rectangular object with labeled parts 'a' and 'b', no readable text or symbols present.

Product photo showing a rolled-up cable, a gray plastic sheet, and small hardware components labeled c, d, e (no text or symbols on main objects)

Two white plastic components with labeled parts (a and b) and a few small cylindrical elements, no text or symbols present.

Simple 3D-rendered object resembling a skateboard or waveguide with no text or symbols

White remote control device with digital display and attached plastic housing (no visible text or symbols)

Close-up of a white plastic ring or clip (no text or symbols visible)

INSTALLATION

INSTALLATION

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

Diagram showing three types of pipe fittings with no symbols, indicating absence or prohibition, and a green checkmark for the final tube.

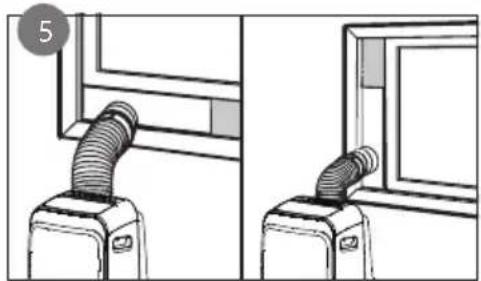

MONTAGE DER FENSTER-LUFTABFUHR

White cylindrical mechanical component with flanged ends and a central slot, shown against a plain background (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Technical line drawings of three window frame components with no text or symbols

Technical line drawing of a window frame structure with mounting holes and structural beams (no text or symbols)

Diagram showing two different indoor air purifiers with coiled ducts, one mounted on a base and the other in a window (no text or symbols)

MONTAGE DER WAND-LUFTABFUHR

White plastic cylindrical pipe fitting with threaded end and flange (no text or symbols visible)

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

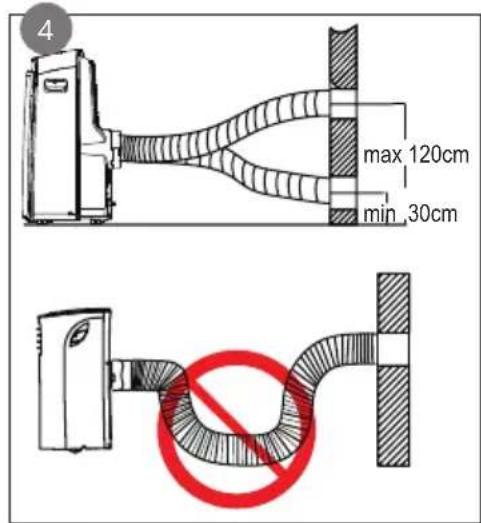

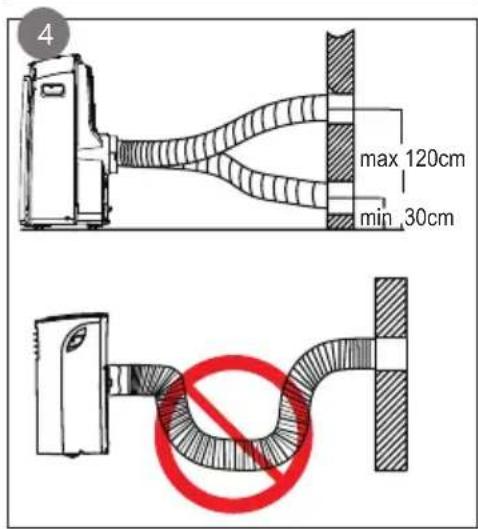

4 max 120cm min 30cm

White plastic mechanical component with a pointed tip, shown against a plain background (no text or symbols)

GEBRAUCH

BEDIENPANEL

SWING 6 5 4 3 2 1 ON OFF 17 F FAN SLEEP 0

1. ON/OFF - Taste

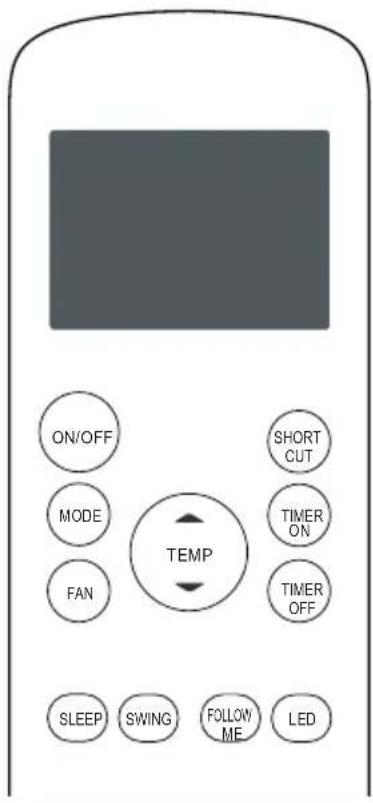

Illustration of two hand-drawn remote control devices with buttons and a close-up of their internal components (no text or symbols)

ON/OFF MODE FAN TIME MP SHOR OUT TIME ON TIME OFF SLEE F SWING FULL ME LED

MODE - Taste

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

Close-up of a white air conditioner unit with ventilation grilles and a coiled hose (no visible text or symbols)

White industrial air purifier with multiple blades and a screwdriver, shown from exploded view (no text or symbols visible)

Front view of a white electric air conditioner unit with ventilation grilles and cooling fans (no text or symbols visible)

Hand holding a pen writing on a grid of blank squares (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Never cover the air inlet or air outlet, to prevent overheating the unit.
• Never splash water on the unit, or place the unit near water, to prevent electrocution.
• Never place another appliance on the same electrical circuit as the air conditioning.
• Never put any foreign objects in the openings of the air conditioning.
• When you turn off the unit and want to turn it on immediately afterwards, the compressor will need 3 min. to start up again.
• Always place the unit at least 1m away from TV or radio, to prevent disturbance.
• Never place the unit in direct sun light, to prevent discoloration of the air conditioning.
• Make sure the angle of the unit is never more than 35^ , when you move the air conditioning. Never place the unit upside down.
• Always remove the water from the water tank, when storing the air conditioning. This will keep your air conditioning in optimal condition for a long time.
• Never use any chemicals to clean the unit, this will cause damage.
• Always make sure to disconnect the unit from the electrical supply before attaching or removing the air inlet grill.

- Make sure the air conditioning is always protected against condensation, splashing water, etc. Make sure the air conditioning can't come in contact or be pulled into water or any other liquid. If for some reason the air conditioning will fall in to water or any other liquid, immediately remove the plug form the socket.

- Never use the air conditioning in a damp room such as a bathroom or a laundry room.

- Make sure that the free space around the unit is at least 30 cm.

- Never touch the unit with wet hands or bare feet.

- Do not press the buttons on the control panel with anything other than your fingers.

- Never remove fixed parts from the air conditioning. Never use the unit when it is not working properly, or when the unit has fallen or has been damaged.

- Reparations, checking for leaks or other services need to happen by a qualified technician with the right certificates.

- Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.

- If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.

- In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.

- When the water drainage function is not in use, keep the upper and the lower drain plug firmly to the unit. When the drain plug is not in use, keep it carefully to prevent children from choking.

- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

- Disconnect the power if strange sounds, smell, or smoke comes from it.

△ SPECIFIC INFORMATION REGARDING APPLIANCES WITH R290 REFRIGERANT GAS

• Thoroughly read all of the warnings.
- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.
- The appliance must be placed in an area without any continuous sources of ignition (for example: open flames, gas or electrical appliances in operation).
- Do not puncture and do not burn.
- Refrigerant gases can be odourless.
- The appliance must be installed, used and stored in an area that is greater than 7 ~m^2 .
- This appliance contains a certain number of grams (see rating label back of unit) of R290 refrigerant gas.
- R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
- If the appliance is installed, operated or stored in a nonventilated area, the room must be designed to prevent the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
- The appliance must be stored in such a way as to prevent mechanical failure.
- Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
- Repairs must be performed based on the recommendations from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

CAUTION: risk of fire / flammable materials

This appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

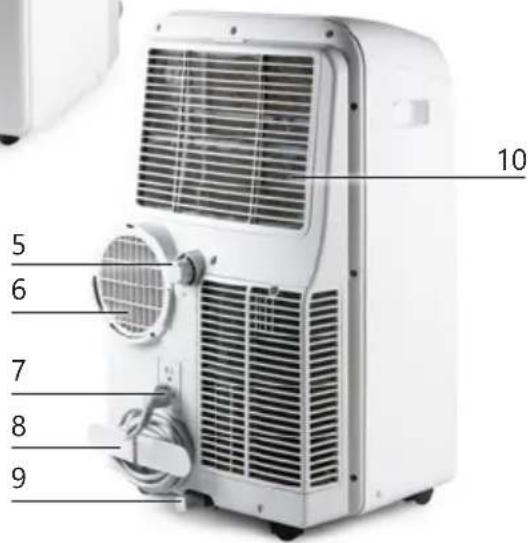

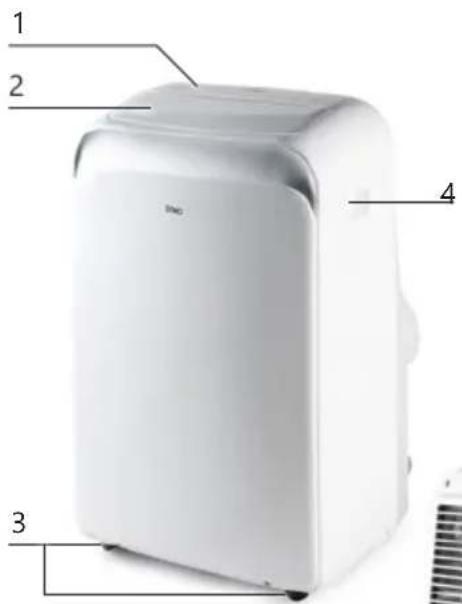

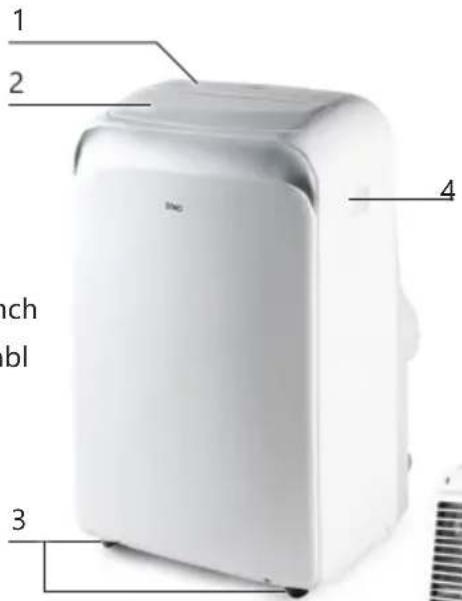

PARTS

1. Control panel
2. Air outlet
3. Wheels
4. Handle
5. Permanent drainage
6. Air outlet
7. Plug storage
8. Cord storage
9. Bottom drain
10. Air inlet + air filters
11. Drain hose
12. Air outlet hose
13. Window connection kit

a. Window adaptor
b. Connecting hose/window adapter
c. Window seal
d. Adapter plug
e. L-iron with screws

1. Wall connection kit

a. Connecting hose/ Wall adaptor
b. Wall adaptor
c. Screws and plugs

1. Cable storage attachment
2. Remote control including batteries, suspension holder, and screws
3. Hose/appliance connector

11

Pure curved white line on white background with no text or symbols

12

White cylindrical object with ribbed texture, no visible text or symbols

13

a

a

a

a

a

4 15 1716b

a

a

a

a

a

Product photo of a white plastic component with multiple screws and a circular base, labeled '15 1716_b' and 'c' (no text or symbols on main subject)

b

C

Gray plastic sheet with two small components labeled d and e, no visible text or symbols

1 2 3 4

10 5 6 7 8 9

Simple 3D-rendered white object resembling a skates or board with a horizontal rod (no text or symbols)

White remote control device with digital display and two plastic clip components (no visible text or symbols)

Close-up of a white plastic ring or clip (no text or symbols visible)

INSTALLATION

INSTALLATION

• Place the air conditioning on a solid and stable floor, this way you will prevent excessive noise and vibrations. Make sure that the floor is strong enough to support the weight of the appliance.
• The appliance has small wheels for easy moving. Make sure only to move the air conditioning over a flat and level surface. Be careful when moving the air conditioning over carpet. Never roll the unit over an object.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Mount the cable storage accessory on the back of the unit.
• Never place any object within 30 cm round the air conditioning.
• Make sure that the air outlet is brought out with the hose. Keep the opening to the outside as small as possible so that no warm air from the outside can come back inside.
• Make sure there is a free surrounding of at least 50 cm around the outlet.
  • Make sure the air outlet hose is not bent during use.

Diagram showing three types of pipe fittings with no symbols: a red prohibition circle, a red prohibition sign, and a green checkmark.

INSTALLATION OF THE WINDOW KIT

The air outlet hose must be used in the "cool" or "auto" mode. During the "fan" or "dry" mode, you don't need to attach the air outlet hose.

1. Place the hose/appliance connector on one side of the air outlet hose and the hose/window adapter connector on the other side of the hose. The connectors snap into place as soon as you push them onto the hose.

White plastic cylindrical device with ribbed top and side flanges (no visible text or symbols)

1. Attach the hose to the unit. The side of the hose with hose/appliance connector must be mounted on the air outlet at the back of the appliance. Slide the connector into the air outlet holders. Make sure that the hook on the connector matches the notch above the air outlet.

2. Place the window adapter in the window. This can be done both horizontally and vertically. Use the window seals to close any openings in the window. Block the window adapter at the desired length using the supplied window adapter plug.

3. If desired, you can fix the window with the L-iron and 2 screws.
4. Attach the connector to the window adapter.

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Technical line drawing of three window frame components with no text or symbols

Architectural line drawing showing two window frame structures with structural details (no text or symbols)

Diagram showing two different indoor air purifiers mounted on a device, with no visible text or symbols.

INSTALLATION WALL KIT

The air outlet hose must be used in the "cool" or "auto" mode. During the "fan" or "dry" mode, you don't need to attach the air outlet hose.

1. Make an opening in the wall the size of the wall adapter (∅ 125 mm) at min. 30 cm and max. 120 cm from the floor. Insert the wall adapter into the opening and attach it to the wall using the 4 supplied plugs and screws.

1 max 120cm min 30cm

1. Place the hose/appliance connector on one side of the air outlet hose and the hose/wall adapter connector on the other side of the hose. The connectors snap into place as soon as you push them onto the hose.

2. Attach the hose to the unit. The side of the hose with hose/appliance connector must be mounted on the air outlet at the back of the appliance. Slide the connector into the air outlet holders. Make sure that the hook on the connector matches the notch above the air outlet.

3. Attach the air outlet hose to the wall adapter. Avoid unnecessary bends in the hose.

4. When you are not using the air conditioner, you can close the wall adapter off using the cover.

White plastic cylindrical object with threaded ends and a flange, shown against a plain background (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

4 max 120cm min 30cm

White plastic pushpin with a curved handle, shown against a plain white background (no text or symbols)

USE

CONTROL PANEL

SWING 7 TIMER 6 MODE 5 4 8 9 17 F + FAN 3 SLEEP 2 1

1. ON/OFF touch

To turn the unit on or off.

2. SLEEP touch

You can use this touch for activating the "sleep" mode.

When pressing the "sleep" touch, the selected temperature will be elevated with 1 °C after 30 min. After another 30 min the temperature will increase with another 1°C. The air conditioning will maintain this temperature for 7 hours. After this time, the air conditioning will go back to the original set temperature and the "sleep" function will end.

ATTENTION: this function cannot be selected with the "fan" or "dry" function.

3. FAN touch

With this touch you can select the fan speed. The related indication light will turn on.

There are four settings:

•low
•medium
•high
- auto (there will be no indicator light illuminated in auto mode)

4. + and - touches

Use these touches to select the temperature or to adjust the timer. When pressing both arrows at the same time you can switch between "°C" or "°F".

5. MODE touch

With this touch you can select the desired function. Every time when pressing this touch the function will change : AUTO, COOL, DRY, FAN. The related indication light will turn on on the control panel.

AUTO mode

When the air conditioning is in the "auto" mode, the air conditioning will automatically make a selection between "cool" or "fan" function, depending on the room temperature and the selected temperature.

The air conditioning will automatically stabilize the room temperature on the selected temperature.

When using the "auto" function, you can't select the fan speed.

COOL mode

The unit will cool with this setting.

Press the "mode" touch until the "cool" indication light turns on. Use the arrow touches to select the desired room temperature. Use the "fan" touch to select the desired air speed.

DRY mode

This function is used to dehumidify the air.

Press the "mode" touch until the "dry" indication light turns on. With the selection you can't select the temperature or fan speed. Keep windows and doors closed for an optimal dehumidification. It is not necessary to install the air outlet hose with this function.

FAN-mode

Press the "mode" touch until the fan indication light will turn on. Press the "fan" touch to select the air speed. This function allows you to use the unit as a fan, which means the temperature cannot be set. It is not necessary to install the air outlet hose with this function.

6. TIMER touch

1. With this function you can select when the unit must turn on or off.

2. Pressing the 'timer' button when the device is switched off turns on automatic switch-on. The 'timer on' indicator light will come on.

3. Pressing the 'timer' button when the device is switched on turns on automatic switch-off. The 'timer off' indicator light will come on.

4. Use the '+' and '-' keys to set the desired time. The maximum time selection is 24 hours.

5. After finishing the selection, the time will start to countdown on the display until "auto on" or "auto off", depending on the selection you made.

You can cancel the timer function at any time by pressing the "on/off" touch.

When the error code E1 or E2 is displayed, the timer selection will be cancelled.

7. SWING touch

This button activates the automatic movement of the lid at the top, which will constantly change the airflow due to oscillation.

8. FOLLOW ME indicator light

If you set the FOLLOW ME function, this indicator light will illuminate. You can only activate this function with the remote control. (see p.80).

9. LED display

Will show the temperature and timer selections. When the "dry" or "fan" mode is selected, the display will show the room temperature.

REMOTE CONTROL

• The remote control will only function within 8 m of the air conditioning. Point the remote in the direction of the air conditioning. The transmission will be confirmed with a beep signal.
• The air conditioning will not react to the remote if the signal is blocked by curtains, doors or other materials.
• Make sure the remote doesn't get wet. Don't expose the remote to direct sunlight or heat.
• When the infrared sensor on the appliance is positioned in direct sunlight it is possible that it won't react to the remote control. Make sure there is no direct sunlight on the infrared sensor.
• When other electrical appliances are reacting to the remote control, remove them further away from the air conditioning or contact your supplier.

• The remote control works with 2 AAA (R03/LR3) batteries.

• Remove the cover of the battery compartment, by pressing down on it and sliding it out of the remote.

• Place the batteries, make sure to follow the indications + and – indicated in the battery compartment.
• Place the cover back on the battery compartment.

Illustration of two remote control devices with buttons and a hand placing them (no text or symbols)

When removing the batteries all selections will be deleted. When placing new batteries you have to reinstall all the selections.
Do not mix old and new batteries in the remote control. Do not use two different types of batteries in the remote control.
⚠️ Remove the batteries from the remote, when you won’t use it for a longer period of time. (more than two months)

⚠️Recycle used batteries correctly.

Function buttons

ON/OFF button

To turn the unit on or off. The Ⓛ symbol appears on the display

Arrow buttons

These buttons must be used for setting the temperature. If you hold the button down for 3 seconds, you can switch between Celsius '°C' and Fahrenheit '°F'.

MODE button

When pressing this button you can select the different functions: cool, fan, dry, auto.

ATTENTION: you will also see a heat mode on the remote control. The unit is not equipped with a heat function. If you select this function, the unit will not work.

ON/OFF MODE FAN TEMP SHORT CUT TIMER ON TIMER OFF SLEEP SWING FOLLOW ME LED

AUTO mode

Press the "mode"-button and select the "auto" mode. Press the arrow buttons to set the temperature. Press the "on/off" button to turn the air conditioning on.

ATTENTION: when selecting the "auto" function, the air conditioning will determine in which setting it will work (air conditioning – fan – dry), depending on the room temperature.

COOL mode

Press the "mode" button and select desired function. Press the arrow buttons to select the desired temperature. Press the "fan" button to select the fan speed. Press the "on/off" button to turn on the air conditioning.

DRY-mode

Press the "mode" button to select the "dry" function. Use the arrow buttons to set the desired temperature. Press the "on/off" button to turn on the air conditioning.

FAN-mode

Press the "mode" button and select desired function. Press the "fan speed" button to select the fan speed. Press the "on/off" button to turn on the air conditioning.

ATTENTION: this function allows you to use the unit as a fan, which means the temperature cannot be set. No temperature will be displayed on the remote control.

FAN FAN button

When pressing this button you can select the desired fan speed: auto, low >>med , >>high >>>>>>

SHORT CUT SHORTCUT button

With this button you can set and switch on a preferential setting.

If you use a certain setting more often, you can set this by pressing the SHORTCUT button for three seconds. The appliance then remembers the settings that are switched on at the moment of pressing. These settings can include: the user setting (MODE), set temperature, ventilation speed (FAN) and possibly also the SLEEP setting.

The moment you press the SHORTCUT button, the appliance will work at the previously determined settings. If you push the shortcut button, the first time after you've connected the appliance, the system will be automatically in auto-function. This means 26° and the fan-speed is auto.

TIMER ON TIMER ON button

Use this button if you want the air conditioning to start working at a certain time. Every press of this button will elevate the current time. The max. timer setting is 24 hours. For cancelling the auto on function you keep on pressing the "timer on" button until "0.0" is displayed.

ATTENTION: pressing the ON/OFF button on the remote control will cancel all timers.

• Press the "timer on" button. The display will show the last setting of the "timer on" mode.
• Press the "timer on" button again to start setting the delay time you want the air conditioning to start working. Every time you press the timer the delay time will change. Max. delay timer setting is 24 hours.
  • After setting the timer, it takes about 2 sec. before the set temperature will be displayed again.

TIMER OFF - touch

Press this button if you want your air conditioning to shut down at a certain time. You can elevate the current time every time you press the button. Max timer setting is 24 hours. For cancelling the auto on function you keep on pressing the "timer on" button until "0.0" is displayed.

ATTENTION: pressing the ON/OFF button on the remote control will cancel all timers.

• Press the "timer off" button. The display will show the last setting of the "timer off" mode.
• Press the "timer off" button again to start setting the delay time you want the air conditioning to stop working. Every time you press the timer the delay time will change. Max to set delay time is 24 hours.
  • After setting the timer, it takes about 2 sec. before the set temperature will be displayed again.

Timer on + Timer off

You can also switch on both functions simultaneously. This determines when you switch on the appliance, but also when the appliance switches off.

ATTENTION: the set time is always counted from the hour of programming. For example: it is 1 pm. You want the appliance to work from 4:30 to 6 pm. Set the TIMER ON on 3.5 h and TIMER OFF on 5.0 h.

SLEEP button

This setting can be used during the night. It will keep a comfortable sleeping temperature and will save energy. This function can be selected with the "cool" and "auto" setting. The 🎨 symbol appears on the display Cancel this setting by pressing the "on/off", fan, sleep or mode button.

When pressing the "sleep" button, the selected temperature will be elevated with 1 °C after 30 min. After another 30 min the temperature will increase with another 1°C. The air conditioning will maintain this temperature for 7 hours. After this time, the air conditioning will go back to the original set temperature and the "sleep" function will end.

ATTENTION : this function cannot be selected with the "fan" or "dry" function.

SWING button

This button activates the automatic movement of the lid at the top, which will constantly change the airflow due to oscillation.

FOLLOW ME button

With the "follow me" function, the ambient temperature is measured by the remote control instead of by the unit.

• Place the remote control where you want the set temperature to reach. This function ensures the optimum temperature when using the 'auto' and 'cool' settings.
• Press the 'follow me' button to activate the function. The remote control will send a signal to the air conditioner every 3 minutes. The symbol 🔊 appears on the display.
• Press the button again to cancel the function.

LED button

Press this button to turn off all the indicator lights on the display, e.g. when using the device at night. Press the button again to turn the display back on.

CLEANING AND MAINTENANCE

DRAINING

Permanent drain

During the "dry" mode you can use a permanent drainage.

1. Remove the drain plug and the rubber top.
2. Attach the drain hose on the drain.
3. Make sure the water is drained in a safe and permanent way.

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

Drain code P1

When you don't use the permanent drain, the non recycled condensation water, will be stored in the water tank.

When the water tank is full a few beep signals will be heard and on the display the code P1 will appear. The "cool" or "dry" mode will end automatically. The fan will continue to operate, this is normal.

1. Move the unit over to a place where you can easily drain the water.
2. Remove the drain plug at the bottom of your unit and drain the water.
3. After fully draining the water tank, place the drain plug back on the drain opening.

Close-up of a white air conditioner unit with a coiled hose and ventilation grille (no visible text or symbols)

Restart the unit, make sure the error code P1 is no longer displayed.

When the code doesn't disappear, try turning off and on the unit a few times. When the error code continues, please contact the after sales service.

ATTENTION : always make sure to install the drain plug, before turning the unit back on.

CLEANING

⚠️ Always remove the plug from the socket before cleaning the unit.

⚠️ Never use any chemical or abrasive products to clean the unit.

⚠️ Never clean the unit with water or any other liquid, this can cause electrocution.

When the power cord is damaged it must be repaired or replaced by the after sales surface of the manufacturer or by a qualified person.

Air filters

The unit contains 2 air filters. To prevent the fan from malfunctioning due to dust in the filter, it is best to clean the air filters every two weeks using a vacuum cleaner along the exterior of the filters.

Give the filters a thorough cleaning every six to twelve months. To do this, remove the filters and wash them:

1. Remove both filters.

White industrial air purifier with multiple screwdriver holders and a tool, shown from exploded view (no text or symbols visible)

Front view of a white electric air conditioning unit with ventilation grilles and fan cooling system (no text or symbols visible)

1. Clean the filters in lukewarm water with a mild detergent.

2. Rinse the filters thoroughly and let them air dry.

Hand holding a small object over a grid of six empty rectangular cells (no text or symbols visible)

1. When the filters are completely dry, you can put them back in the unit.

Air conditioner body

Use a damp, soft cloth and a bit of mild detergent, to clean the outside of the unit. Make sure the unit is thoroughly dried afterwards.

STORING

Before storing the unit for a longer period of time, please follow the next steps :

1. Drain all the water from the appliance.
2. Afterwards turn on the unit in the "fan" mode for half a day. Make sure the unit is placed in a heated room. This will dry the unit completely and prevent the forming of mold.
3. Turn off the unit, remove the plug from the socket and remove the batteries from the remote control.
4. Clean the filters and place them back in the unit.
5. Store the unit in a dry, dark place.

POSSIBLE PROBLEMS AND THEIR SOLUTIONS

PROBLEMS SOLUTIONS
The appliance isn't working when pressing the on/off touch.	· The error code P1 is displayed, drain the water from the air conditioning.· The room temperature is lower than the selected temperature. Adjust the selected temperature.
The room is not cool enough. · The windows and doors aren't closed.Make sure all windows and doors are closed.There are heat sources in the room.Remove all heat sources if possible.The air outlet hose is not connected or blocked. Attach the hose and check if there is no blockage.The selected temperature is too high. Adjust the selected temperature.
The appliance is making too much noise or is causing vibrations.	· The floor is not level or flat. Place the appliance on the flat and level surface if possible.The air filters are dirty. Clean the filters.
Your appliance makes a gurgling sound. · The sound is produced by the refrigerant in your appliance, this is normal.
The display shows error message 'P1'. · The drainage container is full. To empty the container, follow the instructions under 'Drainage in case of P1 code'.
The display shows an E error message. · Contact DOMO customer service or the customer service department of the shop where you bought the device for an inspection and possible repair.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Pure curved white line on white background with no text or symbols

12

White cylindrical object with ribbed texture, no visible text or symbols

13

a

a

a

a

a

4 15 1716b

a

a

a

a

a

Product photo of a white plastic component with multiple screws and a circular base, labeled '4 15 1716_b' and 'c' (no text or symbols on main subject)

b

C

Gray plastic sheet with two small components labeled d and e, no visible text or symbols

1 2 3 4 inch bl

10 5 6 7 8 9

Simple 3D-rendered white object resembling a skates or board with a handle, no text or symbols visible.

White remote control device with digital display and two plastic clip components (no visible text or symbols)

Close-up of a white plastic ring or strap (no text or symbols visible)

INSTALACIÓN

INSTALACIÓN

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

Diagram illustrating three types of pipe knotting: no knot, no knot with red prohibition sign, and checkmark.

White cylindrical electronic component with metallic leads and a small internal slot (no visible text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Line drawings of three window compartments and a rectangular object with a decorative border (no text or symbols)

Technical line drawing showing two views of a window frame with metal framing and mounting holes (no text or symbols)

Illustration of two household air purifiers with coiled tubing, one mounted on a device and the other in front (no text or symbols)

White plastic cylindrical object with threaded ends and a flange, shown against a plain background (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

4 max 120cm min 30cm no smoking

White plastic push-button switch with a circular head and handle, shown against a plain background (no text or symbols)

USO

PANEL DE CONTROL

SWING 6 5 4 3 2 1 ON OFF 17 F FAN SLEEP 0

1. Bón ON-OFF

Illustration of two open remote control devices with a hand adjusting their internal components (no text or symbols visible)

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

Close-up of an air conditioner unit with cooling fan and ventilation grilles (no visible text or symbols)

White industrial air purifier with multiple blades and a screwdriver, shown from exploded view (no text or symbols visible)

White industrial air conditioner unit with cooling fans and ventilation grilles, no visible text or symbols

Hand holding a small object over a grid of six empty rectangular cells (no text or symbols visible)

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or disposal.

Simple curved line drawing without any text, numbers, or symbols

White cylindrical object with ribbed texture, no visible text or symbols

Two transparent rectangular objects labeled 'a' and 'b', with a separate circular ring on the right (no text or symbols on the objects themselves)

Product photo showing a rolled-up cable, a gray plastic sheet, and small hardware components labeled c, d, e (no text or symbols on main objects)

Two white plastic components with labeled parts (a and b) and a few screws, no text or symbols present.

Simple 3D-rendered white object resembling a skates or balance beam, with no visible text or symbols.

White remote control device with digital display and two separate plastic clip components (no visible text or symbols)

Close-up of a white plastic ring or strap (no text or symbols visible)

INSTALLAZIONE

INSTALLAZIONE

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

Diagram illustrating three types of pipe knotting: no knot, no knot with red prohibition sign, and checkmark.

INSTALLAZIONE DELL'USCITA A FINESTRA

White plastic cylindrical device with ribbed top and side flange (no visible text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Line drawings of three window frame designs with a separate rectangular panel (no text or symbols)

Technical line drawing showing two views of a window frame with metal framing and mounting holes (no text or symbols)

Illustration of two household air purifiers with coiled tubing, one mounted on a device and the other in front, both without any text or symbols.

INSTALLAZIONE DELL'USCITA A MURO

White plastic cylindrical component with threaded ends and a flange, shown against a plain background (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

4 max 120cm min 30cm

White plastic pushpin with a curved handle, shown against a plain background (no text or symbols)

UTILIZZO

PANNELLO DI CONTROLLO

SWING 6 5 4 3 2 1 ON OFF 17 F FAN SLEEP 0

1. Tasto ON-OFF

Illustration of two open remote control devices with a hand adjusting their internal components (no text or symbols visible)

ON/OFF MODE FAN TE MP SHORT CUT TIME ON TIME OFF SLEEP SWING FOLLOW ME LED

Tasto MODE

SHORT CUT Tasto SHORTCUT

Electric air conditioner next to a black bucket with a hose, isolated on white background (no text or symbols)

Close-up of a white industrial fan or vent with a coiled cable and ventilation grille (no visible text or symbols)

Exterior view of a white industrial air purifier with multiple screwdriver holders and a handle (no text or symbols visible)

Exterior view of a white industrial air conditioner unit with cooling fans and ventilation grilles (no text or symbols visible)

Hand holding a pen writing on a grid of six empty rectangular panels (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Pure curved white line on white background with no text or symbols

12

White cylindrical object with ribbed texture, no visible text or symbols

13

a

Pure diagram of a rectangular object with labeled parts 'a' and 'b', no text or symbols present.

b

C

Gray plastic sheet with two small accessories labeled d and e, no text or symbols present

14 15 1716b

a

Product photo of white plastic components including a ring, cap, and screws (no text or symbols visible)

White remote control device with digital display and two separate electrical plugs (no visible text or symbols)

INSTALACE

INSTALACE

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

Diagram illustrating three types of pipe knotting: no knot, no knot with ring, and checkmark.

INSTALACE OKENNÍHO ADAPTÉRU

White cylindrical mechanical component with flanged ends and a central slot, shown against a plain background (no text or symbols visible)

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Line drawings of three window frame designs with no text or symbols

Architectural line drawing showing two window frame structures with structural details (no text or symbols)

Diagram showing two different indoor air ducts with a valve, no text or symbols present

INSTALACE DO ZDI

White plastic cylindrical pipe fitting with threaded ends and flange (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

4 max 120cm min 30cm

White cylindrical object with a pointed tip, resembling a mechanical or electronic component (no text or symbols visible)

POUŽITÍ

OVLÁDACÍ PANEL

SWING TIMER MODE - + 4 FAN SLEEP 1 8 9 off on off 17 F 3 2 1

1. Tlčitko ON-OFF

Illustration of two open remote control devices with buttons and a hand placing them (no text or symbols)

ON /OFF MODE FAN TE MP SH OR CU T TIME ON TIME OFF F S L E E P SW IN G FOLLOW ME LED

Electric air conditioner next to a black bucket with a bucket being inserted (no text or symbols visible)

Odtok: kód P1

Close-up of a car air conditioner unit with cooling fan and hose, no visible text or symbols

White industrial air purifier with multiple screwdrivers and a handle, shown from exploded view (no text or symbols visible)

Exterior view of a white industrial air conditioner unit with cooling fans and ventilation grilles (no text or symbols visible)

Hand holding a pen over a grid of empty rectangular cells (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Pure curved white line on white background, no text or symbols present

12

White cylindrical object with ribbed texture, no visible text or symbols

13

a

Pure diagram of a rectangular object with labeled sections 'a' and 'b', no text or symbols present.

b

C

Gray plastic sheet with two small components labeled d and e, no visible text or symbols

14 15 1716 _b

a

Close-up of white plastic components with screws and a curved lid, no visible text or symbols

White remote control device with digital display and two separate electrical connectors (no visible text or symbols)

INŠTALÁCIA

INŠTALÁCIA

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the diagram itself)

Diagram illustrating three types of pipe knotting: no knot, no knot with ring, and checkmark.

INŠTALÁCIA OKENNÉHO ADAPTÉRA

White cylindrical mechanical component with flanged ends and internal ridges (no visible text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

Line drawings of three window frame designs with no text or symbols

Architectural line drawing showing two window frame structures with structural details (no text or symbols)

Diagram showing two different indoor air ducts with pipes, one mounted on a device and the other in a room (no text or symbols)

INŠTALÁCIA DO ZDI

White cylindrical mechanical component with threaded end and flange (no visible text or symbols)

Technical line drawing of a mechanical component with an inset showing a highlighted part (no text or symbols present)

4 max 120cm min 30cm

White cylindrical object with a looped tip, resembling a mechanical knob or connector (no text or symbols visible)

POUŽITIE

OVLÁDACÍ PANEL

SWING 7 TIMER 6 MODE 5 4 8 9 17 F + FAN 3 SLEEP 2 1

1. Tlæcidlo ON-OFF

Illustration of two open mobile phone holders with attached devices and a hand placing them (no text or symbols)

ON/OFF MODE FAN TE MP SH OR T CUT TIME R ON TIME R OF F S L EE P SW IN G FOLLOW ME LED

Funkcia COOL

Exterior view of a white air conditioner unit next to a black bucket (no text or symbols visible)

Odtok: kód P1

Close-up of a car air conditioner unit with cooling fan and hose, no visible text or symbols

White portable air conditioner unit with multiple screwdriver holders and a handle, shown from exploded view (no text or symbols visible)

Front view of a white industrial air conditioner unit with ventilation grilles and fan cooling system (no visible text or symbols)

Hand holding a grid of six empty rectangular cells, no text or symbols present

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
