Product type	Cordless impact wrench
Brand	Bosch
Model	GDS 18V-1600 HC Professional
Communication technology	Bluetooth 4.2 Low Energy (GCY 42 module)
Tool power supply	18 V lithium-ion battery (inferred from model name)
Bluetooth module power supply	CR2032 3 V button cell battery
Bluetooth signal range	Up to 30 m
Mobile app	Bosch Toolbox (Android 6.0+ / iOS 11+)
Bluetooth module dimensions	7 x 30 x 30 mm
Bluetooth module weight	0.01 kg
Bluetooth frequency range	2 402 - 2 480 MHz
Bluetooth output power	< 1 mW
Operating temperature (module)	-20 °C to +50 °C
Storage temperature (module)	-20 °C to +70 °C
Module battery life	Approximately 24 months
Main functions	Impact screwing with Bluetooth connectivity for customization and data transfer
Maintenance and cleaning	Clean with a brush; do not use detergents or solvents
Safety	Follow safety instructions; directive 2014/53/EU
Spare parts and repairability	Available at www.bosch-pt.com; after-sales service via online form
General information	Intended use: screwing and unscrewing; optional Bluetooth module

Frequently Asked Questions - GDS 18V-1600 HC Professional BOSCH

How to install the button cell battery in the GCY 42 Bluetooth module?

Insert the CR2032 battery with the positive pole facing up into the module. Do not force it; the battery positions correctly when closing the cover. After insertion, press the On/Off switch of the tool to initialize the module.

What to do if the Bluetooth module is not detected by my smartphone?

Reduce the distance between the smartphone and the module (30 m max in open field), check that the battery is not low, turn off and on the smartphone's Bluetooth. If the problem persists, replace the battery.

Which battery to use for the GCY 42 module?

Use a lithium button cell battery of type CR2032 (3 V). Do not use any other type of battery or rechargeable battery.

How to replace the module's battery?

Remove the cover using a screwdriver or a coin. Remove the used battery with your fingers. Insert a new CR2032 battery with the positive pole facing up. Close the cover and press the On/Off switch.

Is the Bosch Toolbox app compatible with my smartphone?

The app requires Android 6.0 or later, or iOS 11 or later. Check compatibility on the App Store or Google Play.

How to clean the module or tool?

Use a brush to remove dirt. Do not use detergents or solvents that could damage the device.

Where to find spare parts for the tool?

Spare parts are available at www.bosch-pt.com. You can also order via the Bosch after-sales online shop.

What is the range of the Bluetooth signal?

The range can reach 30 m in open field. In an enclosed environment or with metal obstacles, the range may be significantly reduced.

What to do if the tool does not turn on?

Check the tool battery (charge it if necessary) and the Bluetooth module battery. If the module is defective, remove it and have it repaired by customer service.

How to contact Bosch customer service in France?

You can contact Bosch Customer Service at 09 70 82 12 26 (toll-free number) or by email at [e-mail]. For dealers, call 01 43 19 00 06.

USER MANUAL GDS 18V-1600 HC Professional BOSCH

English ...... Page 24

German

Safety instructions

www.bosch-pt.com/serviceaddresses

Disposal

All instructions must be read and observed in order to enable work with the GCY 42 to be carried out safely. Store these instructions in a safe place and include them with the GCY 42 when giving it to a third party.

Only use the batteries listed in this operating manual. Do not use any other forms of power supply.

WARNING

Ensure that the coin cell is kept out of the reach of children. Coin cells are dangerous.

Coin cells must never be swallowed or inserted into any other part of the body. If you suspect that someone has

swallowed a coin cell or that a coin cell has entered the body in another way, seek medical attention immediately. Swallowing coin cells can result in severe internal burns and death within 2 hours.

Ensure that coin cell replacement is carried out properly. There is a risk of explosion. Only use the coin cells listed in this operating manual. Do not use any other coin cells or other forms of electrical power supply. Do not attempt to recharge the coin cell and do not short circuit the coin cell. The coin cell may leak, explode, catch fire and cause personal injury. Remove and dispose of drained coin cell correctly. Drained coin cell may leak and damage the product or cause personal injury. Do not overheat the coin cell or throw it into fire. The coin cell may leak, explode, catch fire and cause personal injury. Do not damage the coin cell and or take the coin cell apart. The coin cell may leak, explode, catch fire and cause personal injury.

Do not allow damaged coin cells to come into contact with water. Leaking lithium may mix with water to create hydrogen, which could cause a fire, an explosion, or personal injury.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under license.

If you cannot close the cover, stop using the Bluetooth® module, remove the button cell and have the module repaired.

Product description and specifications

Intended Use

The Bluetooth® Low Energy Module GCY 42 enables the personalisation and status checking of a power tool and the transfer of settings and data based on Bluetooth® wireless technology. The data transfer must be approved by the user.

Information about the connectivity functions offered can be found in the Bosch Toolbox application (app) or in the operating manual of the power tool you are using.

Product Features

The numbering of the components shown refers to the illustrations on the graphic pages.

(1) Button cell (2) Bluetooth® Low Energy Module GCY 42 (3) Placeholder ^a) (4) Cover for the Bluetooth® Low Energy Module GCY 42 ^a) a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Bluetooth® Low Energy Module

Article number

GCY 42

1 600 A01 ZE2

1 600 A01 3WF

Bosch Power Tools 1 609 92A 6RX | (21.02.2022)

28 | English

Bluetooth®Low Energy Module	GCY 42
	1 600 A01 6NH1 600 A01 L2W
Operating temperature -20 °C to +50 °C
Storage temperature -20 °C to +70 °C
Dimensions 7 x 30 x 30 mm
Weight according to EPTA-Procedure 01:2014	0.01 kg
Data transfer
Bluetooth® Bluetooth® 4.2 (Low Energy)	A)
Signal range Max. 30 m	B)
Frequency range used 2402–2480 MHz
Output power < 1 mW
Power supply
Battery Coin cell (3 V lithium battery, CR	2032)

1 609 92A 6RX | (21.02.2022) Bosch Power Tools

English | 29

Bluetooth® Low Energy Module

GCY 42

Battery life approx. 24 months

A) The mobile terminal devices must be compatible with Bluetooth® Low Energy devices (version 4.2) and support the Generic Access Profile (GAP). B) The signal range may vary greatly depending on external conditions, including the receiving device used. The Bluetooth® range may be significantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.).

System Requirements GCY 42

Mobile device (tablet, smartphone)	Android 6.0 (and newer)
	iOS 11 (and newer)

Assembly and Operation

Power Supply

Remove the cover for the Bluetooth® Low Energy Module GCY 42 on the power tool, e.g. using a screwdriver or a

large coin. Using unsuitable objects can damage the electronics or the cover.

- To start using the product after purchasing it or to change the battery (1), follow the illustrations on the graphics pages. Observe the following advice when doing so.

Initial Starting Operation

(see figures A1-A5)

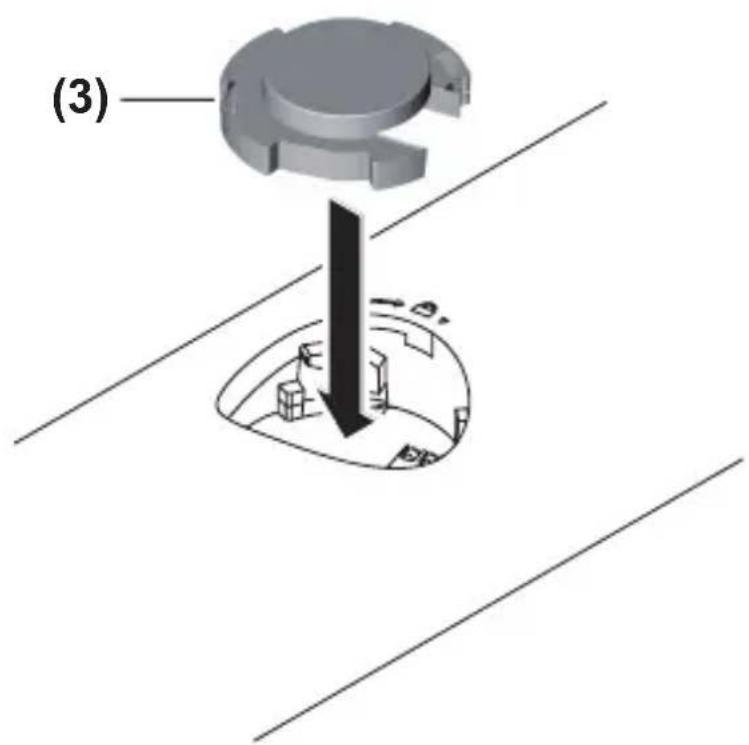

Note: Store the placeholder (3) of the GCY 42 in a safe place. Refit the placeholder when passing the power tool on without the GCY 42.

Place the battery (1) in the GCY 42 (2) with the plus terminal facing upwards. You do not need to push the battery in as the battery does not engage. It is simply secured in the correct position when you close the cover.

To initialise the GCY 42 after inserting the battery, press the on/off switch of the power tool.

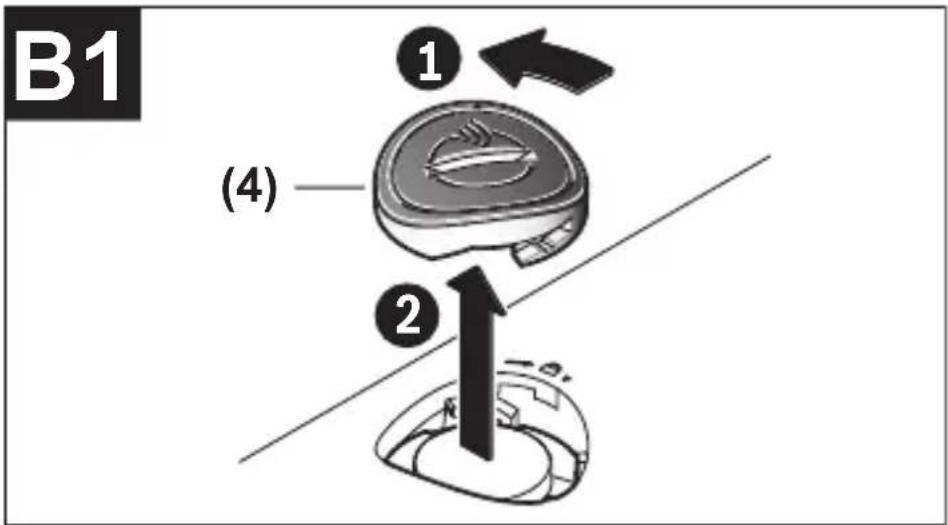

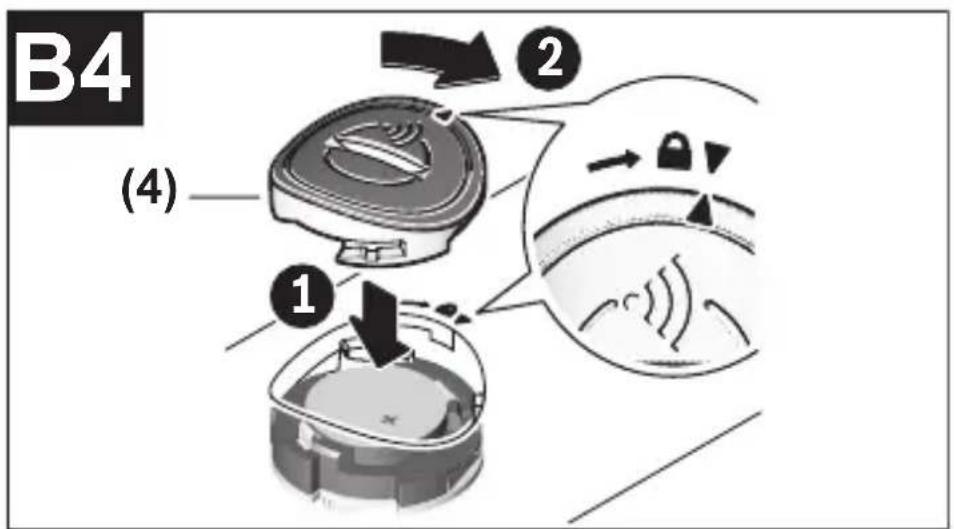

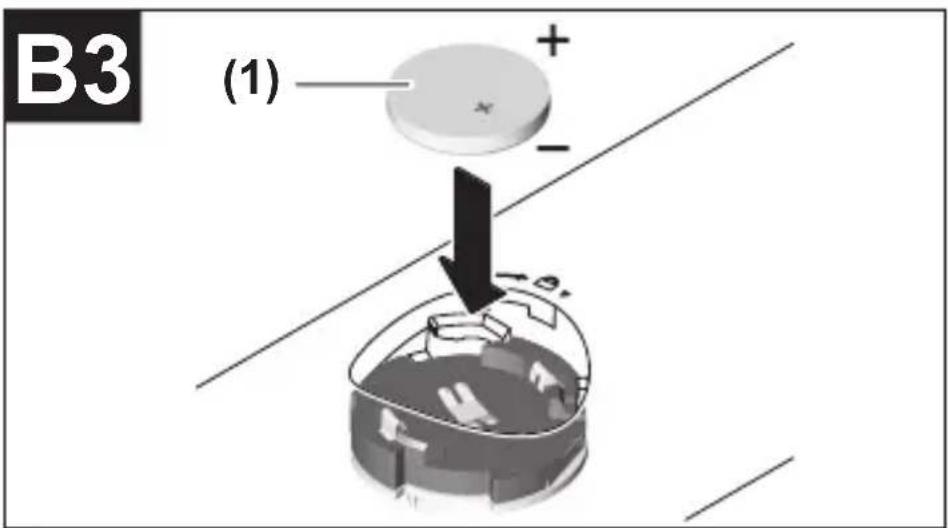

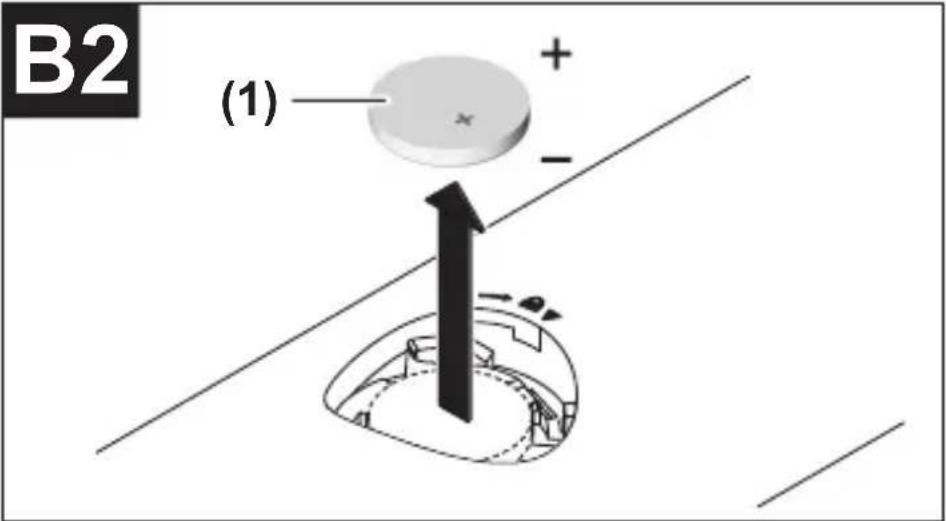

Changing the Battery

(see figures B1-B4)

Only remove the used battery (1) with your fingers.

A warning will be displayed in the app before the battery is fully used up.

English | 31

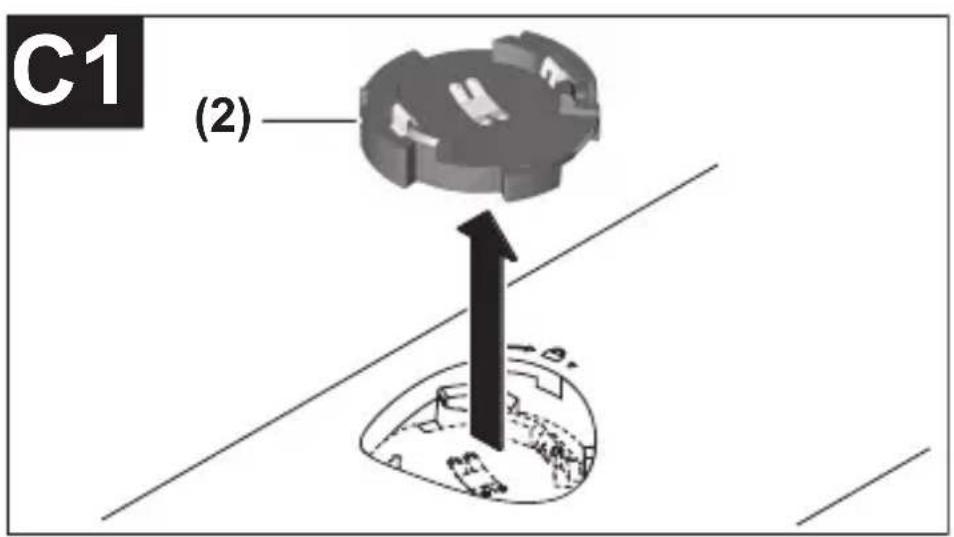

Removing the GCY 42

(see figures C1-C2)

Do not use force to remove the GCY 42 (2). Do not use any sharp or pointed tools.

Note: Turning the power tool over may make it easier to remove the GCY 42.

Starting operation

Once you have inserted the battery (1) and pressed the on/off switch on the power tool, the GCY 42 will transmit a signal continuously. The Bluetooth® signal will only stop when the battery is drained or faulty, or if the battery is removed.

You can find further information directly in the app from Bosch.

Installing and Setting up the App

You will need to install the Bosch Toolbox app before you can use the GCY 42.

- Download the Bosch Toolbox app from the relevant app store (Apple App Store, Google Play Store).

Note: You will need to have a user account with the relevant app store to do this.

Bosch Power Tools 1 609 92A 6RX | (21.02.2022)

32 | English

• Then select the MyTools sub-item in the app.
• The display of your mobile terminal device will show you all subsequent steps required to connect the power tool to the terminal device.

Note: Work through the app tutorial in full first. This will give you a better overview of how the connection is made and how the connectivity functions are used.

Data Transfer via Bluetooth®

The GCY 42 transmits a signal at regular intervals. The ambient conditions may mean it takes several transmission intervals for the GCY 42 to be detected. If the GCY 42 is not detected, check the following:

• Is the distance to the mobile terminal device too great? Reduce the distance between the mobile device and the GCY 42.
• Is the battery too low or drained? Change the battery.
• Switch Bluetooth® off and on again on your mobile device. Check whether the GCY 42 has now been detected.

English | 33

Maintenance and Service

Maintenance and Cleaning

Remove any dirt using a brush. Do not use any detergents or solvents.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories. In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY No. 8A, Jalan 13/6 46200 Petaling Jaya Selangor Tel.: [phone]

Bosch Power Tools 1 609 92A 6RX | (21.02.2022)

34 | English

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

GCY 42 modules, accessories and packaging should be recycled in an environmentally friendly manner.

1 609 92A 6RX | (21.02.2022) Bosch Power Tools

English | 35

Do not dispose of electronic components and batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.
