USER MANUAL K55RM 1130 W BAUKNECHT

Instructions for use

TISCHKÜHLSCHRANK

Gebrauchsanweisung

RéFRIGÉRATEUR TABLE-TOP

Mode d'emploi

TAFELKOELKAST

Gebruiksaanwijzing

FRIGORIFERO SOTTOPIANO

ENGLISH Instructions for use Page 4

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

PERMITTED USE

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote

controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

This appliance is not for professional use. Do not use the appliance outdoors.

The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic class ambient temperatures:

SN: From 10^ to 32^ ;

N: From 16^ to 32^

ST: From 16^ to 38^ ;

T: From 16^ to 43^

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC).

Appliances with Isobutane (R600a):

isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the appliance refrigerant circuit pipes.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.

WARNING: Automatic ic makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).

Do not store explosivesubstances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance.

Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.

Do not store glass containers with liquids in the freezer compartment since they may break.

Do not obstruct the fan (if included) with food items.

After placing the food check that the door of compartments closes properly, especially the freezer door.

Damaged gaskets must be replaced as soon as possible.

Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...).

Unless differently specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

1) Upper area of the refrigerator compartment&door-temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam
2) Middle area of the refrigerator compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt
3) Lower area of the refrigerator compartment - coldest zone: Store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese
4) Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits) 5) Chiller compartment: Only store meat and fish in the coldest drawer To avoid food contamination, please observe the following:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Regularly clean surfaces that may come into contact with food and accessible drainage systems.
- Clean water tanks if they have

not been used for 48h flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.
  Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes.
• Do not freeze fresh food in one, two or three-star compartments.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electrical shock.

During installation, make sure the appliance does not damage the power cable - risk of fire or electrical shock. Only activate the appliance when the installation has been completed.

Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions.

It's forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires

are in contact with the refrigerator back wall (condenser coil).

To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50mm to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product.

ELECTRICALWARNINGS

It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multipole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot.

Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electrical shock.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation. To avoid risk of personal injury use protective gloves (risk of laceration) and safety shoes (risk of contusion); be sure to handle by two persons (reduce load); never use steam cleaning equipment (risk of electric shock).

Non-professional repairs not authorised by the manufacturer could result in a risk to health and safety, for which the manufacturer cannot be held liable. Any defect or damage caused from non-professional repairs or maintenance will not be covered by the guarantee, the terms of which are outlined in the document delivered with the unit.

Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well ventilated room far away from any heat source (eg. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.

To guarantee adequate ventilation follow installation instructions.

Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency.

Frequent door opening might cause an increase in Energy Consumption.

The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to minimum.

When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator.

Allow warm food and drinks to cool down before placing in the appliance.

Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf.

Do not worry about noises coming from the compressor which are normal operation noises. This product contains a light source of energy efficiency class F.

FIRST TIME USE

• Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply and turn the thermostat knob to switch on the appliance. After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

USAGE INFORMATION

Thermostat setting

• Larders (coolers) have not any freezer compartment but can cool below 5^ .
• Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.
• « • » position shows thermostat is closed and no cooling is available.
• For short-term storage of food in the freezer/refrigerator compartment, you can set the knob between minimum and medium position.(1-3)
• For long-term storage of food, you can set knob to medium position.(3-4)

Temperature SettingsWarnings

• Larders (coolers) have not any freezer compartment but can cool up to 4 - 6^ C .
• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the fridge. If required, change the temperature setting
  It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• When setting the thermostat, take into consideration how often the appliance door is opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach large quantity of food inside. operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climatic Class Amb. T. (°C)

SN: From 10 to 32 °C

ST: From 16 to 38 °C;

N: From 16 to 32 °C

T: From 16 to 43 °C

FOOD STORAGE

• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
  We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Do not put wet vegetables into the refrigerator.
  Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water
• Make sure that no water enters the lamp housing and other electrical components.
• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry
• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Defrosting

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 1/2 glass of the water to drain hole to clean inside.

Replacing The Light Bulb

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Remove the cover of the box from the claws using a screwdriver.
3. Replace with a bulb of maximum 15 Watts.
4. Install the cover.
5. Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
  It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

BEFORE CALLING SERVICE

If your refrigerator is not operating as expected, check the solutions listed below before calling an electrician or the after sales service.

What to do if your refrigerator does not operate:

Check that :

• Your fridge is plugged in and switched on,
• The fuse is not blown and there is not a power cut,
• The thermostat setting is in the on position,
• The socket is no longer functioning. To check this, plug in an appliance that you know is working into the same socket.

What to do if your refrigerator performs poorly:

Check that:

• You have not overloaded the appliance,
• The doors are fully closed,
• There is no dust on the condenser,
• There is enough space for air circulation at the rear and side of the appliance.

If your fridge is operating too loudly

Normal Noises

• Cracking (Ice cracking) Noise: (For no frost/frost free appliances)
• During automatic defrosting. When the appliance is cooled or warmed (due to expansion of appliance material).
• Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise

• Normal motor noise: This noise means that the compressor operates normally
• The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash:

• This noise is caused by the flow of the fridge freezer in the tubes of the system.

If your fridge is operating too loudly

• To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically.

If the noises persist;

• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to "●" Is your appliance stable? Are the legs adjusted?
  Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes

if this is the case.

• Are the items placed on your fridge vibrating?

If you hear any other noises check that:

The appliance is level
- Nothing is touching the rear of the appliance
- The objects on the appliance are vibrating.

Water flow noise: (For no frost/frost free appliances) Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blow Noise: If the appliance has fan in freezer/ cooler / bottom cabinet compartments.
This noise can be heard in fridges during normal operation of the system due to the circulation of air.

If the appliance is making a noise:

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. This is normal. If these sounds are different check that:

• The appliance is level,
• Nothing is touching the rear of the appliance,
• Items on or in the appliance are vibrating.

If there is water in the lower part of the refrigerator:

Check that:

The drain hole for the defrost water is not clogged (use thedefrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

• Your fridge is designed to operate within specific ambient temperature ranges, according
  to the climate class stated on the information label. We do not recommend operating your
• fridge outside the stated temperatures value limits.

Recommendations

If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to chapter cleaning and leave the door open to prevent humidity and smell.
If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
- The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

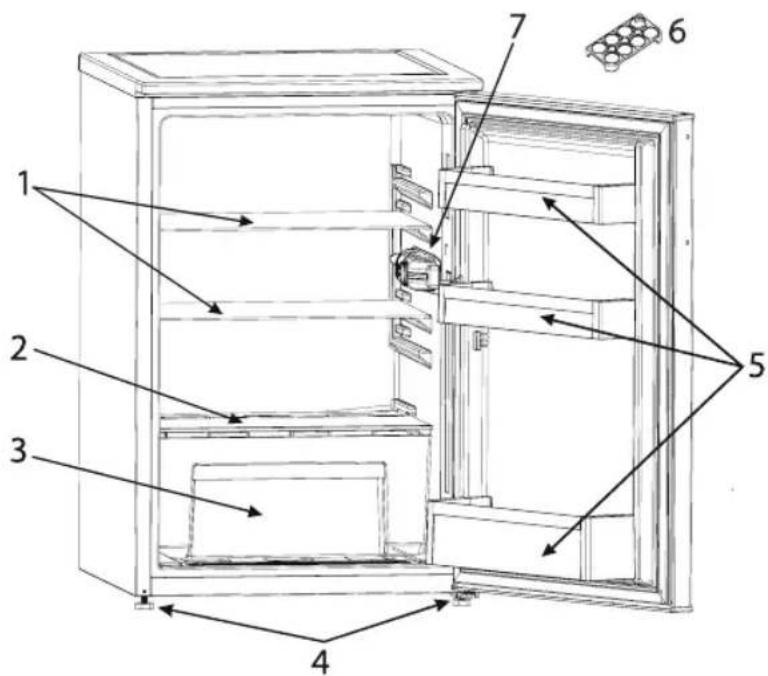

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1. Refrigerator Shelf
2. Crisper cover
3. Crisper

4. Levelling feet

5. Door Shelf

6. Egg holder
7. Refrigerator Light & Thermostat

Electrical information (For UK type plug)

Warning! This appliance must be earthed.

The mains lead of this appliance has been fitted with a specially earthed plug.

Important: Do not use the appliance without the fuse cover in position. Should the fuse need to be used, it must be replaced with a 13A fuse, ASTA approved to BS1362.

The plug must be used with a specially easrthed socker of 13 amperes. If there is no such socket in your

house, please have one installed by an authorised electrician.

The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.

To change a fuse in this type of plug, of plug, follow the steps below:

1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA apptoved to BS1362 type, into the fuse cover.
3. Replace fuse cover.

SICHERHEITSHINWEISE

ST:da 16^ a 38^;

T:da 16^ a 43^

Questo apparecchio

contiene CFC. Il circuito refrigerante contiene R600a (HC).

Apparecchi con isobutano (R600a):

T:OT 16^ Do 43^

To3n ypei He cbDx np0yopOBrIepoN (CFC).XnaHnHaTa cnCTema cbbpka R600a (HC).

YcTpoiCTBa c n3O6yTaH (R600a):

n306yTaHbTe npnpoDen ra3 6e3 Bb3dEiCTBne Bbpxy OKoJHaTa Cpea, Ho e 3aPannm.

IopadnTOBaCe yBepaBaiTe, ye Tpb6nte Ha XlaadinHaTa cnCTema He ca NOBpeDeHn, Oco6eHO NO Bpeme Ha HeiHOTOn3npa3BaHe.

ПЕДУПЕЖДЕHNE: Bнмаваiteда He NOВpeinte Tpb6nte Ha XlaIINHnKoHTypHa ypeda.

I PDEyPExKDeHNE: He 3anyBaTe BeHTnlaCNoHHnTe OTBOpN B Kopnyca Ha ypeDa nIN BbB BrpaHeHaT KoHCTpyKuY.

I PDEyIPEXKDEHNE: He
n3noJI3BaITe MExaHnUHN,
eJIeKtpnueCKn nJIN XmMueCKn
cpeICTBa, pa3JIuHn OT
IpeOpbUbaHnte OT
IPOUN3BOIDITEn, 3a yCKOpRAHe
Ha IpoUceHa OBe3ckPexKaBaHe.

I PEPdUYPEXKDEHNE: He n3PON3BaITe n He nocTbYIte eJIeKTPnueckn yCTpOiCTBa B OTDeJIeHnIa Ha ypeDa, aKO Te He ca OT BnDa, n3pNHO ODo6peH OT POn3BODInTeJ.

PPEJYIPKJEHNE: UcptpoiCTBaTa 3a nei n/niln DnCpeHcbpnte 3a BOda, KOUTO He ca DnpeKTHO CBbp3aHn KbM BOIOChA6DNTeJIHaT a MpeXa, Tp8Ba Da ce NbIHNr CaMO C NiTeiHa BOda.

ПЕДУПЕЖДEHNE:

A BOMATNUHNTe JeOReHepaTopn n/nn DnCnEHCbPnte 3a BOda Tp86Ba Da 6bDaT CBbp3aHN KbM BOIOChA6DnTEJIHa MpeXa, KOrTO NOdaBa cAmo NITeINHa BOda C HaIraHe MeKdy O,17 n O,81 MPa (1,7 n 8,1 bar).

He cBxpaHbAte n36yXnIBn BeIeCTBa KaTO KytIN C aepo30In He NocTabaITe, HHTO n3NoJ3BaIte 6eH3IN nIN dpyrN 3aJaIMMaTePnaJI IN BbB IN IN B 6JIn3OcT Do ypeDa.

He norbuaTecbDpKaHneTo (HeTOKcUHO)HaOnaKOBKeTe 3a IeI (npn HAKoN MoJeN). He KOHCyMpaTe JeDeHn Ky6YeTa nn JedeHn 6bn3aJKN BeDHaRa CLeI N3BaXdAHeTO NM OT oPn3epa, TbN KaTO TOBa MoKe da npedn3Bnka JeDeHn n3rapaHn.

3a npoDyKTn, npoeKtnpaHn 3a
n3noJ3BaHe Ha Bb3dyWeH
fNtbp, HAMpaU ce NODCTbpeH KaNAk Ha BeHTnlaTopa,
fNtbpT BnHaT Tp6Ba Da e
NoCTaBeH, KOrATO XJaINHHKbTp a60Tu.

He cbxpaHbAitcTbKJIeHN KOHTeHepn, CbDbPkaUN TeuHOCTN, B OTdJeHneTO Ha np3epa, Tb KaTo Te MoTa Da ce Cuynpt.

He 3aKpNBaIe BeHTnlaTopa (aKO nMa TaKbB) C xpaHn.

Cnei nocTaBHeTo Ha xpaHn npOBepTe dann BpaTnte Ha OTdeJeHnra Ta ce 3aTBapr Tdo6pe, Oco6eHO Ta3n Ha φpns3epa.

Повреedingte улб themselves Ta6Ba Da ce NOДмЕнгТВ3MOЖHO Hau-CKopo.

I3noJ3BaIte OTdJeHneTo Ha XlaIINHnKa cAmO 3a CbXpaHЯBaHe

Ha XpaHn N OTdJeHneTo Ha
ΦpU3epa cAmO 3a CbXpaHЯBaHe Ha
3aMpa3eHn XpaHn, 3aMpa3aBaHe
Ha IpeCHN XpaHn N IpaBeHe Ha
JIeDeHn Ky6YeTa.

136yBaTe CbXpaHЯBaHeTo Ha Heo6BHTn XpaHn B npK KOHTaKT C BbTpewHnTe NOBbpXHOCTn Ha XlaIuHnka nnn φpn3epa.

YpeiTe MoKe Da pa3NoIarat CbC CneuJIHn OTJeHn (OTeJenHe 3a npeChn XpaHn, KyTna 3a Hyla rpaDyca...).

Ako He yka3aHo pyro B cbOTBeTHaTa 6poWypa 3a npOyKta, Te MOraT Da Ce OTCTpaHbAT Cbc 3ana3BaHe Ha e K B N B a J e H T H n T e XapaKTepnCTnKn.

C-NeHTaH ce n3NoJ3Ba KaTo Ra30o6pa3yBaU aReHT B N3OJaCuIOHHaTa PnHa n e 3aNaIIM ra3.

I36poeHnte no-dOJy OTdJeHnHa ypeDa ca Han-NOxOJaU 3acbxpaHenHe Ha ONpeDeJEnTINObe XpaHn, KaTo ce NMaPpeBnD pa3JIuHOTOpa3npedeJEnHe HaTemnepaTypaTa B TEx:

1) TOpHa 30Ha Ha OTdEJIeHHeTo Ha XlaIaIIHnka C Bpata - UmepeHa 30Ha: 3a cbXpaHHeHne Ha TpOInueckn PLOIOBe, KOHcePBn, HApNTKn, Pa, TypuN, MaCNo, KOHΦHTUρ
2) CpeHa 30Ha Ha OTdJeHneTo Ha XlaIINnKa - CTyDeHa 30Ha: 3a CbXpaHHe Ha CnpHe, MIAKO, MLeuHn PpOyKtN, DeJIkKaTeChn XpaHn, KNCeNo MIAKO
3)Долha 3OHa Ha OTdelenHneTo Ha XlaIINHnKa - Hau-CTydeHa 3OHa: 3a cBxpaHeHne Ha KOL6acn, DecepTn, Meco n pnbA, YnN3KeiK,

Ppca NaTa, NOKBaCeHa CMeTaHa, NecTo/caIca, DOMaShO PnroTBeHxpaHn, CnaKnuC KpeM, NydnHn KpeMa Cnpene
4) YekeMeJxKe 3a PIOOBe n 3eJeHcyuB Hau-DOHaTa YacT Ha OTDeJeHneTo Ha XlaDnHnKa: 3a CbXpaHeHne Ha PIOOBe n 3eJeHcyu (c N3KJIooHne Ha TpOINueCKn PIOOBe)
5) OTdeneHne Ha qnilbpa: B ToBa Hau-CTydeHo yeKMeJxpe CbxpaHraBaIte camo Meco n pna6a. 3a n36yRbaHe Ha pa3BaJnHe Ha xpaHnte cna3BaIte cJeDnTe yKa3aHnA:
OCTABYHeTo Ha BpaTata OTBOpEHa 3a npoIbJxNtTeJeH nepNoIOT Bpeme MoKe Da IOBeJe DO 3NaUHTeJIHO NOBNUBaHe Ha Tempepatypata B OTDeJIeHnraTa Ha ypeDa.
-ПоунctBaIte peIOBHO IOBbpxHOCHTe, KOUTO MORaT Ja BIIaT B KOHTaKT C XpaHITe IN DOCTbHNHTe CNTcEMN 3a N3TOUBAHe.
-Почистваite pe3epBoapnTe 3a BODa,aKO He ca 6nIN n3PON3BaHn B pOdbJIxKeHne Ha 48 yaca; NycHeTe BOda npe3 cnCTemata, CBbp3aHa KbM BOdoNObaBaHeto, aKO He cTe n3TOUBAJIb BOda B PpOdbJIxKeHne Ha 5 dHn.
- CbXpaHЯBaIte cypoBO mecO n p6a B NOxOJaUcBIOBe B XlaIINHnKa, TaKa Ye Da He BIn3aT B KOHTaKT C DpyrN XpaHn Nn Da npOTeKaT Bbpxu Tax.
- Oтделенята 3a 3ampa3eHN xpaHn, MapKnpaHn C DBe 3BBe3dNcKn, ca NOxOJaUz 3a cbXpaHneHa npEdBapnteINHO 3aMpa3eHN xpaHn, cbXpaHneH n nprirotbHe Ha cIaOJelE n

He n3PON3BaIte a6pa3nBHN nn rpy6n NOUncTbaun CpeDCTBa, KaTO cnpeIOBE 3a npO3Opu, CTbprAJIKN, 3aPAnIMN TeuHOCTN, NOnCtBAU BaKCN, KOHcHTpnpaHn PpenapATN, 6eInHa INn NooNCTbaUN

cpeCTBa,cbDbpxKaunneTpOJHn
IPOyKTn,Bbpxy IJaCTMaCOBNTe
UaCTn, BbTpewHOCTTa N
ynlbTHeHnraTaNJN n3OJaunrTa
Ha BpaTuKkata.He n3NoJ3BaJTe
XapTneHn Kbpnn, CbPraJKN nn
dpyn rpy6n NOuNCBaun
cpeCTBa.

N3XBbPJIHE HA ONAKOBbUHNTEMATEPNAJIN

Onakobhnyat Matepnae 100% rodeh 3a peuknupane H e Mapknapc CmBona 3a peuknupane Pa3nunHte qactn ot onakobkata Tpa6Ba da 6bDat n3xBpIeHn OTROBOPHO B CbOTBeTCTBne C hape6nte Ha MeCTHTE opraHn 3a N3XBpIeHa OTNaDbu.

I3XBbPJIHE HADOMAKHCKN EJEKTPOYPeIN

To3n ypei e npo3BedeH c MaTePnaJI, rOdHn 3a peuKInpaHe nIIN 3a NOBTOPO H3NOJ3BaHe. Pn IN3XbPJIHeTo My cNa3BaIte MeCTHNTE pa3npope6n 3a IN3XBpJIne Ha OTNaDbU.

3a DoIbHnHTeJIHa HhOpMaunr OTHOCHO TpeTnpaHTo, ONOJ3OTBOPRABaHTo n peuKInpAHeTO Ha IOMaKINHcN eEKeTPOpyPeDn ce 06bpHTe KbM KOMNTeHTHnTe MeCTHn opraHn, cnyk6ata 3a 6ntOBn OTNaDbCn nn MaRa3NuHa, OTkbDETo CTE 3aKynnn ypeDa. To3n ypeE mApKnpaH B cbOTBeCTBnE c Ebponecka dIpeKTnBa 2012/19/EC, OTnaDbHo eKeTpnuecko n eKeTPOHNO o6OpyDbaHe (WEEE) n c npabnlaTa 3a OTnaDbHo eKeTpnuecko n eKeTPOHNO o6OpyDbaHe ot 2013 r. (c n3MeHeHnTa). KaTo ce nOrpNxIte ypeBt Da 6bJe n3XbPpeH No npabIne Haunn, Bne ue nomOrHeTe 3a npedOTbPaTBAhe Ha Bb3MOxHNte HeratNBn NocJeDCTBn 3a OKoJnHaTa CpeDa n 3dPaBeTo Ha XopTa.

CmBbT BbpxyypeaannnpdpykaBaata rOdoKymentauia NOKa3Ba,yeTo3n ypei He Tp6Ba da ce TpeTnpa KaTO 6NTOB OTnaBk, a Da 6bde npdaen B CbotBeTHnra Cb6npaTeHe NyHKT, npedHa3NaueH 3a peuKnipaHe Ha

eNEKtpuuecka n eNEKtpoHna anapaTypa.

CbBETN3A NECTEHE HA EHEPnIa

HCTaIpaIte ypeDa B cyxo,do6pe npoBeTpIBO nOmeUeHne,daJeu OT TOnnHHn N3ToUHnCi (Haep.paINaTOp,rotBapcka neKa n T.H.) HaMaCTO, KOETO He e N3IOXeHO Ha npraKa CbHueBa CBETnHa. AKe e Heo6xOJMo, N3No3BaIte N3OJaUNOHHa PIACTHa.

3a da ce rapaHTnpa npabunHaTa BeHTnlaucna, CneBaTe nHCTpyKUnTE 3a nHCTaIpaHe.

HeocTaTbHaTa BeHTnlaunB 3aHaTa qact Ha ypeyBeHnUaBa paXoHa Ha eHepnI HamaIbAeKtNBHOCTTa HoxJaHeTO.

YecToO OTBapRHe Ha BpaTnUkKaTa MoKe Da yBeNnU KOHCymuIraTa Ha eHeprIa.

Bbtpewhata TemepaTpa Ha ypea N KOHCymaunraHa eheprna MoKe da ce NOBnne OT OKoHata TemepaTpa, KaKTo n OT pa3noJooKeHneTo Ha ypea. Pnp HAcTpoBaHeTo Ha TempeaTypata Tp6Ba da ce mAt npedBnD Te3n oakTopn. CbeTe do MINHMym OTbapAHeTo Ha BpaTata.

Korato pa3mpa3raBate 3ampa3eHn xpaHn, rnoctabeTe BxnaDInHnka. Hnckata TemnepaTypa Ha 3ampa3eHnTe npOdykTn OxnaJda XpaHnTe B xnaDInHnKa.

Octabete tonnite xpaHn HauNTkn da ce oxnaT, npedn da nIOCTaBNTe Bypeda.

I03nUOHHpaHTo Ha paΦTOBte B xlaunHnka He OKa3Ba BnHnne Bbpye eΦeKTHBHTO n3noJ3BaHe Ha eHepn. XpaHnTe Tp6Ba Da ce noCTabrt Ha paΦTOBte No TaKbB NauH, Ye da ce rapaHTnpaBnHa uRkynaqna Ha Bb3dyx (XpaHnTe He Tp6Ba Da ce dOnnpaT edHa Bpyra n Tp6Ba Da ce OCTaBpa3CToHnne Mekdy XpaHnTe n 3aDnHaTa CTeHa).

MoxTe Da yBEnuHrKe KanaUrTeTa 3a cbXpaHeHHe Ha 3aMpa3eHn XpaHn, KaTo MaxHeTe KoHNuTe n paT a Stop Frost (ako mTaKaBb). UyMoBeTe, KOITo N3dAba KOMnPecOpbT NO BpeMe Ha pa6Ota, ca HopMaJHn He 6NuBa da Bu npITeChRaT.

To3n ypeD cbIbpxKa CBETINHeH n3TOUHNK C KlaC Ha eHeprHa eEeKTHBHOCT F.

yNOTPEEA 3A ПьPBи ПьТ

Cnei HnctaInpaHTo Ha ypeHa n3yakaTe nohe Da Yaca, npeDn da ro BKIOUHTe BmpKaTa. Cnei KaTO BkIOUHTe ypeDa KbM 3axpaHbAHeTo, 3aBpTeTe 6yToHa Ha TepMOCTaTa, 3a da ro BKIOUHTe. Cnei BkIOUHTBe Ha ypeDa Tp8Ba Da n3yakate 4-6 Yaca 3a DocTnraHe Ha npabINHaTa TEMpePaTypa 3a cbxpaHHeNe 3a HopMaIIHO PbJeH ypeD.
- OT xlaanlHnka moKe da ce yceTn Mnp3Ma, KOraTo 6bde BkIIOueH 3a IIpbN IbT. ToBa e HopmaHHO mnp3MaTa ige n3e3He, KOraTO xlaanlHnKbT 3aNoHe da ce oxlaKa.

CmHa Ha KpyuHaTa Ha OCBetJIeHHeTo

PnCmHaHa KpyuKaTa Ha XlaDnHToO TdeneHe;

1. N3KluOte ypea ot eNeKtpo3axpaHbAHeTo,
2. OTeTpaHete KaNakaHa KyTHaTa OT uINKHe, C NOMOuTa Ha OTBepTKa.
3. 3aMeHeTe C KpyuKa OT MaKCHMMy 15 BaTa.
4. MoHTpaIte KaIaKa.
   5.ИЗЧАКЕТе 5 MINHуТи Ппеди NOВТOPНО ВКИЧУBAн И NOCTABETe TEPMOCTATA B INьрвOHаЧАнСА MY ПОЗИЦЯ.

CMHa Ha CBETOHOHOOCBETHeHc

AkoBaunrXnaIINHKe cbc CBTeOnIOHOOCBeTneHne,CbpeTeceC OTeJa3aTexnuecko CbdeCTBne,TbHaTO TOBAOCBeTneHne Tpa6Ba Da ce IOMeHcAmOOTyblHOMoUeHepcoHaJ.

TPAHCPIOPTHPAHEИПОМЯHA HAMYCTOTO HA ИНСТАЛПАРЕ

OpnHaHHTe onaKOBKn n neHonoJIncTnpoI (PS) mOrat da ce 3aDbpKaT, aHo e Heo6xOJIMO.
- Ito Bpeme Ha TpaHcnpTupahe ypeBbT Tp8Ba da 6bJe o6e3onaceh C wipoka JnHTa HIn 3dpAo BbJke. INCTpyKuNTe, HAncaHbBpxy rooPpHaHaTa kyTna, Tp8Ba da ce cna3BaT npn TpaHCnpTupaHeTo.
- IpeHn TpaHCnopTnpaHe Hn npomHa Ha MrcTO Ha HnHCTaHnpaHe BCnHKn DnHexu Ce 06eHTN (T.e. paΦTOBe, uKaΦObE...) Tpr6Ba Da 6bDaT n3BaDeHN nn 3actOnOpEHn C JeHTN, 3a da ce npedoTbpatn NOBpeKdAHeTo NM.

Hocete xlaanlneKa B n3npaBeHo noLoJeHe.

PpomHa Ha NocokaTa Ha OTbapAHe Ha BpaTaTa

He b3MOHNO da npomeHnte NOCOKaTa Ha OTbapHe Ha BpaTaHa XlaIINHka, aKo dpBKKTe Ha BpTaTa Ha BaunxXlaIINHK ca MOHTnpAHn Ha npedHaTIOBbpxHOCT Ha BpaTaTa.
Bb3MOxH0 e da ce npomeHn ocoKaTa Ha OTBaPHe Ha BpaTaT npn MoeJIb 6e3 dpXHH.
- Ako nocokata Ha OTbaprHe Ha BpaTaHa Baunx XlaDnHmK MoKe da 6bJe npomehe, Tp8Ba Da ce CBpKte C Hau-6n3KnO TOpu3npaH cepBn3, 3a Da npomeHnte nocokata Ha OTbaprHe.

ПЕДИ ДА СЕ OБАД NorteВ СЕВиЗ

AkoBaunrXlaadinHnK He pa6oTn CnopeOn ouKaBaHnra, npOBepTe n36poEHnTe no-dony peWeHHa, npEdu da ce obaHTe Ha eJeKTpOExnK nn OToJa 3a cJeDnpOdaJxBeHo 0cbNyKBAhe.

KaHBO da npabnte, aHO Baunr XnaDnIHHe pa60tN:

PpOBepeTe DaJI:

BaIyT XlaIaIIHInE BkIIOueH,
- PpeDn3IeTHe e H3roPJI N HMa PpeKbcBaHe Ha 3axpaHbAHeTo,
HacpoKaHa TepMoCTaTeB No3nIy « »
- KOHTaKTbT Beue He ΦyHcUHOHpa. 3a da npOBepnTe TOBa, BkIIOeTe ypei, 3a KOITcTe CnrypHi, ye pa60TN, B cbuN KOTaKT.

Kahbo da npabnte, ako baunr XlaadnHHe pa60n do6pe:

PpOBepTe dann:

He cTe npenbIHHnIypea,
BpaNTe ca HaTbJHo 3aTBOpEn,
-ПО КОндзаТора НЯма прах,
- IMa doctaTbHNO MRCTO 3a cIurpKylauNHa Bb3dyxa O3a n OTCpaHn Ha ypeHa.

AHOBaHnT XnaHnHnK pa6oTH npEkaJeHo WymHO

HopmaJIHn yMObe

• Ljym ot yynene (yynene Ha nei): (3a ypei n c Texhnoor no frost/frost free)
• Ito Bpeme Ha aBTOMaTHHOTo pa3mpa3BaHe. Horato ypeBbT ce oxlaJda nn 3atOnn (napa npa3wnpbaHe Ha MaTePnaJa Ha ypeJa).
• JIeKO UpaKaBaHe: CyBa ce, KOraTo TepMoCTaTbT BkHIOUBa/H3KlIOUBa KOMnPecopa

WymOTHOMnPecopa

• HopmaJIen Wym OT MOTopa: To3n Wym O3NaHaBa, Ye KOMnPecOpbT pa60TH HOpMaJIHo
• HomnpeocopbT moHe da npedn3Bnka nobuey 3a KpaTHO Bpeme, KOraTO 6bDe BkIIOUeH 3a nbpBn nbT.

UymOT6bIb6yHaHeHnllncKaHe:

To3n 1yM ce npuHnRa OTOtOKa Ha XlaIINHa PpI3ep B Tpb6nte Ha CnCTemata.

AkoBaHnT XnaDnHnK pa60Tu npKaJeHo WymHO

3a da ce noiNbprka 3aJaIeHOTo HNBO Ha OXlaJdane, KOMnPecOpbT MoKe Da ce BHKUOyBa OT BpeMe Ha BpeMe. LymbT OT XlaIaINHnKa B To3n MOMeHT e HopMaJIeH n Ce IblJxHa HeROBaTa pa60Ta. Korato ce DOCTHHe JeklaHOTo HNBO Ha OXlaJdane, LymoBeTe Ue HaMaJIeT aBTOMaTHUHO.

Ako yymoBete octaHaT;

• AHO HMa Da n3nOJ3BaTe XlaIaIIHnHa 3a DbIro BpeMe (HaPnPme npes IeTHHe BaKaHcN), NOCTaBeTe TepMoCTaTBA noIOJKeHne "●" - YpeIbT Bn CTaBnE h n e? PeryIinaHn Ln ca KpaYeTaTa?
• Има ли нещо захларлнда?
• 如果您想了解其他方面的信息，请参阅《伊玛尼》。
  Bn6pnpat IIN pafoBeTe NIN YHHNHTe Ha pafoBeTe? NocTabete OTHOBo pafoTobete N/NNHnTe

aHO TOBa e npHnHaTa.

Bn6pnpatIe nEmeHTte,IOCTaBeHbBpxyBaunxXlaDnHnK?

Ako yyeTe dpyr nu wymoBe, npOBepe TaI:

• YpeIbTe HnBcIIpaH
• Hnso He doKocBa 3aHaTa YacT Ha ypeda
• 06eKTHTe Bbpxy ypea Bn6pnpaT.

Wym ot npHTOK Ha BODa: (3a ypei n c texnoor no frost/frost free) Hopmaen Wym ot npTOK Ha BODa B KOHTeHepa 3a n3napene no Bpeme Ha pa3mpa3raBaHeTo. To3n Wym Moke da ce ue no Bpeme Ha pa3mpa3raBaHeTo.

UWMOTn3dyXbaHe Ha Bb3dyx: Ako ypeTbT HMa BeHTnlaTop BbB φpnsεpa/oxlaNTeJr/Ha DbHOTOHa shkaΦa.

To3n 7yM MoJe Da Ce Yye B XlaIaIIHInuTe npn HopMaHa pa6Ota Ha cNCTeMaTa nopaIiCuPkyIa- 1IyTa Ha Bb3dyxa.

Ako ypeTn3daBa 3ByK:

OxlaJdaunrTa3, KoTo UnpHynpa B XnaDnHaTa Bepra, MoKe da npedn3BnKa Iek Wym (Kato OT 6bIbkyKe), DOpN KOraTo KOMPecopbT He pa6oTH. Toba e HopMaJIHO. Ako Te3n 3Byu ca pa3nnuHN, npOBepTe daJI:

• UpeBt e HnBeInpaH,
• Hnio He doKocBa 3aHaTa yacT Ha ypeDa,
• PpEaMeTHe Bbpxu HnB UypeDa Bn6pnpaT.

Ako mAb Oda BdoHaTa Yact Ha XlaHnHnHa: PpOBepTe daH:

-Дренингот OTbOP 3a pa3mpa3ЯBaHe He e 3anyueH (използbaIte дренингТа npo6ka 3a pa3mpa3ЯBaHe, 3a DA NOvuctnTe ДренингOTbOP).

AkoBaunrXlaaHnHHeOxlanDaDcTaTbHNO;

BaHnT XlaIINHKe npoeKtnpaH Ja pa6oTu B rpaHnCtTe 3a cTaHa TeMnpaTypa, B cbOTBeTCTBHe C KInMaTHuHn Klaac, NocOeH B INHΦopMaunOHnE tNKeT. He BN npenOpbVbame Da n3NoJ3BaTe XlaIINHnKa H3BbH 3aJaDeHnTe rpaHnHcTOHOCHT Ha TempePaTyPte.

PpenopbH

• Ako ypeBt e n3HIOUeH nIc n3BaJeH IeNceL, n3HaKaIte NOHe 5 MInHyTn, npEi Da BHKIOUHTe nn peCTapTnpaTe ypeDa, 3a Da npEoTbPaTnTe NobpeHa KOMnPecopa.
• Ako Hama da n3noJIbATE XlaIINHka 3a DJIro BpeMe (HaNPIMep Ipe3 JeETHe BaKaHcN), n3KIOUte ro OT KOHTaT. PoNCTeTe XlaIINHka CbrLaCHO rJaBaTa 3a NOUCCTBaHe N OCTaBeTe BpaTaTa OTBOpeHa, 3a da npedOTBpaTHe BnaRa N MIPn3Mn.
  AHO npo6lmbT npoBJIHkAba, cIe KaTO CTe H3NbHnIN BCnHKn rOpEnOCOeHN yKa3aHHa, MOJ KOHCyIHTnpaTe ce C Han-6n3KnO TOpn3npaH cepBn3EH ueHTbp.
• YpeBbT, KoITo cTe 3aKyHInn, e npEHa3Naueh cAmo 3a DomaunHa ynoTppe6a. He e noXoJa3 a TbprobcKa HnO mbceTBeHa yNoTppe6a. AHO nOtpbeHteJrN3noJ3Ba ypeDa No Haun, KoITo He OTROBapra Ha ToBa, Hne NOpHePbAme, Ye pOn3BoDHTeJIrN IpoDaBaYbT He HocrOTROBOPHOCT 3a KaKbBTO n Da e peMOHT nn NobpeDa B paMKHe Ha rapaHIOHHn CpOK.

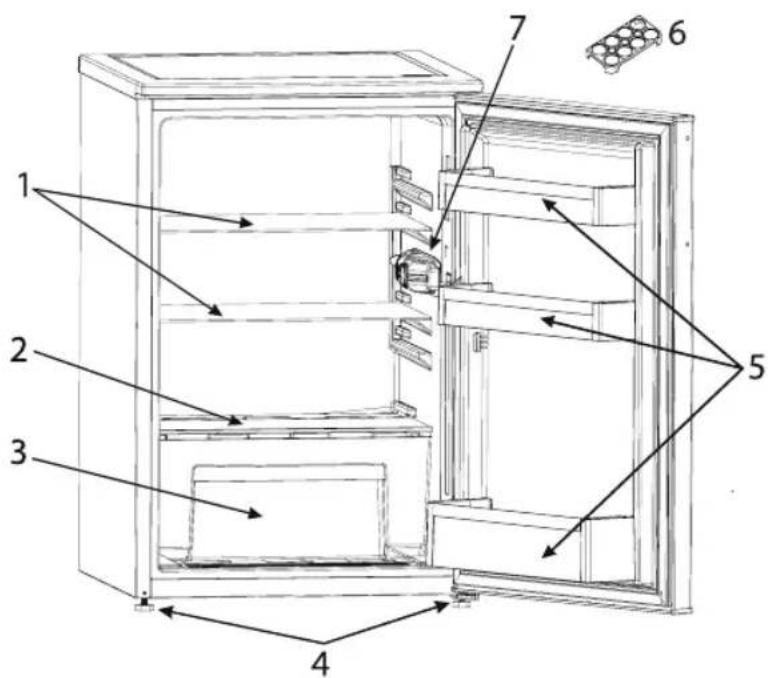

ЧАCTNTЕ И KOMПОHEHTITE HA YPEДА

Ta3n npeseHtauqna e camo 3a HhOpMaunra 3a Yactnte Ha ypeda. Yactnte Moar Ta Bapnpat B 3aBncmocT OT MoeHa Ha ypeda.

1. PaΦT B XlaДинИнka
2. Kanak Ha YekmeJeTo 3a IIOOBe n 63eH- cyu Crisper

3. YeKeMeIe 3a IIIOOBe n 3eJIeHcyu Crisper

4. HnBelenpaun Kpaeta

5. PaΦT Ha BpaTata
6. NocTabka 3a Rua
7. OCBETJIeHHe Ha XlaIINHInKa N TepMOCTaT

SIGURNOSNE UPUTE

OBAVEZNO PROČITAJTE I PRIDRŽAVAJTE SE

Pije upotrebe uredaja procitajte ove sigurnosne upute. Saucujte ih za buducu referencingu.

Ovaj prisučnik i sam urežaj sadrže važna sigurnosna upozorenja kojih se morate stalno pridržavati. Proizvošač otklanja svaku odgovornost u slučaju nepostivanja sigurnosnih uputa, za neprikladno korištenje ili za pogresno pověsavanje komandi.

Vrlo maloj djeci (0 - 3 godina) nemojte dopustiti pristup uredaju. Maloj djeci (3 - 8 godina) ne dopustajte pristup uredaju akonisu pod nadzorom. Djeca starija od 8 godina i osobe smanjenih fizickih, osjetilnih i mentalnih sposobnosti ili osobe bez dovoljnog iskustva i znanja mogukoristiti uredaj samo aka su pod nadzorom ili su dobili upute o sigurnom rukovanju uredajem te aka razumiju potencijalne opasnosti. Djeca se ne smiju igatis uredajem. Djeca ne smiju cistitini održavati uredaj bez nadzora. Djeci u dobi do 3 do 8 godina dopusteno je stavljati namirnice i vaditi iz rashladnih uredaja.

DOZVOLJENI RASPON UPOTREBE

PAZNJA: Urej nije namijenjen za rad pomocu vanjskog urejaca uključivanje kao sto je mjrač vremena ili odvojeni sustav daljinskog upravljanja.

Ovaj urejadj namijenjen je upotrebi u kućanstvima i na

slicnim mgestima, kao sto su: kuhinje za osoblje u trgovinama, uredi i druge objekti u kojima seradi; seoske kuce; za goste u hotelima, motelima ili slicnim smjestajnim Jedinicama.

Ovaj uredajijke namijenjen za profesionalnu upotrebu. Nemojte koristiti ovaj uredaj na otvorenom prostoru.

RENHOLD OG VEDLIKEHOLD

RENGJØRING OG VEDLIKEHOLD

INFORMACije O UPORABI

Nastavljanje termostata
