USER MANUAL FX-RME38 Fuxtec
- Introduction and safety 54
- Safety instructions for lawnmowers 55
- Information and warnings.. 57
- Presentation 59
- Assembly 60
- Start and stop the mower 63
- Cutting height adjustment 64
- Working instructions 64
- Tips for mowing 65
- Storage 65
- Disposal 65
- Technical data. 66
- EU Declaration of Conformity 67
VERSION ESPANOLA 68
POLSKAWERSJAJEZYKOWA 124
Recycling raw materials instead of waste disposal.
2000/14/EC amended by
2005/88/EC Annex IV
Angewandte Normen / applicable standards
EN 62841-1:2015+AC:15+A11:2022
EN IEC 62841-4-3:2021+A11:2021
EN 62233:2008
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Directive CE / EC directive
2006 42 EC
2014/30/EU
EN IEC 62841-4-3:2021+A11:2021
EN 62233:2008
ENIEC55014-1:2021
ENIEC55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
40. Introduction and safety
Never allow children or persons unfamiliar with these instructions to use the garden tool. Children should be supervised to ensure they do not play with the device.
Intended use
This device is intended exclusively for mowing lawns in private areas.
The device must be operated according to the descriptions and safety instructions. Only operate the device in the technical condition prescribed and delivered by the manufacturer. Any other use is not in accordance with the intended use. Use not in accordance with the intended use will result in the forfeiture of the warranty and the rejection of any responsibility on the part of the manufacturer. The user is liable for all damage to third parties and their property. Unauthorised modifications to the device exclude the manufacturer's liability for any resulting damage.
Vibration and noise reduction
To reduce the impact of vibration and noise, limit working time, use lower vibration and noise settings and wear personal protective equipment.
Observe the following points to keep vibration and noise pollution low:
- Only use the product as intended in accordance with the design and instructions.
- Make sure that the product is in perfect condition and well-maintained.
- Use the right accessories and make sure they are in good condition.
- Hold the product firmly but not tensely by the handles provided.
- Maintain the product according to these instructions and keep it well-lubricated.
- Plan your working hours according to these instructions to spread a higher workload over a more extended period.
Emergency
- Familiarise yourself with the use of the product by reading the operating instructions thoroughly. Memorise the safety instructions and follow them carefully. That will help you to avoid risks and hazards.
- Always be alert when using the product to identify and respond to hazards early. Quick action can prevent serious injury and property damage.
Residual risks
Even if you operate this lawnmower as instructed, there will always be residual risks. The following hazards may occur in connection with the design and construction of this lawnmower:
g)Injuries and property damage caused by flying parts.
h) Hearing impairment if you do not wear suitable hearing protection or use the lawnmower for an extended period.
i) Damage to health results from hand-arm vibrations if the lawnmower is used for a long time or is not guided correctly and maintained.
41. Safety instructions for lawnmowers
General safety instructions
-
For your safety and the safety of others, read this instruction manual and its safety instructions before using the device. Please keep the operating instructions and safely store their safety instructions for later use and keep these for ready to hand for every use.
-
Pass on the operating instructions with the device if there is a change of ownership.
-
Persons operating the device must not be under the influence of intoxicants (e.g. alcohol, drugs or medication).
-
Operate the device only in the technical condition prescribed and supplied by the manufacturer. Unauthorised modifications to the device exclude the manufacturer's liability for any resulting damage.
-
Use the device only in daylight or under good artificial lighting.
-
Use the device only in dry weather conditions. Please keep it away from rain or wet conditions. The ingress of water into the device increases the risk of electric shock.
-
Switch off the device and remove the battery in the following conditions:
-
if the device is left unattended
- if the device starts to vibrate excessively.
Before use
- Before starting work, familiarise yourself with the device and its functions and controls.
- Check the device for signs of wear or damage before commissioning and after an impact.
- Do not use a device whose switch is defective and can no longer be switched on or off.
- Check that all nuts, bolts and screws are tight to ensure that the device is operated safely.
-
Never use a device with damaged or missing parts. Have them repaired or, if necessary, replaced by a qualified specialist or specialist workshop.
-
Always wear sturdy shoes, long trousers and the appropriate personal protective equipment (safety goggles, ear protectors, work gloves with a good grip, etc.) when working with or on the device. Wearing personal protective equipment reduces the risk of injury.
During use
Do not switch on the device when people (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.
Stop work if you notice that people (especially children) or pets are nearby.
Working on steep slopes can be dangerous. Make sure you have a firm footing and mow slowly. Always mow across the slope and not up and down. Be especially careful when changing direction. There is a risk of tipping over!
Do not mow on steep slopes. Be especially careful when mowing backwards and pulling the mower on yourself.
Do not tilt the mower when starting the engine.
Keep a safe distance as indicated by the handle frame.
Do not switch on the engine until your feet are safe from the cutting blade. Be careful and do not reach into the rotating cutting blade. Never drive over gravel while the engine is running. There is a risk of being hit by stones! Switch off the lawnmower before tipping or transporting it, e.g., from / to lawns or over paths.
Before lifting or transporting the lawnmower, switch off the engine
until the cutting blade has come to a standstill. Do not adjust the cutting height until the engine is switched off and the cutting blade has stopped. Never open the discharge flap while the engine is running. Before removing the grass collector, switch off the engine and wait until the cutting blade has stopped. After emptying the grass collector, carefully reattach it and ensure it is securely fastened to the lawnmower. If possible, do not mow wet grass. Do not use the garden tool in an explosive environment with flammable liquids, gases or dust. When you stop work, never leave the device unattended and keep it in a safe place.
After use
Switch off the device, and only then put the device in a safe place.
Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.
Keep all nuts, bolts and screws tightened to ensure the mower is in safe working condition.
Check the grass collector frequently for wear or damage.
Only use a cutting blade designed for this lawnmower.
Only have repairs carried out by a qualified technician or service centre.
42. Information and warnings
| FUXTEC GmbH Kappstrasse 59 7083 Herrenburg, Germany | Technical details of the mower: Power Source 220V Motor 1600 Watt Working Width 380mm Net weight 12kg Sound power level | 96dB |
| ELECTRIC LAWNMower FX-RME38 Power Source: 220-240 V, 50/60 Hz, IPX4 Motor: 1600 W Working Width: 380 mm Weight: 12 kg S/N: | Operating instructions for starting the mower |
| Risk of injury: keep your hands and feet away! | |
| Read the operating instructions carefully and keep a sufficient distance from dangerous areas | |
| DO NOT drive the mower over the power cable and disconnect the mower from the power supply before carrying out any work on the device. |
If used improperly, there is a risk of electric shock. Keep your hands and feet away from the cutting unit!
Be careful. Objects can be thrown up by the mower. Please ensure that the area to be mowed is free of objects.
43. Presentation

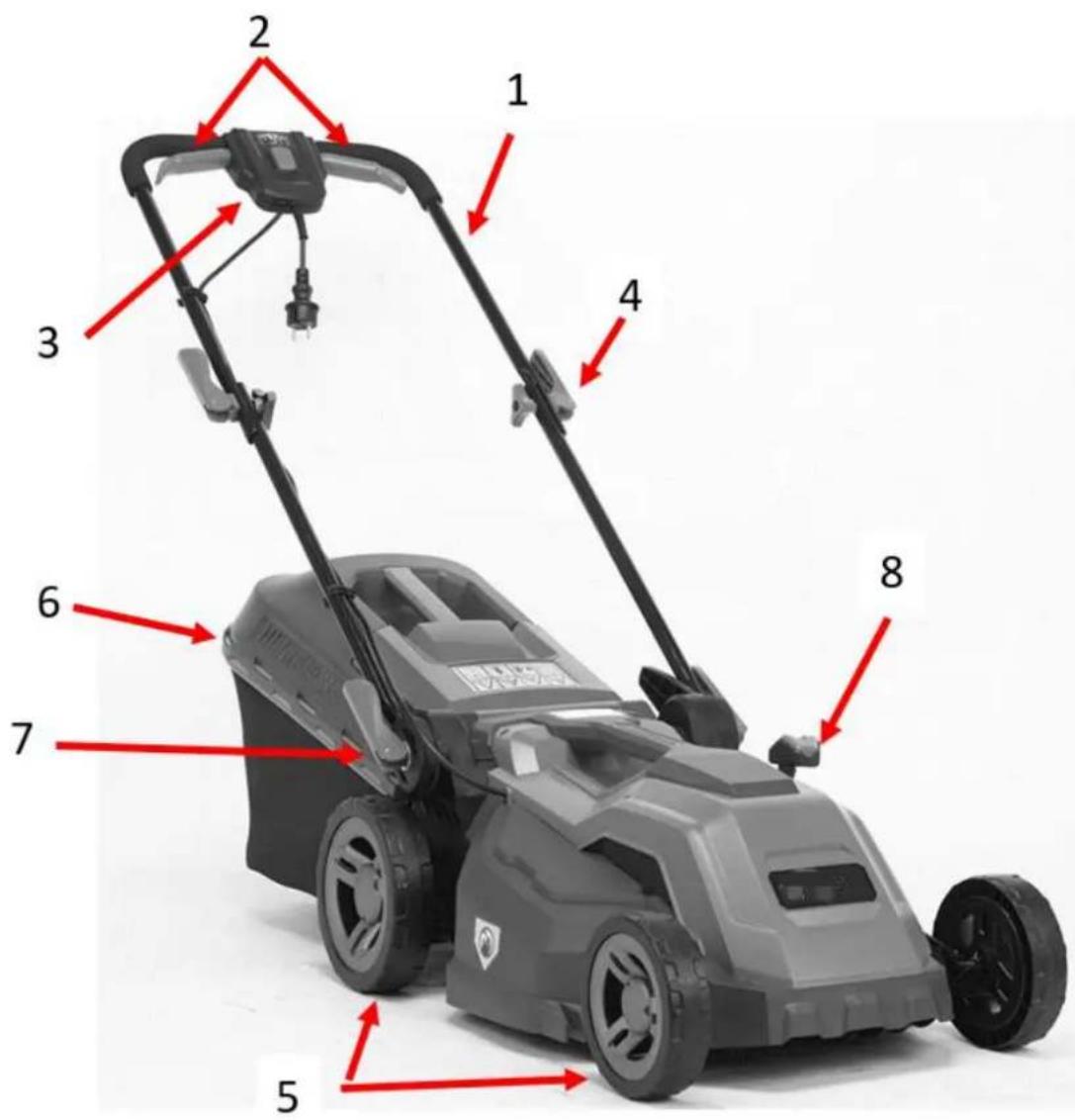

1) Upper handle
2) Lever
3) Box including ON/OFF switch and plug
4) Fast connector upper handle
5) Front and rear wheel
6) Grass collector
7) Fast connector lower handle
8) Lever hight adjustment
44. Assembly
Essential instructions for assembling the mower
Before assembling and operating the electric lawn mower, please read the full user manual and the instructions.
Remove the lawnmower from the cardboard packaging and check that no loose parts remain in the packaging.

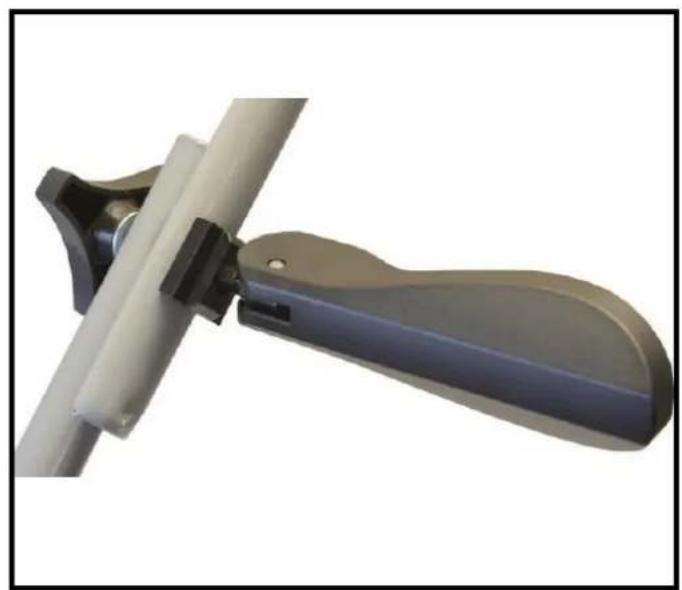

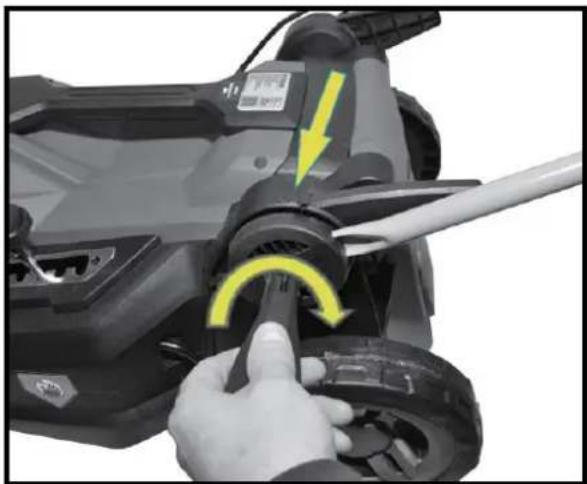

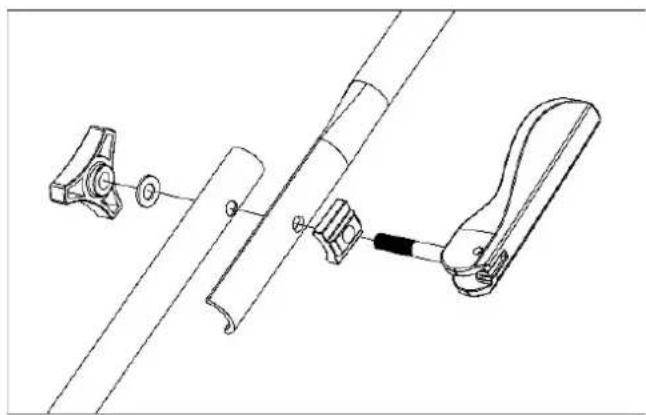

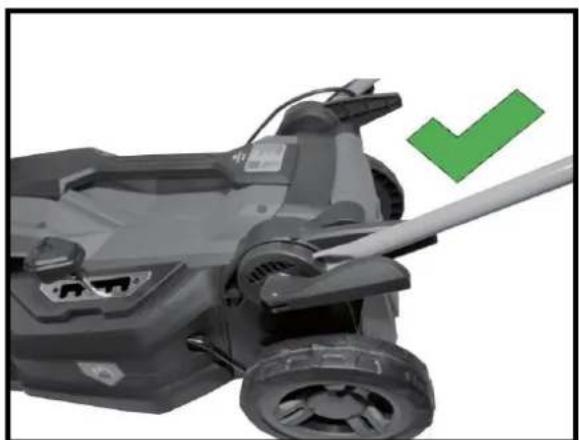

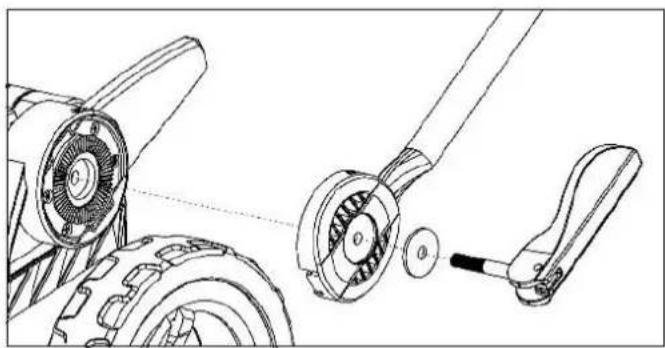

Insert the fast connector wrench into the lower handle as the indicated position as photo, and lock the fast connector wrench.

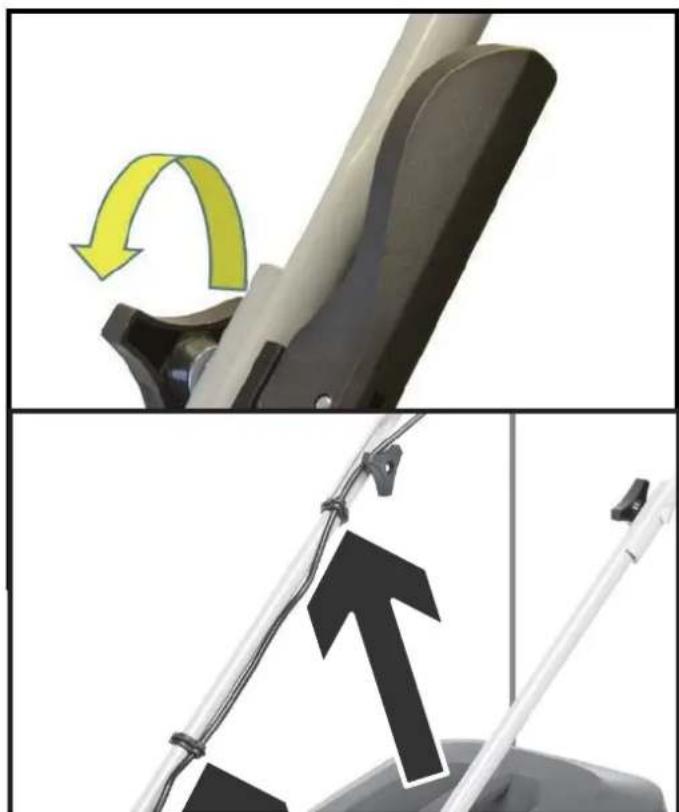

Connect the lower and upper handle, and lock the knob
Fix the cable with the clips on both handles

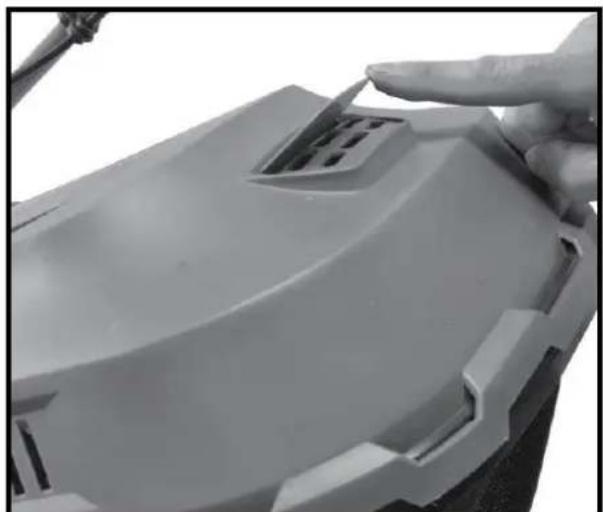

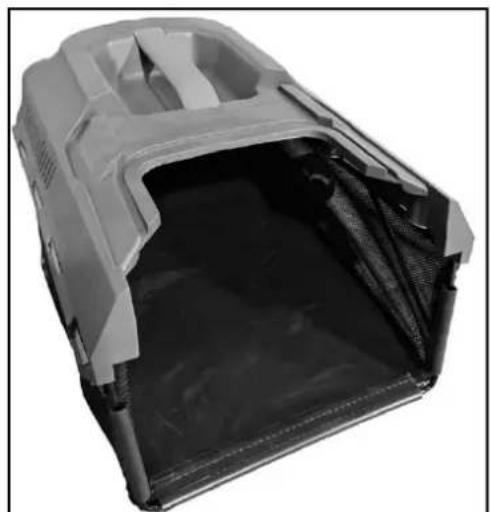

Press the outer edges of the grass collector around the frame and clip it into place.

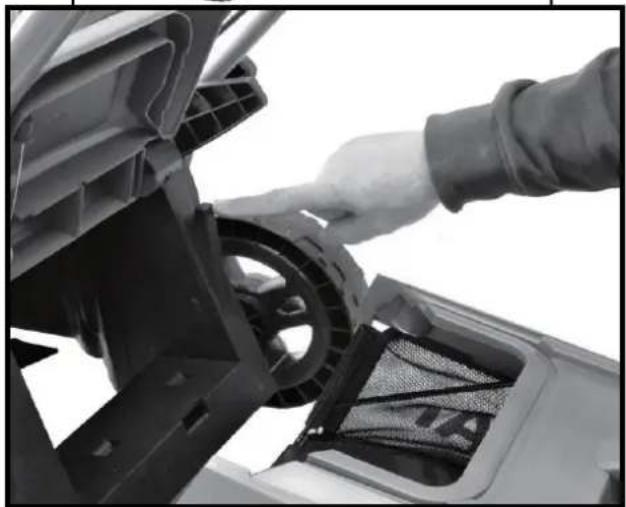

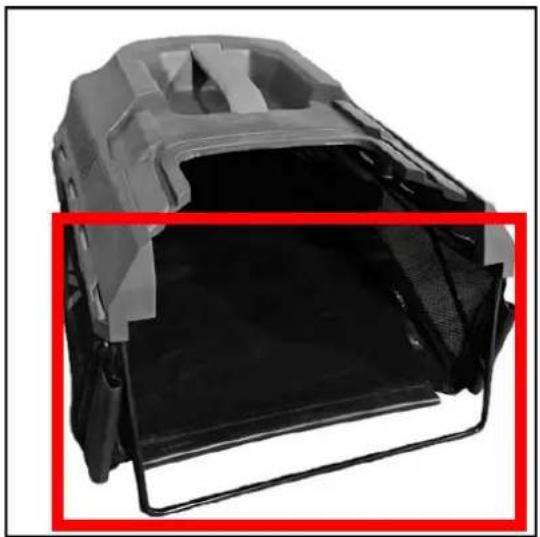

To install the grass catcher basket on the mower, lift the tailgate and attach the basket.
IMPORTANT: Only install or uninstall the grass catcher with the engine off. Otherwise there is a significant risk of injury
The grass collector is equipped with a fill level indicator. When the mower is in operation, air flows through the opening and lifts the flap. As soon as the grass catcher is full, no more air passes through the opening and the flap closes.
45. Start and stop the mower

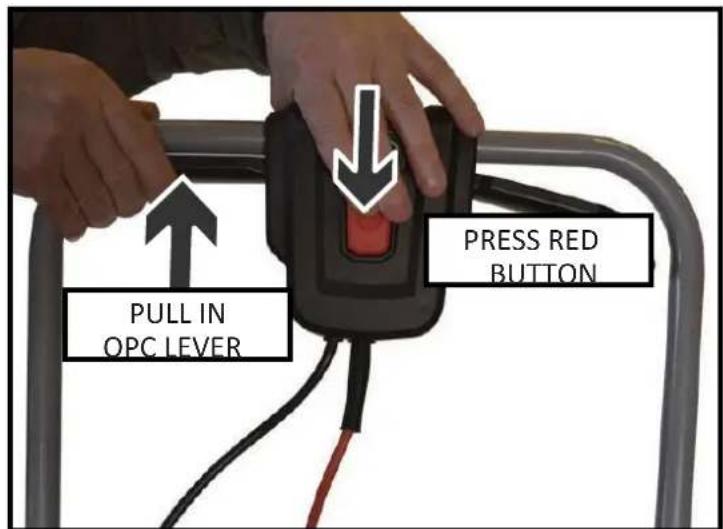

To start the motor, connect the mower to the power supply using an extension cord. Then first press the safety button in the middle of the panel and keep it pressed. Then pull one of the levers to start the engine.
Stopping the motor:
Release the lever. The motor stops, but the knife can still rotate for a few more seconds. Do not carry out any work on the mower until you are sure that the blade has stopped completely.
46. Cutting height adjustment

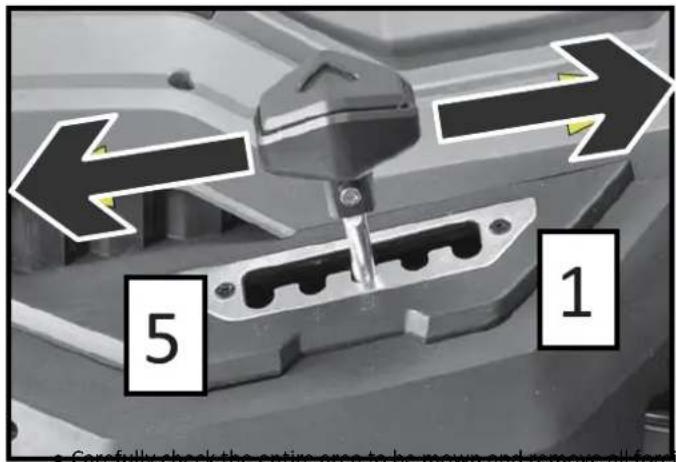

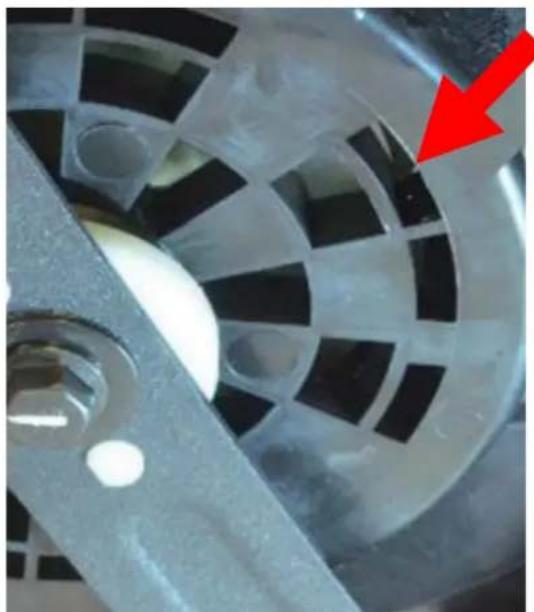

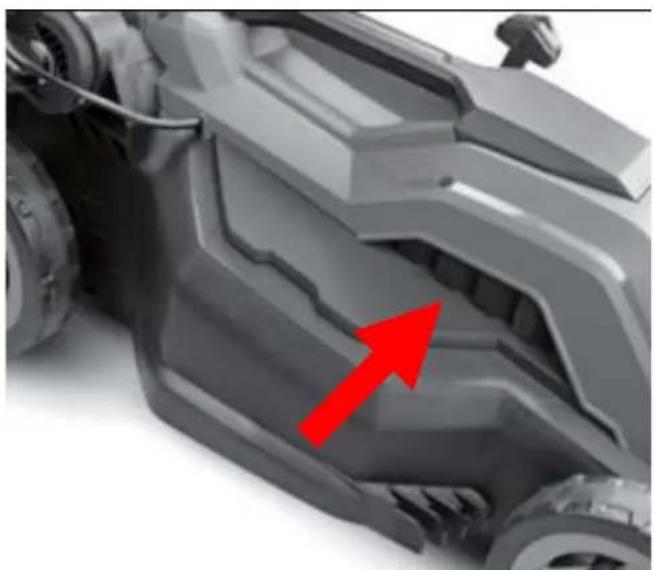

To adjust the cutting height, push the selector lever towards the mower and then move it to the desired position and release the lever into place.
- Only operate the lawn mower if there are no third parties in the danger area.
- Only mow if visibility is good.
- Only operate the machine at walking pace.
- Only operate the mower if the blade is sharp.
- Do not mow over obstacles (e.g. twigs, tree roots).
- On sloping terrain, always mow across the slope. Do not mow uphill or downhill or on slopes where the inclination exceeds 20^ .
Exercise particular care when changing direction on sloping terrain. - Before, between and after mowing, check the air inlets that cool the electric motor and remove any blockages. This may only be done when the engine is switched off, otherwise there is a considerable risk of injury!
48. Tips for mowing
- Start mowing as close as possible to the power socket.
- Always keep the extension lead on the section of lawn than has already been mown.
- Maintain a constant cutting height of 3 - 5cm ; do not shorten the grass to less than half its original height.
- Do not overload the lawnmower! If the motor speed drops perceptibly due to long, heavy grass, in- crease the cutting height and mow several times.
- Mow in the morning or late afternoon to prevent the freshly cut grass from drying out.
- During phases of strong growth, mow twice weekly; in periods of low rainfall, increase intervals between mowing accordingly.
49. Storage
- Always unplug the machine from the mains for storage.
- To save space during storage, fold down the upper bar.
- Store the machine in a dry condition and out of reach of children and unauthorized persons
50. Disposal
i NOTE
Please contact your municipality/city for information about disposal options.
Recycling raw materials instead of waste disposal.
51. Technical data
| Motor | Electric 220V |
| Power | 1200 Watt |
| Cutting height | 20mm-70mm |
| Working width | 380 mm |
| Wheel size | 16cm front / 20cm rear |
| Capacity grass catcher | 40l |
| Sound power level | 96dB |
| Weight | 12kg |
52. EU Declaration of Conformity
Manufacturer / Producer FUXTEC GmbH
Kappstraße 69, 71083 Herrenberg Germany / Germany
Email: info@fuxtec.com Web: www.fuxtec.com
Designation/name Electric lawn mower FX-RME38
EC Directive / EC directive
2006 42 EC
2014/30/EU
2000/14/EC amended by
2005/88/EC Annex IV
Applicable standards
EN 62841-1:2015+AC:15+A11:2022
EN IEC 62841-4-3:2021+A11:2021
EN 62233:2008
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
We, with this, declare that, due to its design, the device mentioned above in the version placed on the market by us complies with the basic safety and health requirements of the listed EC directive. Any manipulation or modification of the device not expressly approved by us will render this document null and void.
We declare that the device mentioned above meets the above-stated EC directives' essential safety and health requirements. Any manipulation or change of the device not being explicitly authorised by us in advance renders this document null and void.
Custody of technical documents: FUXTEC GmbH Kappstraße 69 · 71083 Herrenberg · Germany, L. Zirkler,
Management Board
Herrenberg, November the 29^th , 2023
