CWO50E - Corkscrew CUISINART - Free user manual and instructions

USER MANUAL CWO50E CUISINART

Black and silver cleaning brush holder with a curved base (no visible text or symbols)

WINE OPENER
OUVRE-BOUTEILLE

CW050E

Q165a

Cuisinart®

Cuisinart®

1. 2. 3. 4. 5. 6. 7.

Fig. 1

Close-up of a hand holding a black object, possibly a device or tool, against a plain background (no text or symbols visible)

Fig. 2

Person holding a wine bottle with a black and silver container (no text or symbols visible)

Fig.3

Person pouring liquid from a stand into a bottle (no text or symbols visible)

SOMMAIRE

1. Consignes de sécurité.....1
2. Introduction....5
3. Caractéristiques produit ..... 6
4. Utilisation .... 6
5. AVIAT 4 PREMISURE UTILISATION ....
   A. AVANT LA PREMIERE UTILISATION...6 B. RECHARGE DE VOTRE OLIVRE ROUTEILLE 6
   B. RECHANGE DE VOTRE COUARE LODTELLEE 6 C. COUPE CAPSULE 6
   D. DÉBOUCHER LINE BOUTEILLE 7
   E. UTILISATION DE LA MISE SOUS VIDE . 7
6. Nettoyage et entretien ..... 7
   Garantie internationale ..... 65

TABLE OF CONTENTS

1. Safety instructions....8
2. Introduction....12
3. Product features ..... 12
4. Instructions for use ..... 12 A. BEFORE USE ..... 12
   A. BEFORE USE.... 12 B. CHARGING YOUR WINE OPENER.... 12
   B. CHANGING TOUR MINE OF LIVER... 12 C. FOIL CUTTER... 13
   D. TO OPERATE YOUR WINE OPENER . 13
   E. USING THE VACUUM SEALER ..... 1
5. Cleaning and maintenance ..... 14
   International Guarantee 65

INHALT

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance is intended for domestic use only and is not intended to be used in applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses; by customers in hotels, motels, and other residential type environments; bed and breakfast type establishments.
• This appliance contains batteries that cannot be replaced.
• This appliance contains rechargeable batteries which must be removed before discarding the appliance. For further information on removing the batteries, contact Cuisinart: www.cuisinart.eu
• Do not use the appliance if the lead is damaged. In the event of lead damage, discontinue use immediately. If the lead is damaged it must be replaced by the manufacturer. No repair must be

attempted by the consumer.

• For the purpose of recharging the batteries, only use the detachable charging supply unit provided with this appliance (model YLJXA-E090008).
• Caution: the corkscrew is sharp. Handle with care. Keep hands and utensils out of the opening while operating to prevent the possibility of personal injury and/or damage to the product.
• The appliance is not intended to be operated by means of external timer or separate remote control system.
  • Always inspect the appliance and appliance accessories before use for noticeable signs of damage. Do not use if damaged, or if the appliance has been dropped.
• Never pull the plug out of the mains socket by the lead.
• Never immerse the power adapter, charging base or housing in water or any other liquids.
• Do not wrap the lead around the main body of the appliance during or after use.
• The appliance is safe to be left plugged into the electrical supply when not in use to ensure the battery is always charged. It should however be unplugged before assembling, disassembling, cleaning or if not being used for a prolonged period of time.
• The supply terminals are not to be short circuited.
• Only use the appliance indoors on a solid, level work surface.
• The charger should be plugged into an electrical

socket away from a sink or any hot surface.

- Do not use an extension cord. Plug the charger directly into an electrical socket.

- Do not charge the unit using an outdoor socket.

- Use the unit only for its intended use as described in this manual.

- Never insert an object into the Wine Opener corkscrew opening.

- Do not carry the charging base by the cord.

- Unplug the appliance from the power outlet when not in use and before cleaning.

- Do not touch or adjust the Wine Opener's mechanism or the corkscrew spiral. Hold the Wine Opener by its main housing only.

- Never force the Wine Opener onto a bottle or attempt to speed up the mechanism. The Wine Opener will work best when it is operated at its intended speed.

WARNING: the polyethylene bags over the product or its packaging may be dangerous. Keep these bags out of the reach of babies and children.

Never use them in cribs, children's beds, pushchairs or playpens. The thin film may cling to the nose and mouth and prevent breathing. A bag is not a toy.

WEEE - END-OF-LIFE ELECTRICAL AND ELECTRONIC EQUIPMENTS

In everybody's interest and to actively participate in protecting the environment and human health:

• Do not discard your products with your unsorted household wastes.
• The WEEE (wastes of electrical and electronic equipements) must be collected separately.
• Use the return and collection systems dedicated to the WEEE available in your area. In this way, some materials can be recycled, re-used or recovered.
• By ensuring this product is disposed of properly, you will help prevent potential negative consequences for the environment and human health due to possible content of hazardous substances.

For more detailed information about the disposal of this product, please contact your local household waste disposal service.

RECYCLING RECHARGEABLE BATTERIES

• Some Cuisinart appliances may have rechargeable batteries. They must be removed from the appliance before it is discarded.
• Disconnect the appliance from the mains before removing the batteries.
• Remove the batteries by carefully opening the appliance case using the appropriate tools, then dispose of the batteries at a collection point intended for this purpose.

Please contact Cuisinart for additional information on how to remove the batteries.

2. INTRODUCTION

Congratulations on your purchase of a new Cuisinart Wine Opener.

For over 30 years Cuisinart's aim has been to produce the very finest kitchen equipment. All Cuisinart products are engineered for exceptionally long life, and designed to be easy to use as well as to give excellent performance day after day.

To learn more about our products and for recipe ideas visit our website www.cuisinart.eu.

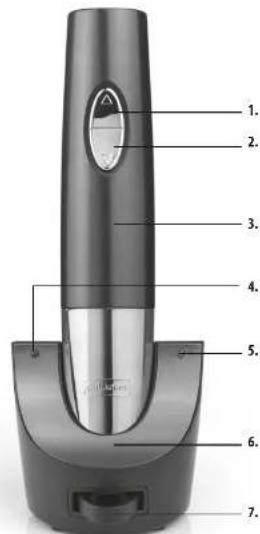

3. PRODUCT FEATURES

1. Up Arrow – Press to release cork from opener
2. Down Arrow – Press to remove cork from bottle
3. Main housing
4. Power indicator light
5. Charge indicator light
6. Charging base
7. Foil cutter
8. Vacuum sealer
9. Charging adapter (not shown)

4. INSTRUCTIONS FOR USE

A. BEFORE USE

We recommend that you charge your electric wine opener for at least eight hours before using for the first time. Please follow the instructions for charging as stated below:

B. CHARGING YOUR WINE OPENER

Plug the adapter into the back of the charging base and the plug into an electrical outlet. The red power indicator light will illuminate. Place the wine opener into the charging base, making sure that it is firmly in position and that it is fully engaged. The green charge indicator light will flash, indicating that the unit is charging. It will take approximately 6–8 hours to recharge your wine opener. When your wine opener is fully charged, the green light will stop flashing and become a solid green light. Your wine opener can open approximately 80 bottles of wine on a full charge.

C. FOIL CUTTER

For your convenience, this unit has a foil cutter, which is stored in the base of the unit. Before removing the cork, you must remove any foil from the bottle. Attach the foil cutter to the top of the wine bottle. Keep your hand on the lower part of the bottle and turn the foil cutter in a twisting motion to remove the foil (see Fig. 1). The top part of the cork surface will now be exposed.

CAUTION: The blade on the foil cutter is sharp. Please keep fingers away from the cutter's sharp edges.

D. TO OPERATE YOUR WINE OPENER

1. Place your bottle of wine on a flat surface and hold the bottle firmly with one hand.
2. Place the wine opener on top of the wine bottle making sure that it remains as straight/upright as possible at all times (see Fig. 2). If you hold the wine opener at an angle to the bottle, it will not remove the cork properly.
3. Hold the wine opener firmly and press the lower part of the switch indicated by the down arrow. The corkscrew spiral will turn in a anticlockwise direction and enter the cork, then gradually remove it from the bottle. When the mechanism has stopped, the cork has been fully removed from the bottle.
4. Lift the wine opener up and away from the bottle. To remove the cork, press the upper part of the switch indicated by the up arrow. The spiral will turn in a clockwise direction and release the cork (see Fig. 3).
5. After use, we recommend that you return your appliance to the charging base so that it is fully charged and available for use at any time.

E. USING THE VACUUM SEALER

1. Place the vacuum sealer on top of the opened wine bottle.
2. Press down on the top of the pump approximately 20 times or until you feel resistance.
3. The top of the vacuum sealer is numbered 1-31 to represent days of the month. Twist the top of the vacuum sealer to the appropriate number to mark the seal date.

NOTE: The wine bottle with vacuum sealer must be stored in an upright position. Failure to do so may result in wine leaking from the bottle.

1. To remove the vacuum sealer from wine bottle, simply pull straight up.

5. CLEANING & MAINTENANCE

Always unplug the appliance from the electrical outlet before cleaning.

To clean the housing, wipe with a clean, damp cloth.

Never immerse the power adapter, charging base or housing in water or any other liquids.

Never place in a dishwasher. Make sure all the parts are clean and dry before storing.

ENGLISH: CUISINART guarantees easier contact with its customer services in every country. For details of the customer services in your area, call:

[e-mail]

Cuisinart offers you a 3-year warranty. We offer a standard exchange of the appliance (identical or equivalent) during this period. To benefit from the warranty, the original proof of purchase (sales ticket or receipt) must be attached to this warranty slip along with your full contact details. The warranty does not cover damage resulting from misuse, falls, dismantling, or repair by unauthorized persons. This guarantee in no way affects your rights under statutory law.
