USER MANUAL Easycut K35 PFC GYS

Line drawings of two industrial electrical equipment units with ventilation grilles and control knobs (no text or symbols)

FR	02-03 / 04-11 / 68-78
EN	02-03 / 12-19 / 68-78
DE	02-03 / 20-27 / 68-78
ES	02-03 / 28-35 / 68-78
RU	02-03 / 36-43 / 68-78
NL	02-03 / 44-51 / 68-78
IT	02-03 / 52-59 / 68-78
PL	02-03 / 60-67 / 68-78

EASYCUT

K25 / K35 PFC

Single-phase plasma cutter

Technical diagram of a portable electric shock absorber with labeled components

Line drawing of a portable air conditioner unit with ventilation slots and a handle (no text or symbols)

EASYCUT K35 PFC

Technical diagram of an industrial control unit with numbered components labeled 1, 2, 3, and 5.

Technical line drawing of a rectangular electronic device with internal fan-like components and mounting feet (no text or symbols)

FIG-2
EASYCUT K25

EASYCUT K25 INVERTER TECHNOLOGY COMPRESSOR INSIDE ON A 10 15 20 25 ② ① ③

EASYCUT K35 PFC

EASYCUT K35 PFC INVERTER TECHNOLOGY 20 25 15 30 10 35 A ON COMPRESSOR INSIDE ③ ② ①

INSTRUCTIONS DE SÉCURITÉ

CONSIGNE GÉNÉRALE

INSTALLATION - FONCTIONNEMENT PRODUIT

INTERFACE HOMME MACHINE (IHM) (FIG-2)

Simple line drawing of a hand holding a clip against a diagonal line (no text or symbols)

2 - VÉRIFIER LA PRÉSENCE DE TOUS LES CONSOMMABLES DE LA TORCHE

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface (no text or symbols)

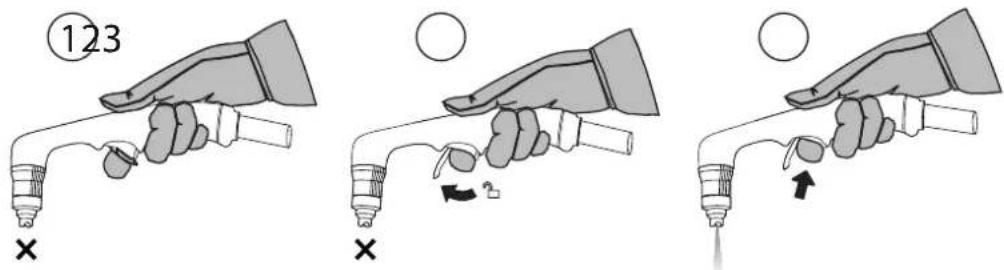

PERÇAGE D'UNE PIÈCE / DÉCOUPE EN MILIEU DE PIÈCE

Illustration of a hand using a handheld tool to apply 30-degree angle on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material to a surface, with an arrow indicating the process (no text or symbols present)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

INSPECTION DES CONSOMMABLES (MONTAGE ET DÉMONTAGE, VOIR P.8)

ANOMALIES, CAUSES, REMÈDES

Read and understand the following safety instructions before use.

Any modification or updates that are not specified in the instruction's manual should not be undertaken.

The manufacturer is not liable for any injury or damage due to a non-compliance with the instructions featured in this manual. In the event of problems or uncertainties, please consult a qualified person to handle the installation properly.

ENVIRONMENT

This equipment must be used for cutting operations in accordance with the limits indicated on the descriptive panel and/or in the user manual. Safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held liable.

This equipment must be used and stored in a room free from dust, acid, flammable gas or any other corrosive agent. Operate the machine in an open, or well-ventilated area.

Operating temperature:

Use between -10 and +40°C (+14 and +104°F).

Storage between -20 and +55°C (-4 and 131°F).

Air humidity:

Lower or equal to 50% at 40°C (104°F).

Lower or equal to 90% at 20°C (68°F).

Altitude:

Up to 1000 meters above sea level (3280 feet).

INDIVIDUAL PROTECTION & OTHERS

Cutting can be dangerous and cause severe injuries.

Cutting exposes individuals to a dangerous source of heat, arc rays, electromagnetic fields (special precautions need to be taken by people that have a pacemaker), risk of electrocution, noise and gas fumes.

To protect oneself as well as others, ensure the following safety precautions are taken:

In order to protect you from burns and radiations, wear clothing without turn-ups or cuffs. These clothes must be insulating, dry, fireproof, in good condition and cover the whole body.

Wear protective gloves which provide electrical and thermal insulation.

Use sufficient cutting protective gear for the whole body: hood, gloves, jacket, trousers...(varies depending on the application/operation) Protect the eyes during cleaning operations. Contact lenses are prohibited during use.

It may be necessary to install fireproof cutting curtains in order to protect against safety hazards such as arc rays, weld spatters and sparks.

Ensure that people around the cutting area do not look at the arc or the molten metal and wear protective clothes.

Ensure ear protection is worn by the operator if the work exceeds the authorised noise limit (the same applies to any person in the cutting area).

Keep hands, hair and clothes away from moving parts such as fans, and motors.

Never remove the safety covers from the cooling unit when the machine is plugged in. The manufacturer is not liable for any injury or damage caused due to non-compliance with the safety precautions.

Parts that have previously been cut will be hot and may cause burns if touched. If maintenance of the torch is required, ensure that it is given sufficient time to cool down by waiting at least 10 minutes. It is important to secure the working area before leaving it to ensure protection of the goods and the safety of people.

The fumes, gas and dust generated by cutting are a potential health hazard. It is mandatory to ensure adequate ventilation and/or extraction to keep fumes and gas away from the work area. Using an air fed cutting helmet is recommended in case of insufficient ventilation in the workplace.

Check that the air supply is effective by referring to the recommended safety regulations.

When cutting in small areas, operators must be supervised from a safe distance. Cutting certain materials containing lead, cadmium, zinc, mercury or beryllium can be particularly hazardous. It is also recommended to degrease the parts before cutting them.

Gas cylinders must be stored in an open or ventilated area. They must be stored vertically and held by a support or trolley to limit the risk of fall. Do not cut in areas where grease or paint are stored.

FIRE AND EXPLOSION RISKS

Protect the entire working area and ensure that flammable items are stored at a distance of at least 11 meters. Fire extinguishing equipment must be kept in close proximity when cutting materials.

Be careful of weld spatter and sparks, even through cracks. If not careful then this could potentially lead to a fire or an explosion.

Keep people, flammable materials/objects and containers that are under pressure at a safe distance.

Cutting in containers or pipes should be avoided and, if they are open, then flammable or explosive materials must be removed (oil, fuel, gas...). Grinding operations should not be carried out close to the power supply or flammable materials.

ELECTRICAL SAFETY

The electrical mains used must have an earth terminal. Use the recommended fuse size. An electric shock could cause serious injuries or potentially even deadly accidents.

Do not touch any live part of the machine (inside or outside) when it is plugged in (Torches, cables, clamps) because they are connected to the cutting circuit.

Before opening the device, it is imperative to disconnect it from the mains and wait 2 minutes, so that all the capacitors are discharged. Do not touch the torch or electrode holder and earth clamp at the same time.

Damaged cables and torches must be changed by a qualified technician. Make sure that the cable cross section is adequate with the usage (extensions and cutting cables). Always wear clothing that is dry and in good condition in order to shield yourself from the cutting circuit. Wear insulating shoes, regardless of the workplace/environment in which you work in.

EMC CLASSIFICATION

These Class A devices are not intended to be used on a residential site where the electric current is supplied by the public network, with a low voltage power supply. There may be potential difficulties in ensuring electromagnetic compatibility on these sites, because of the interferences, as well as radio frequencies.

PLASMA EASYCUT K25 :

This equipment complies with the IEC 61000-3-11 standard.

This equipment does not comply with IEC 61000-3-12 and is intended to be connected to private low-voltage systems interfacing with the public supply only at the medium- or high-voltage level. On a public low-voltage power grid, it is the responsibility of the installer or user of the device to ensure, by checking with the operator of the distribution network, which device can be connected.

PLASMA EASYCUT K35 PFC :

This equipment complies with the IEC 61000-3-11 standard.

This equipment complies with the IEC 61000-3-12 standard.

ELECTROMAGNETIC INTERFERENCES

The electric current flowing through any conductor causes electrical and magnetic fields (EMF). The cutting current generates an EMF around the cutting circuit and the cutting equipment.

The EMF electromagnetic fields can interfere with certain medical implants, such as pacemakers. Protective measures must be taken for people having medical implants. For example, by restricting access to passers-by or conducting an individual risk evaluation for the users.

All users should take the following precautions in order to minimise exposure to the electromagnetic fields (EMF) generated by the cutting circuit:

• position the cutting cables together - if possible, attach them;
• keep your head and upper body as far as possible from the cutting circuit;
• never wrap the cable around your body;
• Never position your body between the cables. Hold both cutting cables on the same side of your body;
• Connect the earth clamp as close as possible to the area being cut;
• do not work too close to, do not lean and do not sit on the cutting machine;
• do not cut when you're carrying the machine.

People wearing pacemakers are advised to consult their doctor before using this device.

Exposure to electromagnetic fields while cutting may have other health effects which are not yet identified.

RECOMMENDATIONS FOR CUTTING AREA ASSESSMENT AND CUTTING

General points

The user is responsible for the installation and use of the arc cutting equipment according to the manufacturer's instructions. If electromagnetic disturbances are detected, the user is responsible for resolving the situation with the manufacturer's technical support. In certain cases, this corrective action may be as simple as earthing the cutting circuit. In other cases, it may be necessary to construct an electromagnetic shield around the cutting power source and around the entire piece by fitting input filters. In all cases, electromagnetic interferences must be reduced until they are no longer an issue.

Cutting area assessment

Before installing the machine, the operator must evaluate the possible electromagnetic problems that may arise in the area where the installation is planned. The following elements should be considered:

a) the presence (above below and next to the arc cutting machine) of other power cables, remote cables and telephone cables;
b) television transmitters and receivers;
c) computers and other hardware
d) critical safety equipment such as industrial machine protection;
e) the health and safety of the people in the area such as people with pacemakers or hearing aids;
f) calibration and measuring equipment;
g) the isolation of other pieces of equipment which are in the same area.
The operator has to ensure that the devices and equipment used in the same area are compatible with each other. This may require extra precautions; h) the time of day during the cutting or other activities have to be performed.

The dimension of the cutting area that has to be considered depends on the size and shape of the building and the type of work undertaken. The area taken into consideration might go beyond the limits of the installation.

Cutting installation assessment

Besides the cutting area, the assessment of the arc cutting system installation itself can be used to identify and resolve cases of distrubances. The assessment of emissions must include in situ measurements as specified in Article 10 of CISPR 11. In situ measurements can also be used to confirm the effectiveness of mitigation measures.

RECOMMENDED METHODS TO REDUCE ELECTROMAGNETIC EMISSIONS

a. National power grid: the plasma cutting machine must be connected to the national power grid in accordance with the manufacturer's recommendation. In case of interference, it may be necessary to take additional precautions such as the filtering of the power supply network. Consideration should be given to shield the power supply cable in a metal frame or equivalent from a permanent cutting installation. It is necessary to ensure the electrical continuity of the frame along its entire length. The frame should be connected to the cutting machine to ensure good electrical contact between the conduct and the casing of the cutting machine.
b. Maintenance of the arc cutting equipment: the arc cutting machine should be subject to a routine maintenance check according to the recommendations of the manufacturer. All accesses, service doors and covers should be closed and properly locked when the arc cutting equipment is on. The arc cutting equipment must not be modified in any way, except for the changes and settings outlined in the manufacturer's instructions. The spark gap of the arc starts and arc stabilization devices must be adjusted and maintained according to manufacturer's recommendations.
c. Cutting cables: cables must be as short as possible, close to each other and close to the ground, if not on the ground.
d. Equipotential bonding: consideration should be given to bond all metal objects in the surrounding area. However, metal objects connected to the workpiece increase the risk of electric shock if the operator touches both the metal parts and the electrode. It is necessary to insulate the operator from such metal objects.
e. Earthing of the metal part to be cut: When the part is not earthed - due to electrical safety reasons or because of its size and its location (e.g. ship hulls or metallic building structures), the earthing of the part can, in some cases but systematically, reduce emissions. It is preferable to avoid the earthing of parts that could increase the risk of injury to the users or damage other electrical equipment. If necessary, it is appropriate that the earthing of the part is done directly, but in some countries that do not allow such direct connection, it is appropriate for the connection to be made with a capacitor selected according to national regulations.
f. Protection and shielding: The selective protection and shielding of other cables and devices in the area can reduce perturbation issues. The protection of the entire cutting area can be considered for specific situations.

TRANSPORT AND TRANSIT OF THE CUTTING MACHINE

The machine is equipped with a handle for easy transportation. Be careful not to underestimate the weight of the machine. The handle cannot be used to hang or attach the machine on something else.

Do not use the cable or torch to move the machine. The cutting equipment must be moved in an upright position.

Do not place/carry the unit over people or objects.

EQUIPMENT INSTALLATION

• Put the machine on the floor (maximum incline of 10^ ).
• Ensure the work area has sufficient ventilation for cutting, and that there is easy access to the control panel.
• The machine must not be used in an area with conductive metal dusts.
• The machine must be placed in a sheltered area away from rain or direct sunlight.

EASYCUT K25 :

• The machine is IP21S rated, meaning:
- Protection against access to dangerous parts from solid bodies of a ≥12.5mm diameter and,
- A protection against vertical rainfall when its moving parts (fan) are not in motion.

EASYCUT K35 PFC :

• The machine is IP23S rated, meaning:
- its dangerous parts are protected from being entered by objects greater than 12.5 mm and,
- it is protected against rain falling at an angle of up to 60° from vertical, providing that any moving parts (fan) are stationary.
This product can therefore be stored outdoors in accordance with the IP23 protection rating.

The power cables, extensions and cutting cables must be fully uncoiled to prevent overheating.

The manufacturer does not incur any responsibility regarding damages to both objects and persons that result from an incorrect and/or dangerous use of the machine.

MAINTENANCE / RECOMMENDATIONS

Ensure the machine is unplugged from the mains, and wait for two minutes before carrying out maintenance work. DANGER High Voltage and Currents inside the machine. Maintenance should only be carried out by a qualified person. Annual maintenance is recommended.

1 - Air filter (K35 PFC) :

EASYCUT K35 PFC is fitted with an internal air filter. It is drained automatically and requires no special maintenance. Water may run behind the product during purging.

2 - Periodical maintenance:

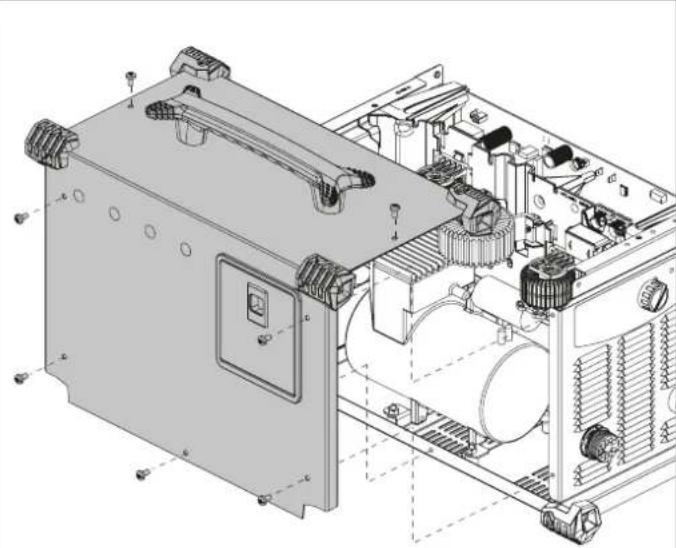

• Periodically remove the cover and dust with an air gun. Take this opportunity to have the electrical connections checked by a qualified person, with an insulated tool.
• Regularly check the condition of the power supply cable. If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or an equally qualified person to prevent danger.
• Do not obstruct the machine's air intakes for a good air circulation.
• Check that the torch does not have any cracks or exposed wires.
• Check that the consumables are installed properly and not worn.
• Do not use this cutting power source to thaw pipes, recharge batteries/accumulators or start motors.

INSTALLATION – PRODUCT OPERATION

Only qualified personnel authorized by the manufacturer should perform the installation of the cutting equipment. During set up, the operator must ensure that the machine is unplugged. Connecting generators in a series or a parallel circuit is forbidden. It is recommended to use the cutting cables supplied with the unit in order to obtain the optimum product settings.

MACHINE SUPPLIED WITH

	EASYCUT K25 EASYCUT K35 PFCRef. 068063 Ref. 080768
Starting kit

Starting kit

The accessories supplies with the machine are to be used only with the same models.

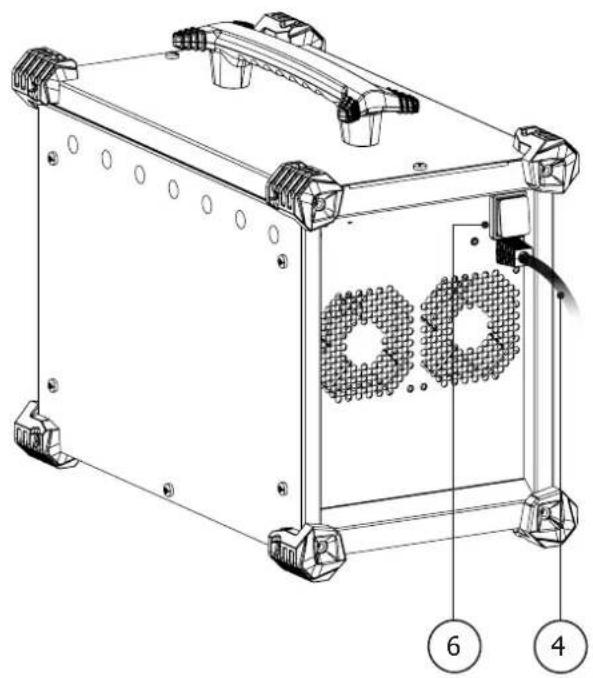

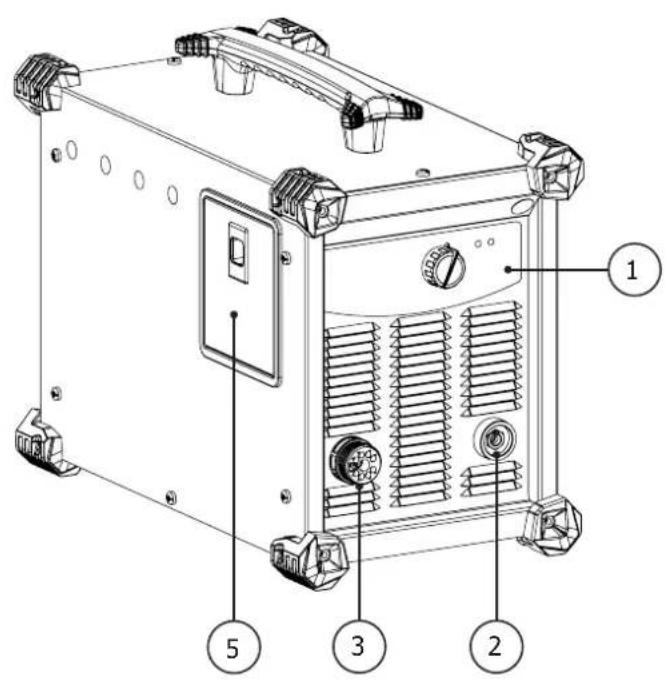

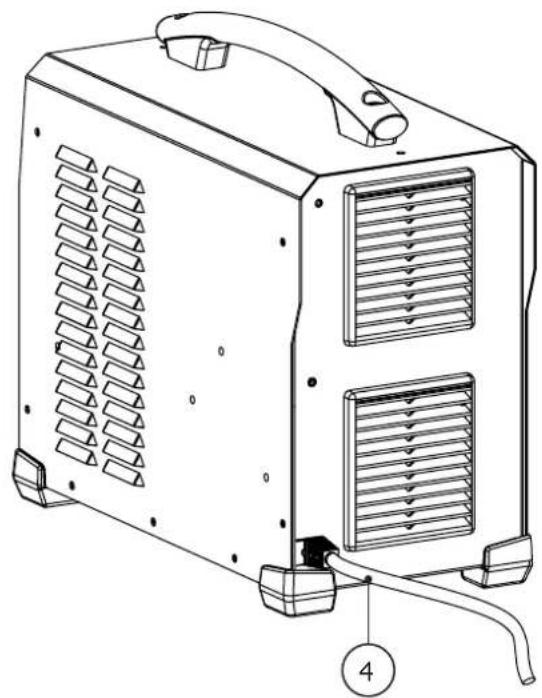

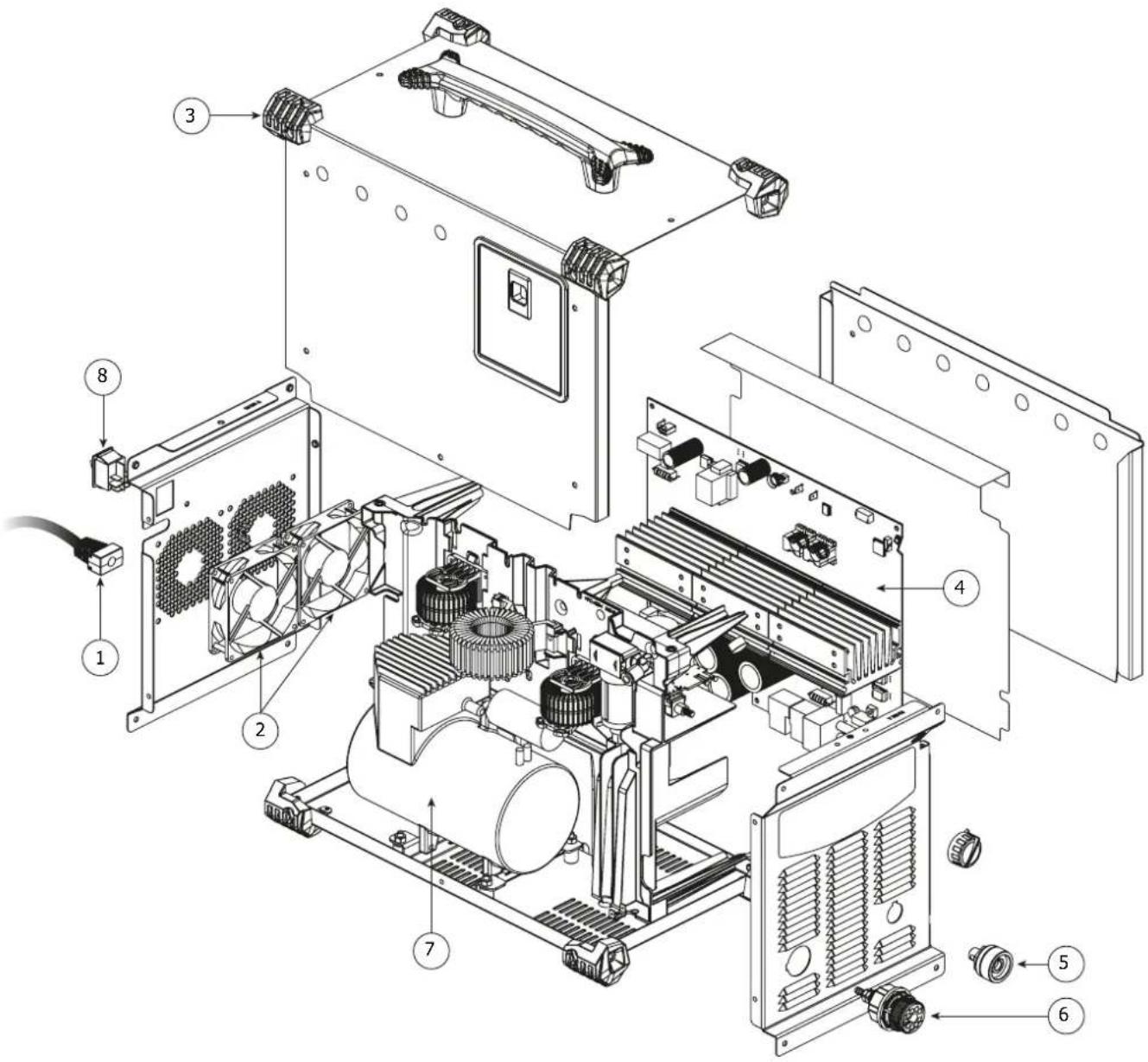

HARDWARE DESCRIPTION (FIG-1)

1- HMI (Human Machine Interface) 4- Power supply cable (2 m)
2- Earth clamp connection socket 5- Accessory box hatch
3- Plasma torch connector 6- START/STOP switch

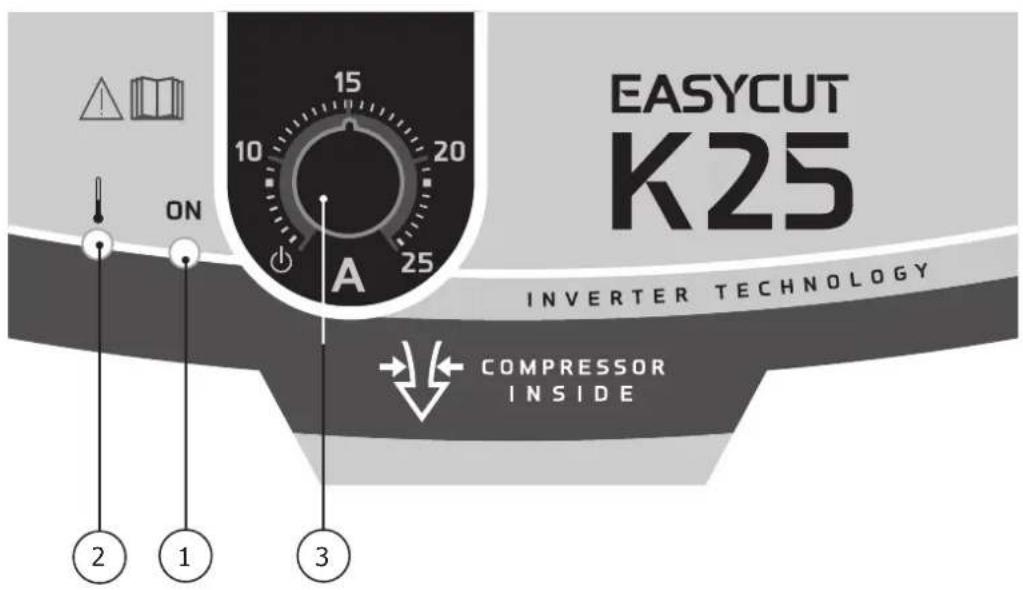

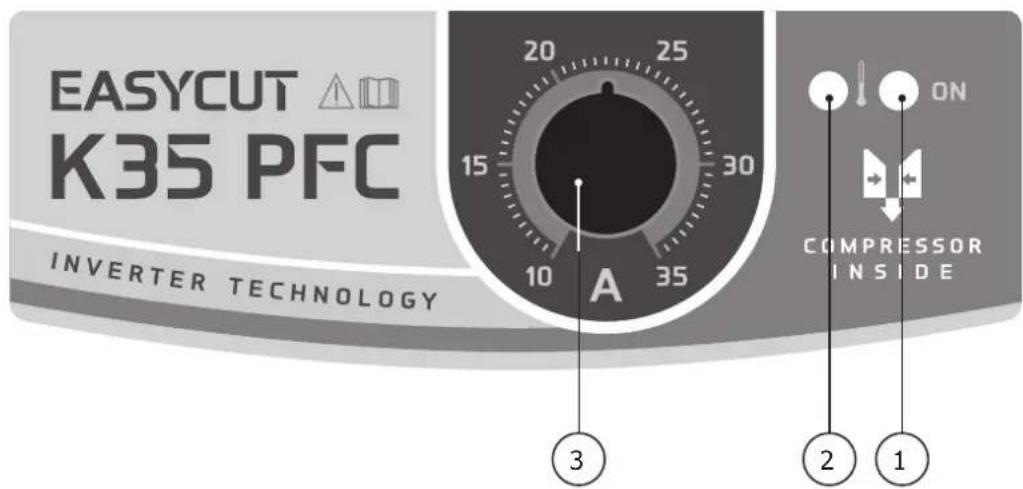

CONTROL BOARD (IHM) (FIG-2)

1- Power indicator (green) 3- Current setting
2- Thermal protection and over current protection indicator (yellow)

POWER SUPPLY – STARTING UP

This machine is fitted with a 16A socket type CEE7/7 which must be connected to a single-phase 230V (50 - 60 Hz) power supply fitted with three wires and one earthed neutral.

The absorbed effective current (I1eff) is displayed on the machine, for optimal use. Check that the power supply and its protection (fuse and/or circuit breaker) are compatible with the current needed by the machine. In some countries, it may be necessary to change the plug to allow the use at maximum settings.

CONNECTION ON A GENERATOR

The machine can work with generators as long as the auxiliary power matches these requirements :

- The voltage must be AC, always set as specified, and the peak voltage below 400V,

- The frequency must be between 50 and 60 Hz.

It is imperative to check these requirements as several generators generate high voltage peaks that can damage these machines.

USE WITH EXTENSION CABLES

All extension cables must have an adequate size and section, relative to the machine's voltage.

Use an extension that complies with national safety regulations.

Voltage input Section of extension cable (<45m)
230 V 6 mm ^2

TORCH SETUP

The torches are cooled with ambient air and do not require any special cooling.

1 - CONSUMABLES LIFE CYCLE

The replacement frequency of the Plasma's consumables depends on several factors:

• The metal thickness.

• The average cutting time

• The air quality (presence of oil, humidity or other contaminants).

• The metal piercing or the cut from the edge.

- The adequate distance between the torch and the part when cutting.

In normal conditions :

- During manual cutting, the electrode wears out first.

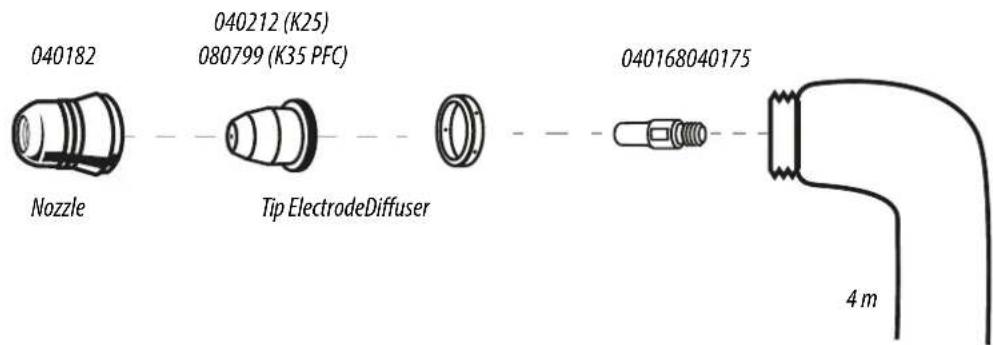

Torch consumables :

040182 040212 (K25) 080799 (K35 PFC) Nozzle Tip ElectrodeDiffuser 040168040175 4 m

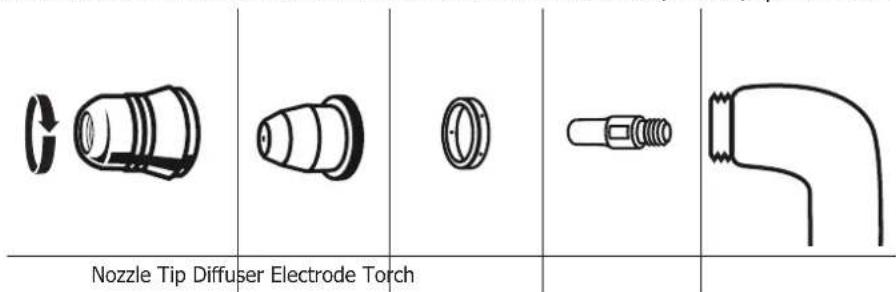

2 - INSTALLATION OF THE TORCH CONSUMABLES :

Unplug the unit before changing consumables.

To use the torch, a complete set of consumables must be installed in the correct order: electrode, diffuser, tip and nozzle.

Nozzle Tip Diffuser Electrode Torch

MACHINE OPERATION

1 - PLACE THE EARTH CLAMP ON THE PART TO CUT

Ensure proper electrical contact and do not to put the cable on the cutting trajectory.

Warning: painting prevents contact between the metal part and the earth clamp, do not forget to sand.

Simple line drawing of a tool gripping a cable or wire (no text or symbols)

2 - CHECK THE PRESENCE OF ALL THE CONSUMABLES ON THE TORCH AND CONNECT AS FOLLOWS :

3 - START THE MACHINE and check that the power light (1) is on.

4 - SETTINGS PANEL (FIG-2)

ON Green indicator (1)

When the machine is powered, the indicator is on. In case of power cut, the green indicator switches off and the machine switches off.

Yellow indicator (2)

Overheating : in this case, the yellow indicator lights up. Wait for a few minutes for the indicator to switch off and the machine will be functioning. Overheating of the power supply : in this case the yellow indicator flashes. Unplug the machine (using the power cable) and reconnect.

5 - CURRENT SETTING (FIG-2)

Use the adjuster to set the current relative to the thickness and type of the metal sheet. Adjusting the pressure at maximum power should cover all other normal cutting situations.

6 - STARTING THE CUTTING MODE (FIG-2)

The PLASMA cutting machine is equipped with pilot arc system. This system allows starting the arc without touching the piece to cut. You have 2 ways to cut your piece:

• Press the trigger > pilot arc formation > cutting by contact with the piece.
• Contact with the piece > press on the trigger > immediate cutting
• During the cutting, make sure to maintain the contact between the nozzle and the piece to cut.

Problem solving on page 19.

SAFETY TRIGGER

The torch is equipped with a safety latch to prevent accidental use: Unlock it and pull the trigger as below:

Wear appropriate protective equipment. Stay away from the tip of the torch. Keep your hands away from the cutting trajectory. Never point the torch towards you or another person.

TIPS FOR CUTTING

• Lightly drag the tip on the part for an even cut. This will guarantee a constant, adapted distance.
• When cutting, ensure that the sparks come from the bottom of the part. The sparks should lag slightly behind the torch when cutting (angle of 15^ to 30^ from the vertical).
• If the sparks fly from the top of the part, slow the movement, or set the output current to a higher level.
• For straight cuts, use a ruler as a guide.

MANUAL CUT FROM THE EDGE OF THE PART

① With the earth clamp is fastened to the part, maintain the torch's tip perpendicularly (90°) to the edge of the part.
② Press the torch's trigger to start the arc until this one has completely cut into the part.
③ Once the part is cut, slightly drag the tip on the part to continue the cut. Try to maintain a regular rythmn.

Illustration of a hand using a handheld electric torch to lift a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to spray or brush on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating direction (no text or symbols present)

PART PIERCING / CUT IN THE MIDDLE OF THE PART

① With the earth clamp is fastened to the part, maintain the torche at an angle of roughly 30^ to the part.
② Press the torch's trigger to start the arc while maintaining an angle of 30^ to the part. Slowly rotate the torch towards a perpendicular position ( 90^ ).
③ Immobilise the torch while keeping the trigger pressed. If the sparks come from below the part, the arc has cut the material.
④ Once the part is cut, slightly drag the tip on the part to continue the cut. Try to maintain a regular rythmn.

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating the process (no text or symbols present)

Illustration of a robotic arm gripping a small object on a flat surface (no text or symbols)

CONSUMABLES INSPECTION (ASSEMBLY AND DISASSEMBLY, SEE P.16)

Parts Actions Solutions
Nozzle	Check the for damage and surface wear.			Replace the nozzle when it looks damaged (traces of burns).
Tip	Visually check the tip's internal hole.	OK NOK	OK	Replace the tip if the inner diameter is enlarged or distorted.
[N2KD]Diffuser	Check for damage and wear on the surface and inside the diffuser.Check that the fumes' exhausts are not obstructed.			Replace the diffuser if the surface is damaged or worn, or if fume exhausts are obstructed.
Electrode	Visually check the electrode's internal hole.	OK	NOK	Replace electrode when the insert is used (removal of 1.5 mm).

TROUBLESHOOTING

Anomalies Causes Remedies
The machine delivers no power.The green working indicator is on.The thermal protection indicator is continuously on.	The thermal protection of the cutting unit is on.	Wait until the end of the cooling phase.
The machine delivers no power.The green working indicator is on.The thermal protection ondicator blinks 2 times then lights off.	The input voltage is higher than 230V +/-15%.	Check your electrical network or your electric generator then switch off and on your machine.
The machine delivers no power.The green working indicator is on.The thermal protection indicator blinks quickly.	Torch defect. Check your torch assembly.
By pressing the trigger, the air flows but the pilot arc is not working.	Consumables shabby.	Check and change the consumables, then switch off and on your machine.
The electrical arc switches off after about 3 seconds.	Earth problem.	Check the earth clamp is well connected to a clean area (not painted and not fat) of the part to cut.
If you feel tingling sensation, when the unit is on and you put your hand on the cutting unit's body.	The cutting unit is not correctly connected to the earth.	Check the plug and the earth of your electrical network.

WARRANTY

The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).

The warranty does not cover:

• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).

In case of failure, return the unit to your distributor together with:

• The proof of purchase (receipt etc ...)
• A description of the fault reported.

PLASMA EASYCUT K35 PFC

Simple line drawing of a clamp or clip holding a wire, no text or symbols present

Illustration of a hand holding a syringe with a tool, no text or symbols present

Illustration of a hand holding a syringe with a droplet, emitting air from a circular object (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface (no text or symbols)

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating the process (no text or symbols present)

Illustration of a hand using a handheld tool to lift or lift a surface (no text or symbols)

INSPEKTION DER VERSCHLEISSTEILE (MONTAGE UND DEMONTAGE, SIEHE S. 24)

Simple line drawing of a tool gripping a cable or wire (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface, with an arrow indicating motion (no text or symbols present)

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating the process (no text or symbols present)

Illustration of a hand using a handheld tool to lift or lift a surface (no text or symbols)

Simple line drawing of a clamp or clip holding a wire, no text or symbols present

Illustration of a hand holding a tool with a probe and a circle above, showing no text or symbols.

Illustration of a hand holding a syringe with a droplet above, indicating fluid or mechanical action (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface (no text or symbols)

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols present)

Illustration of a hand using a handheld tool to apply material to a surface, with an arrow indicating the process (no text or symbols present)

Illustration of a robotic arm gripping a small object on a flat surface (no text or symbols)

APPARAAT WORDT GELEVERD MET

	EASYCUT K25 EASYCUT K35 PFCRef. 068063 Ref. 080768
4 m	√ TPT 25 TPT 35 √
2 m - 10 mm2	√	√
Starter set	√	√

BESCHRIJVING VAN HET APPARAAT (FIG. I)

MAN MACHINE INTERACTION (MMI) (FIG-2)

WERKING VAN DE GENERATOR

Line drawing of a hand holding a clip against a diagonal line (no text or symbols)

2 - CONTROLEER DE AANWEZIGHEID VAN ALLE SLIJTDELEN VAN DE TOORTS EN MONTEER DEZE ALS VOLGT :

Illustration of a hand using a handheld tool to apply material onto a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface (no text or symbols)

HET WERKSTUK DOORBOREN / SNIJDEN IN HET MIDDEN VAN HET WERKSTUK

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols present)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating the process (no text or symbols present)

Illustration of a robotic arm gripping a small object on a flat surface (no text or symbols)

CONTROLE VAN DE SLIJTONDERDELEN (MONTEREN EN DEMONTEREN, ZIE P.48)

Simple line drawing of a tool gripping a cable or wire (no text or symbols)

2 - VERIFICARE LA PRESENZA DI TUTTI I RICAMBI DELLA TORCIA E COLLEGARE COME SEGUE:

Illustration of a hand using a handheld tool to apply material onto a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to press or spread material on a flat surface (no text or symbols)

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols present)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating the process (no text or symbols present)

Illustration of a robotic arm gripping a small object on a flat surface (no text or symbols)

RYZYKO POŻARU I WYBUCHU

Line drawing of a tool gripping a clip against a diagonal line (no text or symbols)

2 - SPRAWDZIĆ OBECNOŚĆ WSZYSTKICH MATERIAŁÓW EKSPLOATACYJNYCH W PALNIKU

Illustration of a hand using a handheld welding torch to apply material on a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material or spray onto a flat surface (no text or symbols)

Illustration of a hand using a handheld tool to apply material on a flat surface, with an arrow indicating direction (no text or symbols present)

WIERCENIE PRZEDMIOTU OBRABIANEGO / CIECIE W ŚRODKU PRZEDMIOTU OBRABIANEGO

Illustration of a hand using a power tool to draw a 30-degree angle on a flat surface (no text or symbols present)

Illustration of a hand using a handheld tool to apply material on a flat surface, with a curved arrow indicating motion (no text or symbols present)

Illustration of a hand using a handheld tool to lift or lift a surface, with no text or symbols present.

Exploded view diagram of an air conditioning system with numbered components for identification

K25
1	Bouton potentiomètre / Potentiometer Button/ Potentiometer/ Potentiometro/ Потенциометр регулировки тока / Draaiknop / Tasto potenziometro	73099
2	Carte électronique / Electronic card / Elektronikplatine / Tarjeta electrónica / Электронная плата / Print plaat / Carta elettronica	E0070C
3	Cordon secteur 3 x 1,5 mm ^2 / Power cord 3 x 1,5 mm ^2 / Netzzuleitung 3 x 1,5 mm ^2 / Cordón de alimentación 3 x 1,5 mm ^2 /Сетевой шнур 3 x 1,5 mm ^2 / Elektrische snoer 3 x 1,5 mm ^2 / Cavi presa 3 x 1,5 mm ^2	2 m 21468
4	Ventilateur / Fan / Ventilator / ventilador / Вентилятор / Ventilator / Ventilatore	51048
5	Grille / Protective screen / Ventilator- Grill / rejilla / Решетка / Afrastering / Griglia	51011
6 Patins d'angle / feet / Füsse / pies / ножки / Poten / Piedi 56061
7	Connecteur torche / Connector / Anschlussbuchse / Conectador / коннектор / Connector/ Connettore	71969
8	Poignée / handle / griff / puño / Рукоятка / Hendel / Impugnatura	56048
9	Compresseur / Compressor / Kompressor / Compresor / Компрессор / Compressor / Compressore	F0382
10	Self de sortie / Output self / Ausgangsdrossel / Self de salida / Выходной дроссель / Uitgangssmoorspoel / Self di uscita	63690
11	Plastron Easycut K25 / Easycut K25 faceplate / Easycut K25 Planscheibe / Placa frontal Easycut K25 / лицевая панель Easycut K25 / Easycut K 25 voorpaneel / Mascherina Easycut K25	75760
12	Prise texas femelle / Texas socket / texanische Steckdose / enchufe de texas / техасская розетка / stopcontact in texas / presa texana	51469
-	Torche TPT 25 / TPT 25 plasma torch / Plasmabrenner TPT 25 / Antorcha de plasma TPT 25 / Плазменный резак TPT 25 / TPT 25 plasmatoorts / Torcia al plasma TPT 25	4 m 068087
-	Pince de masse déconnectable / Earth cable / Massekabel / cable de masa / кабель массы / Massa klem / Morsetto di terra	71941
-	Corps de torche / Torch body / Brennerkörper / Cuerpo de la antorcha / Корпус резака / Toorts lichaam / Corpo torcia	71968

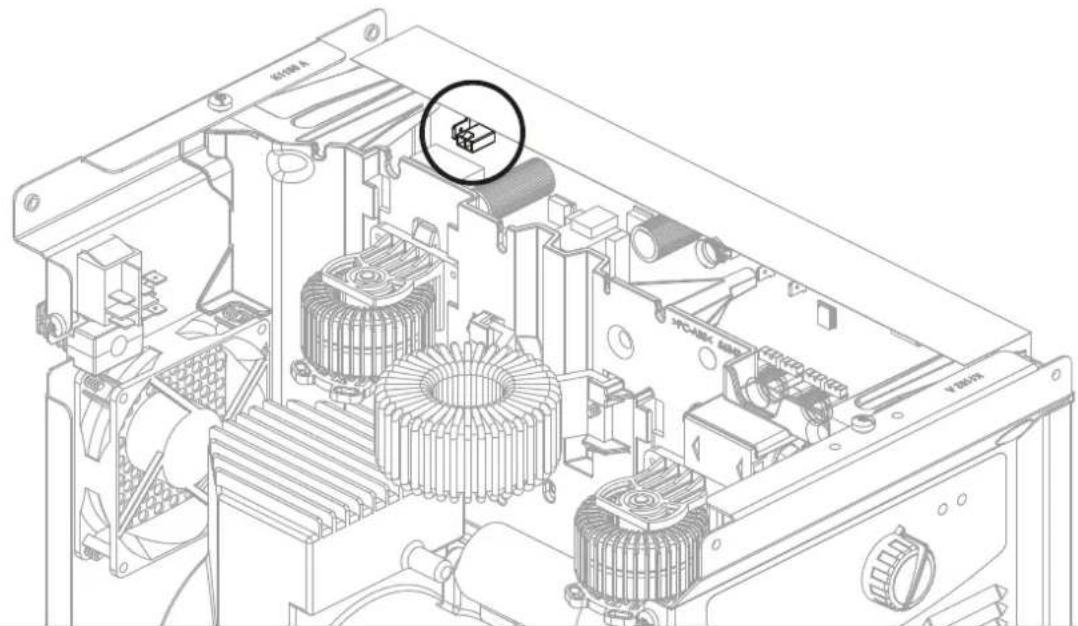

EASYCUT K35 PFC

Exploded view diagram of an electronic device showing internal components and labeled parts

K35 PFC
1	Cordon secteur / Power cord / Netzzuleitung / Cordón de alimentación /Сетевой шнур / Elektrische snoer / Cavi presa	2 m 21487
2	Ventilateur / Fan / Ventilator / ventilador / Вентилятор / Ventilator / Ventilatore	51048
3 Patin / Feet / Kantenschutz / Ножка / Pié / Voetje / Piedino 56120
4	Circuit plasma / Plasma circuit / Plasma-Schaltung / Circuito de plasma / Плазменная схема / Plasma circuit / Circuito al plasma	E0205C
5	Prise texas / Texas socket / Texas-Stecker / Toma de Texas / Техасская розетка / Stopcontact Texas / Presa del Texas	51469
6	Connecteur torche plasma / Plasma torch connector / Plasmabrenner-Anschluss / Conector de antorcha de plasma / Разьем для подключения плазмотрона / Plasmatoortsconnector / Connettore per torcia al plasma	71969
7	Compresseur / Compressor / Kompressor / Compresor / Компрессор / Compressor / Compressore	F1039
8 Interrupteur bipolaire / Two-pole switch 52472
-	Torche TPT 35 / TPT 35 plasma torch / Plasmabrenner TPT 35 / Antorcha de plasma TPT 35 / Плазменный резак TPT 35 / TPT 35 plasmatoorts / Torcia al plasma TPT 35	4 m 080775

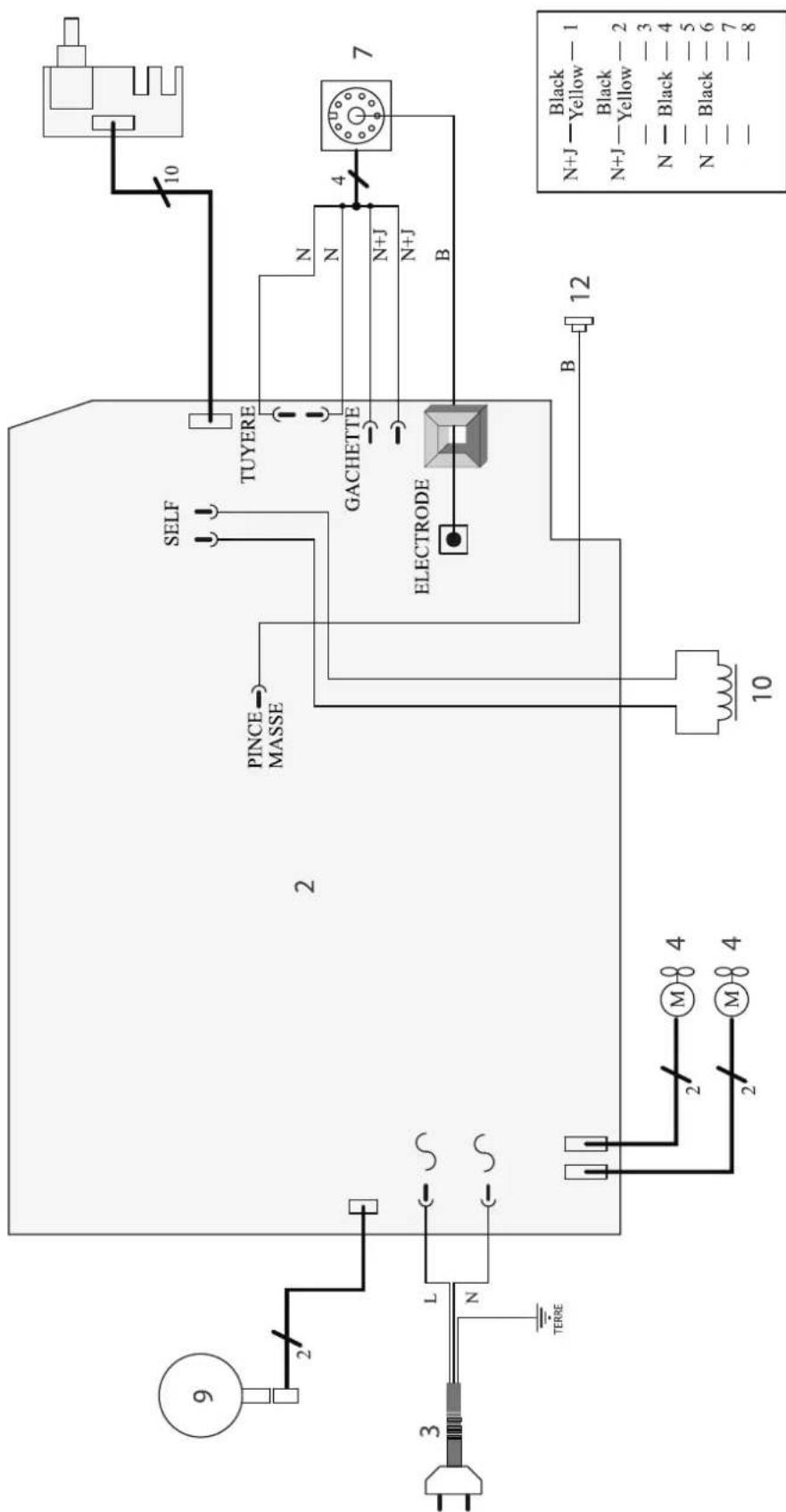

SCHÉMA ÉLECTRIQUE / CIRCUIT DIAGRAM /SCHALTPLAN/ DIAGRAMA ELECTRICO /ЭЛЕКТРИЧЕСКАЯ СХЕМА / ELEKTRISCHE SCHEMA / SCEMA ELETTRICO

EASYCUT K25

10 7 N N+J N+J B TUYERE GACHETTE SELF ELECTRODE 12 PINC MASSE 2 10 9 2 L N TERRE 3 M 4 M 4 Black — 1 N+J — Yellow — 2 N+J — Yellow — 3 N — Black — 4 N — Black — 5 N — Black — 6 — — 7 — — 8

EASYCUT K35 PFC

1 8 N+J - Black Yellow N+J - Yellow 2 N - Black 3 N - Black 4 5 6 7 4 3 M 2 M 2 2 N +J - Black - Yellow - Black - Black - Black - Black - Black - Black - Black - Black - Black - Black - Black - Black

SPÉCIFICATIONS TECHNIQUES / TECHNICAL SPECIFICATIONS / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / TEXНИЧЕСКИЕ СПЕЦИФИКАЦИИ / TECHNISCHE GEGEVENS / SPECIFICHE TECNICHE

		K25 K35 PFC
Primaire / Primary / Primär / Primario / Первичка / Primaire / Primario
Tension d'alimentation / Power supply voltage / Versorgungsspannung / Tensión de red eléctrica / Напряжение питания / Voedingsspanning / Tensione di alimentazione	U1	230 V +/- 15%
Fréquence secteur / Mains frequency / Netzfrequenz / Frecuencia / Частота сети / Frequentie sector / Frequenza settore		50 / 60 Hz
Nombre de phases / Number of phases / Anzahl der Phasen / Número de fases / Количество фаз / Aantal fasen / Numero di fase		1
Fusible disjoncteur / Fuse / Sicherung / Fusible disyuntor / Плавкий предохранитель прерывателя / Zekering hoofdschakelaar / Fusibile disgiuntore		16 A
Courant d'alimentation effectif maximal / Maximum effective supply current / Corriente de alimentación efectiva máxima / Maximale effective voedingsstroom / Corrente di alimentazione effettiva massima / Maksymalny efektywny prąd zasilania	I1eff	13 A 11 A
Courant d'alimentation maximal / Maximum supply current / Corriente de alimentación máxima / Maximale voedingsstroom / Corrente di alimentazione massima / Maksymalny prąd zasilania	I1max	21 A 19 A
Section du cordon secteur / Mains cable section / Sectie netsnoer / Sección del cable de alimentación / Sezione del cavo di alimentazione / Odcinek przewodu zasilającego		3 x 1.5 mm2
Puissance active maximale consommée / Maximum active power consumed / Consumo máximo de energía activa / Maximale actieve verbruikte vermogen / Potenza attiva massima consumata / Maksymalny pobór mocy czynnej		2713 W 4400 W
Consommation au ralenti / Idle consumption / Consumo en ralentizado / Stationair verbruik / Consumo al minimo / Zużycie na biegu jałowym		19.4 W 20 W
Rendement à I2max / Efficiency at I2max / Eficiencia a I2max / Rendement bij I2max / Efficienza a I2max / Sprawność przy I2max		83 % 81.6 %**	88 %***
Facteur de puissance à I2max / Power factor at I2max / Factor de potencia a I2max / Inschakelduur bij I2max / Ciclo di potenza a I2max / Współczynnik mocy przy I2max	λ	0.64 0.99
Classe CEM / EMC class / Classe CEM / Klasse CEM / Classe CEM / Klasa EMC A
Secondaire / Secondary / Sekundär / Secundario / Вторичка / Secondair / Secondario		PLASMA
Tension à vide / No load voltage / Leerlaufspannung / Tensión al vacío / Напряжение хопостого хода / Nullastspanning / Tensione a vuoto	U0 (TCO)	429 V 273 V
Nature du courant de coupage / Type of cutting current / Tipo de corriente de corte / Type lasstroom / Tipo di corrente di taglio / Rodzaj prądu spawania		DC
Modes de coupage / Cutting modes / Modos de corte / Lasmodules / Modalità de corte / Tryby spawania Plasma
Courant de coupage minimal / Minimum cutting current / Corriente mínima de corte / Minimale lasstroom / Corrente di taglio minima / Minimalny prąd spawania		10 A
Pression de service / Service pressure / Schweißdruck / Pressione di servizio / Рабочее давление / Werkdruk / Presión de trabajo		Inclus / Included
Débit d'air / Air debit / Luftdurchfluss / Flusso d'aria / Pacxod воздуха / Luchtstroom / Caudal de aire		Inclus / Included
Type de gaz / Type of gas / Gas-Typ / Tipo de gas / Тип газа / Type gas / Tipo di gas Air
Courant de sortie nominal / Rate current output / nominaler Arbeitsstrom / Corriente de salida nominal / Номинальный выходной ток / Nominale uitgangsstroom / Corrente di uscita nominale	I2	10 → 25 A 10 → 35 A
Tension de sortie conventionnelle / Conventional voltage output / entsprechende Arbeitsspannung / Условное выходные напряжения / Tensión de salida convencional / Conventionelle uitgangsspanning / Tensione di uscita convenzionale	U2	84 → 90 V 84 → 94 V
* Facteur de marche à 40°C (10 min), Norme EN60974-1 / Duty cycle at 40°C (10 min), Standard EN60974-1.Einschaltdauer @ 40°C (10 min), EN60974-1-Norm / Ciclo de trabajo a 40°C (10 min), Norma EN60974-1/ ПВ% при 40°C (10 мин), Норма EN60974-1. / Inschakelduur bij 40°C (10 min), Norm EN60974-1, Ciclo di lavoro a 40°C (10 min), Norma EN60974-1.	Imax	35 %	30 %
	60 %	15 A	26 A
	100 %	-	-
Niveau sonore du compresseur / Compressor noise level / Geräuschpegel des Verdichters / Nivel de ruido del compresor / Уровень шума компрессора / Geluidsniveau compressor / Livello di rumore del compressore / Poziom halasu sprężarki		N.C	80 db
Température de fonctionnement / Functionning temperature / Betriebstemperatur / Temperatura de funcionamiento / Рабочая температура / Gebruikstemperatuur / Temperatura di funzionamento		-10°C → +40°C
Température de stockage / Storage temperature / Lagertemperatur / Temperatura de almacenaje / Температура хранения / Bewaartemperatuur / Temperatura di stoccaggio		-20°C → +55°C
Degré de protection / Protection level / Schutzart / Grado de protección / Степень защиты / Beschermingsklasse / Grado di protezione		IP21S	IP23S
Classe d'isolation minimale des enroulements / Minimum coil insulation class / Clase mínima de aislamiento del bobinado / Minimale isolatieklasse omwikkelingen / Classe mínima di isolamento degli avvolgimenti / Minimalna klasa izolacji okablowania		B
Dimensions (LxIxh) / Dimensions (LxWxH) / Abmessungen (Lxbxt) / Dimensiones (Lxbxh) / Размеры (ДхШхВ) / Afmetingen (LxIxh) / Dimensioni (LxIxh)		41 x 20 x 36 cm	44.6 x 25.6 x 36.3 cm
Poids / Weight / Gewicht / Bec / Peso / Gewicht / Peso		15 kg	18.5 kg

*The duty cycles are measured according to standard EN60974-1 à 40°C and on a 10 min cycle.

While under intense use (> to duty cycle) the thermal protection can turn on, which switches the arc off and the icon appears on the screen. Keep the machine's supply on, to enable cooling until protection cancellation. The machine has a specification with a "dropping current output"

Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

Technical line drawing of an electronic device internal structure (no text or symbols visible)

3

Technical line drawing of an electronic device interior showing internal components like fans, motors, and a central connector (no text or symbols present)

ICÔNES / SYMBOLS / ZEICHENERKLÄRUNG / SÍMBOLOS / СИМВОЛЫ / PICTOGRAMMEN / ICONA

FR Attention! Lire le manuel d'instruction avant utilisation. EN Warning! Read the user manual before use. DE ACHTUNG! Lesen Sie diese Anleitung sorgfältig durch vor Inbetriebnahme des Geräts. ES |Atención! Lea el manual de instrucciones antes de su uso. RU Внимание! Прочите инструкцию перед использованием NL Let op! Lees aandachtig de handleiding. IT Attenzione! Leggere il manuale d'istruzioni prima dell'uso.

1-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68-69-70-71-72-73-74-75-76-77-78-79-80-81-82-83-84-85-86-87-88-89-90-91-92-93-94-95-96-97-98-99-100-101-102-103-104-105-106-107-108-109-110-111-112-113-114-115-116-117-118-119-120-121-122-123-124-125-126-127-128-129-130-131-132-133-134-135-136-137-138-139-140-141-142-143-144-145-146-147-148-149-150-151-152-153-154-155-156-157-158-159-160-161-162-163-164-165-166-167-168-169-170-171-172-173-174-175-176-177-178-179-180-181-182-183-184-185-186-187-188-189-190-191-192-193-194-195-196-197-198-199-200-201-202-203-204-205-206-207-208-209-210-211-212-213-214-215-216-217-218-219-220-221-222-223-224-225-226-227-228-229-230-231-232-233-234-235-236-237-238-239-240-241-242-243-244-245-246-247-248-249-250-251-252-253-254-255-256-257-258-259-260-261-262-263-264-265-266-267-268-269-270-271-272-273-274-275-276-277-278-279-280-281-282-283-284-285-286-287-288-289-290-291-292-293-294-295-296-297-298-299-300-301-302-303-304-305-306-307-308-309-310-311-312-313-314-315-316-317-318-319-320-321-322-323-324-325-326-327-328-329-330-331-332-333-334-335-336-337-338-339-340-341-342-343-344-345-346-347-348-349-350-351-352-353-354-355-356-357-358-359-360-361-362-363-364-365-366-367-368-369-370-371-372-373-374-375-376-377-378-379-380-381-382-383-384-385-386-387-388-389-390-391-392-393-394-395-396-397-398-399-400-401-402-403-404-405-406-407-408-409-410-411-412-413-414-415-416-417-418-419-420-421-422-423-424-425-426-427-428-429-430-431-432-433-434-435-436-437-438-439-440-441-442-443-444-445-446-447-448-449-450-451-452-453-454-455-456-457-458-459-460-461-462-463-464-465-466-467-468-469-470-471-472-473-474-475-476-477-478-479-480-481-482-483-484-485-486-487-488-489-490-491-492-493-494-495-496-497-498-499-500-501-502-503-504-505-506-507-508-509-510-511-512-513-514-515-516-517-518-519-520-521-522-523-524-525-526-527-528-529-530-531-532-533-534-535-536-537-538-539-540-541-542-543-544-545-546-547-548-549-550-551-552-553-554-555-556-557-558-559-560-561-562-563-564-565-566-567-568-569-570-571-572-573-574-575-576-577-578-579-580-581-582-583-584-585-586-587-588-589-590-591-592-593-594-595-596-597-598-599-600-601-602-603-604-605-606-607-608-609-610-611-612-613-614-615-616-617-618-619-620-621-622-623-624-625-626-627-628-629-630-631-632-633-634-635-636-637-638-639-640-641-642-643-644-645-646-647-648-649-650-651-652-653-654-655-656-657-658-659-660-661-662-663-664-665-666-667-668-669-670-671-672-673-674-675-676-677-678-679-680-681-682-683-684-685-686-687-688-689-690-691-692-693-694-695-696-697-698-699-700-701-702-703-704-705-706-707-708-709-710-711-712-713-714-715-716-717-718-719-720-721-722-723-724-725-726-727-728-729-730-731-732-733-734-735-736-737-738-739-740-741-742-743-744-745-746-747-748-749-750-751-752-753-754-755-756-757-758-759-760-761-762-763-764-765-766-767-768-769-770-771-772-773-774-775-776-777-778-779-780-781-782-783-784-785-786-787-788-789-790-791-792-793-794-795-796-797-798-799-800-801-802-803-804-805-806-807-808-809-810-811-812-813-814-815-816-817-818-819-820-821-822-823-824-825-826-827-828-829-830-831-832-833-834-835-836-837-838-839-840-841-842-843-844-845-846-847-848-849-850-851-852-853-854-855-856-857-858-859-860-861-862-863-864-865-866-867-868-869-870-871-872-873-874-875-876-877-878-879-880-881-882-883-884-885-886-887-888-889-890-891-892-893-894-895-896-897-898-899-900-901-902-903-904-905-906-907-908-909-910-911-912-913-914-915-916-917-918-919-920-921-922-923-924-925-926-927-928-929-930-931-932-933-934-935-936-937-938-939-940-941-942-943-944-945-946-947-948-949-950-951-952-953-954-955-956-957-958-959-960-961-962-963-964-965-966-967-968-969-970-971-972-973-974-975-976-977-978-979-980-981-982-983-984-985-986-987-988-989-990-991-992-993-994-995-996-997-998-999-1000-1001-1002-1003-1004-1005-1006-1007-1008-1009-1010-1011-1012-1013-1014-1015-1016-1017-1018-1019-1020-1021-1022-1023-1024-1025-1026-1027-1028-1029-1030-1031-1032-1033-1034-1035-1036-1037-1038-1039-1040-1041-1042-1043-1044-1045-1046-1047-1048-1049-1050-1051-1052-1053-1054-1055-1056-1057-1058-1059-1060-1061-1062-1063-1064-1065-1066-1067-1068-1069-1070-1071-1072-1073-1074-1075-1076-1077-1078-1079-1080-1081-1082-1083-1084-1085-1086-1087-1088-1089-1090-1091-1092-1093-1094-1095-1096-1097-1098-1099-1100-1101-1102-1103-1104-1105-1106-1107-1108-1109-1110-1111-1112-1113-1114-1115-1116-1117-1118-1119-1120-1121-1122-1123-1124-1125-1126-1127-1128-1129-1130-1131-1132-1133-1134-1135-1136-1137-1138-1139-1140-1141-1142-1143-1144-1145-1146-1147-1148-1149-1150-1151-1152-1153-1154-1155-1156-1157-1158-1159-1160-1161-1162-1163-1164-1165-1166-1167-1168-1169-1170-1171-1172-1173-1174-1175-1176-1177-1178-1179-1180-1181-1182-1183-1184-1185-1186-1187-1188-1189-1190-1191-1192-1193-1194-1195-1196-1197-1198-1199-1200-1201-1202-1203-1204-1205-1206-1207-1208-1209-1210-1211-1212-1213-1214-1215-1216-1217-1218-1219-1220-1221-1222-1223-1224-1225-1226-1227-1228-1229-1230-1231-1232-1233-1234-1235-1236-1237-1238-1239-1240-1241-1242-1243-1244-1245-1246-1247-1248-1249-1250-1251-1252-1253-1254-1255-1256-1257-1258-1259-1260-1261-1262-1263-1264-1265-1266-1267-1268-1269-1270-1271-1272-1273-1274-1275-1276-1277-1278-1279-1280-1281-1282-1283-1284-1285-1286-1287-1288-1289-1290-1291-1292-1293-1294-1295-1296-1297-1298-1299-1300-1301-1302-1303-1304-1305-1306-1307-1308-1309-1310-1311-1312-1313-1314-1315-1316-1317-1318-1319-1320-1321-1322-1323-1324-1325-1326-1327-1328-1329-1330-1331-1332-1333-1334-1335-1336-1337-1338-1339-1340-1341-1342-1343-1344-1345-1346-1347-1348-1349-1350-1351-1352-1353-1354-1355-1356-1357-1358-1359-1360-1361-1362-1363-1364-1365-1366-1367-1368-1369-1370-1371-1372-1373-1374-1375-1376-1377-1378-1379-1380-1381-1382-1383-1384-1385-1386-1387-1388-1389-1390-1391-1392-1393-1394-1395-1396-1397-1398-1399-1400-1401-1402-1403-1404-1405-1406-1407-1408-1409-1410-1411-1412-1413-1414-1415-1416-1417-1418-1419-1420-1421-1422-1423-1424-1

EASYCUT K25 / K35 PFC

[740D]	FR Ce matériel faisant l'objet d'une collecte sélective selon la directive européenne 2012/19/UE. Ne pas jeter dans une poubelle domestique ! EN This hardware is subject to waste collection according to the European directives 2012/19/EU. Do not throw out in a domestic bin ! DE Für die Entsorgung Ihres Gerätes gelten besondere Bestimmungen (sondermüll) gemäß europäische Bestimmung 2012/19/EU. Es darf nicht mit dem Hausmüll entsorgt werden! ES Este material requiere una recogida de basuras selectiva según la directiva europea 2012/19/UE. ¡No tirar este producto a la basura doméstica! RU Это оборудование подлежит переработке согласно директиве Евросюза 2012/19/UE. Не выбрасывать в общий мусоросборник! NL Afzonderlijke inzameling vereist volgens de Europese richtlijn 2012/19/UE. Gooi het apparaat niet bij het huishoudelijk afval ! IT Questo materiale è soggetto alla raccolta differenziata seguendo la direttiva europea 2012/19/UE. Non smallüre coni rifiuti domestici!
[7355]	FR Produit recyclable qui relève d'une consigne de tri. EN This product should be recycled appropriately DE Recyclingprodukt, das gesondert entsorgt werden muss. ES Producto reciclable que requiere una separación determinada. RU Этот аппарат подлежит утилизации. NL Product recyclebaar, niet bij het huishoudelijk afval gooien IT Prodotto riciclabile soggetto a raccolta differenziata.
[1046]	FR Information sur la température (protection thermique) EN Temperature information (thermal protection) DE Information zur Temperatur (Thermoschutz) ES Información sobre la temperatura (protección térmica) RU Информация по температуре (термозащита). NL Informatie over de temperatuur (thermische beveiliging) IT Informazione sulla temperatura (protezione termiche)
	FR Le dispositif de déconnexion de sécurité est constitué par la prise secteur en coordination avec l'installation électrique domestique. L'utilisateur doit s'assurer de l'accessibilité de la prise EN The safety disconnection device is a combination of the power socket in coordination with the electrical installation. The user has to make sure that the plug can be reached. DE Die Stromunterbrechung erfolgt durch Trennen des Netzsteckers vom häuslichen Stromnetz. Der Gerätanwender sollte den freien Zugang zum Netzstecker immer gewährleisten. ES El dispositivo de desconexión de seguridad se constituye de la toma de la red eléctrica en coordinación con la instalación eléctrica doméstica. El usuario debe asegurarse de la accesibilidad de la toma de corriente. RU Устройство безопасности отключения состоит из вилки, соответствующей домашней электросети. Пользователь должен обеспечить доступ к вилке. NL De veiligheidsontkoppeling van het apparaat bestaat uit de stekker samen met de elektrische installatie. De gebruiker moet zich ervan verzekeren dat de elektrische aansluitingen goed toegankelijk zijn. IT Il dispositivo di scollegamento di sicurezza è costituito dalla presa in coordinazione con l'installazione elettrica domestica. L'utente deve assicurarsi dell'accessibilità della presa

SAS GYS
