USER MANUAL Duo Floodlight PoE REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.reolink.com.

Hoferstasse 9B, 71636 Ludwigsburg, Germany Email: [e-mail]

UK REP APEX CE SPECIALISTS LIMITED

Addr.: 89 Princess Street, Manchester, M14HT, UK
Email: [e-mail]

replink

Be Prepared, Be Reolink

EN/DE/FR/IT/ES

Operational Instruction

Apply to: Reolink Floodlight PoE/ WiFi

@ReolinkTech https://reolink.com

EN

Content

What's in the Box 2

Floodlight Introduction 3

Set up the Floodlight 5

Install the Floodlight 6

Troubleshooting

Specification 8

Notification of Compliance 8

EnglishEnglish1 2

What's in the Box

Floodlight Mounting Plate Power Adapter

Mounting Hole Template

1m Ethernet Cable

4.5m Power ^ Extension Cable

Pack of Screws

Quick Start Guide

NOTE:

* The power adapter and 4.5m Power Extension Cable only come with WiFi Version.
* Quantity of accessories varies with the product model you purchase.

Floodlight Introduction

WiFi Version

Speaker Speaker

Daylight Sensor Daylight Sensor

PIR Sensor PIR Sensor

Status LED Status LED

LAN Port PoE Port

Reset Button Reset Button

* Press the reset button with a

pin to restore factory settings.

Power Port Power Port

EnglishEnglish3 4

Technical line drawing of a mechanical device with flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical component with a hexagonal base and internal mounting bracket (no text or symbols)

PoE Version

Technical line drawing of a mechanical device with two flanges and a handle (no text or symbols)

Technical line drawing of a mechanical housing with a polyhedral structure attached (no text or symbols)

Set up the Floodlight

Download and launch the Reelink App or Client software, and follow the onscreen instructions to finish initial setup.

- On Smartphone

Scan to download the Reolink App

- On PC

Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client.

NOTE:

- When setting up the WiFi Floodlight, you need to follow the onscreen instructions to finish the WiFi configuration first. - If you are connecting the PoE Floodlight to a Reelink PoE NVR, please set up the Floodlight via the NVR interface.

EnglishEnglish5 6

Install the Floodlight

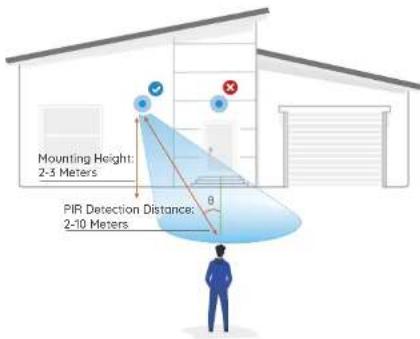

• Install the Floodlight 2-3 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.

- For better motion detection performance, please install the floodlight angularly.

NOTE: If a moving object approaches the PIR sensor vertically, the floodlight may fail to detect motion.

Mounting Height: 2-5 Meters PIR Detection Distance: 2-10 Meters

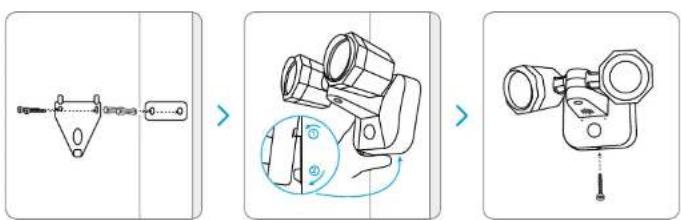

Mount the Floodlight to the Wall

Three-step diagram showing mechanical assembly and component alignment (no text or symbols)

1. Drill holes in accordance with the mounting template.
2. Secure the mounting plate to the wall with the upper two screws and hang the floodlight on it.
3. Then lock the floodlight in position with the lower screw.

EnglishEnglish7 8

Troubleshooting

Floodlight is not powering on

If your Floodlight is not powering on, please try the following solutions:

For PoE Floodlight

• Make sure your Floodlight is powered on properly. The PoE Floodlight should be powered by a PoE switch/injector, a Reolink NVR or a 12V power adapter.
• If the floodlight is connected to a PoE device as listed above, connect it to another PoE port and check again.
• Try again with another Ethernet cable.

For WiFi Floodlight

• Plug the floodlight into a different outlet and see if it works.
• Power on the floodlight with another working 12V 2A DC adapter and see if it works.

If the problem is not solved, please contact Realink Support.

Specification

Hardware Features

Light: 40pcs/18W

Dimension: 216X118X160mm

Weight: 635g

Working Temperature: -10°C\~+55°C (14°F\~131°F)

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
this device may not cause harmful interference, and this device must accept any

Interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to port 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy one, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a

EnglishEnglish9 10

circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Exposure Warning Statements

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

CE Simplified EU Declaration of Conformity

Reolink declares that the WiFi floodlight is in compliance with the essential requirements and other relevant provisions of Directive

2014/53/EU, the PoE floodlight is in compliance with Directive 2014/30/EU.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes, throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

NOTE: We hope that you enjoy the new purchase. But if you are not satisfied with the product and plan to return, we strongly suggest that you reset the floodlight to factory default settings before returning.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.

End User License Agreement

By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement ("EULA") between you and Reolink. Learn more: https://reolink.com/eula/.

ISED Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic

Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency Exposure Statement for IC

The device has been evaluated to meet general RF exposure requirements. The device can be used in mobile exposure conditions. The min separation distance is 20cm.

(the maximum transmitted power)

2412MHz --- 2472MHz (19dBm)
