USER MANUAL HＷ11 Pro Max JIMMY

Important Safety Instructions

1. Read all instructions and warnings before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.
2. When using appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.

Warning!

1. The appliance is only for household use.
2. Before use the product, check whether the local voltage is consistent with the voltage marked on the power adaptor.
3. Inspect the product before use, stop use if the product or adaptor is damaged.
4. Use only as described in this manual.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance cleaning and user maintenance shall not be made by children without supervision.
6. Do not use this product as a toy. Keep this product away from the reach of children. Take care of children and make sure they will not regard this product as a toy.
7. Do not touch plug with wet hand.
8. Use extra care when cleaning on stairs to prevent falling.
9. Do not use or disassemble or replace any component if there is damage on power cord, plug, battery or conductive parts. Disassembly or replacement of the components by yourself may cause electric shock or fire. JIMMY will not take responsibility. Once damaged, the product need to be repaired or replaced by JIMMY, JIMMY's distributor or qualified person designated by JIMMY to avoid injury.
10. Recharge only with the adaptor specified by JIMMY.
11. Only to use the battery pack specified by JIMMY. Use of any other battery pack may cause explosion, injury and or product damage.
12. If the product does not operate in accordance with the instructions, is seriously impacted, falls from a height, is damaged, or falls into the water, do not use it and contact JIMMY or JIMMY distributor.
13. Only use JIMMY specified replacement parts or attachments.
14. Do not pull or press the cable. Keep cable away from heated surfaces. Do not place the cable in a closed door or pull it through a sharp edge or corner. Keep the cable away from walking area. Do not operate product across the cable.
15. Unplug the product when it is not used or before repairing.
16. Do not drag the cord or carry cord to move the product, or use cord as handle.
17. The product is a rechargeable electric appliance. Do not leave the machine to run unattended
18. Remove battery pack when the product is cleaned, repaired or long idled.
19. Do not get close to heating appliance or expose under sunshine longtime, to prevent over heating causing housing deformation.
20. Keep objects that may obstruct air path from air inlet and outlet to prevent machine overheating.
21. Product mainbody and floorhead have electric components, cannot be washed under water.
22. Do not clean or disassemble brushroll cover or brushroll when the machine is power on or under working to prevent injury.
    23.Do not use the product to pick up flaming objects like burning charcoal or cigarette etc.
    24.Do not use the product to pick up sharp objects like broken glass.
23. Do not use the product to pick up lime, cement, toner, gypsum powder, flour and other ultra-fine substances.
24. Do not use the product to pick up acid-base cleaning liquid, washing powder and other corrosive liquids.
    27.Do not use the product to pick up inflammable and explosive objects like gasoline, alcohol, perfume, paint, etc.
    28.Do not disassemble the closed machine, and do not try to change the performance of the machine. Only get help from the professional personnel of the manufacturer, its maintenance department or similar departments, otherwise it will cause danger.
25. Turn off power and unplug charger if the products is long idled.

30.Product technical specification of this manual are based on results from lab tests of JIMMY or designated third parties. The company reserves all rights for final explanations.

About use of the product

1. This product is suitable for hard floor in indoor environment, including waxed floor, rubber floor, tile floor and sealed wood floor, solid wood floor and other flat surface, use of the product on unflat ground may not achieve the best effect.
   2.Do not turn on the machine before dirty water tank and clean water tank are assembled in place according to instruction.
2. Do not shake the product up and down or collide violently to prevent dirty water from flowing into the motor; when the product is turned on, do not lift or carry the machine up and down, and do not tilt the product to one side or lay it flat on the floor to prevent dirty water from flowing into the motor.
   4.Do not run the product for a long time with the float blocking the air inlet to avoid damage.
3. After using the product, clean the dirty water tank, suction nozzle, air path and store it in ventilated and dry place. Wet place will affect the insulation and life of electrical appliances.

About Cleaning Solution

1.A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2.Mix the solution with clean water according to the instructions (the ratio of solution to clean water is 1:50). It is recommended to use provided cleaning solution. Do not use cleaning solution contains acid, alkali, alcoholic solution or substances harmful to the environment.
3. Keep cleaning solution out of reach of children. If any solution gets into the eyes, immediately flush them with clean water. If any solution is swallowed by accident, see medical care immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.

About disposal of battery

1. The battery in the product contains materials harmful to the environment. Take out the battery pack from the product before disposal.
2. Turn off the product and unplug adaptor before taking out battery pack.
3. Handle the waste battery pack safely and properly. Do not put it into fire, water or soil.
   4.If the disposed battery leakage causes pollution to skin or clothes, Wash with clean water and see medical care immediately.

The product may have following signs, which have following meanings:

Sign Meaning
	Pay attention to high-temperature surfaces, as they may become hot during use. Be careful of burns.
	Do not use during bathing or showering.
	Powered head of water vacuuming device
	Do not cover up
IPX4	Water proof grade

Chapter 1 Product Assembly

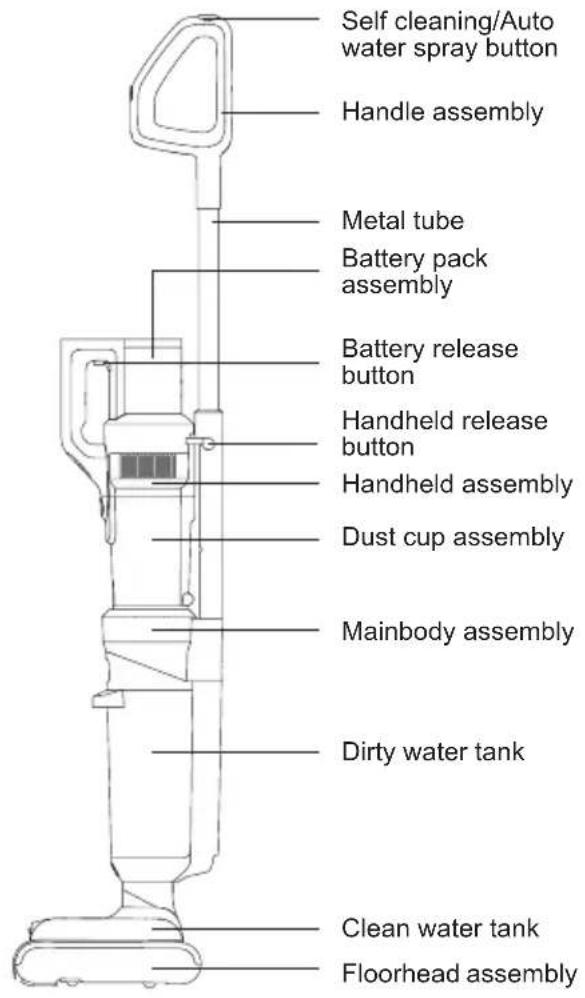

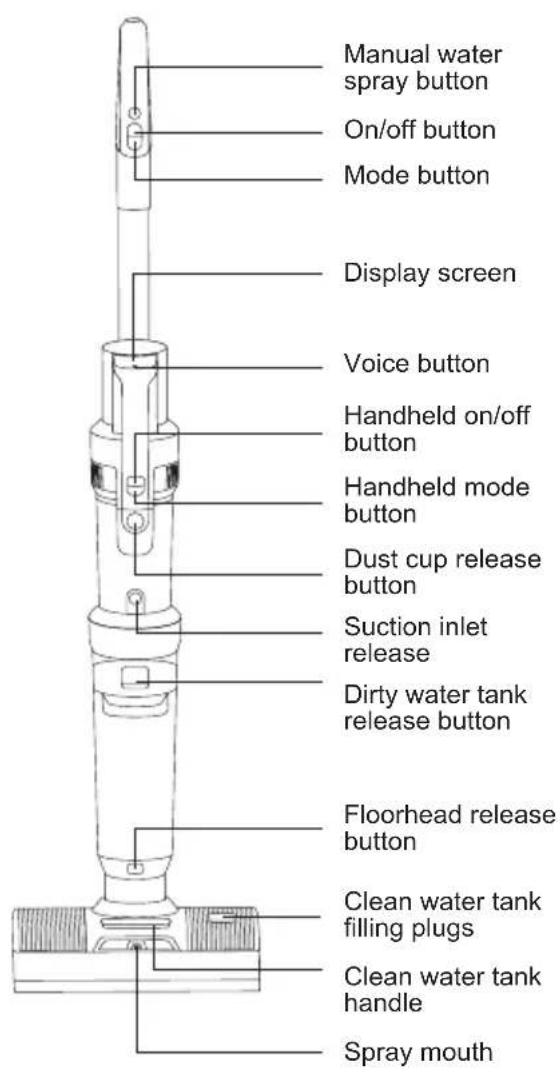

Part Name

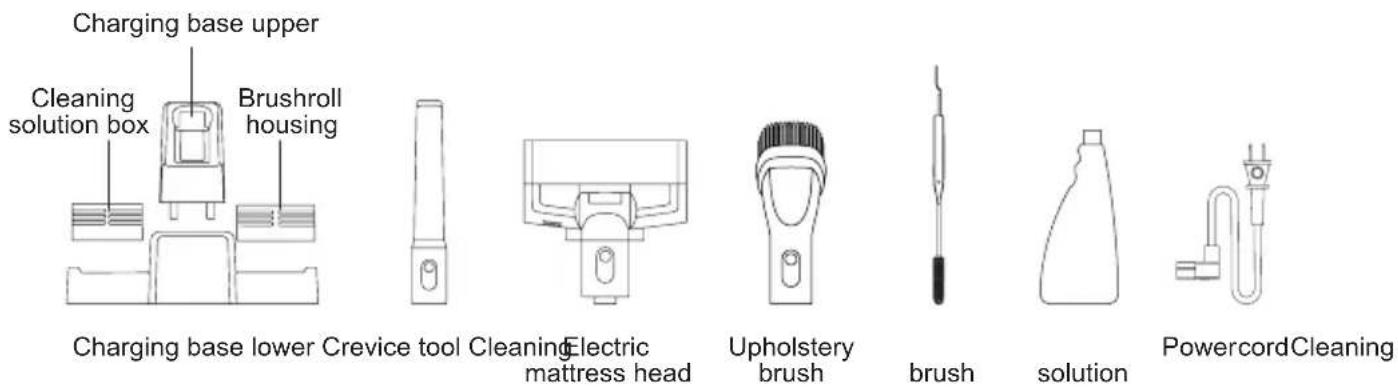

Packing List

Name	Handle assembly	Battery pack assembly	Handheld assembly	Mainbody assembly	Floorhead assembly
Quantity 1 1	1 1
Charging base upper	Charging base lower	Brushroll box	Cleaning solution housing	Crevice tool	Electric mattress head
1 1 1 1 1
Upholstery brush	Cleaning brush	Cleaning solution	Power cord	Instruction manual
1 1 1 1 1

Product assembly and disassembly

Noted: Cut off electricity before product assembly and disassembly.

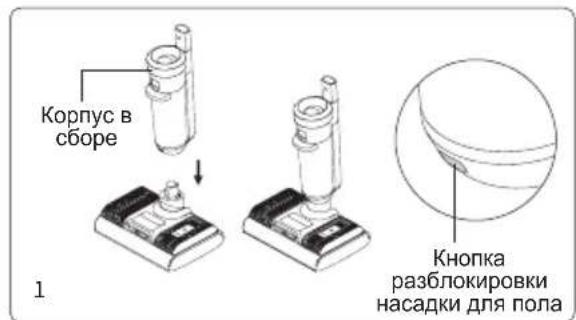

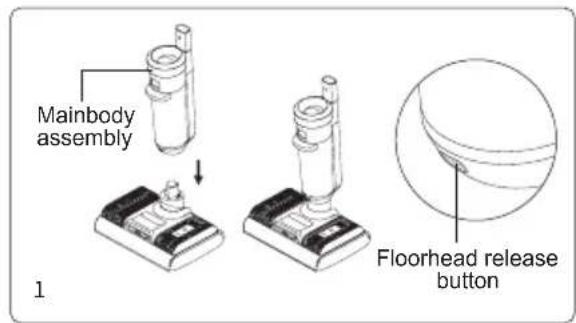

Floorhead assembly and disassembly

To install the floorhead assembly, first align the bottom of the mainbody assembly with the head of the floorhead assembly, insert it down on the floorhead, and push it in until a "click" sound is heard; To take out the floorhead, place the machine on the ground, hold the floorhead with one hand and press floorhead release button with the other hand, lift the mainbody up.(Fig 1)

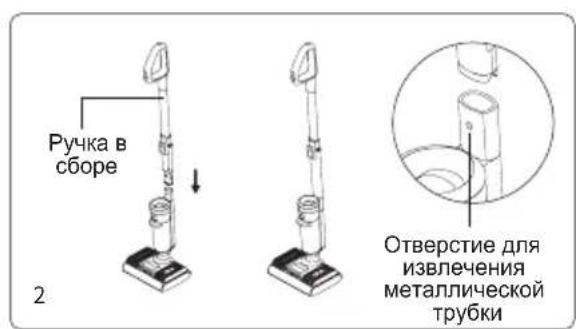

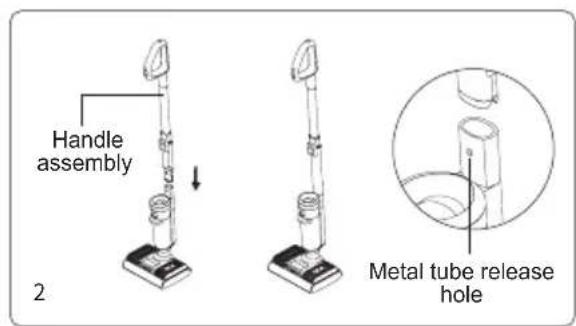

Handle assembly and disassembly

Insert the end of the metal tube vertically to the port of the mainbody assembly until hearing a "click" sound, ensure that the metal tube is tight and not loose. To remove the metal tube, insert a hard tool such as a screwdriver into the metal tube release hole, and pull the metal tube upwards. (Fig 2)

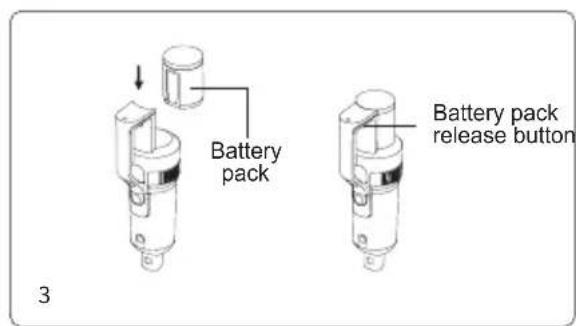

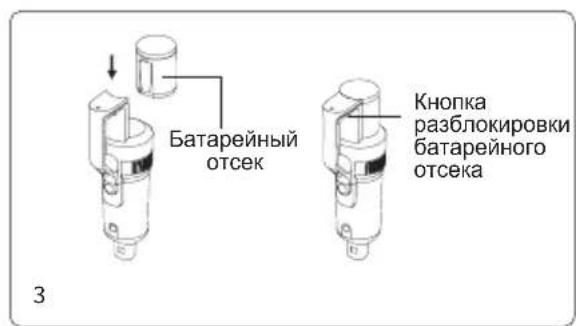

Battery pack assembly and disassembly

1. Slide battery pack along the slot and press the battery pack down firmly until a "click" sound is heard. The battery pack is locked. (Fig 3)
2. Press the battery pack release button and pull the battery pack in the direction opposite to the assembly to unlock the battery pack

Note: Except for the replacement of the battery pack, the battery pack doesn't need to be taken out frequently.

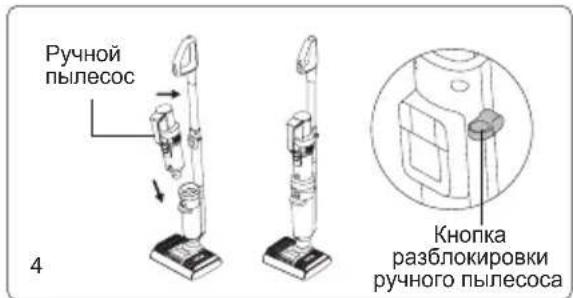

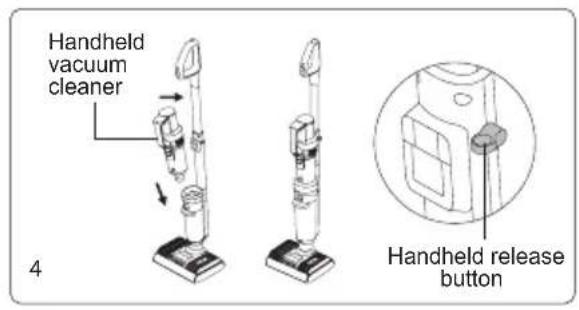

Handheld assembly and disassembly

Take the handheld vacuum cleaner installed with the battery pack, first insert the dust cup suction mouth into the groove of the mainbody cover, then press the handheld body to the installed metal tube, after hearing a "click", the handheld vacuum cleaner is successfully installed. and the product is used as an upright vacuum cleaner in this status. To remove the handheld vacuum separately, simply press and hold the handheld release button and lift handheld vacuum cleaner diagonally upwards. (Fig 4)

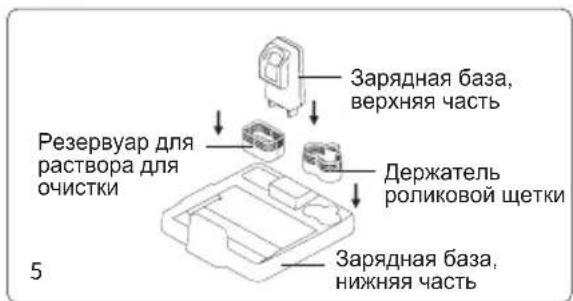

Charge base assembly

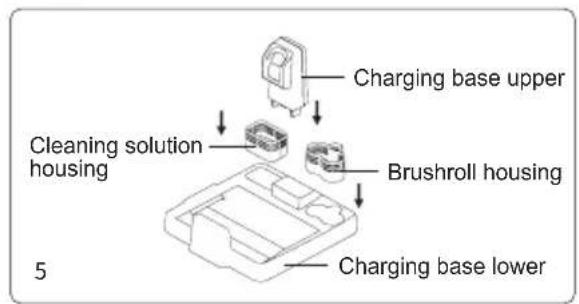

Press charging base upper, cleaning solution housing, and brushroll housing to the charging base lower along the illustrated position until a "click" sound is heard. (Fig 5)

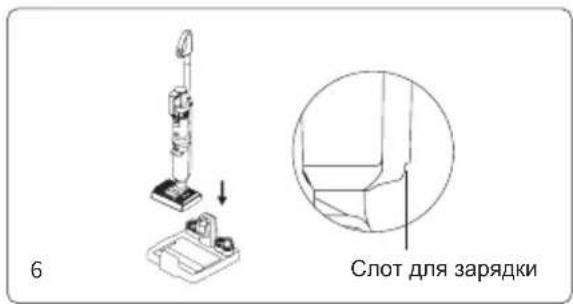

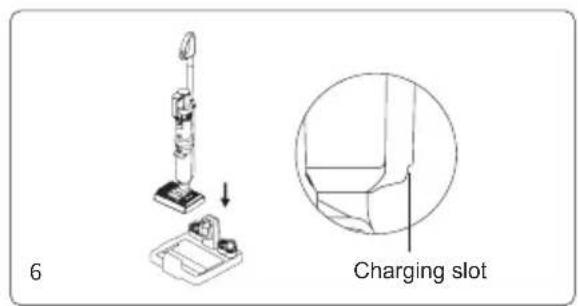

Place machine to charging base

Make sure floorhead is in upright position, hold machine handle to lift the machine, aim charging slot on bottom of machine to the charging socket on charging base and put the machine into charging base. To use the machine, hold machine handle and lift out machine from charging base (Fig 6)

Dirty water tank assembly and disassembly

To assemble dirty water tank, place dirty water tank bottom into mainbody, push dirty water tank towards mainbody until a "click" sound is heard.

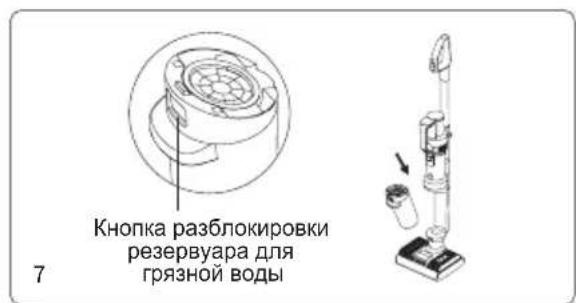

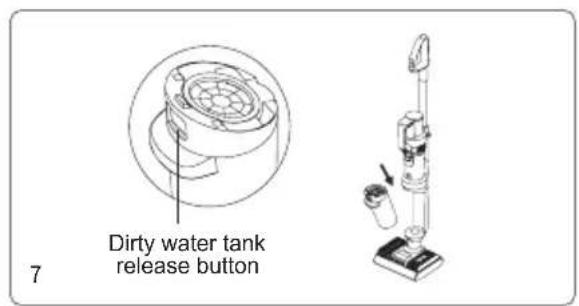

To take off dirty water tank, hold machine with one hand and hold dirty water tank with another hand, press dirty water tank release button to pull out dirty water tank. (Fig 7)

Clean water tank disassembly and assembly

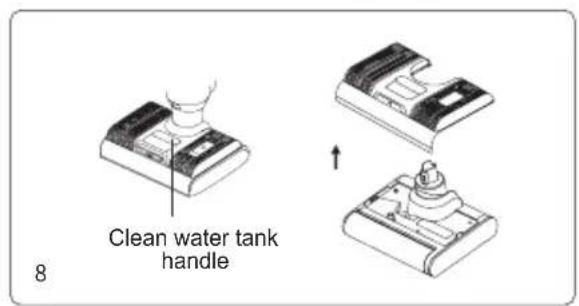

To take off clean water tank, hold the clean water tank handle and pull out the clean water tank.

To assemble clean water tank, put the clean water tank back to nozzle, align with the brushroll window. (Fig 8)

Brushroll assembly and disassembly

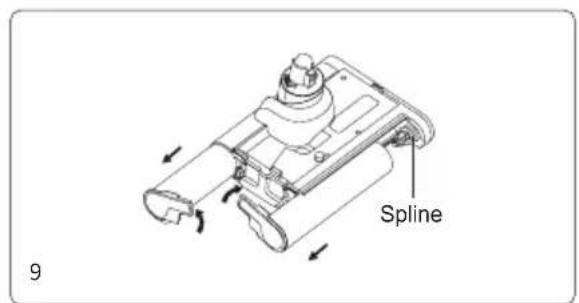

To remove the brushroll assembly, remove the clean water tank assembly as detailed in (Fig 8), hold the floorhead down with one hand, rotate the brushroll end cap upwards with the other hand, and remove the brushroll outward;

When installing the brushroll assembly, first align the other end of the brushroll with the spline, rotate the brushroll to the end, and then push the brushroll inward, rotate the brushroll end cover down and install it in place, align brushroll cap with the floorhead top surface. (Fig 9)

Chapter 2 Use of the Product

Note: Please fully charge the machine before using it, if there is no power, please charge it in time and use it after it is fully charged.

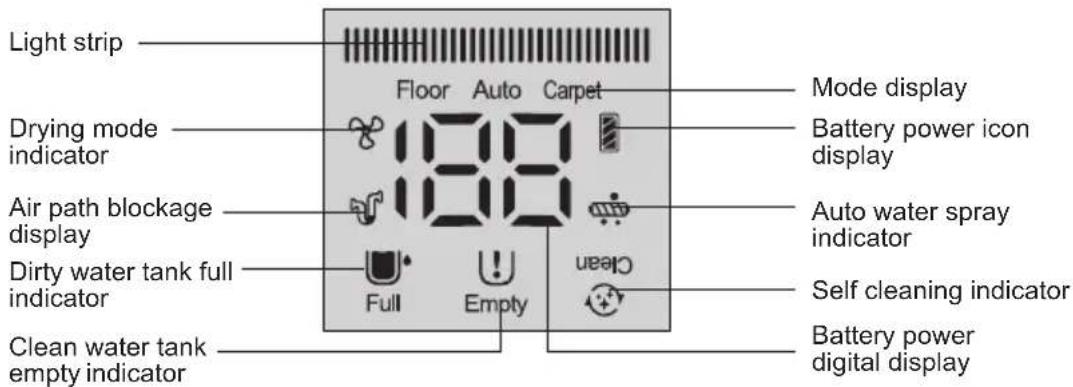

Dispaly screen and instructions for use

Machine charging

Connect the power cord to the power supply, put the upright vacuum cleaner into the charging base, and start charging.

Note:

1. Before the first use, please fully charge the battery pack, and before the second charge, please empty the battery to ensure the life of the battery pack;
2. If the product is to be long idled, please charge it once every three months. (Be sure to use the power cord of this product for charging)
3. When not charging, please unplug power cord from the socket to prevent the danger of accidental touching.

Low battery power indicator

1. When the upright cleaner is working, if the voice reminds " Low battery. Please charge the battery ", Please use it after charging.
2. When the upright cleaner is working, if the voice reminds " Low battery. Machine will be turned off soon. Please charge the battery ", the power is about to be exhausted, and it will automatically shut down. Need to charge for use.

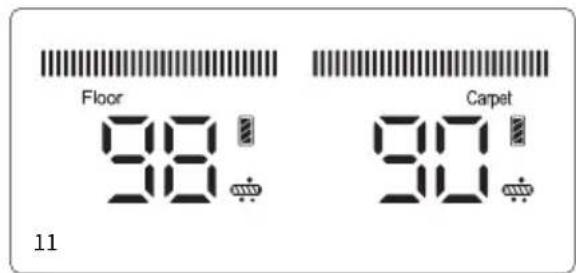

3. When using vacuum cleaner, The LED screen displays left working minutes under current working mode. The icon on top right corner of the screen shows left battery power, full grid means 75% to 100% battery; 3/4 grid means to 50% to 75% battery; 1/2 grid means 25% to 50% battery; 1/4 grid means 1% to 25% of the battery; the blank means the battery being empty, and it needs to be charged before use.

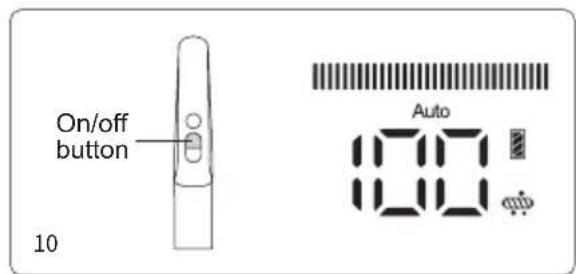

Use of upright vacuum cleaner

Press the handle on/off button, the display screen and decorative lights will light up, default is in Auto mode(Fig 10), press the mode button to switch to Floor mode, press the mode button again to switch to Carpet mode (Fig 11). Press the handle on/off button again to turn off the machine, the display screen and

the decorative lights go out.

In Auto mode, the machine power changes automatically basing on how much dirty water or dust is detected. And LED light colour changes accordingly. The more dirty water or dust is detected, the more red lights. And the less dirty water or dust is detected, the more blue lights.

Note:

1. When cleaning carpet, please clean the floorhead first (refer to " Cleaning and Maintenance, Floorhead Cleaning" for details) and to deep clean carpet it is recommended to replace the carpet brush. (Carpet brush can be selected according to your own needs and sold at JIMMY distributors)
2. When the battery level is lower than 20% , it cannot be switched to Carpet mode.

Water spray function

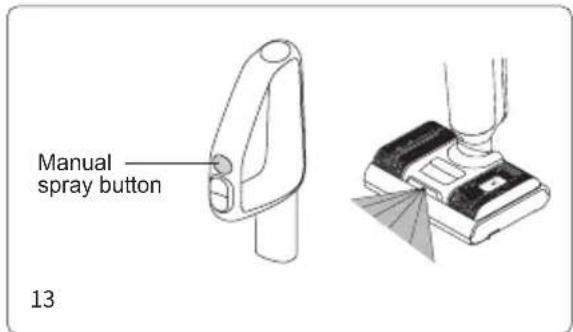

When upright vacuum cleaner is working, press the water spray button, the auto water spray function is open by default. LED screen will show auto spray indicator and clean water will be sprayed to brushroll automatically. (Fig 12-1). To turn off auto water spray function, keep pressing the self cleaning button for over 3 seconds when product is on. To turn on auto water spray function again, keep pressing the self cleaning button for over 3 seconds when product is on.(Fig 12-2)

If floor is very dirty, you can choose to spray more water to floor by using manual water spray function to improve floor washing effect. With the machine turned on, press manual water spray button, spray mouth sprays fan-shaped water; release the water spray button to stop spraying water. Manual water spray function can be activated no matter whether auto water spray function is turned on or off. (Fig 13)

Note:

1. The manual water spray button cannot be used with the on/off button or the mode button at the same time.
2. It is recommended to use carpet mode when there is heavy pollution or water stain.
3. When cleaning carpet, please turn off auto water spray function.
4. Please use the low-foam cleaning solution with this product for cleaning, do not put the easy foaming cleaning solution into the clean water tank for use, otherwise more foam will be generated during use, which may penetrate into the machine and cause danger.

Use of handheld vacuum cleaner

Take off handheld cleaner, press the handheld on/off button, the display screen will light up, default is in Floor mode, press the handheld mode button to switch to Carpet mode. Press the handheld on/off button again to turn off the machine, the display screen go out.

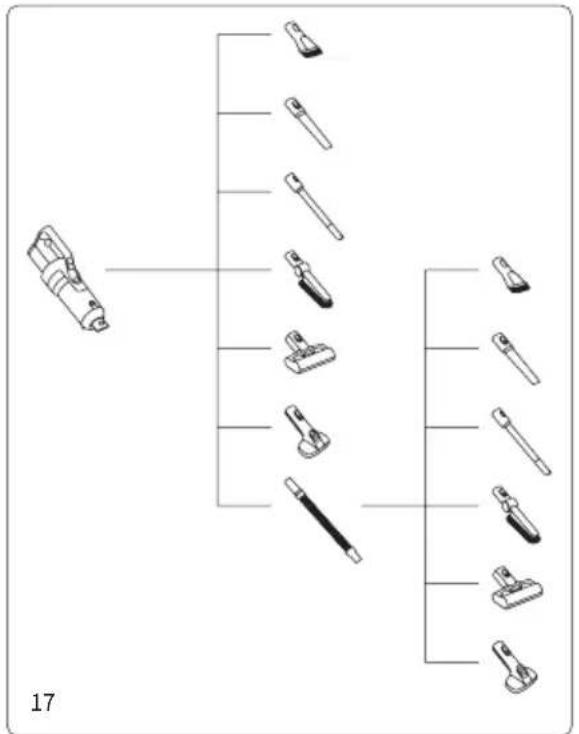

The handheld vacuum cleaner can be assembled with accessories such as crevice tool, upholstery brush, electric mattress head for cleaning different areas (Fig 14-16)

Align accessory mouth with handheld vacuum air inlet and push upward until a "click" sound is heard. To remove the accessory, press the button on accessory and pull out the accessory.

For more functions of connection between handheld vacuum cleaner and accessories please refer to accessories connection details.(Fig 17)

Note:

1. Only crevice tool, upholstery tool and electric mattress head are included in package. Other accessories like stretch hose, pet brush can be selected according to your own needs, and accessories are available at JIMMY distributors.
2. When the battery is lower than 20% , it cannot be switched to carpet mode;
3. When using handheld vacuum cleaner separately, do not vacuum water.

Voice function

The product includes voice reminding of 5 different language: English, German, Italian, French and Russian. Voice of the new machine is turned on and in English by default, press the voice button to switch to other language, keep pressing the voice button to turn off the voice function; press the voice button again to turn on the voice function. (Fig 18)

Note: When using handheld vacuum cleaner, there is no voice function.

Brushroll hot air drying function

In the charging mode, press the handle mode button, product can enter the Brushroll hot drying mode, lasting 3 hours, during the drying process, every 3 minutes the brush rotates for 2s, the fan and PTC heater work during the whole process, and the product returns to charging mode after hot drying completed; Press the handle mode button again to turn off the Brushroll hot drying in advance. (Fig 19)

Note: This mode is designed to prevent humid brushroll from breeding bacteria or odors.

Brushroll & air path self-cleaning function

In charging mode, press the self-cleaning button to enter cleaning mode (Figure 20), and after completing self-cleaning, the machine enters the brushroll hot drying mode automatically; Self-cleaning process can be stopped in advance by pressing on/off button or mode button, and product will return to the charging mode. Fan will be turned off with a delay of 3mins. (Fig 21)

Note:

1. Self-cleaning mode is only to clean floorhead air path and hardfloor brushroll.
2. Before turning on the cleaning mode, please empty the dirty water in the dirty water tank, check that the machine is firmly placed on the charging base, the power cord is plugged into the power socket, the power

cord is connected to the charging base, and the clean water tank retains at least 1/2 of the water; After completing the self-cleaning, clean the dirty water tank again;
3. When the battery is less than or equal to 10% power, the self-cleaning mode cannot be turned on, and it can be turned on normally after charging for a period of time.

Clean water tank empty indicator

1. When using the water spray function, the voice/screen shows "No clean water, fill in water", please turn off the machine and add water to the clean water tank.
2. When using the self-cleaning mode, if it is detected that there is no water in the clean water tank, the brushroll self cleaning will be stopped. To continue self cleaning, please add water to the clean water tank and empty the dirty water tank, then restart self clean mode.

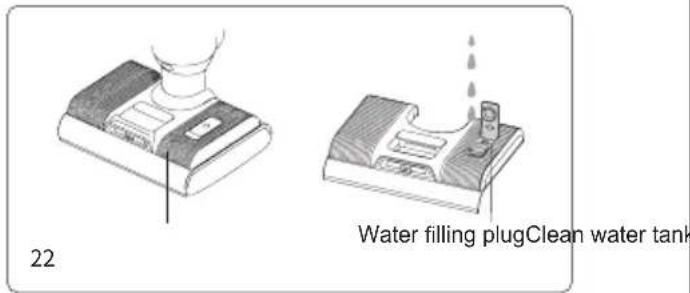

Fill up clean water tank

Fill up clean water tank: Remove the clean water tank and lift the water filling plug of the clean water tank or directly open the water filling plug of the clean water tank, expose the water inlet hole, pour clean water and cleaning solution in., and press the water filling plug down to install it to the end, and install it back into the clean water tank. (Fig 22)

Note: When adding clean water, you can add the equipped cleaning solution in the ratio of about one bottle cap to one full tank of clean water.

Dirty water tank full indicator

1. When the upright vacuum cleaner detects that the dirty water tank is full, the machine will stop and give a voice reminder. Please clean the full dirty water tank and put it back.
2. When it is detected that the dirty water tank is full in self clean mode, the machine will stop working and give a voice reminder. Please clean the full dirty water tank and put it back.

Dirty water tank cleaning

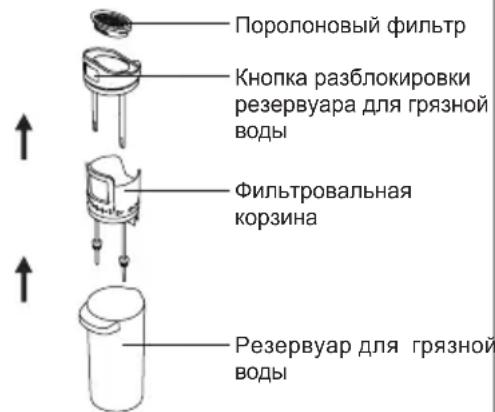

Take out dirty water tank upper cover and filter frame, dump the dirty water, assemble the dirty water tank after washing, and put it back on the floorhead (refer to Chapter 3 "Cleaning of dirty water tank" for details).

Brushroll stuck indicator

When the cleaner is in working or cleaning mode, if the brushroll is stuck, the machine will stop and give a voice reminder. Please take out the brushroll, clean up the foreign matter or entangled hair on the brushroll.

Brushroll cleaning

After removing the clean water tank, pull out brushroll, use the cleaning brush to cut off and remove the hair winded around the brushroll, and clean the foreign matter attached to the brushroll and floorhead. Install brushroll and clean water tank back (refer to Chapter 3 "Cleaning of Floorhead assembly" for details).

Air path blocked indicator

1. When the upright cleaner is working /self cleaning mode, if the air path is blocked, the machine will stop working and give a voice reminder. Please clean the possible blockage of the handheld dust cup, floorhead air path and handheld HEPA, check and clean up in turn before continuing to work.
2. When handheld vacuum cleaner is working, if the air path is blocked, cleaner will automatically stop. At this time, the dust cup and HEPA need to be cleaned.

Air path cleaning

Disassemble the dirty water tank, take out dirty water tank upper cover and filter, wash all parts and them assemble back.

Use pipe brush to clean the dirt, foreign objects and hair inside air path of floorhead. and then load the dirty water tank back into the floorhead assembly.

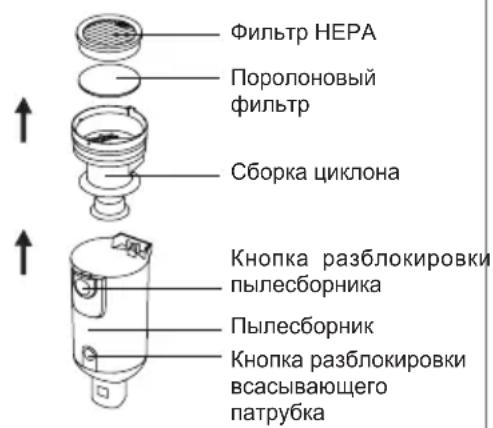

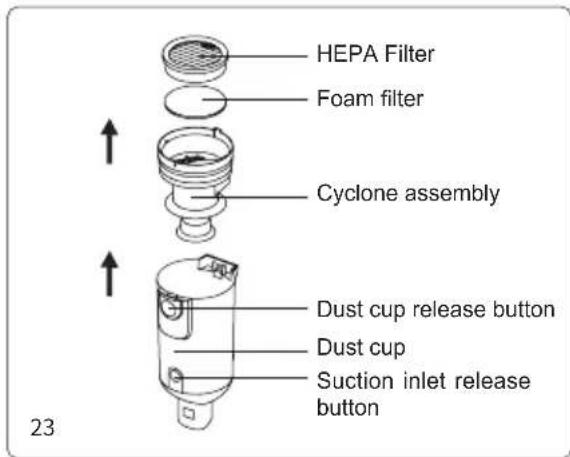

Remove the dust cup, empty the dust cup, remove HEPA, then take out cyclone and disassemble it, clean all parts and reassemble the dust cup. (Refer to Chapter 3 "Cleaning and Maintenance" for details)

Chapter 3 Cleaning and Maintenance

Dust cup cleaning

Press the dust cup release button to remove the dust cup from the handheld vacuum cleaner; press the suction inlet release button to open the suction inlet and empty the dust cup; take out cyclone assembly and HEPA filter. Hold the metal mesh, rotate in the direction of the arrow to unlock the metal mesh, and then remove it downward. After cleaning, wiping and drying the parts, assemble all parts back into dust cup, and then installed dust cup back to handheld vacuum cleaner. (Fig 23)

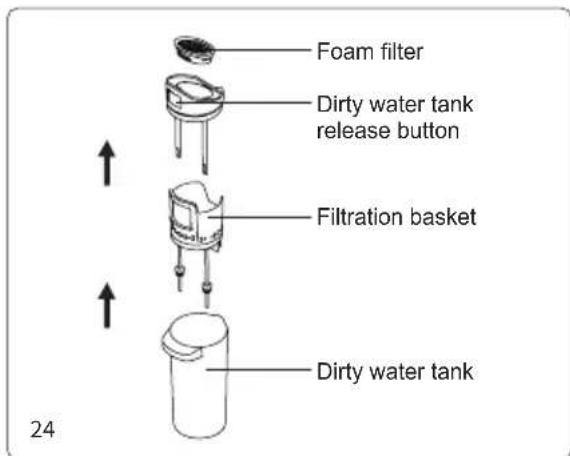

Dirty water tank cleaning

After turning off the vacuum cleaner, remove the dirty water tank, lift the water tank top cover, and remove the foam filter frame from it, open the flip cover of the foam filter frame, take out the foam filter. Pour out dirty water and dirt in the water tank, then wash dirty water tank, water tank cover, foam filter frame and foam filter. If there is foreign matter in the dirty water tank pipe, it can be cleaned with the cleaning brush; dry the above parts after washing. Then reassemble all the parts back into dirty water tank, and then load the dirty water tank into the mainbody and continue to use.(Fig 24)

Note:1. After using upright vacuum cleaner, it is recommended to clean the dirty tank immediately;2. When reinstalling the filter,do not fold the black soft rubber under the filter.

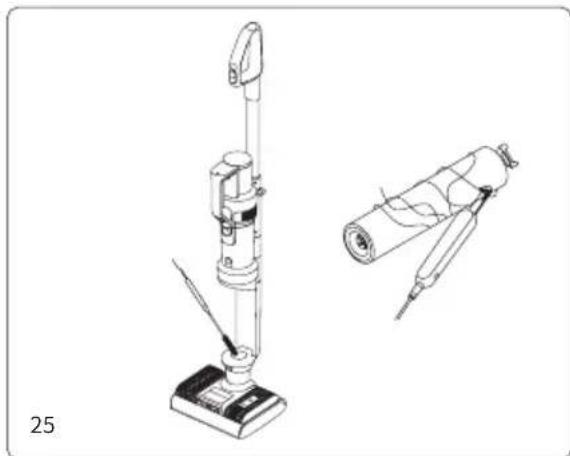

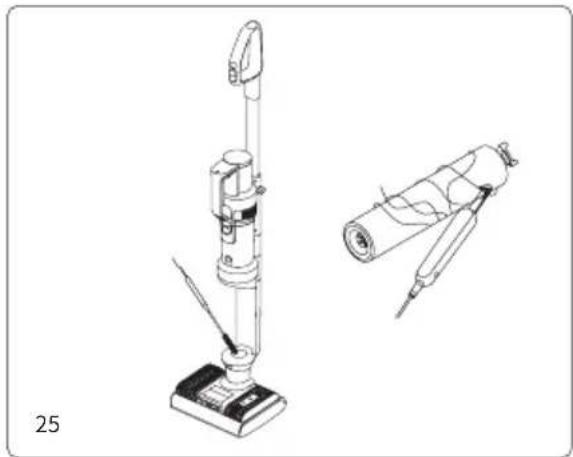

Floorhead cleaning

After removing the brushroll window, brushroll, clean water tank, and dirty water tank, insert the multifunctional cleaning brush through the circular hole below the installation position of the dirty water tank to clear foreign matter and scales in the pipe, and the clogged hair; Use the multi-functional cleaning brush to cut off the tangled hairs on the brushroll; Wipe the machine and the dirty parts removed with a rag, and then put it back on the machine separately (the brushroll can also be put into

the brushroll box to dry); Rinse off the dirt attached to the multi-function cleaning brush and place it in the brushroll box.(Fig 25)

Note: Do not wash floorhead!

Maintenance and Storage

It is recommended to clean the dirty water tank, filter, brushroll and brushroll window after each use. If there is any of below situation: ( ① Remove dust cup and find HEPA filter leaks dust; ② Foam filter severely damaged; ③ The brushroll has serious hair loss, or has strong vibration and abnormal noise during use), it is recommended to purchase consumables and replace it to avoid machine performance. When not using the machine for a long time, please keep the machine in a cool and dry place, never in direct sunlight or humid environment. If you need to pack the machine into a box, be sure to clean the machine and dry the parts to prevent damage to the machine.

Chapter 4 Troubleshooting

Please check the following points before contacting the after sale service.

Problem Possible cause	Solution
Can not start or stop during use	No or Low battery power Recharge and use in time
	On/off button is not pressed down Press down on/off button
	Brushroll is entangled Clean brushroll in time
	Dirty water tank full Clean dirty water tank
	Battery pack not assembled properly Reassemble battery pack
	Suction inlet blocked Clean suction inlet and filter
	Battery pack is not in place Install the battery pack
Weak suction	Suction inlet blocked Clean suction inlet and filter
	No HEPA assembled Assemble HEPA
Abnormal noise	Suction inlet blocked Clean suction inlet and filter
	No HEPA assembled Assemble HEPA
Spray mouth does not spray water	Clean water tank empty Fill clean water tank
	Water spray button not pressed Press water spray button
Spray mouth does not spray water	Clean water tank not assembled properly	Reassemble clean water tank
Water spray out from air path.	Filter is not assembled in the dirty water tank	Assemble filter in dirty water tank
	Soft plastic folds under the filter	Reassemble the filter, the soft glue must not be folded
	HEPA and dust cup are put to use without fully dry	Dry the HEPA and dust cup after washing before use

Note: If the above troubleshooting guide fails to provide a solution or the screen displays error code F1 to F8, please contact after service or local distributor for support.

Chapter 5 Product Specification

Technical parameters

Product Name Cordless V	Vacuum&Washer
Model HW11 Pro Max
Rated Power 500W
Battery Capacity 4600mAh
Charging Time 5h±0.5
Rated Input 220-240V	~ 50-60Hz
Rated Voltage 21.6V	---

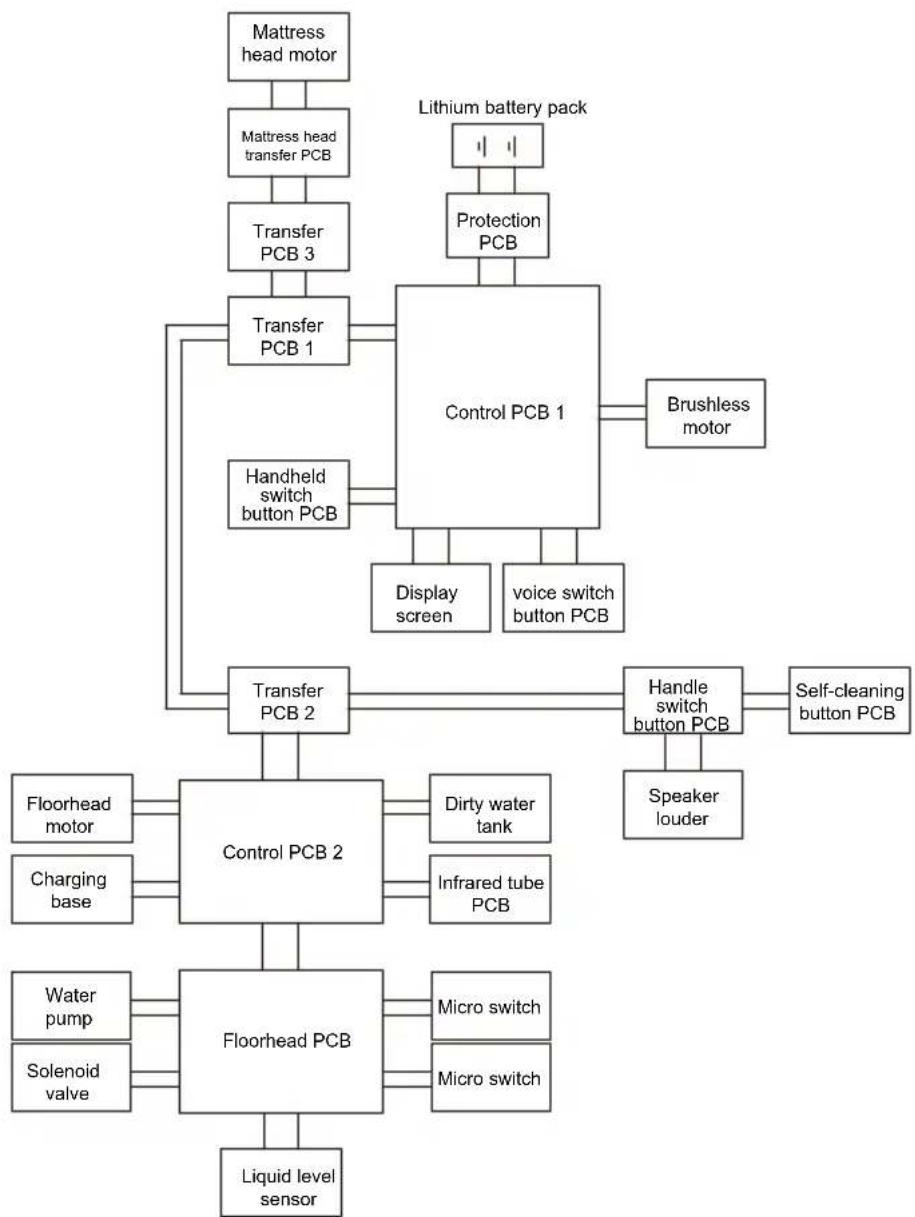

Circuit Diagram

Manufacturer Information

Manufacturer	Kingclean Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

C E

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can damage or destroy the machine.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Subject to change without notice.

Warranty Information:

This product enjoys two years warranty from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances.

Chapter 4 Troubleshooting

Please check the following points before contacting the after sale service.

Dirty water tank release button

Do not dispose of the machine into household waste!

He TpaHcnpTpyuTe yctpoCTBO npn Tempeatype Bblwe 50^ nJn HnKe 0^

O6 nCnoJb3OBaHn npoDyKta

1. YcTpoIcTBo NOxOHT TBePbIX NIOOB B NOMeUeHnX, BKIOUaB BOUeHbIE NOLBI, pe3INHOBbIE NOLBI, pNTKy, napket C 3aUNTHbIM NOKpbITnEM, NOJIb I3 MaccuBa u npyrne PNOCKNe NOBepxHocTn. UcNoJIb3OBAHne yCtpoIcTBa Ha HEPOBbIX NONAX MOKeT He DaTb HauJyUHne pe3yJIbTaTbI.
2. He BKNIOaHTe yCTPOINCTBO, NOKa pe3epByapbl Inra rpa3HOH uNCTOu BObI He 6ydyT yCTaHOBNEHbHa MeCTO B COOTBEcTBUN C HNCTpyKUne.
3. He TpncTe yctpoCTBO BBePx n BnH3, n 36eaiTe pe3Kx TOUcKOB nbIecoca, YTObI rpa3HaB Oda He nonana B DnBraTeNb; Nocne 3anycka He nepemeuaite yctpoCTBO BBePx n BnH3, a TaKke He HAKIOHnTe erO B n He KnaDnte Ha nO, YTObI rpa3HaB Oda He nonana B DnBraTeNb.
   4.Bo n36exaHne NOBpeXeHn, He no3BOJyTe yCTpoiCTBy pa6oTaB B TeyeHne dIInTeJbHO RbpeMeHN, KOrda BCacbIBaIOUee OTBepCTne 3a6NOKIpOBAHO nonlaBkom.
4. Nocne nCnoB3OBaHn yCTpoiCTBa ONUCTHe pe3epByap IJRA rpa3HO BODbl, BCacbBAIOoee OTBepCTHe IN BO3dyXOBOD, XpaHnTe B pOBeTpBnBaEMOM n CyXOM MeCTe. NObblueHHa BnaXHOCTb MOKeT NOBpeDHTB IN30JIaIIO IN CHN3NTb CpOK cnYK6bl 3NEKTPoHHbIX KOMNOHEHTOB.

OMOIOUeMcpeIcTBe

1. PonaDAnHe 6oIbIoro KOnIueCTBa MoIOUero CpeIcTBA B DnBraTeIb MOKeT NOBpeIuTb yCtpoIcTBO.
2. CmeaIte MOUoee cpeCTBO C HcTOn BOoB B COOTBeTCTBN C NHCtpyKuJeN PO EKcnJIyatauH (cooTHoWeHne MOUoero cpeCTBa K YnCTOe 1:50). PekomeHdyetcNcNoIb3OBaTB MoUoee cpeCTBO Hawei KomnaHn. HeIb3ra NcNoIb3OBaTB MOUoine cpeCTBa, coedePkaune KNCLOTy, IeJIOb IIIN BeueCTBa, BpeHbIe dIry OkpyKaIOSe cpebl.
   3.ДеркпгЕ моюшссрдбв HeDCOTynHOMДЯDETeMecTe.EcNiMoUSee cpeCTBO nonaIbBra3a, HEmdJIeHNO TuaTeNbHO npoMOte INx YnCTOBo BOIO. EcN Bbl CnyaHNo npornotuero, HemeJNeHHO 6paTNTecb K Bpauy 3a MeDINCHCKO NOMOsbHO.
3. Pn ytnnn3aunncnoJb3OBaHHo BOdbu MoOcero CpeDCTBa CneDuET Co6NIOaTb MeCThBle Tpe6OBaHn

MeCTHbI TepeBoaHHnIO oxpaHe OkpykaIOuei CpeDbI.

O6 ytni3aun 6aTapeu

1. AkymyIaTOPHa 6aTape npnbopa coepKNT MaTePnJIbI, BpeHbIe IJr OkpyKaIOUe cpebl. Ipepe yTNIN3aueNe BBHbTe akymyIaTOPhyO 6aTapeHO n3 yCTPOINCTBa.
   2.ПередиЗВлесуемakКУМЛЯТОРНо 6aTApEN bblKlnOHTe yCTpoIcTBO N BbIbTe BnIKy n3 pO3eTKN.
2. C noIeKaeeyTnIIN3aunn AkKymyIaTOPHO Batapeen cneDyET oBpaatbca HndIeKaumm O6pa3OM, He nOmeuaTe eB OROH, BOy IIN NoVBy.
3. Ecn ytnn3npyemam 6atape npotekaet, n KxNkoctb nonana Ha KOxy uIN OdeKdy - npomOnTe INX YnCTO BDOH HEMeDJIeHHo ObaPATNTecb K BpaCy.

Ha n3dJIHH mHeOTcra 3HaUKN, KOToPbIE mMeHOT cJeDyUOuNE 3HaueHnA:

MoHTaJN dEmoHTaJHacaIKn IJIa NOJa

UTo6bI yCTaHOBnTb HacAdKy dJa noJa B c6ope, Chauana COBMecNTe HxHKnIO uAcTe b Kopnyca C hacaKoJ dJa noJa B c6ope, BcTaBte ee B hacaKy dJa noJa 3aDbNtBe Do ueNqka. UTo6bI n3BNeueb HacaKy dJa noJa, NoCTaBte ycTpoiCtBO Ha non, yDepXNBaOdHoJ pyKoHacaKy dJa noJa, dpyro HaxMITE Ha KhoNky pa36nokpOBKn HacAdKn dJa noJa, npuNoDnHMnTe Kopnyc. (Pnc.1)

MOnTaK n demOHTaK pyuKn

Pacnonarai Te KOHeC MaTAnIuecko Tpy6Kn BepTKaNbHO B OTBepCTnN KOpnyCa B cbope Do Tex nop, Noka He ycbluHte 3Byk UeJyKa, yBeDInTeCb, YTO metaJInuEckA Tpy6Ka 3aTAYHa N HAdEJKHO 3aФNKcnpOBAHa. YTo6bI ChrTb MaTAnIueckyU Tpy6Ky, BCTabTe NOxOJaMn INHCTpyMeHT, HApPIMep, OTBepTKy, B OTBepCTne IIN3BNeueHnMaTAnIuecko Tpy6Kn I NOTAHTE MAtanIIueckyU Tpy6Ky BBepx (pnc. 2).

C6opka n pa36opka 6aTapeHoro OTeKa

1.перемаиTe 6atapeHbI OTceK BdoNb Na3a NПLOTHO npnxmaite Do tex nop, noka He ycbluNTe «шeJyOK》. Пocne aToRo 6atapeHbI OTceK 3aФИКсИрOBaH. (Pnc 3)

1. Haxmte Ha KhoNky pa36JOKnOBKn 6atapeHoro OTcKa u NotaHnte 6atapeHbI OTcK B HAnpaBHeHn, npOTbONOJoxHom c6OpKe, yTO6bl pa36JOKnpoBaTb 6atapeHbI OTcK

PnmuueaHne: BaataeHbI OTcEK He HxKHO 6ydet TaCTO CHIMATb,3TO Ntpe6yeTc TOnbKO B Cnyae 3aMeHbl.

MoHTaK n demoHTaK pyHOro nbIeCocA

Bo3bMnte pyHoi nbIeoc c yctaHOJIeHHbIM 6batapeHbIM 6nOKOM, Chayana BCTabBte BCacbBAHOyU HacaKpy nbIeC6OpHnka B na3 Ha KpbIuke OCHOBHOrO Kopnyca, 3aTe m npXMMte Kopync pyHoro nbIeococa K yCTAHOBHeHHo MetaJIINueCKo Tpy6ke, 3Byk ueJYkaKa3bIbaet, YTO pyHoi nbIeocOC ycneUHO yCTaHOBJEN, IN B 3TOM COCTOHN yCTPOINCTBO MOxHO NCNOJB3OBaTB B KaueCTBe BEPTKAnbHoro nbIeococa. YTo6bl CHaTb TOlbKO pyHoi nbIeococ, HaxMMte n UdepXNBaITe KHONky pa3bIOKNpOBKn pyHoro nbIeococa n NOHMITE pyHoi nbIeococ no dnaarOHaII BBepx. (Pnc.4)

C6opka 3apndnoi 6a3bl

PnXmMaTe BepxHIOU qactb 3apdHoi 6a3bl, pe3epByap pactBopa dIy OunchKn I depKataIb polNKOBOn 5eTK K HIXHeuactn 3apdHoi 6a3bl B nOIOKeHHx, NOKa3aHHbIX Ha pncyHke, Do tex npop, NOKa He ycblWnte 3Byk 5eJNka. (Pnc.5)

UctahOBka yCTpoNCTBa Ha 3apnHy6a3y

Y6eHNTecb, yTo HacaKa dJa noJa paCnoJaraetcB B BePTnKaJIbHOM NIOJoxeHm, BO3BMNTecb 3a pyKoTky, YTO6bl NOHrTa bYCTPOIcTBO, HAnpaBBte rHe3do dJa 3apAKn B HIXKeH yactN KOpnyCa yCTPOINCTBa B rHe3do dJa 3apAkn Ha 3apAHDon 6a3e n BCTABTe yCTPOINCTBO B 3apAHy0 6a3y. YTO6bl NcNoB3OBaTb NBInecoc, BO3BMNTecb 3a pyKoTky yCTPOINCTBa n N3BJeKIne TbnEcoC n3apAHDon 6a3bl (pnc.6).

C6opka npa360pka pe3epByapa Jnra rpa3HOBdoJI

Дясборкpe3epByapa Дягэн BOыnomeCTte HIXHIOчAcTpe3epByapa Дягэн BOыВ OCHOBHOKOpNyc,перemeuaite pe3epByapДягэн BOыВ HAnpaBJIeHn OCHOBHOrO KOpNyaDo ьeнчka.

UTo6bI n3Bneupe3epByap dnnr pR3HO B0Dbl, OOnH pyKoYdePKNBaTe yCTpoiCTBO, DpyroynpKoYdEeKnBaTe pe3epByap dnnr rpa3HO B0Dbl, 3aTeM HaxMNTE KONky pa36JIOKINPOBKn pe3epByapa dnnr pR3HO B0Dbl, UTo6bI n3Bneupe3epByap dnnr pR3HO B0Dbl. (Pnc.7)

C6opka npa36opka pe3epByapa nJa YnCTOIN BOIDbl

OuInCTka nblne6bOpHnka

Hakmnte KhoNkPy pa36JOKnPOBKn nbJIeC6OpHnKa, YTObI N3BneYbNbIeC6OpHnK n3 pyuHoro nbIeNcoca; HaxMnte KhoNkPy pa36JOKnPOBKn BCacbBAIOUeO naTppy6Ka, YTObI OTKpbITb BCacbBAIOUIN naTppy6oN ONOPOXHnTB nbIeC6OpHnK; BblbTe cIKNoH B c6ope N qInbTp HEPA. YdePknBaMaTajlnueckyIO cETky, NOBepHnte ee B HanpaBHeHH CTpeKN, YTObI pa36JOKnPOBaTb MeaJIInueckyIO cETky, a 3aTeM CHIMnte, HanpaBnB Bn3. Pocne OuncTKn, npOTnpAHH N cyuKn DeTaJe, c6epHTe BCE dTaIIOn o6pAHO B nbIeC6OpHnK, 3aTeM yCTaHOBtpe nbIeC6OpHnK o6pAHO B pyuHoi nbIeNOC. (Pnc.23)

OuNTka pe3epByapa IJRA3HOB BOIbl

Iocne BbIKNoHEnn NbIeCoca n3BNeKeNte pe3epByap dIra rpa3HO BODbl, NOHNMTe BepxHIO KpbIkwky pe3epByapa dIra BObl n CHmnte C Hee paMKy npoONHOBOrO fNtpa, OTKPOITE OTKNIDHyO KpbIkwcy pAMKn npoONHOBOrO fNtbpA, n3BNEKeNTe npoONHOBbI Fnltp. CneTe rpa3HyO BDOY nCKoINBswUcR Bpe3epByape dIra BObl rpa3b, 3aTeM npomOnTe pe3epByap dIra rpa3HO BODbl, KpbIkwcy pe3epByapa dIra BObl, pAMKy npoONHOBOrO fNtbpA n npoONHOBbI Fnltp. EcnB Tpy6Ke pe3epByapa dIra rpa3HO BODbl IMeOTcR NOCTOpOHnE npeMeTbl, IN MOXHO YdaNTb C NOMOsbIO UeTKN DnRA YNCTkN; NocLe MbITb BbICyWnte DeTAlN, yKa3aHHbIe BblSe. 3aTeM CHOBA yCTAHOBtE BCE DeTALN B pe3epByap dIra rpa3HO BODbl, NocLe 3TOrO yCTAHOBtE pe3epByap dIra rpa3HO BODbl B OCHOBHOn KOpNyc, NocLe 3TOrO erO MoXHo NCNOlb3OBaTb.(Pnc.24)

23

24

Приимейчени:

1. Послесиюльбовая Вертукального nbilecoca pekomehdyetca CPA3y Jke Ouchntb 3aRpa3HeHHbI pe3epByap.
   2.Пипспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспспcнгбдчу He OTrn6aIte YepHyo MryKyo pe3HNOBByO npOKJaNky NODФИbTpOM.

OuNTka HacaKn IJa Iona

Iocne ChraTna OKHa Kopnyca, polnKOBoN 8eTKn, pe3epByapa dnn yHcToB BoDbl n pe3epByapa dnn rpa3HO BDoBl, nCNoJb3yInTe yHNBePcAlbHyIO 8eTKy, BCTaBnB ee B Kpyrnoe OTBepCTne NOd MecTOM yCTaHOBKn pe3epByapa dnn rpa3HO BoDbl; qTO6bl OuNCTNTb Tpy6y

OT NOCTOPOHHINX qactn u HaKInu, a TaKke OT HAMOTABWIXxC BONOC. IcNoIb3yIte MHOOFOYHKUHOHaBHyU 8eTKy dIra OuchTKn, YTO6bl cpe3aTB BOIOCSb, HAOMaBUnecr Ha pONIKOByo 8eTKy. IpOtpnte Nblncoc n 3aqr3HeHHbIe DeTaN TpRnkO, a 3aTeM CHOBa yCTAHOBNTe IN No OTdJIbHOCTn Ha Nblncoc (dIra cyShKn pONIKOByo 8eTKy MoJHO TaKxe YCTAHOBNTb B DEPkaTeJIb DIA pONIKOBoI 8eTKN). PpOMOnTe MHOROpYHKUHOHaJIbHyU 8eTKy, YTO6bl OUCHNTb ee OT 3aqr3HeHm, I NOMeCTnTE 8eTKy B DEPkaTeJIb dIra polIKBOOUI eTKN) (pnc.25).

PpmeaHHe npmbBaTe HacaKy dny nla!

O6cnyxmbaHne n xpaheHne

PekomeHdyETc CBOEbpemHNO OunuataB pe3epByap IJraIrp3HO BODbI, POJIKObyIO UeTKy N OKHO pONIKOBO JETKINOCNE KAKDORIO NCN0Nb3OBAHn. B cnyae BO3NHKNOBehnKaKoI-Ni6o N3 CNTyaCNI, ONICAHHbIX HJKe: ( ① npn CHaTmN PbIneScbOpHnka ObnapxkeHo, YTO PhInbTp HEPA He ocakdaet nbIb; ② nopIoHOBBI nIbTp CINbHO NOBpeKDeH; ③ Ha pONIKOBO uTeTke OCTaIOcMb MaIO UeTHNOK, INI npn NCNoB3OBAHn YCTPOICTBO CINbHO BV6pnpuyETn N3DAe TocToPOHHne Wymbl), peKomeHdyETc npno6pcTe n pacxoHbIe MATEpnaIbI N3AeT NocToPOHHne Wymbl), peKomeHdyETc npno6pcTe n pacxoHbIe MATEpnaIbI N3AeT NocToPOHHne Wymbl), peKomeHdyETc npno6pcTe n pacxoHbIe MATEpnaIbI N3AeT NocToPOHHne Wymbl), peKomeHdyETc npino6pcTe n pacxoHbIe MATEpnaIbI N3AeT NocToPOHHne Wymbl), peKomeHdyETc npino6pcTe n pacxoHbIe MATEpnaIbI N3AeT NocToPOHHne Wymbl), peKomeHdyETc npino6pcTe n pacxoHbIe MATEpnaIbI.N3AeT NocToPOHHne Wymbl), peKomeHdyETc npino6pcTe n pacxoHbIe MATEpnaIbI.N3AeT NocToPOHHne Wymbl), peKomeHdyETc npino6pcTe n pacxoHbIe MATEpnaIbI.N3AeT NocToPOHHne Wymbl), peKome HdyETc npino6pcTe n pacxoHbIe MATEpnaIbI.N3AeT NocToPOHHne Wymbl), peKome HdyETc npino6pcTe n pacxoHbIe MATEpnaIbI.N3AeT NocToPOHHne Wymbl), peKome HdyETc npino6pcTe n pacxoHbIe MATEPNA1BtN, YTObI N36ExaTb Notepn POn3BODHTeBHOCTH yCTPOINCTBA. EcIIyUCPTBO He NCNoB3yeTc B TeueHne DInTEhBO HorO BpeMeHN, XpaHInTe erO B IpoxNaIDHom i CyXOM MeCTe, He NDBeprAITe BO3DeNCTBnIO npYMaBIX COJIHeuHbIX JUeyen IINBnAnXHO CpeDb. B cnyae yNAKOBN i NOMeSeHENy yCTPOINCTBA B KOPo6kY Ojra3aTeNBHO BblONHInTe erO OChTky N BbcCyUHTe BCE deTaJI, YTO6bl He DDyCTNTb NOBpeXJeHENy yCTPOINCTBa.

He Bb6paBbAaTe aKkymyIaTOpHbIe 6aTapeu/6aTaapeuKn B 6bIToBoM MycOp, oOrHb nn BODy.

AkkymyIaTopbIe 6aTapeu/6aTapeuKn CneDyeT CObupaTb, NO BO3MOXHOCTN B pa3pJxHHom COCTOHN, DJI BTOPUNHOn nepepaBcTN NUYINN3aUIN NKOJIOrueckn 6e30nachbIM O6pa3OM.

HOpmaun o rapaHTn

TapaHTnHbI cPOK Ha n3dene coCTaBnreT 1 (OINH) rOc d DaTbI NOKyNKn.

Cpok cnjxkbI n3dennn coctabnreT 5 (nTb) JET C daTb NOKynK.

TapaHTnHe npedocTabIeTcB CJIyuee eCTecBeHHoro n3HOCA, nCNoJIb3OBAHnB KOMMepecknx ueJx, N3MeHeHn IepBOHaaybHOro COCTOaHn np6Opa, pa60 Tno OChCTKe, npn PocJeDCTBnX HeHaIeXaUero 6paueHn HnIOBpeKdEHN NOKyNaTeJEM, Hn TpeTbIMN LInCaAMN, NOBpeXdEHn, Bbl3BaHHbIMN BHeSHmMn 6ObToTaeJIbCTBaMn.

Kak y3HaTb dAty npOn3BODCTBa n3 cepnHOro Homepa

ETKekTcA C cepHbIM Homepom pa3MeuaeTcHa ynaKOBke ycTroPcTBa, a TAKKe Ha Kopnyce camoro yctpoiCTBa. Iata npOn3BOndCTBa 3akOdnPOBaHa B erO cepHnHom Homepe.

YTo6bI paCunΦpOBAb DaTy npOn3BOdCTBa, O3HaKOMbTEcB C npImepom cepHOro Homepa, KOtOpbl NOKa3AHnKe:

B45H/03E

DBP800547

0742X

Iata npou3BOOCTBa COCToNT n3 nepBbIX 3 CnMBOIOB: nepBbIN CNMBOJ - rOd, BTOPOI CNMBOJ - MecaU, TpeTNI CNMBOJ - DeHb.

DBP800547

D-rod

B-Mecra

P-ENb

8- npon3BOOCTBeHHHaJIHHIA

00547-c6cTBeHHo cepnHbH HOMep yCTpoiCTBa

B haeme npimepe daT a npo3bOcTba 23 Ho6p 2019 roja.

BocnoIb3yItec bHOpMaueNe, npBeJeHHoB Ta6nue Hxke IJpaacuHpOBKn DaTbI npOn3BOdCTBa daHHoro yctpoiCTBa.
