USER MANUAL AHS 4055 Lion Set Grizzly

Product photo of a red-handled hair clip and two red power cord enclosures (no visible text or symbols)

GB Translation of the original instructions for use....56

Grizzly Service-Center ....115

Einleitung

Introduction......21

Grizzly Service-Center ....115

Introduction

Motorspanning....40 V==

General Description ....57

Scope of delivery ....57

Function Description ....57

Overview....57

Technical Data....57

Notes on Safety 58

Symbols 58

General safety instructions for power tools ....59

Special Safety Directions ......62

Charging the battery 65

Removing / inserting the battery .....66

Recharging the battery....66

Used batteries....66

Operating....66

Switching On and Off....67

Checking the battery charge level.....67

Working with the Hedge Trimmer .....67

Cutting Techniques....67

Cleaning and Maintenance ....68

Cleaning....68

Maintenance 68

Storage 69

Waste Disposal and

Environmental Protection....69

Trouble Shooting....70

Guarantee....71

Repair Service....71

Spare Parts....71

Translation of the original

EC declaration of conformity .....109

Exploded Drawing 113

Grizzly-Service-Center.... 115

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Do not use the hedge trimmer in the rain or on wet hedges.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

The illustration how to handle the appliance can be found on page 2.

Scope of delivery

Carefully unpack the trimmer and check that it is complete. Dispose of the packaging material correctly.

• Cordless hedge trimmer
• Knife guard
• Battery
• Quick charger
• Instruction manual

Function Description

The cordless hedge trimmer features a laser-cut knife of special-grade steel. When trimming, the cutting teeth move to and fro in a linear shearing motion. The strike guard at the tip of the knife prevents unpleasant kickback reactions when hitting walls, fences, etc. Operators are protected by the appliance's two-hand safety switch and quick-stop brake function.

The hand protection guards your hands against twigs and branches.

Read the sections below to learn more about each operating element's function.

Overview

1 Strike guard

2 Safety knife bar
3 Hand protection
4 bow handle with Safety switch
5 Guide track battery
6 Ventilation slots
7 On/Off switch
8 Rear handle
9 Battery charger

10 Battery

11 Knife guard
12 Screws at the rear of the safety blade

13 Guide track

14 Battery charge state indicator

15 Battery release button
16 Operating display

Technical Data

Appliance

Motor voltage....40 V==

Idling speed n_0 1400 min ^-1

Idle time....max. 48 min*

Cutting length ....approx. 550 mm

Distance between teeth.....approx. 28 mm

Cutting capacity ....max. 20 mm

Protection class ....III

Weight (with Safety knife bar,

without battery charger)....3,1 kg

Sound pressure level

(L_pA) 80,3 dB (A), K_pA = 3 dB

Sound power level ( L_WA )

guaranteed....95 dB(A)

measured......93,1 dB(A); K_WA=2 dB

Vibration (a_h)

Rear handle....2,81 m/s ^4

Front handle....3,05 m/s ^2

K = 1,5 ~m / s^2

GB

Battery (Li-Ion ...... DYMA81

Nominal voltage.....max. 40 V; 36 V ===

Energy 90 Wh

Capacity.... 2.5 Ah

Charging time ....approx. 1.25 h

Recharger......DYMA83

Voltage

input.....220-240 V\~, 50 Hz, 1 A

Voltage output ....40 V == 2 A

Protection class .... □ II

Protection category.... IP20

* The actual runtime under load of a fully charged battery depends on how you work and on the load put on the trimmer during operation.

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

ribration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at pro- tecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Notes on Safety

This section details the basic safety instructions for working with the appliance.

Symbols

Symbols on the Equipment:

Caution!

Read through the instruction manual carefully.

Wear eye protection.

Wear ear protection.

Wear hand protection

Do not use the hedge trimmer in the rain or on wet hedges.

Caution! Risk of injury from blades in operation.

Remove the battery prior to servicing the appliance.

Operating display

Information of the acoustic power level L_WA in dB.

Cutting length

Zahnabstand

Machines are not to be place with domestic waste.

Symbols on the battery

Do not dispose of batteries in household waste, fi re or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45^ C).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Battery Indicator

Symbols on the recharger

WARNING!

Before using for the first time, carefully read through the user manual

Miniature fuse

The recharger is for indoor use only

Protection class II

Electrical appliances must not be disposed of with the domestic waste.

Removing the rechargeable

Battery Indicator

Symbols in the manual:

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids,

GB

gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Dis-tractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operation of the electric device in a damp environment is inevitable, please use a fault-current circuit breaker. The use of a fault-current circuit breaker reduces the risk of electrocution.

3) PERSONAL SAFETY

Please note that children, individuals with limited physical, sensory or mental capabilities, those with insufficient experience or knowledge or individuals who are not familiar with the instructions must never be permitted to use the machine. Local regulations may specify an age restriction for the user.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

.h) Never let children or persons who are unfamiliar with these instructions use the machine.

i) Stop using the machine when persons – especially children – or pets are nearby.

j) Use the machine only in daylight or with good artificial lighting.

k) Always keep your hands and feet away from the cutting equipment, especially while starting the engine.

I) Never install metallic cutting elements.

m) Prior to commissioning and after any impact, check for signs of wear and damages, and have any necessary repairs performed.

n) Never use the machine with damaged or missing protective equipment.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool

• before making any adjust -ments, changing accessories, or storing power tools.
• whenever the user no longer remains in the vicinity of the machine.
• before the removal of blockages.
• before checking, cleaning or working on the machine.
• • after touching a foreign body in order to check the machine for damage.
• for an immediate check if the machine begins to vibrate excessively.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

GB

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Special Safety Directions

1) SPECIAL SAFETY DIRECTIONS FOR HEDGE TRIMMERS
- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when

clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool only on the insulated handle surfaces, as the cutting blade may come into contact with concealed power cables. Contact between the cutting blade and a live cable may render metallic components live and result in an electric shock.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.
• Before the work, search the hedge for concealed objects, e.g. cable etc.
• Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.
• Wear suitable clothing and work clothes when working with the equipment. Do not hold the equipment by the cutting blade or lift it on the cutting blade. Contact with the cutting blade can cause injuries.

2) FURTHER SAFETY DIRECTIONS

For your personal safety:

ear suitable work clothes such

as boots with non-slip soles, sturdy long trousers, gloves and goggles.

Do not wear long flowing clothing or jewellery, as this may be caught

by moving parts. Do not use this

tool while walking barefooted or

while wearing open sandals.

a) Do not use the hedge trimmer in the rain.

b) The appliance is designed for trimming hedges. Do not use to cut twigs, hard wood or other objects.

c) Do not attempt to dislodge a blocked/trapped blade before switching the tool off.

d) Before commencing with the trimming check the hedge for hidden objects such as wire etc.

e) When operating the appliance, always hold it well with both hands and at some distance away from your body.

f) Do not use the tool in the vicinity of flammable liquids or gasses. Fire- and explosion risk exist in the event of a short circuit.

g) The blades have to be checked for wear in regular intervals and re-sharpened. Blunt blades will overload the machine. Resulting damages are not covered by warranty.

h) Do not attempt to repair the tool yourself, unless you are schooled in this field. All works, which are not described in this manual, may only be performed by our Service-Centre.

3) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

b) Recharge the batteries indoors only because the battery charger is designed for indoor use only.

c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

e) Allow a hot battery to cool before charging.

f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

g) Do not use non-rechargeable batteries!

4) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts

b) Ear damage if working without ear protection.

c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

GB

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

CORRECT HANDLING OF THE BATTERY CHARGER

- This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

- Keep the equipment away from children and pets. Children should be supervised in order to ensure that they do not play with the equipment.

• To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.

- Before each use, check the charger, cable and plug and

have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

- Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

- Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.

- Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

- Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

- Avoid mechanical damage to the charger. This can result in internal short circuits.

- Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

- The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you

use it for the first time. For the first recharge cycle we recommend that you charge the battery for about 1,25 hours. Slot the battery into the base and plug the battery charger into a mains outlet.

• When the battery is fully charged, unplug the charger from the mains and from the appliance. Charging time is approx. 1,25 hours.
• Do not charge the battery continuously since this may damage the battery cells. Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.
• Do not use the charger to charge non-rechargeable batteries.

Charging the battery

This cordless hedge trimmer is part of the Grizzly 40 V range.

Other devices from this product range can be operated with the same batteries. The following devices are compatible:

Cordless leaf blower

ALS 4025 Lion

Cordless chainsaw AKS 4035 Lion

Cordless Lawn Trimmer

ART 4032 Lion

Cordless brush cutter

AS 4026 Lion

Cordless lawn mower

ARM 4041 Lion

Cordless lawn mower

ARM 4046 A-Lion

Otherwise, please contact the Service Centre (cf. Spare parts/accessories). You can order the rechargeable battery and the corresponding charger from them.

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to elec- tric shock.

Only use the original charger from the package to charge the battery.

• The rechargeable battery reaches its full capacity only after it was charged several times.
• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Removing / inserting the battery

1. To insert the battery (10), place it on the guide track (13) and push it back into the appliance. It will audibly snap in.

Do not insert the battery until the appliance is fully assembled. Risk of injury!

1. To remove the battery (10) from the appliance, press the release button (15) on the battery and pull out the battery.

Recharging the battery

Allow a freshly charged battery to cool down for approx. 15 minutes before inserting it into the battery charger).

1. Remove the battery (10) from the appliance, as necessary.

2. Inser the battery (10) in the charging compartment of the battery charger (9). It will audibly snap in.

3. Plug the battery charger (9) into a mains outlet. The charging indicator lights up: green LED flashes, red LED lights up: Battery charging green LED lights up: Battery is charged

4. When the battery is fully recharged unplug the battery charger (9) from the mains.

5. Press the release button (C 15) on the battery (10) and pull the battery out of the battery charger (9).

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see “Waste Disposal and Environmental Protection”).

Operating

Wear suitable clothing and work gloves when working with the equipment.

Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment. Reduce the risk of injuries and accidents by wearing personal protection equipment and ensuring that the unit is fully functional.

After turning off the appliance, the blades will keep moving for some time. Allow the blades to come to a standstill. Neither touch nor slow down the moving blades. Risk of injury!

Note noise protection and local specifications.

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

Remove the knife guard

1. Before turning on the unit, remove the knife guard (A 11).

Turning on:

1. Check that the battery (A 10) is in (see "Removing/inserting the battery").
2. Press the safety switch (A4) at the front handle.
3. Press the On/Off switch (A 7). The hedge trimmer will run at top speed. The device display (C 16) lights up green (ON).

Turning off:

1. Release the safety switch (A4) or the On/Off switch (A7).

Checking the battery charge level

The battery's (10) charge level is indicated by the charge state indicator (14).

Press the right-hand button of the charge level indicator (14) to check the battery status. The number of illuminated LED lights shows the charge level of the battery (10).

Working with the Hedge Trimmer

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

If the blades are blocked by solid objects, the indicator flashes red on the display (C 16) and an audible warning sound is heard.

• Turn off the device immediately
• Remove the battery
• Then remove the object.
• Avoid over-stressing the device while working.

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
• In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and al-

GB

lows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

• Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
• Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape
• Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Cleaning and Maintenance

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Turn off the appliance and, before doing any servicing, remove the battery.

Wear gloves when handling the safety knife bar. This will protect you against cuts.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.
  Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.
  • Always keep the equipment clean. After using the equipment, it is imperative to:

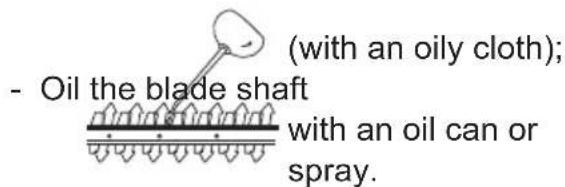

• Clean the blade

(with an oily cloth); - Oil the blade shaft with an oil can or spray.

Maintenance

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts. Check that the screws in the safety knife bar (A 12) are tight.
• Check covers and safety devices (see A) for damages and correct installation. Replace as necessary.
• You can smoothen minor nudges in the cutting teeth yourself using a knife grinder to sharpen the cutting edges. The trimmer will only cut well if the teeth are sharp.
• Blunt, bent or damaged knife bars to be replaced.

Storage

• Keep the appliance in the knife guard (A 11) in a dry place well out of reach of children.
• Remove the rechargeable battery from the device before storing the device.
• Store the battery only in a partially charged state. The state of charges should be 40 – 60 % over a longer storage period.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• Store the equipment between 10°C and 25°C. During storage, avoid extreme cold or heat so the battery does not lose power.

Waste Disposal and Environmental Protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Trouble Shooting

Problem Possible	cause Corrective action
Appliance won't start	Battery (A 10) discharged	Recharge battery (see „Charging“)
	Battery (A 10) not inserted	Insert battery (see „Operation“)
	Safety switch (A 4) not pressed properly	Turn on (see “Operation”)
	On/Off switch (A 7) defective	Send in to Service Centre for repair
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (A 7) defective
Blades become hot	Blades (A 2) are blunt	Have the blades sharpened or replaced (Service Centre)
	Blades (A 2) are notched	Have the blades checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the blades (A 2)
Bad trim	Too much friction due to missing lubrication	Lubricate knife bar (A 2)
	Knife bar (A 2) dirty	Clean knife bar
	Knife bar (A 2) blunt	Grind or have knife bar replaced (Service Centre)
	Bad cutting technique See (“Working with the hedge trimmer”)
Display on the device flashes - alarm sounds	Bars blocked by objects	Switch off und remove the battery. Remove objects

Guarantee

• This appliance has a 24-month guarantee.
• This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, cutter bars and battery are included here, providing the complaints cannot be attributed to material defects..
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.
  This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.
  We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
• Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.
  Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.
• Defective units returned to us will be disposed of for free.

Spare Parts

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center"). Please have the order number mentioned below ready.

Battery 80001176

Quick charger ....80001097

Indice

Introduzione ....72

Scopo....72

Grizzly Service-Center 115

Introduzione

Grizzly Service-Center ....115

Ivadas

GB Translation of the original CE declaration of conformity
We confirm, that the Cordless Hedge TrimmerAHS 4055 Lion SetSerial number 20171100001 - 20171100301conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU* • 2005/88/EC
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 55014-1:2006/A2:2011 • EN 55014-2:2015 • EN 62133:2013EN 60745-1:2009/A11:2010 • EN 60745-2-15:2009/A1:2010EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN62321:2009EN 60335-1:2012/A112014 • EN 60335-2-29:2004/A2:2010 • EN 62233:2008
The following are also confirmed as complying with Noise Emissions Directive 2000/14EC:Guaranteed sound power level: 95 dB(A)Measured sound power level: 93,1 dB(A)The conformity evaluation procedure employed is compliant with appendix VI of 2000/14/ECRegistered Office: No: 0123 TÜV SÜD Product Service GmbH,Ridlerstraße 65, D-80339 München Germany
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 20D-63762 Großostheim,Germany30.11.2017		Christian Frank(Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Technical diagram of a cleaning or mechanical device with numbered parts and exploded views, likely for assembly or maintenance purposes.

Grizzly Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

IT Garden Italia SPA

Via Zaccarini, 8
