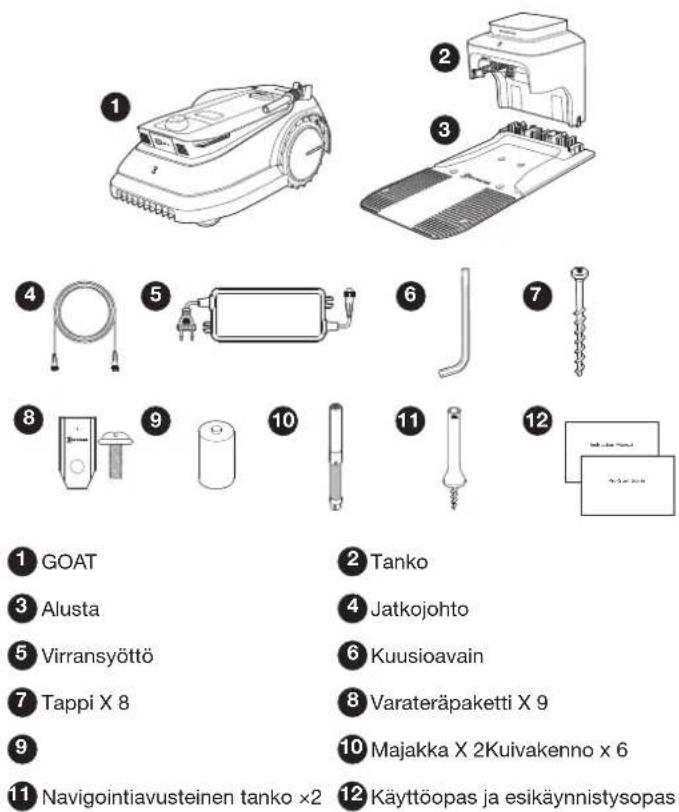

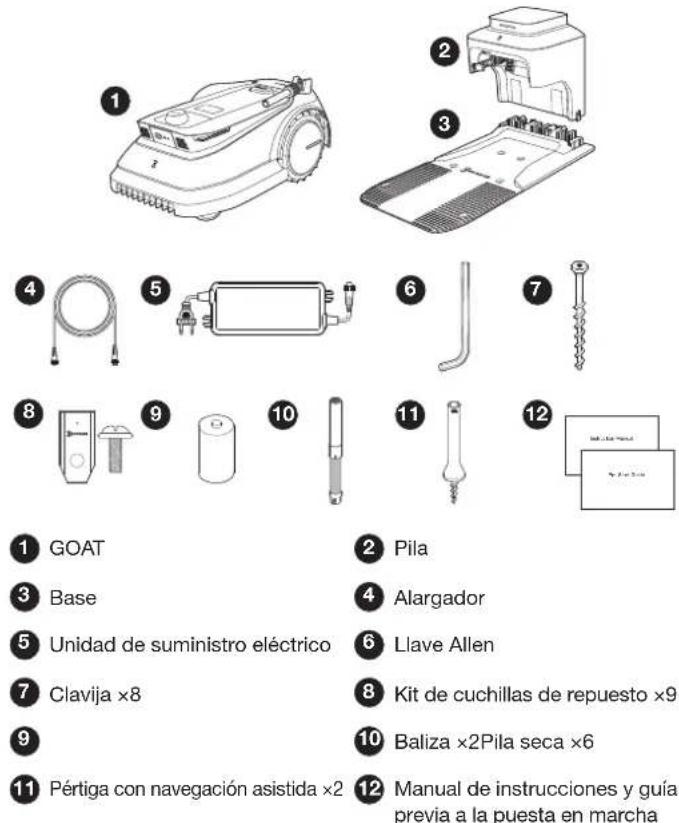

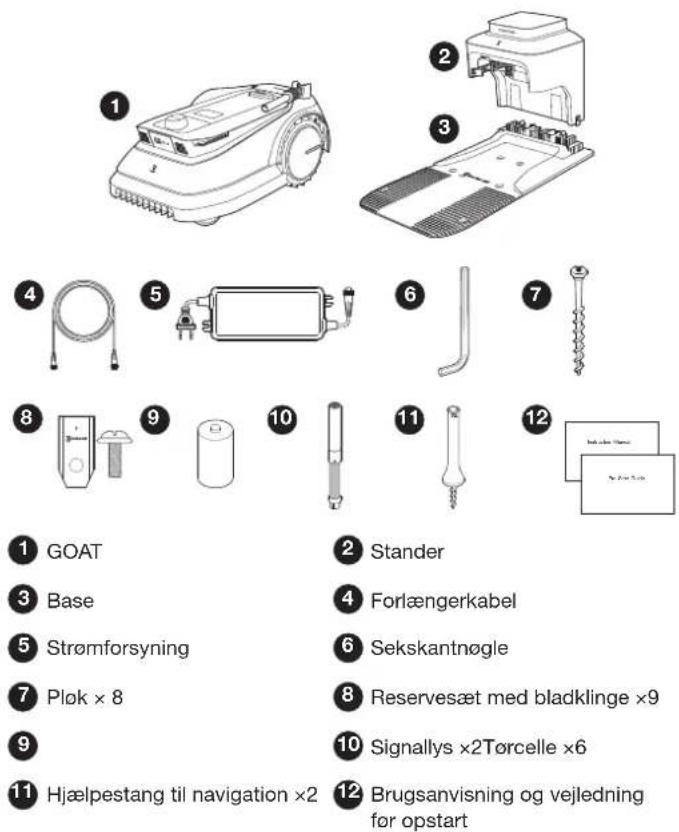

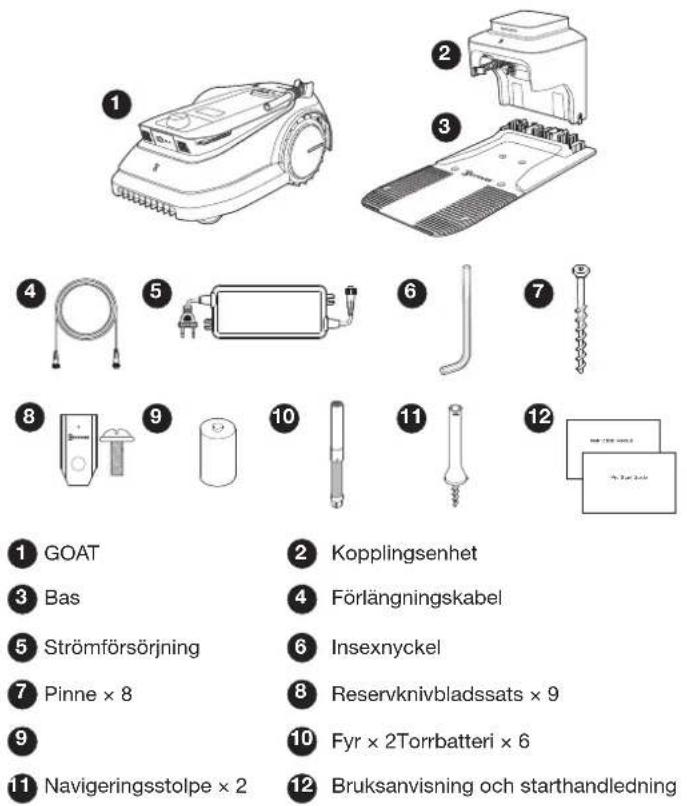

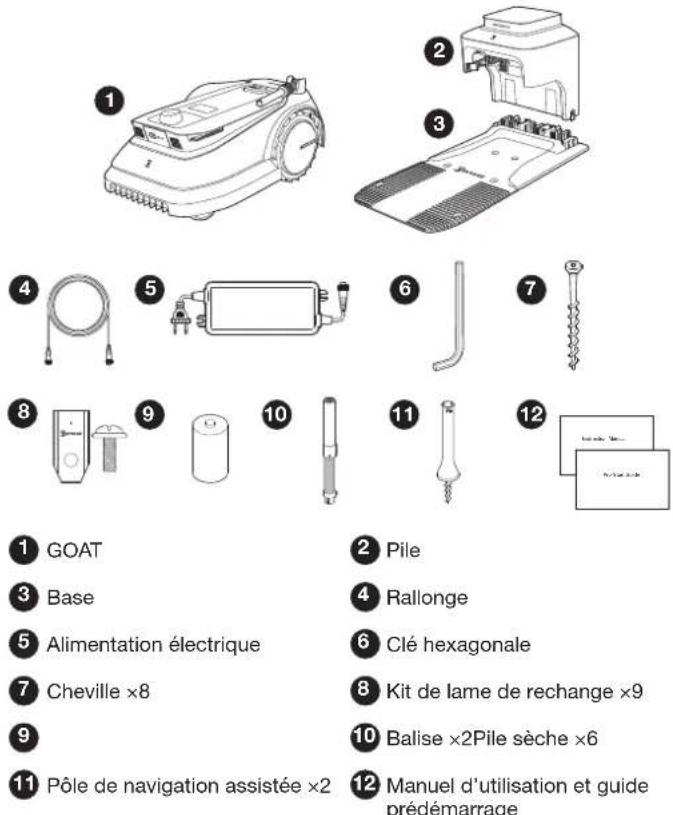

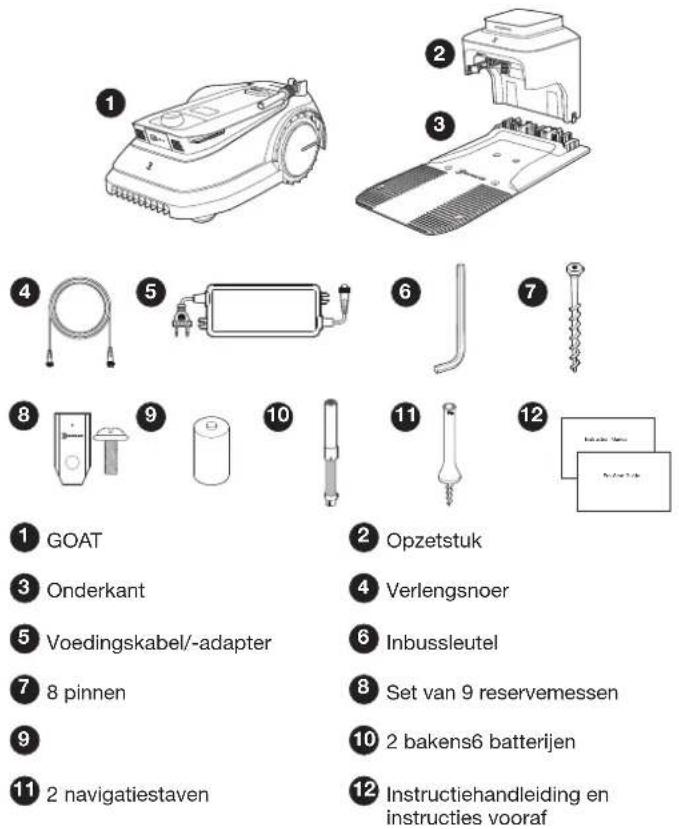

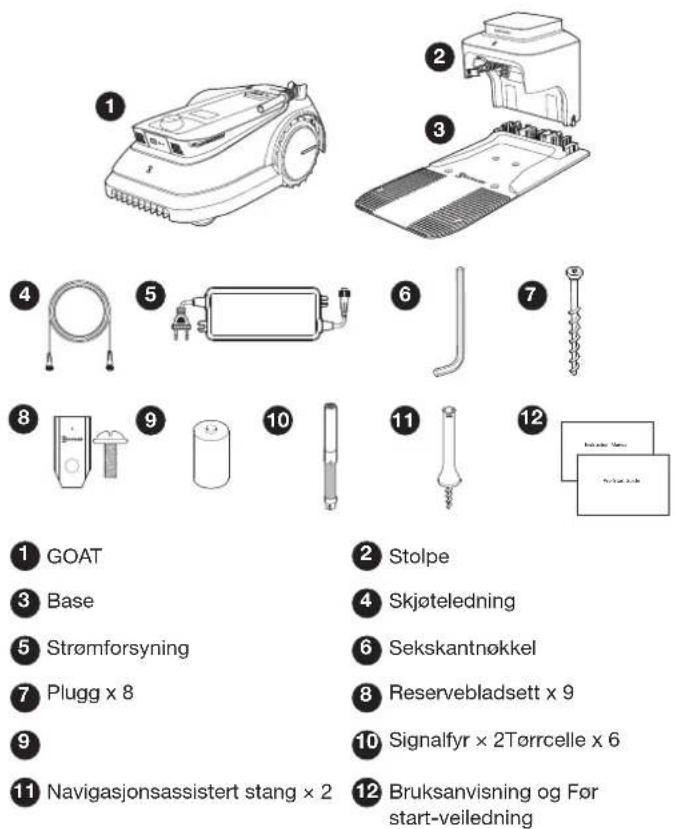

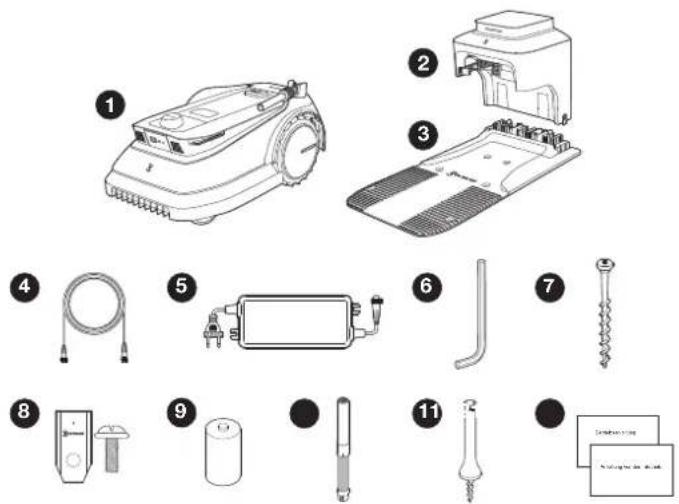

1 GOAT
3 Base
5 Power Supply
7 Peg ×8
9 Dry Cell ×6
11 Navigation-assisted Pole ×2

2 Pile
4 Extension Cable
6 Hex Key
8 Spare Blade Kit ×9
10 Beacon ×2
12 Instruction Manual and Pre-Start Guide

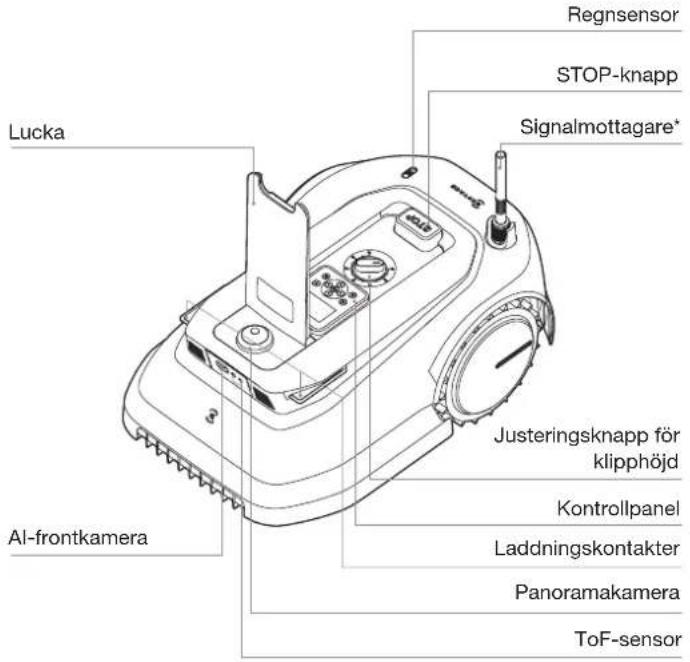

GETTING FAMILIAR WITH YOUR GOAT PRODUCT DIAGRAM
GOAT (Top View)

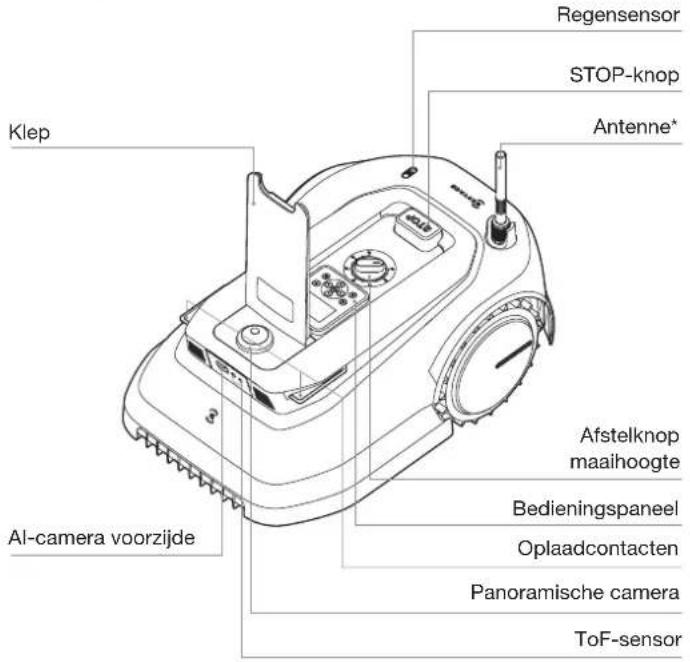

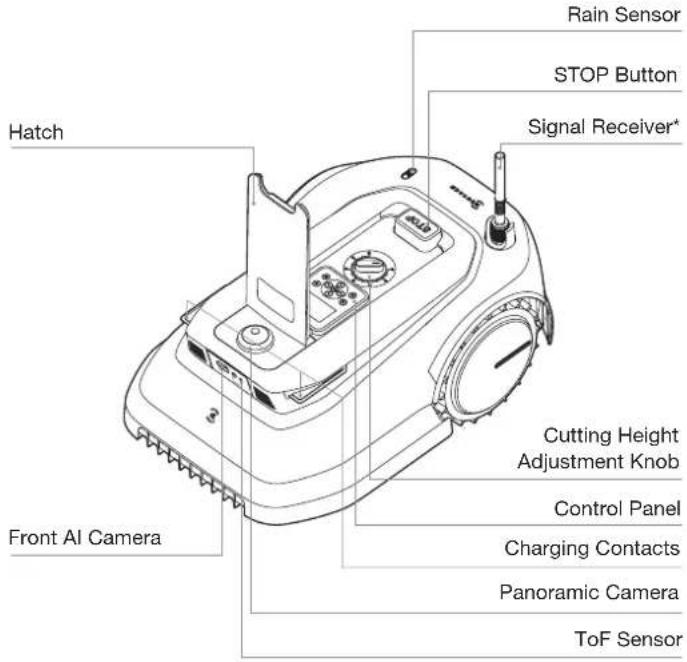

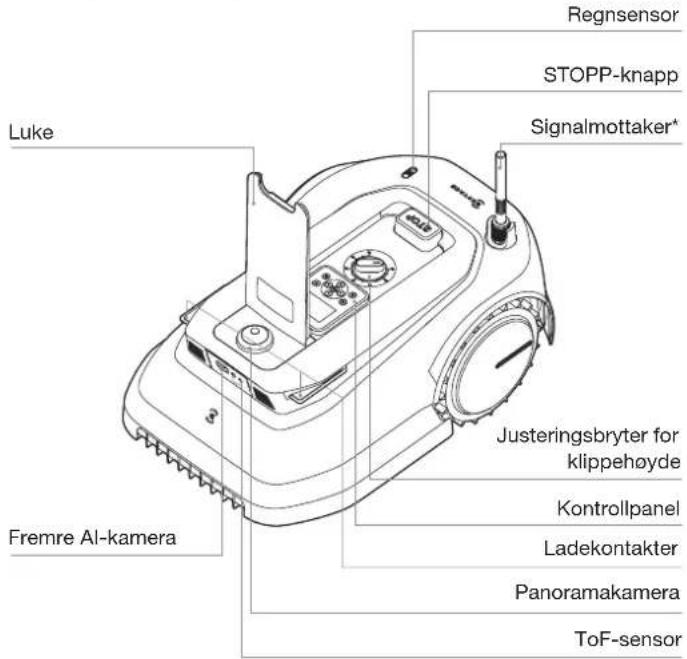

Hatch Front AI Camera Rain Sensor STOP Button Signal Receiver* Cutting Height Adjustment Knob Control Panel Charging Contacts Panoramic Camera ToF Sensor

GOAT (Bottom View) Station* (Top View)

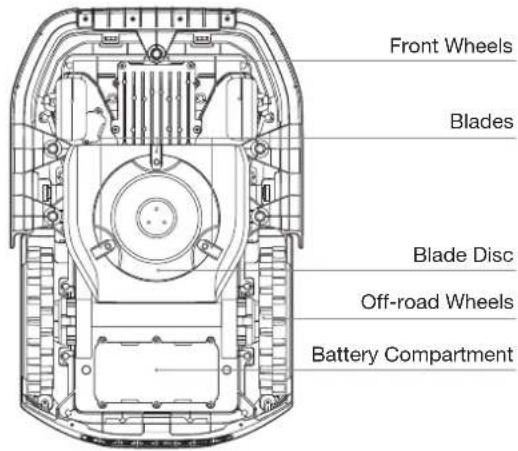

Front Wheels Blades Blade Disc Off-road Wheels Battery Compartment

GOAT (Back View)

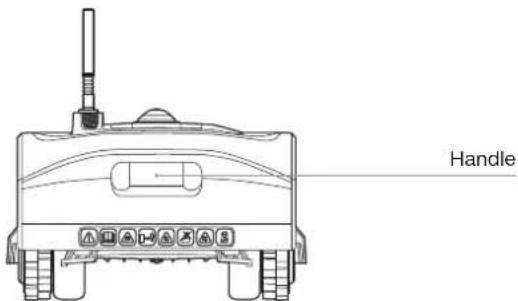

Handle

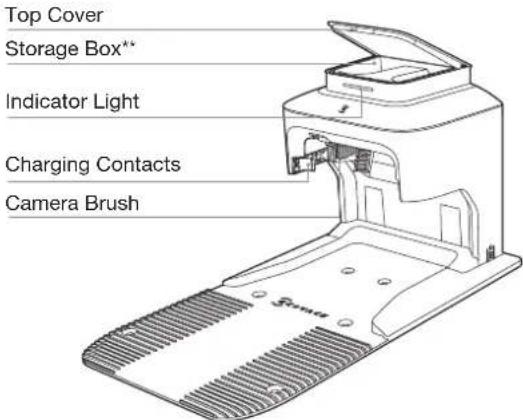

Top Cover Storage Box** Indicator Light Charging Contacts Camera Brush

* Station is composed of the Pile and the Base.
** You can put the Spare Blade Kits and Panoramic Camera cover into the Storage Box.

Station (Back View)

Back Cover Power Interface

INSTALLATION

Before use, here are some steps you need to complete. Please follow the instructions below to install the Station.

1 Assemble the Station

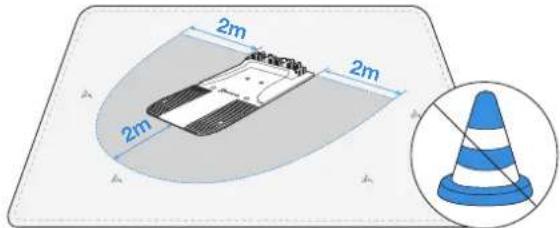

1. Place the Station on an open and flat lawn with no slope or rock. Ensure that there are no objects (e.g. trees, balls or houses) within 2 m on left and right, and 2 m in front of the Station.

- GOAT can still guard your property with the Panoramic Camera when charging in the Station. For a better guarding result, please try to guarantee that there is a broad view in front so that your GOAT can better guard your lawn.

2m 2m 2m

1. If you want to remotely control your GOAT, put the Station as close as possible to a place with strong Wi-Fi signal.

Diagram showing a mobile phone with wireless signal icons above it and a hand holding the phone with Wi-Fi symbol.

1. Make sure that the grass around the Station is no longer than 6 cm. Overgrown grass may affect the recharging.

6cm

1. Remove the sticker. Put the Base connector outward in case it is squeezed during the operation.

Diagram showing a device with a cable inserted into a grid, with an inset close-up of its cable (no text or symbols present)

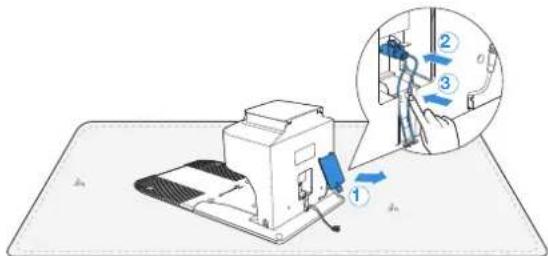

1. Pull out the Power Interface and stick it into slot.

Illustration of a hand operating a device with a magnified inset showing a blue arrow (no text or symbols)

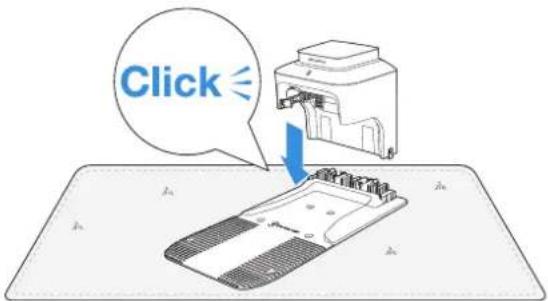

1. Insert the Pile into the Base until you hear a "click".

Click

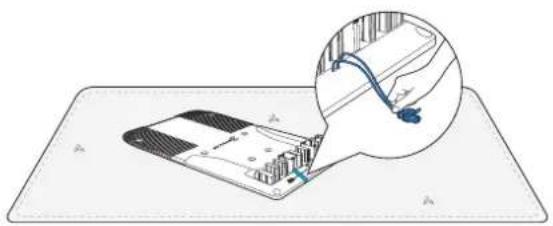

1. Remove the Back Cover. Insert the Base connector into the Pile connector until you hear a "click". Then, gently put the cable into slot as shown in the picture and close the cover.

Diagram showing a printer setup with labeled parts and a magnified view of the printer's internal structure.

1. Fix the Station to the ground in the selected area with Pegs, using the supplied Hex Key.

Technical line drawing of a mechanical device with mounting holes and a base plate (no text or symbols)

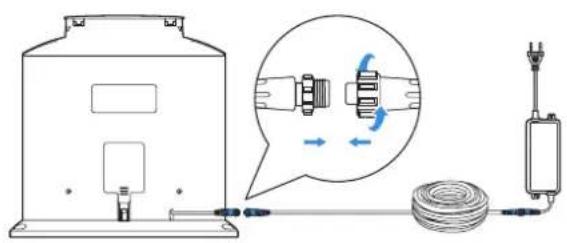

2 Connect the Power Interface with the Power Supply

1. Align the notch (a) with the groove (b).

a

b

1. Screw the nut until they are locked into each other.

Note: You can choose to use the Extension Cable by connecting it to Power Interface if needed.

Technical diagram showing a mechanical or electrical device with labeled components and a magnified inset illustrating the internal structure.

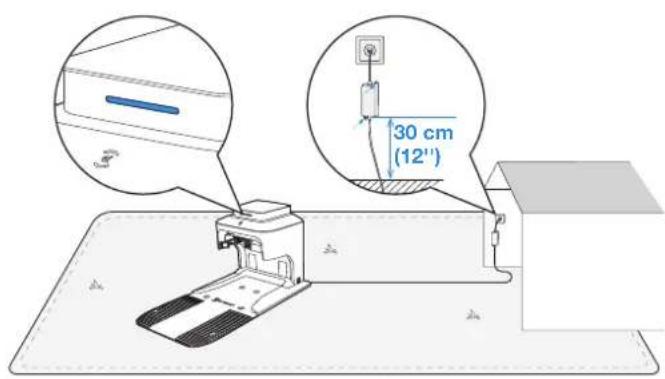

③ Plug into the Power Outlet and Charge up GOAT

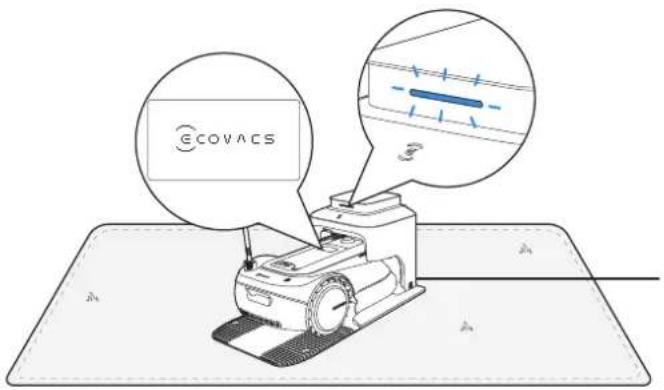

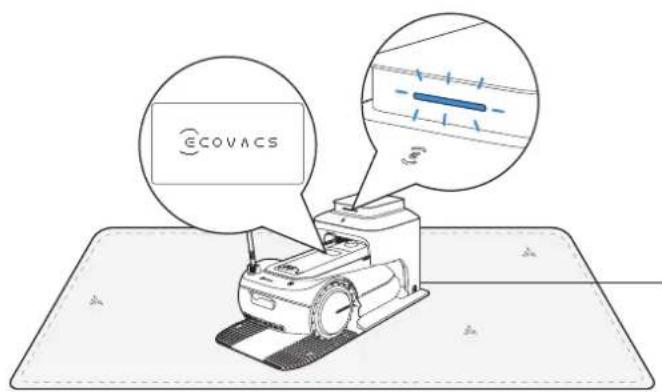

1. The Indicator Light on the Station will be solid blue if all connections are correct. If there is something wrong with the connection, it will be red.

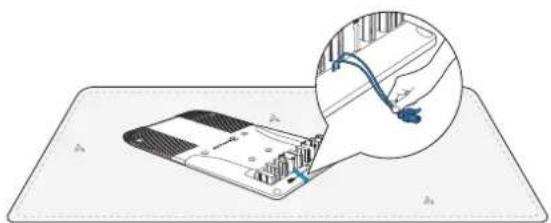

Note: Keep the Power Supply at least 30 cm/12" above the ground.

Note: When Indicator Light is red, it may look pinkish if you observe the Station from a front view under the strong sunlight.

30 cm (12'')

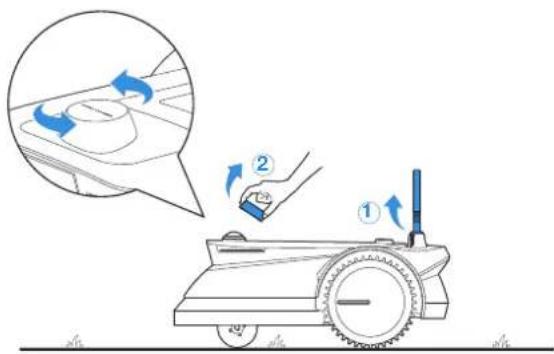

1. Remove the foam from the Signal Receiver. Pull the nut towards the head of GOAT, lift the Signal Receiver up and turn the nut clockwise to tighten. Take off the Panoramic Camera cover and put it into Storage Box.

Diagram illustrating robotic arm movement with labeled parts and directional arrows, including a magnified inset showing hand positioning.

1. Put GOAT on charge. Make sure that the charging contacts of GOAT have completely connected to those of the Station. The Indicator Light on the Station will blink blue and GOAT will be powered on automatically.

ECOVACS

LET'S START EXPERIENCING! CONNECT YOUR GOAT WITH APP

Preparation:

① Make sure that your GOAT has been powered on. If not, please take the following actions:

1. Open the Hatch.

Line drawing of a robotic vacuum cleaner with control panel and sensor (no text or symbols)

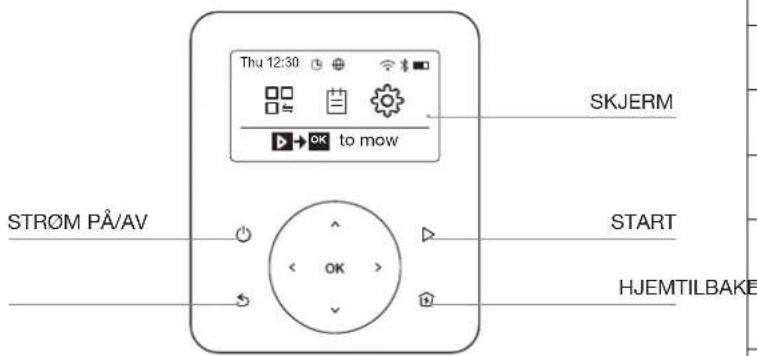

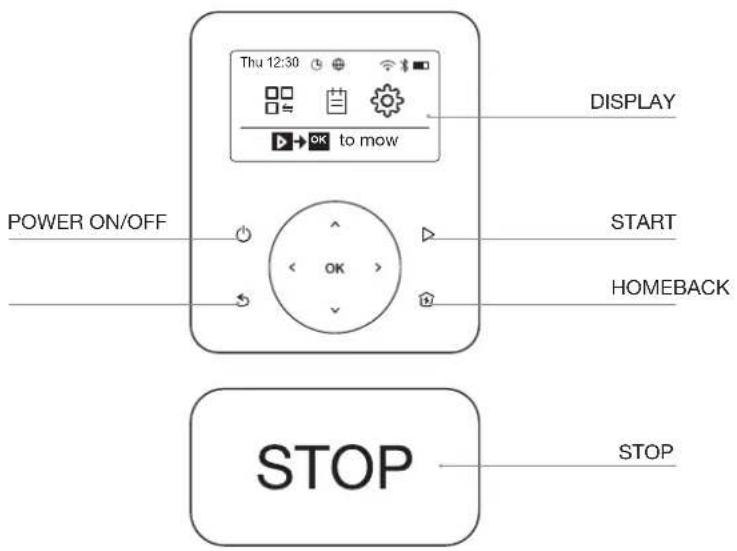

1. Press and hold for 2s on GOAT until the display lights up. Note: Your GOAT will be automatically powered on when it docks with the Station.

2s ECOVACS

② Set the Language

Press nor to select the language you prefer and then press toOK confirm.

LANGUAGE Dansk Deutsch English

LANGUAGE Dansk Deutsch English

LANGUAGE Dansk Deutsch English OK

③ Set the PIN code

There is no default PIN code. Please follow the instructions and set your PIN code.

1. Press ∧ or √to choose the number you prefer (0-9). Press OK or > to set the next number. Use the same method to complete the rest numbers. During the process, you can press to modify the number you have already set.

Note: If your PIN code is set to be "0000", the display will show "Too simple, please reset!". Please press OK reset the PIN code.

NEW PIN CODE ↑ +

NEW PIN CODE NEW A -

N CODE OK OR >

NEW PIN CODE

NEW PIN CODE >

NEW PIN CODE OK

1. Re-enter the PIN code you just set on by following step 1. Then, the display will show "PIN code OK!".

Note: If the PIN code you enter on CONFIRM page is inconsistent with the one you set before, the display will show "PIN codes do not match!". Please press OK to re-enter your PIN code.

1 CONFIRM OK

② PIN code OK!

4 Download ECOVACS HOME App

Before you start, make sure that:

• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.

Note: After installing ECOVACS HOME App, please complete the registration and login.

⑤ Connect GOAT to the Internet

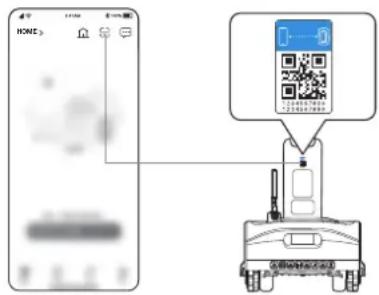

1. Bluetooth Connection

• Scan the QR Code on the GOAT or select GOAT manually via the App.
• Turn on Bluetooth on your phone to connect your GOAT.
• on the display will light up after successful connection.

Note: Ensure your phone has Bluetooth function and your GOAT is within the connectable distance (10 m).

Mobile phone screen displaying a QR code and a robot-mounted device with Chinese text labels

2. Wi-Fi Connection (Optional)

• Make sure your GOAT and your phone are in the same router environment.
• Follow the instructions in the App to complete the connection.
• 📞 on the display will light up after successful connection.

Note: Please use a 2.4GHz network.

• You can tap "SKIP" in the App to skip Wi-Fi connection so that there will be only Bluetooth connection between your GOAT and the App. In this situation, however, you should stay with your GOAT within 10 m and some functions will be limited.
• You also can purchase the additional Connection Module so that GOAT can be connected even without Wi-Fi.

Wi-Fi User step

How to unbind your GOAT?

Allowing binding to one App account currently, your GOAT is unable to be bound to another App account before unbinding. You can unbind your GOAT in the App. Feel assured to take this operation which would not erase the working data such as schedules of your GOAT. You also can cancel the account in Mine->Settings->Account and security->Cancel Account->Confirmation cancellation via the App.

INSTALL THE NAVIGATION BEACON

Note: Navigation Beacon is composed of the Beacon and the Navigation-assisted Pole.

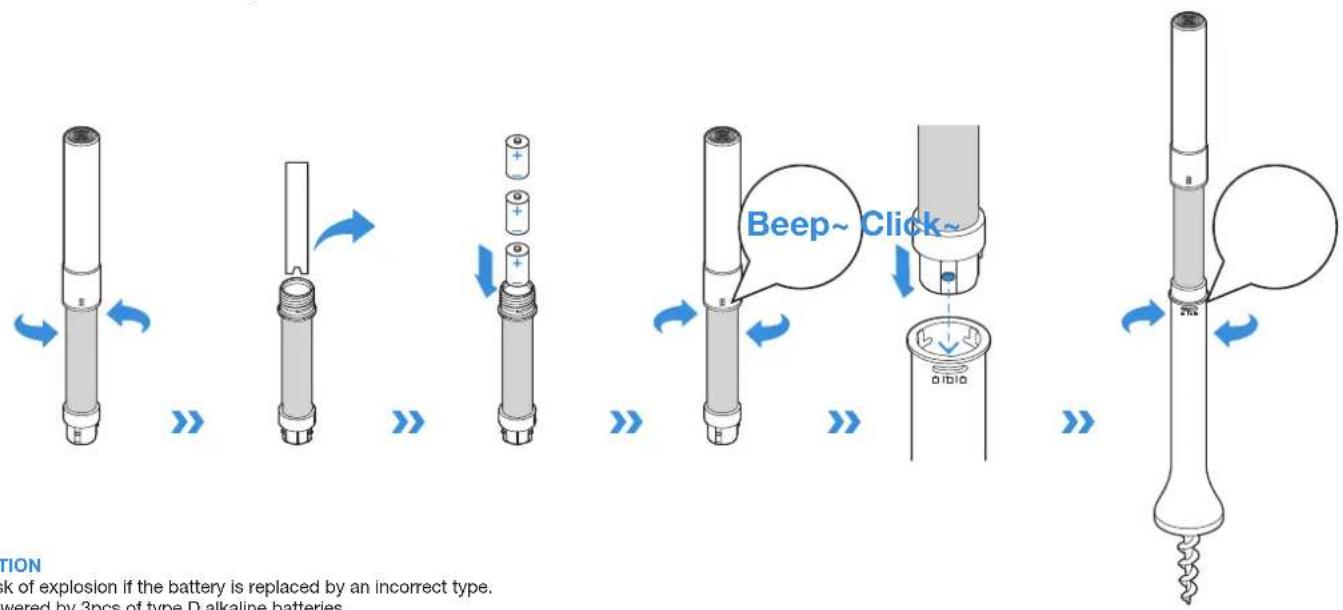

1 Assemble the Navigation Beacon

1. Disassemble the Beacon by turning the upper Beacon counterclockwise.
2. Please remove the protection materials inside the Beacons and then install the Dry Cells.
3. Pay attention to the correct match of positive and negative polarity.

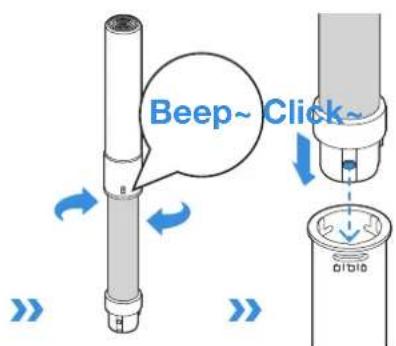

4. Assemble the Beacon by turning the upper Beacon clockwise. You will hear the sound of "beep" if the Beacon is correctly connected. Continue screwing for a firm connection.

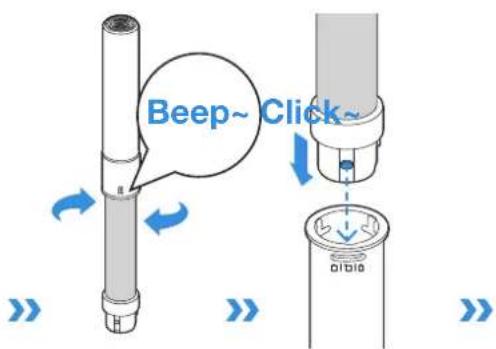

5. Insert the Beacon into the Navigation-assisted Pole by aligning projections on the Beacon with grooves of the Navigation-assisted Pole.
6. Turn Beacon clockwise until you hear a "click".

TION Ask of explosion if the battery is replaced by an incorrect type. wered by 3pcs of type D alkaline batteries.

CAUTION

1. Risk of explosion if the battery is replaced by an incorrect type.
2. Powered by 3pcs of type D alkaline batteries.

② Bind the Navigation Beacon to GOAT

Scan the QR code or input the passkey on the Navigation Beacon to add your beacon via the App. Then you will hear a sound of "beep" if the Navigation Beacon is successfully bound.

Please make sure when you try to bind the Navigation Beacon:

• Keep the Navigation Beacon near GOAT (within 1 m) when operating.
  • DO NOT lay it on the ground.
  • DO NOT hold the upper Beacon.
  • Make sure that the Signal Receiver on GOAT is lifted up.
• Up to 10 Navigation Beacons can be bound to one GOAT.
• Put the Navigation Beacon to be unbound near your GOAT and unbind it in the App. If not, you cannot unbind the Navigation Beacon thoroughly. The binding relationship still exists even if you remove the Navigation Beacon from App by force. By the way, the Navigation Beacon removed by force can be rebound to the current GOAT and unable to be bound to other GOAT.

Mobile app interface screenshot showing a smartwatch icon with Chinese text '眼' and status bar

Diagram showing a screwdriver and a digital display with a QR code, likely representing a security or data security system.

③ Install the Navigation Beacon

General principles:

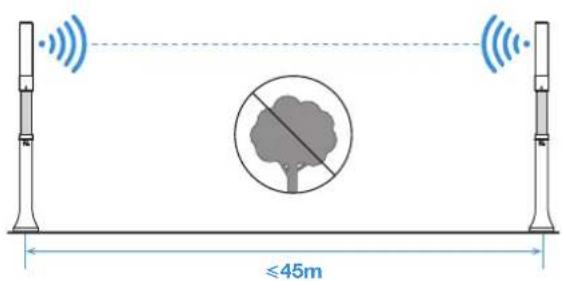

1. Signal coverage radius of each Navigation Beacon is 45 m.

45m

1. Make sure that signal coverages overlap each other to cover the lawn as much as possible.

Diagram showing a central square with four smaller circles, each containing a dashed circle and labeled with 'A' inside.

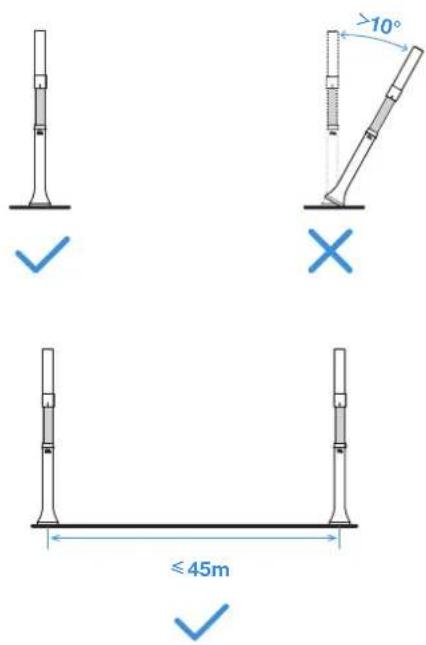

1. Keep the Navigation Beacon perpendicular to the ground and should not tilt over 10^ . You can make use of the Spirit Level (not supplied) to check its tilt.

Note: To have a larger signal coverage, please keep the distance between two Navigation Beacons as far as possible and within the communication range (45m).

1. To ensure the best mowing performance, it is recommended to install the Navigation Beacons at the edge of the lawn. Keep the Navigation Beacon over 20 cm away from the obstacles (taller than 60 cm, such as metal objects, trees, shrubs, and flowers) close to the lawn edge.

≥10° ≤45m

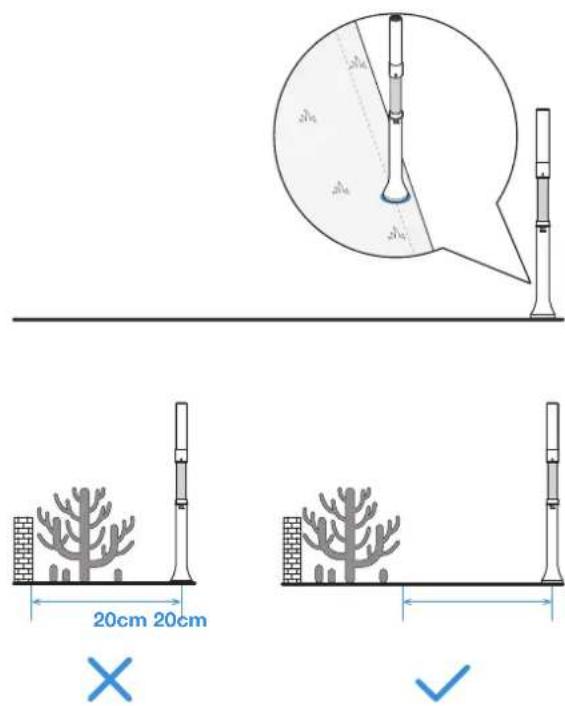

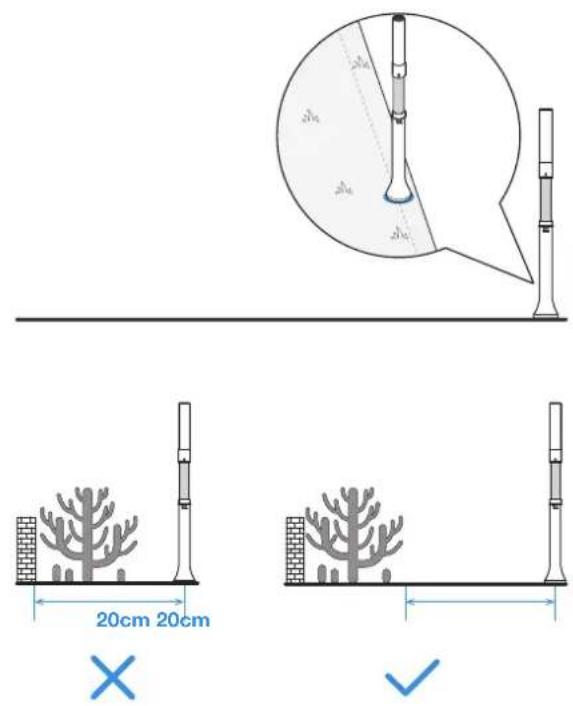

20cm 20cm × ✓

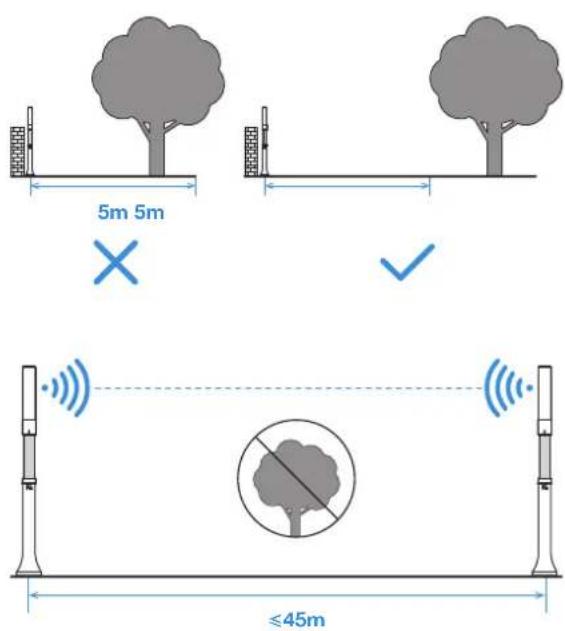

1. To improve the signal coverage, keep the Navigation Beacon over 5 m away from the obstacles close to the center of lawn taller than 60 cm, such as metal objects, trees, shrubs, flowers, bricks, walls and so on. Make sure that there are no obstacles between two Navigation Beacons for better signal communication.

5m 5m × ✓ ≤45m

1. If the lawn where your GOAT works has a slope, make sure that the Navigation Beacon is perpendicular to the ground during operation.

Two diagrams showing a ramp and a block on an inclined plane, with no text or symbols present.

1. To prevent the Navigation Beacons from being stolen, taken away by kids and damaged over the winter, it is recommended to remove the Beacons from the Navigation-assisted Poles when your GOAT is not working and put the Beacons back to the original position when your GOAT works next time.

- Location failure may occur when the Navigation Beacons are moved during use.

Illustration of a hand holding a vertical scale with blue arrows indicating rotational direction (no text or symbols)

RECOMMENDED INSTALLATION

Before you start, please read the following instructions carefully:

1. How to Define Your Lawn Shape
2. When your lawn is all connected without paths in it, please follow the installation recommendation.

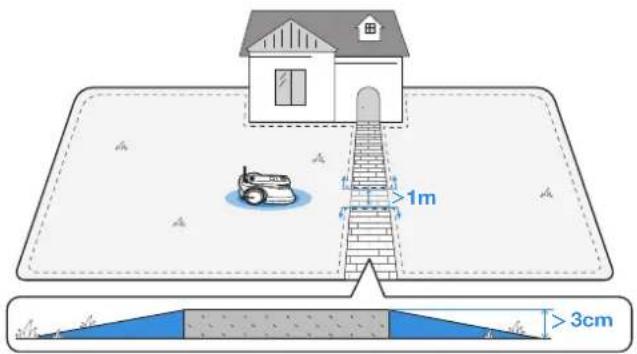

3. When your lawn is divided by paths with a height lower than 3 cm, you could take your lawn as a whole and follow the installation recommendation.
4. When your lawn is divided by paths with a height higher than 3cm, please place an object with a slope equal in height to the path (e.g.uphill mat) and take your lawn as a whole, and follow the installation recommendation.

Note: If there is a terrace, a pet house or other obstacles within or alongside your lawn, please check the height of the obstacles, if the height is lower than 60 cm, you could take the area of a terrace, a pet house or other obstacles and the lawn as a whole, check the shape of this whole area and then follow the installation recommendation. If the height is higher than 60 cm, please contact our Customer Service team for help.

Diagram illustrating a rural road scenario with a small boat, a ramp, and distance annotations of 1m and >3cm.

1. Lawn with Trees and Hedges

2. When there are few trees and hedges on your lawn or they are mainly scattered at the edge of the lawn with a height lower than 60~cm , see point 5 in "3. Install the Navigation Beacon" for more information.

3. When there are plenty of trees and hedges scattered over the lawn with height higher than 60 cm, please contact Customer Service for help.

Note: Your GOAT is equipped with 2 Navigation Beacons. You can confirm the number of Navigation Beacons you need and the layout by comparing our recommendations with your own lawn. It is recommended to purchase more Navigation Beacons to achieve a better signal coverage.

See the table below for detailed information.

Note: Keep the Navigation Beacon away from trees, pools and pet houses.

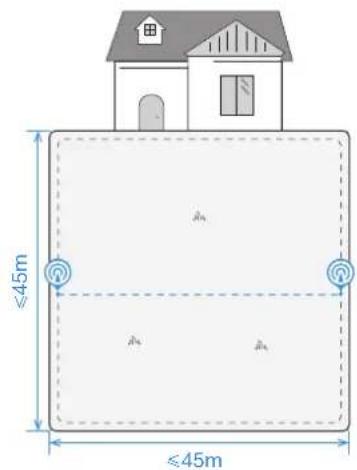

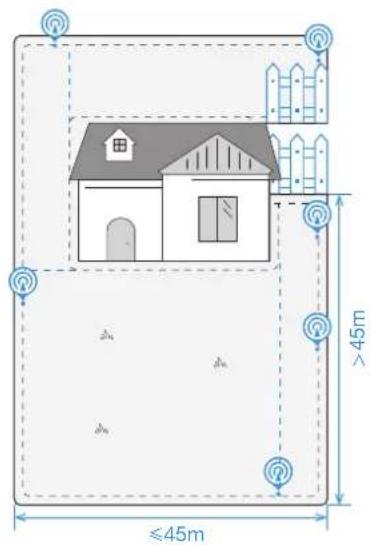

① The lawn is on one side

• Side length: ≤slant 45m (all sides)
  • The number of Navigation Beacon needed: 2

≤45m ≤45m

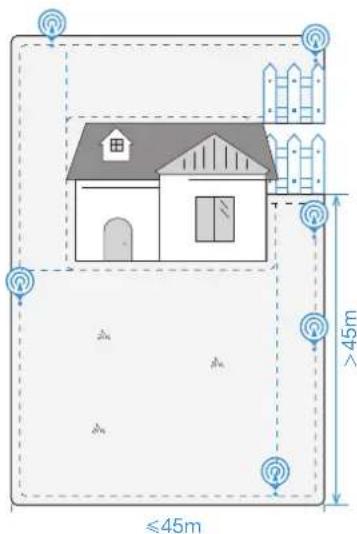

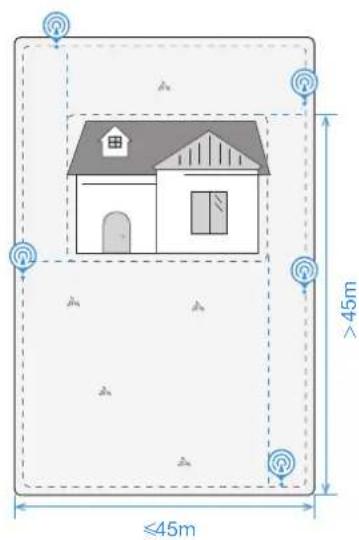

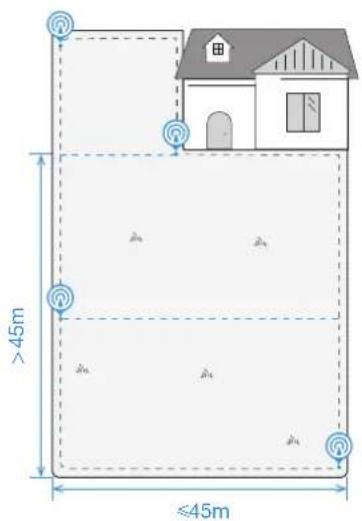

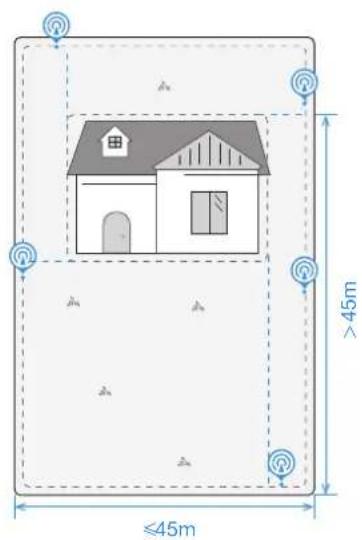

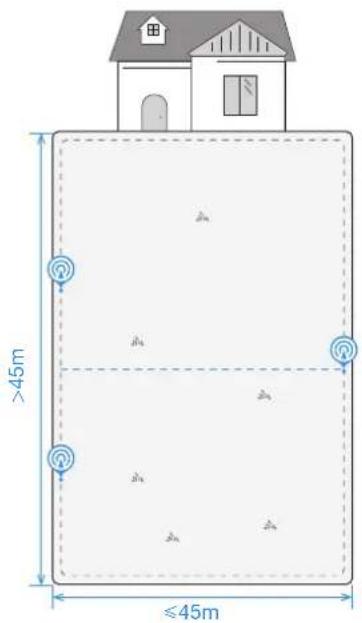

• Side length: 45-90 m (the distance marked out on left long side)
  • The number of Navigation Beacon needed: 3

>45m ≤45m

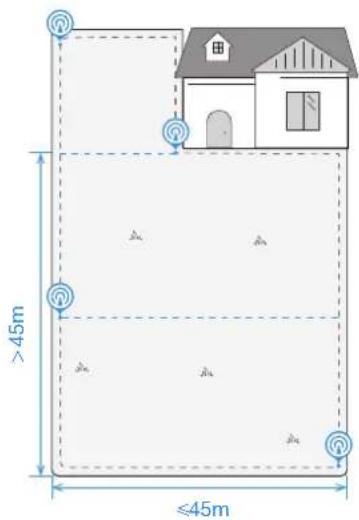

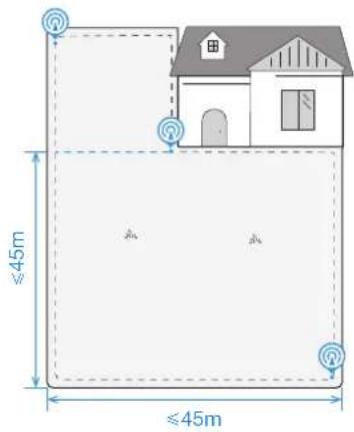

② L-shaped lawn

• Side length: ≤slant 45m (all sides)
  • The number of Navigation Beacon needed: 3

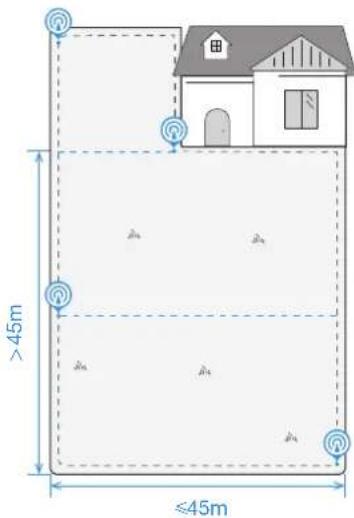

• Side length: 45-90 m (the distance marked out on left long side)
  • The number of Navigation Beacon needed: 4

≤45m ≤45m

>45m ≤45m

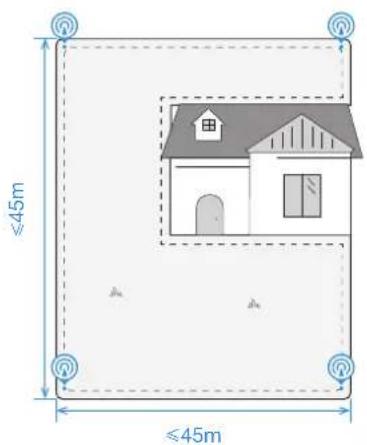

③ U-shaped lawn

• Side length: ≤slant 45m (all sides)
  • The number of Navigation Beacon needed: 4

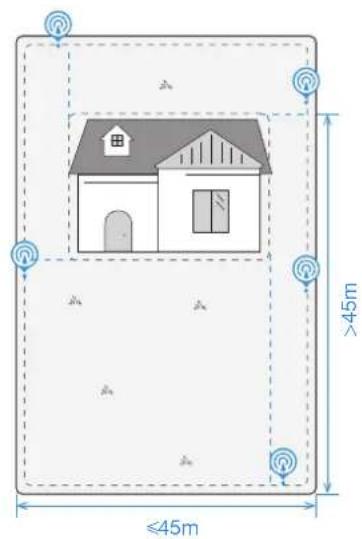

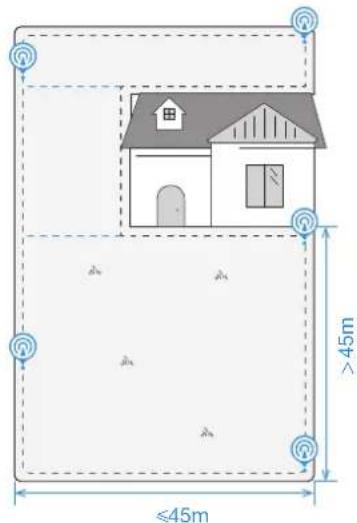

• Side length: 45-90 m (the distance marked out on right long side)
  • The number of Navigation Beacon needed: 5

≤45m ≤45m

≤45m >45m

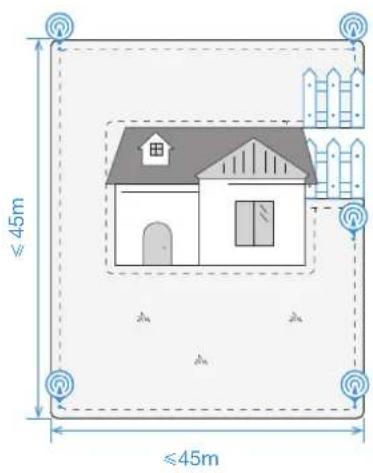

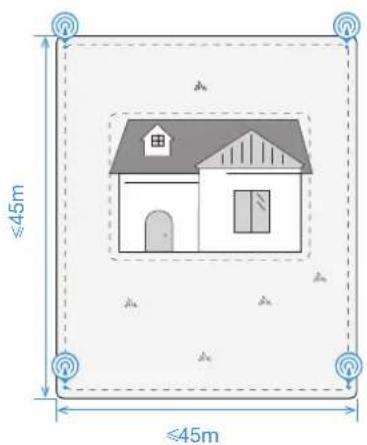

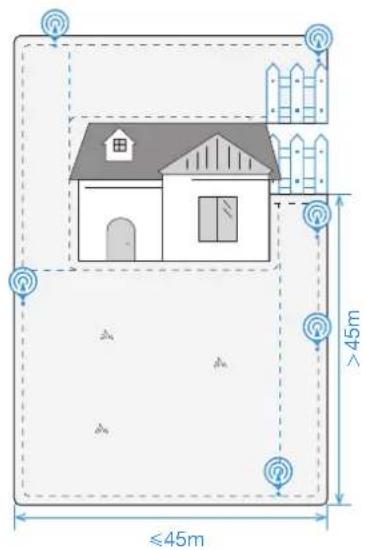

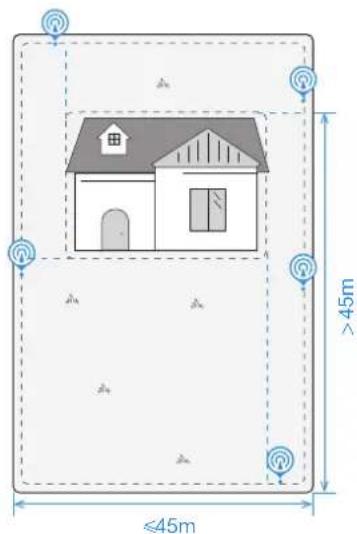

4 O-shaped lawn

• Side length: ≤slant 45m (all sides)
  • The number of Navigation Beacon needed: 4

• Side length: 45-90 m (the distance marked out on right long side)
  • The number of Navigation Beacon needed: 5

≤45m ≤45m

≤45m >45m

• Side length: ≤slant 45m (all sides)
  • The number of Navigation Beacon needed: 5

• Side length: 45-90 m (right long side)
• The number of Navigation Beacon needed: 6

≤45m ≤45m

≤45m >45m

* With the obstacle higher than 60 cm * With the obstacle higher than 60 cm

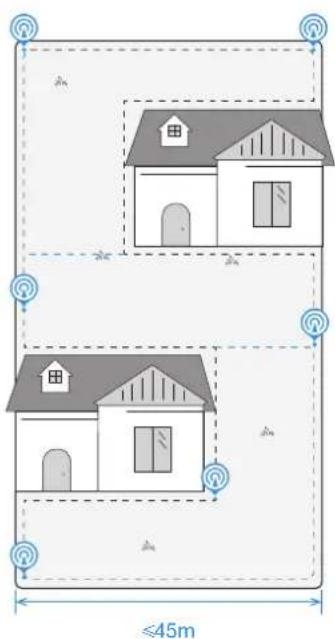

⑤ Irregular-shaped lawn

• Side length: ≤slant 45m (bottom short side)
  • The number of Navigation Beacon needed: 6

≤45m

Note: If your lawn type is very complex, it is recommended to contact Customer Service for a more reasonable plan.

CREATE THE MAP

Before mapping, the following tips need to be noted:

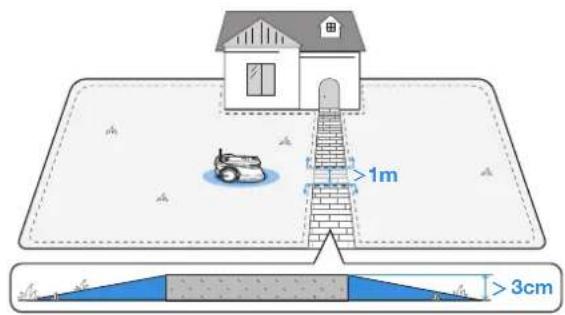

1. If your lawn is divided by paths with a height lower than 3 cm, please create a channel wider than 1 m when you create the map.
2. If your lawn is divided by paths with a height higher than 3 cm, please place an object with a slope equal in height to the path first (e.g. uphill mat) and create a channel wider than 1 m when you create the map.

1m 3cm

1. DO NOT map in the corridor narrower than 1 m.

>1m

≤1m ×

1. Do not create the virtual boundary on a slope that exceeds 20%.

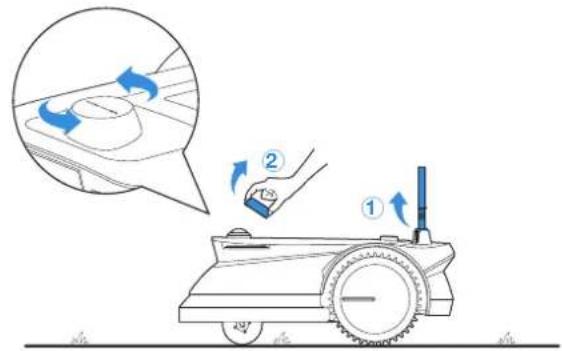

1. Make sure that Signal Receiver is lifted up and Panoramic Camera cover on your GOAT is removed.

* It is recommended to put the Panoramic Camera cover in Storage Box.

Diagram illustrating robotic arm movement with labeled parts and directional arrows, including a hand pressing a component.

1. Your GOAT correctly docks with the Station.

Line drawing of a mechanical device with wheels and a tool, no text or symbols present

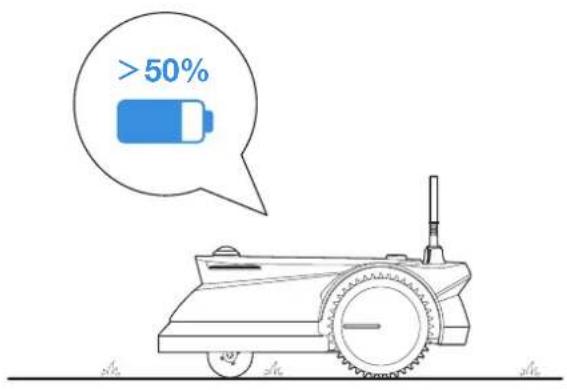

1. The battery level of your GOAT is more than 50%.

>50%

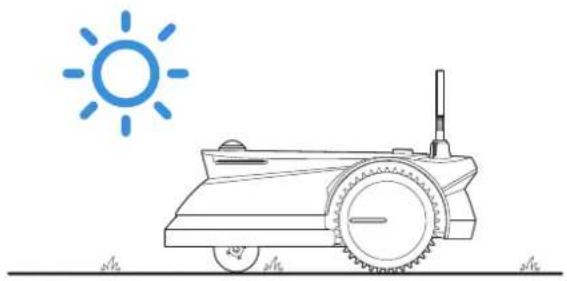

1. The map must be built between 8 am to 6 pm in order to get full sunlight.

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

② Map out the Virtual Boundary

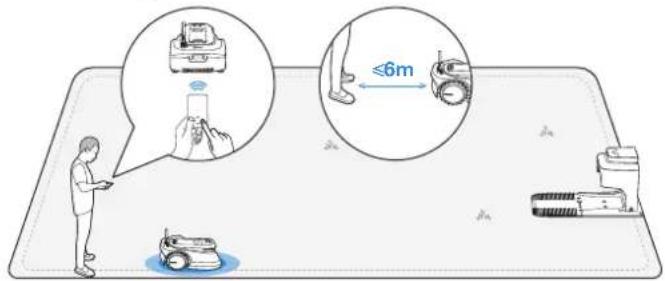

Let GOAT start from the Station and follow GOAT within 6 m. If the height difference is more than 3 cm, please keep your GOAT at least 10 cm from the edge of the lawn.

Diagram illustrating robot arm positioning with magnified views showing distance measurement of 6 meters between a robot and a person.

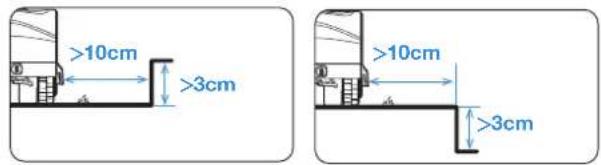

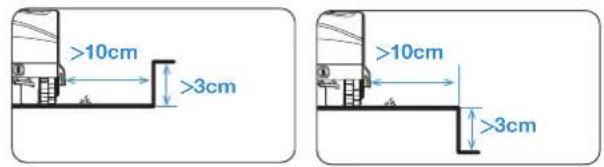

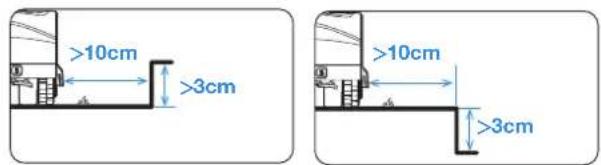

>10cm >3cm >10cm >3cm

- Make sure that the turning angle is greater than 90^ .

>90° <90°

③ Return to the Station

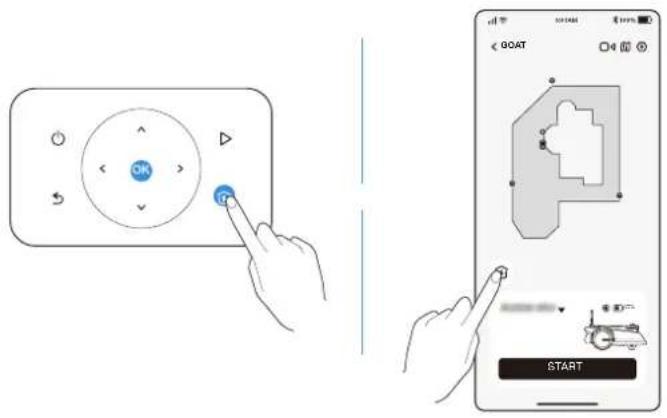

When controlling the GOAT to the place near the Station, you will receive a message from the App about whether to complete the boundary setup. Continue controlling your GOAT to the place 0.5 m in front of the Station and make sure that GOAT faces the Station. Then tap " 🔒" in the App. Your GOAT will automatically go back to Station to make a closed virtual boundary.

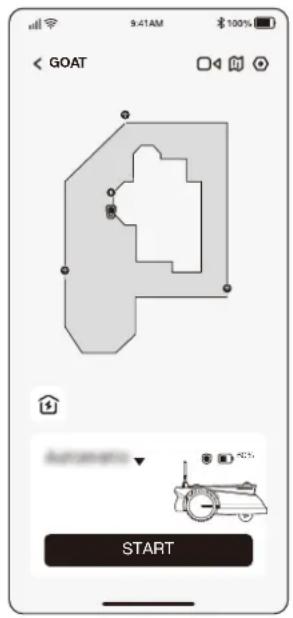

0.5m

Mobile app screenshot showing a user interface with a gray 3D geometric logo and Chinese text instructions.

4 Set up No-Entry Zone

Though GOAT can automatically adjust its direction when hitting solid obstacles such as stones or trees, it is still necessary to set up No-Entry Zones for objects you want to protect, such as a flowerbed, a trampoline and a vegetable plot. To protect your GOAT, areas where GOAT is prohibited from passing also should be set as No-Entry Zones, such as raised tree roots, exposed wire, pool and slope that exceeds 45%.

• Follow the instructions in the App.
• Control your GOAT to Return to the Station after the setup completes.

Illustration showing a person using a small robotic vehicle near a circular tank (no text or symbols)

⑤ Map Learning

After completing the boundaries, your GOAT needs to autonomously walk within the map to get familiar with the layout of your lawn. Then, a complete map will be generated automatically.

Depending on the size and complexity of your lawn, the learning time will vary from 20 minutes to 1 hour.

After completing the Map Learning, you can get the schedule automatically generated according to the actual lawn area and unlock more functions, such as different mowing modes, map editing and so on.

Mobile app interface showing a 3D geometric shape with control buttons (no readable text or symbols)

START USING YOUR GOAT

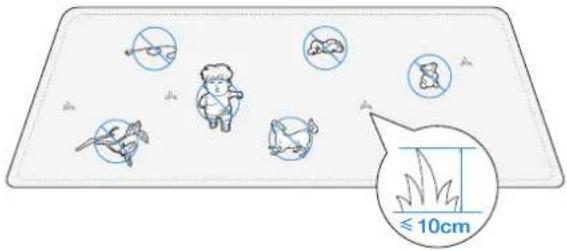

Tips before first mowing:

1. Cut the grass to a height of no more than 10 cm with your manual lawnmower and clear away obstacles including debris, piles of leaves, toys, wires and stones. Do not let your children play on the lawn when your GOAT is mowing.

Illustration showing various activities with icons and a magnified detail indicating ≤10cm size.

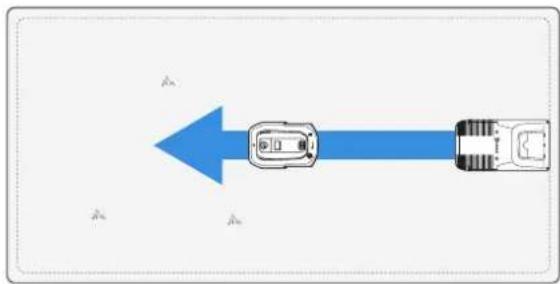

1. Set the mowing direction you need.

Note: Your GOAT will adjust its direction after departing from the Station and go straight forward to mow by default.

Blue arrow pointing left with a car icon, no text or symbols present

NOW COMES THE MOST EXCITING PART!

START YOUR GOAT FOR THE FIRST TIME

GET PREPARED: LET'S GET FAMILIAR WITH THE CONTROL PANEL ON YOUR GOAT.

1 Control Panel

Thu 12:30 DISPLAY to mow POWER ON/OFF START HOMEBACK STOP STOP

② Icons on display

	Battery level (Timely reflects the battery level of your GOAT.)
	Charging (Indicates GOAT's successful docking with the Station.)
	Bluetooth (Lights up when your GOAT is successfully connected with the App through Bluetooth.)
	Wi-Fi (Lights up when your GOAT is successfully connected with the App through Wi-Fi.)
	Connection (Lights up when additional Connection Module is installed.)
	Guarding (Lights up when you are using Video Manager in the App or related guarding functions.)
	Schedule (Lights up when Schedule is on.)

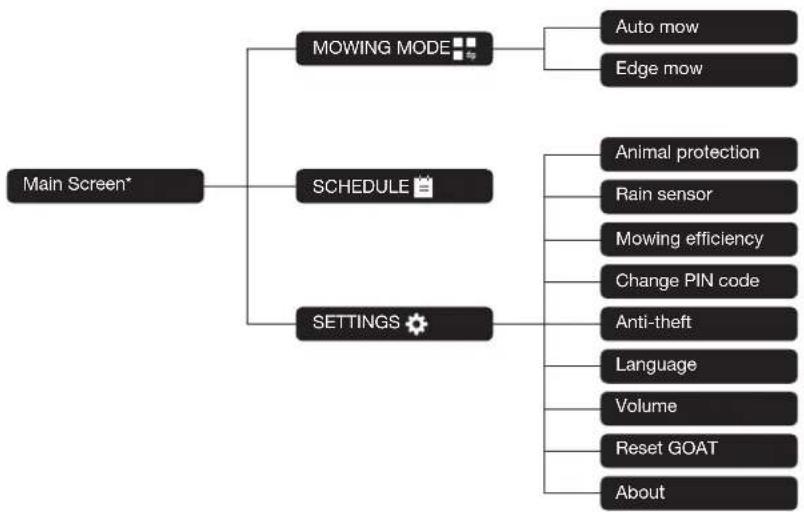

③ General Setting

1. Press to back to Main Screen.
2. Press > or < to select "MOWING MODE ■ "SCHEDULE " "SETTINGS ". Then press to enter.
3. Select the item you need by pressing √ or ∧Then press toKstart detailed operations.
4. Press 5 to go back.

Frame of Functions on Display

* It might be renewed according to the software version.

YOUR GOAT IS READY FOR MOWING NOW! PRINCIPLE FUNCTIONS AND OPERATIONS OF YOUR GOAT

1 Start

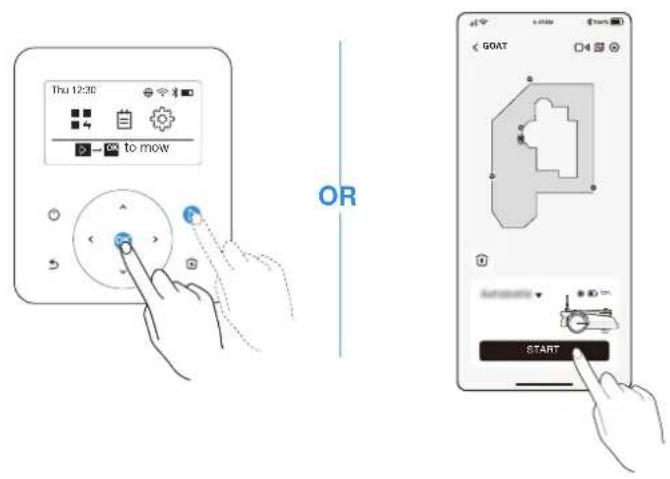

Press ▷, then OGOAT will start mowing. Or you can start mowing via the App.

Note: Make sure the grass has been cut to a height of no more than 10 cm with your manual lawnmower.

2 Pause

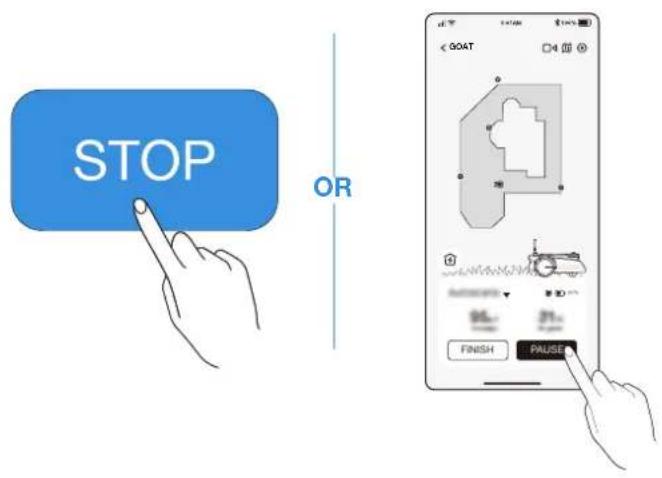

Press STOP on GOAT or stop it via the App.

- For security, your GOAT will be locked and cannot be started directly via the App after impressed. Please enter your PIN code on the Control Panel first.

Thu 12:30 to mow OR GOAT START

STOP OR GOAT FINISH PAUSE

③ Resume Mowing

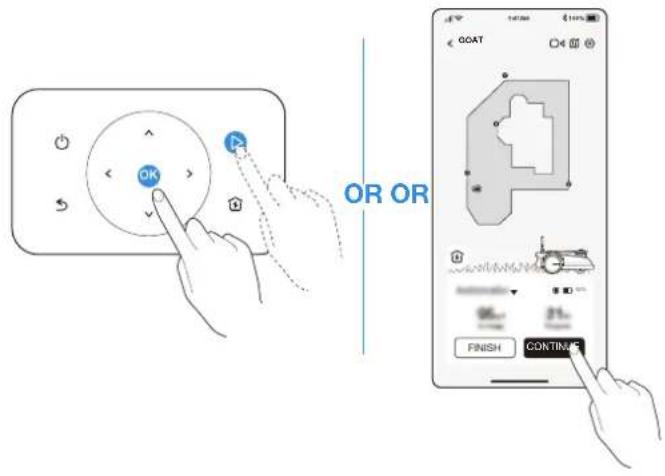

Press ▷ and then OK GOAT or tap the button in the App to resume mowing.

Note: It is necessary to enter your PIN code before resuming when encountering the following situations:

• Your GOAT is lifted up or tilted.
  • pressed.
• Your GOAT is restarted.

OK OR OR FINISH CONTINUE

4 Return to the Station

Send GOAT to the Station by pressing 🏠 or via the App.

< GOAT START

ECOVACS HOME APP

WHERE YOU CAN EXPLORE MORE

The App, is very powerful with multiple functions. Do not consider it simply as a remote control.

You can do many things via the App, such as completing various settings remotely, experiencing different mowing modes, editing the map freely and adjusting the mowing schedules.

Moreover, you can view the scenery of your lawn directly through the App.

Supporting the OTA (Over-the-Air) update, the new software update will automatically happen Over-the-Air with your confirmation so that you can experience more functions.

< GOAT 9:41AM 100% AUTO START

HOW YOUR GOAT WORKS

The following part will help you know how your GOAT works. GOAT is a smart robot equipped with AI and several sensors. It can deal with various complicated scenes autonomously.

1 Mowing mode

You can switch modes on your GOAT or via the App.

2 Schedule

GOAT automatically generates the mowing schedule according to the lawn area. Modify the pre-set in the App at any time. Supporting two schedules, GOAT enables you to set and switch based on different seasons.

③ Cutting height

GOAT is a smart robot for maintaining your lawn well. Before starting, make sure that the grass is no longer than 10 cm. If longer, cut the grass roughly with a manual lawnmower. Then your GOAT will keep the grass nicely clipped within a height of 6 cm.

4 Programmed cutting

With programmed cutting, your GOAT mows along an S-shaped path to achieve maximum efficiency.

5 Autonomous recharging

When the battery is low, your GOAT will pause the task autonomously and go back to the Station to charge itself. When fully charged, your GOAT will resume the unfinished mowing task of the day.

Blue icon depicting a vehicle and a charging station with lightning bolts (no text or symbols)

6 Rain sensor

With waterproof level of IPX6, your GOAT will be very pleased to stay outside. However, mowing under heavy rain will not bring out the best result. Your GOAT, equipped with the Rain Sensor, will pause mowing and return to the Station automatically when a certain amount of rainwater is detected. When the rain stops, GOAT will automatically resume the mowing task. It is recommended to mow in dry weather for the best mowing result.

You also can inactivate it on your GOAT or via the App to mow on rainy days.

7 Rain delay time

The lawn may still be wet after the rain stops. For a better mowing result, your GOAT will resume mowing 3 hours after the Rain Sensor detects that the rain has stopped by default. You can change the rain delay time via the App.

Blue icon depicting a car with exhaust smoke and clock, symbolizing transportation or industrial activity (no text or symbols)

8 Animal protection

With the aim to protect nocturnal animals, GOAT will stop mowing from 7 pm to 7 am the next day.

You also can inactivate it on your GOAT or via the App to mow at night

9 Smart obstacle avoidance

Equipped with ToF Sensor, your GOAT can detect objects taller than 15 cm and avoid them in advance. Moreover, some obstacles can precisely be avoided by AI recognition.

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

10 No need for disposal of grass clippings

Daily mowing with your GOAT leaves short clippings, which will be scattered evenly on the lawn as the best fertilizer.

11 Safety and PIN code protection

The PIN code you set for your GOAT at the first startup is used to prevent being stolen and operated by children. When GOAT is off map or lifted, it will automatically lock itself and raise an alarm. You can unlock it by entering the PIN code.

Note: You can change the PIN code on your GOAT in "SETTINGS ➕Change PIN code" or in the App in Settings->Account and security->Set the PIN code

12 Video guarding

Not merely a robot, GOAT enables you to see your lawn remotely and in real time through the top Panoramic Camera and Front AI Camera. With the ability to detect humans by AI, your GOAT can release the voice alarm and simultaneously send you the alarm message when it detects humans entering your lawn.

Blue icon showing a vehicle with warning sign and a person speaking into a microphone (no text or symbols)

AUSPACKEN LIEFERUMFANG

Exploded view diagram of household appliances and fixtures with numbered labels

Illustration of a smartphone with wireless signal icons above it, showing a device and its screen (no text or symbols present)

Diagram showing a device with a cable inserted into a circuit board, with an inset magnified view of the cable being inserted (no text or symbols present)

Illustration of a small electronic device with a magnified inset showing a blue upward arrow (no text or symbols)

Diagram illustrating a robotic arm operation with labeled steps and directional arrows indicating movement.

Technical line drawing of a mechanical device with rotating arms and base plates (no text or symbols)

Technical diagram showing a mechanical or electrical device with labeled components and a magnified inset illustrating the internal mechanism.

Diagram illustrating robotic arm operation with labeled steps and directional arrows indicating motion

Line drawing of a robotic vacuum cleaner with a blue component inserted, showing no text or symbols

LANGUAGE Dansk Deutsch English OK

③ N CODE OK OR >

1 CONFIRM OK

2 PIN code OK!

NEW PIN CODE OK

NEW PIN CODE OK

NEW PIN CODE OK

Diagram showing a mobile phone interface with IOMC label and a QR code payment terminal connected to a robot.

2. WLAN Verbindung (optional)

Wi-Fi Next step

Diagram illustrating smartwatch interface scanning process with QR code payment and pixelated sensor

③ Installation des Navigationssenders

Diagram showing a central square with three smaller circles and arrows pointing to its intersection, likely representing a set theory or geometric relationship.

5m 5m × ✓

≤45m

Two diagrams showing a ramp and an inclined plane with a pencil, marked with blue X and ✓ symbols (no text or labels)

Illustration of a hand holding a cylindrical tool with blue arrows indicating motion or force direction (no text or symbols)

EMPFOHLENE INSTALLATION

Diagram illustrating a rural road scenario with a house, a vehicle, and distances labeled >1m and >3cm.

≤45m ≤45m

>45m ≤45m

② L-förmiger Rasen

≤45m ≤45m

>45m ≤45m

③ U-förmiger Rasen

≤45m ≤45m

≤45m >45m

4 O-förmiger Rasen

≤45m ≤45m

≥45m ≤45m

≤45m ≤45m

≤45m >45m

Diagram illustrating a rural road scenario with a small boat, distances labeled >1m and >3cm, and a house above it.

Diagram illustrating robotic arm movement with labeled steps and directional arrows, including a hand pressing a component.

Line drawing of a mechanical device with wheels and a mounted component (no text or symbols)

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

Diagram illustrating robot navigation and distance measurement, showing a person interacting with a robot and a robot arm.

>10cm >3cm

>10cm >3cm

Mobile app screenshot showing a user interface with a gray 3D character and Chinese text instructions.

4 Verbotszone festlegen

Illustration showing a person using a small robotic device near a circular water tank with a globe, no text or symbols present.

5 Kartenlernen

Mobile app screenshot showing a location pin icon with control buttons and status bar

Illustration showing various activities with icons and a magnified detail indicating ≤10cm size.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

NUN KOMMT DER AUFREGENDSTE TEIL!

DER ERSTE START IHRES GOAT

Thu 12:30 to mow ODER START

STOP ODER GOAT FINISH PAUSE

③ Mähen fortsetzen

< GOAT 9:41AM 100% START

SO FUNKTIONIERT IHR GOAT

Blue icon depicting a vehicle and a charging station (no text or symbols)

6 Regensensor

Blue icon depicting a car with exhaust smoke and clock, symbolizing transportation or industrial activity (no text or symbols)

8 Tierschutz

Blue icon depicting a vehicle with signal waves and a traffic cone (no text or symbols)

Blue icon showing a vehicle with warning sign and speaker symbol (no text or labels)

DÉBALLAGE CONTENU

Illustration of a mobile device with Wi-Fi signal icons above it, showing no text or symbols on the device itself.

Diagram showing a device on a mat with a magnified inset highlighting a cable or cable penetration (no text or symbols present)

Illustration of a hand holding a small electronic device with an inset showing a device interacting with it (no text or symbols present)

Diagram showing a sewing machine with labeled parts and a magnified view of the component being handled.

Technical line drawing of a mechanical device with mounting holes and a base plate (no text or symbols)

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal components (no text or symbols present)

Diagram illustrating robotic arm movement with labeled steps ① and ②, showing hand pressing a component on a tracked vehicle.

Line drawing of a robotic vacuum cleaner with a blue clip and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

NEW PIN CODE NEW PIN

3 N CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK S S

NEW PIN CODE >

NEW PIN CODE OK

4 Téléchargez l'application ECOVACS HOME

Diagram showing a mobile phone interface with QR code and a robot-mounted device, likely for scanning or testing purposes.

2. Connexion Wi-Fi (facultatif)

Diagram of a cylindrical mechanical component with directional arrows indicating rotation or movement (no text or symbols)

Diagram of a cylindrical mechanical component with an arrow indicating direction (no text or symbols)

Beep~Click~ Dibio

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

ATTENTION

Diagram illustrating a smartwatch interface and its corresponding QR code payment mechanism, showing UI elements and payment process.

③ Installez la balise de navigation

Diagram showing a central square with surrounding dashed circles and two blue arrows pointing inward, likely representing a set intersection or relationship.

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and an inclined plane with a pencil, marked with blue X and ✓ symbols (no text or labels)

Illustration of a hand holding a cylindrical object with blue arrows indicating motion or force direction (no text or symbols)

INSTALLATION RECOMMANDÉE

≤45m ≤45m

>45m ≤45m

② Pelouse en L

≤45m ≤45m

>45m ≤45m

③ Pelouse en U

≤45m ≤45m

≤45m >45m

4 Pelouse en O

≤45m ≤45m

≤45m >45m

≤45m ≤45m

Diagram showing a house layout with dimensions and sensor placements, including annotations for distance ≤45m and height >45m.

Diagram illustrating robotic arm movement with labeled parts and directional arrows, showing hand pressing a component on a cart.

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

Diagram illustrating robot arm positioning with distance annotation and hands operating a device, showing a person interacting with robots.

>10cm >3cm >10cm >3cm

Mobile app screenshot showing a user interface with a gray icon and Chinese text, likely for a user application or registration.

4 Configuration de zones interdites

Illustration showing a person using a small robot near a circular platform with a scale and pointer (no text or symbols)

Mobile app interface screenshot showing a 3D shape selection dialog with Chinese labels and control buttons

Diagram illustrating a child playing with various activities, including swimming, weightlifting, and running, with a magnified view indicating 10cm width.

ET MAINTENANT LE PLUS INTÉRESSANT!

DÉMARREZ VOTRE GOAT POUR LA PREMIÈRE FOIS

PRÉPAREZ-VOUS : DÉCOUVREZ LE PANNEAU DE COMMANDE SUR VOTRE GOAT.

Thu 12:30 to mow OU START

2 Pause

OU OU OCAT FINISH CONTINUE

Diagram showing a hand pressing a button on a remote control and interacting with a DOAT app interface, with a 'START' button visible.

APPLICATION ECOVACS HOME POUR ALLER ENCORE PLUS LOIN

< GOAT 9:41AM 100% START

FONCTIONNEMENT DE VOTRE GOAT

Blue icon depicting a robotic car and a charging station with a lightning bolt symbol (no text or labels)

6 Capteur de pluie

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Blue icon of a car with motion lines and clock, no text or symbols present

The image contains no text or characters. It is a stylistic or background line with no actual text content.

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is not clearly visible, the OCR should output nothing.

Therefore, the corrected OCR text is:

```text [No text detected]

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Blue icon showing a vehicle, a warning sign, and a person with sound waves (no text or symbols)

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Exploded view diagram of a robotic vacuum cleaner with numbered parts including battery, screwdriver, and accessories

1 GOAT

3 Base

5 Alimentatore

7 Piolo × 8

9

Diagram showing a device with Wi-Fi signal and a hand holding a smartphone (no text or symbols present)

Diagram showing a device on a mat with a magnified inset highlighting internal components (no text or symbols)

Diagram of a sewing machine with a magnified inset showing a blue arrow indicating upward motion (no text or symbols present)

Diagram showing a sewing machine with labeled parts and a magnified view of the component being adjusted.

Diagram of a medical device with surgical tools and tubing, no visible text or symbols

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal connections (no text or symbols present)

(a) 30cm (12")

Diagram illustrating robotic arm movement with labeled parts and directional arrows, including a magnified inset showing rotational motion.

ECOVACS

COMINCIAMO A FARE SPERIMENTARE. COLLEGAMENTO DI GOAT CON L'APP

Preparazione:

Line drawing of a robotic vacuum cleaner with a blue clip and control panel (no text or symbols)

LANGUAGE ● Dansk ○ Deutsch ○ English

LANGUAGE Dansk Deutsch English

LANGUAGE Dansk Deutsch English OK

NEW PIN CODE NEW PIN

③ CODE OK OR >

CONFIRM OK

② PIN code OK!

NEW PIN CODE OK >

NEW PIN CODE OK

NEW PIN CODE OK

4 Scaricare l'app ECOVACS HOME

Diagram showing a mobile phone interface with QR code and a robot-mounted device, likely for scanning or testing purposes.

Diagram illustrating a QR code scanning process: before scanning, adding code to a smartphone screen, and after scanning to add a QR code on a smartwatch.

Venn diagram with two intersecting circles and a central square containing scattered triangles (no text or labels)

5m 5m × ✓ ≤ 45m

Two diagrams showing a ramp and an inclined plane with a pencil, marked with blue X and ✓ symbols (no text or labels)

Illustration of a hand holding a vertical cylindrical object with blue arrows indicating motion or force direction (no text or symbols)

1 m >3 cm

≤45m ≤45m

≥45m ≤45m

② Prato a "L"

≤45m ≤45m

>45m ≤45m

③ Prato a "U"

≤45m ≤45m

≤45m >45m

4 Prato a "O"

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

1 m >3 cm

≤20% 20% A≤20cm L = 100cm L = 100cm

A>20cm X

Diagram illustrating robotic arm operation with labeled steps and directional arrows indicating motion

Line drawing of a mechanical device with wheels and a tool, no text or symbols present

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

Diagram illustrating robot tracking and distance measurement, showing a person using a robot and a device with a magnified view of the robot's leg measurement.

>10cm >3cm >10cm >3cm

Mobile app screenshot showing a user interface with a 3D geometric logo and Chinese text instructions.

Illustration showing a person standing near a small robot and a circular tank with internal components (no text or symbols)

Mobile app interface screenshot showing a location pin and control buttons

COMINCIARE A USARE GOAT

Illustration showing various activities with icons and a magnified detail indicating a minimum distance of 10 cm.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

ORA ARRIVA LA PARTE PIÙ INTERESSANTE!

IL PRIMO AVVIO DI GOAT

PREPARATEVI: ACQUISIAMO FAMILIARITÀ CON IL PANNELLO DI CONTROLLO DI GOAT.

Thu 12:30 DISPLAY ACCENSIONE/ SPEGNIMENTO AVVIO HOMEINDIET STOP STOP

② Icone sul display

Thu 12:30 to mow OPPURE START

STOP OPPURE < GOAT FINISH PAUSE

Diagram showing a hand pressing a button on a remote control and interacting with a GOAT interface, with a 'START' button visible.

APP ECOVACS HOME

< GOAT 9:41AM 100% START

COME FUNZIONA GOAT

Blue icon depicting a robotic car and a charging station with a lightning bolt symbol (no text or labels)

6 Sensore pioggia

Blue icon depicting a car with exhaust smoke and clock, symbolizing transportation or industrial activity (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is a non-textual graphic, no character should be output.

Therefore, the corrected OCR text is:

```text [No text detected]

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is not clearly visible, the OCR should output nothing.

Therefore, the corrected OCR text is:

```text [No text detected]

12 Vigilanza video

Blue icon showing a vehicle with warning sign and a person speaking into a microphone (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is a non-textual graphic, no character should be output. Therefore, the corrected OCR text must reflect this absence of any content.

[No text detected]

DESEMBALAJE CONTENIDO DE LA CAJA

Illustration of a mobile phone with Wi-Fi signal icons above it, showing no text or symbols on the device itself.

Diagram showing a device on a mat with an inset close-up of its internal structure (no text or symbols)

Illustration of a device with a magnified inset showing a blue arrow pointing to a device (no text or symbols present)

Diagram showing a sewing machine with labeled parts and a magnified inset showing hand positioning on a sewing machine.

Diagram of a medical or laboratory device with electrodes and tubing, no visible text or symbols

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal components (no text or symbols present)

Diagram illustrating robotic arm movement with labeled steps ① and ②, showing hand positioning and motion arrows.

ECOVACS

Line drawing of a robotic vacuum cleaner with a blue component and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

NEW PIN CODE OK

NEW PIN CODE NEW PIN

③ N CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK G

NEW PIN CODE >

NEW PIN CODE OK

Diagram showing a mobile phone interface with a QR code and a device labeled 'BOM' connected to it, likely for scanning or authentication.

Diagram illustrating a QR code scanning process: before scanning, adding a cable to a device, and after scanning it.

Venn diagram with two intersecting circles and a central square containing scattered triangles (no text or labels)

≥10° × ≤45m

20cm 20cm × ✓

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and a block on an inclined plane, with no text or symbols present.

Illustration of a hand holding a cylindrical object with blue arrows indicating motion or force direction (no text or symbols)

Diagram illustrating a rural water feature with a boat, dam, and elevation markers (>1m and >3cm)

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

Diagram showing a house with dimensions and signal icons, including a 45m width and 200mm height measurement.

Pure diagram of a 3D object with no text, numbers, or symbols

Altura >20cm X

Diagram illustrating robot motion with labeled parts and directional arrows, showing hand pressing motion on a cart.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a tractor with a sun icon above it, no text or symbols present

Diagram illustrating robot navigation and distance measurement, showing hands interacting with a robot and a robot arm.

>10cm >3cm

>10cm >3cm

Mobile app screenshot showing a 3D geometric logo with Chinese text and a 'OK' button

Illustration showing a person standing next to a small robot and a circular object with internal patterns (no text or symbols)

Mobile phone screenshot showing a 3D geometric shape with control buttons at the bottom (no readable text or symbols)

EMPIECE A UTILIZAR GOAT

Diagram showing a person running with icons of animals and a magnified view indicating approximately 10cm size.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

Thu 12:30 to mow START

STOP GOAT FINISH PAUSE

Diagram showing hand interacting with a remote control interface and displaying a 3D navigation app interface with icons and labels.

< GOAT START

< GOAT 9:41AM 100% AUTO START

CÓMO FUNCIONA GOAT

Blue icon depicting a vehicle and a charging station with lightning bolts (no text or symbols)

6 Sensor de lluvia

Blue icon depicting a car with a flag, speedometer, and clock symbol (no text or numbers)

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is a non-textual graphic, no character should be output.

Therefore, the corrected OCR text is:

```text [No text detected]

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

The image contains no legible text or symbols. According to the guidelines, non-text figures and diagrams must be ignored. Therefore, the correct OCR output is an empty string.

Blue icon showing a vehicle with warning sign and speaker symbol (no text or labels)

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

UIT DE VERPAKKING HALEN INHOUD VAN DE DOOS

1 GOAT
3 Onderkant
5 Voedingskabel/-adapter
7 8 pinnen
9
11 2 navigatiestaven

UW GOAT LEREN KENNEN PRODUCTAFBEELDING
GOAT (bovenaanzicht)

Illustration of a smartphone with wireless signal icons above it, showing a device with grid and buttons (no text or symbols)

Diagram showing a device with a cable inserted into a housing, with an inset close-up of the cable being inserted (no text or symbols present)

Illustration of a sewing machine with a magnified inset showing a sewing needle (no text or symbols)

Diagram showing a printer setup with labeled parts and directional arrows, including numbered annotations.

Technical line drawing of a mechanical device with bolts and a base plate (no text or symbols)

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal connections (no text or symbols present)

1168NL

30cm (12 inch)

Diagram illustrating robotic arm motion with labeled steps ① and ②, showing hand placement and tool path

Line drawing of a robotic vacuum cleaner with a blue component and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

③ De pincode instellen

NEW PIN CODE NEW PIN

③ N CODE OK OR >

CONFIRM OK

② PIN code OK!

NEW PIN CODE OK

NEW PIN CODE OK

NEW PIN CODE OK

4 De app ECOVACS HOME downloaden

Diagram of a cylindrical mechanical component with two blue arrows indicating rotation or force direction (no text or symbols)

Beep~Click~ >>>

Diagram of a mechanical device with a spiral base and cylindrical shaft, showing rotational arrows (no text or symbols)

LET OP

Diagram illustrating a smartwatch interface and its corresponding QR code payment process, with Chinese labels.

Diagram showing a central square with four smaller circles, each containing a dashed-line border and labeled with 'a' symbols.

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and a block on an inclined plane, with no text or symbols present.

Illustration of a hand holding a cylindrical object with directional arrows indicating motion (no text or symbols)

AANBEVOLEN INSTALLATIE

≤45m ≤45m

>45m ≤45m

② L-vormig gazon

≤45m ≤45m

>45m ≤45m

③ U-vormig gazon

≤45m ≤45m

≥45m ≤45m

4 Rond gazon

≤45m ≤45m

≤45m >45m

≤45m ≤45m

Diagram showing a house with dimensions and sensor placements, including a 45m width measurement and labeled points.

Diagram showing two houses with connected devices and wireless signals, likely illustrating a home-to-urban connectivity or smart grid layout.

Diagram illustrating robotic arm movement with labeled parts and directional arrows, including a hand pressing a button.

Line drawing of a mechanical device with wheels and a tool, no text or symbols present

1184NL

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

② De virtuele randen in kaart brengen

Diagram illustrating robot arm positioning with labeled distances and sensor readings, showing a person interacting with robots and a robot on a floor.

>10cm >3cm

>10cm >3cm

Mobile app screenshot showing a user interface with a 3D geometric logo and Chinese text instructions.

Illustration of a person using a small robot near a circular water tank (no text or symbols)

5 Kaart leren

Mobile app interface screenshot showing a 3D object outline with control buttons and status bar

Diagram illustrating a child running with multiple animals and a magnified view showing a 10cm size measurement.

EN DAN HET LEUKSTE ONDERDEEL: DE GOAT VOOR HET EERST AANZETTEN

TER VOORBEREIDING: RAAK VERTROUWD MET HET BEDIENINGSPANEL OP DE GOAT.

1 Bedieningspaneel

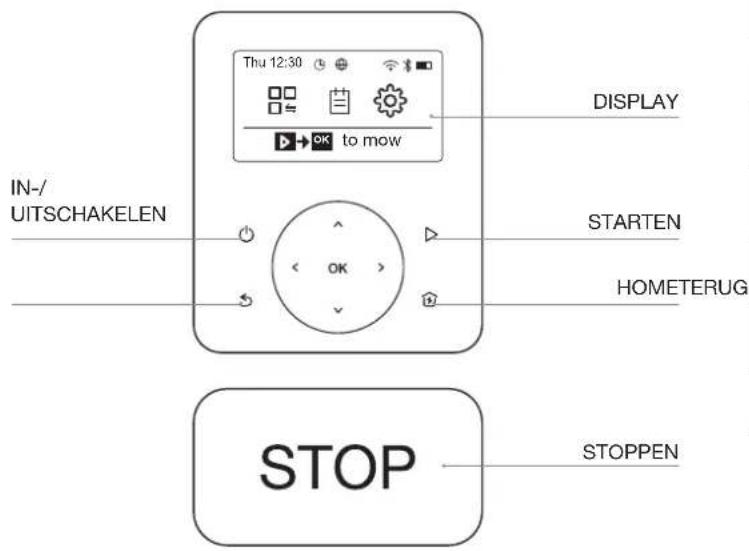

Thu 12:30 DISPLAY to mow IN-/UITSCHAKELEN STARTEN HOMETERUG STOP STOPPEN

② Weergegeven pictogrammen

Thu 12:30 to mow OF GOAT START

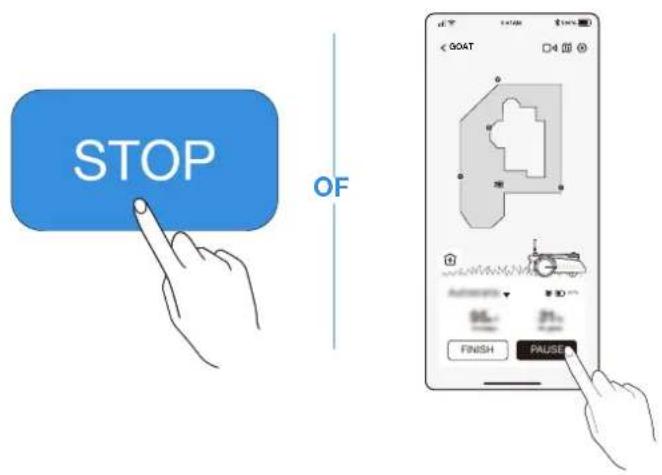

STOP OF GOAT FINISH PAUSE

Diagram showing a hand pressing a button on a remote control and interacting with a GOAT device, with a 'START' button visible.

IN DE ECOVACS HOME-APP

VINDT U NOG MEER INFORMATIE

< GOAT 9:41AM 100% AUTO START

HOE WERKT DE GOAT?

Blue icon depicting a vehicle and a charging station with lightning bolt symbol (no text or labels)

6 Regensensor

Blue icon depicting a car with a flag, speedometer, and clock symbol (no text or numbers)

8 Dierbeveiliging

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

Blue icon showing a vehicle with a warning sign and a person speaking into a microphone (no text or symbols)

UPPACKNING FÖRPACKNINGENS INNEHÅLL

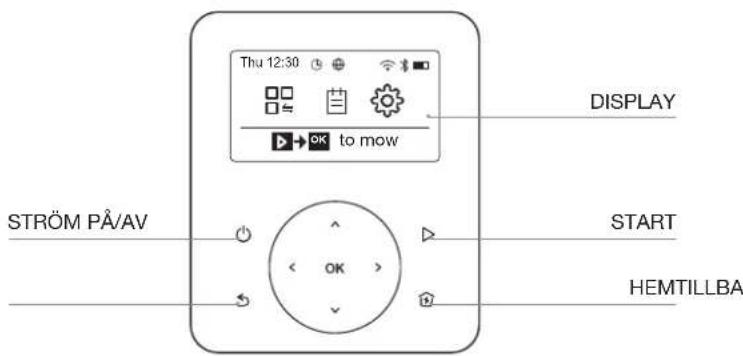

EN NÄRMARE TITT PÅ GOAT PRODUKTDIAGRAM
GOAT (ovansida)

Illustration of a mobile phone with Wi-Fi signal icons above it, showing no text or symbols on the device itself.

Diagram showing a device with a cable inserted into a housing, with an inset close-up of its cable (no text or symbols present)

Illustration of a mechanical device with a hand interacting with it, showing a magnified inset of the component (no text or symbols present)

Diagram showing a sewing machine with labeled parts and directional arrows indicating movement or operation.

Technical line drawing of a mechanical device with bolts and a base plate (no text or symbols)

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal connections (no text or symbols present)

(a) 30cm (12'')

Diagram illustrating robotic arm movement with labeled steps and directional arrows indicating motion sequence

Line drawing of a robotic vacuum cleaner with a blue panel and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

③ Ställ in PIN-kod

NEW PIN CODE OK

NEW PIN CODE NEW PIN

③ N CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK

NEW PIN CODE >

NEW PIN CODE OK

4 Hämta ECOVACS HOME-appen

Wi-Fi Next step

INSTALLERA NAVIGATIONSFYREN

Diagram illustrating a QR code scanning process: before scanning, adding code to a smartphone screen, and after scanning to add a QR code on a smartwatch.

③ Installera navigationsfyren

Allmänna principer:

Venn diagram with two intersecting circles and a central square containing scattered triangles (no text or labels)

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and an inclined plane with a pencil, marked with blue X and ✓ symbols (no text or labels)

Illustration of a hand using a tool to lift a cylindrical object with blue directional arrows indicating motion (no text or symbols)

REKOMMENDERAD INSTALLATION

≤45m ≤45m

>45m ≤45m

② L-formad gräsmatta

≤45m ≤45m

>45m ≤45m

③ U-formad gräsmatta

≤45m ≤45m

≤45m >45m

≤45m ≤45m

Diagram showing a house within a rectangular boundary with dimensions and signal icons, including annotations for width ≤45m and height >45m.

≤45m ≤45m

≤45m >45m

Diagram illustrating robot arm movement with labeled parts and directional arrows, showing motion sequence and component placement.

Line drawing of a mechanical device with wheels and a mounted component (no text or symbols)

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

Diagram illustrating robot arm positioning with distance annotation ≤6m between robotic arm and human operator

>10cm >3cm >10cm >3cm

Mobile app screenshot showing a user interface with a gray 3D letter 'P' and a small icon, likely for editing or scanning purposes.

4 Skapa en spärrzon

Illustration of a person using a small robot near a circular tank (no text or symbols)

⑤ Kartinlärning

Mobile app interface showing a 3D geometric shape with control buttons (no readable text or symbols)

Illustration showing various animals and a magnified view of a 10cm scale indicator with cartoon figures.

Blue arrow pointing left with a car icon, no text or symbols present

NU KOMMER DEN MEST SPÄNNANDE DELEN!

STARTA GOAT FÖR FÖRSTA GÅNGEN

FÖRBERED DIG: TA EN NÄRMARE TITT PÅ KONTROLLPANELEN PÅ GOAT.

1 Kontrollpanel

Thu 12:30 DISPLAY to mow STRÖM PÅ/AV START HEMTILLBA

② Ikoner på displayen

STOP STOPP

Thu 12:30 to mow ELLER GOAT START

STOP ELLER GOAT FINISH PAUSE

< GOAT 9:41AM 100% AUTO START

SÅ HÄR FUNGERAR GOAT

Blue icon depicting a vehicle and a charging station with lightning bolt symbol (no text or labels)

6 Regnsensor

Blue icon depicting a car with exhaust smoke and clock, symbolizing transportation or industrial activity (no text or symbols)

8 Djurskydd

Blue icon depicting a vehicle with signal waves and a traffic cone (no text or symbols)

The image contains no legible text or symbols. According to the guidelines, non-text figures and diagrams must be ignored. Therefore, the correct OCR output is an empty string.

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the GT has no visible text, the OCR should not output any characters. Therefore, the corrected OCR text is:

[No text detected]

12 Videoövervakning

Blue icon showing a vehicle with warning sign and a person speaking into a microphone (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is a non-textual graphic, no character should be output. Therefore, the corrected OCR text must reflect this absence of any content.

[No text detected]

UTPAKKING DETTE ER I ESKEN

BLI KJENT MED GOAT PRODUKTDIAGRAM
GOAT (vist ovenfra)

Regnsensor STOPP-knapp Signalmottaker* Luke Fremre Al-kamera Justeringsbryter for klippehøyde Kontrollpanel Ladekontakter Panoramakamera ToF-sensor

Illustration of a mobile device with Wi-Fi signal icons and a hand holding a smartphone (no text or symbols present)

Diagram showing a device with a cable inserted into a circuit board, with an inset magnified view of the cable being inserted (no text or symbols present)

Illustration of a hand holding a device next to a flat surface, with an inset showing a curved tool interacting with the device (no text or symbols present)

Diagram illustrating a sewing machine operation with labeled steps and directional arrows indicating movement

Diagram of a machine with sensors and control panel, no text or symbols present

② Koble strømgrensesnittet til strømforsyningen

1. Sett innsnittet (a) inn i sporet (b).

a

b

Technical diagram of a mechanical or electrical device with labeled components and a magnified inset showing internal connections (no text or symbols present)

(a) 30cm (12'')

Diagram illustrating robotic arm movement with labeled steps ① and ②, showing hand positioning and motion arrows.

Line drawing of a robotic vacuum cleaner with a blue clip and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

③ Konfigurer PIN-koden

NEW PIN CODE A

NEW PIN CODE NEW ↑ -

3 N CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK >

NEW PIN CODE

NEW PIN CODE OK

4 Last ned ECOVACS HOME-appen

Diagram showing a mobile phone interface connected to a QR code scanning device, with Chinese UI elements and a robot base.

2. Wi-Fi-tilkobling (valgfritt)

Wi-Fi Next step

Diagram of a cylindrical mechanical component with two blue arrows indicating rotational direction (no text or symbols)

Beep~

Click~ 01/02

Diagram of a mechanical device with a spiral base and cylindrical shaft, showing rotational motion arrows (no text or symbols)

ADVARSEL

Diagram illustrating a smartwatch interface and its corresponding QR code payment process, with Chinese labels.

Venn diagram with two intersecting circles and a central square containing scattered triangles (no text or labels)

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and a block on an inclined plane, with no text or symbols present.

Illustration of a hand holding a vertical cylindrical object with blue arrows indicating rotational motion (no text or symbols)

ANBEFALT INSTALLASJON

≤45m ≤45m

>45m ≤45m

L-formet plen

≤45m ≤45m

>45m ≤45m

③ U-formet plen

≤45m ≤45m

≥45m ≤45m

4 O-formet plen

≤45m ≤45m

Diagram showing a house with dimensions and wireless signal icons, including measurements ≤45m and >45m

≤45m ≤45m

Diagram showing a house with dimensions and sensor placements, including a 45m height and 200mm width measurement.

≤20% 20% H≤20cm L = 100cm L = 100cm

H>20cm ×

Diagram illustrating robotic arm movement with labeled parts and directional arrows, showing motion sequence and component positioning.

Line drawing of a mechanical device with wheels and a tool, no text or symbols present

Line drawing of a tractor with wheels and a sun symbol above it (no text or labels)

② Kartlegg den virtuelle grensen

Diagram illustrating robot arm positioning with distance annotation ≤6m and hands operating a device

>10cm >3cm

>10cm >3cm

Mobile app screenshot showing a user interface with a gray tool icon and Chinese text instructions.

Illustration of a person standing next to a small robot and a circular tank with a grid pattern (no text or symbols)

5 Kartlæring

Mobile app interface showing a 3D geometric shape with control buttons (no readable text or symbols)

TA GOAT I BRUK

Illustration showing a child running with icons and a magnified view indicating a minimum height of 10 cm.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

NÅ KOMMER DEN MEST SPENNENDE DELEN!

START GOAT FOR F∅RSTE GANG

FORBERED DEG: LA OSS BLI KJENT MED KONTROLLPANELET PÅ GOAT.

1 Kontrollpanel

Thu 12:30 SKJERM to mow STRÖM PÅ/AV START HJEMTILBAKE

STOP STOPP

③ Generelle innstillinger

Thu 12:30 to mow ELLER START

STOP ELLER GOAT FINISH PAUSE

③ Starte klipping på nytt

Diagram showing a hand pressing a button on a remote control and interacting with a DOAT app interface, with a 'START' button visible.

ECOVACS HOME-APPEN

DER DU KAN UTFORSKE MER

Appen er svært komplett med flere funksjoner. Ikke se på den kun som en fjernkontroll.

< GOAT 9:41AM 100% START

SLIK FUNGERER GOAT

Blue icon depicting a vehicle and a charging station with lightning bolt symbol (no text or labels)

6 Regnsensor

Blue icon of a car with motion lines and clock, no text or symbols present

8 Dyrebeskyttelse

The image contains no text or characters. It is a graphical representation of a horizontal line, which is a stylistic or background element and must be ignored according to the rules. Therefore, the correct OCR output is an empty string.

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

11 Sikkerhet og PIN-kodebeskyttelse

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

12 Videoovervåking

Blue icon showing a vehicle with warning sign and speaker symbol (no text or labels)

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

UDPAKNING HVAD DER ER I KASSEN

1 GOAT

3 Base

5 Strømforsyning

7 Pløk × 8

9

10 Signallys ×2Tørcelle ×6

Illustration of a smartphone with wireless signal icons above it, no text or symbols present

Diagram showing a device on a mat with a magnified inset highlighting internal components (no text or symbols)

Illustration of a hand holding a small object on a mat, with an inset showing a blue arrow pointing upward (no text or symbols)

Diagram showing a sewing machine with labeled parts and a magnified inset showing hand positioning on the right side.

Technical illustration of a machine tool with sensors and a base, no text or symbols present

Technical diagram showing a mechanical device connected to a coiled cable and a pressure sensor, with an inset illustrating the connection mechanism.

1264DK

Diagram illustrating robotic arm movement with labeled steps and directional arrows, including a magnified view of the motion path.

Line drawing of a robotic vacuum cleaner with a blue clip and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

③ Indstil PIN-koden

NEW PIN CODE ↑ +

② NEW PIN CODE NEW PIN ^ -

③ CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK

NEW PIN CODE OK

NEW PIN CODE OK

4 Download ECOVACS HOME App

Diagram showing a mobile phone interface with a QR code and a robot-mounted device, likely for scanning or testing purposes.

2. Wi-Fi-forbindelse (valgfrit)

Wi-Fi User Ship

Diagram illustrating a QR code scanning process: before scanning, adding a screwdriver to a device screen.

③ INSTALLERE NAVIGATIONSSIGNALLYSET

Generelle principper:

1. Signaldækningsradius for hvert navigationssignallys er 45 m.

45m

Venn diagram with two intersecting circles and a central square containing scattered triangles (no text or labels)

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and a block on an inclined plane, with no text or symbols present.

Illustration of a hand holding a cylindrical object with blue arrows indicating motion or force direction (no text or symbols)

ANBEFALET INSTALLATION

Diagram illustrating a rural water feature with a boat, dam, and elevation markers (>1m and >3cm)

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

≤20% 20% H≤20cm L = 100cm L = 100cm

H>20cm ×

Diagram illustrating robotic arm movement with labeled steps ① and ②, showing hand positioning and motion arrows.

Technical line drawing of a mechanical device with a central wheel and base plate (no text or symbols)

Line drawing of a small agricultural robot with a sun icon above it, no text or symbols present

Diagram illustrating robot arm positioning with magnified views showing distance ≤6m between robotic arm and human operator

>10cm >3cm

>10cm >3cm

Mobile app screenshot showing a 3D object icon with Chinese text and a button labeled 'OK' (OK)

Illustration of a person standing next to a small robot and a circular tank with a grid, both without any text or symbols.

⑤ MAP LEARNING (kortlæring)

Mobile app interface screenshot showing a 3D object outline with control buttons and status bar

Diagram illustrating a child's physical activity with icons and a magnified view showing a 10cm scale.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

NU KOMMER DEN MEST SPÄNDENDE DEL!

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

Thu 12:30 to mow ELLER START

STOP ELLER GOAT FINISH PAUSE

③ Genoptag slåning

< GOAT 9:41AM 100% START

Blue icon depicting a vehicle and a charging station with lightning bolt symbol (no text or labels)

6 Regnsensor

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

7 Regnforsinkelsestid

Blue icon depicting a car with a flag, speedometer, and clock symbol (no text or numbers)

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

8 Dyrebeskyttelse

The image contains no text or characters. It is a graphical representation of a horizontal line, which is a stylistic or background element and must be ignored according to the rules. Therefore, the correct OCR output is an empty string.

9 Smart forhindringsundgåelse

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

The image contains no text. The horizontal lines are stylistic or background elements and must be ignored according to the rules.

12 Videoovervågning

Blue icon showing a vehicle with warning sign and a person speaking into a microphone (no text or symbols)

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

PAKKAUKSEN PURKAMINEN MITÄ LAATIKOSSA ON

Illustration of a mobile phone with wireless signal icons above it, showing a device and its hand holding the phone (no text or symbols present)

Diagram showing a device on a mat with an inset close-up of its cable and plug (no text or symbols)

Illustration of a hand operating a small building with an arrow pointing to it, no text or symbols present.

Diagram showing a device with labeled parts and a magnified view of the component being inserted into a cable or cable.

Diagram of a medical or laboratory device with electrodes and tubing, placed on a flat surface (no text or symbols visible)

Technical line drawing of a mechanical or electrical device with a coiled spring and connected tubing, showing no text or symbols.

Diagram illustrating robotic arm motion with labeled steps ① and ② showing hand positioning and tool path

Line drawing of a robotic vacuum cleaner with a blue clip and control panel (no text or symbols)

LANGUAGE Dansk Deutsch English OK

③ Säädä PIN-koodi

NEW PIN CODE A

NEW PIN CODE NEW ^ -

3 N CODE OK OR >

1 CONFIRM OK

② PIN code OK!

NEW PIN CODE OK

NEW PIN CODE

NEW PIN CODE OK

4 Lataa ECOVACS HOME -sovellus

Mobile phone interface screenshot showing a QR code scanning process with a mobile device labeled '手机' (mobile phone) and a hand pointing to it.

Diagram illustrating a QR code scanning process: before scanning, adding code to a smartphone screen, and after scanning to add a QR code on a smartwatch.

Venn diagram with two intersecting circles and a central square containing scattered symbols (no text or labels)

5m 5m × ✓ ≤45m

Two diagrams showing a ramp and an inclined plane with a pencil, marked with blue X and ✓ symbols (no text or labels)

Illustration of a hand holding a vertical tool with blue arrows indicating rotational direction (no text or symbols)

SUOSITELTAVA ASENNUS

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

>45m ≤45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

≤45m ≤45m

≤45m >45m

Diagram illustrating robotic arm movement with labeled parts and directional arrows, including a hand pressing a component.

Line drawing of a mechanical device with wheels and a tool, no text or symbols present

1. GOAT-akun lataustaso on yli 50%.

>50%

Line drawing of a small agricultural robot with a sun icon above it, no text or symbols present

Diagram illustrating robot tracking and distance measurement, showing a person using a robot and a printer with a magnified view of the robot's leg measurement.

>10cm >3cm >10cm >3cm

Mobile app screenshot showing a user interface with a 3D geometric logo and Chinese text instructions.

Illustration of a person using a small robotic vehicle near a circular water tank (no text or symbols)

⑤ Kartan oppiminen

Mobile app interface screenshot showing a location pin and control buttons with Chinese labels

ALOITA GOATIN KÄYTTÖ

Diagram illustrating a physics experiment with cartoon characters and a magnified view showing a 10cm scale indicator.

Diagram showing a blue arrow pointing left with a car icon, no text or symbols present

NYT TULEE JÄNNITTÄVIN OSA! KÄYNNISTÄ GOAT ENSIMMÄISTÄ KERTAA

GOAT ON NYT VALMIS LEIKKAAMAAN NURMIKON! GOATIN TÄRKEIMMÄT TOIMINNOT

1 Käynnistys

Thu 12:30 to mow TAI START

2 Pause

TAI TAI OK CONTINUE

4 Paluu asemaan

Diagram showing a hand interacting with a remote control and a mobile app interface with a robot and 'START' button.

ECOVACS HOME -sovellus

JOSSA VOIT LÖYTÄÄ LISÄÄ MAHDOLLISUUKSIA

< GOAT 9:41AM 100% START

MITEN GOAT TOIMII

Blue icon depicting a vehicle and a charging station (no text or symbols)

6 Sadeanturi

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

7 Sadeviive

Blue icon depicting a car with exhaust smoke and clock, symbolizing transportation or industrial activity (no text or symbols)

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

8 Eläintensuojelu

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

Blue icon showing a vehicle emitting sound waves next to a traffic cone (no text or symbols)

The image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is not clearly visible, the OCR should output nothing.

Therefore, the corrected OCR text is:

```text [No text detected]

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[empty string]

The image contains no legible text or symbols. According to the guidelines, non-text figures and diagrams must be ignored. Therefore, the correct OCR output is an empty string.

12 Videosuojaus

Blue icon showing a vehicle with warning sign and speaker symbol (no text or labels)

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Ecovacs Home Service Robotics Co., Ltd.

No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China.

451-2201-0000
