English

Bagless vacuum cleaners BXVML700E

Dear customer,

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Safety advice and warnings

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  ◆ Cleaning and user maintenance shall not be made by children without supervision
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  ◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
  ◆ If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised

technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

◆ This appliance is for household use only, not professional, industrial use.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

♦ Do not touch the plug with wet hands.

• Do not use the appliance if the cable or plug is damaged.
  If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

Use and care:

• Do not use the appliance without its filter(s) correctly in place.
• Do not use the appliance if its accessories are not properly fitted.
  Do not use the appliance if the accessories or consumables attached to it are defective. Replace them immediately.
• Do not use the appliance to gather up water or any other liquid.
• Do not use the appliance if the on/off switch does not work.
  ◆ Use the appliance handle/s, to catch it or move it.
  ◆ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
  ◆ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
  Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

ENGLISH

(Original instructions)

• Do not work on areas where there are metal objects, such as nails and/or screws.
  ◆ Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).
• Only use the appliance for carrying out dry tasks.
  Do not use the appliance to pick up liquids, toxic substances, flammable or combustible liquids.
  ◆ To prevent accidents, store vacuum after each sure.
  ◆ Do not operate in the presence of explosives and/or flammable fumes or liquids

Service:

◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

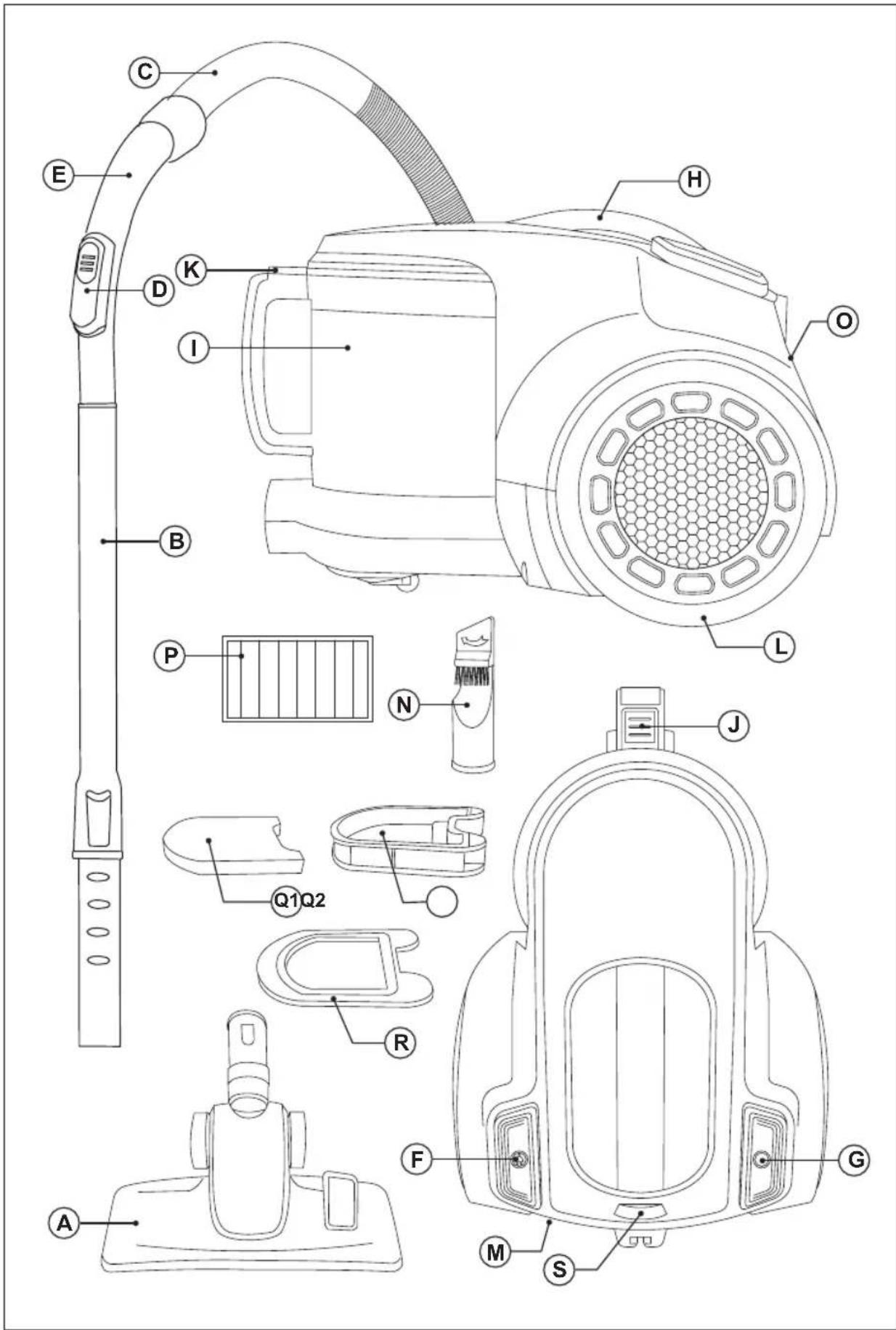

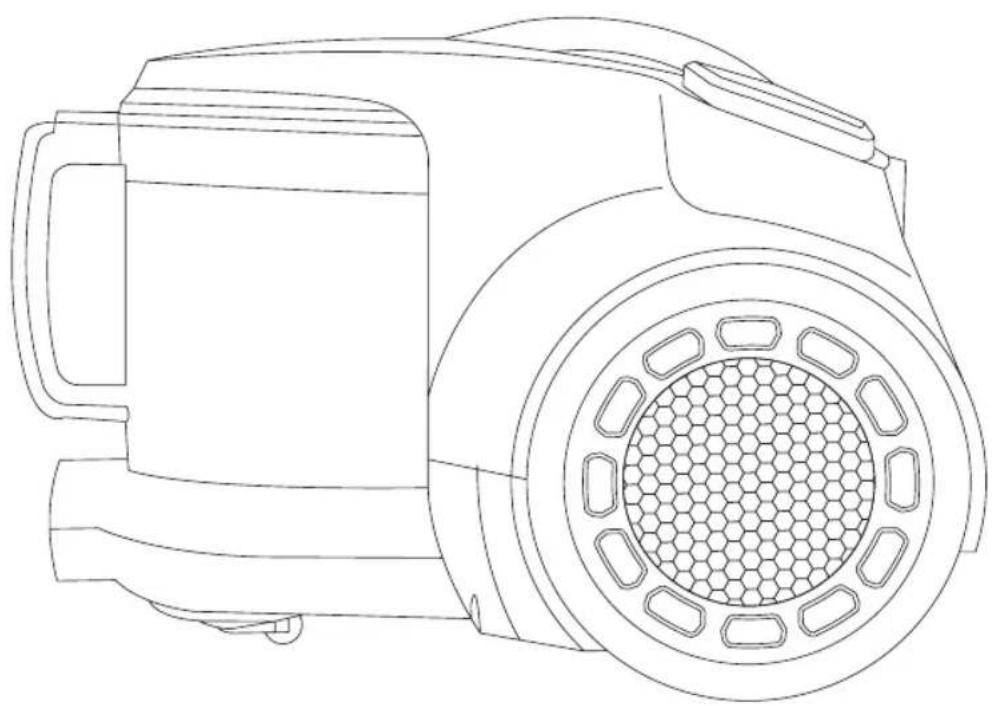

Description

A Floor nozzle

B Telescopic tube

C Hose set

D Manual air regulator

E Hose head

F Automatic cord rewind

G On/off switch

HCarry handles

I Tank

J Extraction button for deposit

K Opening button for deposit

L Wheels

M Cord housing

N Crevice nozzle + Multi-use brush

O Grill outlet filter

P Outlet filter

Q Motor filter

Q1 Foam filter

Q2 Microfiber filter

R Fixing part of the motor filter

S Power regulator

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Instructions for use

Before use:

◆ Make sure that all products' packaging has been removed.

Vacuuming function:

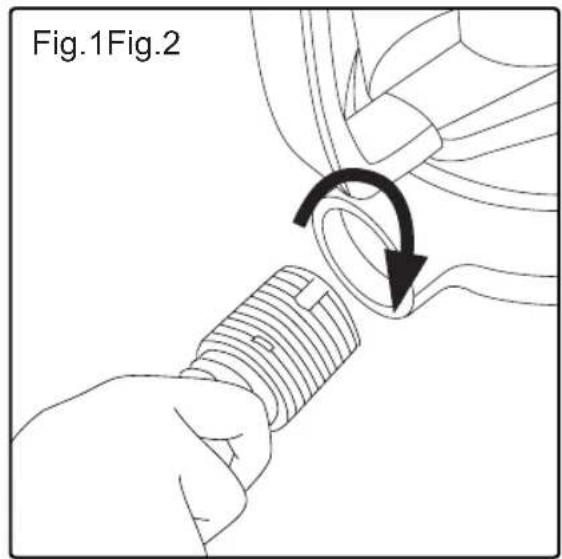

◆ Fit the hose unit to the vacuum cleaners air intake and fix the hose turned to right side (Fig.1).

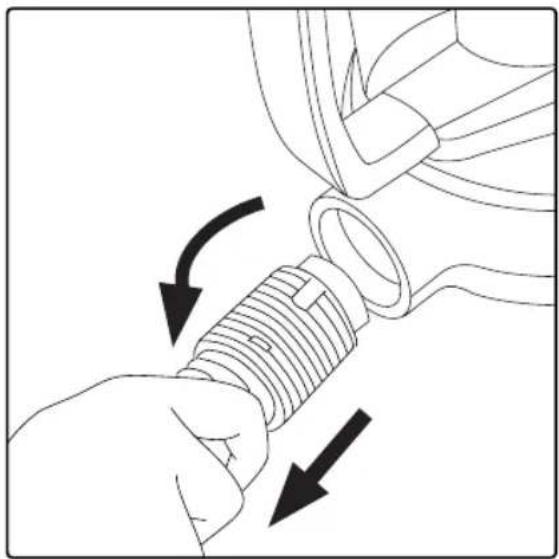

◆ To disconnect the hose unit from the vacuum cleaner, turn the connection to the left side and pull out the hose. (Fig.2).

Insertion of accessories into the appliance's grip:

• The appliance's grip is designed in such a way that it allows the insertion of the following accessories (use the combination that best meets your requirements):
  ◆ Extendible tube: designed to provide access to surfaces which are out of reach and make floor cleaning comfortable, its length can be adjusted by using the adjustment control. (B)
  ◆ Floor nozzle: specially designed for cleaning floors (both rugs and carpets and hard floors), its base has a retractable brush that can be adjusted to two heights for greater efficiency on these floors. It is advisable to have the brush out for hard floors and the brush in for rugs and carpets.(A)
  ♦ Lance and multi-use brush: specially designed for getting into cracks and difficult corners, brush especially for textile surfaces. (N)

Use:

◆ Take the length of cable required out of the housing. (M)
◆ Connect the appliance to the mains.
♦ Turn the appliance on, by using the on/off button. (G)

Once you have finished using the appli- ance:

♦ Turn the appliance off using the on/off button. (G)
◆ Unplug the appliance from the mains.
◆ Retract the cable by pressing the roller cable button and guide the cable into the appliance. (F)
- The cable housing means you can remove and have available the required length of cable for working with the appliance, preventing accident risk situations.
◆ Clean the appliance.

Carry handle/s:

- This appliance has a handle on the front part of the body, which facilitates comfortable transportation (H).

Parking position:

• This appliance has its own parking position for comfortable and straightforward storage.
  You can use the parking aid on the back of the vacuum cleaner sliding the hook of the brush into the recess on the rear of the appliance (Fig. 3).

(Original instructions)

ENGLISH

Cleaning

◆ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
◆ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.

Emptying the dust box

◆ Empty the dust container after each use of the vacuum cleaner.
♦ Disconnect the hose unit from the vacuum cleaner, turn the connection to the left side and pull out the hose. (Fig.2)

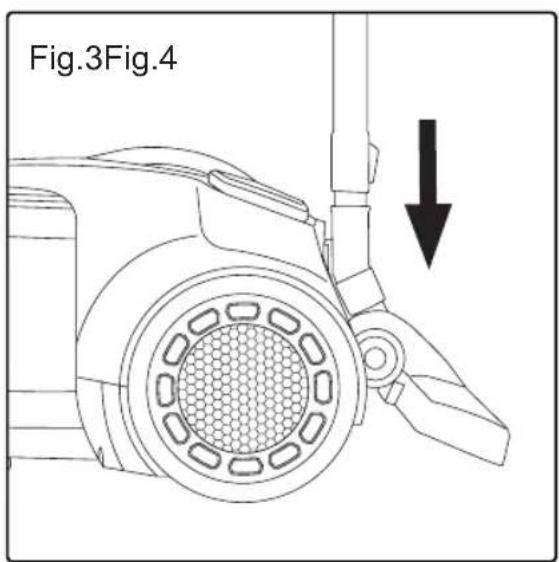

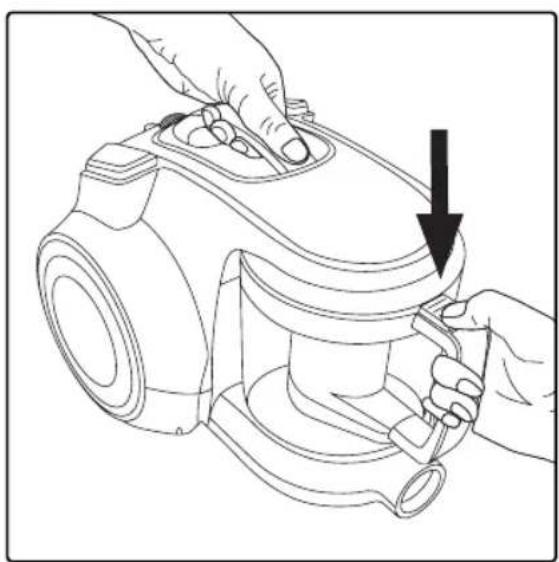

◆ Disconnect the dust box from the appliance by pressing the extraction button (J) (Fig. 4)

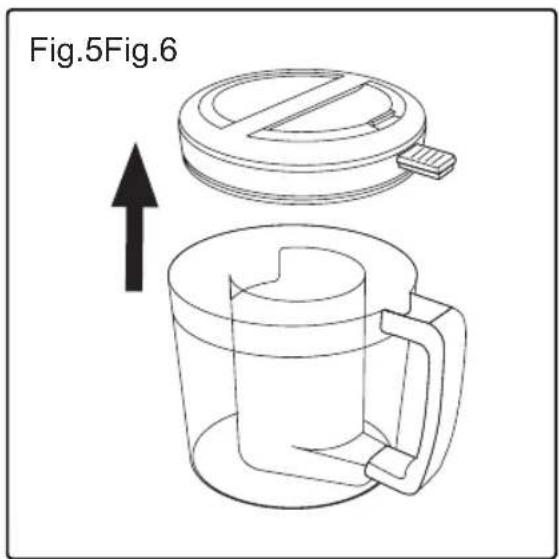

◆ Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. (Fig.5)
◆ Check the condition of the motor filter.
◆ Close the lid of the dust box.
◆ Attach the dust box to the appliance.
◆ Fit the hose unit to the vacuum cleaners air intake and fix the hose turned to right side (Fig.1).

Changing the filters:

◆ Motor filter (Q), it is advisable to periodically check the state of the filter, which should be cleaned/replaced after every 50 hours of use.
HEPA type air outlet filter (high efficiency air filter which effectively removes spores, ash, dust mites, pollen ...), it is advisable to periodically check the condition of the filter, it should be cleaned/replaced after every 50 hours of use, or if a significant drop in suction power is noticed

To remove the filters:

Motor filter:

◆ Disconnect the dust box from the appliance by pressing the extraction button (J) (Fig. 4)

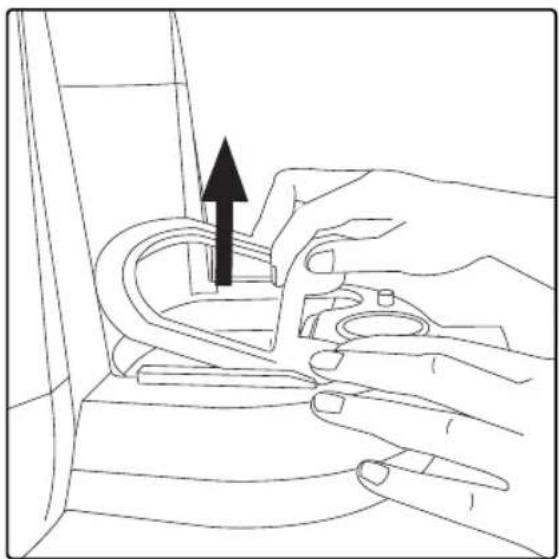

◆ Open fixing part of the motor filter (R) that contains the filter. (Fig. 6)
◆ Remove the filters: black foam filter (Q1) and the microfiber filter (Q2) from its housing.

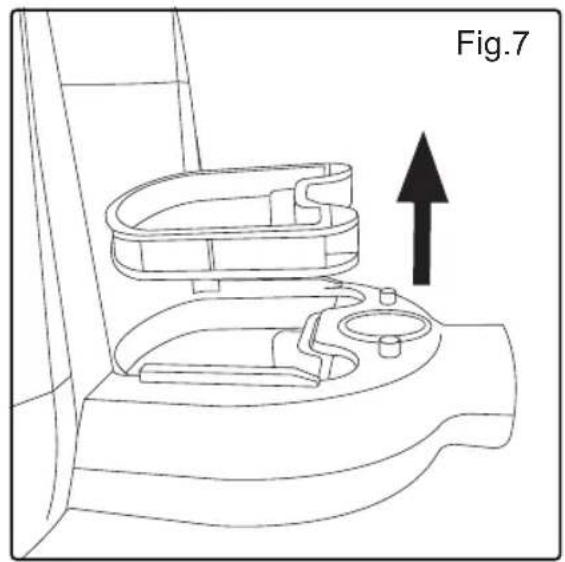

♦ (Fig. 7)
◆ Wash the black foam filter (Q1) under the tap with clean water, scrub it like a sponge and let it dry for 24 hours.

• Turn the microfiber filter (Q2) over and shake it in the garbage can. If necessary, you can wash it under the tap with lukewarm water and let it dry 24 hours.

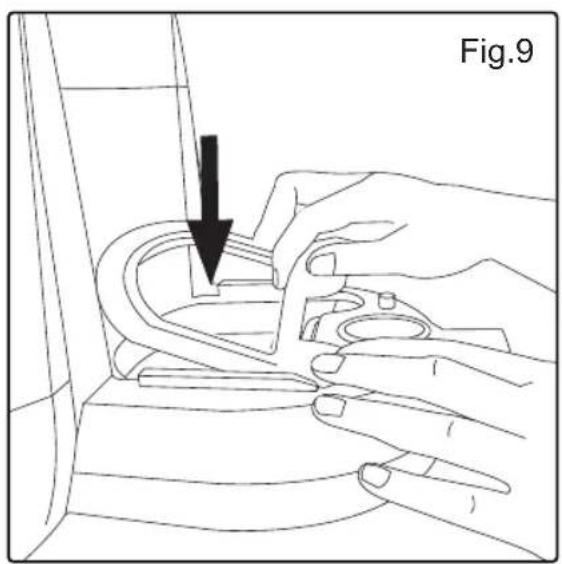

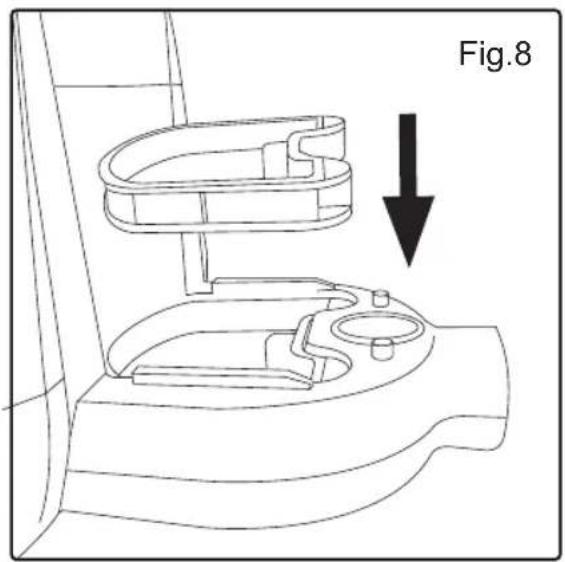

  Once they are completely dry place the filters in the anchor, to fix the filters it is important to place the fixation piece correctly: first it has to fit through the two points (Fig. 8) and press the other side until you hear two "clicks". (Fig.9)
  ♦ IMPORTANT: You can not replace the tank until the filter fixing part is not correctly placed.

Outlet filter:

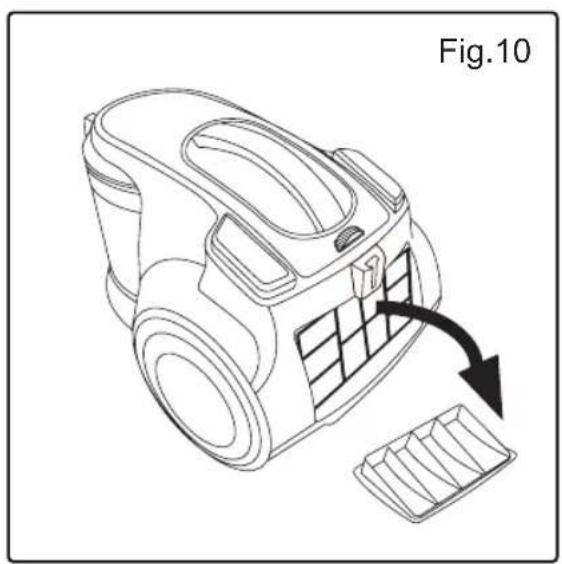

◆ Open the air outlet grille located on the back of the vacuum cleaner. To access the filter (Fig.10).

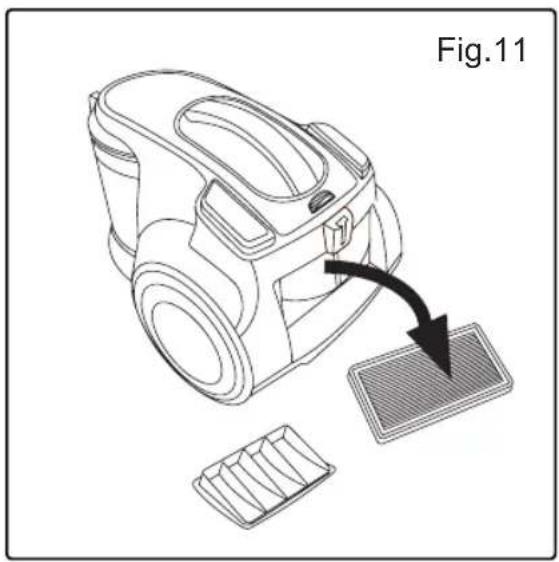

◆ Remove the filter (P) from its anchor (Fig 11).
♦ Turn the HEPA filter (P) over and shake it in the garbage can. If necessary, you can wash it under the tap with lukewarm water and let it dry 24 hours.
◆ Once they are completely dry, place the filters in the anchor.
◆ To assemble the filter, proceed in the opposite way to what was explained in the previous section

Supplies

◆ Supplies can be acquired from distributors and authorised establishments (such as filters, etc...) for your appliance model.
◆ Always use original supplies, designed specifically for your appliance model.
◆ These supplies are available in specialist shops.

Anomalies and repair

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.

ENGLISH

(Original instructions)

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.
- You can find the closest one by accessing the following web link: http://www.2helpu.com/.
- You can also request related information, by contacting us (see the last page of the manual).
- You can download this instruction manual and its updates at http://www.2helpu.com/.
