USER MANUAL PRGE0800 RIBIMEX

FR GROUPE ELECTROGENE

User and maintenance manual

Original instructions

IT GENERATORE DI BENZINA

Ref./Art. No: PRGE0800/605116

Imp. par / by: Ribimex S.A. - 56 Route de Paris - FR-77340 Pontault-Combault

Carefully read this instruction manual before operating this appliance. Incorrect operation may cause injury and/or damages. Please keep this manual for future reference.

Note: Non-contractual information and photos, which may be changed without prior notice. Actual product may differ from illustrative photos. Subject to technical changes and improvements.

ATTENZIONE:

EN - Original instructions

I. Parts List

III. Safety instructions

V. Operation

II. Characteristics

IV. Getting Started

VI. Maintenance and Storage

I. PARTS LIST See Figure

II. CHARACTERISTICS

Description		Gasoline Inverter Generator with Recoil Starter
Reference		PRGE0800 / 605116
Model / Type		BLD800C
Engine	Type	2-stroke gasoline OHV
	Cooling system	Forced air
	Cylinder arrangement	Inclined, single cylinder
	Displacement	63cm³
	Engine speed	3000/min
	Operation hours	5h at rated load. 6.6h for 2/3 load
	Fuel	Mixture 1 :40
	Fuel tank capacity	4L
	Ignition system	TCI
	Spark plug	LG F6RTC
	Sound power level	90 dB(A)
	Sound power level	Measured 88.5 dB(A) Guaranteed 90 dB(A)
AC Output	Rated voltage	230V
	Rated frequency	50Hz
	Rated current	3A
	Rated output	680W
	Maximum output	750W
	Safety device type	Electronic
Net weight	In Kg	18.5
Dimensions	(L×W×H) (mm)	430 x 353 x 348

III. SAFETY INSTRUCTIONS

Before using this product, carefully read this manual and familiarise yourself with its content and understand all safety instructions. Do not operate or service the product unless you clearly understand this manual. Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to yourself and other persons and/or animals. Keep the manual with the product or in a safe place, so that you can read it whenever you have a question about its use or servicing.

Safety notes and attention statements should always be observed.

3.1- Symbols

	Do not expose to weather conditions (ex.: storm, rain, snow ...) or moisture. Do not use during weather conditions.
	Caution! Risk of injury and/or damage and/or deterioration of product in case of non-compliance to safety requirements.
	Beware of electrical voltage
	Read the instructions manual. Make sure all users read the instructions. Keep this manual for future reference
	Wear protective equipment (face shield or goggles, ear protection) Your hearing is at risk of irreparable damage. Anyone operating this machine under conditions of conscious daily use may be exposed to a noise level equal to or exceeding 85 dB (A). The operator must wear Personal Protective Equipment (PPE). In order to protect the operator's hearing.
	Wear protective gloves and protective boots.
	Never operate this tool or any other power equipment if you are tired, ill, or under the influence of alcohol, drugs, or any substance that could affect your ability or judgement.
	Danger: Fire hazard! Fuel is inflammable. Do not spill!
	Keep away from naked flames and any other heat source. Do not smoke. Do not spill fuel. Never attempt to refill while the motor is running or hot!
	Warning! Hot surfaces! Do NOT touch, burn hazard. During operation and for a certain time after the machine has been switched off, cylinder, motor casing etc. will be hot. Do not touch them until they have cooled down. You risk getting burnt.
	Warning: Read the information on the manual. Use 2-stroke automotive lubricating oil.
	Never run the engine indoors. Make sure there is always good ventilation when operating the product. Fumes from engine exhaust contain carbon monoxide, which can cause serious injury or death.
	Sound power level.
	Do not dispose of this product with household rubbish. Dispose of this product in the nearest recycle centre. Please contact your local authority or local recycle centre for further information for its safe disposal.

3.2-GENERAL SAFETY INFORMATION

1. Keep work area clean

2. Cluttered areas invite accidents and injuries.

3. Consider work area environment

4. Do not expose product to rain or to humidity.

5. Do not use product in damp or wet locations, during weather conditions.
6. Keep work area well lit (natural light or sufficient artificial lighting).

7. Do not use product indoors.

8. Guard against electric shock

9. Avoid contact with electrical parts.

10. Keep children away

11. Do not let bystanders touch the product.

12. All bystanders (esp. children) should be kept away from product and work area.

13. Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the product.

14. Store idle product

15. When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

16. Do not force the product

17. It will do the job better and safer at the rate speed for which it is intended.

18. Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

19. Use the right product

20. Do not force small products or attachments to do the job of heavy-duty tools.

21. Dress properly

22. Do not wear loose clothing or jewellery; they can be caught in moving parts.

23. Wear protecting hair covering to contain long hair.

24. Use protective equipment

25. Wear protective equipment appropriate to working conditions and work environment

26. Wear protective helmet, safety goggles, ear mufflers, face or dust mask or breathing mask with proper filter, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

27. Do not overreach

28. Keep proper footing and balance at all times.

29. Do not work on unsecured scaffolding, ladders.

30. Maintain product with care

31. Keep product clean for better and safer performance.

32. Follow instructions for lubrication and changing accessories.
33. Keep handles dry, clean and free from oil and grease.

34. Ensure that ventilation slots are kept clean and free from dust at all times (to avoid product from overheating)

35. Switch off product when not in use, before servicing and when changing accessories.

36. Always be sure to include this manual when selling, lending or otherwise transferring the ownership of the product

37. Always keep the warning labels clean and nice at any time without any scratches or damages.

38. If warning seals peel off or become soiled and impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seals.

39. Please tear down the original soiled warning label before affixing a new one. Let the surface dry thoroughly and then affix the new label on the original position.

40. Stay alert

41. Watch what you are doing. Use common sense.

42. Never operate this machine or other power equipment if you are tired, ill, or under the influence of alcohol, drugs, or any other substance that could affect your ability of judgment.

43. Check damaged parts

44. Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

45. Defective switches or other part that is damaged should be properly repaired or replaced by an authorized service centre.

46. Do not use the product if the switch does not turn it on and off.

47. Warning

48. The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

49. The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

50. Have your product repaired by qualified personnel

51. Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorised service centre is recommended.

52. This product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

53. Remarks:

54. The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

55. The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

56. Note: For specific maintenance and safety information about this product, consult the user's manual provided with it. If it has been lost or misplaced, contact your local retailer for a replacement.

57. Important: The information contained in this instruction's manual describes components available at the time of publication. We reserve the right to make changes without prior notice and without obligation to make alterations to components previously manufactured.

3.3-WARNING! SPECIFIC SAFETY PRECAUTIONS

1. Never permit a person without training or instruction to operate this machine.

2. Make sure there is always good ventilation when operating the product.

3. Fumes from engine exhaust can cause serious injury or death.

4. Never run the engine indoors!

5. Please avoid running the engine in areas without good ventilation such as indoors, plastic green houses, tunnels, underground caves etc.
6. Make sure there are no missing or loose fasteners, and that the stop switch is working properly.
7. Stop the motor immediately if the product suddenly begins to vibrate or shake. Inspect for broken, missing or improperly installed parts or attachments.
8. Never smoke or light fires near the hedge trimmer. Keep the trimmer away from excessive heat. Engine fuel is very flammable and fire could lead to serious personal injury or property damage.
9. Make sure of no fuel leaking from Fuel tank, Fuel cap, Fuel pipe and Carburetor and other parts which fuel may leak. Repair the machine if fuel leaking, make sure no leaking again.
10. Don't get product close to inflammable materials such as ropes, dead leaves, waste paper and

oilcloth etc.

1. After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the product to a spot 3m or more away from where it was refueled before turning on the engine.

2. Refueling

3. Never store cans of fuel or refill the fuel tank in any place where is a boiler stove, wood fire, electrical sparks, welding sparks or any other source of heat or fire which might ignite the fuel.

4. Don't smoke when handling the fuel.

5. When refilling the tank, always turn off the engine first and take a careful look around to make sure that there are no sparks or open flames anywhere nearby before refueling.

6. If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills before turning the engine back on again.

7. Do not transport this unit on an uneven surface of the road for a long time when the fuel tank is full. This may cause fuel spillage after the tank cap is loosened as a result of bumping and impacting.

8. Before starting engine, keep children and animals out of the working area.
9. Never touch the muffler, spark plug and plug wire while the engine is in operation or immediately after stopping the engine. Doing so could result in electric shock and/or serious burns because of high temperature.
10. For safe operation, use caution and keep the children away from the spot where the engine is in operation.
11. The working temperature should be within 5^ and 40^ .

IV. GETTING STARTED

4.1- Unpacking

• Remove the product from its packaging.
• Check that tool and accessories are not damaged.

4.2-Assembly

The generator does not require any assembly prior to first time use.

4.3- Starting the engine

Warning! Before starting the engine, the generator must be grounded to discharge static electricity. Connect one end of a cable to the generator ground (Fig. 1) and the other end to an external ground (Fig. 2).

Fig. 1
Fig. 2

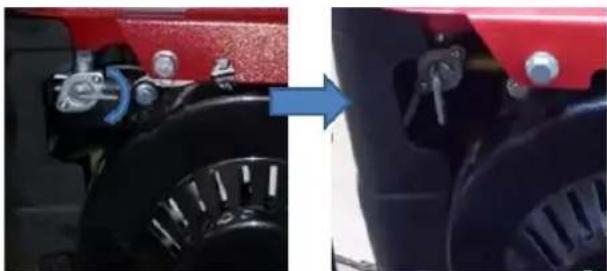

1. Open the petrol cock as illustrated in Fig. 3.

Fig. 3

1. Place the ON/OFF switch to ON (Fig. 4).

Fig. 4

1. Place the choke lever to position (Fig. 5).

Fig. 5

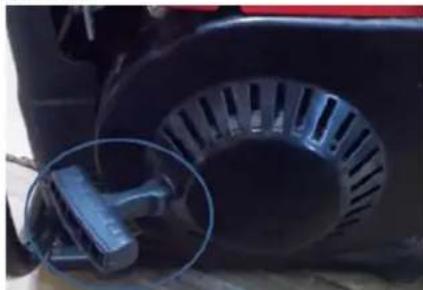

1. Gently pull the starter until you feel resistance and pull firmly (Fig. 6). Repeat the operation if the engine does not start the first time.

Fig. 6

1. Push gradually the choke lever back to initial position after the engine has started.
2. Plug your appliance into the socket provided.

4.4- Stopping the engine

1. Before turning off the generator, allow it to cool down by running with no appliances.

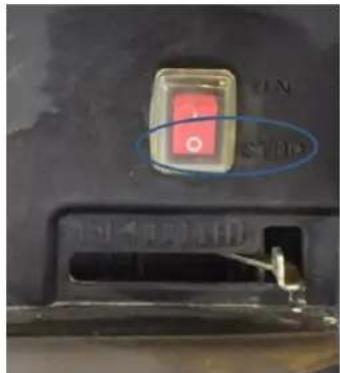

2. Place the ON/OFF switch to OFF position (Fig. 7).

Fig. 7

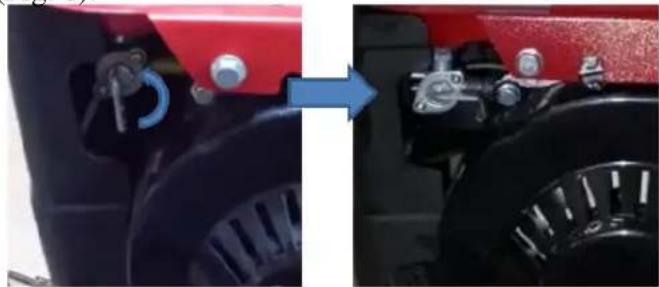

1. Close the petrol cock (Fig. 8).

Fig. 8

Overload cut-out protection system is built-in on the generator.

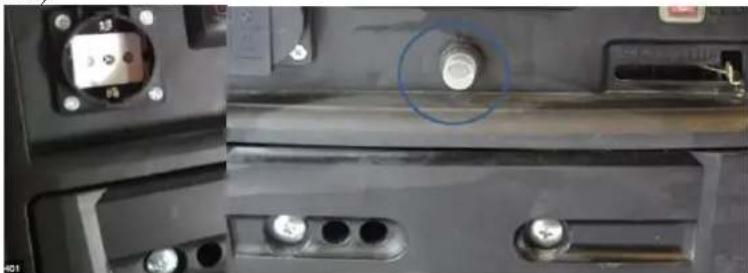

This shuts down the socket (Fig. 9). You can reactivate the socket (Fig. 9) by pressing the overload cut-out bottom (Fig. 10).

Fig.9
Fig. 10

In case of overload, reduce the electric power or disconnect some appliances from the generator.

V. OPERATION

This device is a generator intended to be used outdoors. Never use this generator indoors even if windows or doors are open.

VI. MAINTENANCE AND STORAGE

Before any intervention on product, ensure that switch is set on the OFF position and disconnected any devices.

Reminder: Make sure to maintain the machine in good working condition, carry out regular maintenance of the machine after each use and before storage. Any breach or default of adequate maintenance reduces the life of the machine and increases the risk of breakdowns and accidents. To preserve the security system throughout the life of the machine, it is important to perform maintenance and proper cleaning, DO NOT use non-compliant replacement parts and do NOT dismantle yourself the machine or change the security features.

6.1- Cleaning

Beware! Before to clean the generator, the generator must be POWER OFF and appliances must be disconnected.

1. Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
2. We recommend that you clean the device immediately each time you have finished using it.
3. Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

6.1.1- Air filter

1. The air filter must be cleaned after every 30 hours of use.

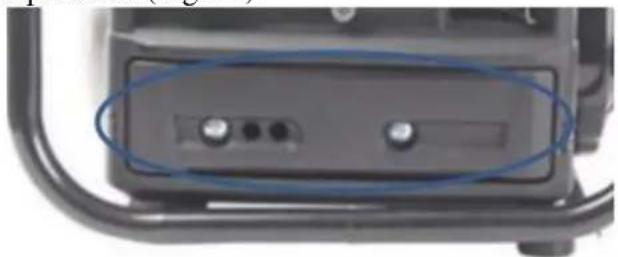

2. Unscrew the air filter compartment (Fig. 11).

Fig. 11

1. Remove the air filter (Fig. 12).

Fig. 12

1. Clean the filter with soapy water, rinse with water and dry thoroughly before reassembling.
2. Replace the air filter by following the steps above in the opposite direction.

6.1.2- Spark plug

Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean with a copper wire brush. After, the spark plug must be checked every 50 hours of operation.

1. Pull off the spark plug pod with a twist.
2. Remove the spark plug with the supplied spark plug wrench (Fig. 13).

Fig. 13

1. Replace the spark plug by following the steps above in the opposite direction.

6.2-Storage

Note! Failure to follow these recommendations may result in deposits on the inside wall of the accelerator, which in turn results in a difficult start or lasting damage to the machine.

1. Perform all maintenance work.
2. Run the fuel from the tank (using a fuel pump for example).
3. Once the fuel is empty, start the machine.
4. Allow the machine to run empty until it stops. This cleans the carburetor of any remaining fuel.
5. Cool the machine (about 5 minutes).
6. Remove the spark plug.
7. Clean the outer casing of the machine.
8. Store the machine in a cool, dry place out of reach of ignition sources and flammable substances.
9. Ideally, cover the machine to protect it from dust.

6.3- Disposal

When discarding the generator, drain it from the fuel and oil and be sure to follow local regulations. Do not throw in or with garbage.

6.4-Transportation

1. Use the handle for transporting the generator.
2. Transport the equipment only by carrying it by the handle.
3. Protect the equipment against unexpected knocks and vibrations.

6.5- Troubleshooting

Problem	Possible Cause	Solution
Egine does not work	Automatic oil cut-out has not responded No fuel	Check the oil level, top up with egine oil Refuel
Generator has too little or no voltage	Controller or capacitor defective Overcurrent circuit-breaker has triggered Air filter dirty	Contact your dealer Actuate the circuit-breaker and reduce the devices Clean or replace the filter

6.6- Information about the guarantee

The product is guaranteed in accordance with the legislation of the country of sale.

The guarantee starts from the date of purchase (subject to proof of purchase, ie. Sales receipt with purchase date)

The guarantee only covers defects in materials or workmanship.

Repairs (under the guarantee) can only be performed by an authorized service center.

When making a claim under the guarantee, the original sales receipt (with purchase date) must be submitted.

The guarantee does not apply in the following:

• Normal wears and tears (on the product itself or wear parts).
• Incorrect use, eg overloading of the device, use of non-approved accessories
• Abuse or damage to the product, and damage caused by external factors.
• Damage caused by non-compliance with the instructions and guidelines of the manual, e.g. connection to the wrong power source or non-compliance with instructions for assembly or installation.
• Partially or totally disassembled device.
• Partially or fully modified device with parts not recommended by the manufacturer

Special provisions:

A 6 months guarantee is given for rechargeable batteries.

In case of dispute or litigation concerning the product or guarantee, the Melun Commercial Court has exclusive jurisdiction.

Our warranty conditions are available from our STAV department [^*] and on our website.

Should you have any repair requests under the warranty, please contact your retailer or our STAV [^*] who will inform you on the procedure.

Should you have any parts and/or accessories request, you can contact our STAV [^*] to ask for the product exploded view by indicating our reference and the serial number or batch number appearing on the nameplate.

[^*]STAV = Technical and After-Sales Service department

STAV contact details: Ribimex, 56 Route de Paris, F-77340 Pontault-Combault.

Tel: [phone] (0,34€/min; only in France); email: [e-mail]

Internet Website: www.ribimex.com
